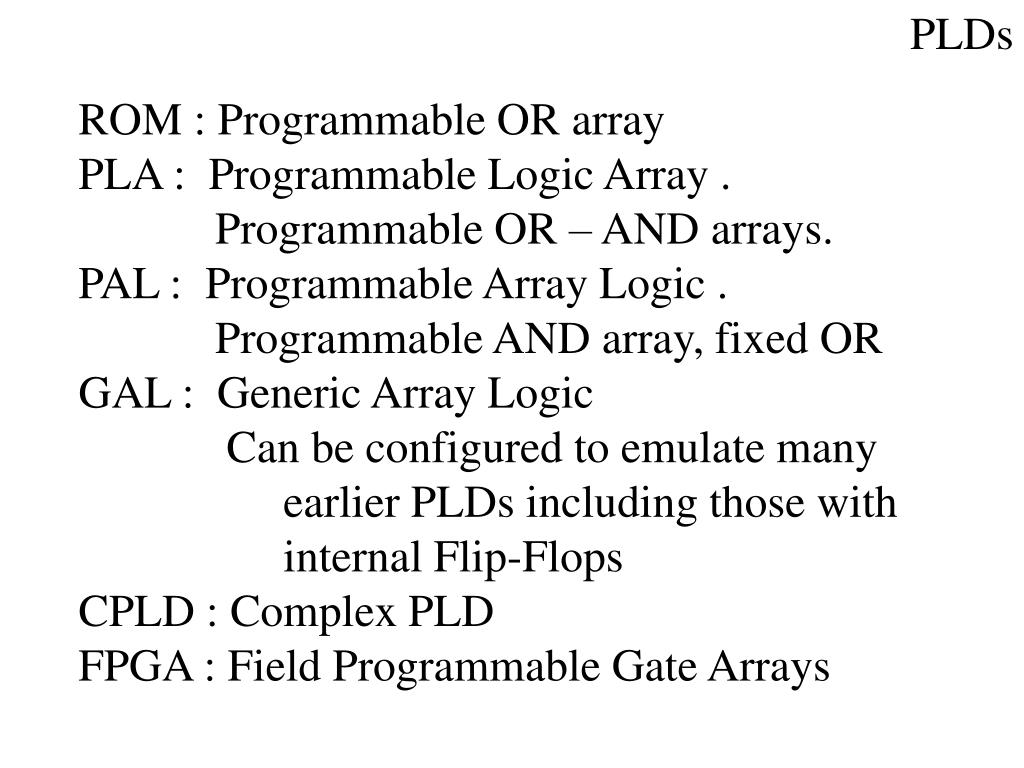

PLDs

ROM : Programmable OR array

PLA : Programmable Logic Array . Programmable OR – AND arrays.

PAL : Programmable Array Logic .

Programmable AND array, fixed OR

GAL : Generic Array Logic

Can be configured to emulate many earlier PLDs including those with internal Flip-Flops

CPLD : Complex PLD

FPGA : Field Programmable Gate Arrays


PLDs

ROM : Read Only Memories

Matrix of data that is accesded one row at a time

Internaly a ROM contains a decoder and a storage array.

Functionally the data array can be viewed as a programmable OR array.

Types:

Mask programmed ROM

Field programmable ROM – PROM

Erasable ROM – EPROM

Ellectrically programmable ROM - EEROM


PALs and PLAs

Pre-fabricated building block of many AND/OR gates (or NOR, NAND)

"Personalized" by making or breaking connections among the gates

Programmable Array Block Diagram for Sum of Products Form


PALs and PLAs

Key to Success: Shared Product Terms

Equations

F0 = A + B' C'

F1 = A C' + A B

F2 = B' C' + A B

F3 = B' C + A

Example:

Input Side:

1 = asserted in term

0 = negated in term

- = does not participate

Personality Matrix

Output Side:

1 = term connected to output

0 = no connection to output


PALs and PLAs

Example Continued

All possible connections are available

before programming


PALs and PLAs

Example Continued

Unwanted connections are "blown"

Note: some array structures

work by making connections

rather than breaking them


PALs and PLAs

Alternative representation for high fan-in structures

Short-hand notation

so we don't have to

draw all the wires!

Notation for implementing

F0 = A B + A' B'

F1 = C D' + C' D


PALs and PLAs

Design Example

Multiple functions of A, B, C

F1 = A B C

F2 = A + B + C

F3 = A B C

F4 = A + B + C

F5 = A xor B xor C

F6 = A xnor B xnor C


PALs and PLAs

What is difference between Programmable Array Logic (PAL) and

Programmable Logic Array (PLA)?

PAL concept — implemented by Monolithic Memories

constrained topology of the OR Array

A given column of the OR array

has access to only a subset of

the possible product terms

PLA concept — generalized topologies in AND and OR planes

The main advantage of the PAL over the Pla and the ROM is that it is faster


PALs and PLAs

Design Example: BCD to Gray Code Converter

Truth Table

K-maps

Minimized Functions:

W = A + B D + B C

X = B C'

Y = B + C

Z = A'B'C'D + B C D + A D' + B' C D'


PALs and PLAs

Programmed PAL:

4 product terms per each OR gate


PALs and PLAs

Code Converter Discrete Gate Implementation

4 SSI Packages vs. 1 PLA/PAL Package!


PALs and PLAs

Another Example: Magnitude Comparator


PALs and PLAs

EXAMPLES

Typical First Generation PAL : 16L8

10 input, 2 complemented output, 6 I/O pins

Programmable (one AND term) 3- state outputs

Seven product terms per output

20 pin chip

GAL 16V8C and 20V8C ( 20 pins and 24 pins)

10 input (14 for 20V8)

Programmable (one AND term) 3-state outputs

Seven or eigth product terms per output

Programmable output polarity

Three combinational ouputs configurations: Bidir I/O , dedicated output , dedicated input.

GAL 22V10C

24 pin chip, 12 input terminals and 10 I/O terminals

Two of the outputs can have up to 8 product terms, two have 10, two have 12, two have 14 and two have 16,

not counting the ouput buffer control.

Combinational configurations.


Combinational Logic Word Problems

BCD to 7 Segment Display Controller

Understanding the problem:

input is a 4 bit bcd digit

output is the control signals for the display

4 inputs A, B, C, D

7 outputs C0 — C6

Block Diagram


BCD to 7 Segment Display Controller

C0 = A + B D + C + B' D'

C1 = A + C' D' + C D + B'

C2 = A + B + C' + D

C3 = B' D' + C D' + B C' D + B' C

C4 = B' D' + C D

C5 = A + C' D' + B D' + B C'

C6 = A + C D' + B C' + B' C

14 Unique Product Terms


BCD to 7 Segment

Display Controller

16H8PAL

Can Implement

the function


BCD to 7 Segment

Display Controller

14H8PAL

Cannot Implement

the function



BCD to7 Segment Display Controller

Multilevel Implementation

X = C' + D'

Y = B' C'

C0 = C3 + A' B X' + A D Y

C1 = Y + A' C5' + C' D' C6

C2 = C5 + A' B' D + A' C D

C3 = C4 + B D C5 + A' B' X'

C4 = D' Y + A' C D'

C5 = C' C4 + A Y + A' B X

C6 = A C4 + C C5 + C4' C5 + A' B' C

52 literals

33 gates

Ineffective use of don't cares


Implementation Strategies

More Advanced PAL Architectures

Registered PAL Architecture

Buffered Input

or product term

Negative Logic

Feedback

D2 = Q2 • Q0 + Q2 • Q0

D1 = X • Q2 • Q1 • Q0 + X • Q2 + X • Q0 + Q2 • Q0 + Q1 • Q0

D0 = Q0

Z = X • Q1 + X • Q1


Implementation Strategies

Advanced PAL Architectures

Programmable Output Polarity/XOR PALs

Buried Registers: decouple

FF from the output pin

Advantage of XOR PALs: Parity and Arithmetic Operations


Implementation Strategies

Example of XOR PAL

Example of Registered PAL


Implementation Strategies

FSM Design with More Sophisticated PLDs

CPLDs

Increasing the size of a conventional PAL or GAL is not an

effective way to increase complexity.

Several PALs on one chip.

Xilinx 9500-series : PLDs have 18 output macrocells,

CPLDs have from 2 to 16 PLDs

Packages have from 44 to 352 pins

Programmable Logic Devices = PLD

PALs, PLAs = 10 - 100 Gate Equivalents

Field Programmable Gate Arrays = FPGAs (CLB:Configurable Logic Block)

• Altera MAX Family

• Actel Programmable Gate Array

• Xilinx Logical Cell Array

100 - 1000(s) of Gate Equivalents!


Implementation Strategies

Design with More Sophisticated PLDs

Altera EPLD (Erasable Programmable Logic Devices)

Historical Perspective:

PALs – same technology as programmed once bipolar PROM

EPLDs — CMOS erasable programmable ROM (EPROM)

erased by UV light

Altera building block = MACROCELL

8 Product Term

AND-OR Array

+

Programmable

MUX's

I/O Pin

Seq. Logic

Block

Programmable polarity

Programmable feedback


Implementation Strategies

Design with More Sophisticated PLDs

Altera EPLDs contain 8 to 48 independently programmed macrocells

Personalized by EPROM bits:

Flipflop controlled

by global clock signal

local signal computes

output enable

Flipflop controlled

by locally generated

clock signal

+ Seq Logic: could be D, T positive or negative edge triggered

+ product term to implement clear function


Implementation Strategies

Design with More Sophisticated PLDs

AND-OR structures are relatively limited

Cannot share signals/product terms among macrocells

Altera solution: Multiple Array Matrix (MAX)

Logic

Array

Blocks

(similar to

macrocells)

Global Routing:

Programmable

Interconnect

Array

EPM5128:

8 Fixed Inputs

52 I/O Pins

8 LABs

16 Macrocells/LAB

32 Expanders/LAB


Implementation Strategies

Design with More Sophisticated PLDs

LAB Architecture

Expander Terms shared among all

macrocells within the LAB
