  1. CEAC @-PAD Reference Design AUG,2010

  2. 目录 一、@-PAD市场定位 二、@-PAD产品设计 1、@-PAD系统框架 2、Roadmap 3、i.MX51 Key Advantages 4、i.MX51 Applications Processor 5、BSP design 三、@-PAD用户体验 四、Q & A

  3. What is Smartbook? • Portability、Smaller • More display area than a smartphone • All Day Battery Life • Touchscreen plane • Android OS • Wireless Internet • Rich Application

  4. What is Smartbook? α-PAD Note/netbook Phone/Smartphone • WIFI supported • 3G supported • BT supported • GPS supported

  5. Smartbook = Best of Two Worlds? α-PAD Note/netbook Phone/Smartphone Can Smartbooks bring back innovationand excitementto the computing industry

  6. Why SmartBook hot now? • Open tide Android OS • Mobile Environment Wireless Cloud • Powerful CPU Arm Cortex A8/A9 • Thanks for Apple Demand Creation • Cheaper $100 Computer not dream • Real time use No wait boot long time

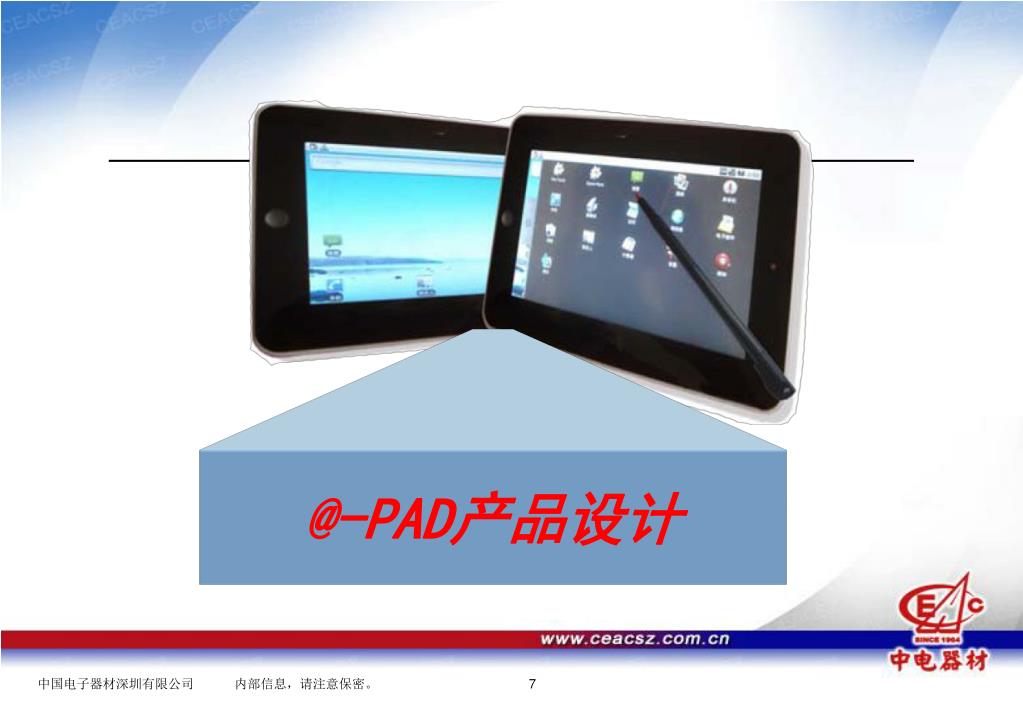

  7. @-PAD产品设计

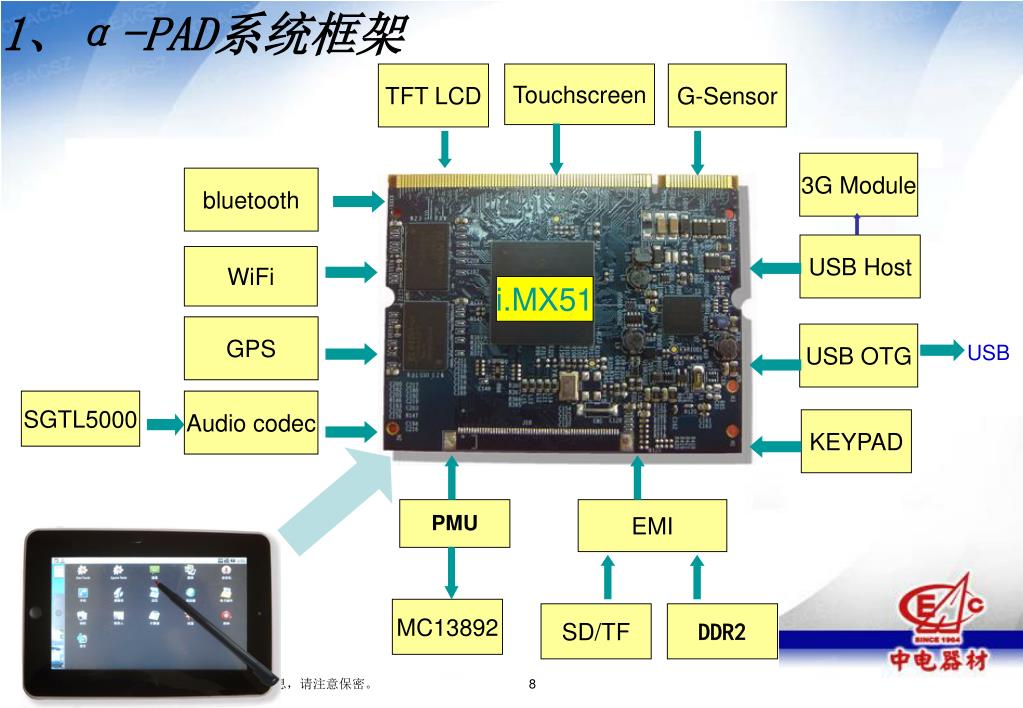

  8. 1、α-PAD系统框架 TFT LCD Touchscreen G-Sensor 3G Module bluetooth USB Host WiFi i.MX51 GPS USB OTG USB SGTL5000 Audio codec KEYPAD PMU EMI MC13892 SD/TF DDR2

  9. 为什么选择FreeScale i.MX51 系列 • 持续的发展的战略 • 先进的内核效率，高效的Mips比值 • 高性能的整合 • Freescale 对Android系统的持续投入，快速跟踪Android升级，目前已可支持2.2 • 以强大的软硬件为基础，提供优异的用户体验对于现阶段SmartBook市场推广至关重要

  10. 2、i.MX General Embedded Roadmap

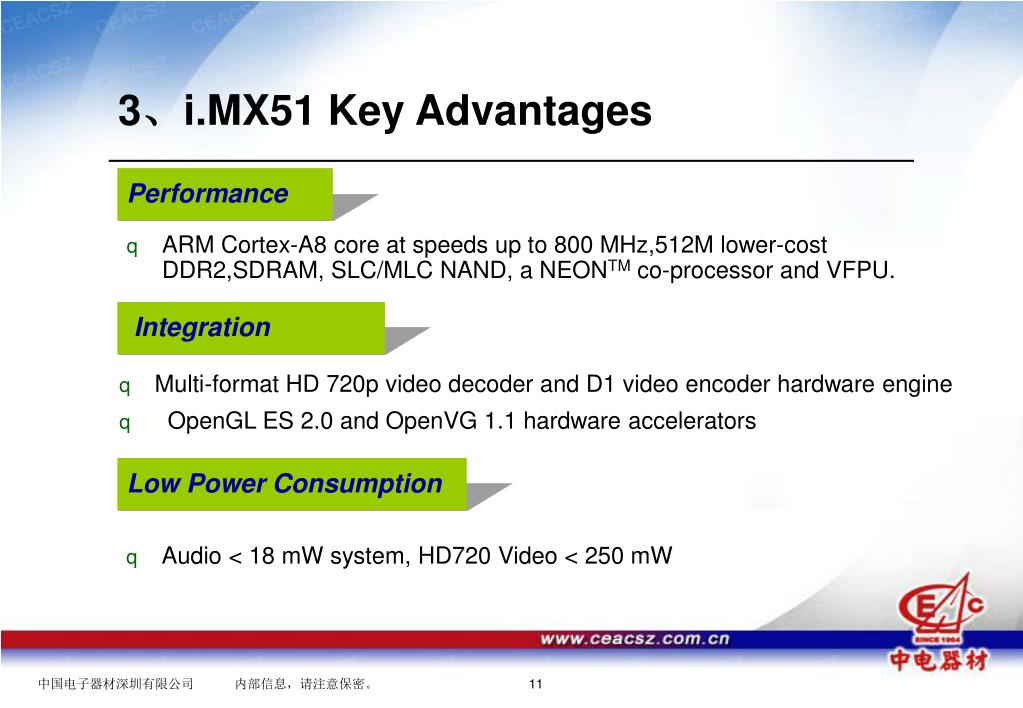

  11. 3、i.MX51 Key Advantages Performance • ARM Cortex-A8 core at speeds up to 800 MHz,512M lower-cost DDR2,SDRAM, SLC/MLC NAND, a NEONTM co-processor and VFPU. Integration • Multi-format HD 720p video decoder and D1 video encoder hardware engine • OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators Low Power Consumption • Audio < 18 mW system, HD720 Video < 250 mW

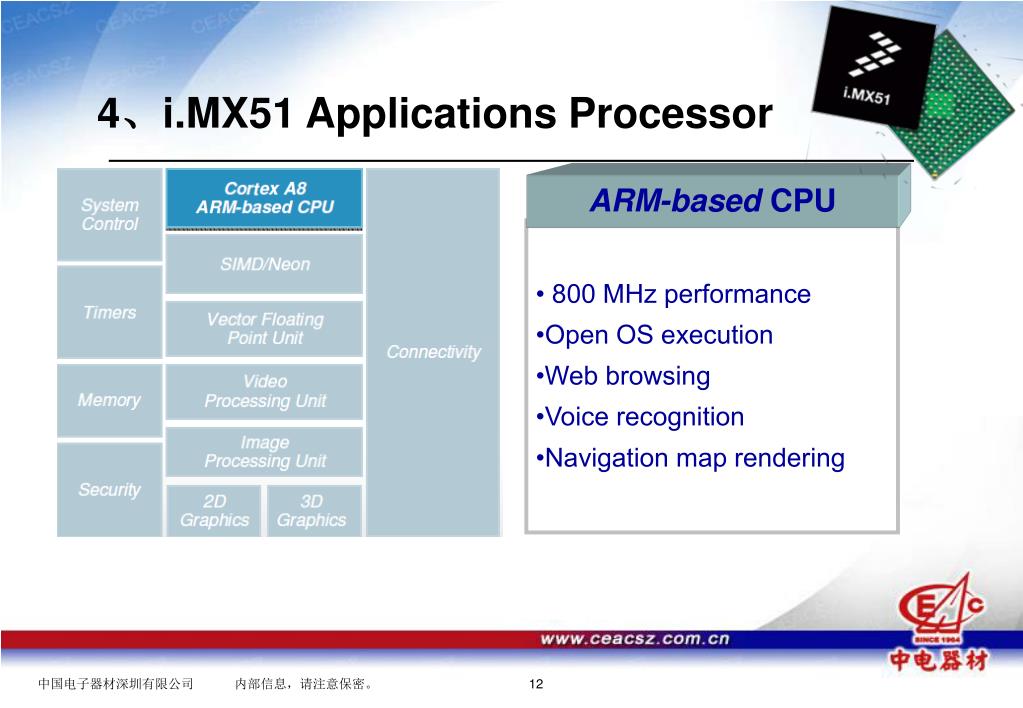

  12. 4、i.MX51 Applications Processor ARM-based CPU • 800 MHz performance •Open OS execution •Web browsing •Voice recognition •Navigation map rendering

  13. 4、i.MX51 Applications Processor Video Processing Unit •Multi-standard video playback/record •Video telephony •Video transcoding •You Tube, Skype, Hulu SIMD/NEON

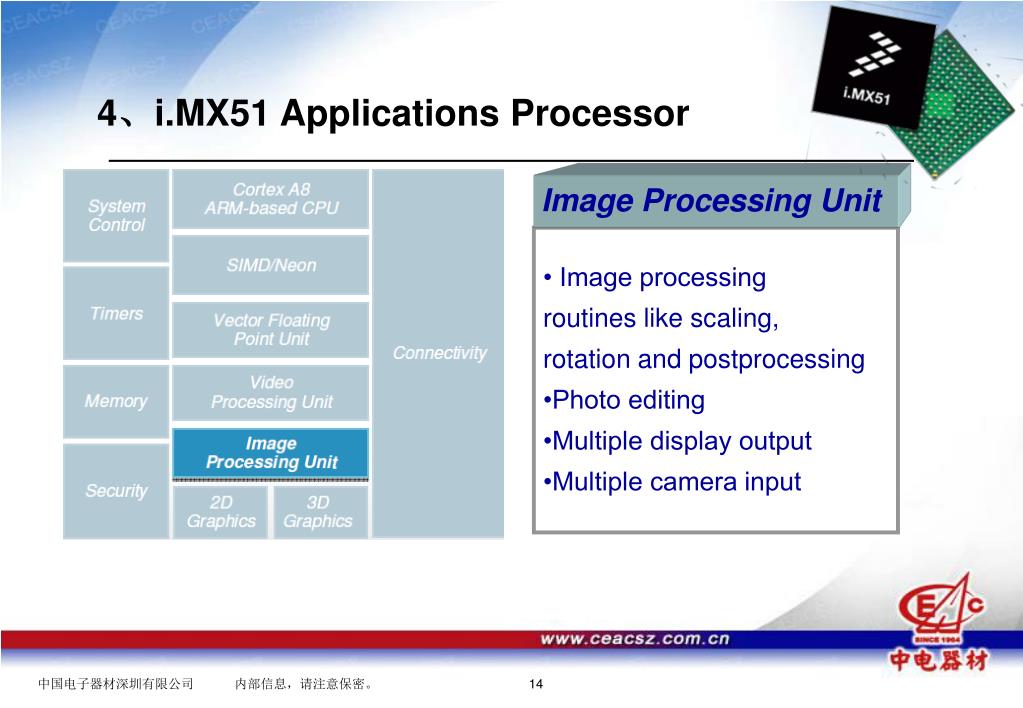

  14. 4、i.MX51 Applications Processor Image Processing Unit • Image processing routines like scaling, rotation and postprocessing •Photo editing •Multiple display output •Multiple camera input SIMD/NEON

  15. 4、i.MX51 Applications Processor 2D Graphics •Open VG support •VG accelerated web browsing (both Flash lite/ silverlight and page render) •Map display with both 3D and VG views •Enhanced Music and album visualization •X window system acceleration •Ebook PDF SIMD/NEON

  16. 4、i.MX51 Applications Processor 3D Graphics •OpenGL ES support •Advanced UI •Flash 10 acceleration • 3D navigation •Gaming •Excellent Youtube experience

  17. @-Pad 配置 • CPU 内核：ARM Cortex A8 • 主频：800 MHz • DDR2:512M • 缓存：32K的指令缓存和数据缓存以及256K的二级缓存 • 存储设备：4G/8G • 7”WVGA、LCD分辨率：800x480 • 集成硬件3D和2D图形加速：OpenGL ES 2.0和OpenVG 1.1 • 高清视频，集成720P硬件视频解码(H.264,H.263,VC-1,MPEG4 , MPEG2, DivX) • 支持WiFi,蓝牙,3G • 丰富的扩展接口：提供USB2.0接口 ,TF卡接口 • 低功耗，电池续航能力强

  18. 5、 System design Android Market Application Android OS Kernel MiddleWare RAMDisk U-Boot BSP设计 PCB LayOut 硬件设计 电路原理图

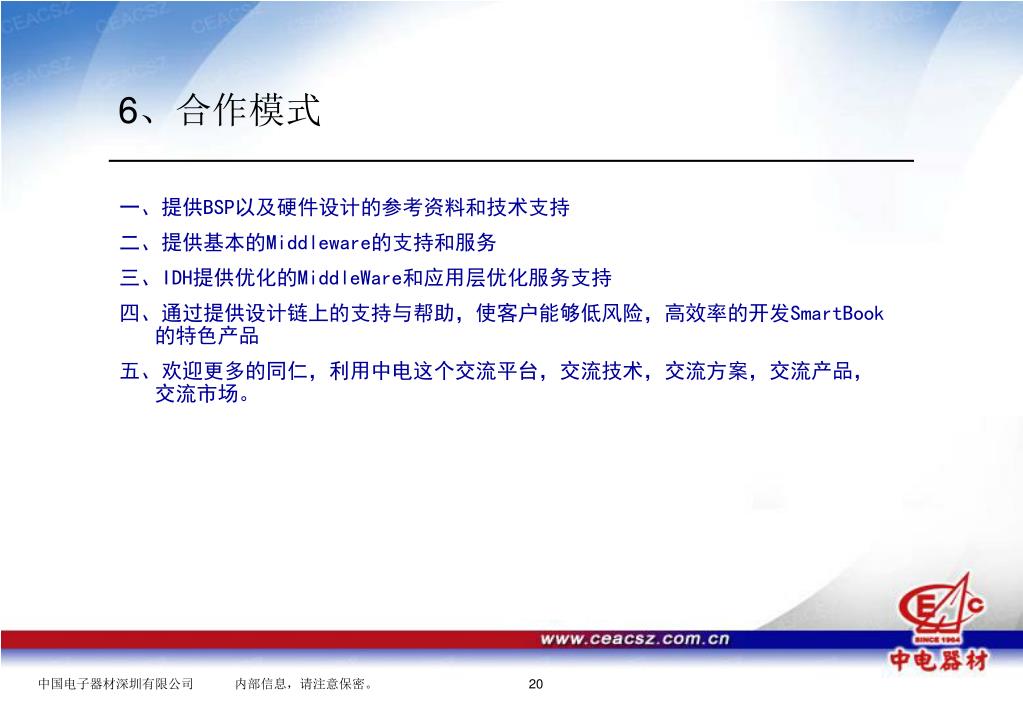

  19. 6、合作模式 一、提供BSP以及硬件设计的参考资料和技术支持 二、提供基本的Middleware的支持和服务 三、IDH提供优化的MiddleWare和应用层优化服务支持 四、通过提供设计链上的支持与帮助，使客户能够低风险，高效率的开发SmartBook的特色产品 五、欢迎更多的同仁，利用中电这个交流平台，交流技术，交流方案，交流产品，交流市场。

  20. 目录 一、@-PAD市场定位 二、@-PAD产品设计 1、@-PAD系统框架 2、Roadmap 3、i.MX51 Key Advantages 4、i.MX51 Applications Processor 5、BSP design 三、@-PAD用户体验 四、Q & A

  21. @-PAD用户体验 • 电影 • 高安全的用户交易平台 • 通讯 • 随时随地与亲朋好友联系

  22. α-PAD用户体验 • 游戏娱乐 • 具有游戏动作感应 • 远程监控 • 新闻，证券业务 • GoogleMap 导航 • 实现智能平台的常用功能

  23. 目录 一、@-PAD市场定位 二、@-PAD产品设计 1、@-PAD系统框架 2、Roadmap 3、i.MX51 Key Advantages 4、i.MX51 Applications Processor 5、BSP design 三、@-PAD用户体验 四、Q & A

  24. Q&A
