Micromouse Meeting #4Lecture #3Sensors

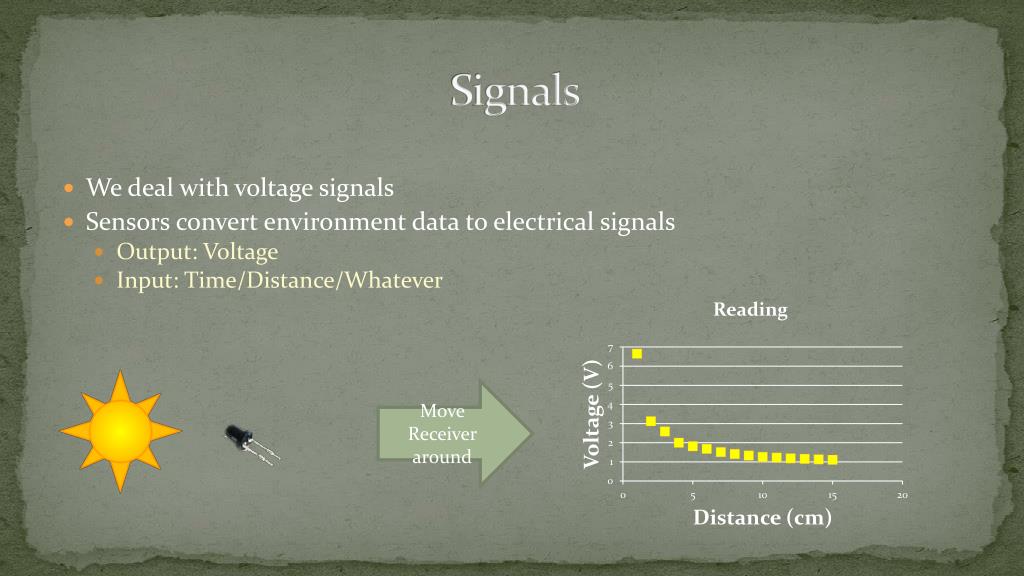

Signals

Signals

  • We deal with voltage signals

  • Sensors convert environment data to electrical signals

    • Output: Voltage

    • Input: Time/Distance/Whatever

Move Receiver around

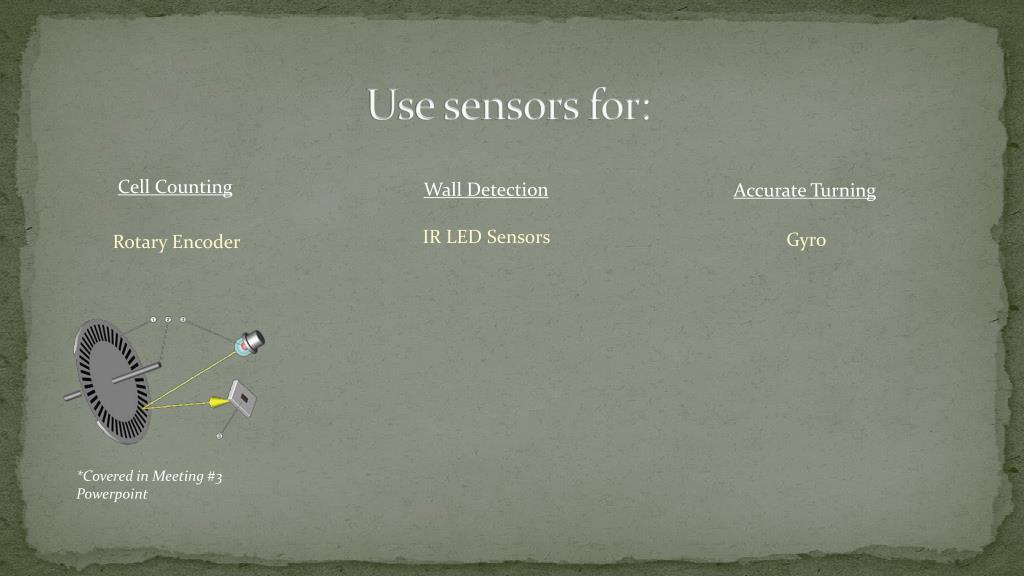

Use sensors for

Use sensors for:

Cell Counting

Wall Detection

Accurate Turning

IR LED Sensors

Gyro

Rotary Encoder

*Covered in Meeting #3 Powerpoint

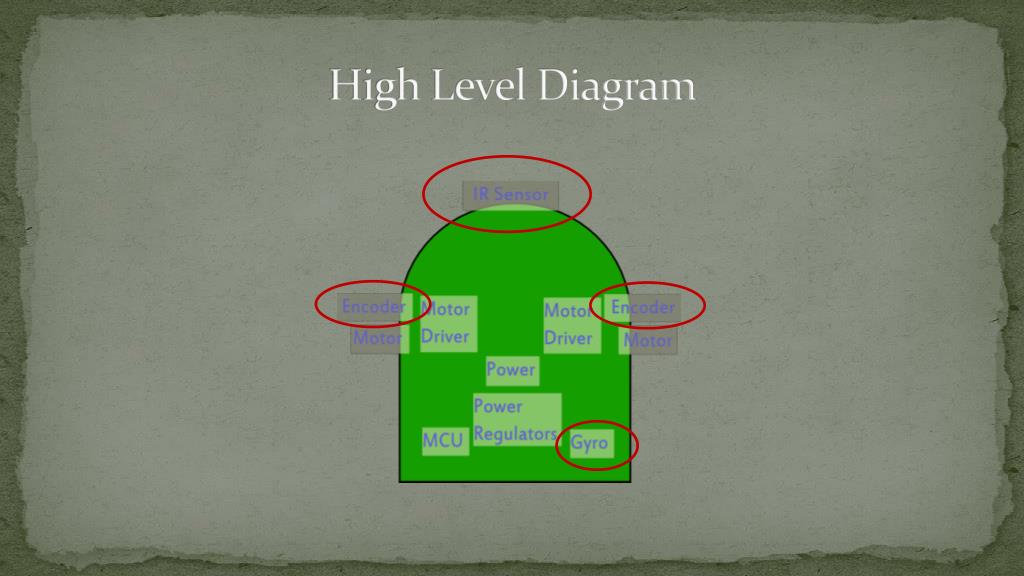

High level diagram

High Level Diagram


Rotary encoder

Rotary Encoder

*Covered in Meeting #3 Powerpoint

  • Used to measure distance traveled

  • Two major flavors

    • LED emitter/receiver pair with optically marked disk

    • Hall effect sensor with magnetically marked disk


Infrared led sensors

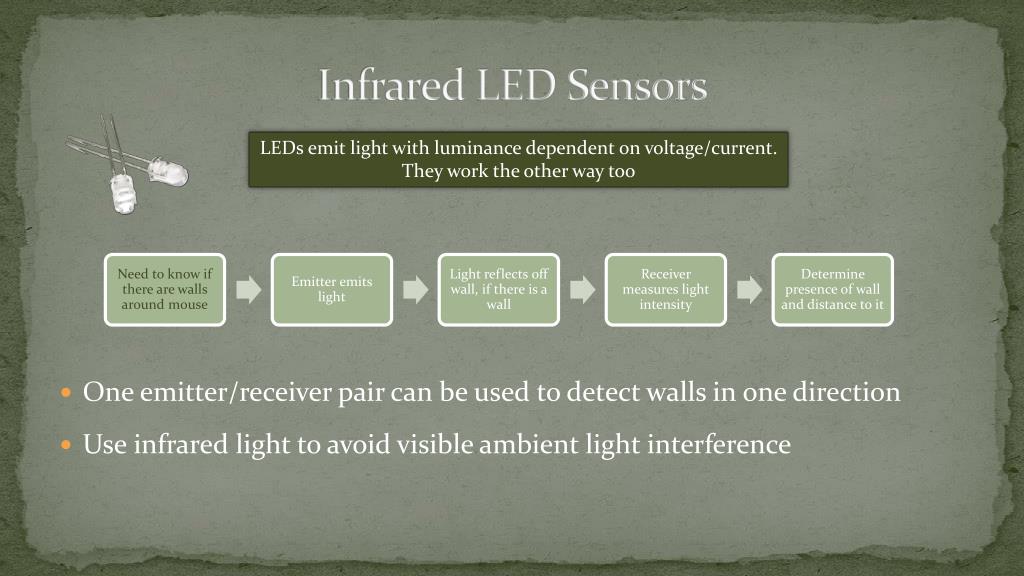

Infrared LED Sensors

  • One emitter/receiver pair can be used to detect walls in one direction

  • Use infrared light to avoid visible ambient light interference

LEDs emit light with luminance dependent on voltage/current.

They work the other way too


Receiver types

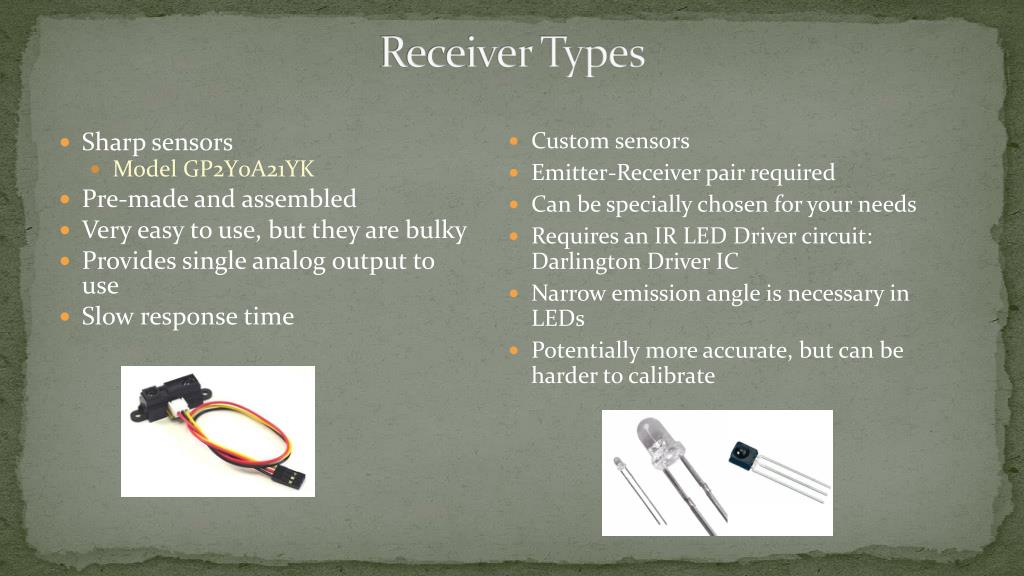

Receiver Types

  • Custom sensors

  • Emitter-Receiver pair required

  • Can be specially chosen for your needs

  • Requires an IR LED Driver circuit: Darlington Driver IC

  • Narrow emission angle is necessary in LEDs

  • Potentially more accurate, but can be harder to calibrate

  • Sharp sensors

    • Model GP2Y0A21YK

  • Pre-made and assembled

  • Very easy to use, but they are bulky

  • Provides single analog output to use

  • Slow response time


Choosing led emitters receivers

Choosing LED Emitters/Receivers

Two Important Characteristics:

How sharp of an angle the LED emits light at

How brightly the LED emits


Choosing a led emitter

Choosing a LED Emitter

Look for narrow emission angle

  • Maximizes power efficiency

  • Maximizes signal amplitude received by the receiver

    Also indicated by “viewing angle”

This angle should be small

Power Density

  • Measures light intensity/solid angle

  • In data sheets, often measure in mW/sr

  • Higher means more light emitter/better

  • Check datasheet for directivity graphs, which show intensity vs. angle


Choosing a led receiver

Choosing a LED Receiver

  • Match emitter wavelength with the receiver’s most sensitive wavelength

  • Receivers also have directivity – minimize this

    • Reduces interference from other IR light sources

    • Most common wavelengths are 850 nm and 950 nm

  • Check datasheets for this information

This receiver is most sensitive to 950 nm light

This emitter emits most at 940 nm

IR LED emitters and receivers are often sold together and are wavelength-matched already

Receivers also have directivity – Look for narrow ellipses


Led emitter receiver

LED Emitter/Receiver

  • Need at least 3 pairs to detect walls in front and sides

  • 4 or more is recommended for calibration

    • 2 to detect side walls

    • 2 pointing front to detect front walls and front wall alignment

      • Used to straighten the mouse

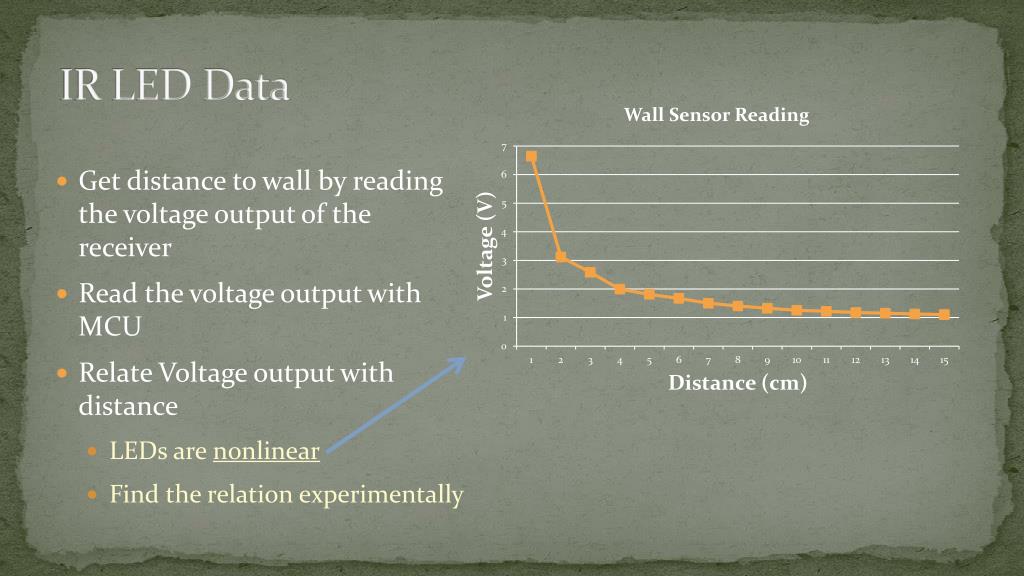

Ir led data

IR LED Data

  • Get distance to wall by reading the voltage output of the receiver

  • Read the voltage output with MCU

  • Relate Voltage output with distance

    • LEDs are nonlinear

    • Find the relation experimentally


Gyroscope

Gyroscope

  • Optional, but highly recommended

    • Encoders can be used to measure angular velocity instead

    • But they are less accurate and susceptible to wheels slipping

  • Used to measure rotation of the mouse

  • Needs stable power source

    • Otherwise, lots of noise generated

Gyros output angular velocity about a axis

SMD on breakout board style

SMD style


Choosing a gyro

Choosing a Gyro

Only need to measure one axis

  • Analog or digital output: MCU can handle either

  • Most important characteristic: Range

    • Typically measured in degrees/second

    • What range you need depends on how fast your mouse spins

      • +- 1000 degrees/second is plenty


Gyro data

Gyro Data

  • Analog output:

    • When not turning, voltage is half of maximum

    • Turning clockwise/counterclockwise will change the output positively/negatively, depending on specific gyro

  • Digital output:

    • Uses a serial scheme such as I2C or SPI

    • Same output as analog output, but numbers are encoded digitally (bits)

For this analog gyro:

Turning counterclockwise decreases voltage

Turning clockwise increases voltage


Gyro data processing

Gyro Data Processing

  • Gyros measure angular velocity

    • Integrate angular velocity to get angular position (which is more useful to know)

    • Gyro output is recorded as discrete samples, so the integration is a summation

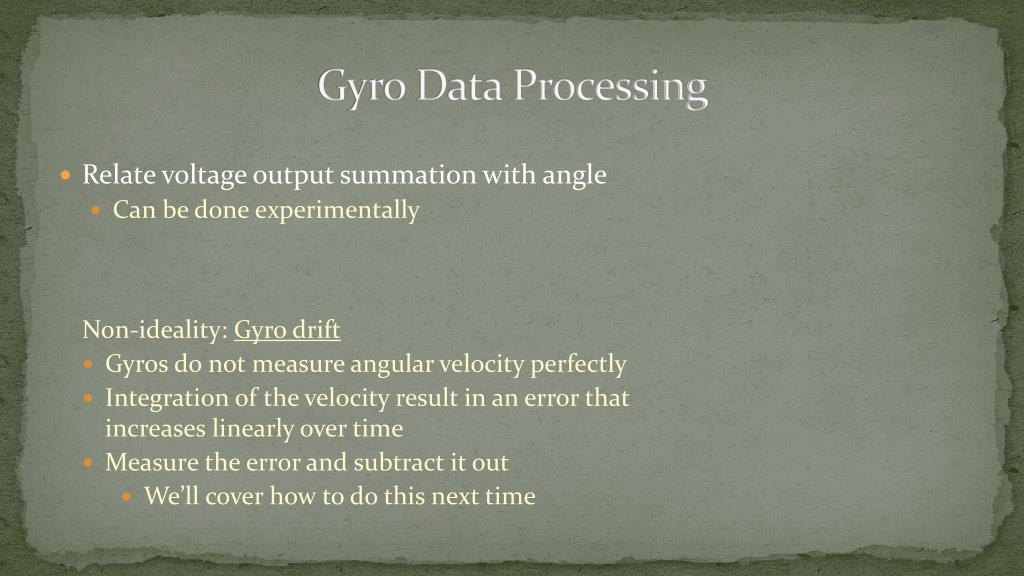

Gyro data processing1

Gyro Data Processing

  • Relate voltage output summation with angle

    • Can be done experimentally

  • Non-ideality:Gyro drift

  • Gyros do not measure angular velocity perfectly

  • Integration of the velocity result in an error that increases linearly over time

  • Measure the error and subtract it out

    • We’ll cover how to do this next time


Future things

Future Things

  • Algorithms!

  • EAGLE tutorial next week

    • Learn how to design printed circuit boards in EAGLE

    • Hosted by our Projects Manager Julian Brown

    • Nov. 14, 6 PM, location TBD
