Presentation Transcript
slide1

B.N. Bershad, T.E. Anderson, E.D. Lazowska and H.M. LevyLightweight Remote Procedure CallACM Transactions on Computer Systems, Vol.8, No.1, February 1990, 37-55

Lanfranco Muzi

PSU – April 21th, 2005

presentation outline
Presentation outline
  • What is LRPC?
  • O.S. communication – most common case
  • LRPC execution model
  • Performance of LRPC
  • Conclusions
what is lrpc
What is LRPC?
  • A communication facility designed and optimized for communication between protection domains in the same machine
  • Target: small-kernel operating systems
    • separate components placed in disjoint domains
    • messages used for interdomain communication
o s communication the common case cross domain vs cross machine
O.S. communication - the common caseCross-domain vs cross-machine

Vast majority of calls do not cross machine boundaries

o s communication the common case size and complexity of calls

~70%

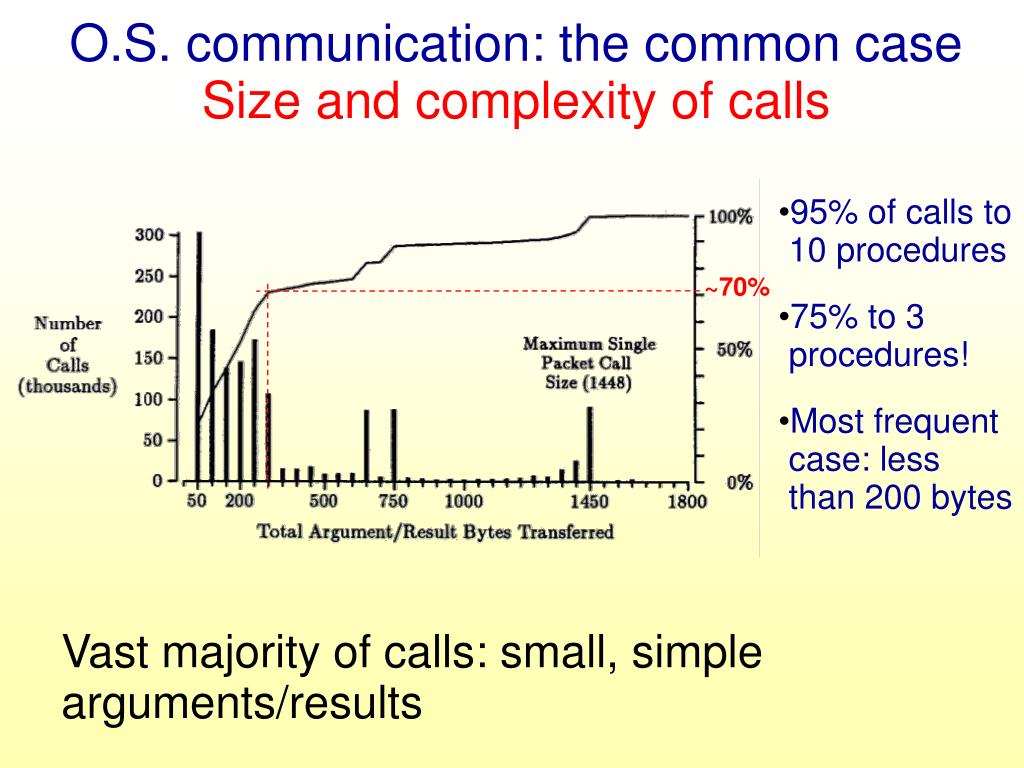

O.S. communication: the common caseSize and complexity of calls
  • 95% of calls to 10 procedures
  • 75% to 3 procedures!
  • Most frequent case: less than 200 bytes

Vast majority of calls: small, simple arguments/results

o s communication the common case performance i
O.S. communication: the common casePerformance (I)

“In existing RPC systems, cross-domain calls are implemented in terms of the facilities required by cross-machine ones”

o s communication the common case performance ii
O.S. communication: the common casePerformance (II)
  • “Theoretical minimum”: 2 traps and 2 context switches
  • Overhead: stub, message buffer, access validation, message transfer (queues), scheduling (independent threads), context switches…
lrpc execution model
LRPC execution model
  • Client binds to server before making first call
  • Call causes kernel trap
  • Kernel: validate caller, create linkage, dispatch client’s thread to server
  • Thread executes in server
  • Control (and thread) back to kernel and caller
binding 1
Binding - 1
  • Different from RPC
  • “Import” call from client via kernel
  • Server provides Procedure Descriptor List, used by kernel to allocate A-stacks and create linkage record
  • At completion, kernel returns to client a Binding object and A-stack list
binding 2
Binding - 2

A-stack:

Read-write and shared by both domains

Linkage record:

Records caller’s return address + current SP

Binding object:

Client’s key to interface (must be presented to kernel at every call)

calling

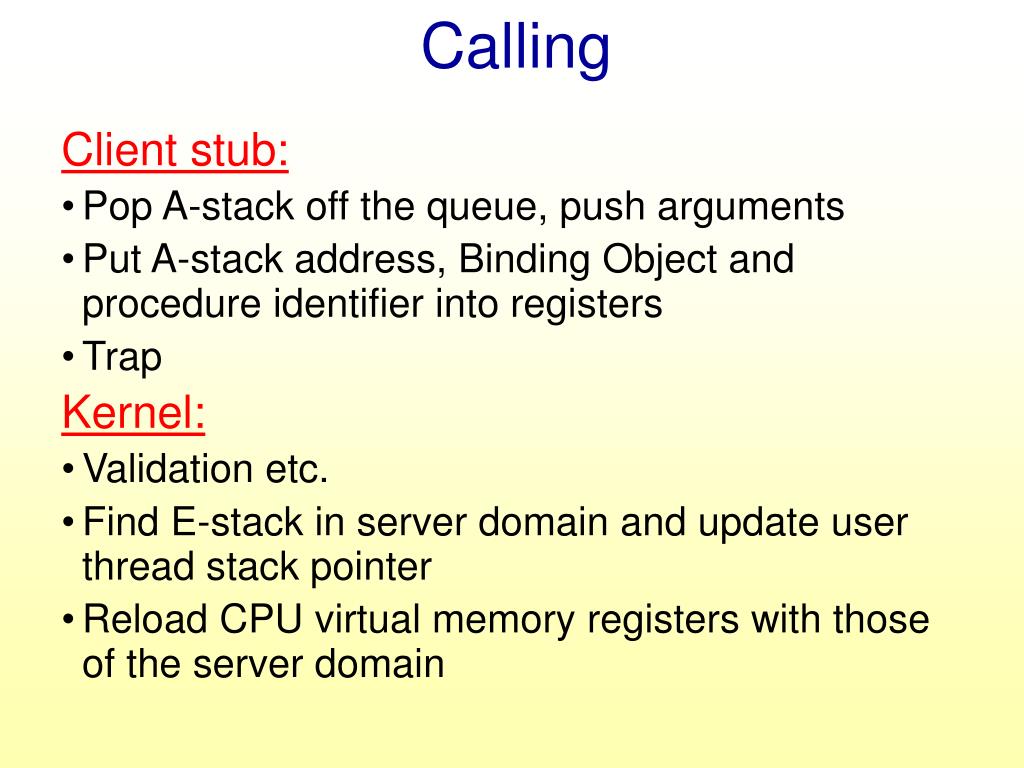

Calling

Client stub:

  • Pop A-stack off the queue, push arguments
  • Put A-stack address, Binding Object and procedure identifier into registers
  • Trap

Kernel:

  • Validation etc.
  • Find E-stack in server domain and update user thread stack pointer
  • Reload CPU virtual memory registers with those of the server domain
optimization 1 argument copying

A-stack

Optimization 1Argument copying

RPC

LRPC

A-stack: Read-write and shared by both domains

optimization 2
Optimization 2
  • Stub: choice between cross-domain or –machine in 1st line
  • Validation: only on call (linkage is in thread’s control block on return)
  • Scheduling in RPC: different threads in each domain signalling at each other (block client, dispatch in server…)
optimization 3
Optimization 3

Multiprocessors:

  • Reduced lock contention: each A-queue has its own lock – no other locking required
  • Reduced context-switch overhead: Domain caching on idle processors – move to idle CPU avoiding context switch
performance of lrpc 1

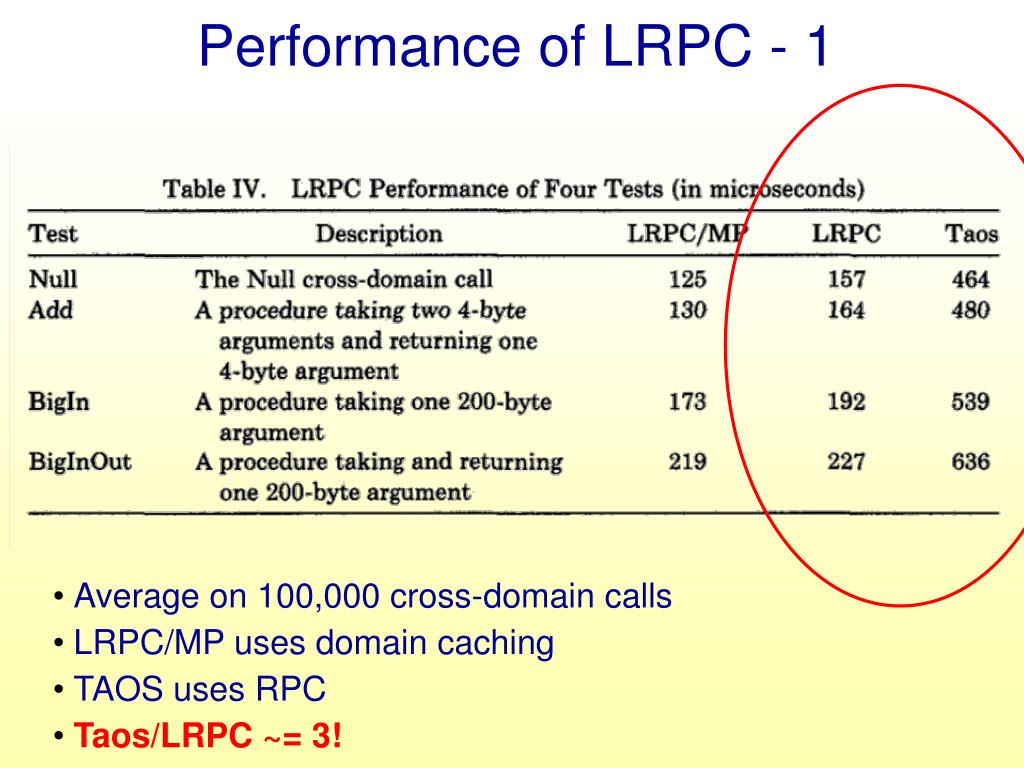

Performance of LRPC - 1
  • Average on 100,000 cross-domain calls
  • LRPC/MP uses domain caching
  • TAOS uses RPC
  • Taos/LRPC ~= 3!
performance of lrpc 2
Performance of LRPC - 2
  • The “context switches” cost is what domain caching helps reduce
  • Single processor: LRPC adds only 48ms
performance of lrpc 3
Performance of LRPC - 3

Call throughput on a multiprocessor

  • Domain caching disabled
  • RPC scales poorly due to lock contention, which is very limited in LRPC
conclusions
Conclusions
  • LRPC adopts an optimized approach to the most common case in O.S. communication
  • Performs well on the majority of PC between address spaces on the same machine
  • Avoids unnecessary synchronization, kernel-level thread management and data copying
  • LRPC performs better than RPC in the common case, and scales better on multiprocessors
  • Authors conclude that it is a good communication alternative for small-kernel O.S. (further developments?)
references
References
  • B.N Bershad et al. “Lightweight remote procedure call” ACM Trans. Comput. Syst. 8,1 (Feb.1990) 37-55
  • A.D. Birrel et al. “Implementing remote procedure calls” ACM Trans. Comput. Syst. 2,1 (Feb.1984) 39-59
  • B.N. Bershad et al. “User-level interprocess communication for shared memory multiprocessors” ACM Trans. Comput. Syst. 9,2 (May1991) 175-198
  • A.S. Tanenbaum “Modern Operating Systems” 2nd ed. Prentice Hall (RPC: 534-540)
  • Silberschatz, Galvin, Gagne “Operating system concepts” 6th ed., John Wiley & Sons (RPC: 117-124)
  • “Remote procedure calls” Pznan University of technology – Institute of computing Science

http://skisr.cs.put.poznan.pl/download/rso/lec/w4_rpc.doc
