  1. Destriping VIIRS brightnesstemperatures for SST KarlisMikelsons MarouanBouali Alex Ignatov YuryKihai STAR JPSS Annual Meeting College Park, MD May 14, 2014

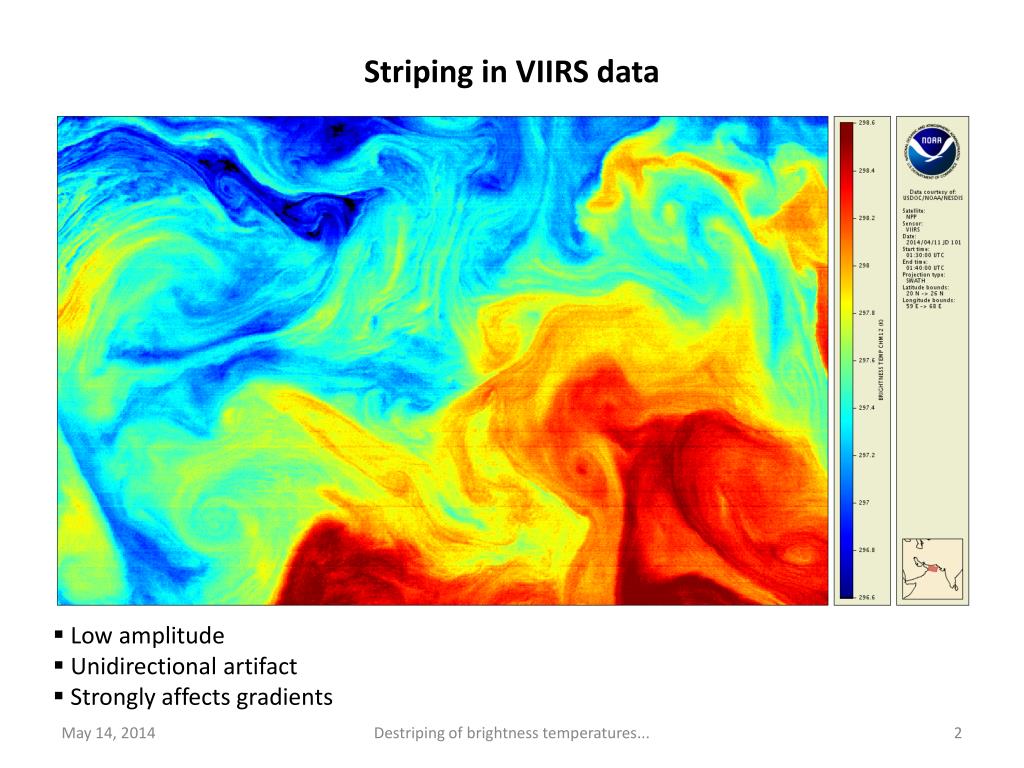

  2. Striping in VIIRS data • Low amplitude • Unidirectional artifact • Strongly affects gradients Destriping of brightness temperatures...

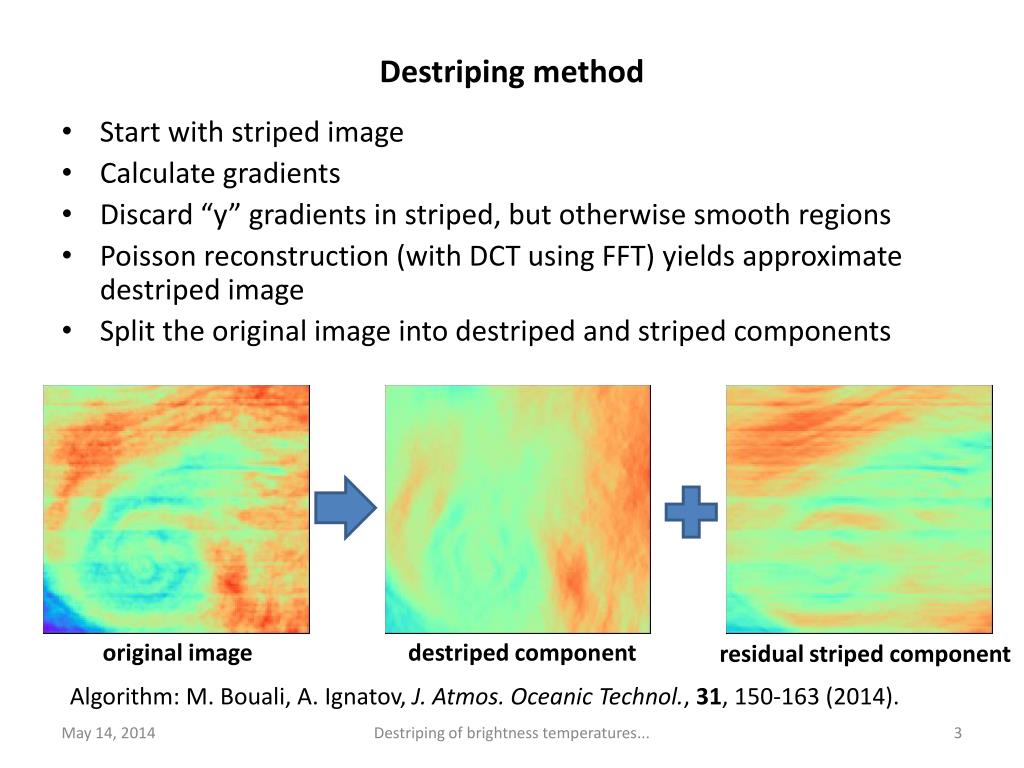

  3. Destriping method • Start with striped image • Calculate gradients • Discard “y” gradients in striped, but otherwise smooth regions • Poisson reconstruction (with DCT using FFT) yields approximate destriped image • Split the original image into destripedand striped components original image destriped component residual striped component Algorithm: M. Bouali, A. Ignatov, J. Atmos. Oceanic Technol., 31, 150-163 (2014). Destriping of brightness temperatures...

  4. Destriping method: iterative refinement • At each iteration, contribution to destriped image is extracted from residual striped component • Repeat until destriped component contains (nearly) all useful information and residual is (nearly) reduced to stripes residual striped component destriped component Algorithm: M. Bouali, A. Ignatov, J. Atmos. Oceanic Technol., 31, 150-163 (2014). Destriping of brightness temperatures...

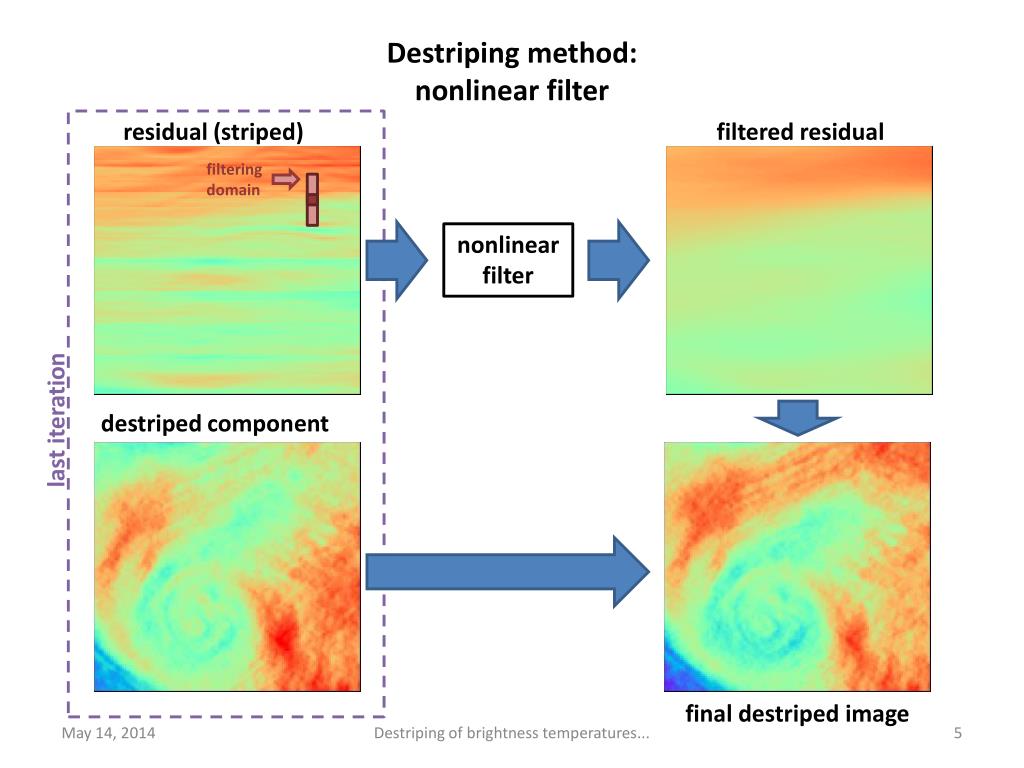

  5. Destriping method: nonlinear filter residual (striped) filtered residual filtering domain nonlinear filter last iteration destriped component final destriped image Destriping of brightness temperatures...

  6. Results – VIIRS band M12 (3.7mm) Destriping of brightness temperatures...

  7. Results – VIIRS band M12 (3.7mm) Destriping of brightness temperatures...

  8. Results – VIIRS band M15 (10.75mm) Destriping of brightness temperatures...

  9. Results – VIIRS band M15 (10.75mm) Destriping of brightness temperatures...

  10. Results – VIIRS band M16 (12.01mm) Destriping of brightness temperatures...

  11. Results – VIIRS band M16 (12.01mm) Destriping of brightness temperatures...

  12. Results – VIIRS band M12 (3.7mm) – day (glint) Striping in glint region primarily due to different viewing angle for detectors Study: Q. Liu, C. Cao, F. Weng, J. Atmos. Oceanic Technol., 30, 2478-2487 (2013). Destriping of brightness temperatures...

  13. Results – VIIRS band M12 (3.7mm) – day (glint) • Areas outside the glint region and onset of glint region are destriped • High amplitude striping in the center of glint region is not removed Destriping of brightness temperatures...

  14. Results – VIIRS band M15 (10.76mm) – day longer wavelength bands unaffected by glint Destriping of brightness temperatures...

  15. Results – VIIRS band M15 (10.76mm) – day longer wavelength bands unaffected by glint Destriping of brightness temperatures...

  16. Results – VIIRS band M12 (3.7mm) – effect on cloud mask Cloud mask identification affected by striping Destriping of brightness temperatures...

  17. Results – VIIRS band M12 (3.7mm) – effect on cloud mask • Destriping removes artifacts in cloud mask • Also helps to identify larger areas as cloud free Destriping of brightness temperatures...

  18. Results – MODIS Aqua band 20 (3.75mm) Destriping of brightness temperatures...

  19. Results – MODIS Aqua band 20 (3.75mm) Destriping of brightness temperatures...

  20. Results – MODIS Aqua band 31 (11.0mm) Destriping of brightness temperatures...

  21. Results – MODIS Aqua band 31 (11.0mm) Destriping of brightness temperatures...

  22. Results – MODIS Aqua band 32 (12.0mm) Destriping of brightness temperatures...

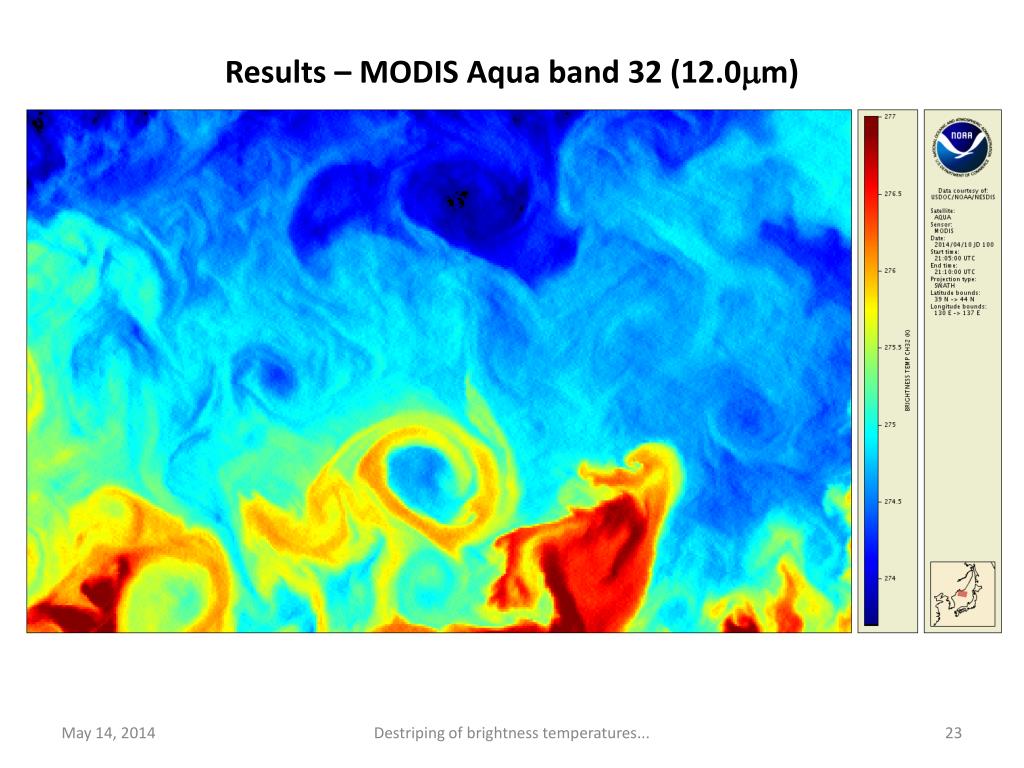

  23. Results – MODIS Aqua band 32 (12.0mm) Destriping of brightness temperatures...

  24. Performance – IDL vs C • C code is about 6 times faster • I/O is a significant factor for C version: ≈25% time (VIIRS) and ≈40% time (MODIS) Destriping of brightness temperatures...

  25. Summary • We have developed a fast, production ready destriping code • Newly developed C version is 6 times faster than IDL • Results show a significant visual improvement for brightness temperatures • Destriping helps to improve the cloud mask • Future • Immediate: • Incorporate destriping into ACSPO (experimental mode initially) • Destripe additional IR bands (M13, M14 VIIRS; 22, 23, 29 MODIS) • Near term: • Incorporate destriping into NOAA operations • Destripe visible bands for cloud cover (M6, M7 VIIRS; 6, 7 MODIS) • Address saw-like modulations in glint areas (short wavelength bands) • Optimize codes for reprocessing of historic data • VIIRS • MODIS (Terra + Aqua) Destriping of brightness temperatures...
