1. SPA_242Oct-2013 FTD ETD/HSTD Marketing • New Mainframe B1500A/B1505A and Upgrade Kit HSTD Green Energy Business HSTD Semiconductor Evaluation Business B1505A B1500A

2. Agenda for Today • New B1500A/B1505A mainframe • Upgrade kit for current B1500A/B1505A customers • Upgrade process by regional SSU • Schedule of release/shipment • Summary • Appendix

3. New B1500A/B1505A mainframe The new B1500A/B1505A mainframe provides a more powerful PC environment along with a VGA output to support an external monitor for easier viewing of measurement results. VGA Output mode Oscilloscope view EasyEXPERT Measurement setup Result Window

4. Performance comparison Current Model Initial Release in 2005 New Model

5. New B1500AU/B1505AU Upgrade Kit Options New upgrade kit options will be available starting on Nov, 1st 2013. B150xAU-PC1 B150xA Mainframe Upgrade B150xAU-WN7 OS upgrade from Win XP to 7 (*1) In case of S/N JP49090100 or below, B1500AU-PB2 Power PC Board Upgrade (2,148 USD/RP) also will be required. Contact to CCC with Oracle Configuration. (*2) This option is only available on S/N JP49090101 or later (and All MYxx). (If JP49090100 or below, B1500AU-PC1 must be required.) .

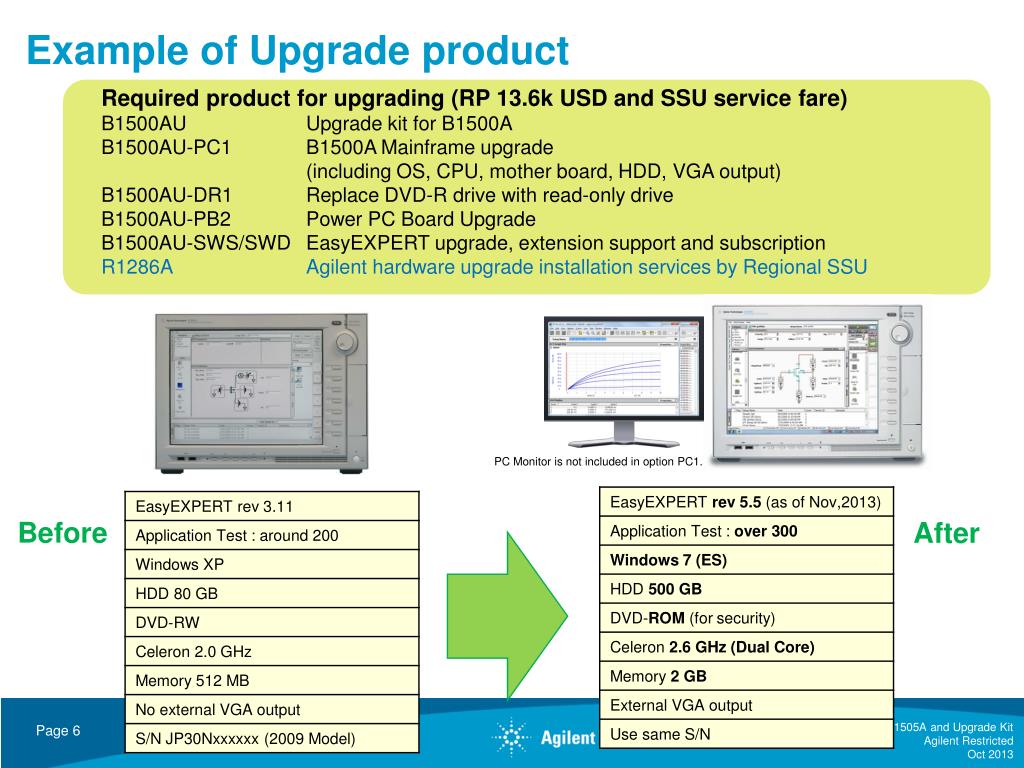

6. Example of Upgrade product Required product for upgrading (RP 13.6k USD and SSU service fare) B1500AU Upgrade kit for B1500A B1500AU-PC1 B1500A Mainframe upgrade (including OS, CPU, mother board, HDD, VGA output) B1500AU-DR1 Replace DVD-R drive with read-only drive B1500AU-PB2 Power PC Board Upgrade B1500AU-SWS/SWD EasyEXPERT upgrade, extension support and subscription R1286A Agilent hardware upgrade installation services by Regional SSU PC Monitor is not included in option PC1. Before After

7. Upgrade process Important! Offer price information by sending quotation. Check availability of regional SSU service. Schedule arrangement. Ask CCC to create quotation by Oracle. (Oracle system will include service related fare automatically.) Information of S/N and installed module are required. Confirm requirement. Check S/N of frame, inside module & revision of software. Ask data backup in inside HDD to customer. After receiving PO Install upgrade kit at supported SSU. Send upgraded B1500A to customers from SSU. Send current equipment to regional SSU by customer or Agilent pick-up service. Install the new software and OS. Import saved data or setups into HDD. Check functionalities at SSU. (Optional) Calibration. Send new equipment to regional SSU or designated place from MFG by CCC/CSR.

8. Schedule for Introduction/Shipment Sales tools • Updated B1500A Datasheet (Nov, 2013) : http://cp.literature.agilent.com/litweb/pdf/5989-2785EN.pdf • Updated B1505A Datasheet (Nov-Dec, 2013) : http://cp.literature.agilent.com/litweb/pdf/5990-3853EN.pdf • Updated Configuration Guide (Nov, 2013) : http://cp.literature.agilent.com/litweb/pdf/B1500-90090.pdf • Technical Flyer for upgrade (Nov, 2013) : http://cp.literature.agilent.com/litweb/pdf/5991-3327EN.pdf

9. Support Resources Sales Support Contacts • Field contact • Alan Wadsworth (AmFO AMO PL1H MDM) • Stewart Wilson (EMEA PL1H MDM) • Kai-Seong Cheah (GCN/KSAP PL1H MDM) • Takahiro Sato (JFO PL1H MDM) • Division Sales Support / M72 discount : PL1H,INST-BUSINESS • Tetsuo Watanabe (HSTD Marketing / B1500A business) • Tomoe Ikawa (HSTD Marketing / B1505A business) Website to Access Sales Support Resources • Internal: http://emg.business.agilent.com/HSTD/index.asp • Gateway: https://gateway.business.agilent.com/ • External web site: www.agilent.com/find/b1500a , www.agilent.com/find/b1505a ,

10. ??? Frequent Questions (FAQ) Q: Can customers use WN7 option to upgrade Win 7 by themselves? A: No, the regional SSU needs to perform all installation steps. Q: Is a calibration required after the SSU installs Windows 7 using either option WN7 or Option PC1? A: No, since the calibration data is stored in the measurementmodules and not on the HDD. All that the regional SSU needs to do is install the software onto the HDD. • Q: My customer has a B150xA running Windows 7 and is experiencing perfor-mance issues. Is there any reason for them to upgrade their hardware (PC1)? • A: If your customer is experiencing slow PC performance then it might help. • However, in many cases the customer’s HDD contains so many test results, test setups and workspaces that the PC and HDDare overloaded. Therefore, before ordering the PC1 option we recommend to have them first try cleaning up their HDD. We also recommend using a remote data server or controlling the instrument remotely to avoid filling up the instrument’s HDD.

11. Q and A

12. Call to Action

13. For your reference

14. AGILENT CONFIDENTIAL AGILENT CONFIDENTIAL AGILENT CONFIDENTIAL Table of Serial Number (B1500A/B1505A) As of Nov, 2013 AGILENT CONFIDENTIAL AGILENT CONFIDENTIAL Agilent Restricted

15. New options on B1500A series CPL on: 1st, Nov 2013 (*1) In case of S/N JP49090100 or below, B1500AU-PB2 Power PC Board Upgrade (2,148 USD/RP) also will be required. Contact to CCC with Oracle Configuration. (*2) User who has S/N JP51-, MY51- or later with Windows 7 (ES) OS, also can purchase Option PC1, in order to upgrade Hardware and EasyEXPERT software.

16. New options on B1505A series CPL on: 1st, Nov 2013 (*2) User who has S/N JP51-, MY51- or later with Windows 7 (ES) OS, also can purchase Option PC1, in order to upgrade Hardware and EasyEXPERT software.
