Chromatin Structure and Function

Chromatin Structure and Function. BSCI 420. Chromatin is the complex of DNA and proteins that comprise eukaryotic chromosomes. 2 classes of chromatin proteins: A) Histones and B) Non-histone proteins 1) Chromosome structure

amos
Download Presentation

Chromatin Structure and Function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

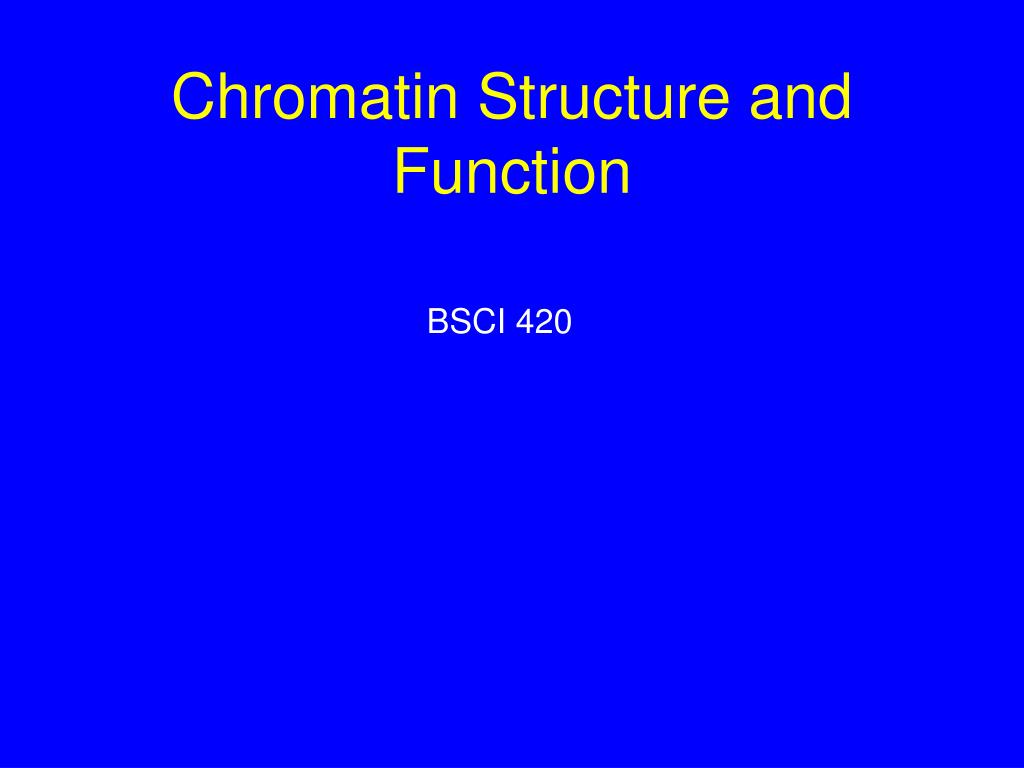

  1. Chromatin Structure and Function BSCI 420

  2. Chromatin is the complex of DNA and proteins that comprise eukaryotic chromosomes. 2 classes of chromatin proteins: A) Histones and B) Non-histone proteins 1) Chromosome structure 4 core histones found in 2) Gene regulation proteins Nucleosomes - 146 bp of DNA wrapped around an octomer of 2 (H2A, H2A, H3, H4)

  3. TEMs of isolated chromatin (A) Negatively stained 30 nm helix (B) Shadowed “string of beads”

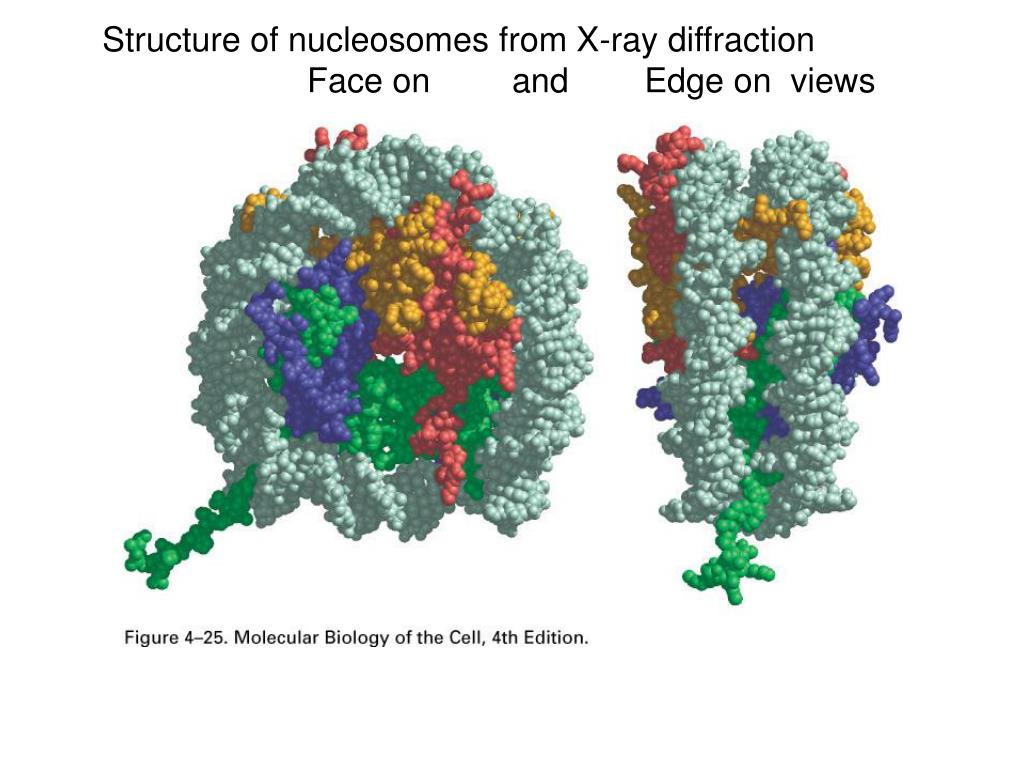

  4. Structure of nucleosomes from X-ray diffraction Face on and Edge on views

  5. Unfolded structure of core histones Folded Histone H2A/H2B Dimer “handshake”

  6. Assembly of the Histone octomer Nucleoplasmin catalyzes this process

  7. What determines “beads on the string” vs. 30 nm fiber? A) Non-histone DNA binding proteins may disrupt 30 nm fiber. Or prevent binding of a nucleosome. Creates DNAse I sensitive region

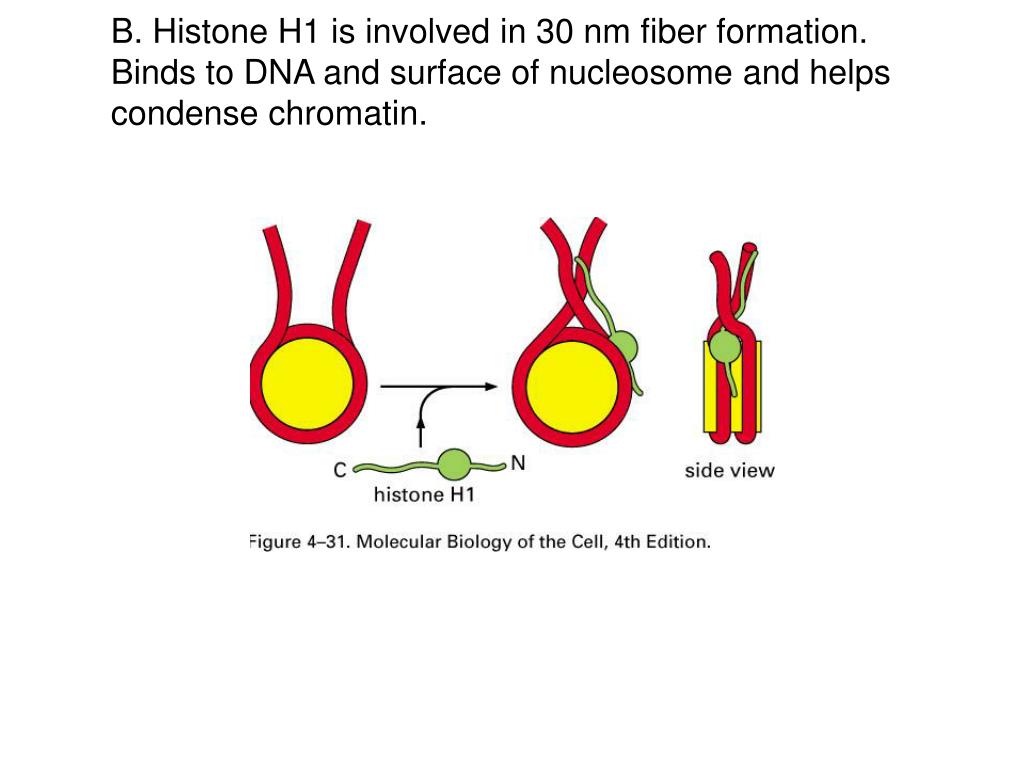

  8. B. Histone H1 is involved in 30 nm fiber formation. Binds to DNA and surface of nucleosome and helps condense chromatin.

  9. So in general, unmodified or methylated histones silence or repress genes, acetylation allows gene expression, and phosphorylation is involved in mitotic chrom. condensation.

  10. D) Remodeling complexes are large ATP-driven machines that move down the DNA and open or restore nucleosomes, and allow other DNA-binding proteins to bind, e.g., DNA and RNA polymerases and Transcription Factors

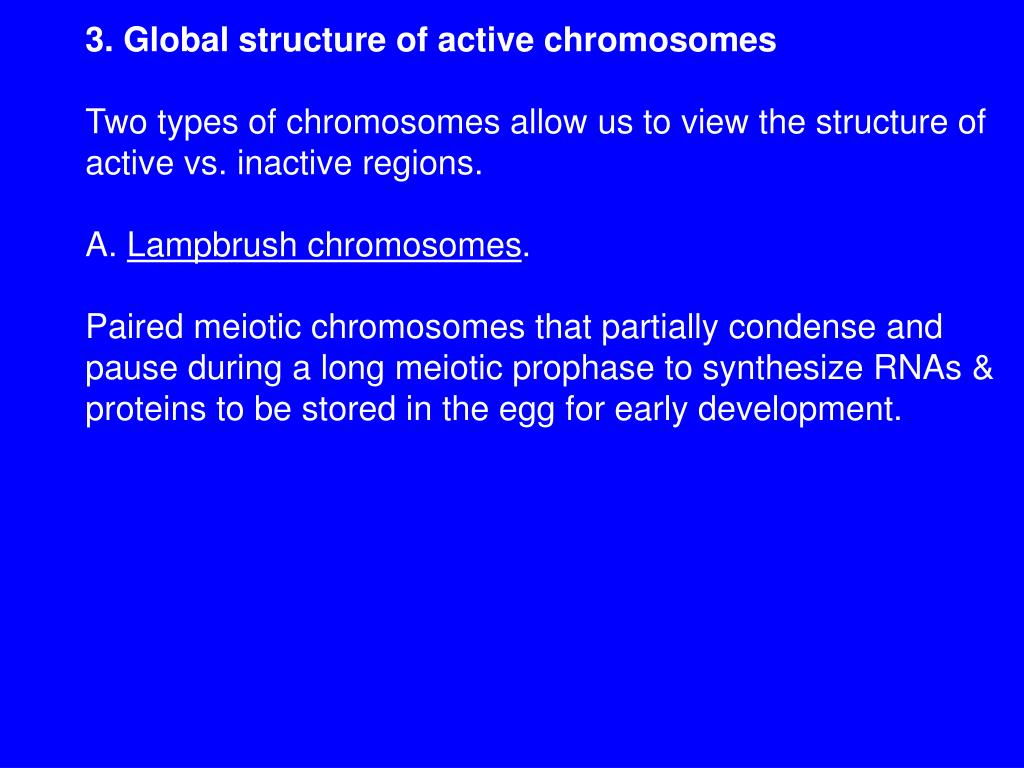

  11. 3. Global structure of active chromosomes Two types of chromosomes allow us to view the structure of active vs. inactive regions. A. Lampbrush chromosomes. Paired meiotic chromosomes that partially condense and pause during a long meiotic prophase to synthesize RNAs & proteins to be stored in the egg for early development.

  12. Phase-contrast and fluorescent micrographs of lampbrush chromosomes

  13. B. Polytene chromosomes of Drosophila Have replicated DNA 10X -> 1024 copies of chromosome side by side without separation by mitosis. Bands are chromatin domains with an ave of 3 genes in them. Interbands are probably regions of DNA that assoc. w protein scaffold of the chromosome. Puff Occasionally a band forms a puff (euchromatin) and becomes active in RNA synthesis.
