Ubiquitous programmable internet telephony services

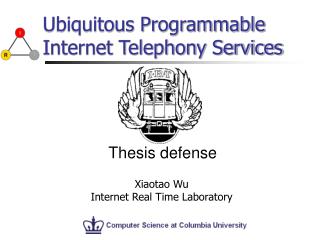

Ubiquitous Programmable Internet Telephony Services

Thesis defense

Xiaotao Wu

Internet Real Time Laboratory


Overview

Overview

  • Where to put services

  • Services

    • Ubiquitous – SIP-based ubiquitous computing

    • Programmable – CPL, LESS and FI handling

    • Rich – existing services and new services

    • Smart – Feature learning

  • Implementations

  • Other works


Ubiquitous programmable internet telephony services

  • Where to put services

  • Services

    • Ubiquitous

    • Programmable

    • Rich

    • Smart

  • Implementations

  • Other works


Services can be everywhere

Services can be everywhere

End users’ server

End devices

Proxy server

B2BUA

User agents in the network


Where to put services

Where to put services


Peer to peer v s master slave

D1

D2

D1

D2

C

C

D3

D3

Peer-to-peer v.s. master/slave

  • Pickup call

MGCP

Megaco

notification

triggered

INVITE

MGC


Ubiquitous programmable internet telephony services

  • Where to put services

  • Services

    • Ubiquitous

    • Programmable

    • Rich

    • Smart

  • Implementations

  • Other works


Ubiquitous computing using sip

Ubiquitous computing using SIP

  • What is ubiquitous computing

    • Enhance computer use by making many computers available throughout the physical environment, but making them effectively invisible to the user.

-- Mark Weiser

what’s available

how to control

automate the control

where are we

send media

to Tom

use the devices

in room 123 to

talk to Tom

Tom

Bob can use

devices in 123

room 123

Bob

I am in room 123

video display

microphone

video camera

what’s available

in room 123?

NOSSDAV03

IEEE Communications

Service location server


System architecture

REGISTER

PUBLISH

REGISTER

SLP query

result

System Architecture

SIP Home domain

Registrar and AAA server

Location

Server

Wireless triangulation

Local domain

SIP server

NOTIFY

SLP DA

GPS

Location

Sensing

Resource

Discovery

BlueTooth

DHCP

Call

Control

Resource

Control

SLP SA

INVITE


Ubiquitous programmable internet telephony services

Bob is in conf

Turn on light

You are

In conf

What’savailable

Turn on

conf’s light

sip:conf

Location

NOTIFY

Room conf

Location agent

Device GW

SLinke

Proxy

LS

Bob

Trigger

an action

X10

sip:conf_pingtel

for audio

iButton

reader

SLP DA

RFID reader

SLP SA

Resource

discovery

Tracking

Location-basedServices in our lab

IEEE CCNC’05


Location based services in our lab

INVITE sip:anyone_roomconf

Room conf

Location agent

Location-basedServices in our lab

Device GW

SLinke

Bob is in conf

Turn on light

Proxy

LS

Bob

X10

You are

In conf

sip:conf_pingtel

for audio

What’savailable

Turn on

conf’s light

iButton

reader

SLP DA

RFID reader

sip:conf

SLP SA

Guard communication behavior

‘Talk’ to alocation

Location

NOTIFY

IEEE CCNC’05


Ubiquitous programmable internet telephony services

Location in Emergency Services

Envinsa Server

sip

:

psap

@

domain

with location

location

sip

:

sos

@

domain

without location

911

GeoLynx

IP Gateway

Display

DHCP Server

ALI Server

verified

TCP Socket

civil

DHCP Inform

Telephone

location

MAC Address

DNS Server

Number

DNS Query

Location

HTTP SOAP

SIP Proxy

civil location

Info

geo location

PSAP

PSAP

Info

Info

civil location

**

geo location

sip

:

sos

@

domain

911

w

/

location or

112

w

/

out location

IP Network

Internet

SIP Proxy

POTS

/

Wireless

Network

Emergency Call Center

Prototype Architecture

Call Flow

IEEE ICCCN’05


Program location based services

Program location-based services

<incoming>

<LOC:where-switch type="civil">

<LOC:where country="USA" A1="New York"

A3="New York" A6="West 120th"

HNO="450" LOC="Room 563">

<location url="sip:[email protected]">

<redirect/>

</location>

</LOC:where>

<otherwise>

<location url="sip:[email protected]">

<redirect/>

</location>

</otherwise>

</LOC:where-switch>

</incoming>


Ubiquitous programmable internet telephony services

  • Where to put services

  • Services

    • Ubiquitous

    • Programmable

    • Rich

    • Smart

  • Implementations

  • Other works


Easy service creation

Easy service creation

  • Using a tree-like structure to represent communication services

Natural thinking of call decision making – a rule set

For an incoming call, if I am in a conference,

I will reject all the calls that are not from my boss.

Vibrate

my device

A decision tree to represent a rule set

If the call is

from my boss

YES

YES

If I am in

a conference

For an

incoming call

NO

Reject

the call

CPL and LESS


Timer triggered outgoing call

Timer triggered outgoing call

<?xml version="1.0" encoding="UTF-8"?>

<less xmlns="urn:ietf:params:xml:ns:less“

xmlns:IM="urn:ietf:params:xml:ns:less:im“

xmlns:xsi=“…" xsi:schemaLocation=“…">

<timer dtstart="20050307T110000Z">

<status-switch uri="sip:[email protected]"

status-name="presence">

<status is="open">

<location url="sip:[email protected]">

<call>

<busy>

<location url="sip:[email protected]">

<IM:sendmsg>

Hi, please call me back. I am in office

</IM:sendmsg>

</location>

…………….


Cpl and less

CPL and LESS

  • CPL: Call Processing Language

  • LESS: Language for End System Services

  • Simple

    • Four kinds of elements: trigger, switch, action, modifier

    • Tree-like structure, easy for feature interaction analysis

  • Safe

    • Type safety: XML-based, no user defined variables

    • Control flow safety: tree-like structure without back-reference

    • No direct memory access

    • Default behavior for every tree branch

  • Portability

  • Handle user interactions and media operations

  • Beyond call control

    • presence, IM, Web, location

IEEE ICC’03

RFC3880


Less elements

check the caller

switch

=

check priority

check time

switch

switch

to Bob

=

modifier

action

action

action

redirect

accept

reject

LESS elements

trigger

an incoming call


Less elements1

LESS elements


Less elements2

LESS elements

  • Triggers

    • incoming: incoming call handling

    • outgoing: user invoked outgoing call

    • timer: timer triggered actions

    • UI:command: user interaction commands

    • IM:message: incoming instant messaging

    • Event:subscription: incoming subscription

    • Event:notification: incoming notification


Less elements cont

LESS elements (cont.)

  • Switches

    • time-switch: make decisions based on time

    • address-switch: make decisions based on caller, callee

    • priority-switch: make decisions based on call priority

    • string-switch: make decisions based on subject, …

    • language-switch: make decisions based on languages

    • status-switch: make decisions based on users’ status (remote user or local user, status includes presence, activity, mood, …, as listed in RPID)

    • Event:event-switch: check values in event notifications

    • LOC:where-switch: check users’ physical location information (remote or local user)

    • LOC:where-relation-switch: check relative physical locations between two people


Less elements cont1

LESS elements (Cont.)

  • Actions

    • accept: accept an incoming call

    • reject: reject an incoming call

    • redirect: redirect an incoming call

    • authenticate: authenticate anincoming request

    • call: make an outgoing call

    • terminate: disconnect a call

    • wait: wait for a certain time before next action

    • mail: send email

    • log: log request handling process

    • Media:mediaupdate: update media attributes

    • Midcall:transfer: transfer a call

  • Midcall:merge: merge multiple calls

  • UI:alert: alert user

  • UI:getinput: get user input

  • IM:sendmsg: send an instant message

  • Event:approve: approve subscription

  • Event:deny: deny event subscription

  • Event:defer: defer the decision on event subscription

  • Event:subscribe: send subscription out

  • Event:notify: send notification out

  • Queue:enqueue: put a call and its context into a queue

  • Queue:dequeue: get a call and its context from a queue


Less elements cont2

LESS elements (Cont.)

  • Two smaller concepts might be simpler and more flexible than one more powerful but complicated concept

  • Modifiers

    • location: to which a request to be directed

    • lookup: lookup locations from a source

    • remove-location: remove locations from location set

    • Media:media: provide media attributes


Automatic call back acb

Automatic Call Back (ACB)

<less xmlns="urn:ietf:params:xml:ns:less“

xmlns:Event="urn:ietf:params:xml:ns:less:event“

xmlns:Queue="urn:ietf:params:xml:ns:less:queue“

xmlns:xsi=“….“

xsi:schemaLocation=“……">

<incoming>

<status-switch

status-name=“activity”>

<status is=“on-the-phone">

<reject reason=“busy”>

<next>

<Queue:enqueue

queue="callback"/>

</next>

</reject>

</status>

</status-switch>

</incoming>

Use Event and Queue extension

In ITU Q.1211

“This feature allows the called party to automatically call back

the calling party of the last call directed to the called party.”

Check my activity for an incoming call

If I am on-the-phone

Reject and enqueue


Automatic call back acb cont

Automatic Call Back (ACB) (cont.)

A event notification for myself

<Event:notification>

<address-switch field="origin">

<address uri="{agent.uri}">

<Event:event-switch>

<Event:event package=“presence"

name=“activity" is=“normal">

<Queue:dequeue

queue="callback">

<Queue:success>

<call/>

</Queue:success>

</Queue:dequeue>

</Event:event>

</Event:event-switch>

</address>

</address-switch>

</Event:notification>

</less>

I am available

Dequeue and make a call


Ubiquitous programmable internet telephony services

<?xml version="1.0"?>

<less>

<incoming>

<address-switch field="origin">

<address is="sip:[email protected]">

<accept/>

</address>

<otherwise>

<location url="sip:[email protected]">

<redirect/>

</location>

</otherwise>

</address-switch>

</incoming>

</less>


Less script customization

LESS script customization

LESS editor

less.xsl

service.less

(template)

xsl:if

address is=$var

XSLT

configuration

editor

service.html

translate.cgi

service_foo.less


Open issues

Open issues

  • Can we use LESS for B2BUA?

    • ‘lookup’ from database

    • coordinate multiple sessions

    • multi-user feature interaction handling

  • Loop and user-defined variables needed?

    • Based on our exercises, no

    • But, what about unknown new services?

    • Convert loop to a high-level abstraction?

    • What’s the impact on feature interaction handling


Easy feature interaction analysis

Easy feature interaction analysis

  • Tree merging

Incoming call

Incoming call

Incoming call

If time is between

10:00AM and 11:00AM

If address is hgs

If address

is hgs

If time is between

10:00AM and 11:00AM

=

+

accept

accept

accept

reject

Forward to conf

Forward to conf

reject

Take actions from both scripts. Simply setting

precedence rules cannot work.

ICFI’05 (FIW)


Easy feature interaction analysis1

Easy feature interaction analysis

  • FI handling between multiple CPL/LESS scripts

    • Action conflict tables

    • Tree merging algorithm

    • Multi-component feature interactions

      • e.g., parallel forking with all end systems automatically accept an incoming call


Pre condition and expected results

Pre-condition and expected results


Action conflict table

Action conflict table

-: no interaction, A: attribute conflict, C: action conflict,

E: enabling, R: resource competition


Tree merging

Tree merging

set base-rule-set empty

foreach LESS-tree {

convert the LESS-tree into a rule set

foreach rule in the rule set {

normalize the rule

}

merge the normalized rule set into base-rule-set

}

convert base-rule-set into a decision tree


Tree merging cont

Tree merging (cont.)

if (two rules have different triggers) {

no rule conflict except timer trigger

} else if actions in two rules do not conflict {

no rule conflict

} else if no overlap between rule path in two rules {

no rule conflict

} else {

two rules conflict with each other,

return the rule path overlap and action conflict information

prompt to the script owner to judge

}


Ubiquitous programmable internet telephony services

  • Where to put services

  • Services

    • Ubiquitous

    • Programmable

    • Rich

    • Smart

  • Implementations

  • Other works


Rich signaling information

Rich signaling information

  • Rich signaling information

    • SIP headers

    • Caller preference and callee capabilities

    • MIME contents

    • Event notification

    • Other means

      • Web calendar, Directory services


Rich services

Rich services

  • Be able to handle services in PSTN networks

    • ITU Q.1211

      • ABD, ACB, CFC, CHA, QUE, CRG, OCS, …

    • Services in 5ESS switches

      • Attendant camp-on, Automatic recall, …

    • Services in CSTA Phase III

      • defined as signaling actions in LESS, e.g., mediaupdate

    • Emergency

      • provide location information

  • New services

    • Interact with existing Internet services

      • web, email, SLP, SAP, IM, presence, location, networked appliance control, directory service, calendar service, conferencing

    • Not named services, but programmable services

    • Programmable conferencing services


Ubiquitous programmable internet telephony services

  • Where to put services

  • Services

    • Ubiquitous

    • Programmable

    • Rich

    • Smart

  • Implementations

  • Other works


Definition

Definition

  • What is service learning

    • Automatically generate user desired services

    • Help users, not bypass users

    • Services on both proxy servers and end systems

  • What is service risk management

    • Risk caused by automation

    • How to reduce the overall risks

IEEE ICC’05


Motivation

Motivation

  • Causal relationship between call information and call decisions

    • SIP headers

    • Other Internet services

  • Learning burden caused by new services

    • Not named services, but programmable services

    • What and how

  • Examples

    • Spam filtering, calendar-based services

  • Service risks

    • Lose connectivity, lose privacy, …


Design

Design

  • Using decision tree induction for learning

    • In CPL/LESS terms: find switches that can best partition actions

  • What algorithm

    • Incremental

    • Prune

    • Quality measurement

30*3+10*2+7=117 30*2+3*2+10*3+4*3=108


Incremental tree induction

Incremental Tree Induction

  • Incremental

    • Incorporating

    • Transposition

  • Virtual prune

  • Direct metrics

    • Expected number of tests

    • Leaf counts

    • Minimum description length

    • Expected misclassication cost


Ubiquitous programmable internet telephony services

40 services

Each for 300 calls

80% match

10% different way

10% mismatch

Simulation


Performance

Performance

IBM ThinkPad, Linux

1GHz PIII Mobile

256MB memory

Fast vs. incremental (20 samples) training


Performance1

Performance

IBM ThinkPad, Linux

1GHz PIII Mobile

256MB memory

20 vs. 250 incremental samples


Integration

Integration

  • Gather information

    • Transaction history

    • Calendar

    • Location sensing

    • Idle time

    • Communication activities

    • Timestamp

  • Alert users

  • Service risk management


Service risk management

Service risk management

  • Identify

    • Lose connection: reject, redirect, transfer, accept on wrong branch

    • Lose privacy: accept, call, notify

    • Lose money: accept, transfer to higher rate endpoint

    • Lose attention: alert, accept, appliance control

  • Analyze

    • Possibility: number of occurrence in the decision tree, switch attributes

    • Impact: (connection, privacy) > money > attention, customizable

    • Overall risk: avoiding high impact risks, though may cause low impact risks

  • Resolve

    • Change communication methods

    • Transfer

    • Reduce overall risk

  • Contingency plan

    • Backup


Ubiquitous programmable internet telephony services

  • Where to put services

  • Services

    • Ubiquitous

    • Programmable

    • Rich

    • Smart

  • Implementations

  • Other works


Implementations

Implementations


Function overview

Function overview

Email clients

Real time streaming

Network appliance control

Third party call control

Web browsers

Emergency handling

audio

SIP CGI engine

SIP

Multimedia

call control

video

Instant

message

SAP

location

sensors

Location sensing

white

board

SIP for presence

Floor

control

LESS/CPL

engine

Service Location

Detection (SLP)

desktop

sharing

SIP: RFC 3261

SAP: RFC 2974

CPL, SIP 3PCC,

SIP Device Control

GEOPRIV location format, SIP for IM

RTSP: RFC 2326

SDP: RFC 2327

RTP: RFC 1889

SLP: RFC 2608

SIP Event Arch.: RFC 3265 RFC3903

MMNS’04


Function reuse

Function reuse

Conferencing

floor control

Device control

Presence

notification

ir/x10

xcon

Location

tracking

SIP event

notification

Service

detection

Message

waiting

indication

Location

sensing

SIP

SLP

Voicemail

handling

Call

Emergency

handling

RTP

SDP

MapLynx

RTSP

Instant

messaging

Session

broadcasting

SAP


Function interaction

Function interaction

SIP

SLP

DO

SLP

SAP

3pcc

SIP DO

SIP

location

SDP

location

RTP

RTP

SIP

SIP

NOTIFY

SIP

location

MESSAGE

RTP

RTSP


Other work

Other work

  • Building Box project (AT&T Labs Research)

  • Conferencing floor control

  • Networked appliance control

  • Shared web browsing

  • Joined some other projects (CINEMA, SIP 911, session mobility, project for FAA, …)


Conclusion

Conclusion

  • Services are more distributed in Internet telephony. We need techniques specifically for end system service creation

  • LESS is designed for end system services

    • Easy to build SCE

    • Easy to analyze

    • Enable feature learning

  • Different information and different functions converged at end systems and will introduce many new services, e.g., location-based services.


Some links

Some links

  • SIPc: http://www.cs.columbia.edu/IRT/sipc

  • CINEMA: http://www.cs.columbia.edu/IRT/cinema

  • LESS: http://www.ietf.org/internet-drafts/draft-wu-iptel-less-00.txt

  • Ubiquitous Computing: http://www1.cs.columbia.edu/~xiaotaow/ rer/Research/Paper/ieeecomm_inhome.pdf

  • Service examples: http://www.cs.columbia.edu/~library/TR-repository/reports/reports-2004/cucs-048-04.pdf

  • Feature interaction handling: http://www.cs.columbia.edu/ ~xiaotaow/rer/Research/Paper/fiw.pdf

  • Service learning: http://www.cs.columbia.edu/~xiaotaow/rer /Research/Paper/icc2005.pdf


Acknowledgements

Acknowledgements

  • Dr. Henning Schulzrinne

  • SIPQuest

  • Colleagues in IRT lab

  • Colleagues in AT&T Labs Research

Thank you!


  • Login
