Overview of VoyagerExternal Patron Authentication

Michael Doran, Systems Librarian

Ex Libris Southwest Users Group

February 6, 2008 –Santa Ana College


Standard patron authentication user perspective l.jpg

Standard Patron Authentication- User Perspective -

The user clicks the “Login” (or “Patron”, etc.) button...

... gets a login form...

... enters credentials and submits...

Michael Doran, Systems Librarian


Slide3 l.jpg

Standard Patron Authentication- User Perspective -

Once logged in, the user has access to their patron information, requests, MyOPAC functionality, etc.

Michael Doran, Systems Librarian


External patron authentication user perspective l.jpg

External Patron Authentication- User Perspective -

The user clicks the “Login” (or “Patron”, etc.) button...

... gets a login form...

... enters credentials and submits...

Michael Doran, Systems Librarian


External patron authentication user perspective5 l.jpg

External Patron Authentication- User Perspective -

Once logged in, the user has access to their patron information, requests, MyOPAC functionality, etc.

Michael Doran, Systems Librarian


What s the difference l.jpg

What’s the Difference?

From a user perspective the login experience is pretty much the same, regardless of whether he/she uses standard Voyager patron authentication or an external authentication system.

A sharp-eyed user might notice that another web application comes into play during external authentication....

Michael Doran, Systems Librarian


Standard patron authentication l.jpg

Standard Patron Authentication

Everything is handled by WebVoyáge (i.e. Pwebrecon.cgi)

Michael Doran, Systems Librarian


Standard patron authentication8 l.jpg

Standard Patron Authentication

Michael Doran, Systems Librarian


External patron authentication l.jpg

External Patron Authentication

WebVoyáge hands over control... ... to an “adaptor”...

query string

Michael Doran, Systems Librarian


External patron authentication10 l.jpg

External Patron Authentication

... the adaptor does

the authentication...

... and then returns control to WebVoyáge

Michael Doran, Systems Librarian


Webvoy ge to adaptor hand off l.jpg

WebVoyáge to Adaptor Hand Off

PAGE=pbLogonPatron&PID=2063&SEQ=20040921144400

“query string”

WebVoyáge

[Pwebrecon.cgi]

Authentication Adaptor

[customer-adaptor.cgi]

What determines whether this hand off occurs? ...

Michael Doran, Systems Librarian


Extauthenticationsystem stanza l.jpg

ExtAuthenticationSystem stanza

The opac.ini configuration file contains a stanza called ExtAuthenticationSystem. The parameters in this stanza control the initial hand-off to a patron authentication adaptor.

[ExtAuthenticationSystem]

ExtAuthSystemEnabled=Y

ExtAuthBypassLoginScreen=Y

ExtAuthSubmitText=Login with NetID

ExtAuthSystemURL=/cgi-bin/customer-adaptor.cgi

ExtAuthButtonMethod=GET

Michael Doran, Systems Librarian


Extauthenticationsystem stanza13 l.jpg

ExtAuthenticationSystem stanza

To totally bypass the WebVoyáge login screen:

[ExtAuthenticationSystem]

ExtAuthSystemEnabled=Y

ExtAuthBypassLoginScreen=Y

ExtAuthSubmitText=Login with NetID

ExtAuthSystemURL=/cgi-bin/customer-adaptor.cgi

ExtAuthButtonMethod=GET

Takes user

directly to external

authentication

login screen.

Michael Doran, Systems Librarian


Extauthenticationsystem stanza14 l.jpg

ExtAuthenticationSystem stanza

To give users the option of logging in using the standard WebVoyáge or the external authentication:

[ExtAuthenticationSystem]

ExtAuthSystemEnabled=Y

ExtAuthBypassLoginScreen=N

ExtAuthSubmitText=Login with NetID

ExtAuthSystemURL=/cgi-bin/customer-adaptor.cgi

ExtAuthButtonMethod=GET

Takes user to

standard

WebVoyáge

login screen...

...which includes

a button linking to

the adaptor login

screen.

Michael Doran, Systems Librarian


Now where did i put that adaptor l.jpg

Now where did I put that adaptor?

  • Patron authentication adaptor feature

    “functionality that allows WebVoyáge to communicate with an external authentication program, via a customer-developed authentication adaptor”

  • Patron authentication adaptor

    “the customer-developed adaptor which provides the communications bridge between WebVoyáge and the external authentication program”

The patron authentication adaptor referred to is a computer program. Customer-developed means you get to write it.

Michael Doran, Systems Librarian


Authentication adaptor tasks l.jpg

Authentication Adaptor Tasks

  • When first called:

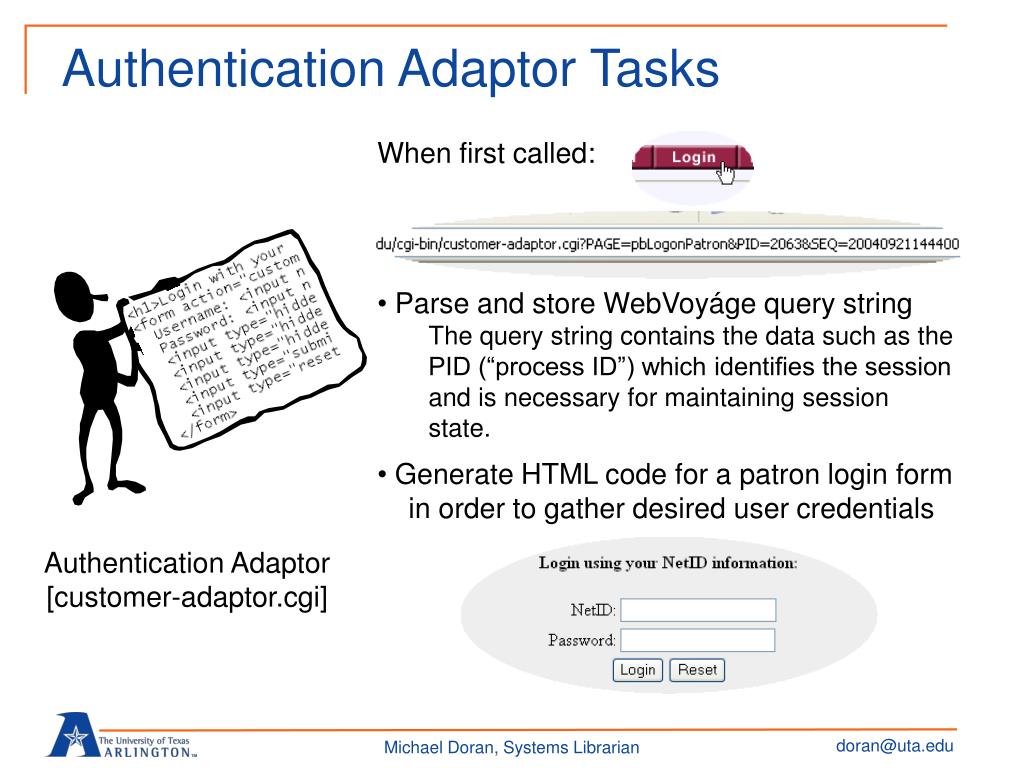

  • Parse and store WebVoyáge query string

    • The query string contains the data such as the PID (“process ID”) which identifies the session and is necessary for maintaining session state.

  • Generate HTML code for a patron login form

  • in order to gather desired user credentials

Authentication Adaptor

[customer-adaptor.cgi]

Michael Doran, Systems Librarian


Authentication adaptor tasks17 l.jpg

Authentication Adaptor Tasks

After user credentials are submitted:

  • Query external authentication system

    • Get “yea” or “nay” on user

    • Retrieve “Institution ID”

  • If yea, insert a record into the

  • WOPAC_PID_PATRON_KEYS table:

    • PID (saved from query string)

    • Institution ID

  • Return control to WebVoyáge via a redirect

  • to Pwebrecon.cgi URL appended with:

    • Original (saved) query string, plus

    • Authentication key-value pair

Authentication Adaptor

[customer-adaptor.cgi]

Michael Doran, Systems Librarian


Authentication adaptor tasks18 l.jpg

Authentication Adaptor Tasks

After user credentials are submitted:

  • Query external authentication system

    • Get “yea” or “nay” on user

    • Retrieve “Institution ID”

  • If yea, insert a record into the

  • WOPAC_PID_PATRON_KEYS table:

    • PID (saved from query string)

    • Institution ID

  • Return control to WebVoyáge via a redirect

  • to Pwebrecon.cgi URL appended with:

    • Original (saved) query string, plus

    • Authentication key-value pair

Authentication Adaptor

[customer-adaptor.cgi]

Michael Doran, Systems Librarian


Authentication systems l.jpg

Authentication Systems

There are many authentication systems...

  • LDAP (Lightweight Directory Access Protocol)

  • Kerberos

  • NIS/NIS+ (Network Information Service)

  • SMB (Windows)

  • Shibboleth

  • RADIUS (Remote Authentication Dial In User Service)

  • etc...

  • In addition, authentication systems such as LDAP will differ in internal data structure from one organization to another.

Time out!

Michael Doran, Systems Librarian


Which means l.jpg

Which means...

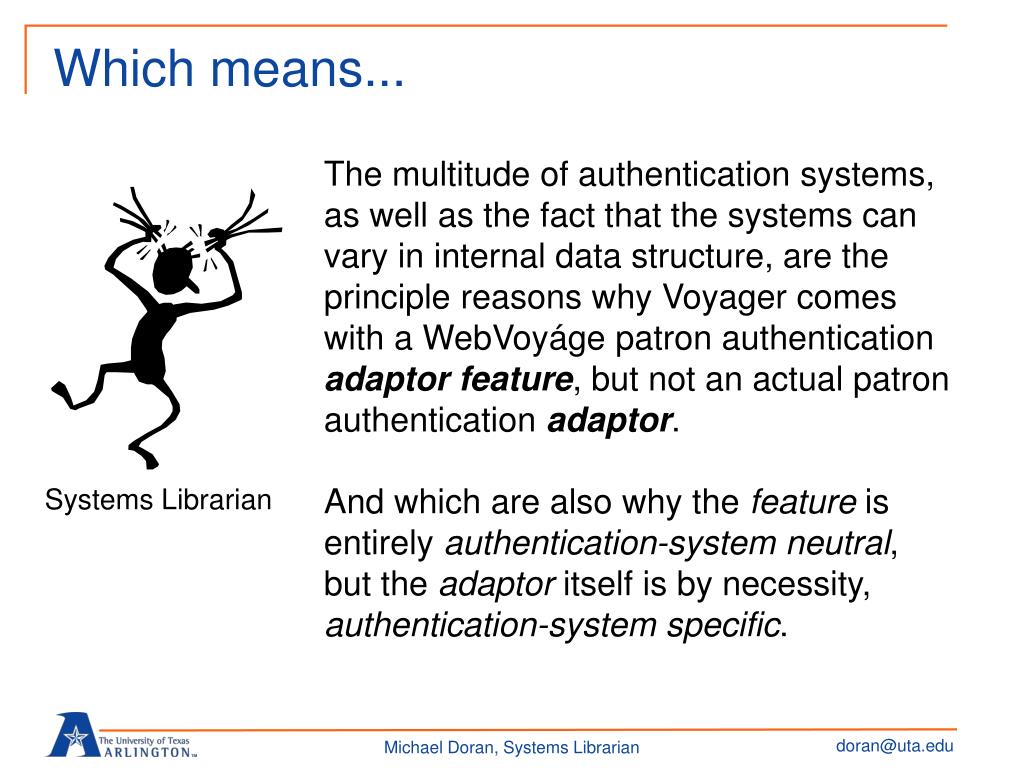

The multitude of authentication systems, as well as the fact that the systems can vary in internal data structure, are the principle reasons why Voyager comes with a WebVoyáge patron authentication adaptor feature, but not an actual patron authentication adaptor.

And which are also why the feature is entirely authentication-system neutral, but the adaptor itself is by necessity, authentication-system specific.

Systems Librarian

Michael Doran, Systems Librarian


Authentication adaptor tasks21 l.jpg

Authentication Adaptor Tasks

After user credentials are submitted:

  • Query external authentication system

    • Get “yea” or “nay” on user

    • Retrieve “Institution ID”

  • If yea, insert a record into the

  • WOPAC_PID_PATRON_KEYS table:

    • PID (saved from query string)

    • Institution ID

  • Return control to WebVoyáge via a redirect

  • to Pwebrecon.cgi URL appended with:

    • Original (saved) query string, plus

    • Authentication key-value pair

Authentication Adaptor

[customer-adaptor.cgi]

Michael Doran, Systems Librarian


Query external authentication system l.jpg

Query External Authentication System

  • Adaptor sends formatted query containing username and password

  • Authentication system replies with success/failure response plus user information if success

Authentication Adaptor

[customer-adaptor.cgi]

Authentication System

[e.g. LDAP]

Michael Doran, Systems Librarian


Plus user information l.jpg

Plus user information?

dn:cedarid=10856915705,cn=people,dc=uta,dc=edu

objectClass: top

person

inetOrgPerson

utaPerson

cedarid: 10856915705

utaSSN: 123456789

mail: [email protected]

utaDiscloseInfo: email

utaMiddleName: d

cn: michael d doran

sn: doran

givenName: michael

displayName: doran, michael d

utaPrevAccountName: doran

utaAccountName: doran

uid: doranmd

Example response from

UTA OpenLDAP server

(a “people” record)

Michael Doran, Systems Librarian


Needed institution id l.jpg

Needed: Institution ID

dn:cedarid=10856915705,cn=people,dc=uta,dc=edu

objectClass: top

person

inetOrgPerson

utaPerson

cedarid: 10856915705

utaSSN: 123456789

mail: [email protected]

utaDiscloseInfo: email

utaMiddleName: d

cn: michael d doran

sn: doran

givenName: michael

displayName: doran, michael d

utaPrevAccountName: doran

utaAccountName: doran

uid: doranmd

The authenticator response needs to be parsed for a value (preferably the Institution ID) that can be used to identify that user’s Voyager patron record.

Michael Doran, Systems Librarian


Standard patron authentication25 l.jpg

Standard Patron Authentication

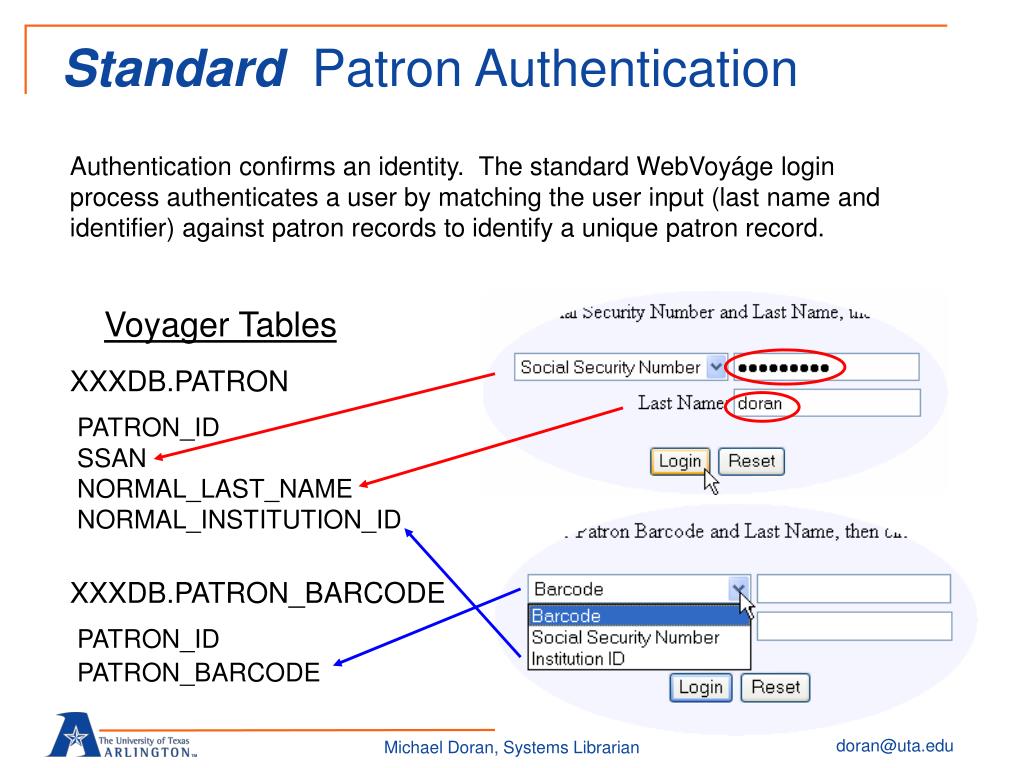

Authentication confirms an identity. The standard WebVoyáge login process authenticates a user by matching the user input (last name and identifier) against patron records to identify a unique patron record.

Voyager Tables

XXXDB.PATRON

PATRON_ID

SSAN

NORMAL_LAST_NAME

NORMAL_INSTITUTION_ID

XXXDB.PATRON_BARCODE

PATRON_ID

PATRON_BARCODE

Michael Doran, Systems Librarian


Authentication adaptor tasks26 l.jpg

Authentication Adaptor Tasks

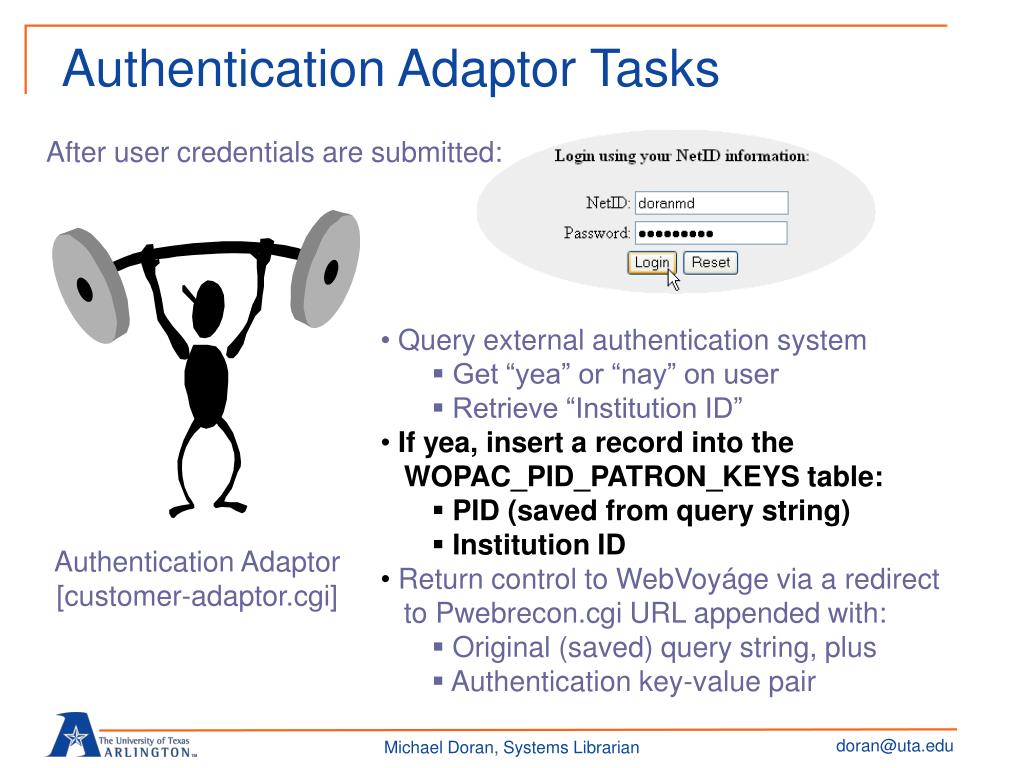

After user credentials are submitted:

  • Query external authentication system

    • Get “yea” or “nay” on user

    • Retrieve “Institution ID”

  • If yea, insert a record into the

  • WOPAC_PID_PATRON_KEYS table:

    • PID (saved from query string)

    • Institution ID

  • Return control to WebVoyáge via a redirect

  • to Pwebrecon.cgi URL appended with:

    • Original (saved) query string, plus

    • Authentication key-value pair

Authentication Adaptor

[customer-adaptor.cgi]

Michael Doran, Systems Librarian


Provide a unique patron identifier l.jpg

Provide a Unique Patron Identifier

Although you’ve confirmed the user’s identity within the external system, WebVoyáge needs to be able to identify a unique patron record internal to the Voyager database. The Patron Authentication Adaptor feature is designed to use the Institution ID to match on the Voyager patron record for that user. The customer adaptor must insert that value as well as the PID value into a Voyager database table (via an SQL DML statement).

insert into XXXDB.WOPAC_PID_PATRON_KEYS

(PID, PATRON_KEY) values (‘2063','123456789')

cedarid: 10856915705

utaSSN: 123456789

mail: [email protected]

PID value from

saved query string

Institution ID value from

authenticator response

Michael Doran, Systems Librarian


Authentication adaptor tasks28 l.jpg

Authentication Adaptor Tasks

After user credentials are submitted:

  • Query external authentication system

    • Get “yea” or “nay” on user

    • Retrieve “Institution ID”

  • If yea, insert a record into the

  • WOPAC_PID_PATRON_KEYS table:

    • PID (saved from query string)

    • Institution ID

  • Return control to WebVoyáge via a redirect

  • to Pwebrecon.cgi URL appended with:

    • Original (saved) query string, plus

    • Authentication key-value pair

Authentication Adaptor

[customer-adaptor.cgi]

Michael Doran, Systems Librarian


Adaptor to webvoy ge hand off l.jpg

Adaptor to WebVoyáge Hand Off

PAGE=pbLogonPatron&PID=2063&SEQ=20040921144400&authenticate=Y

“query string”

Authentication Adaptor

[customer-adaptor.cgi]

WebVoyáge

[Pwebrecon.cgi]

Michael Doran, Systems Librarian


Webvoy ge back on the job l.jpg

WebVoyáge Back on the Job

PAGE=pbLogonPatron&PID=2063&SEQ=20040921144400&authenticate=Y

authenticate=Y

A successful external authentication (“Y”) results in WebVoyáge retrieving the record inserted into the WOPAC_PID_PATRON_KEYS table by the adaptor.

authenticate=N

An authentication failure (“N”) results in WebVoyáge displaying an error message, and returning the user to a login screen.

WebVoyáge

[Pwebrecon.cgi]

Michael Doran, Systems Librarian


Retrieving unique identifier l.jpg

Retrieving Unique Identifier

PAGE=pbLogonPatron&PID=2063&SEQ=20040921144400&authenticate=Y

The query string PID value lets Voyager know which WOPAC record to retrieve.

XXXDB.WOPAC_PID_PATRON_KEYS

PID PATRON_KEY

------- -----------

2049 555339876

2063 123456789

2068 333221234

...

Voyager grabs the PATRON_KEY value for that PID and then deletes that record in the WOPAC table.

WebVoyáge

[Pwebrecon.cgi]

Michael Doran, Systems Librarian


Looking up patron record l.jpg

Looking Up Patron Record

WebVoyáge compares the PATRON_KEY value with normalized Institution ID values in the patron table.

XXXDB.PATRON

PATRON_ID

123456789 NORMAL_INSTITUTION_ID

A successful match means that Voyager has identified the user, and the user can then be logged in and the requested page provided.

If no match is found, WebVoyáge displays an error message and returns the user to the login screen.

WebVoyáge

[Pwebrecon.cgi]

Michael Doran, Systems Librarian


The institution id blues l.jpg

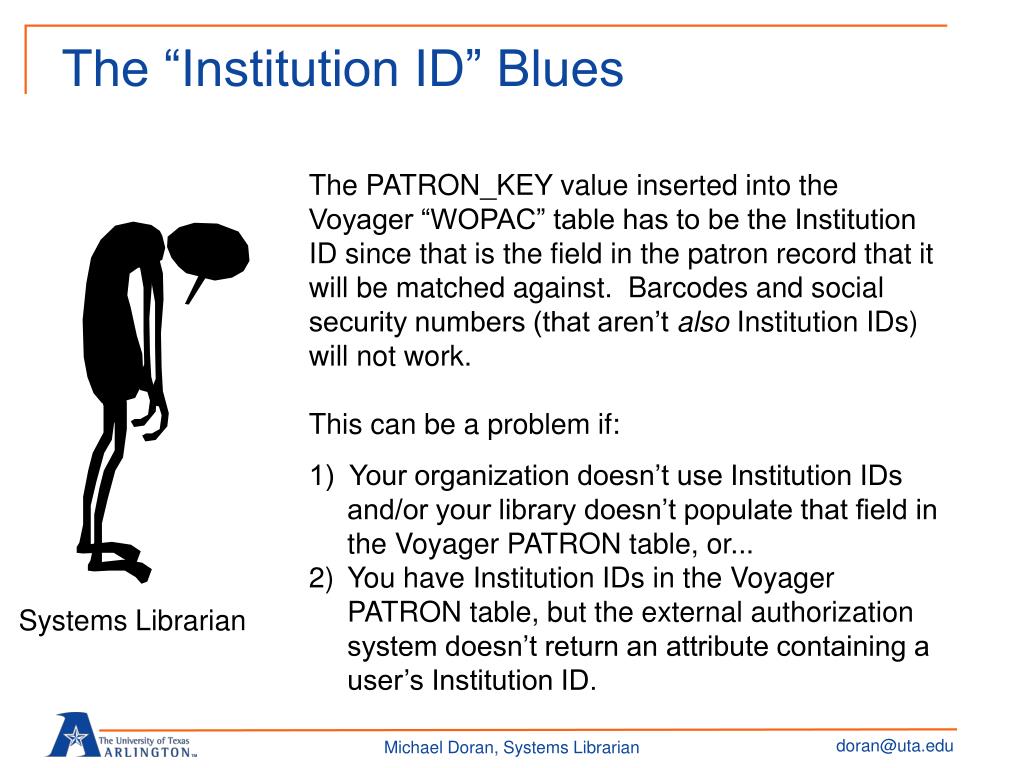

The “Institution ID” Blues

The PATRON_KEY value inserted into the Voyager “WOPAC” table has to be the Institution ID since that is the field in the patron record that it will be matched against. Barcodes and social security numbers (that aren’t also Institution IDs) will not work.

  • This can be a problem if:

  • 1) Your organization doesn’t use Institution IDs and/or your library doesn’t populate that field in the Voyager PATRON table, or...

  • You have Institution IDs in the Voyager PATRON table, but the external authorization system doesn’t return an attribute containing a user’s Institution ID.

Systems Librarian

Michael Doran, Systems Librarian


Work arounds l.jpg

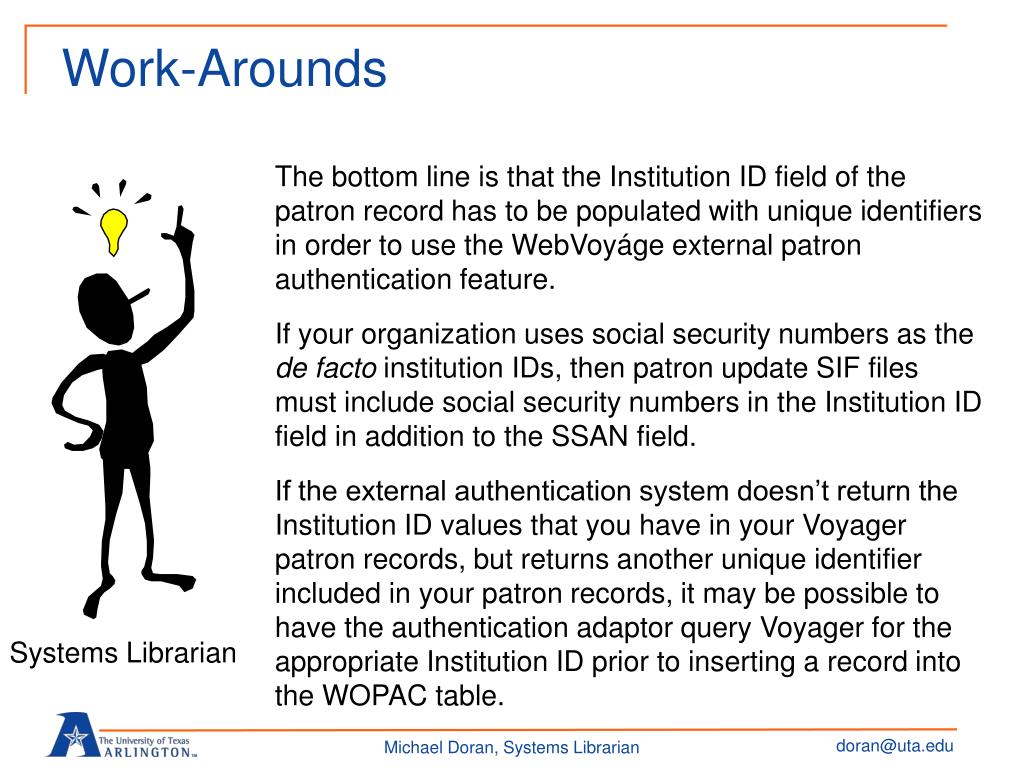

Work-Arounds

The bottom line is that the Institution ID field of the patron record has to be populated with unique identifiers in order to use the WebVoyáge external patron authentication feature.

If your organization uses social security numbers as the de facto institution IDs, then patron update SIF files must include social security numbers in the Institution ID field in addition to the SSAN field.

If the external authentication system doesn’t return the Institution ID values that you have in your Voyager patron records, but returns another unique identifier included in your patron records, it may be possible to have the authentication adaptor query Voyager for the appropriate Institution ID prior to inserting a record into the WOPAC table.

Systems Librarian

Michael Doran, Systems Librarian


Ex libris documentation l.jpg

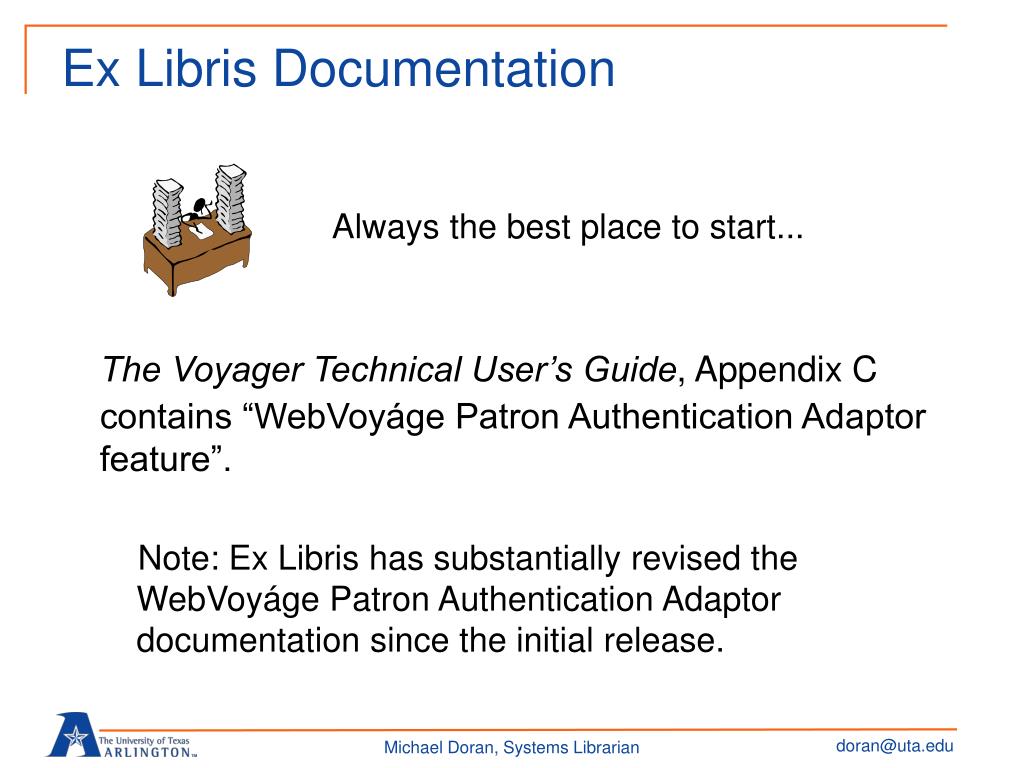

Ex Libris Documentation

The Voyager Technical User’s Guide, Appendix C contains “WebVoyáge Patron Authentication Adaptor feature”.

Note: Ex Libris has substantially revised the WebVoyáge Patron Authentication Adaptor documentation since the initial release.

Always the best place to start...

Michael Doran, Systems Librarian


Constructing an adaptor l.jpg

Constructing an adaptor

  • There are no real restrictions on the programming language used...

    • Perl

    • Java/JSP

    • C/C++

    • Shell script

    • whatever

  • However... it saves a lot of work to have pre-built components/modules for:

    • parsing CGI form data,

    • interfacing with an Oracle database, and

    • interfacing with the desired authentication system.

Michael Doran, Systems Librarian


Perl is a good choice l.jpg

Perl is a good choice

  • CGI.pm module or cgi-lib.pl library for processing CGI forms

  • DBI and DBD::Oracle modules for interfacing with the Voyager database

  • Net::LDAP or Net::LDAPS modules for interfacing with an LDAP server

  • Plus many other authentication modules available on CPAN

Michael Doran, Systems Librarian


Authentication adaptors for ldap written in perl l.jpg

Authentication adaptorsfor LDAP written in Perl

Flatten out the learning curve by adapting these two Perl scripts created by other Voyager customers.

“Adaptor Example Source Code”

A production-worthy Voyager third-party patron authentication

adaptor script using Perl to query an LDAP server

by Michael Doran, University of Texas at Arlington

http://rocky.uta.edu/doran/adaptor/

“login”

An authentication script used to authenticate access to Voyager's MyOPAC [This is also a production level script, in Perl]

by Steve Thomas, University of Adelaide

http://staff.library.adelaide.edu.au/sthomas/scripts/voyager/login.html

Michael Doran, Systems Librarian


An authentication adaptor for kerberos written in java l.jpg

An authentication adaptorfor Kerberos written in Java

Or if Java is more your cup of tea, take a look at this EndUser presentation:

“External Patron Authentication”

EndUser 2004, Session 35

by Jeff Barnett, Gail Barnett, and Kalee Sprague, Yale University

http://support.endinfosys.com/cust/community/vgroup/eu2004/tech.html or

http://www.library.yale.edu/~jbarnett/EndUser2004/session35.ppt

Yale University Library developed an external patron authentication adaptor written in Java. It authenticates against a Kerberos server. For more info see: http://www.library.yale.edu/~jbarnett/EndUser2004/

Michael Doran, Systems Librarian


Some voyager sites using external patron authentication l.jpg

Some Voyager sites usingexternal patron authentication

  • Columbia University

  • Tarrant County College

  • Monash University

  • University of Adelaide

  • University of British Columbia

  • University of Texas at Arlington

  • Washington Research Library Consortium

  • Worcester Polytechnic Institute

  • Yale University

Get a fuller list of implementing libraries at:

http://rocky.uta.edu/doran/adaptor/voysites.html

Michael Doran, Systems Librarian


This presentation l.jpg

This presentation…

…was an overview

You might also want to take a look at…

Creating an LDAP Patron Authentication Adaptor (using Perl)

Michael Doran, Systems Librarian


Any questions l.jpg

Any questions?

Michael Doran, Systems Librarian


  • Login
