  1. KEY STORY:PAYLOAD AND TOWING

  2. KEY STORY: PAYLOAD AND TOWING TEII_PG_04_TOWING0027—Ditch witch backhoe—1068809.US-TU07-183-A.r4—hikers

  3. PAYLOAD AND TOWING OVERVIEW

  4. KEY STORY: PAYLOAD AND TOWING • Define key terms and acronyms related to payload and towing • Calculate towing and payload requirements • List payload and towing features • Describe the specifications and availability of payload and towing capabilities of Toyota trucks

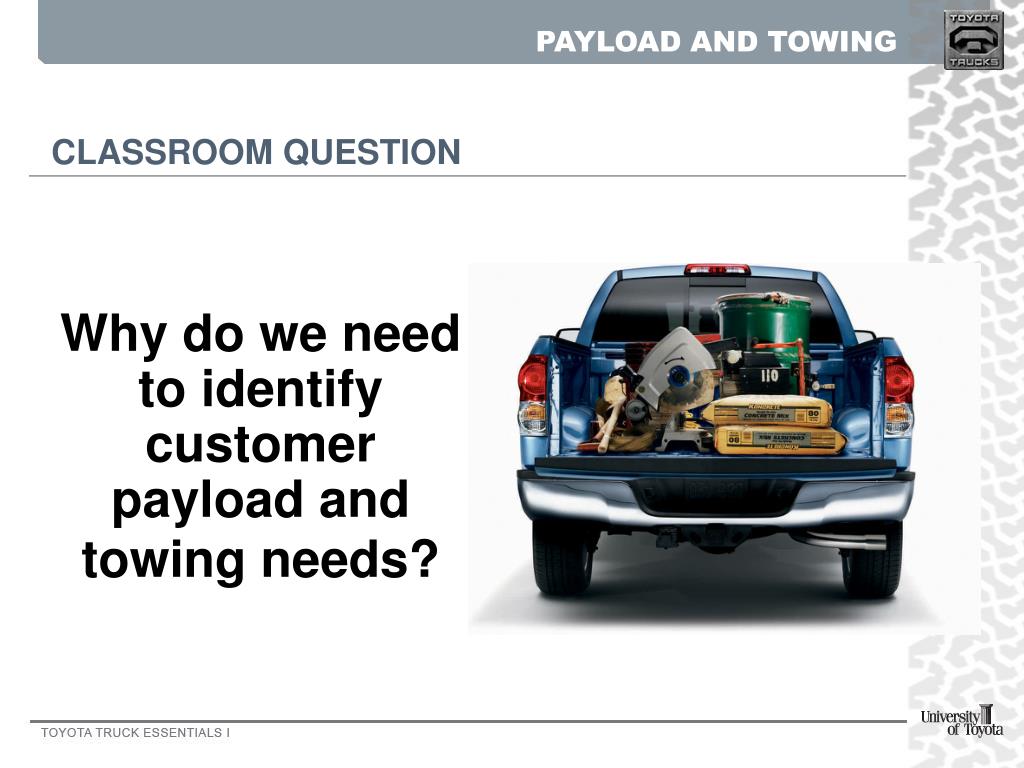

  5. CLASSROOM QUESTION • Why do we need to identify customer payload and towing needs? 1068809.US-TU07-183-A.r4

  6. HOLD, SUPPORT, MOVE AND STOP

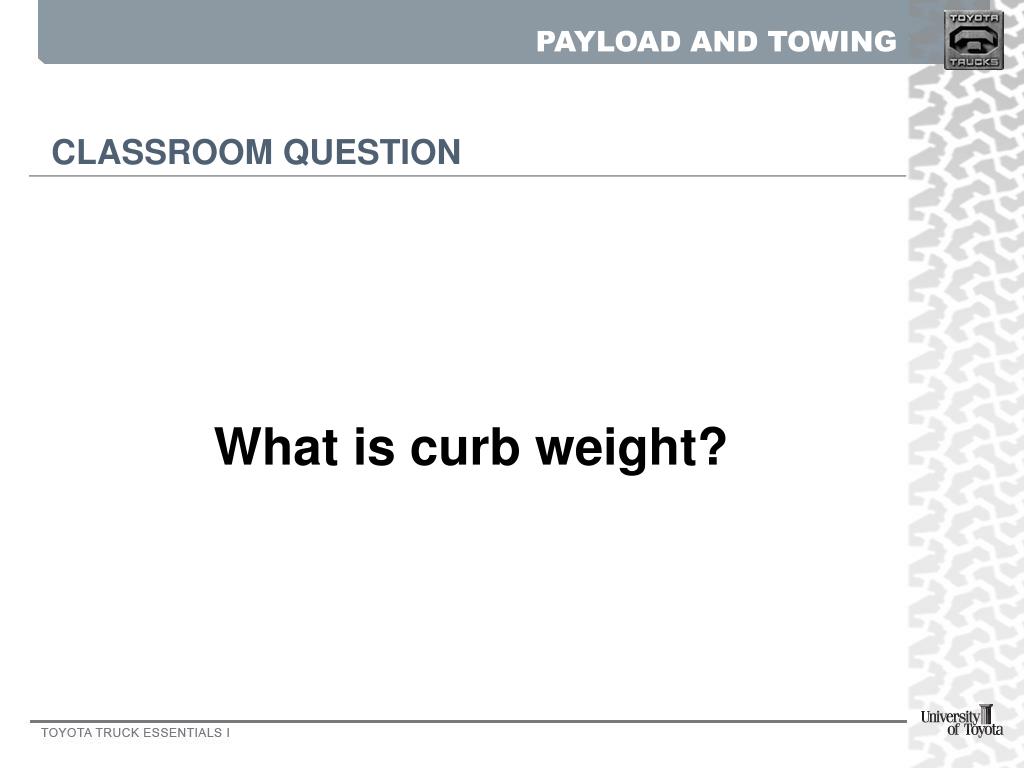

  7. CLASSROOM QUESTION • What is curb weight?

  8. CURB WEIGHT • The weight of the empty truck, including all standard equipment, tools, fluids, lubricants and the spare tire CurbWeight_icon

  9. PAYLOAD TERMS • 1/2-ton • 3/4-ton • 1 ton

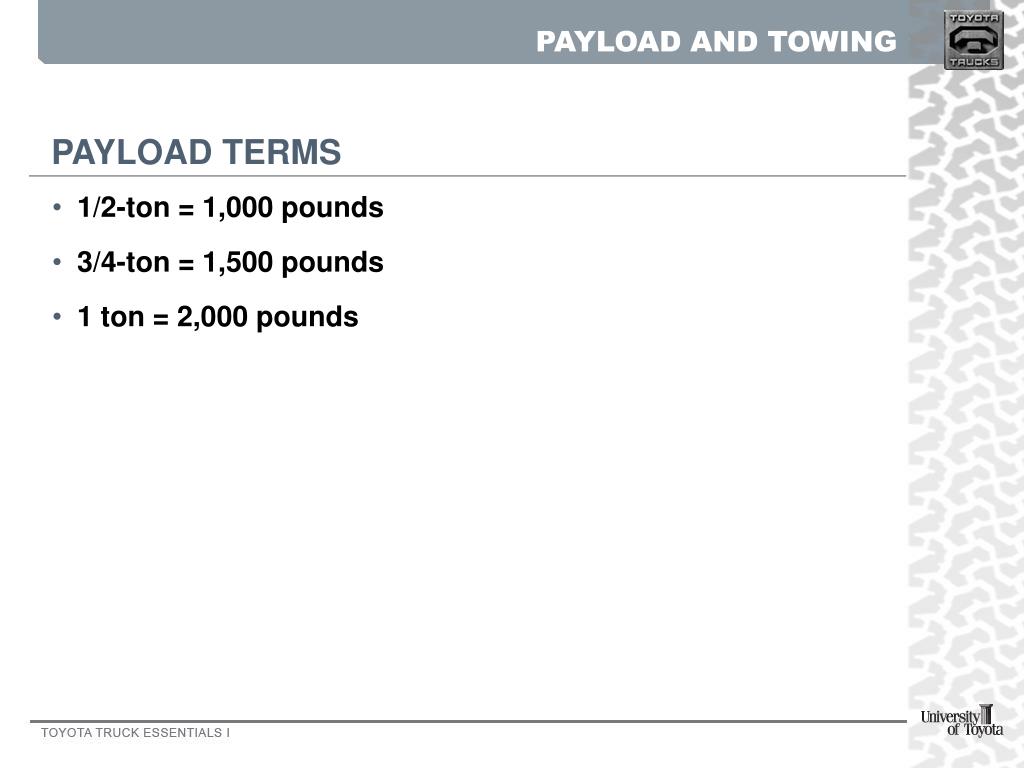

  10. PAYLOAD TERMS • 1/2-ton = 1,000 pounds • 3/4-ton = 1,500 pounds • 1 ton = 2,000 pounds

  11. WHAT IS PAYLOAD?  PLAY

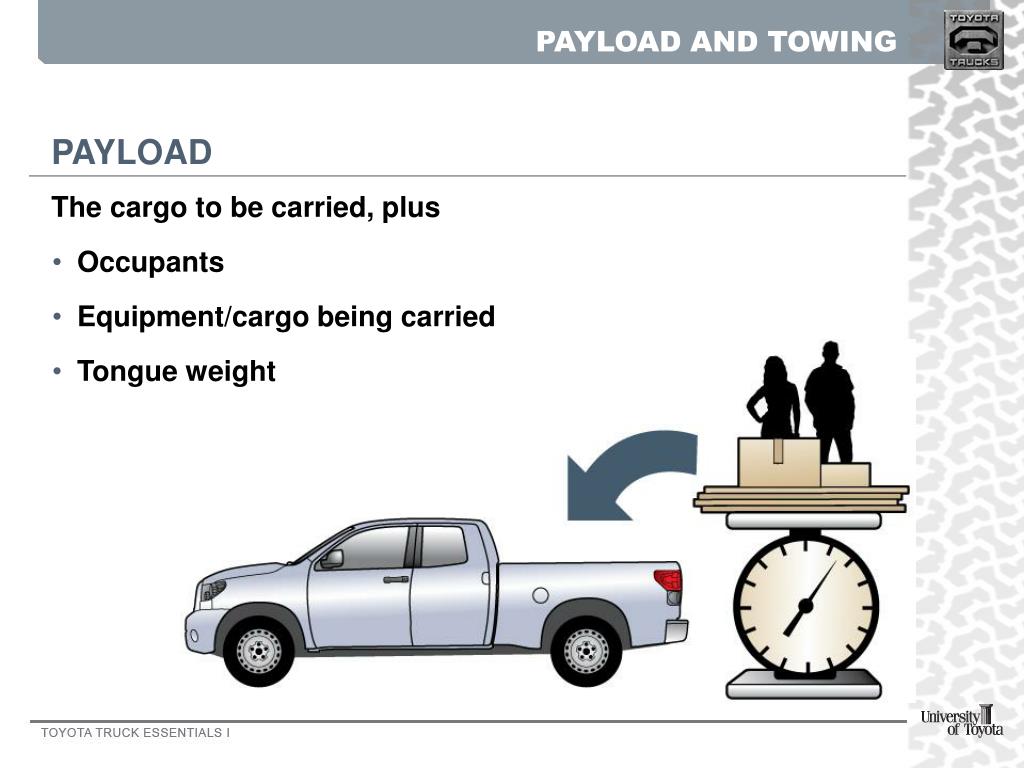

  12. PAYLOAD • The cargo to be carried, plus • Occupants • Equipment/cargo being carried • Tongue weight Payload_icon

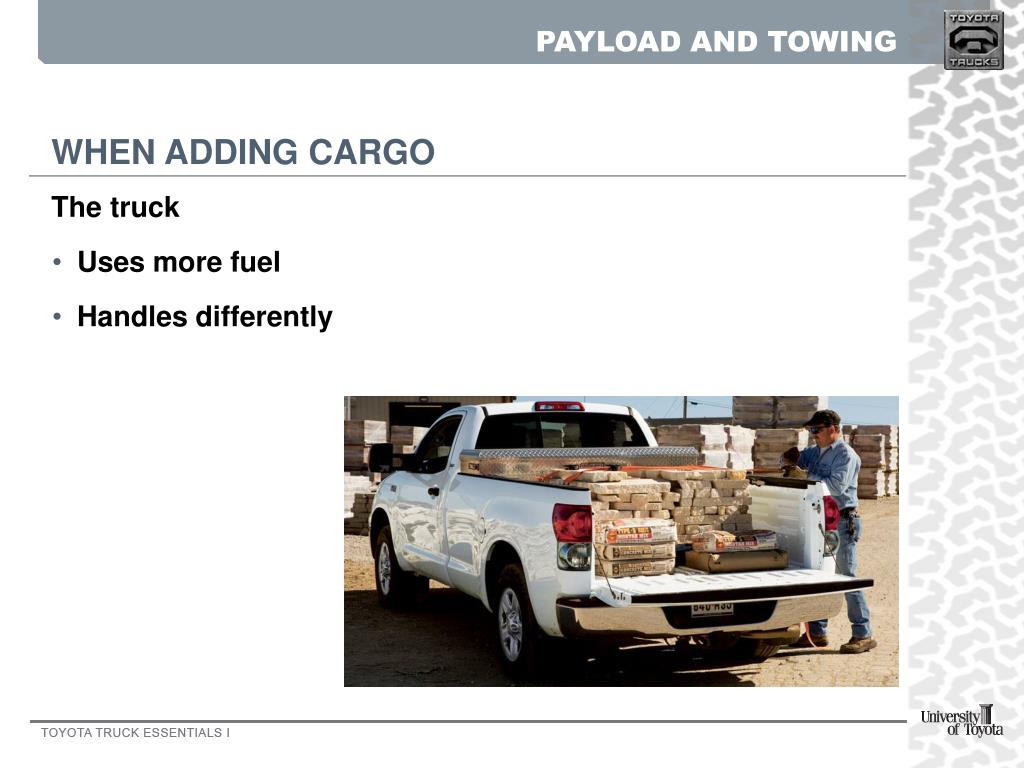

  13. WHEN ADDING CARGO • The truck • Uses more fuel • Handles differently

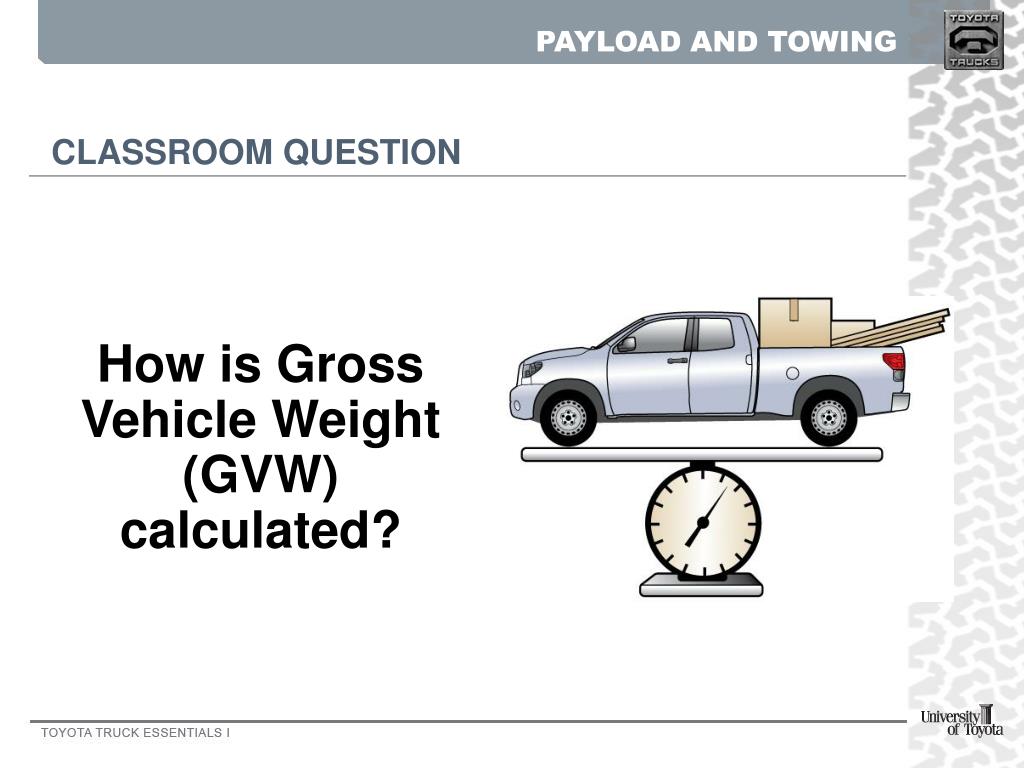

  14. CLASSROOM QUESTION • How is Gross Vehicle Weight (GVW) calculated? GVW_icon

  15. GROSS VEHICLE WEIGHT RATING (GVWR) • The maximum allowable Gross Vehicle Weight, including passengers and cargo GVW_icon

  16. TOWING WEIGHT • Trailer weight + items being towed TowingCapacity_icon

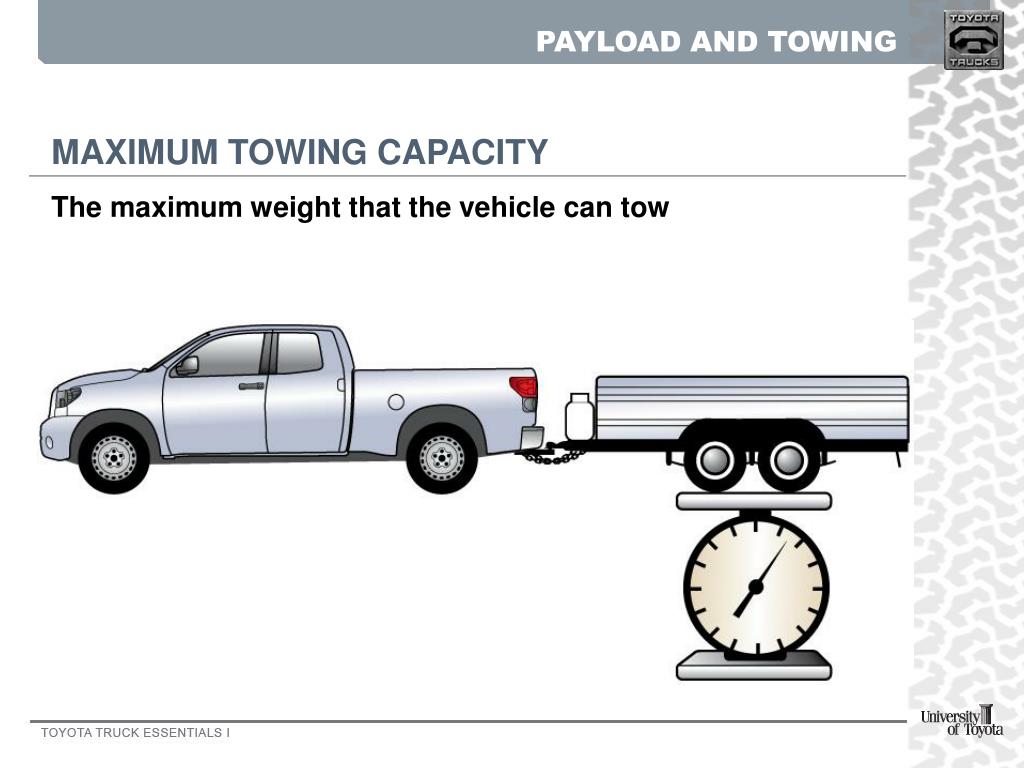

  17. MAXIMUM TOWING CAPACITY • The maximum weight that the vehicle can tow TowingCapacity_icon

  18. TONGUE WEIGHT • The weight pressing down on the trailer hitch TongueWeight_icon

  19. TONGUE WEIGHT • Should be 10–15% of trailer weight • Should be included when calculating payload TongueWeight_icon

  20. GROSS COMBINED WEIGHT (GCW) • Curb weight + payload + trailer towing weight (not including tongue weight) GCWR_icon

  21. GROSS COMBINED WEIGHT RATING (GCWR) • The maximum weight of the truck, payload and loaded trailer GCWR_icon

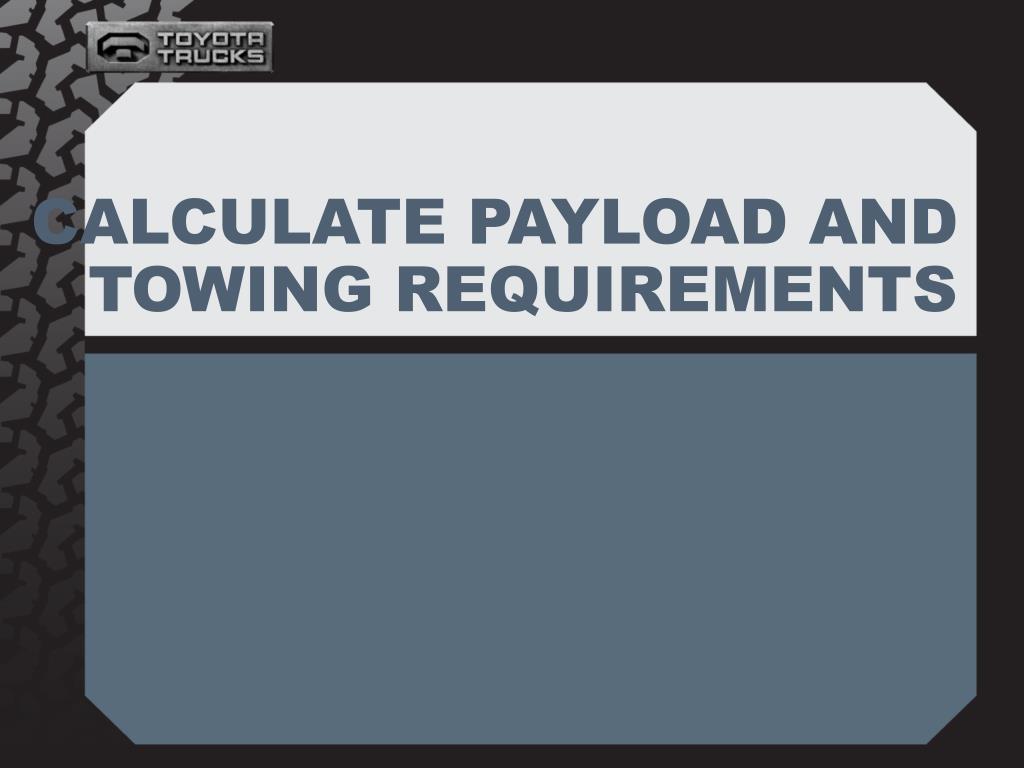

  22. CALCULATE PAYLOAD AND TOWING REQUIREMENTS

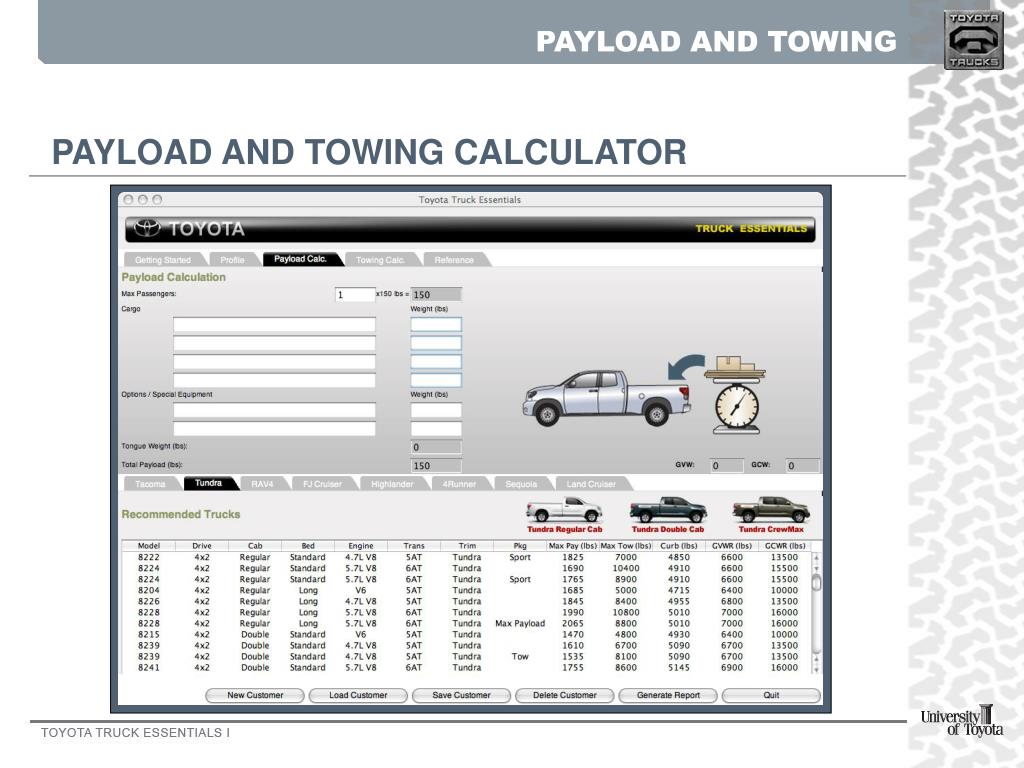

  23. PAYLOAD AND TOWING CALCULATOR Payload_Calc_1—Payload_Calc_2

  24. CHOOSING BY PAYLOAD AND PASSENGERS Payload_Calc_1—Payload_Calc_2

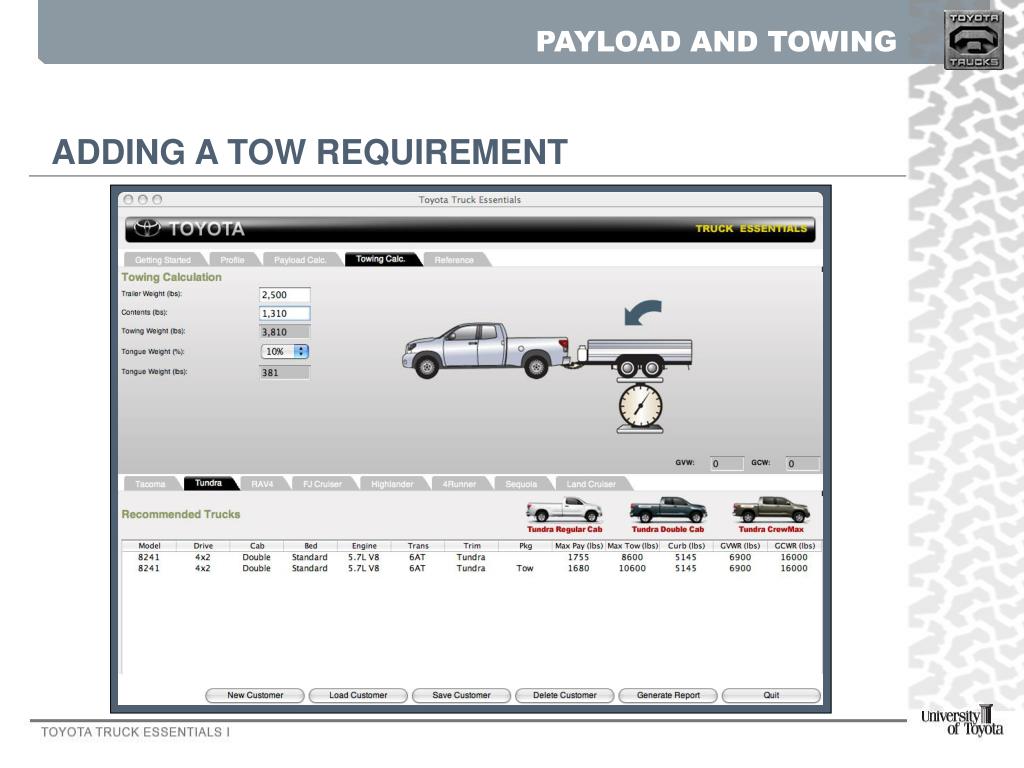

  25. ADDING A TOW REQUIREMENT Payload_Calc_1—Payload_Calc_2

  26. ACTIVITY: PERSONAL USE—EMILY

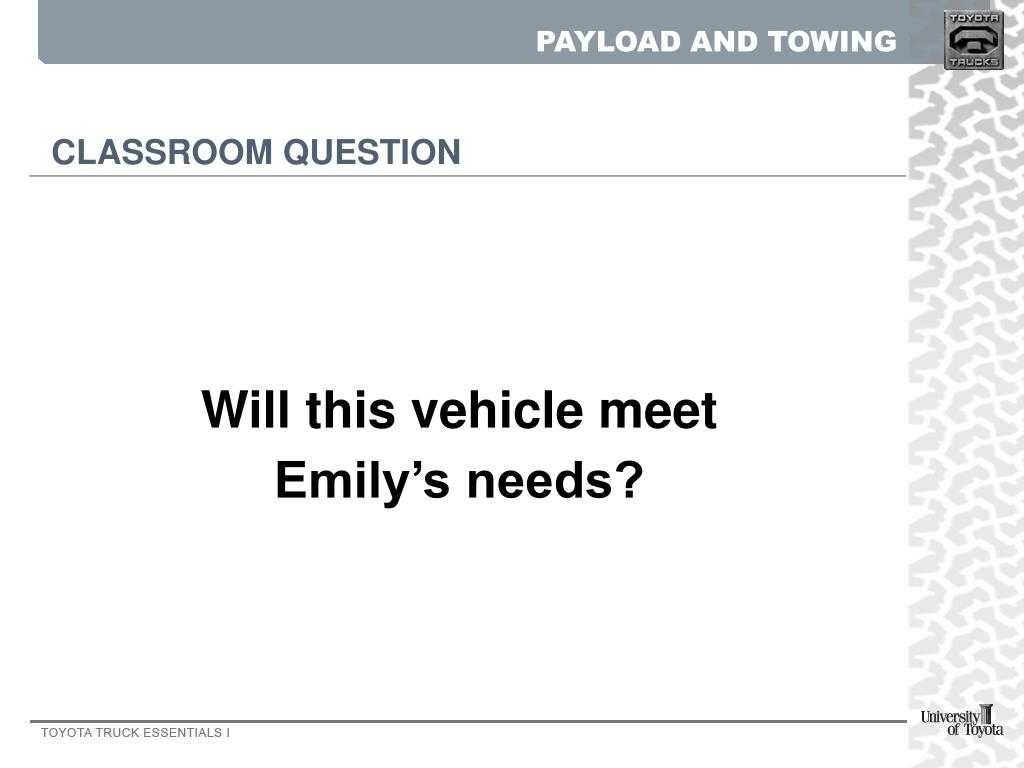

  27. CLASSROOM QUESTION • Will this vehicle meet Emily’s needs?

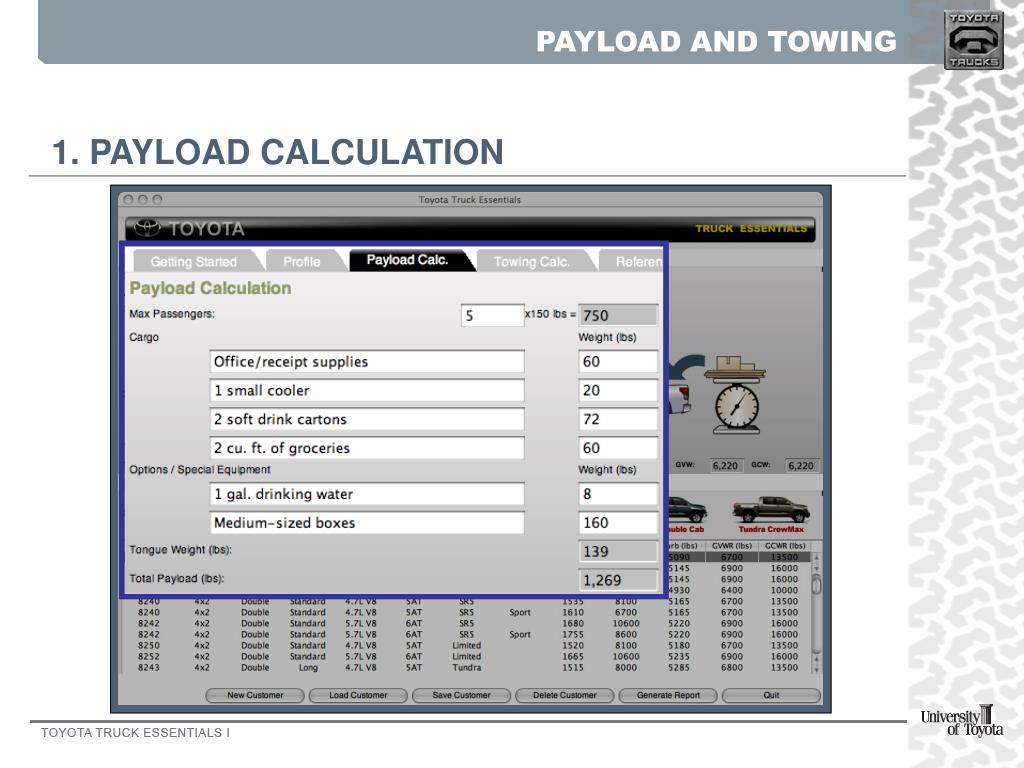

  28. 1. PAYLOAD CALCULATION

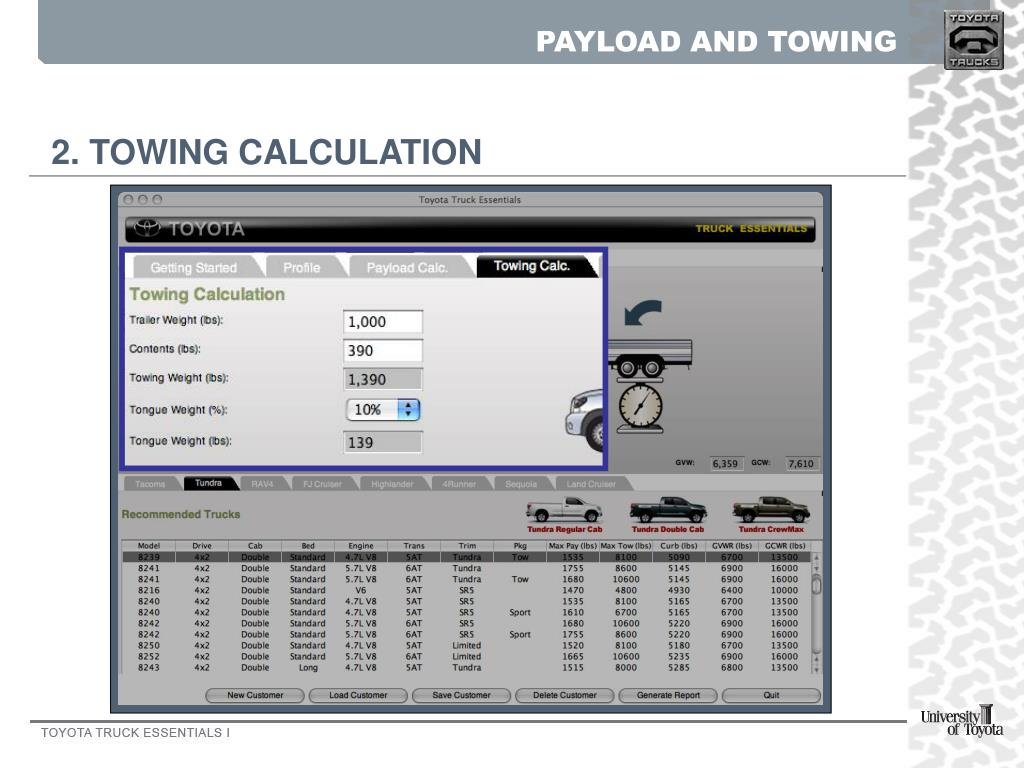

  29. 2. TOWING CALCULATION

  30. 3. RECOMMENDED TACOMAS

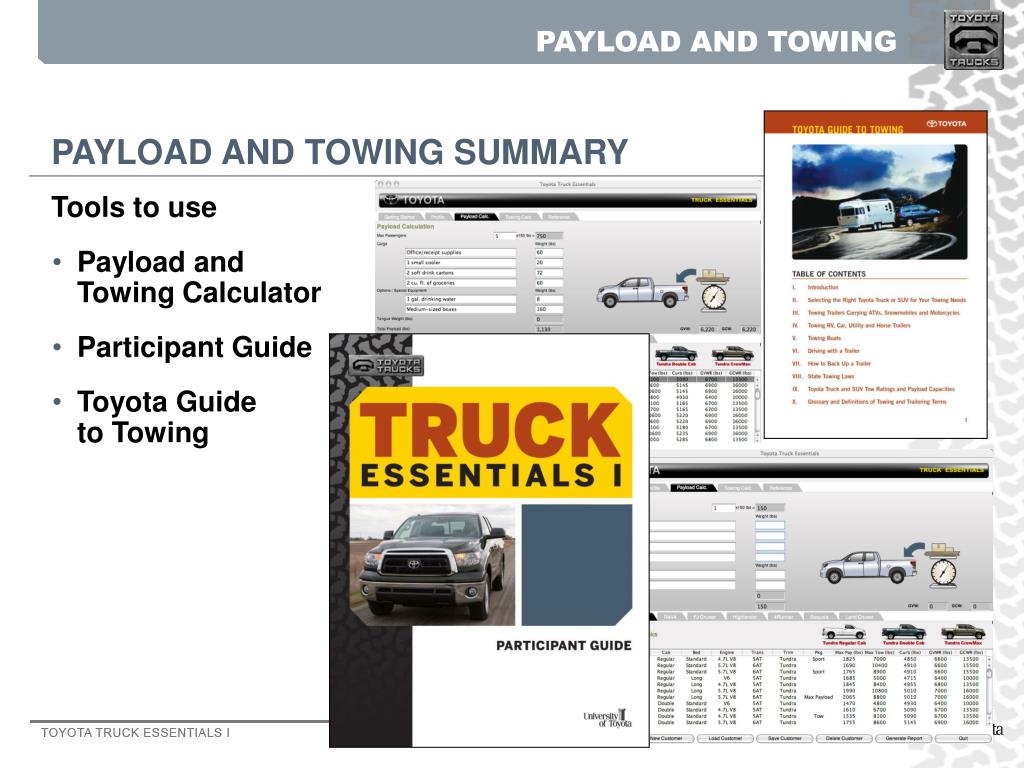

  31. PAYLOAD AND TOWING SUMMARY • Tools to use • Payload and Towing Calculator • Participant Guide • Toyota Guide to Towing
