  1. Windows Intune for IT Pros Jump Start M06: Cloud-only PC Setup David Tesar Richard Harrison

  2. Windows Intune for IT Pros Jump Start

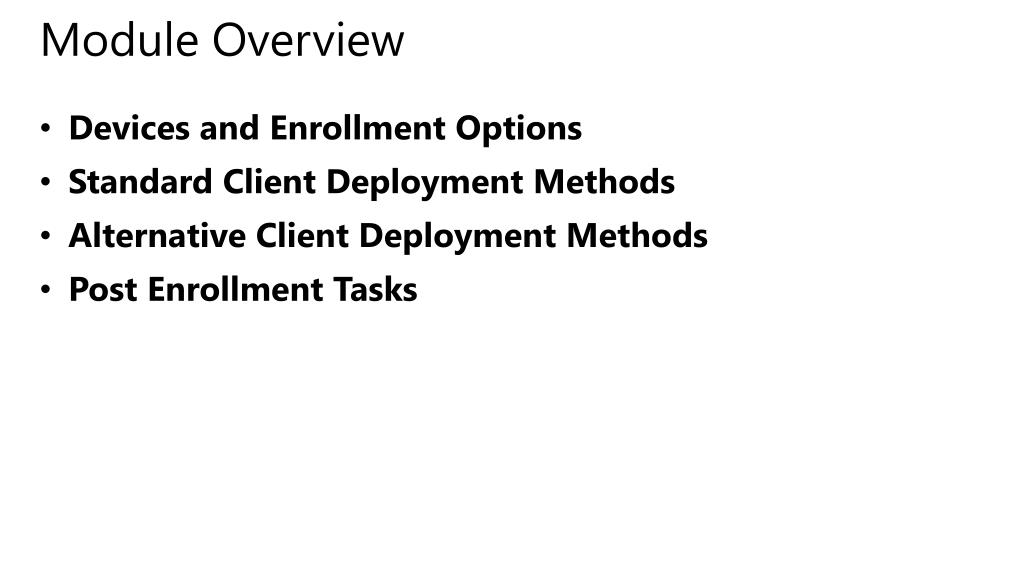

  3. Module Overview • Devices and Enrollment Options • Standard Client Deployment Methods • Alternative Client Deployment Methods • Post Enrollment Tasks

  4. Devices and Enrollment Options

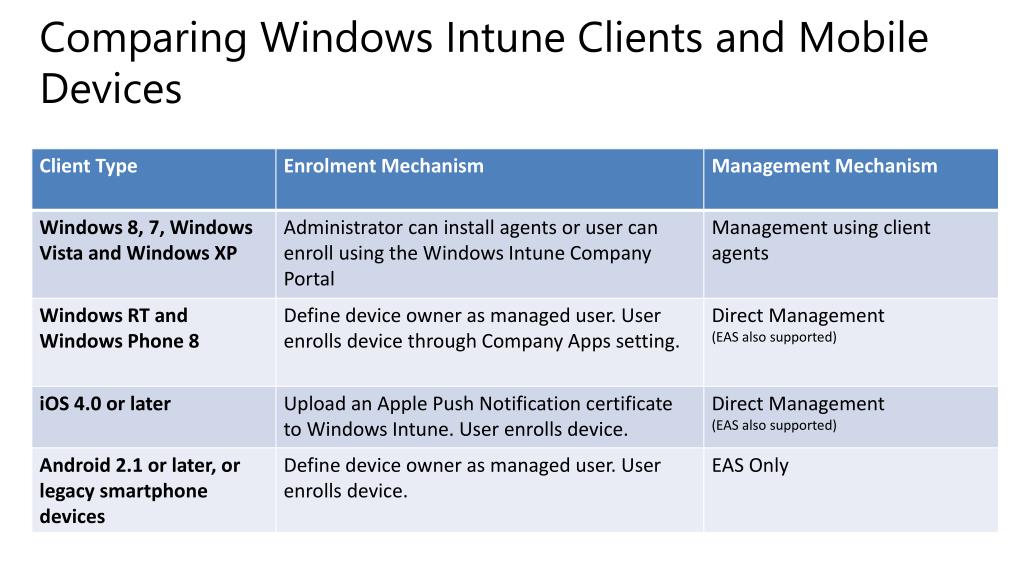

  5. Comparing Windows Intune Clients and Mobile Devices

  6. Windows Intune PC Deployment Options • Standard Deployment Methods • Direct download • Network share • Flash drive • Self-service company portal User requires Local Admin rights • Alternative Deployment Methods • Scripts, group policy • Image-based or offline installation No Local Admin rights required Cloud service

  7. Standard Client Deployment Methods

  8. Administrator Computer Enrollment Process • Download the client package and certificate. • Enroll the client computer • Manually • Using automation • Link the computer to a user • Can link multiple computers to a single user • A computer can be linked to only one user

  9. Windows Intune PC Installation Package Command-line options: • /Quiet • /Extract %temp% • /PrepareEnroll • The installation package includes: • The Setup executable file • A certificate specific to the Windows Intune account

  10. Standard Windows Intune PC Installation Process Enrollment • The Windows Intune agent starts • Authenticates against the cloud service • Enrolls the client computer and generates the computers certificate • Microsoft Update verifies the agent versions and downloads them to the computer • Each agent starts up as it is downloaded and installed • Each agent reports information to the Windows Intune service • Agents with failed installations raise alerts on the administrator console Agent installation • A restart maybe required • Installation completes and all agents report to Windows Intune within 30 minutes • Check the Ungrouped Devices group for newly enrolled computers Computer restart

  11. The Self-service Computer Enrollment Process https://portal.manage.microsoft.com

  12. Alternative Client Deployment Methods

  13. Deployment scripts must determine which version to run for the operating system Supports standard Windows Installer (msiexec.exe) command-line parameters Can be deployed via Group Policies Working with Windows Installer (.msi) Files Windows_Intune_Setup.ZIP Windows_Intune_Setup.exe /extract

  14. Offline Windows Intune Client Installation Process Reference Computer • Copy files to %systemdrive%\temp\Windows_Intune_Setup • Windows_Intune_Setup.exe • WindowsIntune.accountcert • Prepare system image • Create SetupComplete.cmd • Place in the %Windir%\Setup\Scripts folder • Capture system image • Use Windows Setup to capture image Windows_Intune_Setup.exe WindowsIntune.accountcert

  15. Offline Windows Intune Client Installation Process Target Computer • Restart • Windows Setup completed • SetupComplete.cmd runs • WindowsIntuneEnrollPending key created • Check for Enrollment • If enrolled, no action • If not, create Windows Intune Automatic Enrollment task • Windows Intune Automatic Enrollment task • Runs at next scheduled time • Checks for WindowsIntuneEnrollPending registry key • Attempts to enroll target computer • If enrollment fails, will retry for up to one month • More details online at: http://aka.ms/j55dq0

  16. Post Enrollment Tasks

  17. Retiring a Windows Intune Client Admin Retiring End User Retiring Note: There can be up to a 30 day delay before devices are removed from the console.

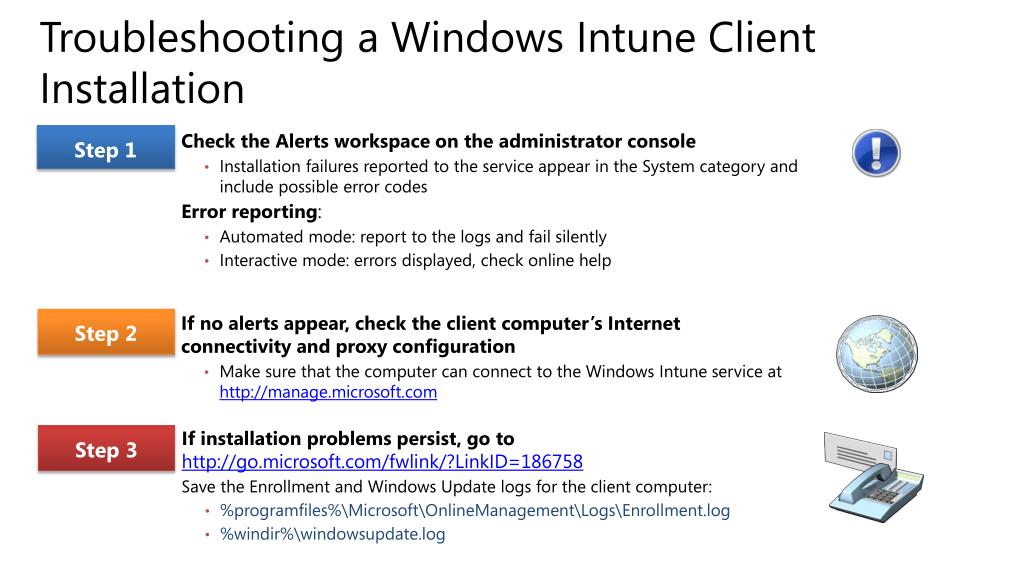

  18. Troubleshooting a Windows Intune Client Installation Check the Alerts workspace on the administrator console Installation failures reported to the service appear in the System category and include possible error codes Error reporting: Automated mode: report to the logs and fail silently Interactive mode: errors displayed, check online help Step 1 Step 2 • If no alerts appear, check the client computer’s Internet connectivity and proxy configuration • Make sure that the computer can connect to the Windows Intune service at http://manage.microsoft.com Step 3 • If installation problems persist, go to http://go.microsoft.com/fwlink/?LinkID=186758 • Save the Enrollment and Windows Update logs for the client computer: • %programfiles%\Microsoft\OnlineManagement\Logs\Enrollment.log • %windir%\windowsupdate.log

  19. Best Practices Working with Client Installation • Do not rename installation files • Use a folder structure to keep different sets of installation files separate • Keep the installation files secure • Remove the installation files from the client computer when the installation is complete Tailspin Toys Client Software

  20. Module Summary • Devices and Enrollment Options • Standard Client Deployment Methods • Alternative Client Deployment Methods • Post Enrollment Tasks
