  1. National Institute of Informatics Kiyoko Uchiyama A Study for Introductory Terms in Logical Structure of Scientific Papers 1

  2. Outline Purpose, background, motivation What’s “Introductory terms” Analysis of logical structure Analysis of structural role Apply to MIC theory Future works 2

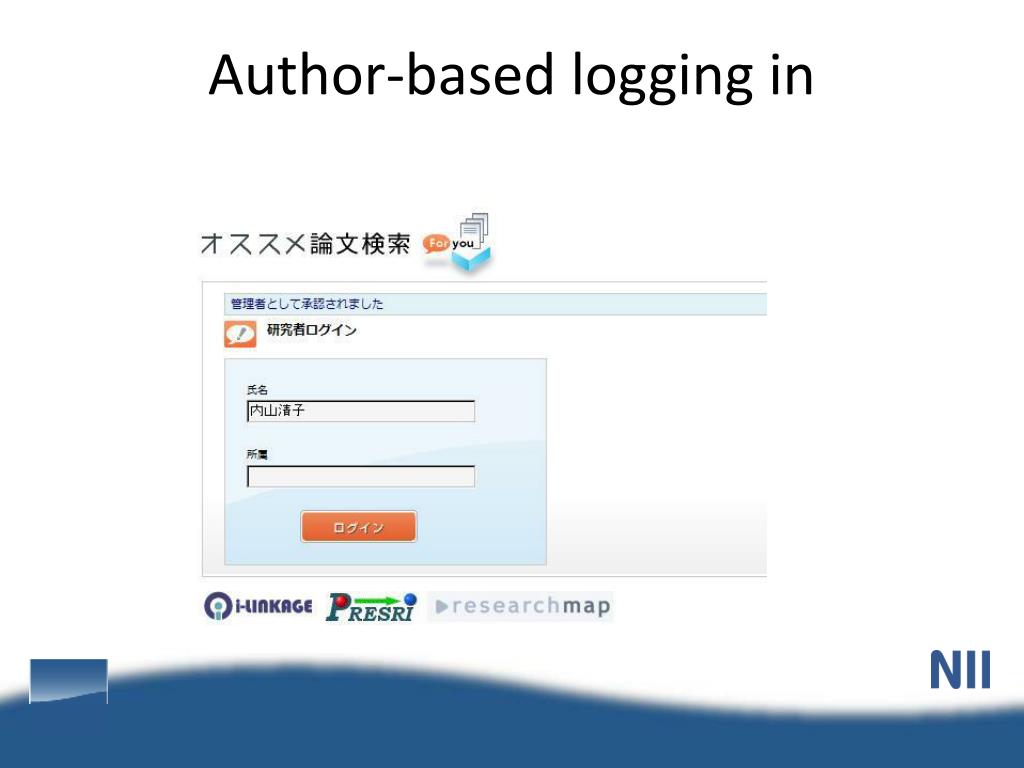

  3. Author-based logging in

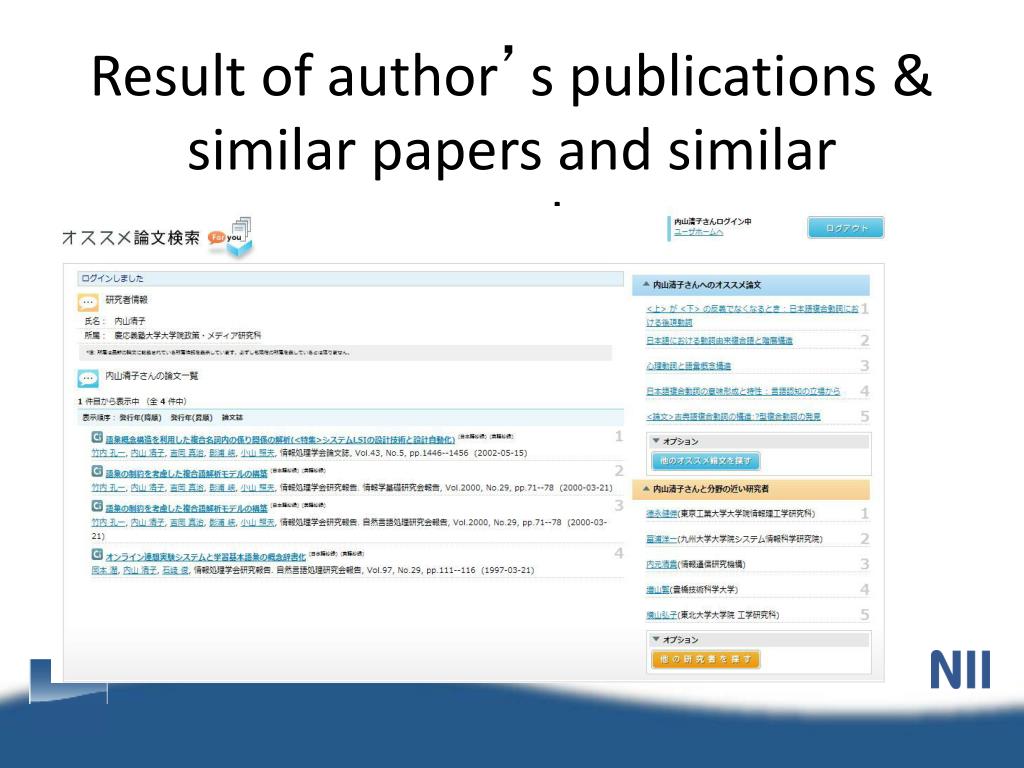

  4. Result of author’s publications &similar papers and similar researchers

  5. Keyword-based logging in

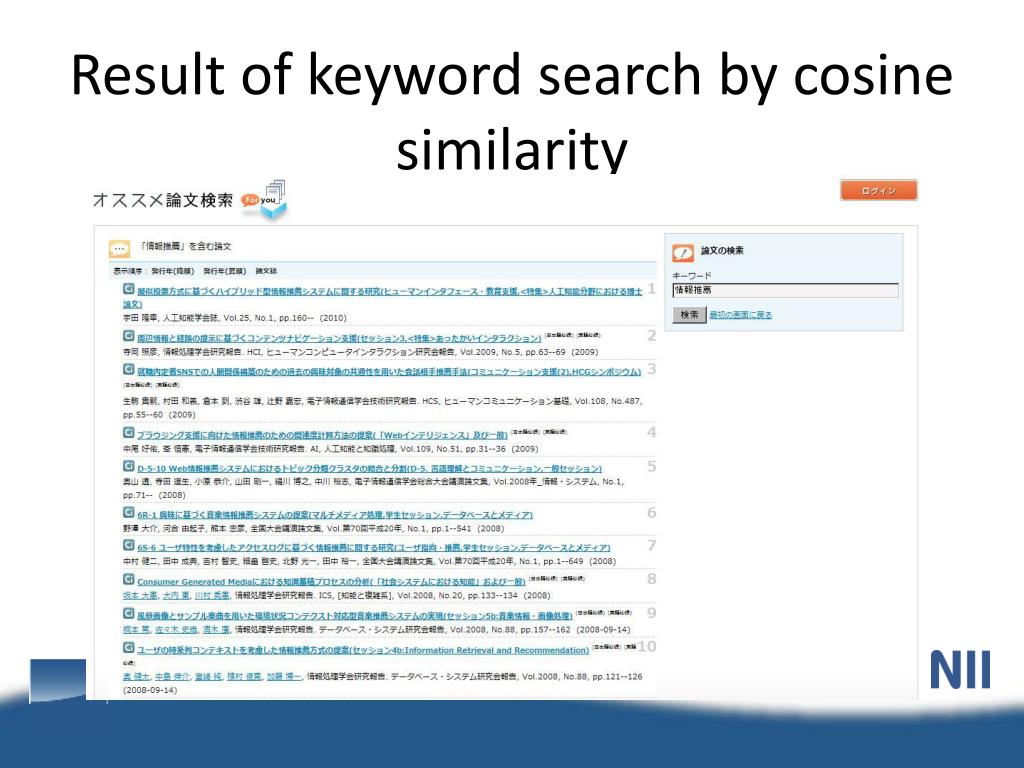

  6. Result of keyword search by cosine similarity

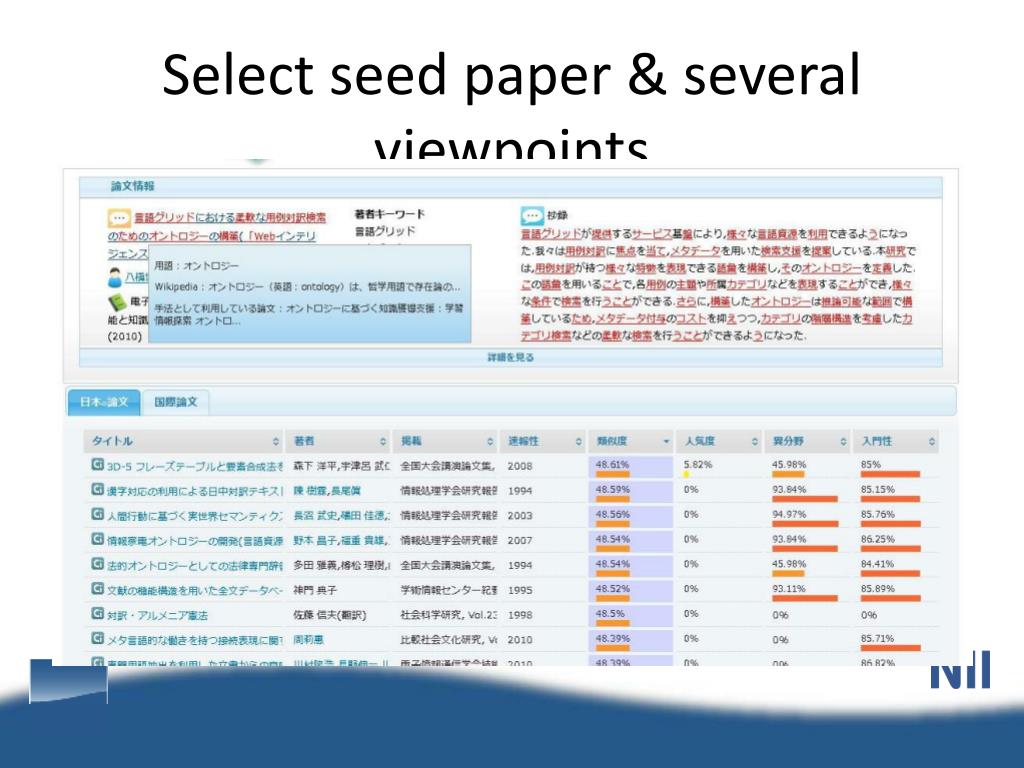

  7. Select seed paper & several viewpoints

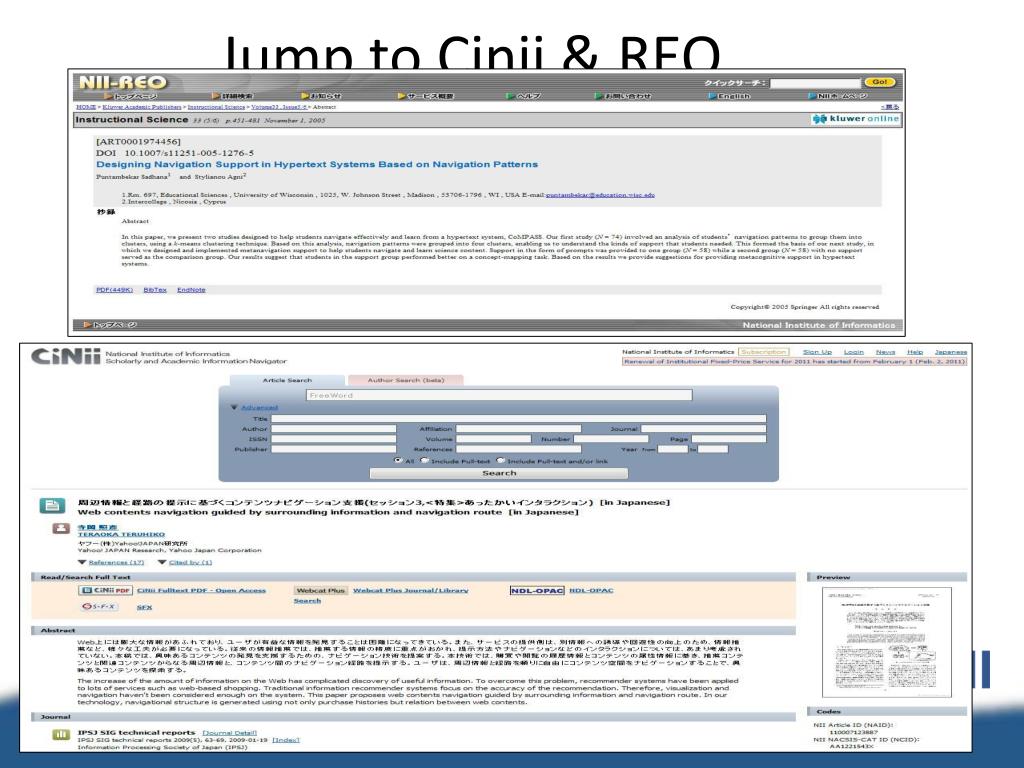

  8. Jump to Cinii & REO

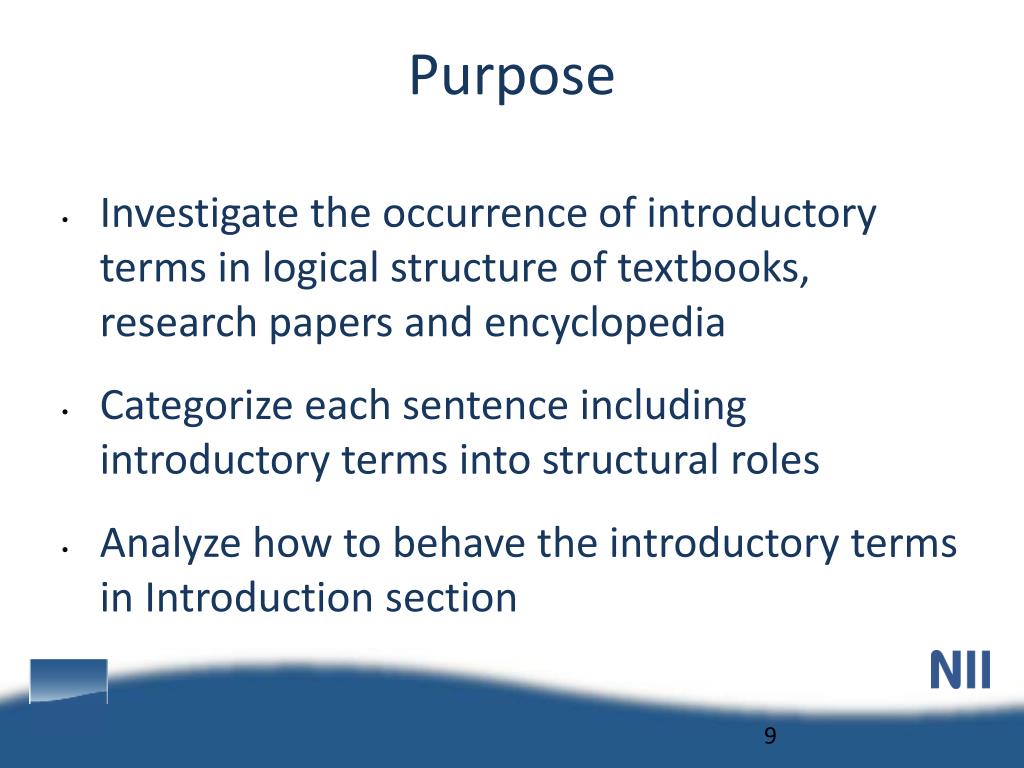

  9. Purpose • Investigate the occurrence of introductory terms in logical structure of textbooks, research papers and encyclopedia • Categorize each sentence including introductory terms into structural roles • Analyze how to behave the introductory terms in Introduction section 9

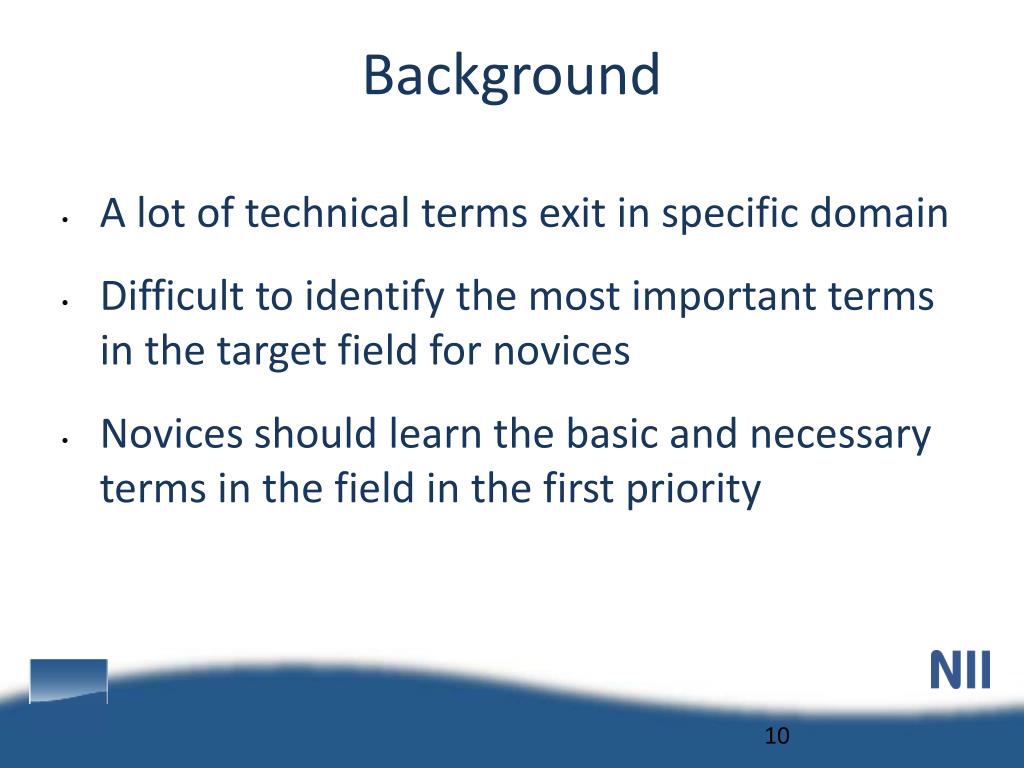

  10. Background • A lot of technical terms exit in specific domain • Difficult to identify the most important terms in the target field for novices • Novices should learn the basic and necessary terms in the field in the first priority 10

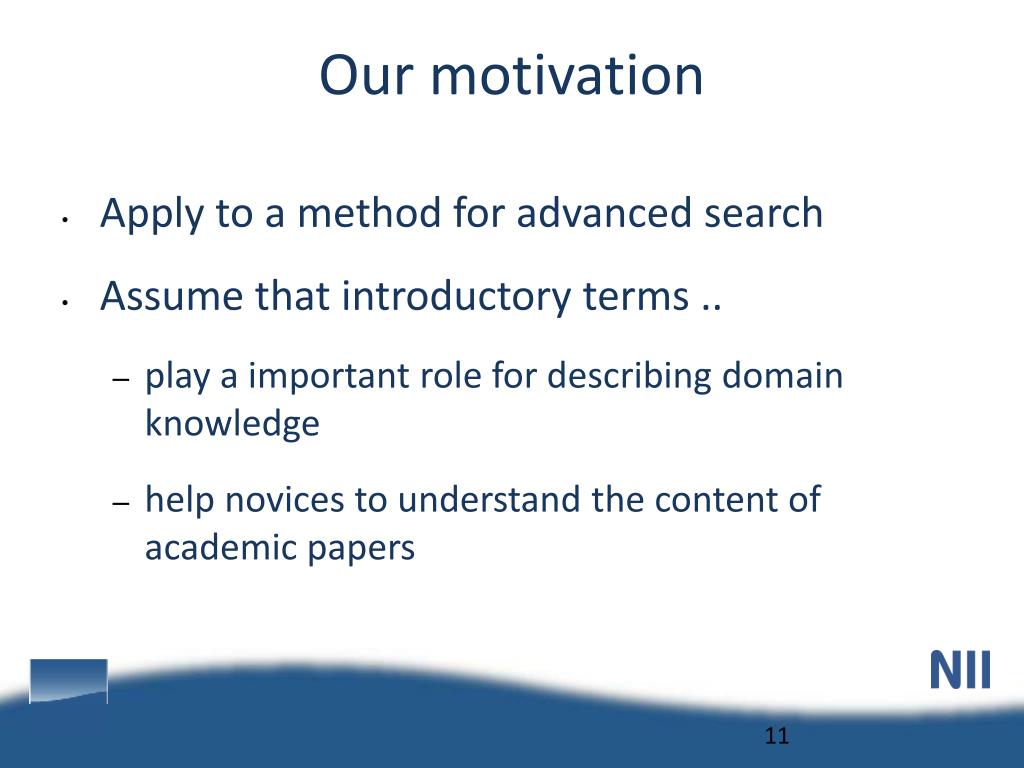

  11. Our motivation • Apply to a method for advanced search • Assume that introductory terms .. • play a important role for describing domain knowledge • help novices to understand the content of academic papers 11

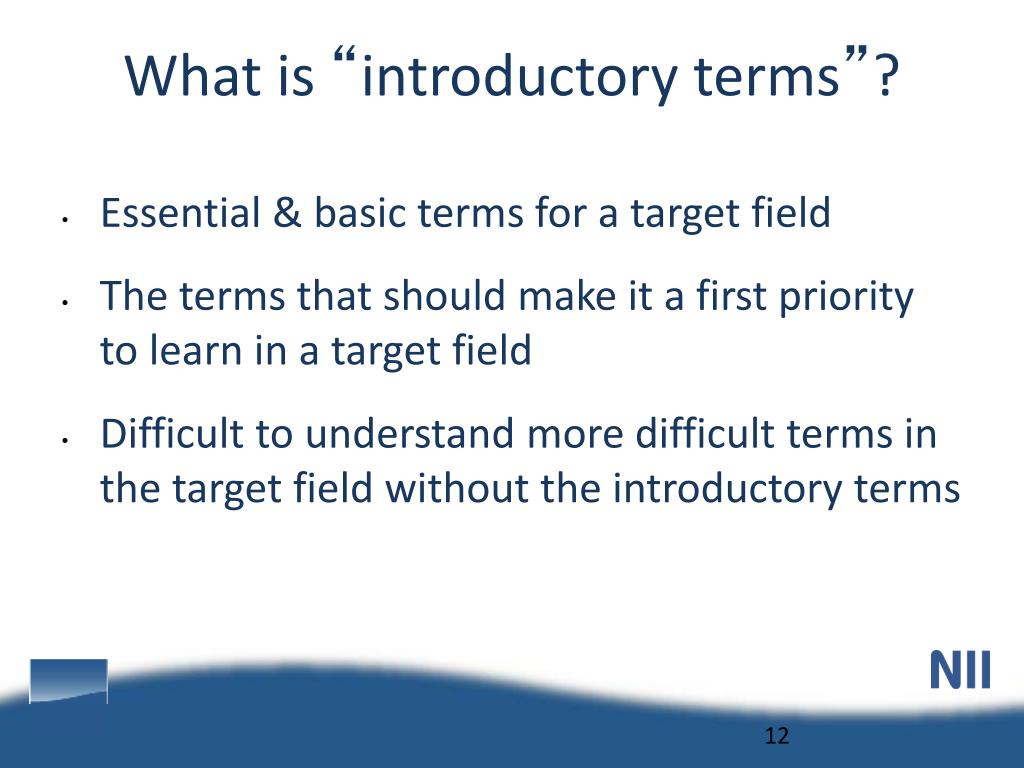

  12. What is “introductory terms”? • Essential & basic terms for a target field • The terms that should make it a first priority to learn in a target field • Difficult to understand more difficult terms in the target field without the introductory terms 12

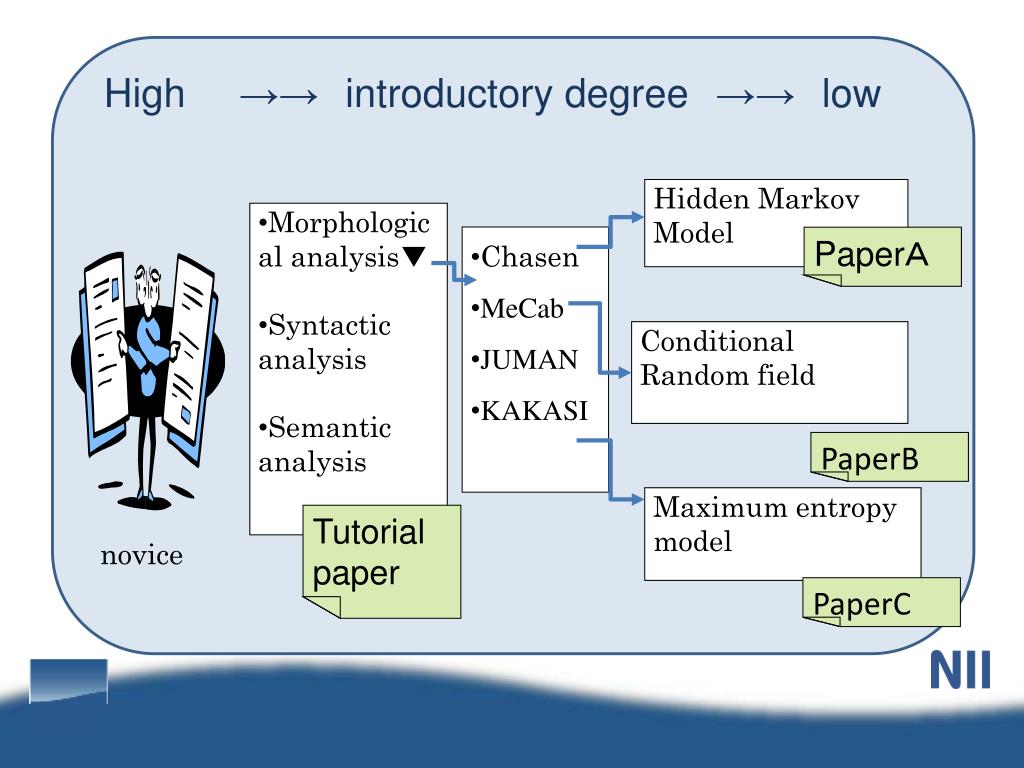

  13. High　　→→　introductory degree　→→　low Hidden Markov Model • Morphological analysis▼ • Syntactic analysis • Semantic analysis • Chasen • MeCab • JUMAN • KAKASI PaperＡ Conditional Random field Maximum entropy model Tutorial paper novice PaperB PaperC

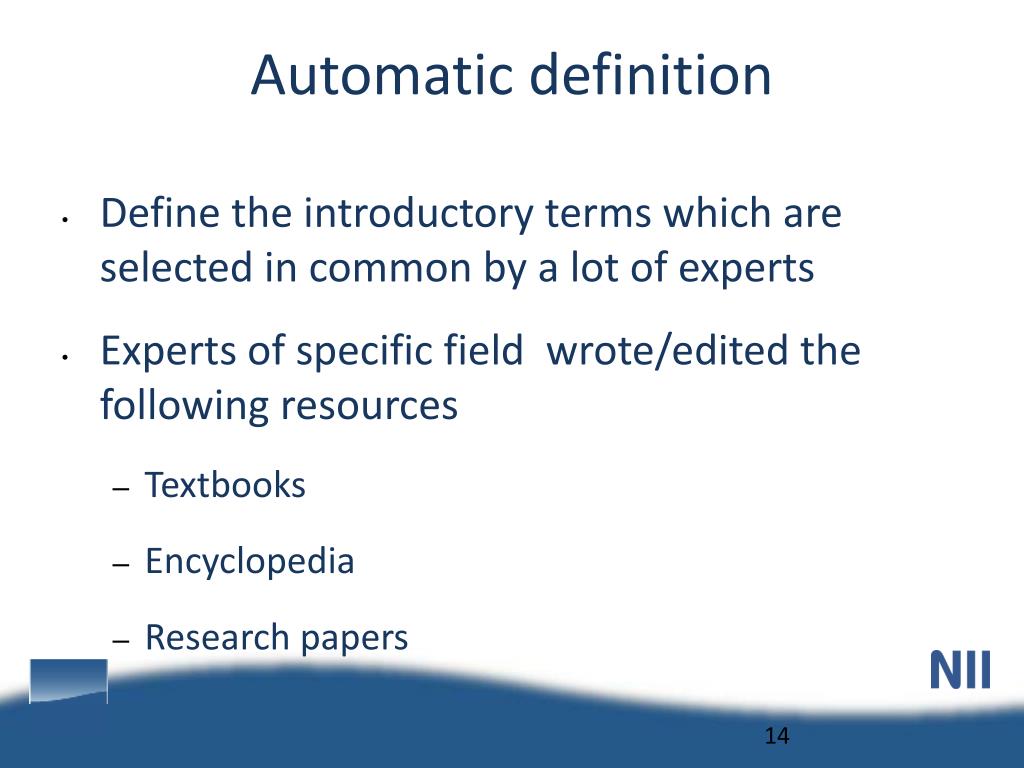

  14. Automatic definition • Define the introductory terms which are selected in common by a lot of experts • Experts of specific field wrote/edited the following resources • Textbooks • Encyclopedia • Research papers 14

  15. Priority ( Frequency ) • Authors arrange the contents of their textbooks in an easy-to-understand order • Authors include important keywords in title, author-assigned keywords in academic papers • The table of contents of Encyclopedia is edited by a lot of experts 15

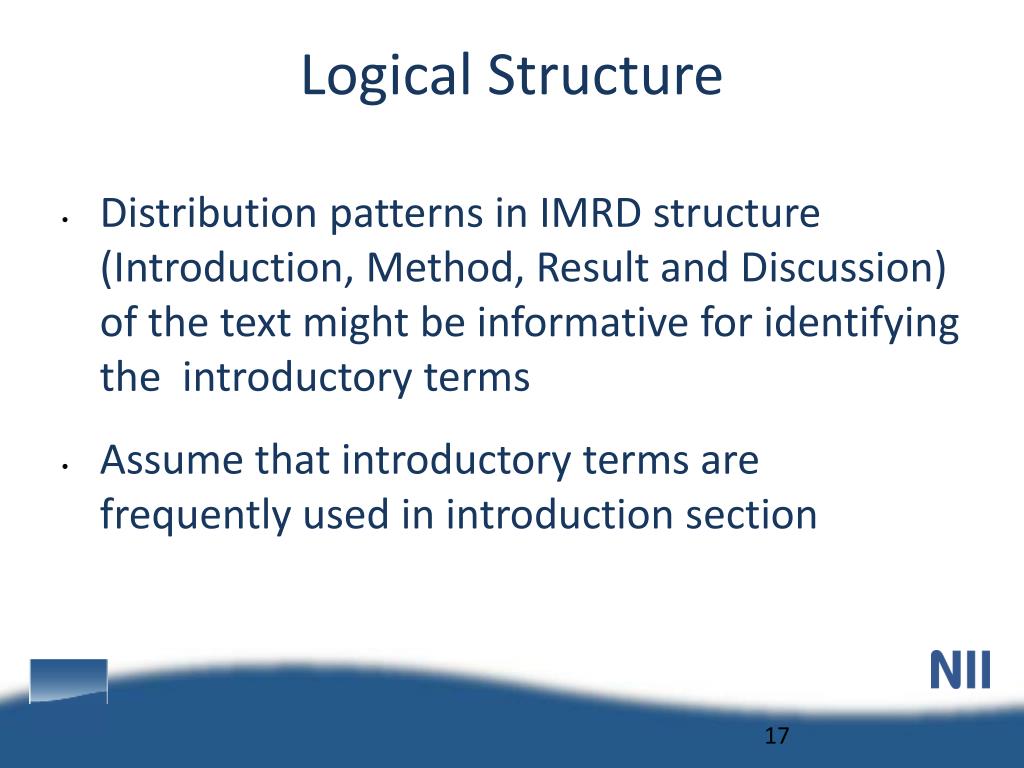

  16. Logical Structure • Distribution patterns in IMRD structure (Introduction, Method, Result and Discussion) of the text might be informative for identifying the introductory terms • Assume that introductory terms are frequently used in introduction section 17

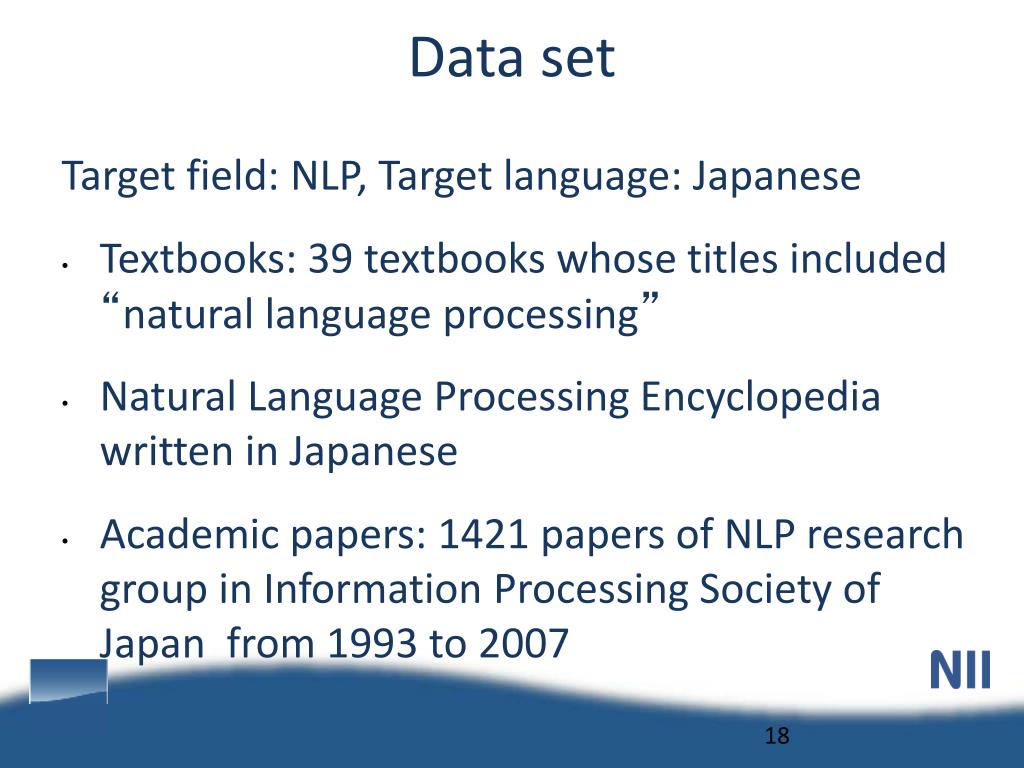

  17. Data set • Target field: NLP, Target language: Japanese • Textbooks: 39 textbooks whose titles included “natural language processing” • Natural Language Processing Encyclopedia written in Japanese • Academic papers: 1421 papers of NLP research group in Information Processing Society of Japan from 1993 to 2007 18

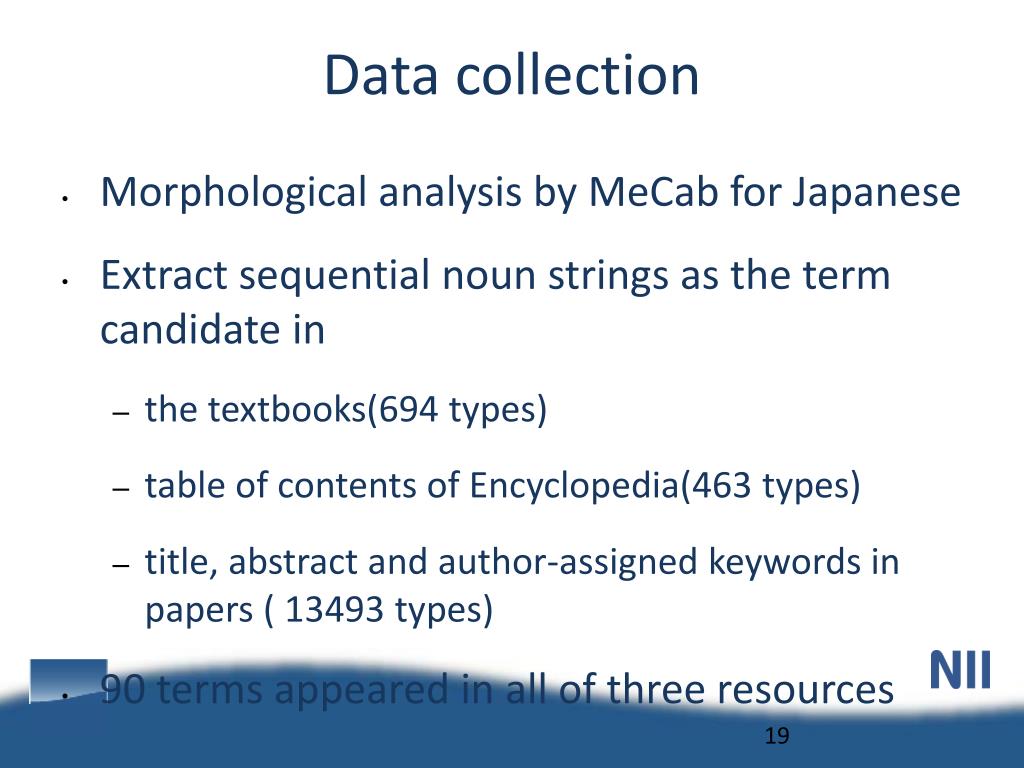

  18. Data collection • Morphological analysis by MeCab for Japanese • Extract sequential noun strings as the term candidate in • the textbooks(694 types) • table of contents of Encyclopedia(463 types) • title, abstract and author-assigned keywords in papers ( 13493 types) • 90 terms appeared in all of three resources 19

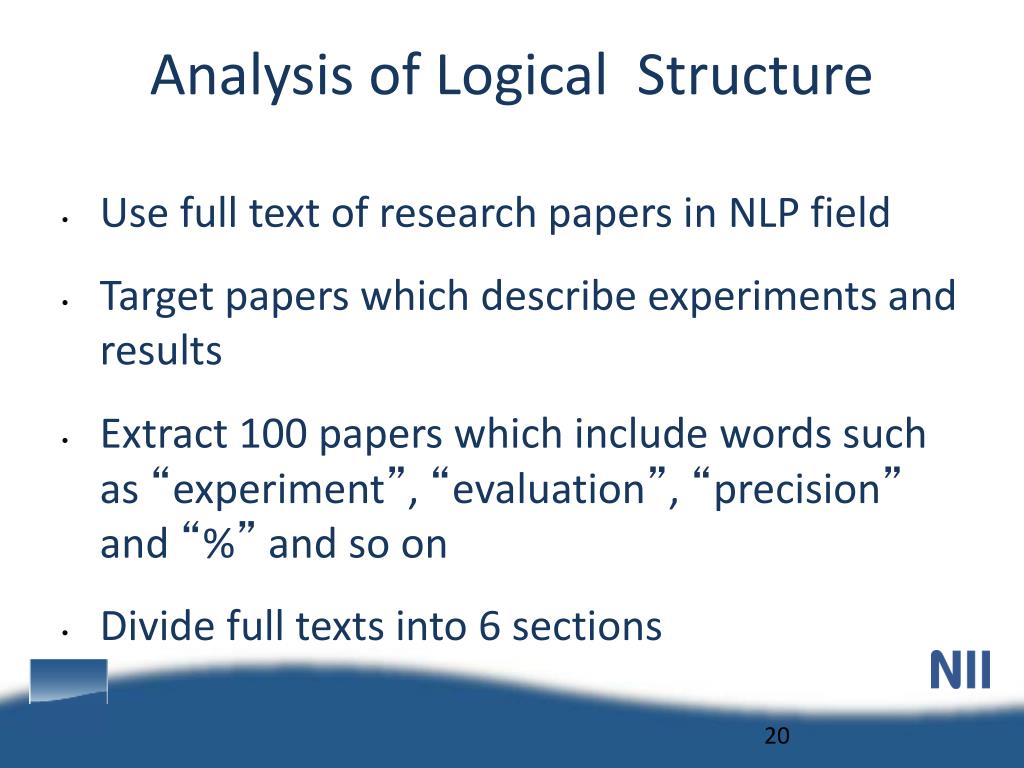

  19. Analysis of Logical Structure • Use full text of research papers in NLP field • Target papers which describe experiments and results • Extract 100 papers which include words such as “experiment”, “evaluation”, “precision” and “%” and so on • Divide full texts into 6 sections 20

  20. 21

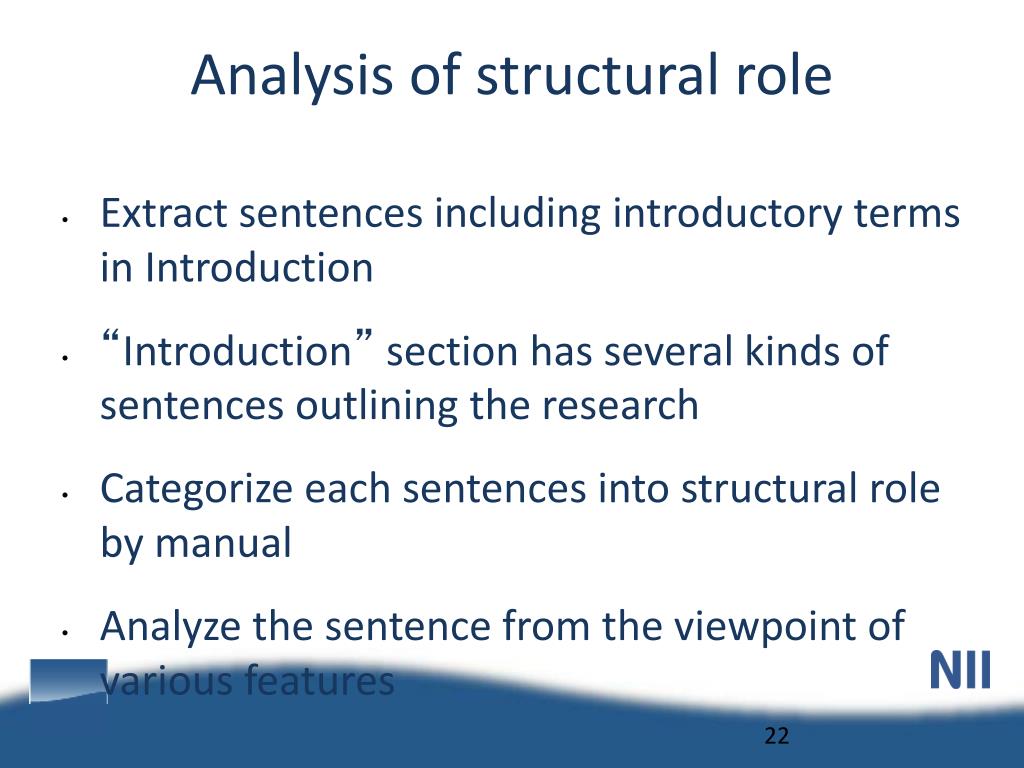

  21. Analysis of structural role • Extract sentences including introductory terms in Introduction • “Introduction” section has several kinds of sentences outlining the research • Categorize each sentences into structural role by manual • Analyze the sentence from the viewpoint of various features 22

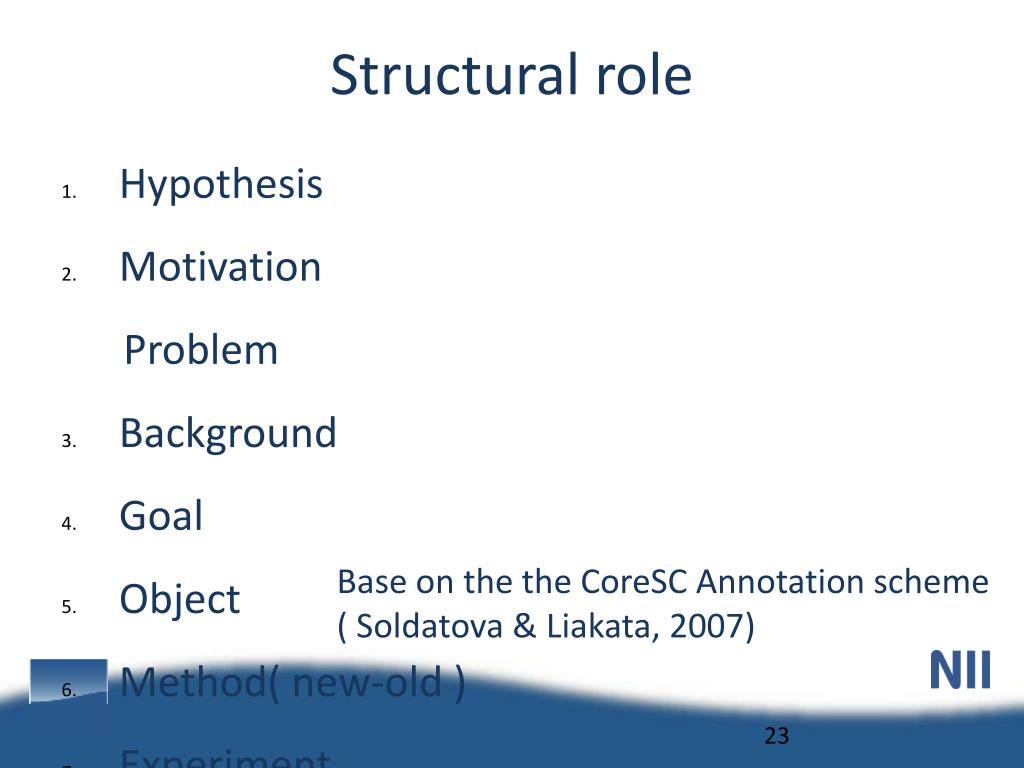

  22. Structural role • Hypothesis • Motivation Problem • Background • Goal • Object • Method( new-old ) • Experiment • Model • Observation • Result • Conclusion Base on the the CoreSC Annotation scheme ( Soldatova & Liakata, 2007) 23

  23. Features in structural role • Tense, aspect, modality • Verbs • Syntactic features • Lexical features 24

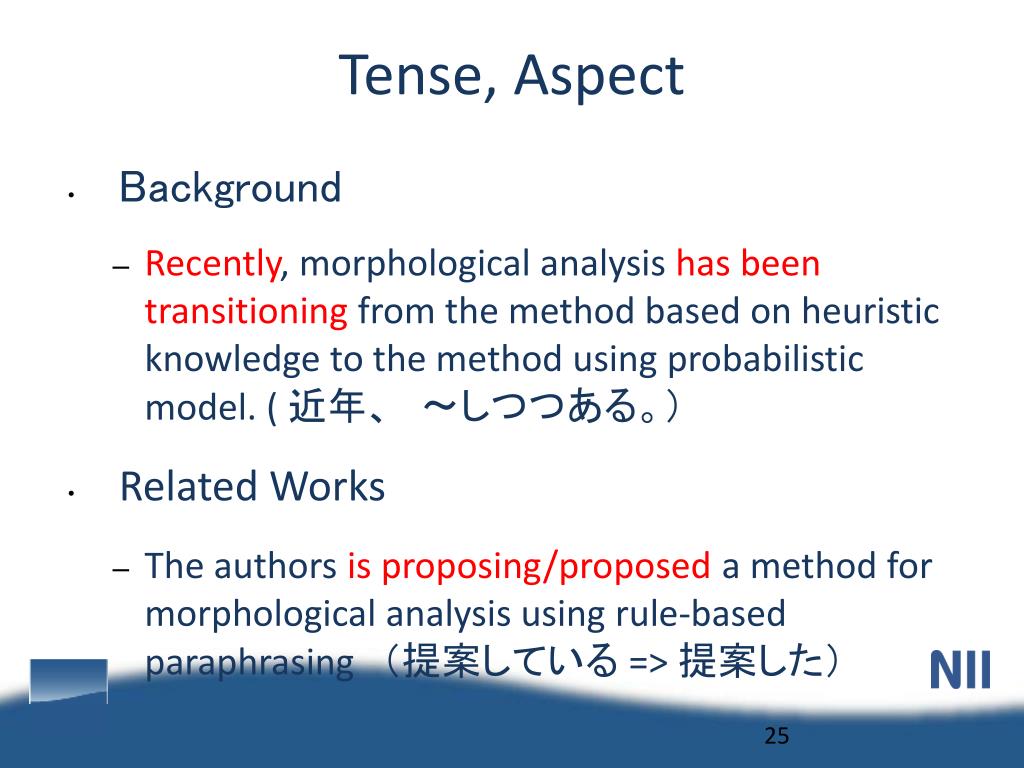

  24. Tense, Aspect • Background • Recently, morphological analysis has been transitioning from the method based on heuristic knowledge to the method using probabilistic model. ( 近年、　〜しつつある。） • Related Works • The authors isproposing/proposed a method for morphological analysis using rule-based paraphrasing　（提案している => 提案した） 25

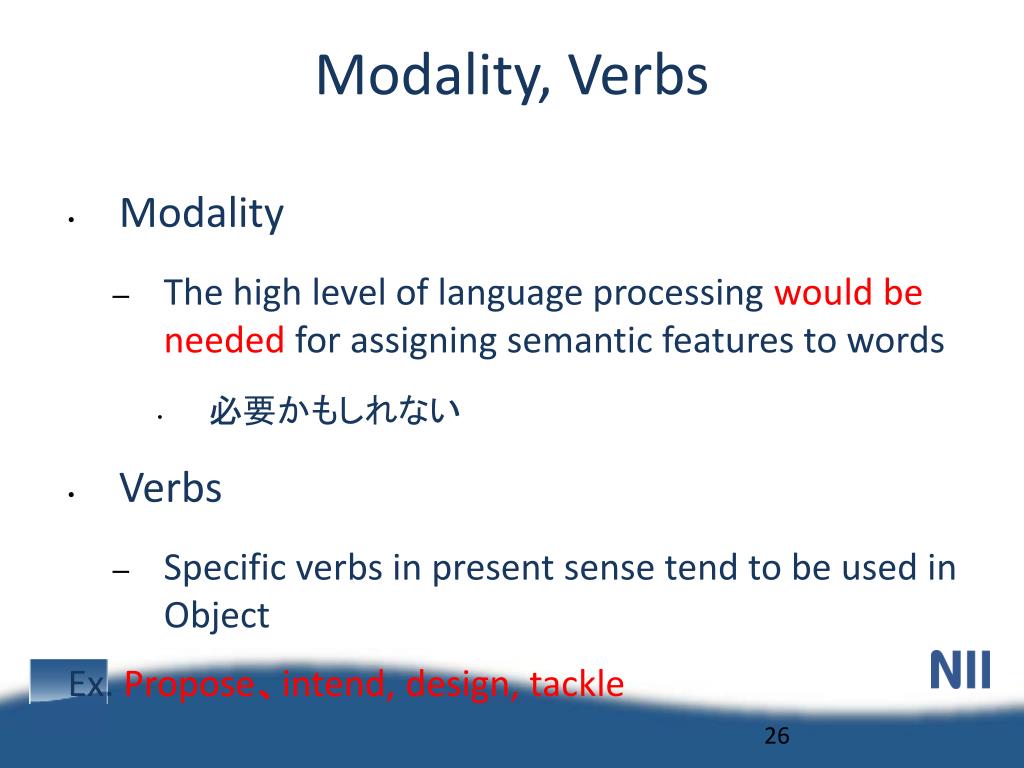

  25. Modality, Verbs • Modality • The high level of language processing would be needed for assigning semantic features to words • 必要かもしれない • Verbs • Specific verbs in present sense tend to be used in Object Ex. Propose、intend, design, tackle 26

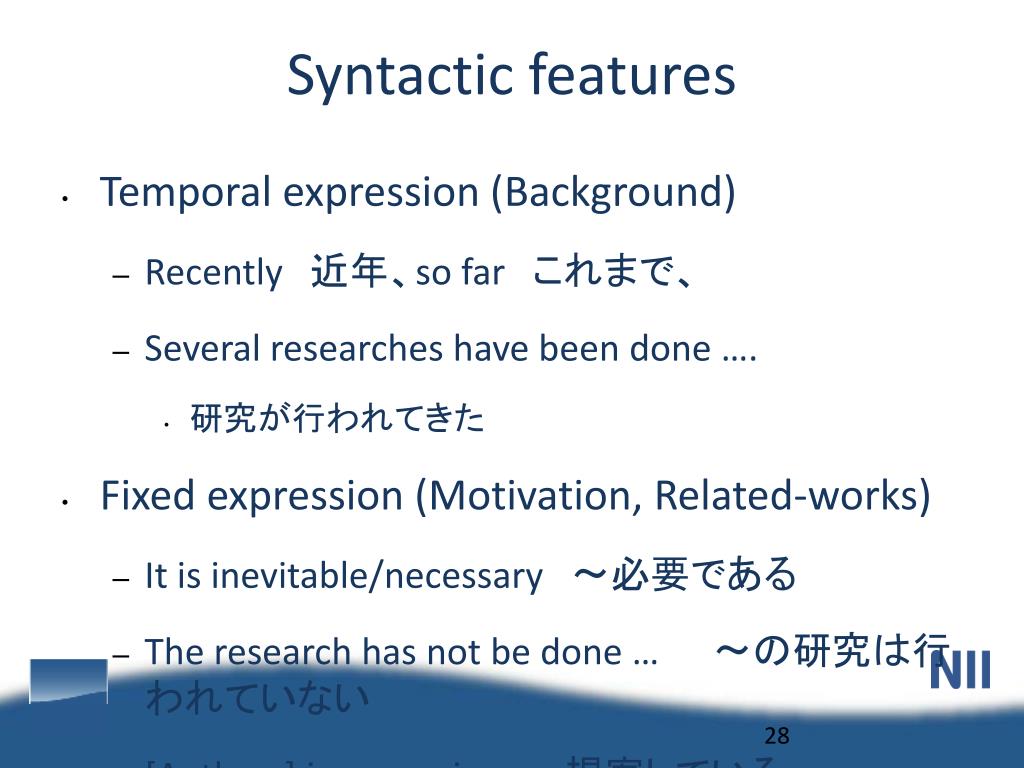

  26. Syntactic features • Temporal expression (Background) • Recently　近年、so far　これまで、 • Several researches have been done …. 　 • 研究が行われてきた • Fixed expression (Motivation, Related-works) • It is inevitable/necessary　〜必要である • The research has not be done …　　〜の研究は行われていない • [Authors] is proposing …　提案している 28

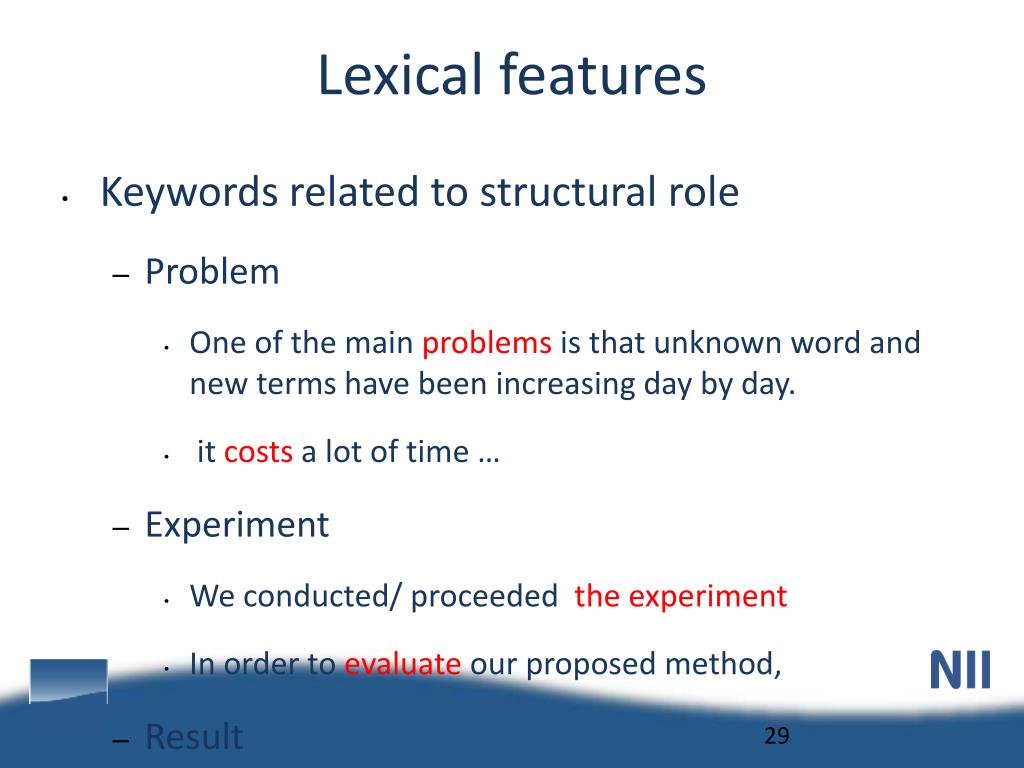

  27. Lexical features • Keywords related to structural role • Problem • One of the main problems is that unknown word and new terms have been increasing day by day. • it costs a lot of time … • Experiment • We conducted/ proceeded the experiment • In order to evaluate our proposed method, • Result • We show the result of the experiment … • We could obtain better precision … 29

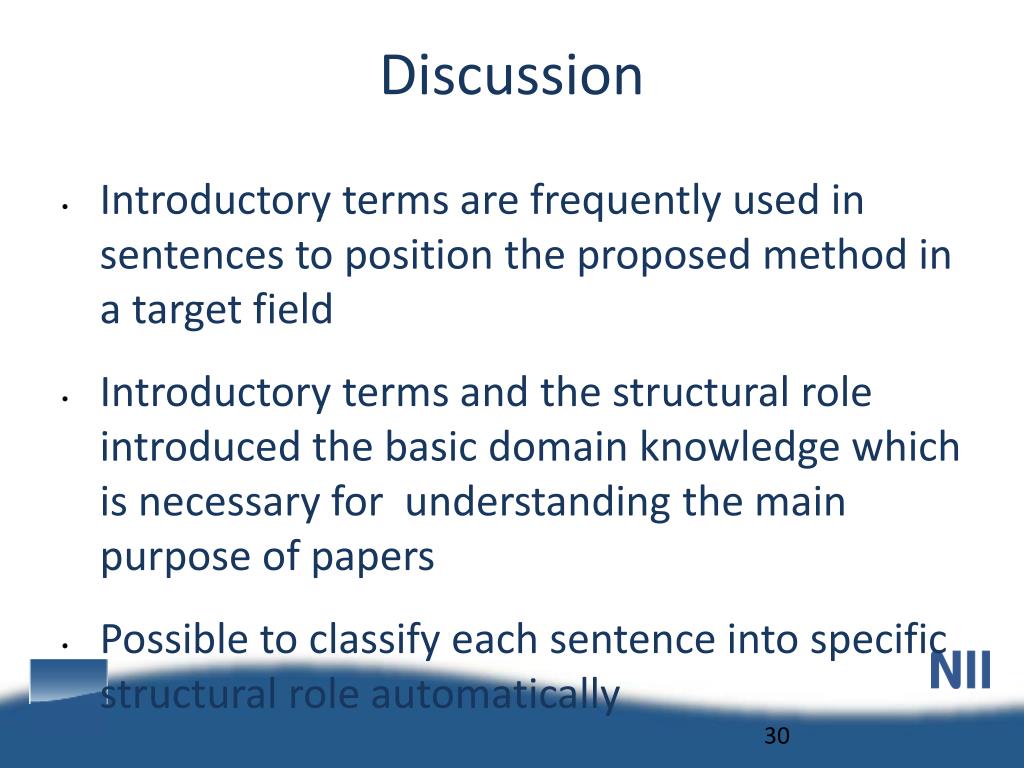

  28. Discussion • Introductory terms are frequently used in sentences to position the proposed method in a target field • Introductory terms and the structural role introduced the basic domain knowledge which is necessary for understanding the main purpose of papers • Possible to classify each sentence into specific structural role automatically 30

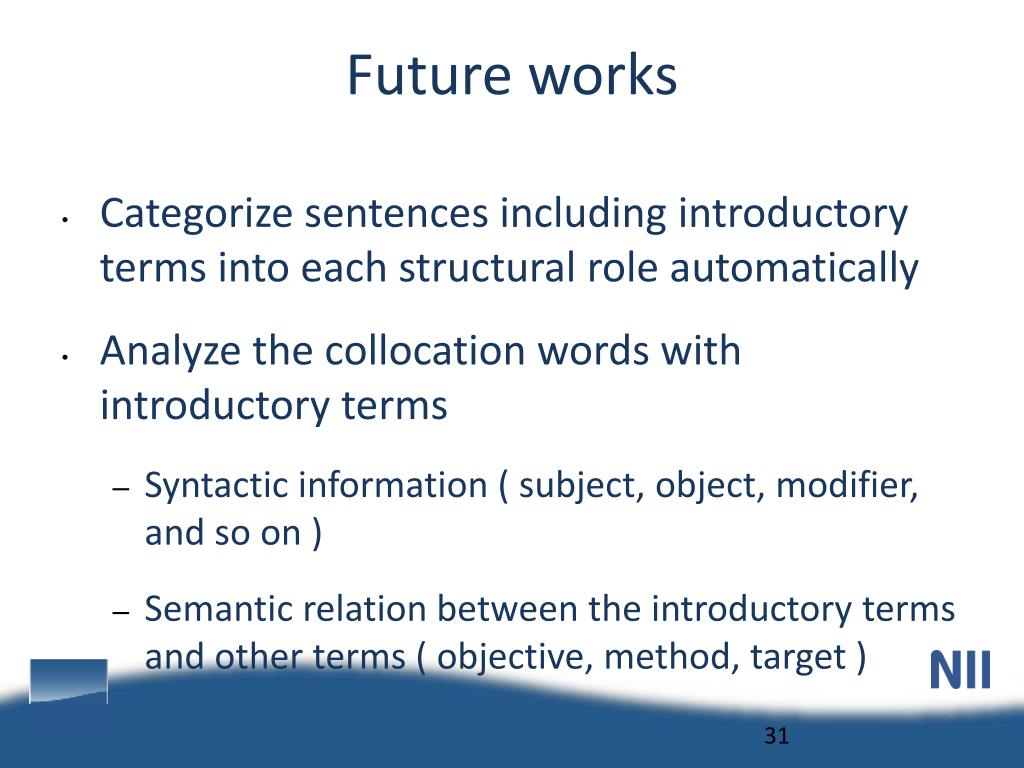

  29. Future works • Categorize sentences including introductory terms into each structural role automatically • Analyze the collocation words with introductory terms • Syntactic information ( subject, object, modifier, and so on ) • Semantic relation between the introductory terms and other terms ( objective, method, target ) 31

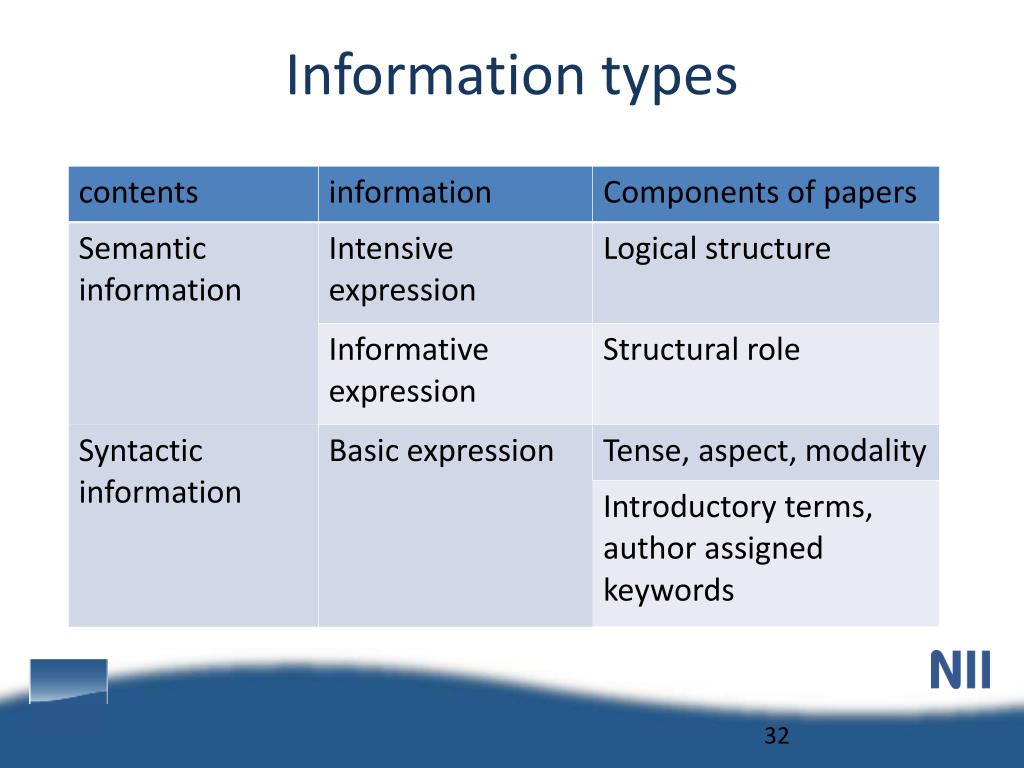

  30. Information types 32

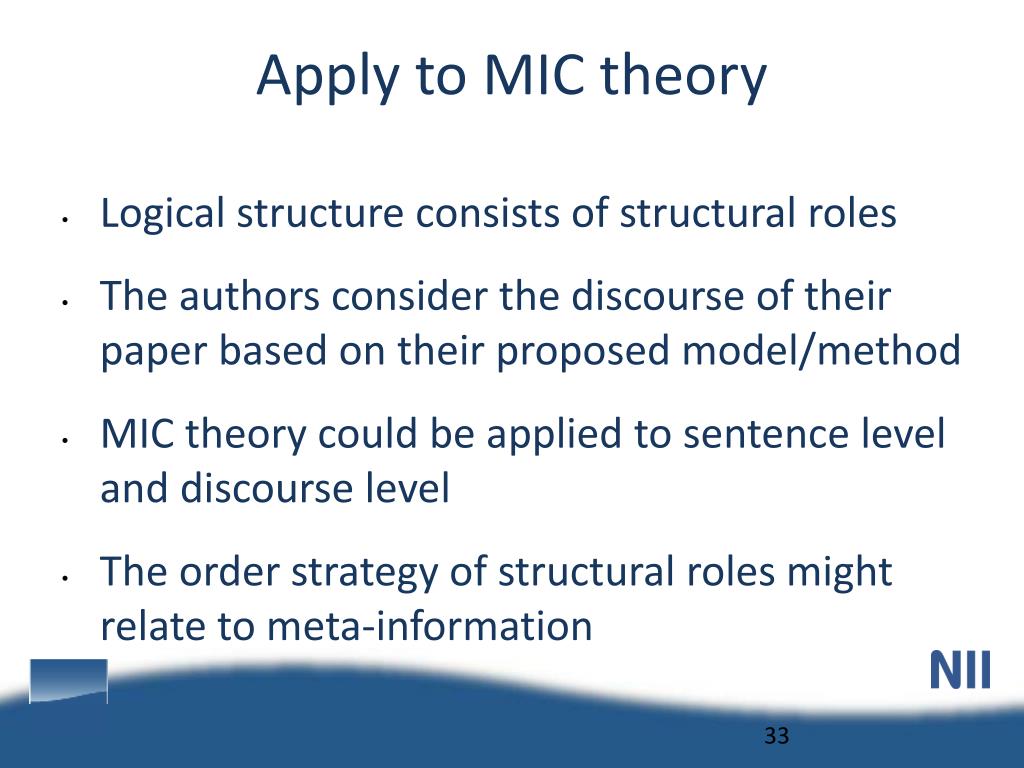

  31. Apply to MIC theory • Logical structure consists of structural roles • The authors consider the discourse of their paper based on their proposed model/method • MIC theory could be applied to sentence level and discourse level • The order strategy of structural roles might relate to meta-information 33

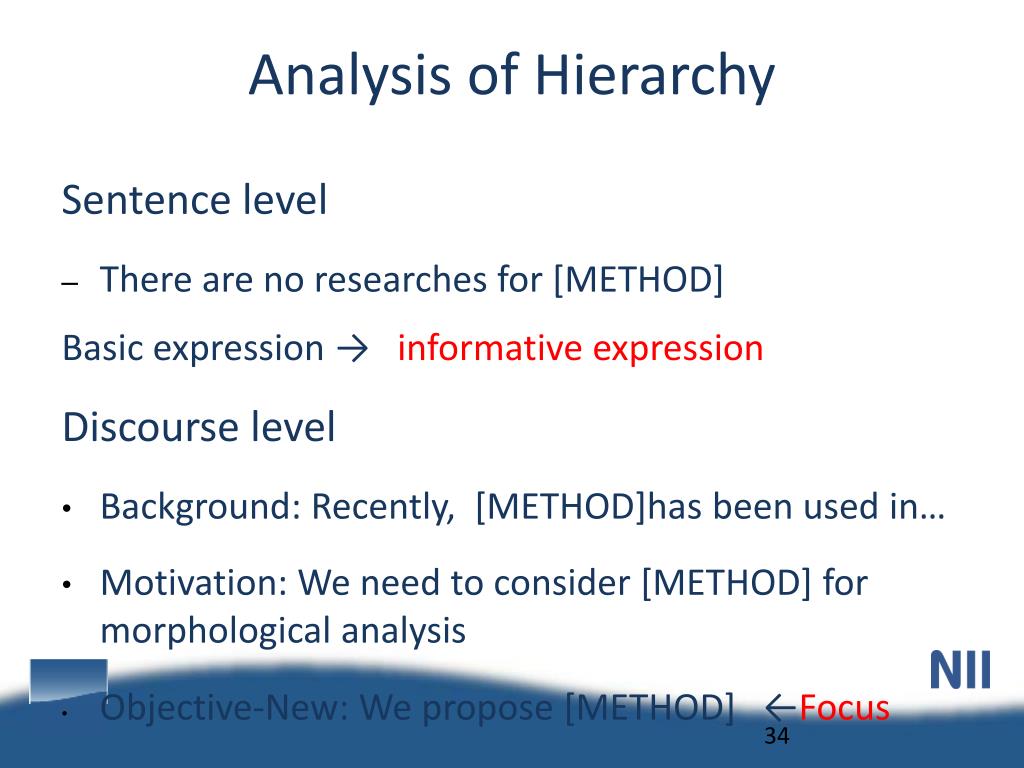

  32. Analysis of Hierarchy • Sentence level • There are no researches for [METHOD] Basic expression →　informative expression Discourse level • Background: Recently, [METHOD]has been used in… • Motivation: We need to consider [METHOD] for morphological analysis • Objective-New: We propose [METHOD]　←Focus 34

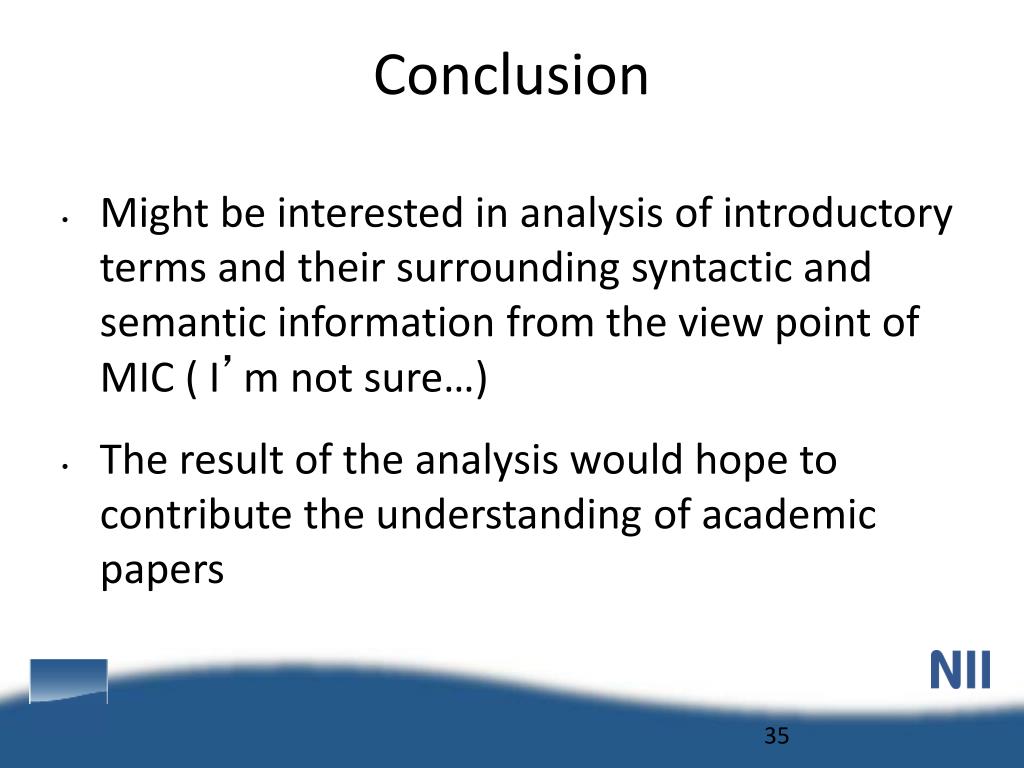

  33. Conclusion • Might be interested in analysis of introductory terms and their surrounding syntactic and semantic information from the view point of MIC ( I’m not sure…) • The result of the analysis would hope to contribute the understanding of academic papers 35
