Fuzzy control

Motivations : To copy or imitate the control actions of an experienced human operator. S mooth interpolation between working point optimized controllers. 1: The Mamdani approach. 2: The Takagi- Sugeno approach. Fuzzy control. The Mamdani controller.

amie
Download Presentation

Fuzzy control

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Motivations : • To copy or imitate the control actions of an experienced human operator. • Smooth interpolation between working point optimized controllers. • 1: The Mamdani approach. • 2: The Takagi-Sugenoapproach. Fuzzy control

  2. The Mamdanicontroller

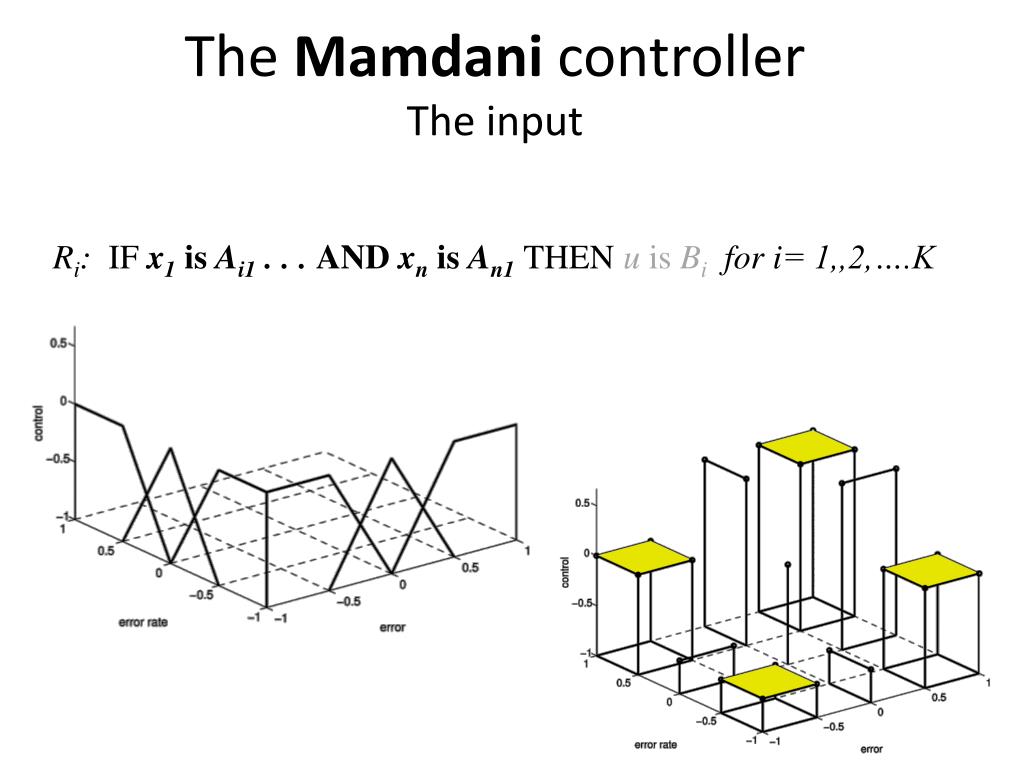

  3. Ri: IF x1is Ai1 . . . AND xnis An1THEN u is Bifor i= 1,,2,….K The Mamdanicontroller The input

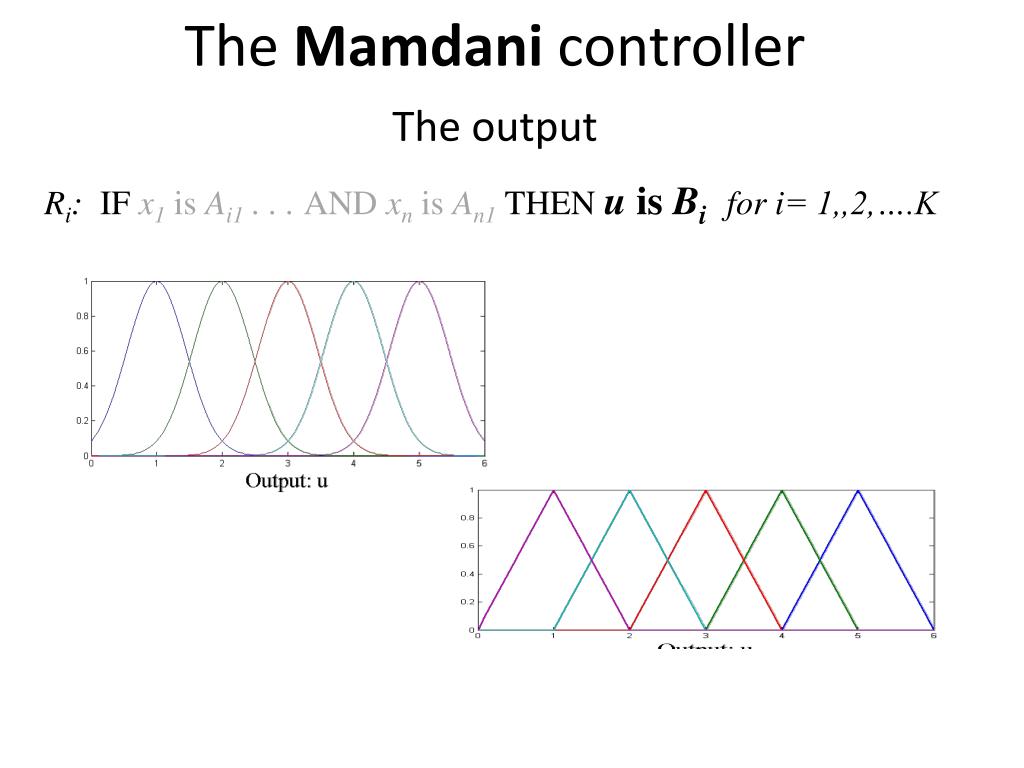

  4. Ri: IF x1is Ai1 . . . AND xnis An1THEN u is Bifor i= 1,,2,….K The MamdanicontrollerThe output

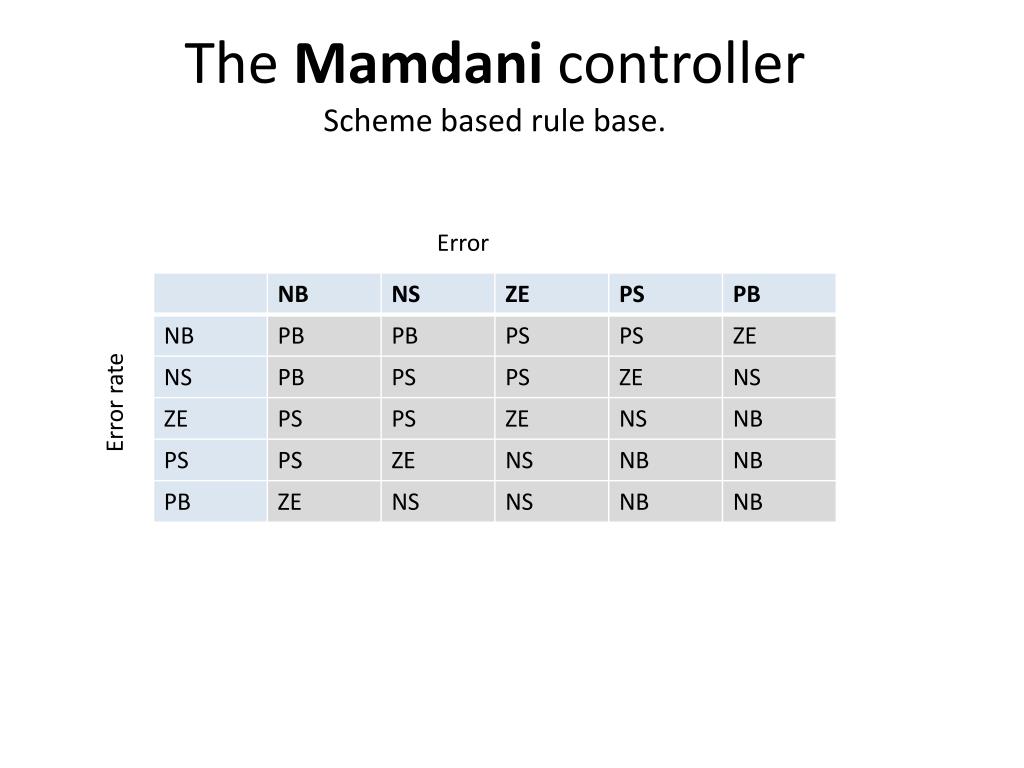

  5. Error The Mamdanicontroller Scheme based rule base. Error rate

  6. The Takagi-Sugenocontroller Ri: IF x1is Ai1 . . . AND xnis An1THEN u = PIDi (e) for i= 1,,2,….K

  7. Rule of thumb • Each membership function should overlaps only with the closest neighboring membership functions; • For any possible input, its membership values in all relevant fuzzy sets should sum to 1 (or nearly) • It is often a good idea to have 5 membership functions for each input. • Two MF far away form steady state to govern a big +/- control signal. • Two MF in the stabile controlling area to govern the smooth and stabile approach to steady state. • One trapezoidal or triangular centered in steady state.

  8. Rule of thumb Output : u

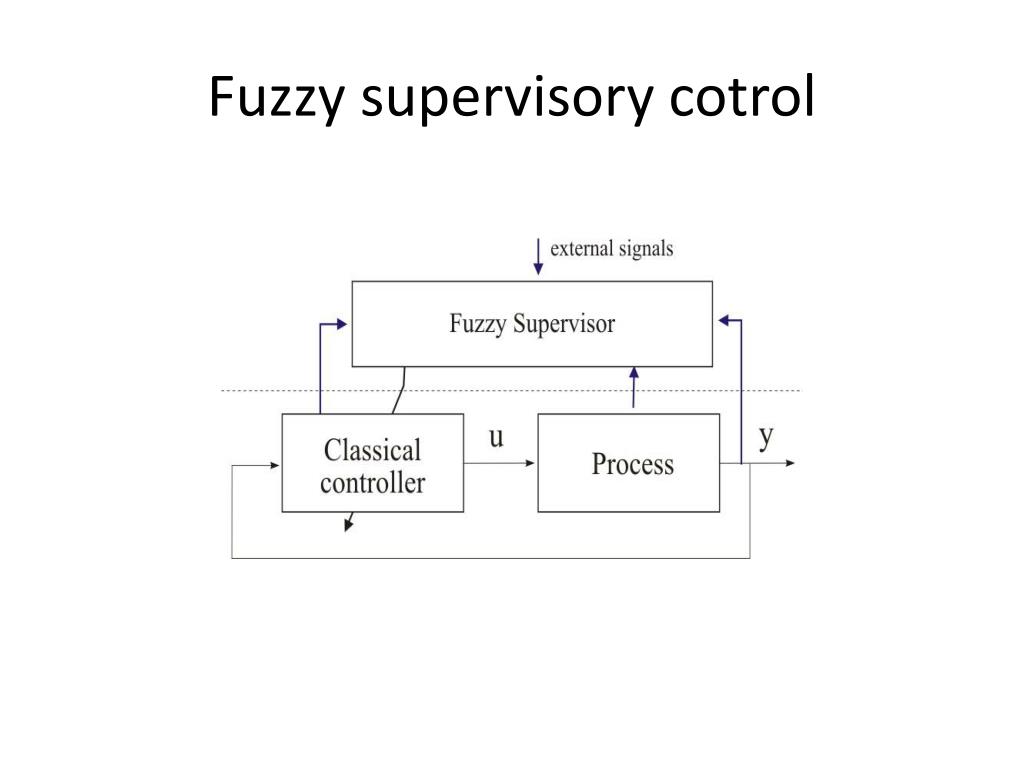

  9. Fuzzy supervisory cotrol

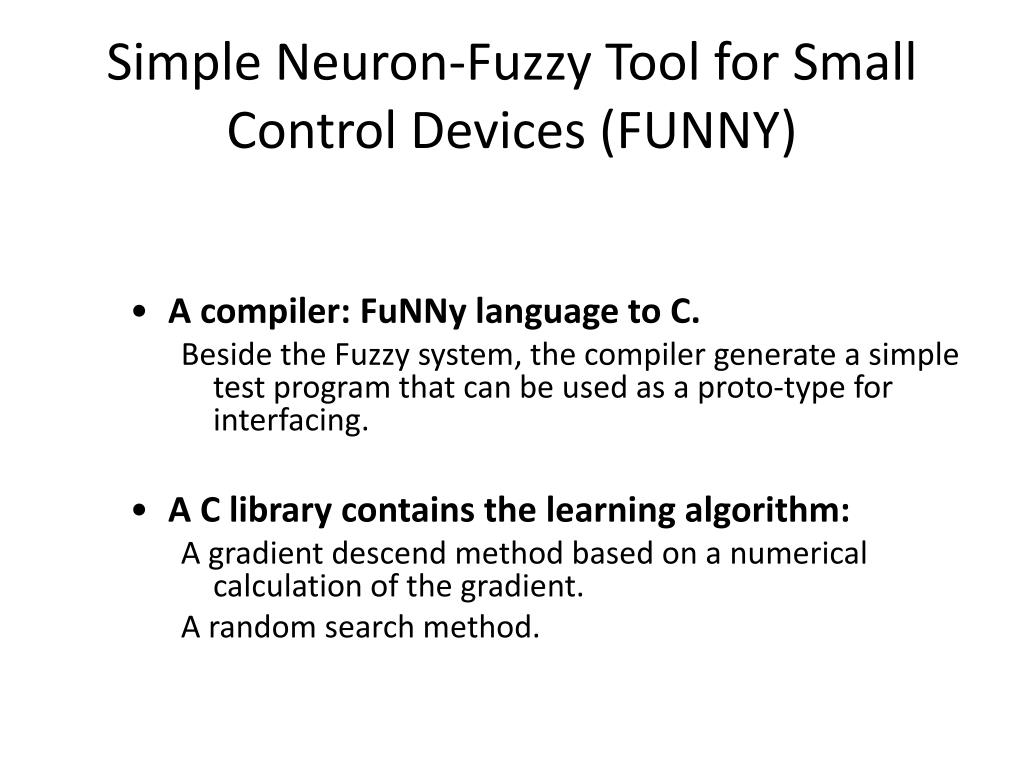

  10. Simple Neuron-Fuzzy Tool for Small Control Devices (FUNNY) • A compiler: FuNNylanguage to C. Beside the Fuzzy system, the compilergenerate a simple test program thatcanbeused as a proto-type for interfacing. • A C library contains the learning algorithm: A gradient descend method based on a numerical calculation of the gradient. A random search method.

  11. The Shower FuNNy The Shower model The Shower controler

  12. FuNNy • The Fuzzymethode: • Zero-orderSugeno • or • Mamdaniwith singleton output Rule 1: if In1 is high and In2 is low then Out = 5.7; Rule 2: if In1 is high and In2 is high then Out = 2.1;

  13. FuNNyGrammar • program-> mflist RULES rulelist • mflist-> memvar | mflistmemvar • memvar-> ...... • rulelist-> rule | rulelistrule • rule-> IF statement THEN VARID IS VARID • statement-> statement AND statement • | statement OR statement • | ( statement ) • | simplestatement • simplestatement-> VARID IS sentence • sentence-> NOT hedge_prim | hedge_prim • hedge_prim-> VARID | fuzzy_number | hedge • fuzzy_number-> ABOUT REAL TO ABOUT REAL | ABOUT REAL • hedge-> VERY VARID | MORE_OR_LESS VARID | EXTREMELY VARID

  14. ---- A small example: The showercontroller. ---- • tout: input; vout: input; dtcold: input; dthot: input; • cold tout: sigmoid( 25.0,a, 33.0,a, 1.0,c); • middle tout: triangle(28.0,a, 33.0,c, 38.0,a, 1.0,c); • hot tout: sigmoid( 40.0,a, 33.0,a, 1.0,c);

  15. The Sigmoid and trianglemembershipfunction sigmoid(a,A,b,A,c,A) triangle(a,A,b,A,c,A, d,A)

  16. ---- A small example: The showercontroller. ---- • tout: input; vout: input; dtcold: input; dthot: input; • cold tout: sigmoid( 25.0,a, 33.0,a, 1.0,c); • middle tout: triangle(28.0,a, 33.0,c, 38.0,a, 1.0,c); • hot tout: sigmoid( 40.0,a, 33.0,a, 1.0,c); • to_littlevout: sigmoid( 1.0,c, 5.0,c, 1.0,c); • to_muchvout: sigmoid( 5.0,c, 1.0,c, 1.0,c); • down dtcold: sigmoid(-5.0,a, 0.0,a, 1.0,c); • up dtcold: sigmoid( 5.0,a, 0.0,a, 1.0,c); • down dthot: sigmoid(-5.0,a, 0.0,a, 1.0,c); • up dthot: sigmoid( 5.0,a, 0.0,a, 1.0,c); • big_downdvc: output(-0.5,a); • small_downdvc: output(-0.2,a); • no_changedvc: output( 0.0,c); • small_updvc: output( 0.2,a); • big_updvc: output( 0.5,a);

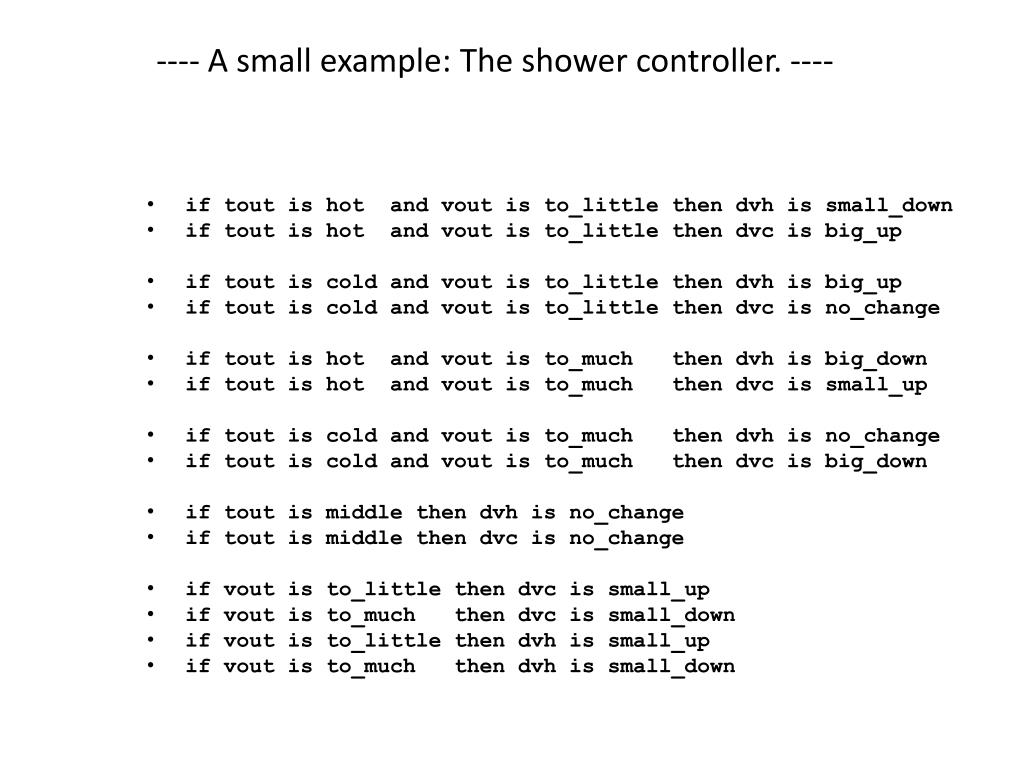

  17. ---- A small example: The showercontroller. ---- • if tout is hot and vout is to_little then dvh is small_down • if tout is hot and vout is to_little then dvc is big_up • if tout is cold and vout is to_little then dvh is big_up • if tout is cold and vout is to_little then dvc is no_change • if tout is hot and vout is to_much then dvh is big_down • if tout is hot and vout is to_much then dvc is small_up • if tout is cold and vout is to_much then dvh is no_change • if tout is cold and vout is to_much then dvc is big_down • if tout is middle then dvh is no_change • if tout is middle then dvc is no_change • if vout is to_little then dvc is small_up • if vout is to_much then dvc is small_down • if vout is to_little then dvh is small_up • if vout is to_much then dvh is small_down

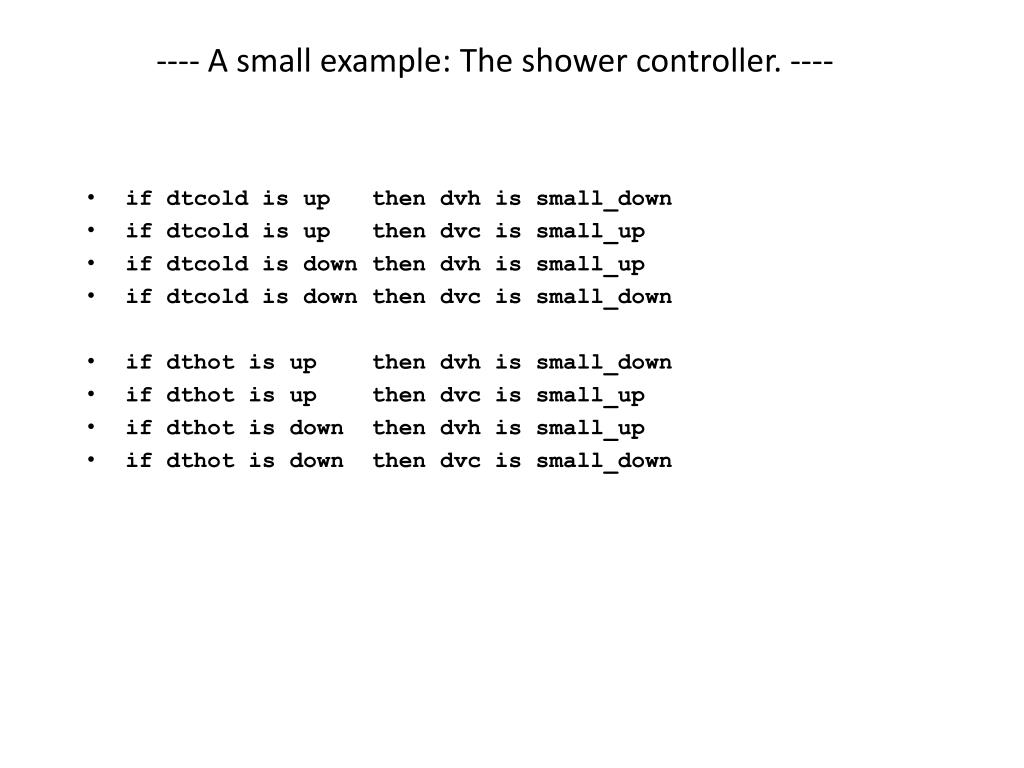

  18. ---- A small example: The showercontroller. ---- • if dtcold is up then dvh is small_down • if dtcold is up then dvc is small_up • if dtcold is down then dvh is small_up • if dtcold is down then dvc is small_down • if dthot is up then dvh is small_down • if dthot is up then dvc is small_up • if dthot is down then dvh is small_up • if dthot is down then dvc is small_down

  19. The shower controller

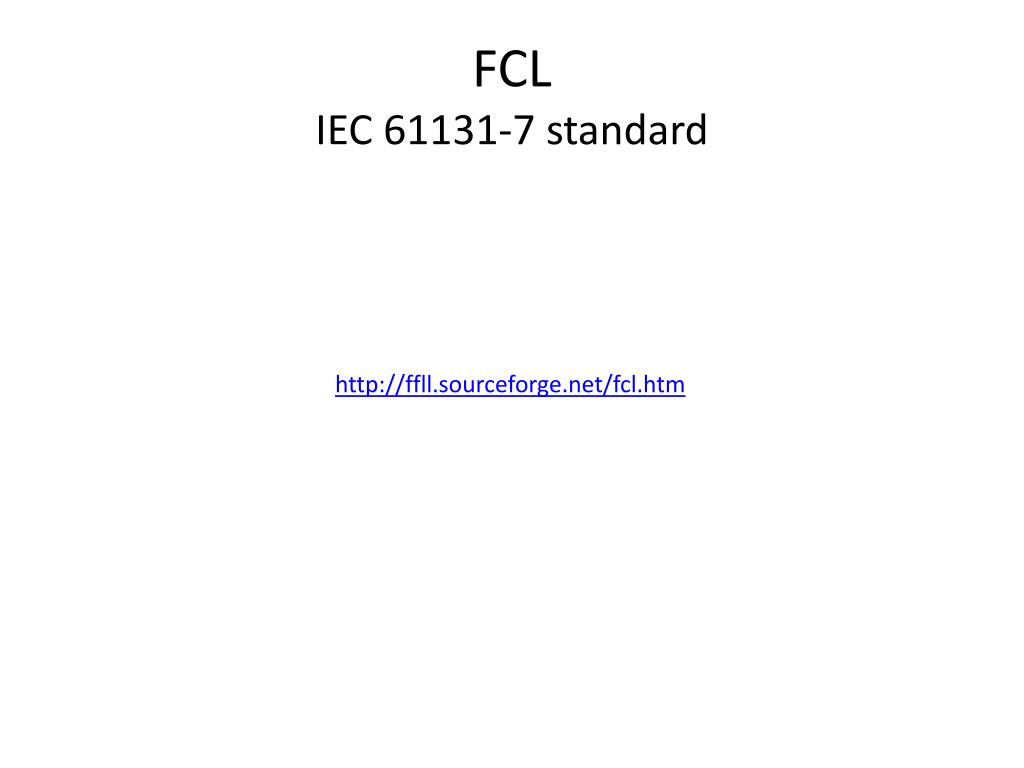

  20. FCL IEC 61131-7 standard http://ffll.sourceforge.net/fcl.htm
