  1. RIS Workshop Budapest SAAB INLAND AIS SOLUTIONS NAME DATE TITLE Andreas Karlsson 2011-04-11

  2. A HISTORY OF HIGH TECHNOLOGY First B17 delivered Tunnan – first flight First laser simulator BT46 First Gripen delivered First contract for NLAW Saab 2000 ERIEYE™ AEW&C Gripen Demo – first flight Contract for Neuron Saab Automobile independent company Saab acquires Celsius Saab acquires Grintek Saab acquires EMW Saab is founded Bofors Järnbruk is founded Alfred Nobel acquire Bofors First order for Carl Gustaf StriC in operation Development of fighter radar Development of GIRAFFE Developmentof ARTHUR Sea Giraffe AMB is launched www.saabgroup.com

  3. R4 SHIPPING PRODUCTS • R4 AIS Class A transponder system • Shipborne AIS transponder unit with presentation interface • R4 Inland AIS transponder system • AIS tailorization for Inland waterway transportation requirements • R4 AIS Class B transponder • AIS transponder unit for non-SOLAS applications • R4 Navigation system • GPS & DGPS sensors with presentation interface • R4 Combined AIS & Navigation system • Type approved for AIS & Navigation www.saabgroup.com

  4. R4 AIS TRANSPONDER SYSTEM • R4 AIS Class A Transponder System • R4 IAIS Inland AIS System • R4 Class B www.saabgroup.com

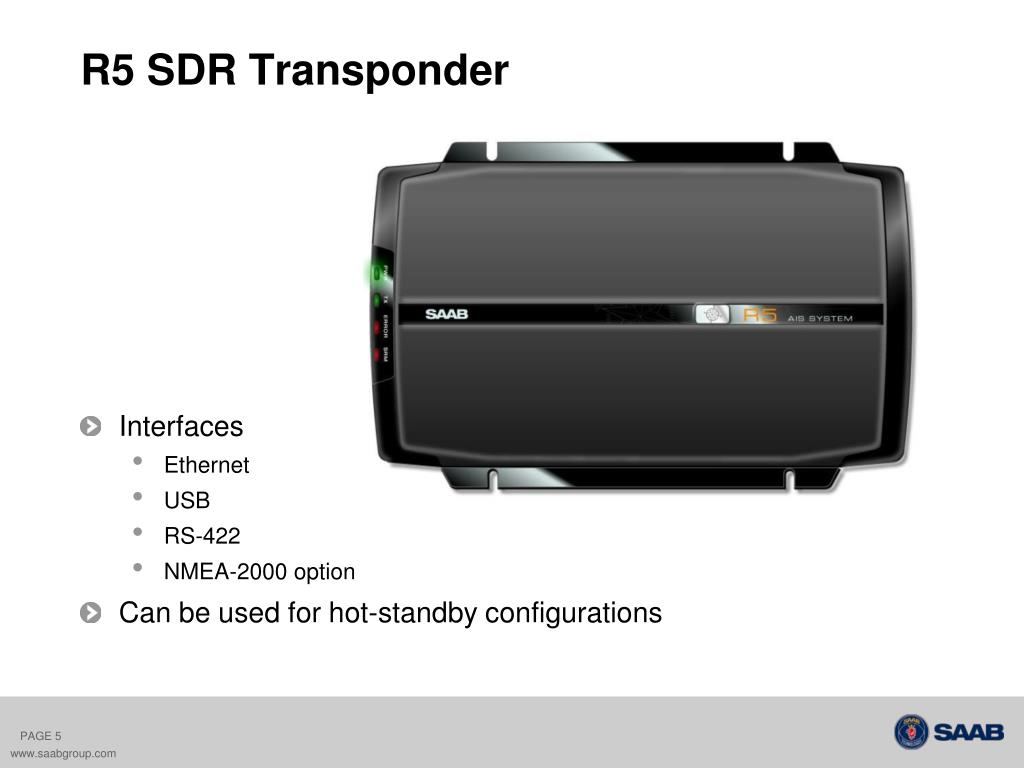

  5. R5 SDR Transponder • Interfaces • Ethernet • USB • RS-422 • NMEA-2000 option • Can be used for hot-standby configurations www.saabgroup.com

  6. R5 ”Professional” Display • Display: • Super Clear, 800x480 pixels 7”, Color Touch Screen • Front Panel Interfaces • USB, SD-Card Reader and Pilot Port • Back Panel Interfaces • Ethernet, RS-422 and option for NMEA-2000 www.saabgroup.com

  7. R5 Solid • Display: • 320x240 pixels 3.5”, Color LCD • Front Panel Interfaces • USB and Pilot Port • Back Panel Interfaces • RS-422 Ports, RS-232 Port, Blue Sign www.saabgroup.com

  8. SAAB R4 IAIS Portable AIS Solution • Fully IMO compliant • Qualified according to IEC 60945 ed. 4 • (Portable equipment) • Suitable for temporary AIS installations • Cable or Optional Wireless interface to MKD or PC (WiFi/Bluetooth) • MTBF >35,000h • External antennas for optimal system performance • NiMH battery back-up technology – 8 hours • 13 kg www.saabgroup.com

  9. SAAB R4 IAIS Portable AIS www.saabgroup.com

  10. SAAB R40 AIS Base station • Fully compliant to IEC 62320-1 • DSP technology • Outstanding receiver sensitivity, better than– 111dBm • Built in Base Station Controller (BSC) • MTBF >100 000 hours • HotStandby support • DGPS support www.saabgroup.com

  11. SAAB AIS Network System • Shore based users are interested in Vessel movements • Coast Guard • Military users • MRCC • Maritime Administrations • VTS Systems • Tug operations • Pilot companies • Shipping companies • Etc. • Those users can share investment cost • All users will benefit on a large coverage • Possible to filter what information each one will receive www.saabgroup.com

  12. ASM Management system - Romania • Full system management • Presentation of detailed system status • Presentation of system Alarms • SW updates in all equipment • Full system backup www.saabgroup.com
