2. MHD Equations. 2.1 Introduction. Many processes caused by magnetic field (B). Sun is NOT a normal gas . Sun is in 4th state of matter ("PLASMA"). behaves differently from normal gas:. B and plasma -- coupled (intimate, subtle). B exerts force on plasma -- stores energy.

ami
Download Presentation

2. MHD Equations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 2.MHD Equations 2.1 Introduction Many processes caused by magnetic field (B) Sun is NOT a normal gas Sun is in 4th state of matter ("PLASMA") behaves differently from normal gas: B and plasma -- coupled (intimate, subtle) B exerts force on plasma -- stores energy

  2. MOST of UNIVERSE is PLASMA: Ionosphere --> Sun (8 light mins) Learn basic behaviour of plasma from Sun

  3. Magnetic Field Effects E.g., A Sunspot B exerts a force: • - creates intricate structure • * _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ *

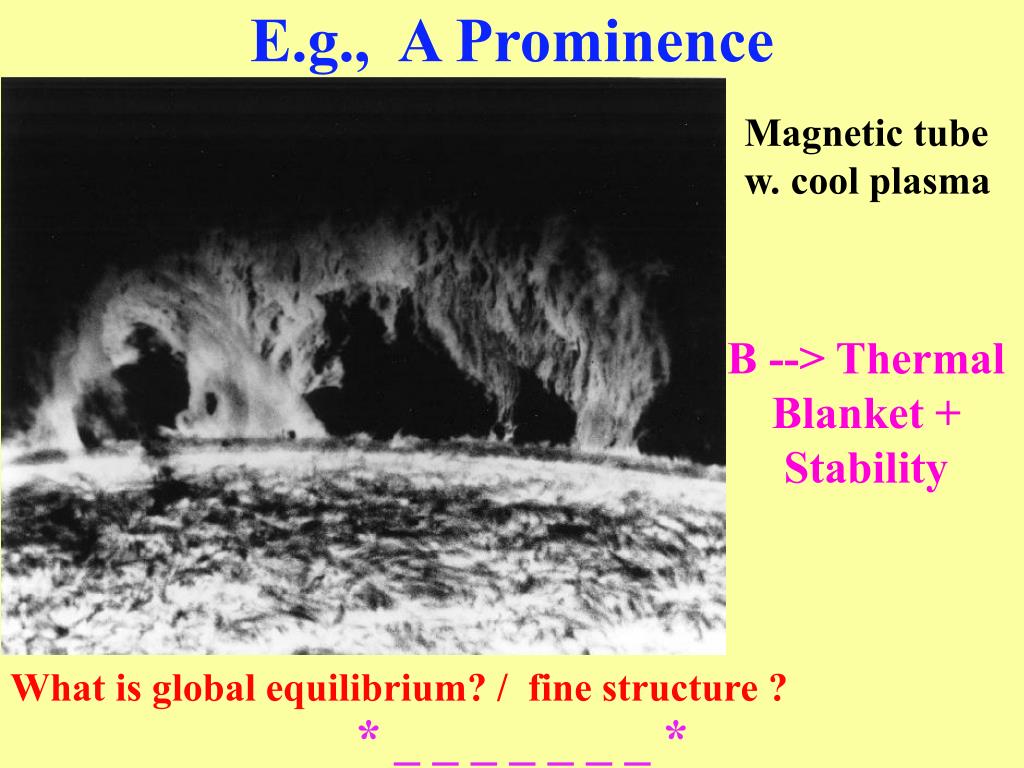

  4. E.g., A Prominence Magnetic tube w. cool plasma B --> Thermal Blanket + Stability What is global equilibrium? / fine structure ? * _ _ _ _ _ _ _ *

  5. E.g., a Coronal Mass Ejection * _ _ _ _ _ _ _ _ _ _ _ _ _ _ *

  6. E.g., A Solar Flare (from TRACE) B stores energy - converted to other forms • _ _ _ _ _ _ _ • _ _ _ _ _ _ _ • _ _ _ _ _ _ _*

  7. 2.2 Flux Tubes & Field Lines Magnetic Field Line -- Curve with tangent in direction of B. Equation: In 2D: * _ _ _ _ _ _ * or in 3D:

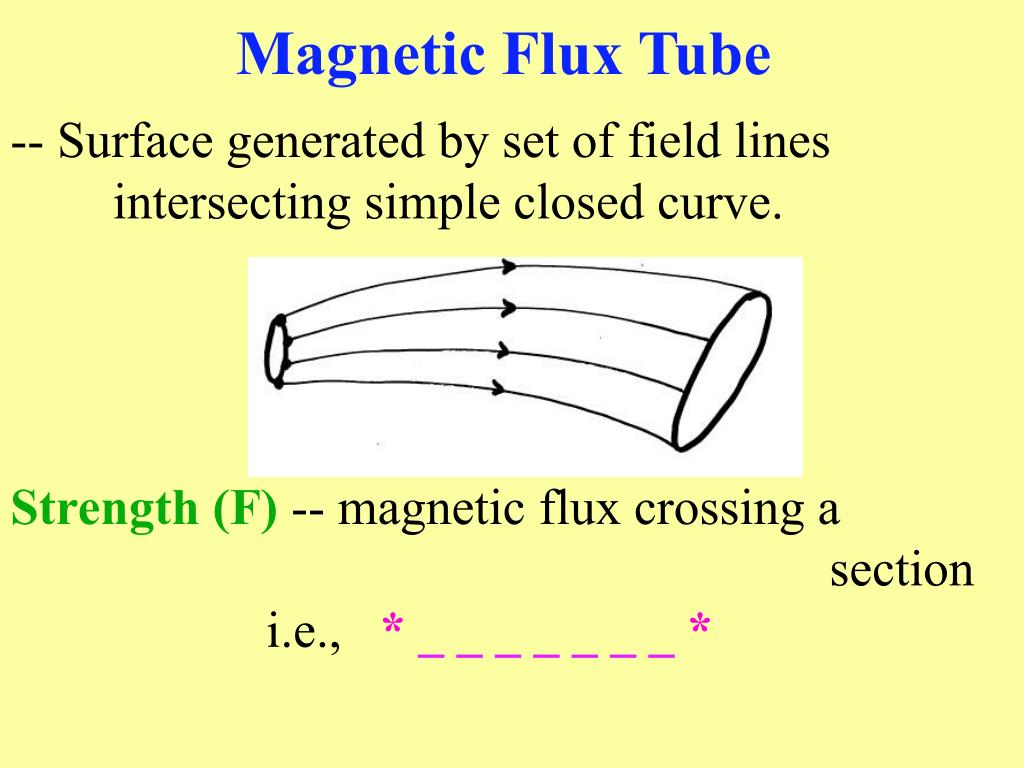

  8. Magnetic Flux Tube -- Surface generated by set of field lines intersecting simple closed curve. Strength (F) -- magnetic flux crossing a section i.e., * _ _ _ _ _ _ _ *

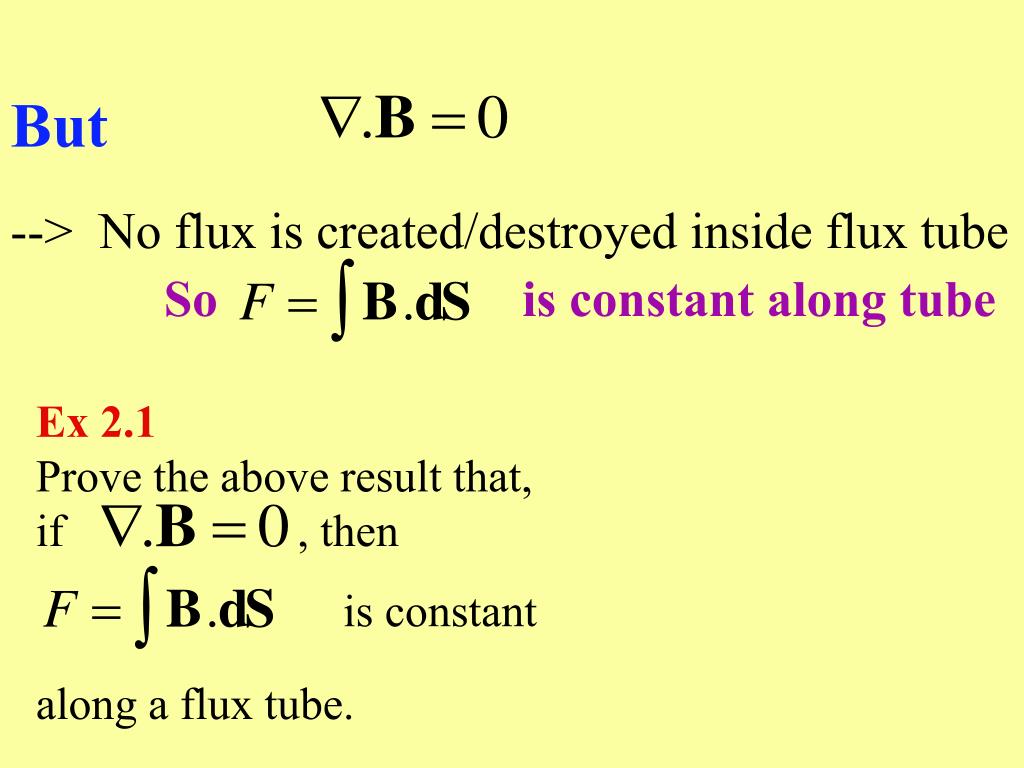

  9. But --> No flux is created/destroyed inside flux tube So is constant along tube Ex 2.1 Prove the above result that, if , then is constant along a flux tube.

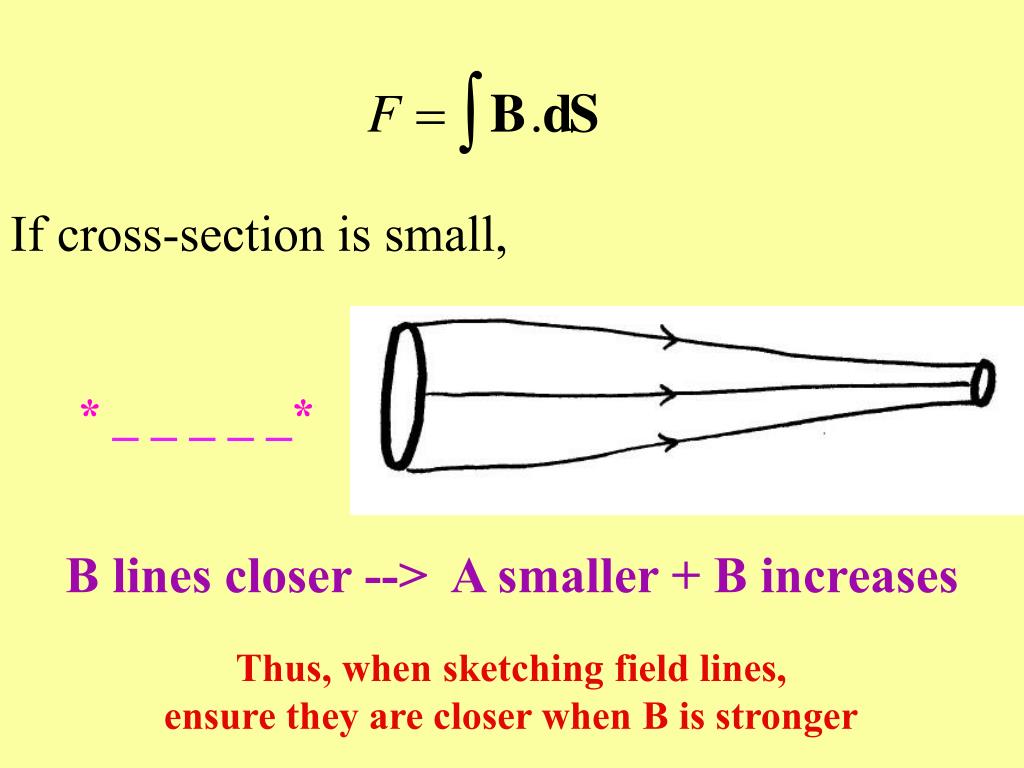

  10. If cross-section is small, * _ _ _ _ _* B lines closer --> A smaller + B increases Thus, when sketching field lines, ensure they are closer when B is stronger

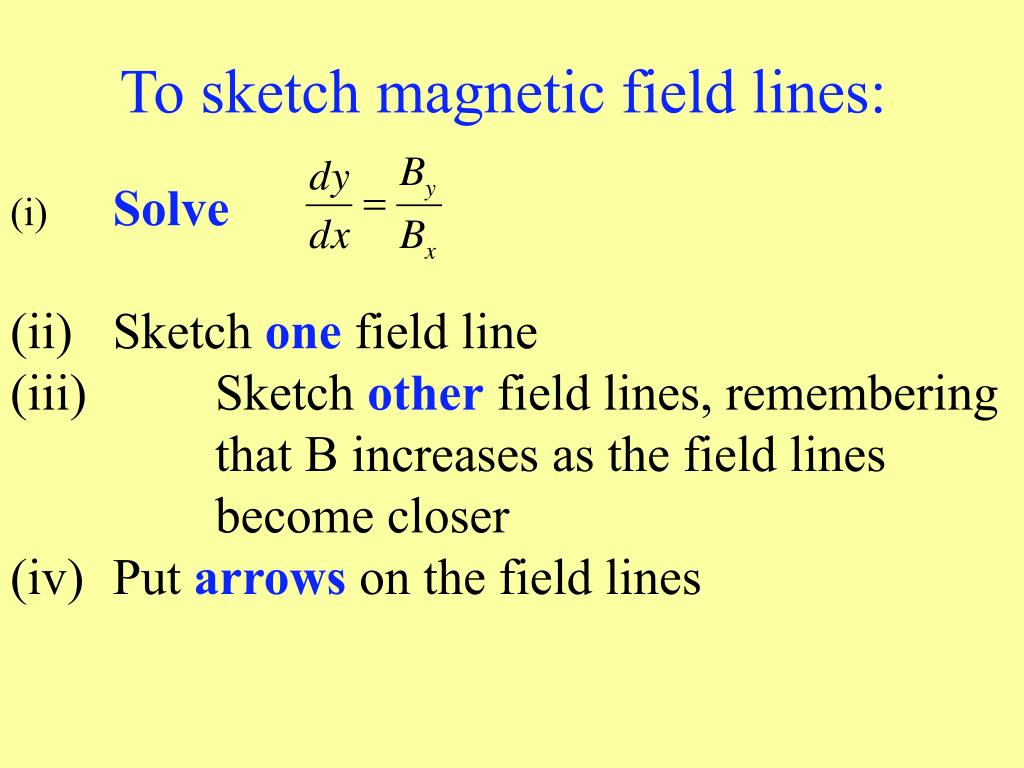

  11. To sketch magnetic field lines: Solve Sketch one field line Sketch other field lines, remembering that B increases as the field lines become closer (iv) Put arrows on the field lines

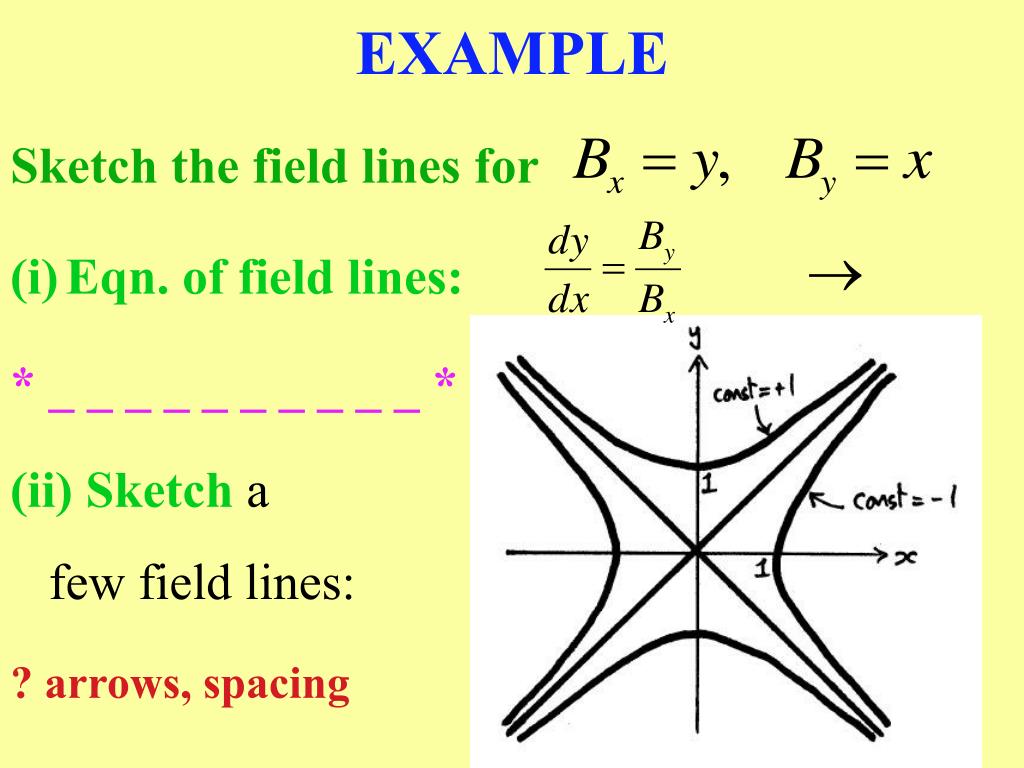

  12. EXAMPLE Sketch the field lines for Eqn. of field lines: * _ _ _ _ _ _ _ _ _ _ * Sketch a few field lines: ? arrows, spacing

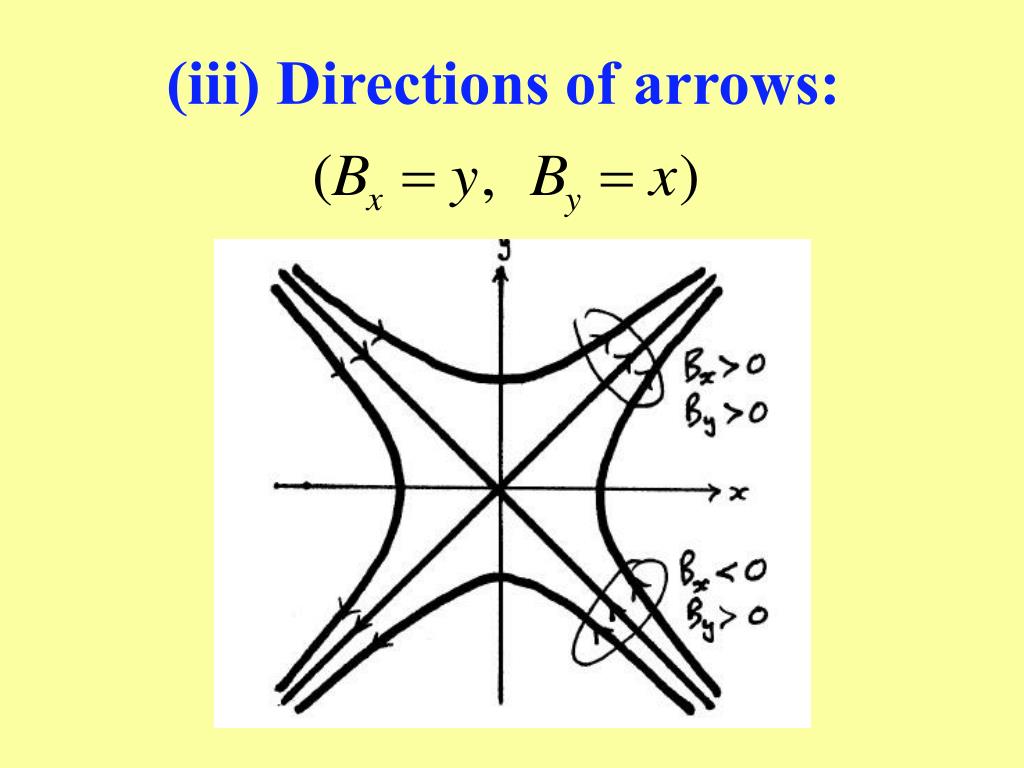

  13. (iii) Directions of arrows:

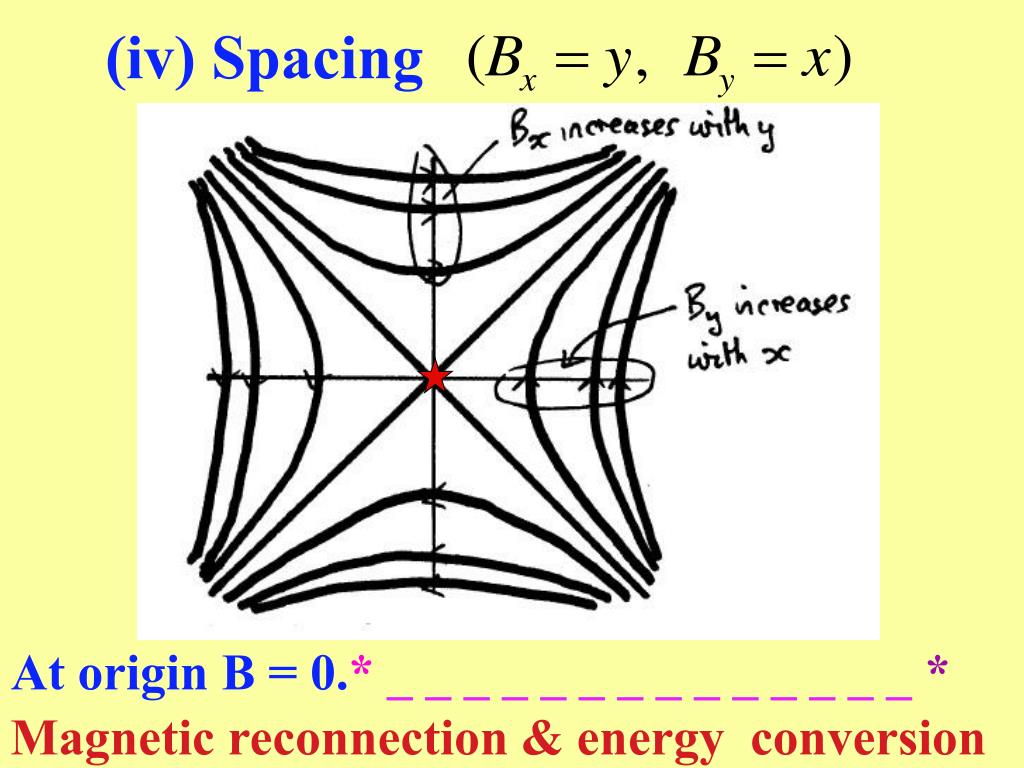

  14. (iv) Spacing At origin B = 0.* _ _ _ _ _ _ _ _ _ _ _ _ _ _* Magnetic reconnection & energy conversion

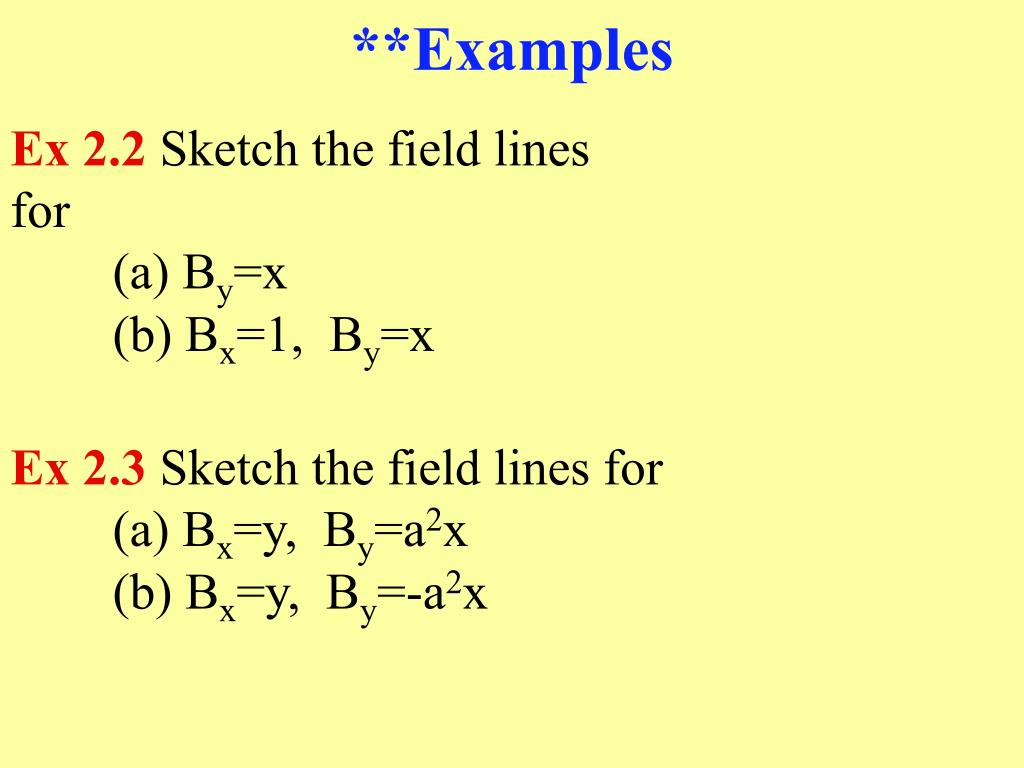

  15. **Examples Ex 2.2 Sketch the field lines for (a) By=x (b) Bx=1, By=x Ex 2.3 Sketch the field lines for (a) Bx=y, By=a2x (b) Bx=y, By=-a2x

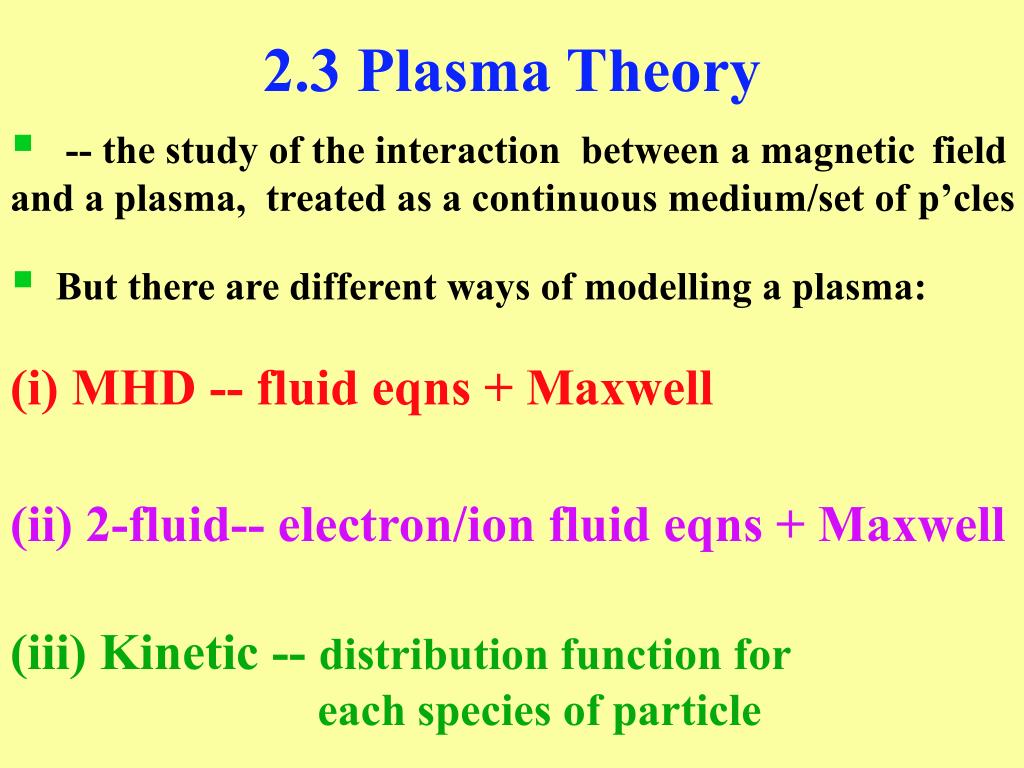

  16. 2.3 Plasma Theory • -- the study of the interaction between a magnetic field and a plasma, treated as a continuous medium/set of p’cles • But there are different ways of modelling a plasma: (i) MHD -- fluid eqns + Maxwell (ii) 2-fluid-- electron/ion fluid eqns + Maxwell (iii) Kinetic -- distribution function for each species of particle

  17. Eqns of Magnetohydrodynamics

  18. Magnetohydrodynamics (MHD) Unification of Eqns of: (a) Maxwell

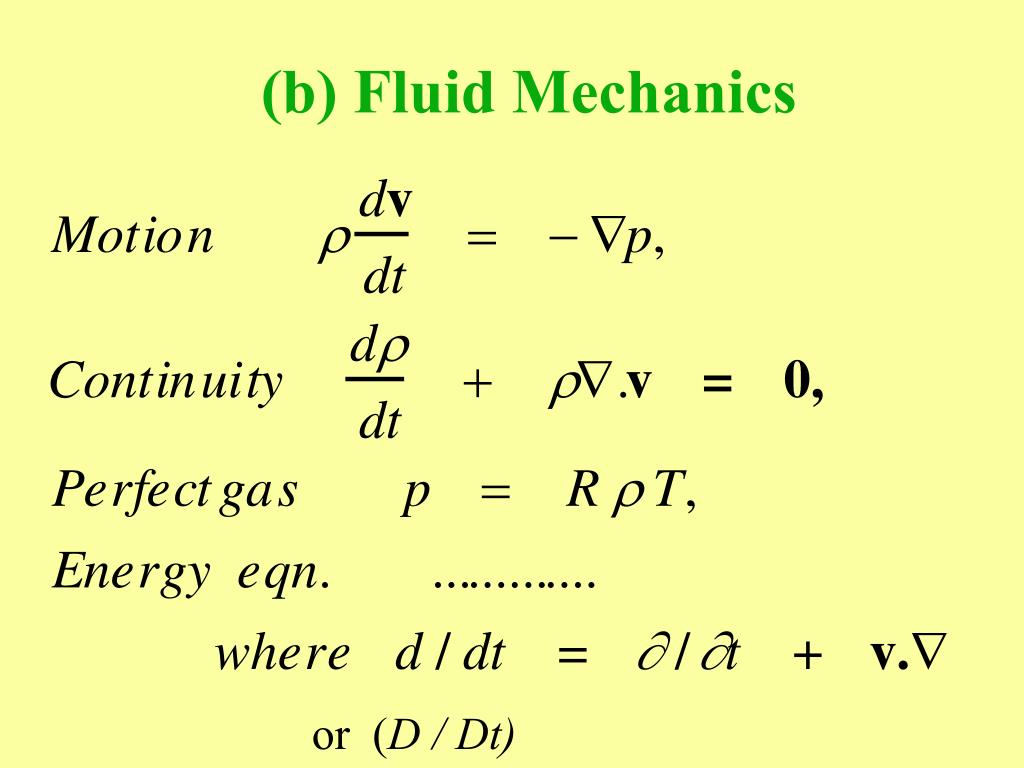

  19. (b) Fluid Mechanics or (D / Dt)

  20. In MHD • 1. Assume v << c --> Neglect * _ _ _ * • 2. Extra E on plasma moving * _ _ _ _* • 3. Add magnetic force * _ _ _ _ * • Eliminate E and j: take curl (2), use (1) for j

  21. 2.4 Induction Equation _ _ _ _ _ _ Describes: how B moves with plasma / diffuses through it

  22. N.B. • In MHD, v and B are * _ _ _ _ _ _ _ _ _ _*: • Induction eqn • + eqn of motion • --> basic processes • are secondary variables

  23. INDUCTION EQUATION I II • B changes due to transport + diffusion • -- * _ _ _ _ _ _ _ _ _ _ _ _ _* eg, L0 = 105 m, v0 = 103 m/s --> Rm = 108 • I >> II in most of Solar System --> B frozen to plasma -- keeps its energy Except Reconnection -- j & B large

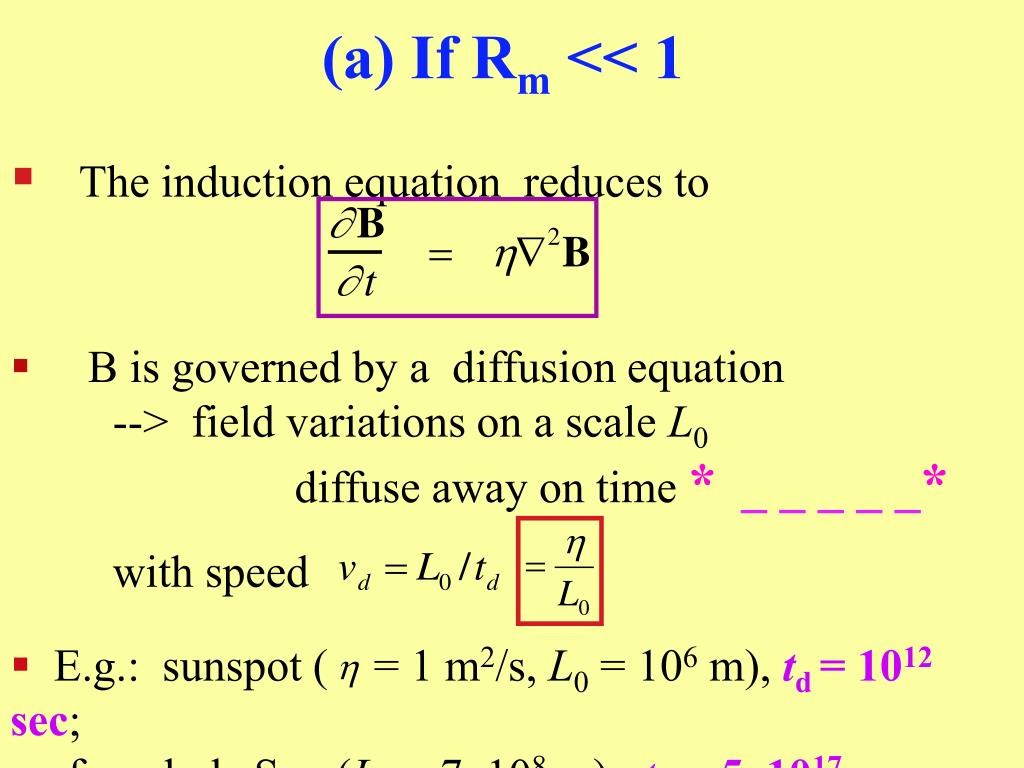

  24. (a) If Rm << 1 • The induction equation reduces to • B is governed by a diffusion equation • --> field variations on a scale L0 • diffuse away on time * _ _ _ _ _* with speed • E.g.: sunspot ( = 1 m2/s, L0 = 106 m), td = 1012 sec; • for whole Sun (L0 = 7x108 m), td = 5x1017 sec

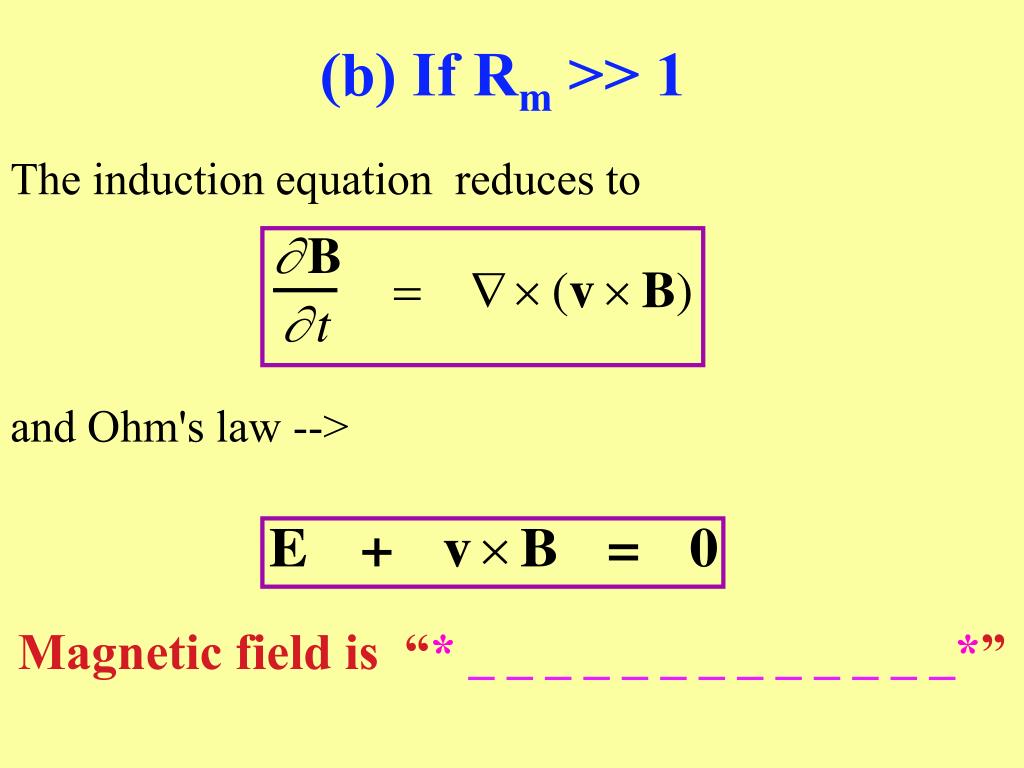

  25. (b) If Rm >> 1 The induction equation reduces to and Ohm's law --> Magnetic field is “* _ _ _ _ _ _ _ _ _ _ _ _ _*”

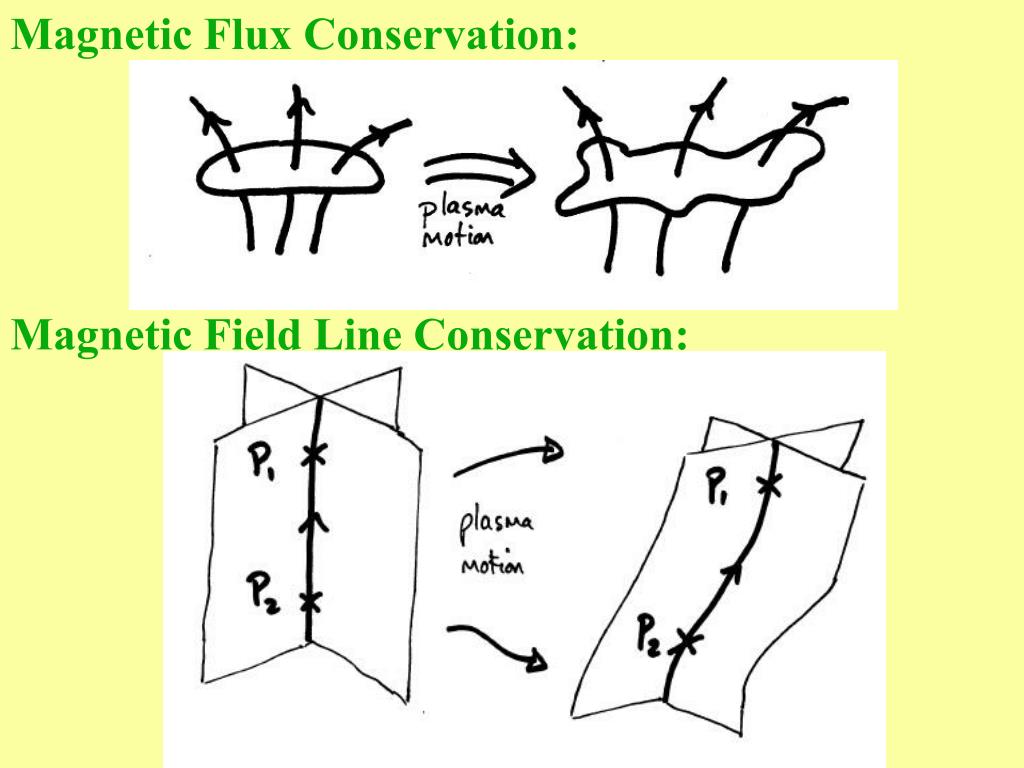

  26. Magnetic Flux Conservation: Magnetic Field Line Conservation:

  27. 2.5EQUATION of MOTION (1) (2) (3) (4) * _ _ _ _ _ _ _ * * _ _ _ _ _ _*

  28. Typical Values on Sun [N (m-3) = 106N (cm-3), B (G) = 104B (tesla) = 3.5 x 10 -21N T/B2, vA = 2 x 109B/N1/2]

  29. Magnetic force: TensionB2/ ----> * _ _ _ _ _ _ _ _ _ _* Magnetic field lines have a PressureB2/(2 )----> * _ _ _ _ _ _ _ _ _ _ *

  30. *EXAMPLE

  31. **Examples Find Magnetic Pressure force, Magnetic Tension force and j x B force for Ex 2.4 (a) (b)

  32. Hydrostatic Equilibrium (1) (2) (3) (4) • In most of corona, (3) dominates • Along B, (3) = 0, so (2) + (4) important * _ _ _ _ _ _ _ _ _*

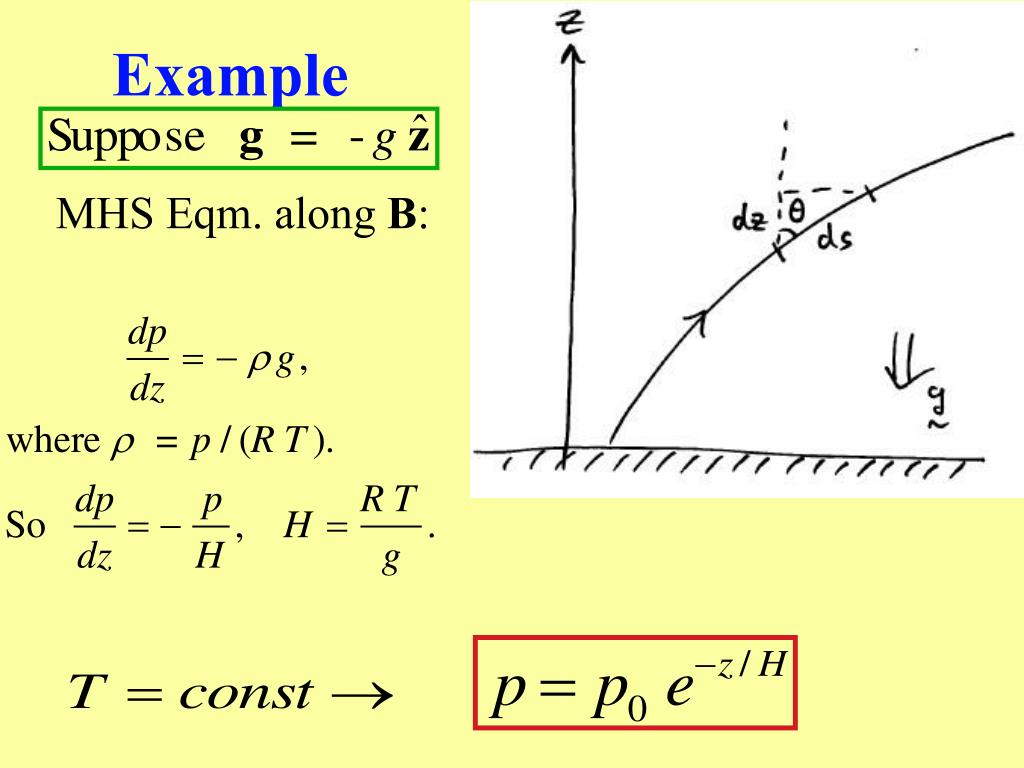

  33. Example MHS Eqm. along B:

  34. On Earth H =9 km, so on munro (1 km) p = 0.9p0 or on Everest (9 km)p = 0.37 p0 T = 5000 K, H = * _ _ _ _ _*; T = 2 x 106 K, H = * _ _ _ _ _ *

  35. We assumed in deriving MHD eqns -- v<<c, = constant, and plasma continuous When is MHD valid ? • Can treat plasma as a continuous medium when Chromosphere Corona • When MHD can still be valid when particles “collide” with B ri = 1 m(corona) • MHD equations can be derived by taking integrals of a kinetic equation for particles (but tricky)
