  1. VIOLIN: A Network Virtualization Middleware for Virtual Networked Computing Dongyan Xu Lab FRIENDS (For Research In Emerging Network and Distributed Services) Department of Computer Sciences Center for Education and Research in Information Assurance and Security (CERIAS) Purdue University

  2. The Team • Lab FRIENDS • Xuxian Jiang (Ph.D. student) • Paul Ruth (Ph.D. student) • Dongyan Xu (faculty) • RCAC, ITaP • Dr. Sebastien Goasguen

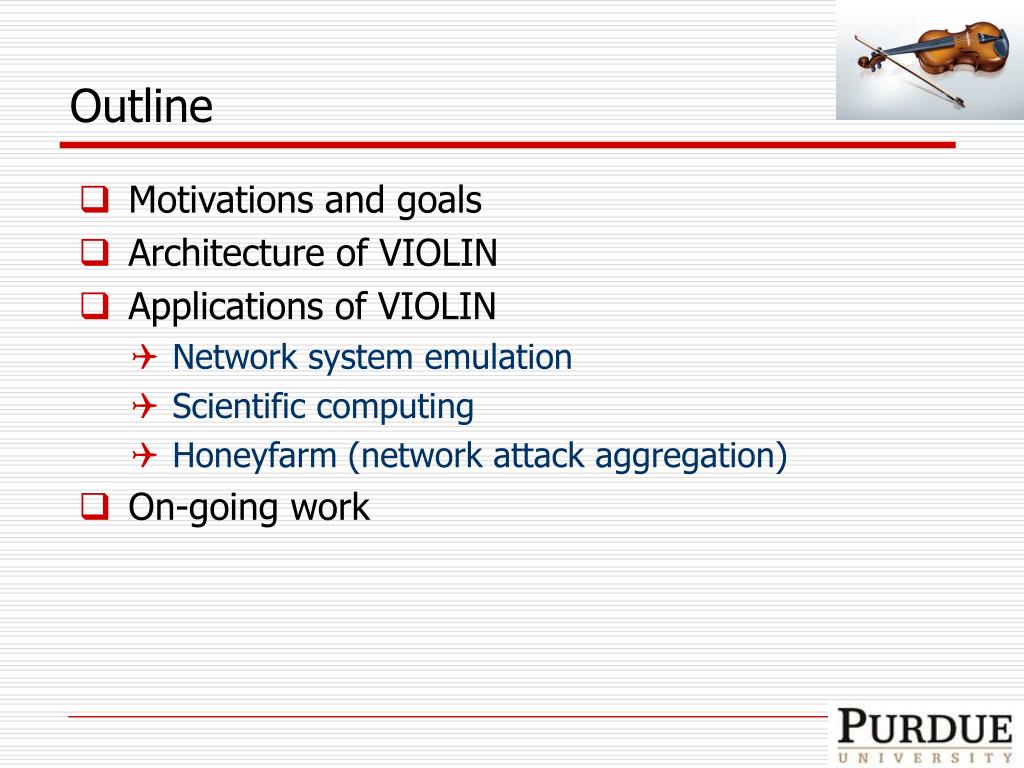

  3. Outline • Motivations and goals • Architecture of VIOLIN • Applications of VIOLIN • Network system emulation • Scientific computing • Honeyfarm (network attack aggregation) • On-going work

  4. Motivations • Formation of wide-area sharedcyber-infrastructure • Multiple domains • Heterogeneous platforms • Large number of users • Need for mutually isolated distributed environments • Customized system administration and configuration • Consistent and binary-compatible runtime support • Un-trusted or malfunctioning applications • Known vulnerabilities in SETI@Home, KaZaa, and Condor • Un-trusted network traffic control

  5. Potential Applications • Multi-institutional collaboratories • Large-scale distributed emulations • Cyber-systems • Real-world systems • Parallel/distributed scientific applications • Philanthropic (volunteer) computing services • Content distribution networks

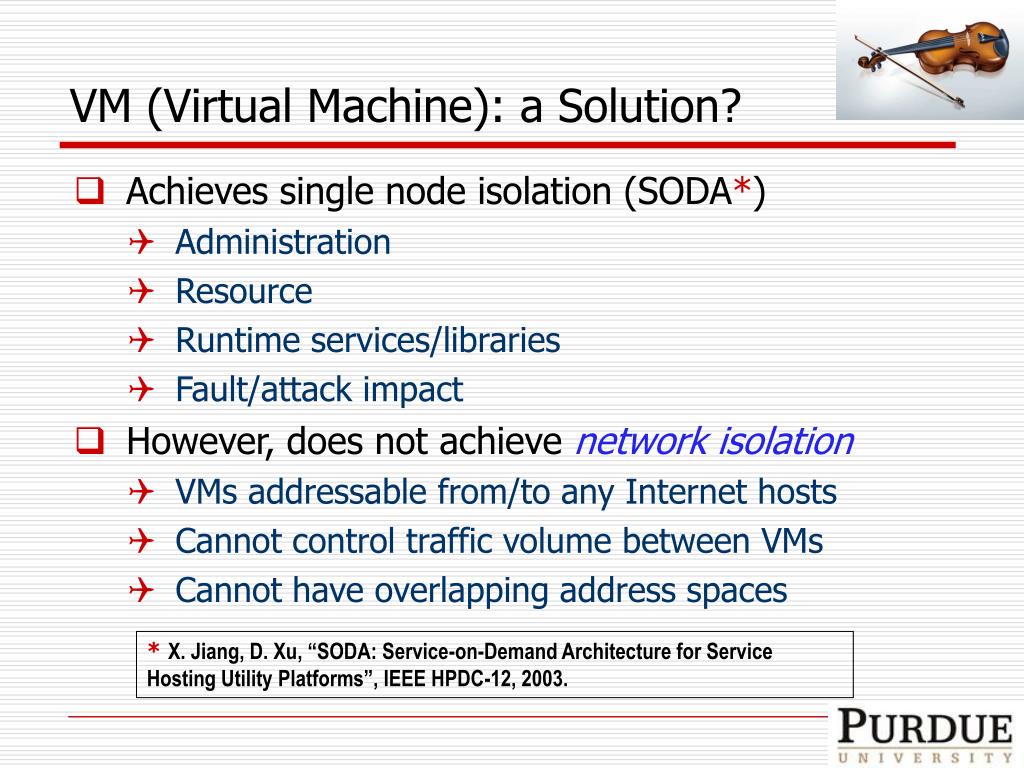

  6. VM (Virtual Machine): a Solution? • Achieves single node isolation (SODA*) • Administration • Resource • Runtime services/libraries • Fault/attack impact • However, does not achieve network isolation • VMs addressable from/to any Internet hosts • Cannot control traffic volume between VMs • Cannot have overlapping address spaces * X. Jiang, D. Xu, “SODA: Service-on-Demand Architecture for Service Hosting Utility Platforms”, IEEE HPDC-12, 2003.

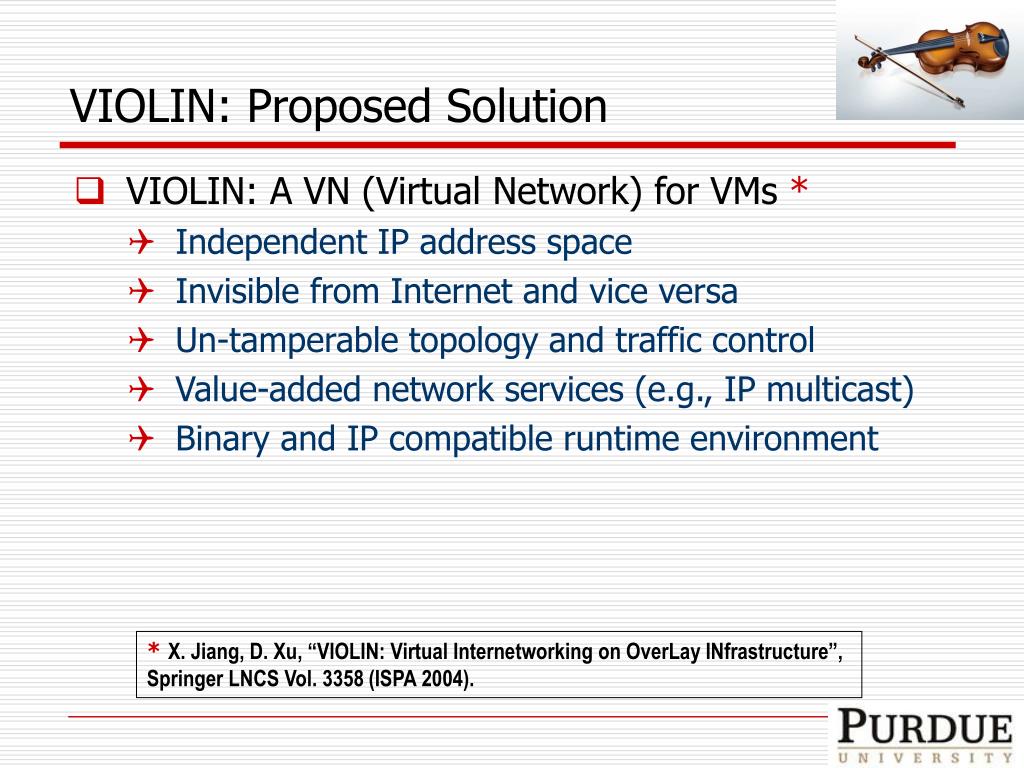

  7. VIOLIN: Proposed Solution • VIOLIN: A VN (Virtual Network) for VMs * • Independent IP address space • Invisible from Internet and vice versa • Un-tamperable topology and traffic control • Value-added network services (e.g., IP multicast) • Binary and IP compatible runtime environment * X. Jiang, D. Xu, “VIOLIN: Virtual Internetworking on OverLay INfrastructure”, Springer LNCS Vol. 3358 (ISPA 2004).

  8. Internet VIOLIN: the Big Picture Two mutually Isolated VIOLINs VM N M I N M I N M I NMI-based Grid infrastructure N M I N M I N M I N M I Physical infrastructure

  9. Key Ideas in VIOLIN • One level of indirection between VIOLIN and real Internet • “All problems in Computer Science can be solved by another level of indirection ” – Butler Lampson • A middleware-level underlay network serving as “intelligent carrier” of a VIOLIN • Traffic tunneling • Topology control • Traffic volume control • Traffic encryption • Network service virtualization

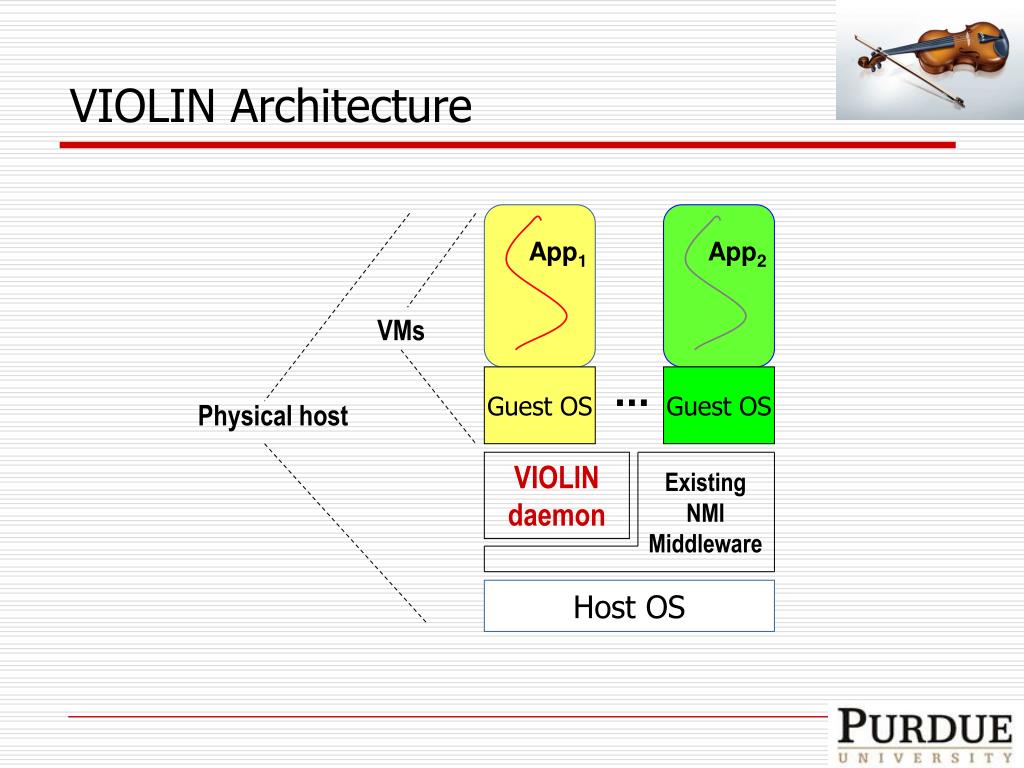

  10. App1 App2 Guest OS Guest OS … VIOLIN daemon Existing NMI Middleware Host OS VIOLIN Architecture VMs Physical host

  11. App1 App1 Guest OS Guest OS Virtual NIC Virtual NIC VIOLIN daemon VIOLIN daemon Host OS Host OS VIOLIN Architecture Between two VIOLIN nodes (VMs) 196.128.1.2 196.128.1.3 Message (e.g.,MPI) TCP, UDP, … IP Ethernet frame via UDP tunneling planetlab8.lcs.mit.edu planetlab6.cs.berkeley.edu

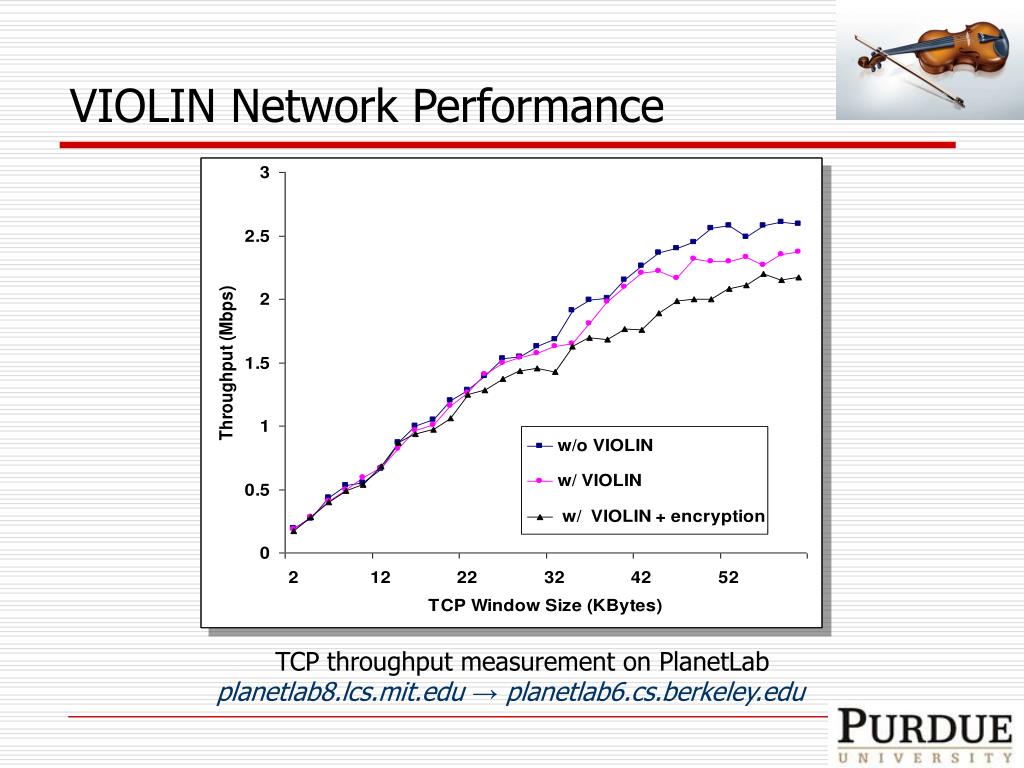

  12. VIOLIN Network Performance TCP throughput measurement on PlanetLab planetlab8.lcs.mit.edu→planetlab6.cs.berkeley.edu

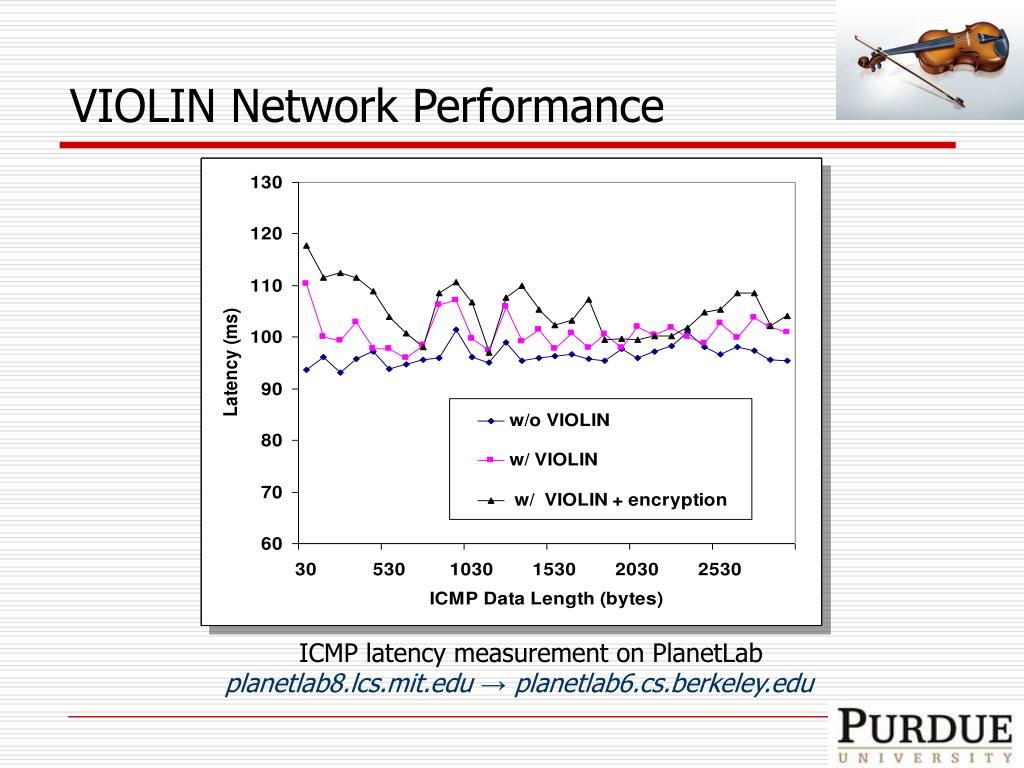

  13. VIOLIN Network Performance ICMP latency measurement on PlanetLab planetlab8.lcs.mit.edu→planetlab6.cs.berkeley.edu

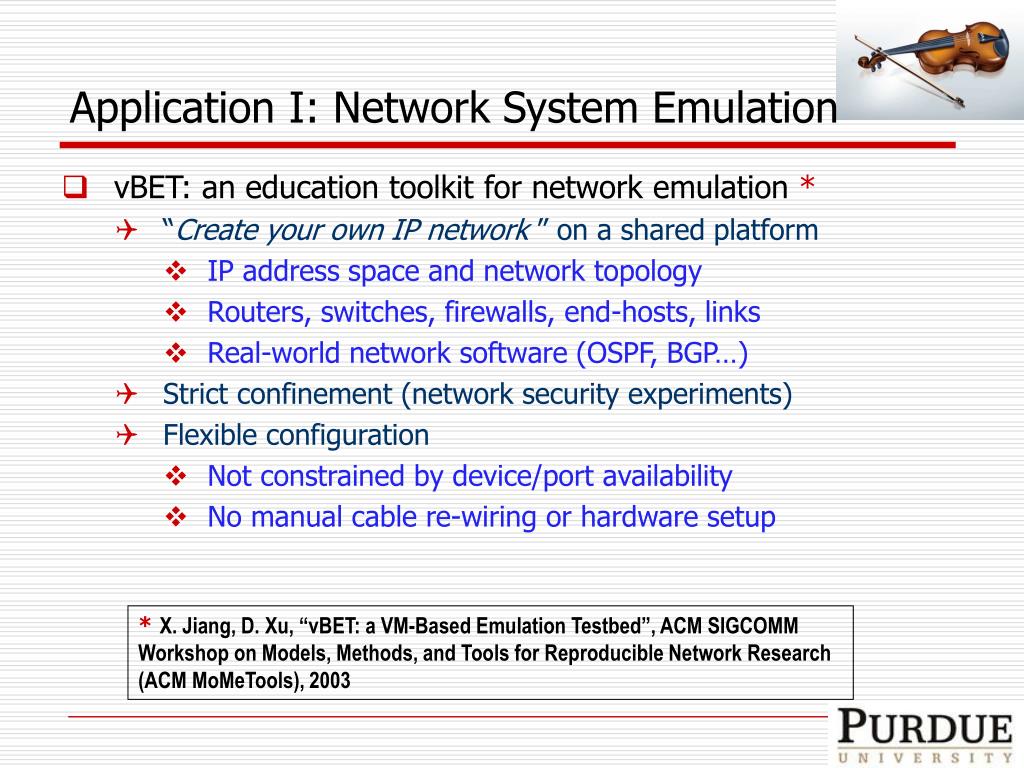

  14. Application I: Network System Emulation • vBET: an education toolkit for network emulation * • “Create your own IP network ” on a shared platform • IP address space and network topology • Routers, switches, firewalls, end-hosts, links • Real-world network software (OSPF, BGP…) • Strict confinement (network security experiments) • Flexible configuration • Not constrained by device/port availability • No manual cable re-wiring or hardware setup * X. Jiang, D. Xu, “vBET: a VM-Based Emulation Testbed”, ACM SIGCOMM Workshop on Models, Methods, and Tools for Reproducible Network Research (ACM MoMeTools), 2003

  15. vBET GUI

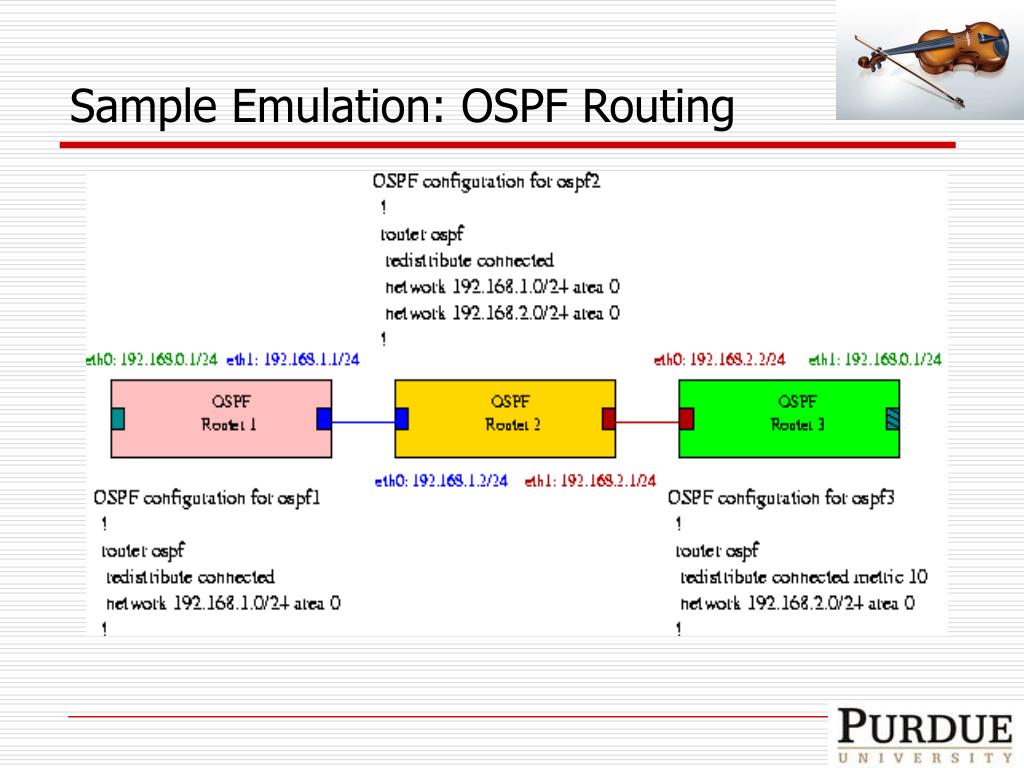

  16. Sample Emulation: OSPF Routing

  17. Emulation of OSPF Routing Demo video clip:

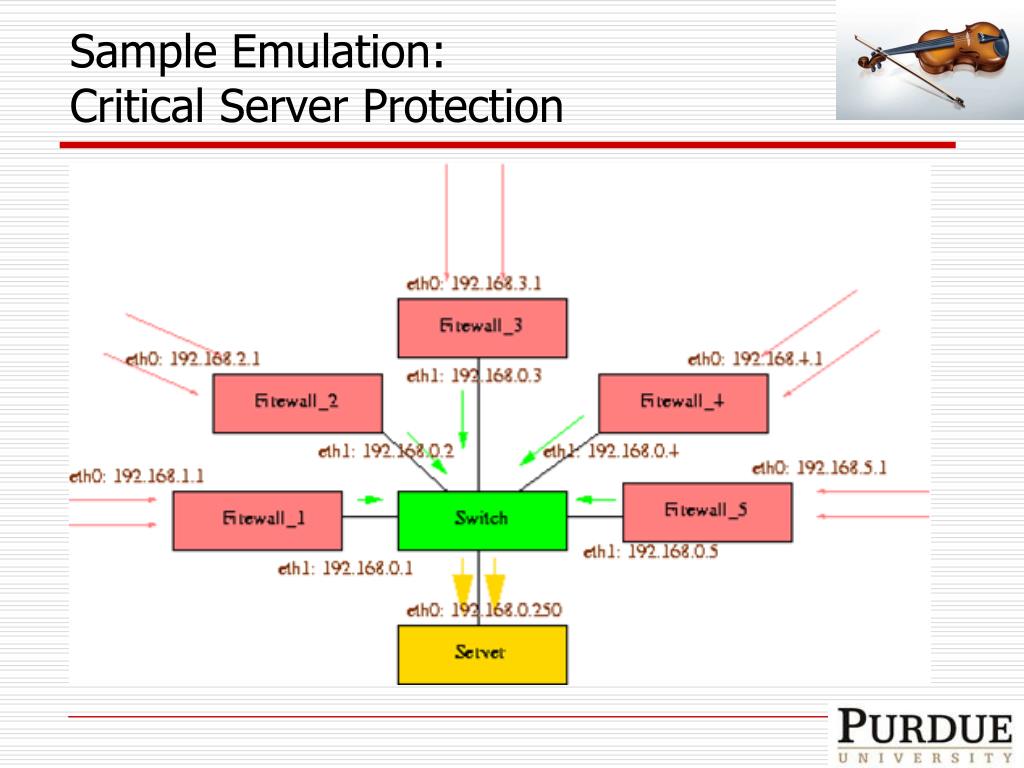

  18. Sample Emulation: Critical Server Protection

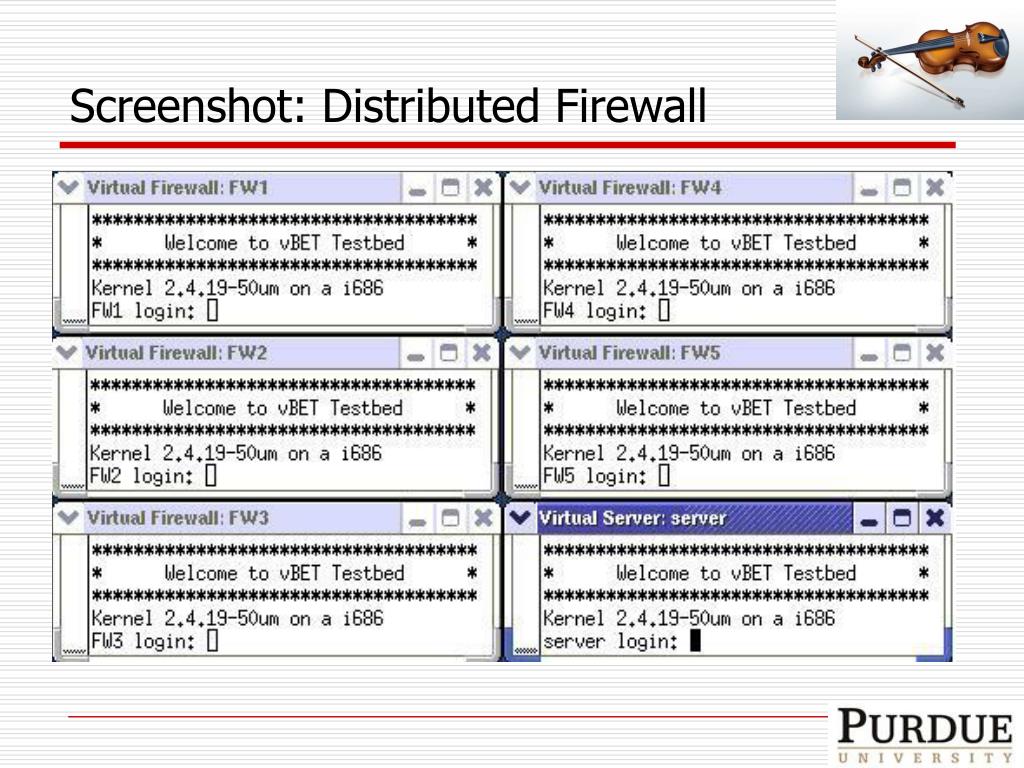

  19. Screenshot: Distributed Firewall

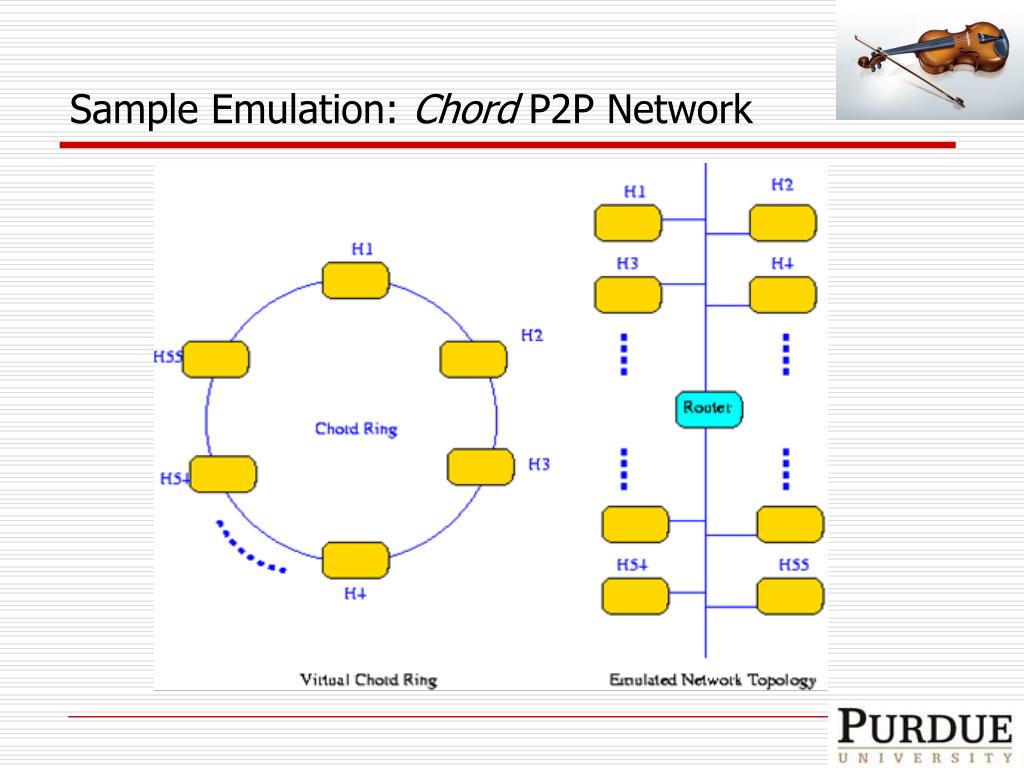

  20. Sample Emulation: Chord P2P Network

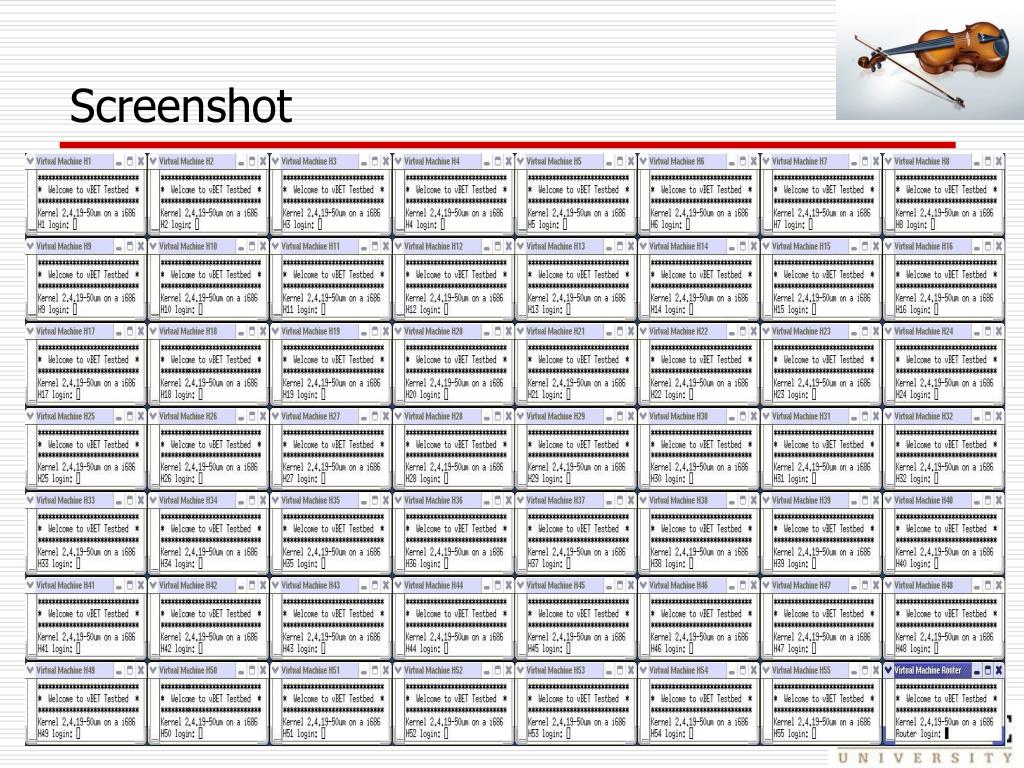

  21. Screenshot

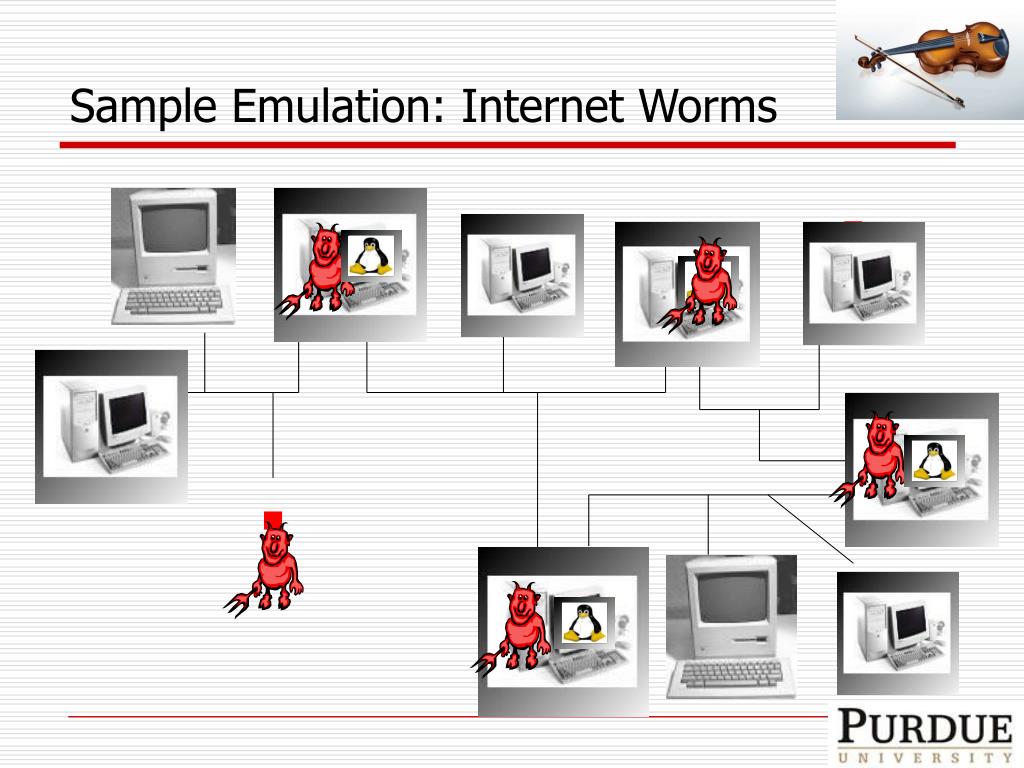

  22. Sample Emulation: Internet Worms

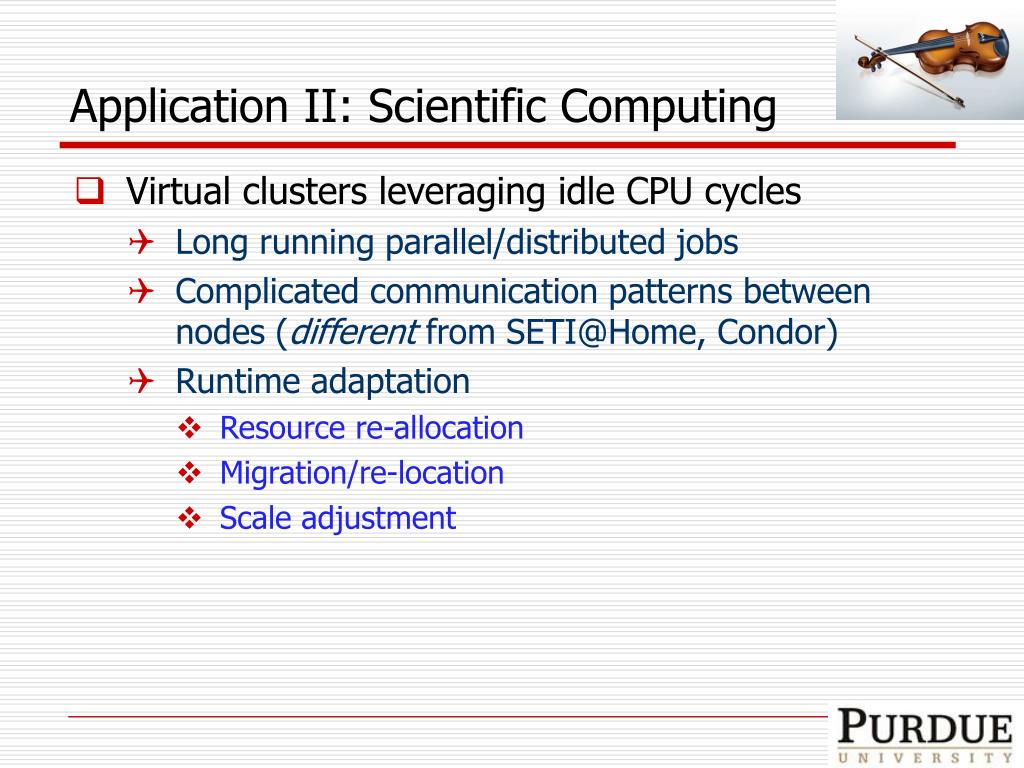

  23. Application II: Scientific Computing • Virtual clusters leveraging idle CPU cycles • Long running parallel/distributed jobs • Complicated communication patterns between nodes (different from SETI@Home, Condor) • Runtime adaptation • Resource re-allocation • Migration/re-location • Scale adjustment

  24. Experiment Setup Two mutually isolated virtual clusters VM VS VS Physical Cluster (ITaP) Physical Switch

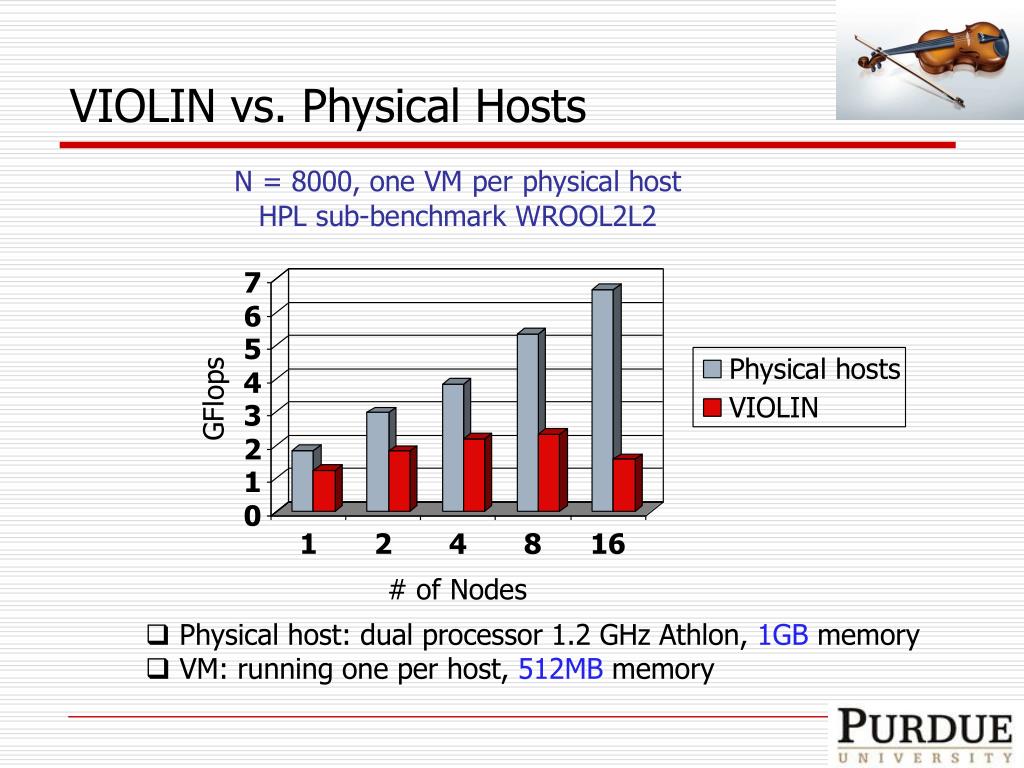

  25. VIOLIN vs. Physical Hosts • Physical host: dual processor 1.2 GHz Athlon, 1GBmemory • VM: running one per host, 512MB memory

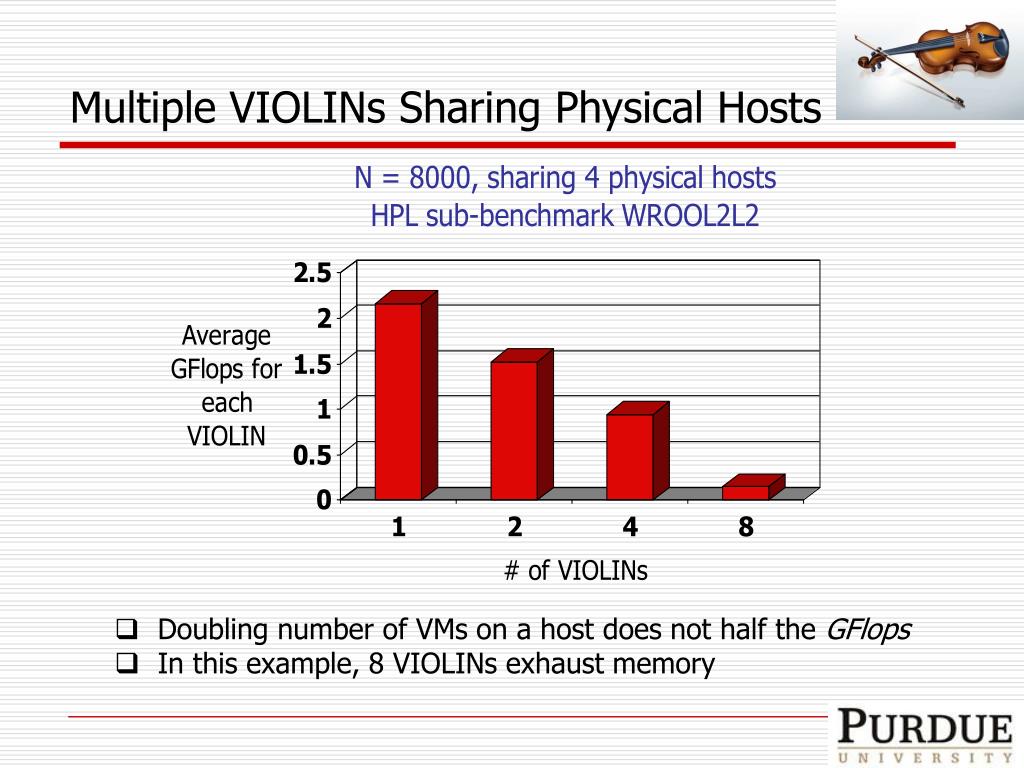

  26. Multiple VIOLINs Sharing Physical Hosts • Doubling number of VMs on a host does not half the GFlops • In this example, 8 VIOLINs exhaust memory

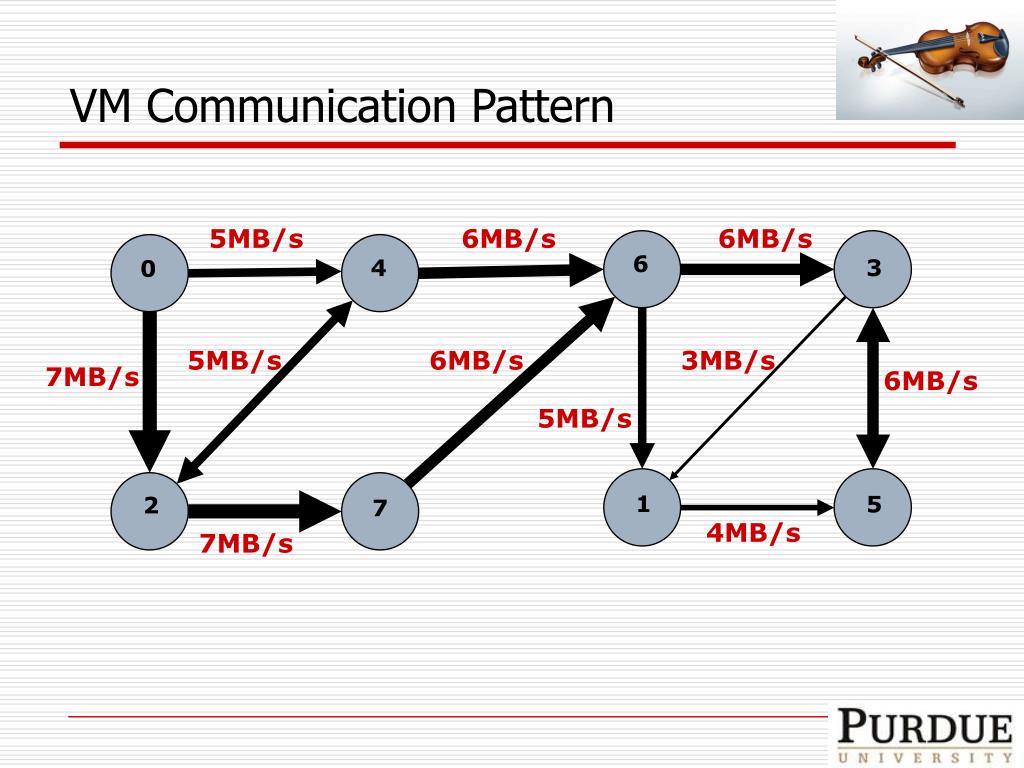

  27. 5MB/s 6MB/s 6MB/s 6 4 3 0 5MB/s 6MB/s 3MB/s 6MB/s 5MB/s 1 5 2 7 4MB/s 7MB/s VM Communication Pattern 7MB/s

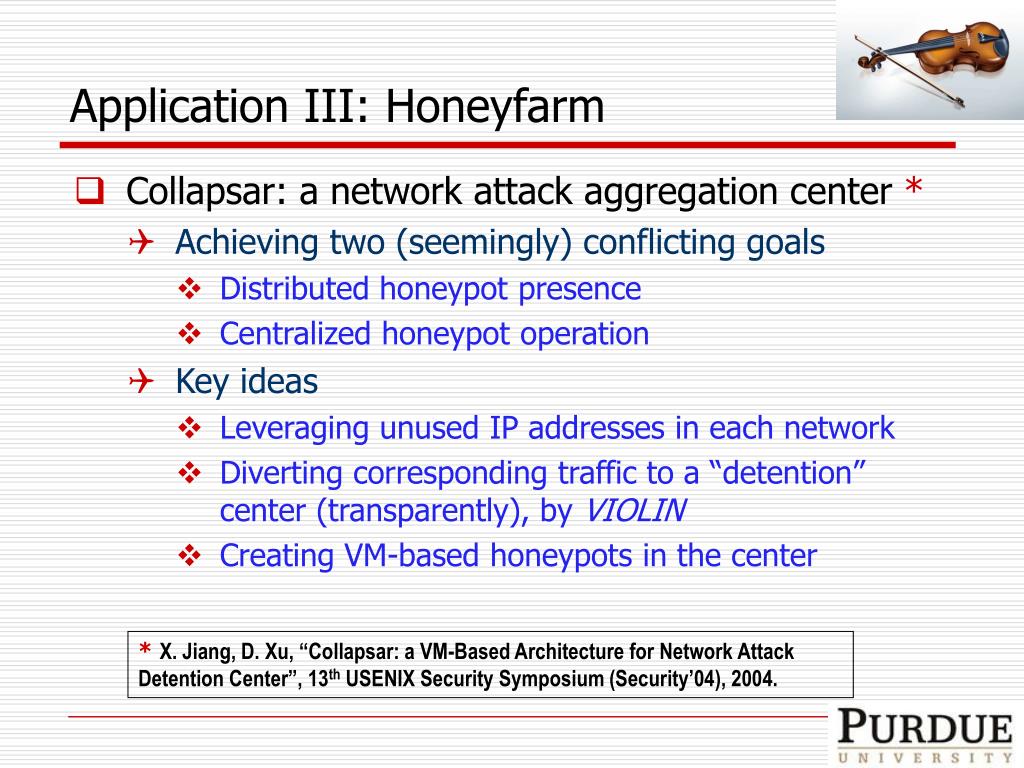

  28. Application III: Honeyfarm • Collapsar: a network attack aggregation center * • Achieving two (seemingly) conflicting goals • Distributed honeypot presence • Centralized honeypot operation • Key ideas • Leveraging unused IP addresses in each network • Diverting corresponding traffic to a “detention” center (transparently), by VIOLIN • Creating VM-based honeypots in the center * X. Jiang, D. Xu, “Collapsar: a VM-Based Architecture for Network Attack Detention Center”, 13th USENIX Security Symposium (Security’04), 2004.

  29. Collapsar Architecture Collapsar Architecture Production Network Attacker Redirector Production Network Redirector Redirector Front-End Production Network VM-based Honeypot Collapsar Center Management Station Correlation Engine

  30. Real-Time Worm Alert * X. Jiang, D. Xu, R. Eigenmann, “Protection Mechanisms for Application Service Hosting Platforms”, IEEE/ACM CCGrid’04, 2004.

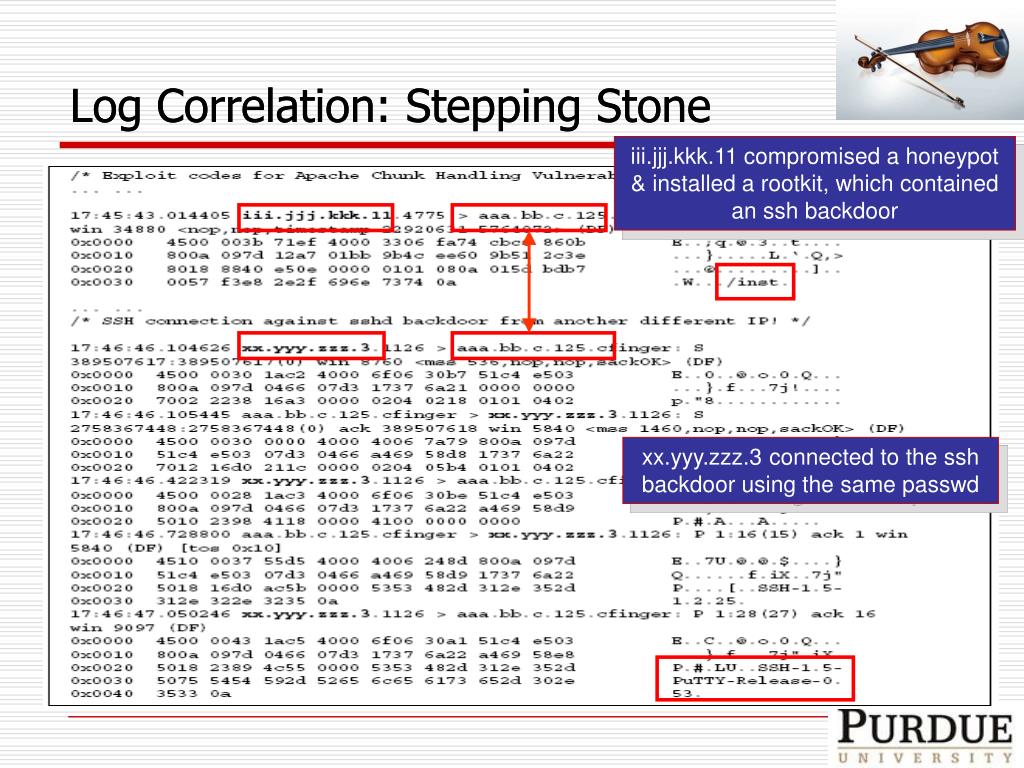

  31. Log Correlation: Stepping Stone Log Correlation: Stepping Stone iii.jjj.kkk.11 compromised a honeypot & installed a rootkit, which contained an ssh backdoor xx.yyy.zzz.3 connected to the ssh backdoor using the same passwd

  32. Log Correlation: Network Scanning Log Correlation: Network Scanning

  33. On-going Work • VIOLIN-based virtual distributed environments (VP-Grids) on shared cyber-infrastructure • Self-management (making them smart entities) • Missing role of VIOLIN administrator • Automatic customization and bootstrapping • Enforcement of application-specific policies • Self-orchestration (application-driven) • Resource scaling • Scale adaptation • Topology evolution

  34. Thank you. For more information: Email:dxu@cs.purdue.edu URL:http://www.cs.purdue.edu/~dxu Google: “Purdue SODA Friends”
