Extended environmental conditions f r mp 377 daylight readable

Extended environmental conditions für MP 377 daylight readable

Customized Automation

Industry products for Oil and Gas


Simatic customized automation extended temperature range for mp 377 daylight readable

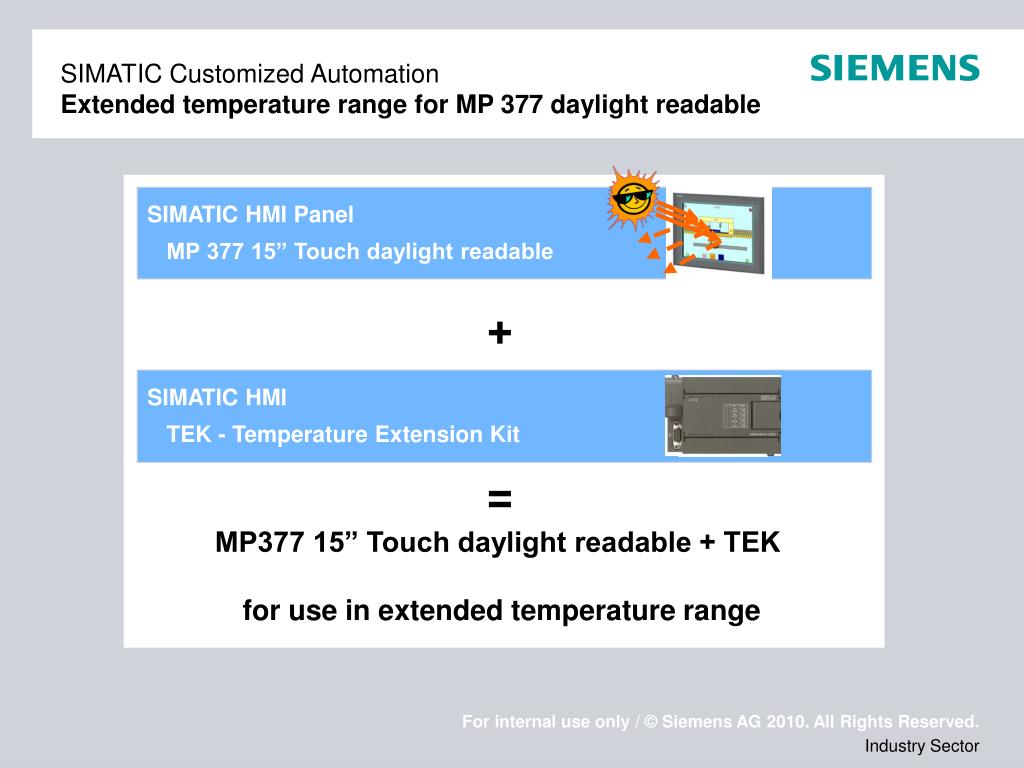

SIMATIC Customized AutomationExtended temperature range for MP 377 daylight readable

  • SIMATIC HMI Panel

  • MP 377 15” Touch daylight readable

+

  • SIMATIC HMI

  • TEK - Temperature Extension Kit

=

MP377 15” Touch daylight readable + TEK for use in extended temperature range


Tek temperature extension kit functions

TEK – Temperature Extension KitFunctions

  • The TEK controller at work

  • The figures show a schematic diagram of a control cabinet configuration with all devices required for full climate control of a SIMATIC HMI device.

  • The correct position of the components in the control cabinet and circulating air flow are essential for proper operation of the entire system.

TEK

TEK

TEK


Tek temperature extension kit dimensioning actuators heating and cooling

TEK – Temperature Extension KitDimensioning actuators – heating and cooling

  • Selecting a heating element, fan and cooling element with the correct

  • capacity

  • Excel sheet helps to create a first approximation

    • Sample

    • Air circulation fan is mandatory


Tek temperature extension kit functions1

ClimateController

TEK – Temperature Extension KitFunctions

  • Functions

    • Controlling of internal temperature by measuring of temperatures

      • At panel (2a and 2b)

      • On surface of cabinet front (2c)

      • Three-step control with dynamic feedback (adaptive control)

    • Humidity control by measuring of rel. humidity (integrated sensor) (5)

    • Switch on panel (4) as fast as possible in ‘automatic’ mode

      • Climate controller working range from >= -20oC to <= 80oC

      • Cc switches on HMI panel >= 0oC

      • Control by user in ‘manual’ mode (8, 9)

      • Controlling of heating, cooling (3+10)

      • Controlling of fan (7)

    • Out of range

      • Cc just signalizes ‚OOR‘ from > +65oC

5

11

Caption:

1 - Front foilheating 2 - Pt100 sensor3 - Active cooling 4 - Panel5 – TEK climate controller 6 – LED 7 – Fan 8,9 – Push buttons10 – Heating11 – Klimastutzen

Climate controller does not turn off HMI panel


Extended environmental conditions f r mp 377 daylight readable1

Thank you for your attention!

Extended environmental conditions für MP 377 daylight readable
