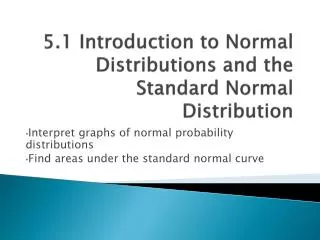

  1. 5.1 Introduction to Normal Distributions and the Standard Normal Distribution Interpret graphs of normal probability distributions Find areas under the standard normal curve

  2. Normal distribtuion A normal distribution is a continuous probability distribution for a random variable x where the mean, median, and mode are equal.

  3. Normal Curve The graph of a normal distribution is called the normal curve.

  4. A normal distribution has the following properties: The mean, median, and mode are equal. The normal curve is bell-shaped and is symmetric about the mean. The total area under the normal curve is equal to 1. The normal curve approaches, but never touches, the x-axis as it extends farther and farther away from the mean. Between μ-σ and μ+σ (in the center of the curve), the graph curves downward. The graph curves upward to the left of μ-σ and to the right of μ+σ. The points at which the curve changes from curving upward to curving downward are called inflection points.

  5. Try it yourself 1 • Understanding Mean and Standard Deviation Consider the normal curves shown at the right. Which normal curve has the greatest mean? Which normal curve has the greatest standard deviation? B has the greatest mean. Curve C is more spread out, so curve C has the greatest standard deviation.

  6. Try it yourself 2 • Interpreting Graphs of Normal Distributions The scaled test scores for the New York State Grade 8 English Language Arts Test are normally distributed. The normal curve shown below represents this distribution. What is the mean test score? Estimate the standard deviation of this normal distribution. Mean: 660 Standard Deviation: 30

  7. Standard normal distribution The standard normal distribution is a normal distribution with a mean of 0 and a standard deviation of 1.

  8. Properties of the Standard Normal Distribution

  9. Try it yourself 3 • Using the Standard Normal Table • Find the cumulative area that corresponds to a z-score of -2.19. • Find the cumulative area that corresponds to a z-score of 2.17. 0.0143 0.0143

  10. Try it yourself 4 • Finding Area Under the Standard Normal Curve Find the area under the standard normal curve to the left of z = 2.13. 0.9834

  11. Try it yourself 5 • Finding Area Under the Standard Normal Curve Find the area under the standard normal curve to the right of z = -2.16. 0.9846

  12. Try it yourself 6 • Finding Area Under the Standard Normal Curve Find the area under the standard normal curve between z = -2.165 and z = -1.35. 0.0733
