Presentation Transcript


Queues queue api application radix sort implementation using deque circular array

Lecture 8

Queues and Priority Queues

  • Queues

  • Queue API

  • Application: Radix Sort

  • Implementation:

  • Using Deque

  • Circular Array

  • Priority Queue

  • Priority Queue API

  • Implementation Glimpse: Heaps


Queues

Queues

  • Three container adapters

    • stack: LIFO discipline

    • queue: FIFO

    • priority_queue: HPFO

  • Queue

    • <queue>

    • Remove from front, insert at back

    • Underlying sequence container: deque

  • Priority_queue

    • <queue>

    • top () yields HP element

    • Underlying SC: vector


Queue example

Queue Example

string s1, s2;

// Modify s1, leave s2==“”

queue<char> q;

size_t n = s1.length ();

for (size_t i = 0; i < n; ++i)

q.push (s1[n – i – 1]);

while (! q.empty ())

{

s2 += q.front ();

q.pop ();

}

cout << boolalpha << (s1 == s2) << endl;


Queues queue api application radix sort implementation using deque circular array

queue ();

Create an empty queue.

CLASS queue

CLASS queue

<queue>

<queue>

Constructor

Operations

bool empty () const;

Check whether the queue is empty. Return true if it is empty and false otherwise.

T& front ();

Return a reference to the value of the item at the front of the queue.

Precondition: The queue is not empty.


Queues queue api application radix sort implementation using deque circular array

CLASS queue

<queue>

Operations

const T& front () const;

Constant version of front().

T& back ();

const T& back () const;

void pop ();

Remove the item from the front of the queue.

Precondition:The queue is not empty.

Postcondition:The element at the front of the queue is the element that was added immediately after the element just popped or the queue is empty.


Queues queue api application radix sort implementation using deque circular array

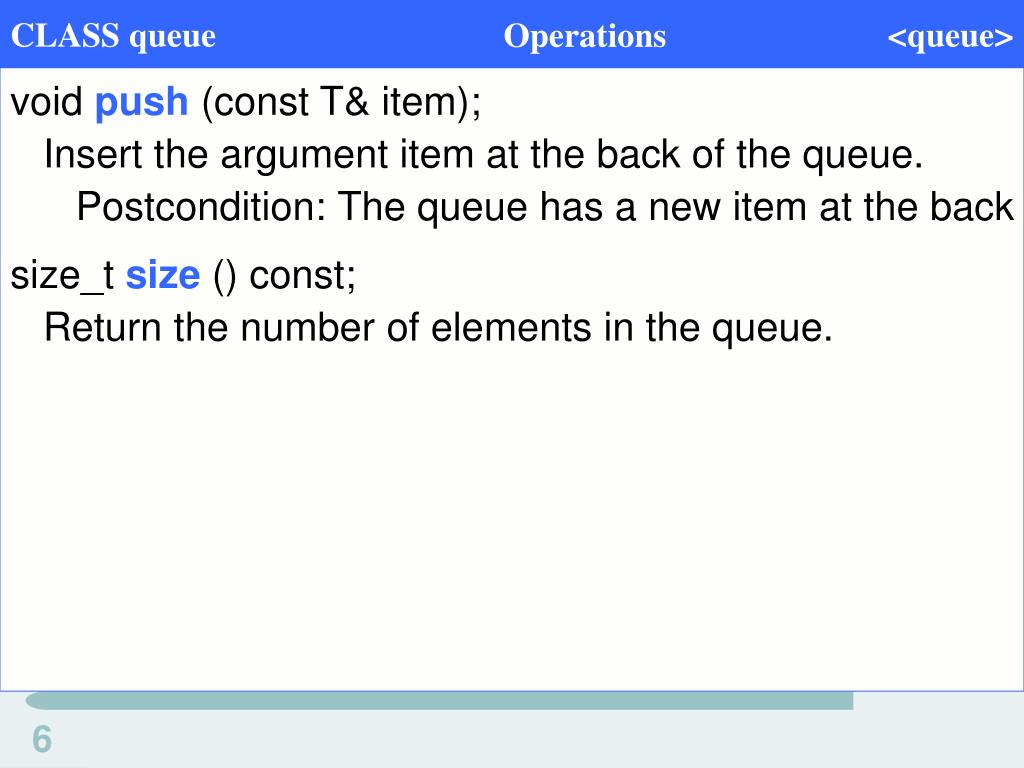

void push (const T& item);

Insert the argument item at the back of the queue.

Postcondition:The queue has a new item at the back

CLASS queue

<queue>

Operations

size_t size () const;

Return the number of elements in the queue.

6


Radix sort

Radix Sort

Order ten 2 digit numbers in 10 bins from smallest to largest. Requires d = 2 passes, generally d = max (digits in an element) passes.

Initial Sequence:91 06 85 15 92 35 30 22 39

Pass 0: Distribute the #’s into bins according to the 1's digit (100).


The radix sort

The Radix Sort

New Sequence:30 91 92 22 85 15 35 06 39

Pass 1: Take new sequence and distribute the #’s into bins determined by the 10's digit (101).

Complexity?

O (d*N)


Implementing a queue

Implementing a Queue

typedef Employee* value_type;

class Queue {

deque<value_type> d;

public:

Queue () : d () { } // Initially empty

value_type &front () { ?? }

value_type &back () { ?? }

// Const versions too

void push (const value_type& v) { d.push_back (v); }

void pop () { ?? }

bool empty () const { return d.empty (); }

size_t size () const { return d.size (); }

};


Implementing a queue alternative

Implementing a Queue (Alternative)

typedef Employee* value_type;

class Queue {

value_type A[CAP];

size_t qFront, qBack, count; // [qFront, qBack)

size_t decr (size_t index) { index += CAP - 1; return index % CAP; }

size_t incr (size_t index) { ++index; return index % CAP; }

public:

Queue () : qFront (0), qBack (0), count (0) { }

value_type& front () { return (A[qFront]); }

value_type& back () { size_t last = decr (qBack); return (A[last]); }

void push (const value_type& v) // Check overflow?

{ A[qBack] = v; qBack = incr (qBack); ++count; }

void pop () // Underflow?

{ qFront = incr (qFront); --count; }

bool empty () const { return (count == 0); }

};


Circular array impl

Circular Array Impl.


Priority queue

Priority Queue

Form of queue in which values are removed according to their designated priority

3

2

6

1

Items entered the queue in sequential order but will be removed in the order Job #2, #1, #4, #3.


Priority queue example

Priority Queue Example

string s1 = “Bjarne”, s2;

priority_queue <char> pq;

size_t n = s1.length ();

for (size_t i = 0; i < n; i++)

pq.push (s1[i]);

while (! pq.empty ())

{

s2 += q.top ();

q.pop ();

}

cout << s2 << endl;


Queues queue api application radix sort implementation using deque circular array

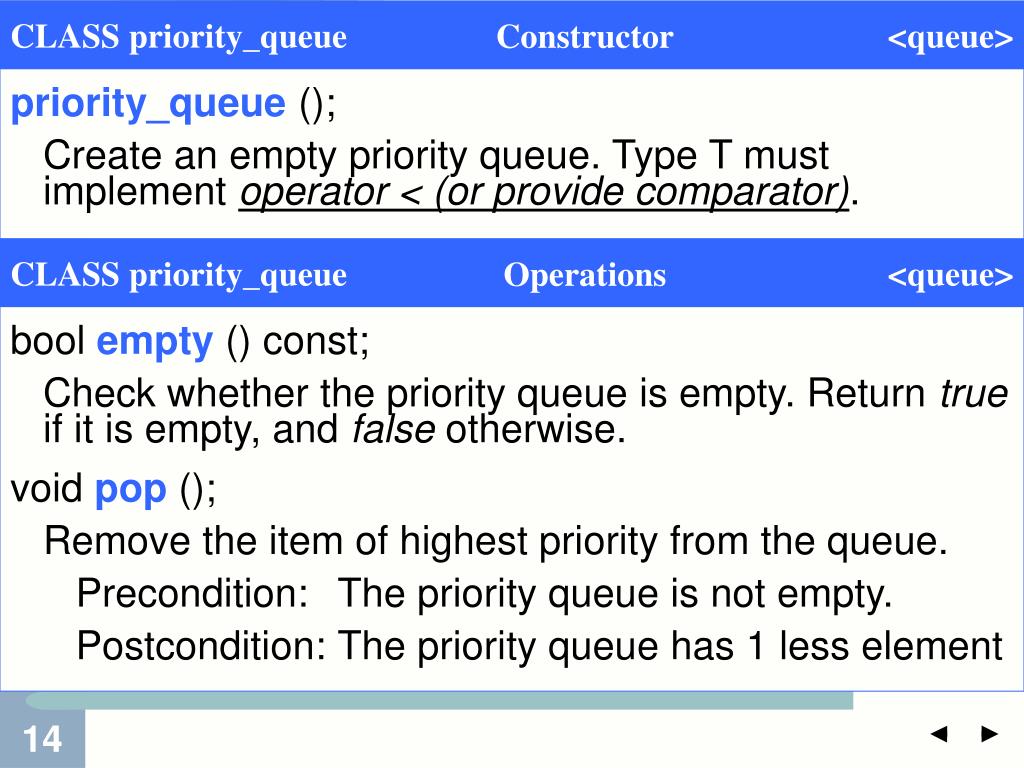

priority_queue ();

Create an empty priority queue. Type T must implement operator < (or provide comparator).

CLASS priority_queue

CLASS priority_queue

<queue>

<queue>

Constructor

Operations

bool empty () const;

Check whether the priority queue is empty. Return true if it is empty, and false otherwise.

void pop ();

Remove the item of highest priority from the queue.

Precondition:The priority queue is not empty.

Postcondition:The priority queue has 1 less element


Queues queue api application radix sort implementation using deque circular array

CLASS priority_queue

<queue>

Operations

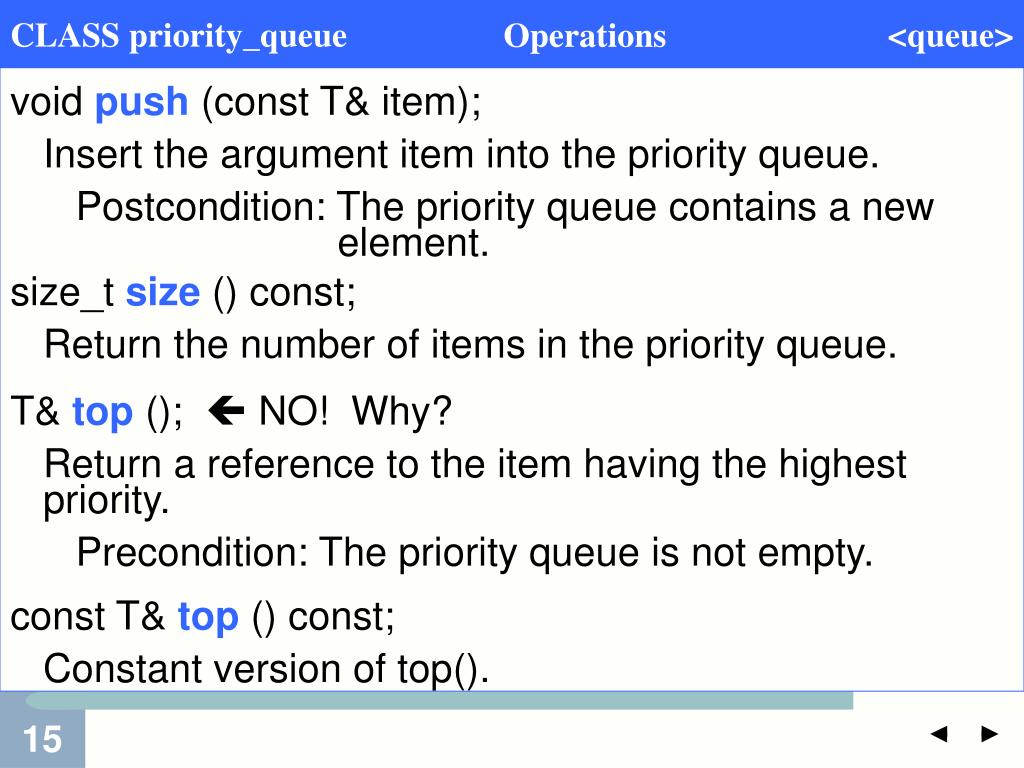

void push (const T& item);

Insert the argument item into the priority queue.

Postcondition: The priority queue contains a new element.

size_t size () const;

Return the number of items in the priority queue.

T& top ();  NO! Why?

Return a reference to the item having the highest priority.

Precondition: The priority queue is not empty.

const T& top () const;

Constant version of top().


Implementing a priority queue partial

Implementing a Priority Queue (Partial)

typedef timer value_type;

class PriorityQueue {

vector<value_type> v; // v is maintained as a heap

public:

PriorityQueue () { } // initially empty

const value_type& top () const { return v.front (); }

void push (const value_type& i) { v.push_back (i); upHeap (); }

void pop () { v[0] = v.back (); v.pop_back (); downHeap (); }

bool empty () const { return v.empty (); }

size_t size () const { return v.size (); }

};


Popping from a heap

Popping From a Heap

v[0] = v.back ();
