Plan. Analyze. Design. Systems Development Life Cycle . Develop. Cowboy Burger Online. Test. Implement. Maintain. Plan. Project Plan.

Download Presentation

Plan

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Plan

Plan

Analyze

Design

Systems Development Life Cycle

Develop

Cowboy Burger Online

Test

Implement

Maintain


Plan

Plan

Project Plan

System Requirements: Cowboy Burger Online is an ordering system that allows customers to peruse our menu, build and place orders, and store contact and payment information securely. The customer begins by visiting our website, and can see our deals and specials on the front page. They can click on a digital menu and see all our products and the prices for each item. They make their selections, customize their orders and add the items to their shopping cart. Once they submit their order, account, contact and payment information, the order is sent to our in-store location. There, the order is displayed on a computer near where the food is prepared. The cook prepares the food and groups it into a complete order for delivery. The critical success factor for this system to succeed is that it must as fast and efficient and calling the store and having a store employee enter the order manually, if not faster and more efficient.

Our company is looking to implement this system very soon to keep up with competition who offer similar services, but its implementation is not imminent. The following is a timeline for completely implementing the website ordering system.

April 21: Project planning and budget meeting

April 22: Select a domain hosting company and begin design of website

April 24: Select a CRM/DBMS for collecting customer info securely

April 28: Begin coding HTML/CSS

May 5: Have website beta complete and begin testing

May 12: Begin final website and training documentation

May 19: Final website and training documentation DUE

Analyze

Design

Develop

Test

Implement

Maintain


Plan

Plan

Project Plan

Analyze

Below we have outlined specific systems requirement we will need to implement in order to make our website effective for taking our customer’s orders:

  • Ordering System

    • Our customers have the ability to order online. In order for this work, we need the following:

    • They need to be able to see the menu and prices

    • They need to be able to make selections (shopping cart)

    • They need to be able to enter payment information

  • Food Preparation System

    • We need to be able to receive and view the order

    • We need to verify we have enough product in inventory

    • We need to access customer information stored securely in a database

    • We need to send confirmation to the customer that their order has been received

Design

Develop

Test

Implement

Maintain


Plan

Plan

Project Plan

Project feasibility: for this project we will conduct a technical feasibility study in order determine our ability to build and integrate the online ordering system. This feasibility study will help us to decide whether we should create the website in-house, or turn to a professional web developer to create the website for us. The study will determine whether we have the resources and knowledge to develop a system that meets all the requirements our system needs in order to be successful. We will conduct this study by researching how to build and implement a website for collecting customer information and transmitting orders to our cooks.

Analyze

Design

Develop

Test

Implement

Maintain


Plan

Plan

Business Requirements:

  • The system must keep track of all the products the customer wants per order.

  • The system must track the customer’s contact information, including their address, payment information, name, phone number and special delivery instructions.

  • The system must be able to transmit the order to the computer where the cooking staff is located so that can prepare the order.

  • The system should keep track of what items are on which order

    The system focus will mainly be concerned with the customer side of things. The website is less useful to the cooking staff, since it’s main purpose is to act as a portal for the customer to deliver the order to our store.

    Build vs. Buy: Considering our time-to-market window, available resources and our core competencies, we have determined that will build the website system ourselves. Time to market is not the major priority, we have the monetary resources secured and available for use on this project specifically and our desire to build a technical core competency indicates that we should build as opposed to buy.

Analyze

Design

Develop

Test

Implement

Maintain


Plan

Plan

Use Case Diagram

Analyze

Creating an Order

Design

Develop

Preparing the Order

  • Customer creates an Order using Cowboy Burger Online (CBO)

  • Employees receive the Order from customers via CBO

  • Employees prepare the order

  • Employees deliver the order to the customer

  • The customer receives the order.

Cowboy Burger Employees

Customer

Test

Delivering the Order

Implement

Maintain

Prepared by: Cowboy Burger

Prepared: April 2014


Plan

Process Diagrams

Plan

Creating an Order

Customer

Databases

Analyze

Peruse Menu

Customers begin by browsing our menu. As they decide on what they want, the Make Selections and add them to a virtual shopping cart. Once they are finished making selections, they can Login and verify their status as USERS.

New users are redirected to an Add User page.

Existing users move on confirm their contact and payment information.

Invalid logins result in a return to the Login page.

Once users have confirmed their Contact and Payment information, they move to Confirm their ORDER and submit the order to us.

Design

INVENTORY

Make Selections

Login

Develop

Verify

USERS

CONTACTS &

PAYMENTS

ORDERS

Add User

[New user]

[Invalid Login]

[Existing]

Test

Confirm Contact & Payment Info

Implement

Confirm Order

Maintain

Prepared by: Cowboy Burger

Prepared: April 2014


Plan

Process Diagrams

Plan

Preparing the Order

Customer

Databases

Analyze

Employees begin by logging into the company computer located near the production table in our restaurant. From there they can Access Orders submitted to the ORDERS database from the customers.

The computer then runs a test to Confirm Inventory levels are adequate to complete the order that has been accessed. If inventory is sufficient, an email is automatically sent by the computer to notify the Customer that their order is about to be prepared. Otherwise, an alert is displayed and the employee is prompted to call the customer to have them alter the order or cancel it.

Finally, if there is sufficient Inventory and the customer has been emailed, the cook can begin to prepare the order.

Login

Design

EMPLOYEES

Access Orders

Confirm Inventory

Develop

[Sufficient]

USERS

ORDERS

INVENTORY

[insufficient]

Email User

Test

Contact Customer

Make the Order

Implement

Maintain

Prepared by: Cowboy Burger

Prepared: April 2014


Plan

Plan

System Model – ER diagram

Analyze

Design

Develop

Test

Implement

Maintain


Plan

Plan

System Model – ER diagram

EMPLOYEES

Analyze

PREPARING THE ORDER

Design

USERS

ORDERS

Develop

Test

Implement

INVENTORY

Maintain


Plan

Plan

Design phase

System Model - website

Analyze

Phone Number Social Media

Logo

Design

Header Image

Develop

Test

Navigation

Menu Item

Menu Item

Menu Item

Implement

Maintain


Plan

Plan

System Model – Navigation

Analyze

Login

Design

Order Now

Confirm cart

Menu

Develop

Home

Menu Items

Continue Shopping

Test

Store

Submit Order

Implement

Add to Cart

Navigation

About

Contact

Maintain


Plan

Plan

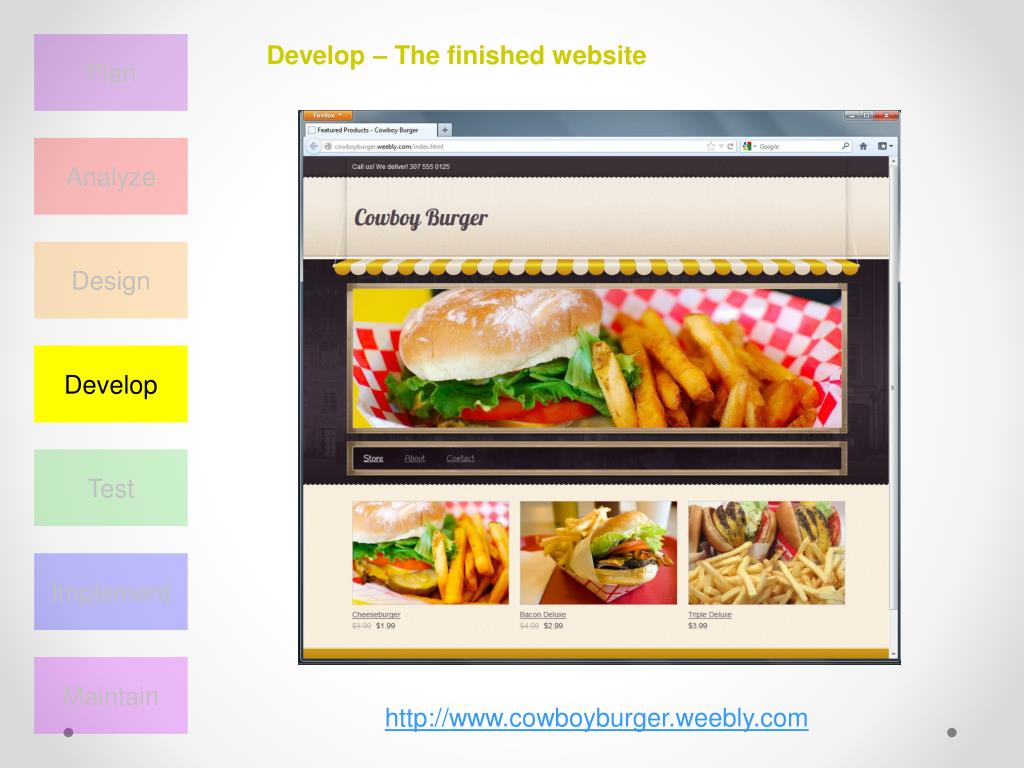

Develop – The finished website

Analyze

Design

Develop

Test

Implement

Maintain

http://www.cowboyburger.weebly.com


Plan

Screen / Form Tested

Date Tested

Tester

Test Condition

Expected Results

Actual Results

Pass Fail

Pass Fail

Pass Fail

Pass Fail

(Circle one)

Plan

Testing

Home Page

Analyze

4/23/2014

Cowboy Burger

Design

The user logs on to the system

The system fails to verify the user and sends them back to the login screen.

The user database verifies the the customer as either a new user or an existing one.

Develop

The system confirms payment and order information.

The contacts and payments database verifies customer order and payment information

The database does verify payment and order information for the customer.

Test

The inventory database confirms sufficient inventory on hand and emails the administrator.

The inventory database finds insufficient inventory for the order and contacts the customer

The administrator confirms inventory

Implement

The users database emails the administrator to confirm the order

The administrator checks to make sure the order has gone through

The administrator recieves an email from the users database confirming the order.

Maintain


Plan

Plan

System training: we will implement this system through work-shop training when the employee starts and semi continuous group training throughout the rest of their employment. This means that we will be showing each of them how to run the system on a one-on-one training session when they first start. We will then have monthly meetings to inform the employees how to run new features and make sure they are up to date with all of the changes that are made to the system. This will make sure everyone knows how to use the system. This will be helpful for management to make sure everyone is using the system the same way.

User documentation: Wewill have a user manual. The manual will include details on every aspect of the system. Instructions will be simple and easy to follow. Employees will be able to refer to the manual for any technical questions they may have with the system. The manual will also include solutions to common problems that may occur with the system.

Implementaion Method: We will use the Pilot method. This will let us set up a small range for delivery. For example, only 10 miles from our store front will be able to order delivery until we know that we will be successful. After we know it is successful, we will be able to adjust our paramiters.

Analyze

Design

Develop

Test

Implement

Maintain


Plan

Plan

System maintenance process: We willmake sure the system is up to date and accurate by having management run necessary system updates as they are available. We will do daily,weekly, and monthly maintenance checks. We will also have help desk phone number to call so that they can identify what is malfunctioning, and how to solve the problem. Management will be the ones who are responsible for all updates. Things in our business that will need to be updated will include our inventory list and customer information. We will identify and respond to customer input by sending out emails and by making changes or updates when necessary.

Analyze

Design

Develop

Test

Implement

Maintain


Plan

Plan

Types of system maintenance: We will be using adaptive maintenance, perfective maintenance, corrective maintenance, and preventive maintenance. Adaptive maintenance will be used to increase the functionality of our system andmake sure that all orders and new inventory orders are processed correctly. We will use perfective maintenance to make sure that our website is as user-friendly as possible for our customers. Corrective maintenance will be used when ever it is necessary. When a part of the system malfuntions, this is when we will perform corrective maintenance. Finally we will be using preventive maintenance to help prevent any system failures that would make it so our customers could not place an order.

Analyze

Design

Develop

Test

Implement

Maintain


Plan

Plan

Maintenance Schedule:

Daily:we will constantly be updating our inventory list. New customer information will also have to be added daily.

Weekly: On a weekly basis, management will have to identify any system enhancements that might make our website easier to use. If there are any issues or customer concerns with how to use the website, they will also be dealt with on a weekly basis. All major corrective maintenance dealing with the system will be done weekly.

Monthly: Every month, all new features will be installed. All the data from the month will be identified and used for further marketing techniques.We will also be able to make any preventive system updates to make sure that there aren’t any issues with the next month’s ordering or food preparation processes.

Analyze

Design

Develop

Test

Implement

Maintain


References

References

  • Laudon, K., & Laudon, J. (2011). Management information systems. (12 Edition ed.). Prentice Hall.

  • Weeblyis the easiest way to create a website, store or blog. (n.d.). Weebly.com. Retrieved April 24, 2014, from http://www.weebly.com/


  • Login
