Chpt 4 the periodic table

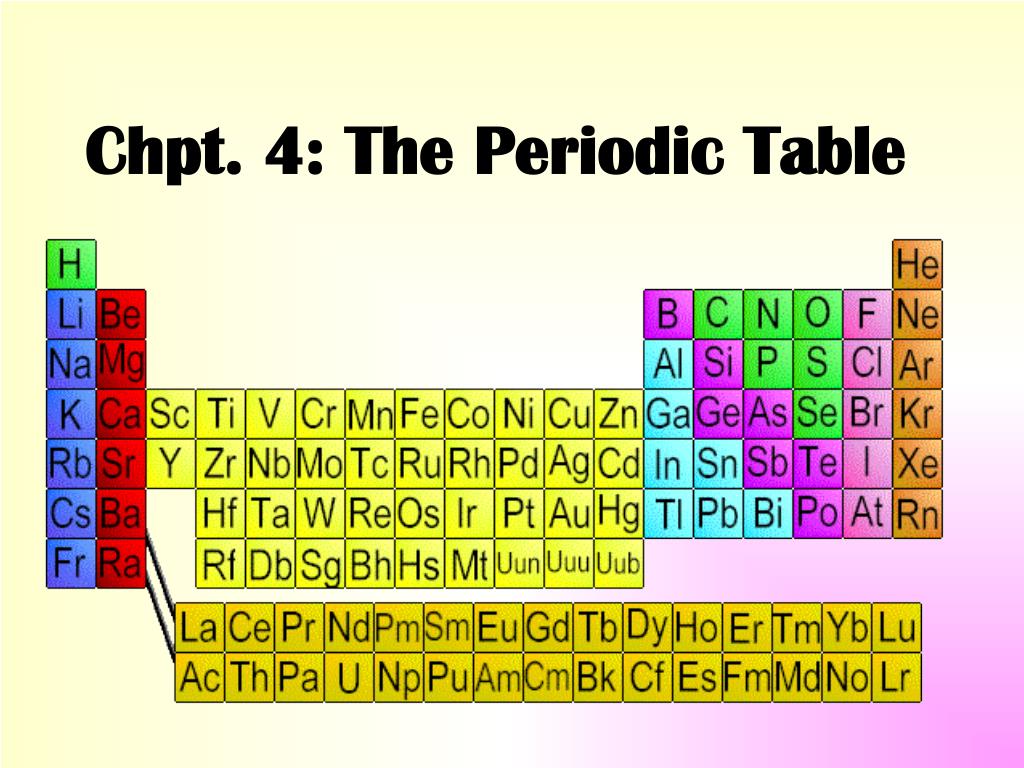

Chpt. 4: The Periodic Table


Chpt 4 the periodic table

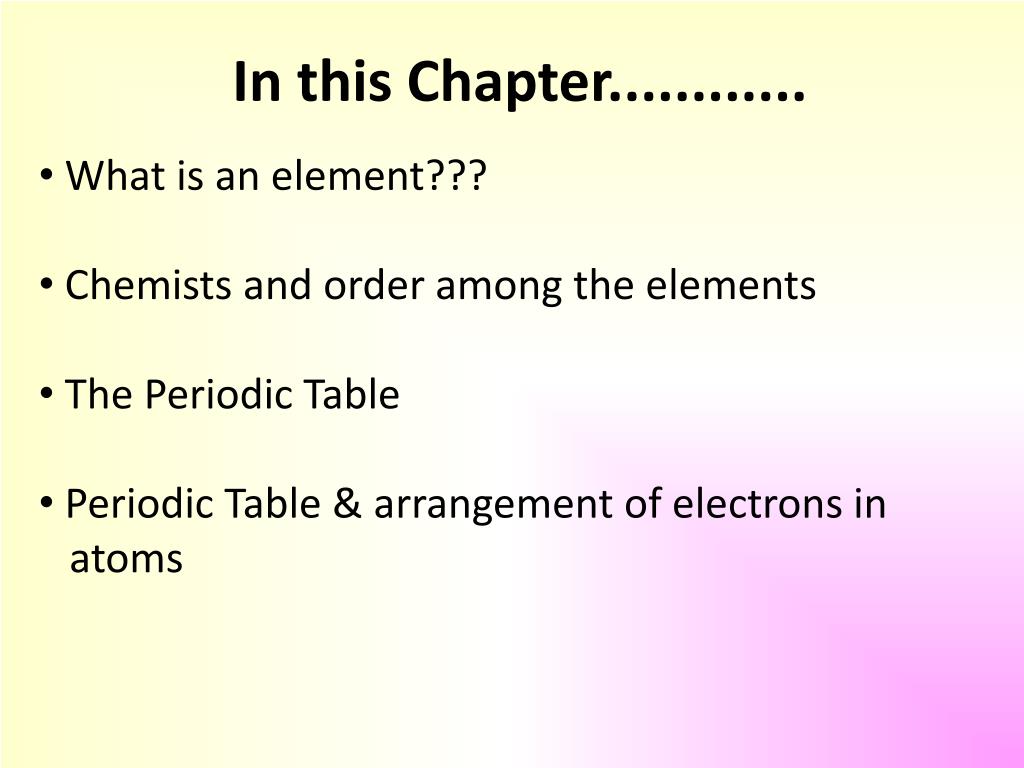

In this Chapter............

  • What is an element???

  • Chemists and order among the elements

  • The Periodic Table

  • Periodic Table & arrangement of electrons in

  • atoms


Chpt 4 the periodic table

  • Robert Boyle from Co. Waterford

  • first chemist to define the meaning of the word

  • element

An element is a chemical substance that cannot be split up into simpler substances by chemical means.


Chpt 4 the periodic table

History of the Elements

1. The Greeks (400 B.C.)

  • The Greeks believed that

  • there were four

  • elements from which

  • everything else was

  • made:

  • - earth

  • - air

  • - water

  • - fire


Chpt 4 the periodic table

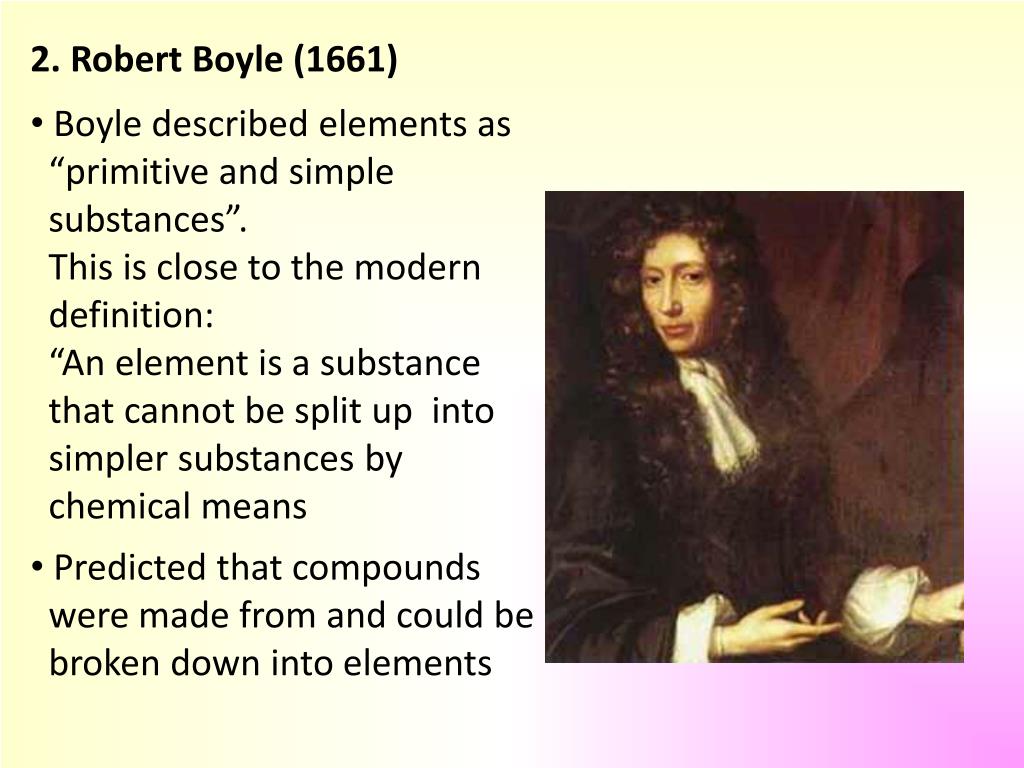

2. Robert Boyle (1661)

  • Boyle described elements as

  • “primitive and simple

  • substances”.

  • This is close to the modern

  • definition:

  • “An element is a substance

  • that cannot be split up into

  • simpler substances by

  • chemical means

  • Predicted that compounds

  • were made from and could be

  • broken down into elements


Chpt 4 the periodic table

3. Humphry Davy (early 1800’s):

  • Used electricity to

  • separate compounds

  • into their elements

  • He discovered

  • potassium, sodium,

  • calcium, barium,

  • strontium and

  • magnesium


Chpt 4 the periodic table

4. Henry Moseley (1914):

  • Using X-Rays he

  • discovered a method of

  • determining the

  • number of protons in

  • the nucleus of an atom.

  • The atoms of each

  • element have different

  • numbers of protons in

  • them i.e. no two

  • elements have the

  • same number of

  • protons

No. of protons = Atomic No.


Chpt 4 the periodic table

History of the Periodic Table

After 1800’s more and more elements were being discovered and it was becoming increasingly difficult to understand and memorise all the properties of each element.

Four men were responsible for bringing order among the elements in the form of the Periodic Table:

- Johann Dobereiner

- John Newlands

- Dmitri Mendeleev

- Henry Moseley


Chpt 4 the periodic table

  • The Periodic table was designed to classify

  • elements according to their properties and to show

  • trends in their physical and chemical properties

  • The main groups are: I – Alkali metals; II – Alkaline

  • earth metals; VII – Halogens; VIII (also called group

  • 0) – Noble/inert gases.

  • The elements between groups II and III are called

  • the D-block or transition metals.


Chpt 4 the periodic table

1. Dobereiner’s Triads (1829):

  • Studied the properties of

  • various elements in a bid to

  • find order

  • Discovered that when looking

  • at some groups of three

  • elements they had similar

  • chemical properties and the

  • atomic weight of middle

  • element was average of the

  • other two elements

  • Group of three similar

  • elements called a triad


Chpt 4 the periodic table

Dobereiner’s Triads

A triad is a group of three elements with similar chemical properties in which the atomic weight of the middle element is approximately equal to the average of the other two.


Chpt 4 the periodic table

2. Newlands Octaves (1864):

  • John Newland

  • arranged known

  • elements in

  • order of increasing

  • atomic weights.

  • Noticed properties

  • seemed to repeat every

  • eight elements.


Chpt 4 the periodic table

Newlands Law of Octaves

An octave is a group of elements arranged in order of increasing atomic weight, in which the first and the eighth element of each group have similar properties


Chpt 4 the periodic table

Problems with Newlands Octaves

  • The properties repeat every 8 as noble gases hadn’t

  • been discovered yet!

  • There were several problems such as iron being

  • grouped with oxygen and sulphur.

  • Newlands tried to force all of the known elements

  • into the table instead of leaving gaps for elements not

  • yet discovered example: Li and Ag in same group.


Chpt 4 the periodic table

3. Mendeleev’s Periodic Table (1869):

Dmitri Mendeleev listed all known elements (63) in order of increasing atomic weight and again noticed similar properties on every eight element.

Mendeleev left gaps and predicted elements that had not been discovered.


Chpt 4 the periodic table

Mendeleev’s Periodic Law

When elements are arranged in order of increasing atomic weight (relative atomic mass), the properties of the elements vary periodically.


Chpt 4 the periodic table

Mendeleev:

  • What he did:

  • Put elements with the same properties in the same

  • vertical group.

  • Left gaps to make the elements fit into the proper

  • column (group).

  • Predicted that elements (eg. Germanium and

  • Gallium) would be discovered to fill these gaps.

  • Predicted their properties.

  • Reversed the order of some elements so that their

  • properties matched their group e.g. Te and I


Chpt 4 the periodic table

Mendeleev's Periodic Table


Chpt 4 the periodic table

Mendeleev:

  • Gained acceptance when:

  • new elements discovered fitted properties predicted

  • reversals justified by discovery of atomic number


Chpt 4 the periodic table

4. Moseley (1913):

  • Moseley studied the frequencies of the

  • x-rays emitted by atoms of different

  • elements.

  • Found frequencies varied depending on

  • the amount of positive change.

  • ,

  • In other words the difference between

  • the elements is the number of protons

  • in the nucleus

  • Discovered method for determining

  • number of protons in nucleus of an

  • atom – known as atomic number


Chpt 4 the periodic table

Atomic Number

The atomic number of a atom is the number of protons in the nucleus of that atom

*Note: Once the atomic number was known it was seen

that Mendeleev’s table was in order of increasing

atomic number.


Chpt 4 the periodic table

The Modern Periodic Table

The modern Periodic Table is an arrangement of elements in order of increasing atomic number

The Periodic Law

When elements are arranged in order of increasing atomic number, the properties vary periodically


Chpt 4 the periodic table

Attention: New Additions to Periodic Table

WOMANIUM (WO) Physical properties: Generally soft and round in form. Boils at nothing and may freeze any time. Very bitter if not used well. Chemical properties: Very active and highly unstable. Possesses strong affinity with gold, silver, platinum, and precious stones. Violent when left alone. Turns slightly green when placed next to a better specimen. Usage: An extremely good catalyst for dispersion of wealth. Caution: Highly explosive in inexperienced hands!

MANIUM (XY) Physical properties: Solid at room temperature but gets bent out of shape easily. Difficult to find a pure sample. Due to rust, aging samples are unable to conduct electricity as easily as young samples. Chemical properties: Attempts to bond with WO any chance it can get. Also tends to form strong bonds with itself. Becomes explosive when mixed with Childrium for prolonged period of time. Usage: Possibly good methane source. Caution: In the absence of WO, this element rapidly decomposes and begins to smell.


Chpt 4 the periodic table

Uses of the Periodic Table

  • Obtaining atomic numbers and mass numbers

  • Obtaining relative atomic masses

  • Writing electronic configurations.


Chpt 4 the periodic table

Atomic Number & Atomic Mass Number

  • Atomic Number (Z):

    • number of protons an element has

    • smaller of the two numbers

  • Atomic Mass Number (A):

  • - of an element is the sum of the number of

  • protons and neutrons in the nucleus of an

  • atom of that element

  • - larger of the two numbers

  • - unit = atomic mass unit a.m.u.

  • 1 a.m.u. = 1.66 x 10-24g

  • - always a whole number


Chpt 4 the periodic table

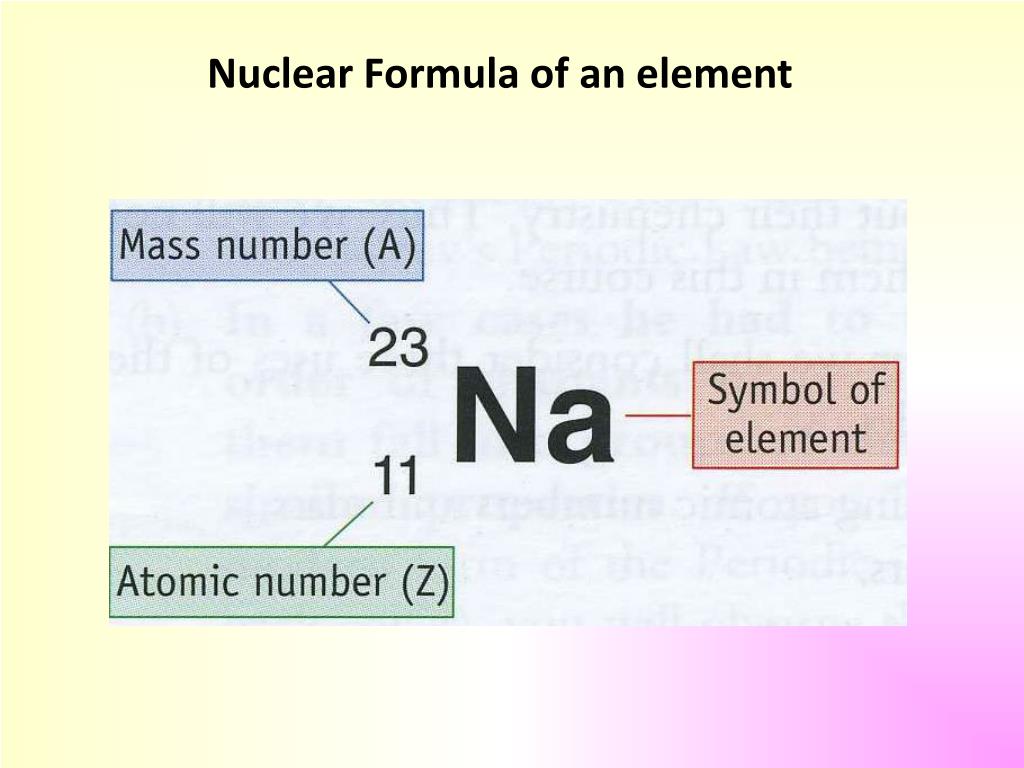

Nuclear Formula of an element


Chpt 4 the periodic table

Using the Nuclear Formula – Sample Questions

  • How many protons, neutrons and electrons are in the following:

    • i) 3517Cl

    • ii) 4521Sc3+


Chpt 4 the periodic table

Mass Spectrometry

1919 an instrument called mass spectrometer was built to measure the mass of atoms.


Chpt 4 the periodic table

Mass Spectrometer


Chpt 4 the periodic table

Isotopes

Isotopes are atoms of the same element (i.e. they have the same atomic number) that have different mass numbers due to different numbers of neutrons in the nucleus.

Since the neutron has no charge, the quantity of neutrons in an atom can change slightly without having an effect on the atom.

Example: Neon – 2 isotopes, Chlorine – 2 isotopes, Carbon – 3 isotopes and Hydrogen – 3 isotopes


Chpt 4 the periodic table

3 Isotopes of Hydrogen


Chpt 4 the periodic table

3 Isotopes of Carbon


Chpt 4 the periodic table

Calculating the average mass of an atom:

A sample of chlorine is found to consist of 75% 3517Cl and 25% 3717Cl . Calculate the average mass of an atom of chlorine.

Average Mass = (Mass isotope 1 x % abu) + (Mass isotope 2 x % abu)

100


Chpt 4 the periodic table

Relative Atomic Mass (Atomic Weight) Ar

The relative atomic mass (Ar) of an element:

- is the average of the mass numbers of the isotopes of the element,

- as they occur naturally,

- taking their abundances into account and,

- expressed on a scale in which the atoms of the carbon-12 isotope have a mass of exactly 12 units.

(average mass of an atom, measured relative to the mass of the carbon -12 isotope)


Chpt 4 the periodic table

  • The carbon-12 isotope has a perfect mass of 12amu.

  • 1/12 of this mass is a perfect 1.000

  • All average masses represented on the periodic table

  • are compared to this value of 1.000. We therefore say

  • that these atomic masses are relative to the mass of

  • 1/12th of the C-12 isotope.

  • Ratio:

  • Ar= mass of atom of element

    1/12 mass of atom of carbon-12

    Note: ratio therefore no units


Chpt 4 the periodic table

Relative Atomic Mass Calculations

Formula:

Ar= (Mass isotope 1 x % abu) + (Mass isotope 2 x % abu)

100


Chpt 4 the periodic table

Example 1:

An element, X, consists of 92.2% atoms with a mass 28, 4.7% of atoms with a mass 29 and 3.1% of atoms with a mass 30. What is the relative atomic mass? What is the element?


Chpt 4 the periodic table

Example 2:

The two isotopes of chlorine have mass numbers of 35 and 37 respectively. Taking the relative atomic mass of chlorine to be 35.46, calculate the % of each isotope present in the element


Chpt 4 the periodic table

  • Writing Electronic Configurations

  • is the arrangement of electrons in an atom

  • two methods:

  • - Bohr Model – in terms of energy levels (simple)

  • - Energy sublevels


Chpt 4 the periodic table

Bohr Model Method:

  • Find atomic number of element.

  • As all elements are neutral - number of protons equals

  • number of electrons.

  • Remember:

  • n = 1 energy level holds 2 electrons

  • n = 2 energy level holds 8 electrons

  • n = 3 energy level holds 8 electrons

  • n = 4 energy level holds 18 electrons


Chpt 4 the periodic table

Bohr Model Example:

Write the electronic configuration for potassium showing the number of electrons in each main energy level.

From periodic table potassium has atomic number 19 therefore since neutral atom:

no. of protons = no. of electrons = 19

1st energy level = 2 e-

2nd energy level = 8 e-

3rd energy level = 8 e-

4th energy level = 1 e-

So, electronic configuration of potassium is (2,8,8,1)


Chpt 4 the periodic table

Try the following:

Write the electronic configuration for the following showing the number of electrons in each main energy level:

i) Fluorine

ii) Calcium

Note:

- you must be able to write the electronic configurations of the first 20 elements in terms of the number of electrons in each main energy level.

- number of electrons in outer shell is same as group number e.g. Lithium group I has one outer electron, Boron group III has three outer electrons


Chpt 4 the periodic table

Electron Configuration - in terms of sublevels

Remember:

Main energy level

Sublevel


Chpt 4 the periodic table

Electronic Configuration – in terms of sublevels

An energy sublevel is a group of orbitals, within an atom, all having the same energy.

One orbital in an ‘s’ energy sublevel

Three orbitalsin a ‘p’ energy sublevel - X, Y, Z

Five orbitalsin a ‘d’ energy sublevel

In terms of energy s<p<d<f.

Electrons will fill sublevels in order of increasing energy.


Chpt 4 the periodic table

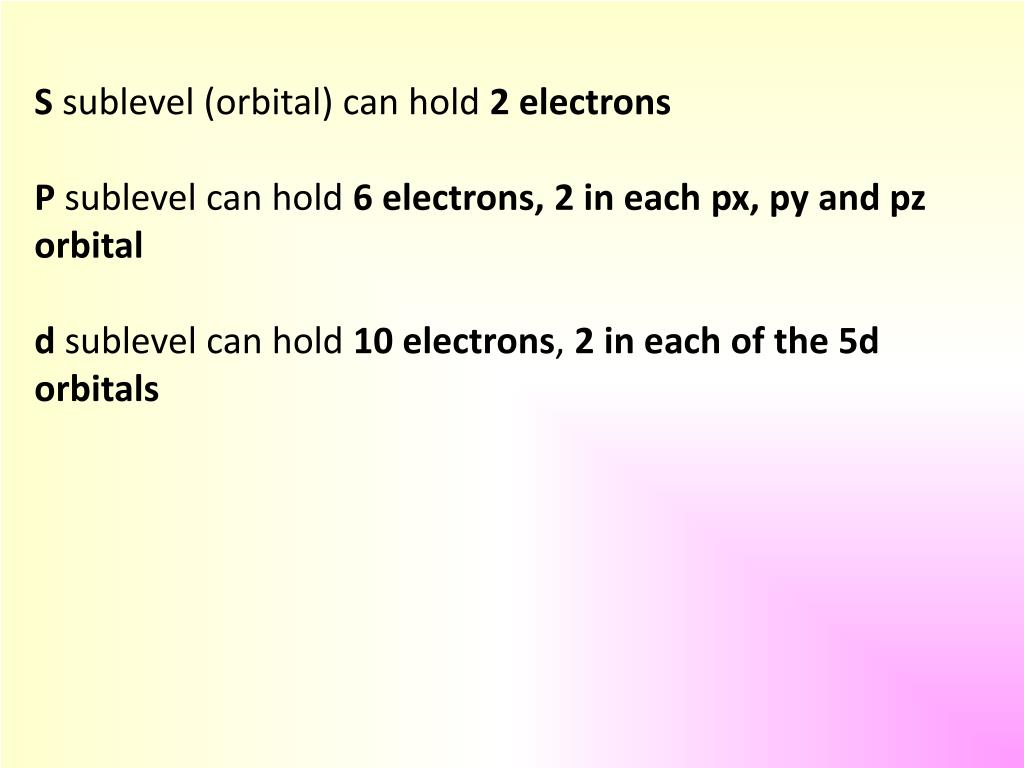

S sublevel (orbital) can hold 2 electrons

P sublevel can hold 6 electrons, 2 in each px, py and pz orbital

d sublevel can hold 10 electrons, 2 in each of the 5d orbitals


Chpt 4 the periodic table

Main Energy Level – 1, 2, 3, 4 etc.

Sublevel – s, p, d, f

Orbitals – 1s, 2s, 2px etc.

Electrons – 2 in each orbital


Chpt 4 the periodic table

Aufbau Principle

Aufbau Principle states that when building up the electronic configuration of an atom in its ground state , the electrons occupy the lowest available energy level.

  • 1s orbital must be filled before the 2s, 2s must

  • be filled before 2p, etc….

  • Electronic Configuration Order:

  • 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 4d, 4f

  • (4s is lower in energy than 3d)


Chpt 4 the periodic table

Writing Electronic Configurations

No. of electrons

2p5

Main energy level

Type of sublevel


Chpt 4 the periodic table

  • Example 1:

  • Write the electronic configuration (s, p) for an atom of oxygen

  • Solution:

  • Determine number of electrons in oxygen

  • Place the electrons into sublevels according to Aufbau

  • Principle and using periodic table

  • Remember – s sublevel 2 electrons

  • - p sublevel 6 electrons

  • - d sublevel 10 electrons

  • Try:

Write the electronic configuration for the elements from 1 to 24.


Chpt 4 the periodic table

Exceptions to the rule:

Remember:

The ‘4s’ energy sublevel is slightly lower in energy than the ‘3d’ energy sublevel. Therefore, its orbital must be filled with electrons before the orbitals in the 3d sublevel.

If p, d and f shells are exactly half filled or completely filled they will have extra stability:

24) Cr = 1s2, 2s2, 2p6, 3s2, 3p6, 4s1, 3d5

29) Cu = 1s2, 2s2, 2p6, 3s2, 3p6, 4s1, 3d10


Chpt 4 the periodic table

You must be able to write the electronic configurations of the first 36 elements in terms of their s, p, d configurations!!!


Chpt 4 the periodic table

Electronic Configuration of Ions

  • Ion – atom that has lost or gained electrons (has a charge on it)

  • - loses electrons = positively charged ion

  • - gains electrons = negatively charged ion

    Example:

    What is electronic configuration of Al3+ ion? What neutral atom has the same configuration?


Chpt 4 the periodic table

Try:

Write the electronic configuration (s, p) of the S2- ion. What neutral atom has the same configuration?


Chpt 4 the periodic table

Example 2:

Identify the species represented by [ 1s2, 2s2, 2p6]2+


Chpt 4 the periodic table

Try:

Identify the species represented by:

[1s2, 2s2, 2p6, 3s2, 3p6]2-


Chpt 4 the periodic table

Arrangement of electrons in orbitals of Equal Energy

The electronic configuration of nitrogen is:

1s2, 2s2, 2p3

The question is how are the three electrons in the p sublevel distributed among the three p orbitals – x, y, z?

Answer:

Hund’s Rule of Maximum Multiplicity

(Bus Seat Rule)

Hund’s Rule of Maximum Multiplicity states that when two or more orbitals of equal energy are available, the electrons occupy them singly before filling them in pairs


Chpt 4 the periodic table

Electronic Configuration of Nitrogen using Hund’s Rule:

Before

After:

1s2, 2s2, 2p3

1s2, 2s2, 2px1, 2py1, 2pz1

2p sublevel – 1e- will enter px orbital

- 1e- will enter py orbital

- 1e- will enter pz orbital


Chpt 4 the periodic table

  • Using ‘Arrows-in-Boxes’ Diagrams:

  • Distribution of electrons in nitrogen p sublevel:

  • Box = orbital

  • Arrow = direction of spin of electron

  • Arrows represent spinning of electrons on own axis

  • as they revolve around nucleus

  • Electrons can spin in either a clockwise direction or

  • an anti-clockwise direction

px

py

pz


Chpt 4 the periodic table

Pauli Exclusion Principle

The Pauli Exclusion Principle states that no more than two electrons may occupy an orbital and they must have opposite spin.

Note:

= electron spinning clockwise

= electron spinning anti-clockwise


Chpt 4 the periodic table

Complete ‘arrows-in-boxes’ diagrams and the extended form of electronic configurations for the first ten elements

Note

The ‘arrows-in-boxes’ diagrams or extended forms of electronic configurations need only be given if you are specifically asked about the distribution of electrons in the p sublevel.


  • Login
