Agruline

AGRULINE 100

PROPERTIES OF PE 80 / PE 100


Agruline1

Properties 100

Welding technology

Advantages of the AGRULINE-SYSTEM

Supply program

References

Installation

Approvals

AGRULINE

  • Properties

  • Weldingtechnology

  • Advantages

  • Supply program

  • References

  • Installation

  • Approvals


Properties of pe 80 pe 100

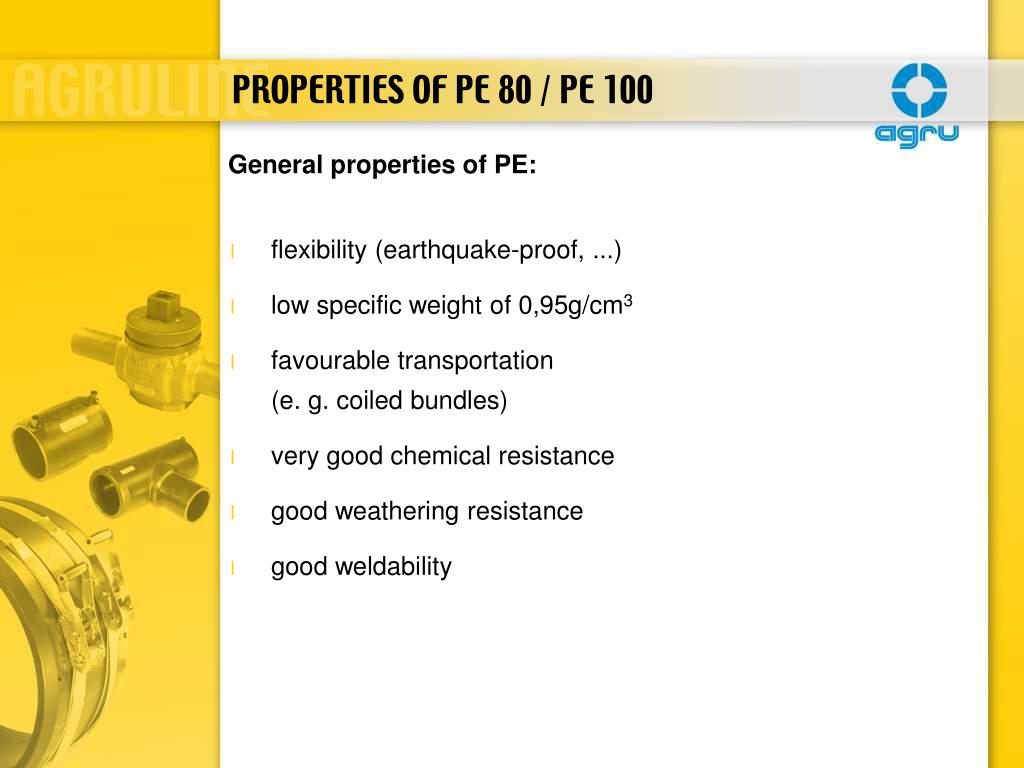

PROPERTIES OF PE 80 / PE 100 100

General properties of PE:

  • flexibility (earthquake-proof, ...)

  • low specific weight of 0,95g/cm3

  • favourable transportation (e. g. coiled bundles)

  • very good chemical resistance

  • good weathering resistance

  • good weldability


Properties of pe 80 pe 1001

Material 100

Asbestoscement

PVC

Steel

Cast iron

PE-HD

length

221.947 m

99.956 m

3.810 m

1.030 m

115.182 m

failur ratio in %

71,7%

27,3%

0,7%

0,3%

0,0%

failure ratio

1,43

1,21

0,82

1,29

0,0

per Km (ø= 1)

Material

Steel

Cast iron

PE-HD

length

21.338 m

12.204 m

1.458 m

failure

25.821

630

0

failure/Km

1.210

52

0

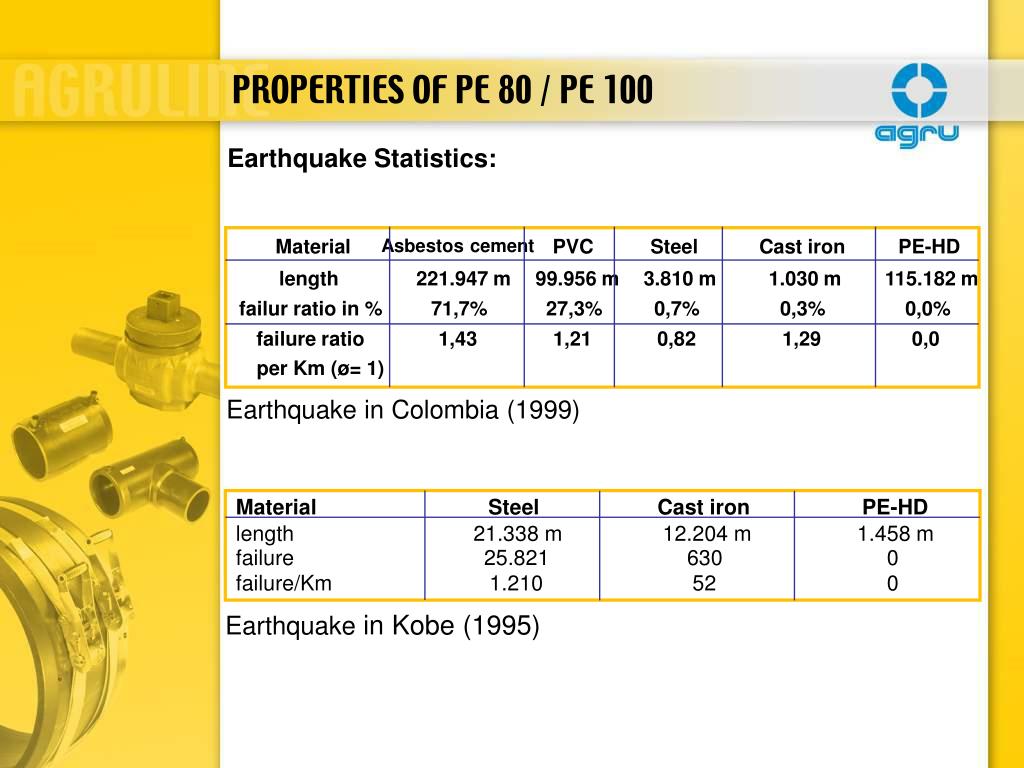

PROPERTIES OF PE 80 / PE 100

Earthquake Statistics:

Earthquake in Colombia (1999)

Earthquake in Kobe (1995)


Properties of pe 80 pe 1002

very good abrasion resistance 100

no deposits and no overgrowth possible

resistant to roots

resistant to rodents

resistant to all kinds of microbic corrosion

low permeability

suitable for potable water

PROPERTIES OF PE 80 / PE 100

General properties of PE :


Properties of pe 80 pe 1003
PROPERTIES OF PE 80 / PE 100 100

General properties of PE :


Properties of pe 80 pe 1004

40,0 100

30,0

20,0

10°C

20°C

10,0

9,0

30°C

8,0

2

40°C

MRS 8

[N/mm ]

7,0

50°C

6,0

60°C

v

s

70°C

5,0

80°C

4,0

3,0

reference stress

2,0

50

1

10

25

100

time to fail [years]

1,0

2

3

4

5

6

10

1,0

10

10

10

10

10

time to fail [h]

PROPERTIES OF PE 80 / PE 100

Creep Curve of PE 80:

MRS 8:

“minimum required strength”for an operating time of 50 years and a temperature of 20°C

= 8 N/mm2

Design life of Agru-

Products: 50 years


Properties of pe 80 pe 1005

40,0 100

30,0

20,0

10°C

20°C

30°C

10,0

40°C

9,0

50°C

8,0

MRS 10

2

60°C

7,0

[N/mm ]

70°C

6,0

80°C

v

s

5,0

4,0

3,0

reference stress

2,0

50

1

10

25

100

time tofail [years]

1,0

6

2

3

4

5

10

1,0

10

10

10

10

10

time to fail [h]

PROPERTIES OF PE 80 / PE 100

Creep Curve of PE 100:

MRS 10:“minimum required strength”for an operating time of 50 years and a temperature of 20°C

= 10 N/mm2

Design life of Agru-

Products: 50 years


Properties of pe 80 pe 1006

s 100

da

SDR=

s

da

Example:

da = 110 mm

s = 10 mm

SDR = ?

110

da

= 11

SDR =

=

s

10

PROPERTIES OF PE 80 / PE 100

Standard Dimension Ratio:

SDR ... standard dimension ratio

da ... outside diameter [mm]

S ... wall thickness [mm]


Properties of pe 80 pe 1007

20 100. MRS

Pad.=

(SDR - 1) . Cmin

Example:

PE 100 ==> MRS = 10 N/mm2

SDR 11

C = 1,25

pad. = ?

20 . MRS

pad.= =

(SDR - 1) . Cmin

20 . 10

= = 16bar

(11 - 1) . 1,25

PROPERTIES OF PE 80 / PE 100

Working pressure

pad. ... admissible working pressure [bar]

MRS ... minimum required strength [N/mm2]

SDR ... standard dimension ratio

Cmin ... minimum safety factor (= 1,25 acc. ISO 12162)


Properties of pe 80 pe 1008

safety factor 100

safety factor

safety factor

C = 1.25

C = 1.6

C = 2.0

SDR

PE 80

PE 100

PE 80

PE 100

PE 80

PE 100

7,4

20

25

15,3

19,2

12,3

15,3

11

12,5

16

10

12,5

8

10

17

8

10

6,2

7,8

5

6,2

17,6

7,5

9,6

6

7,5

4,8

6

PROPERTIES OF PE 80 / PE 100

Working pressures:

Admissibleworkingpressures in bar for PE-pipesandfittings in dependency on thesafetyfactor.


Properties of pe 80 pe 1009
PROPERTIES OF PE 80 / PE 100 100

Working pressure depends of medium


Properties of pe 80 pe 10010

SDR 100

PE 80

PE 100

11

5 bar

10 bar

17

2,5 bar

6 bar

pressure test (C=2)

RCP

PE 80

8 bar

5 bar

PE 100

10 bar

>20 bar

PROPERTIES OF PE 80 / PE 100

Admissible working pressures for gas application:

acc. DVGW G 472 / ÖVGW PG 392/2

  • Pressure limit for example SDR 11


Properties of pe 80 pe 10011

TREND 100

PE 100

PROPERTIES OF PE 80 / PE 100

The new trend at PE-piping systems:

PE80


Properties of pe 80 pe 10012
PROPERTIES OF PE 80 / PE 100 100

Advantages of PE 100:in comparison to older PE-generations (PE 63/PE 80)

  • higher strength (MRS=10N/mm2)

    • higher working pressure at the same SDR-ratio

    • lower wall thickness (higher rate of flow and lower weight) at the same working pressure

  • bigger pipe dimensions produceable

  • higher resistance against SCG (slow crack growth)

  • higher resistance against RCP (rapid crack propagation)


Substituted materials

cast iron: 100 corrosion, heavier, no flexibility, rough surface (higher pressure losses),...

Substituted Materials:

PROPERTIES OF PE 80 / PE 100


Substituted materials1

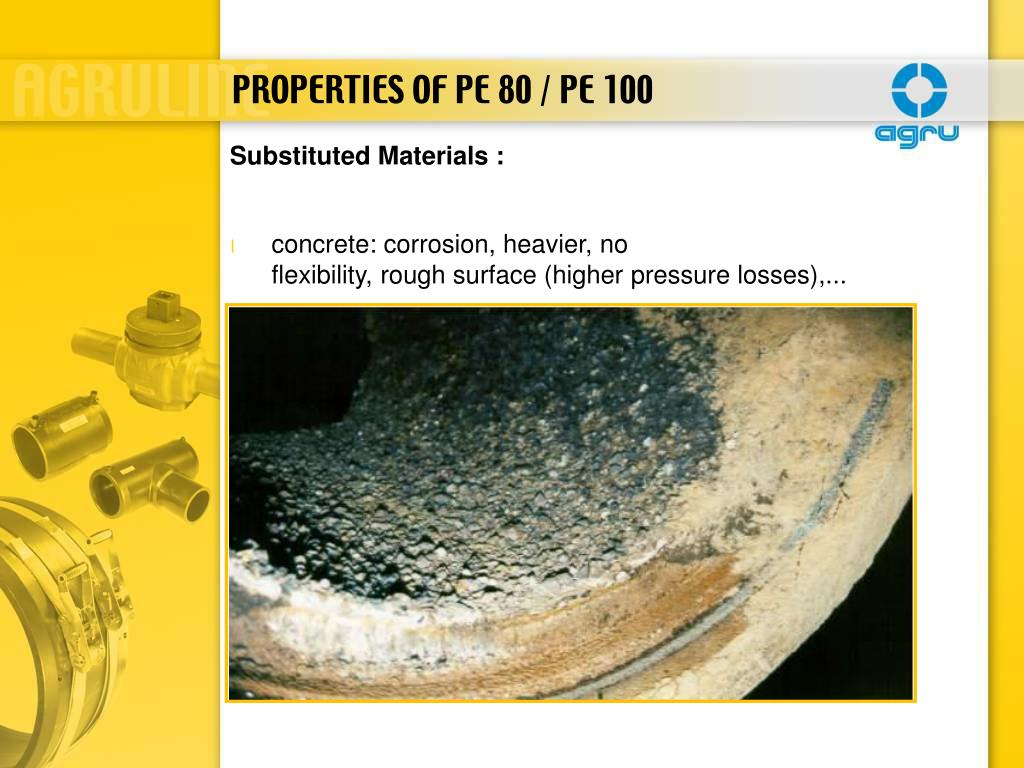

Substituted Materials : 100

PROPERTIES OF PE 80 / PE 100

  • concrete: corrosion, heavier, no flexibility, rough surface (higher pressure losses),...


Substituted materials2
Substituted Materials : 100

PROPERTIES OF PE 80 / PE 100

  • PVC: high brittleness, no weldability, no flexibility...


Agruline2

AGRULINE 100

WELDING TECHNOLOGY


Welding methods for pe

  • heating element socket fusion

  • electro fusion

  • electro fusion saddle

Welding Methods for PE:

WELDING TECHNOLOGY


Weldability of pe 100
Weldability of PE 100: 100

WELDING TECHNOLOGY

The weldabilityhasbeenprovenby well-known

testinginstitutes (TÜV-Rheinland, HESSEL

Ingenieurtechnik, BECETEL/University Gent

in Belgium):

  • weldingof PE 100 with PE 100 or PE 80 ispossiblewithout

  • restrictionsacc. relevant weldinginstructions (e.g.: DVS

  • regulations)

  • thisis valid forelectrofusionandbuttwelding


Welding technology

electrofusion 100

electro fusion sockets + elongated fittings

electro fusion fittings

Electro fusion saddles

butt welding

flange connection

adaptors

WELDING TECHNOLOGY

Joining Methods for the AGRULINE-System:


Welding technology1

indicator 100

connection

pin

pipe end

welding wire

middle stop

WELDING TECHNOLOGY

Electro Fusion:

Principle: The welding wire is heated up due to the energy input of the welding machine. Pipe and electro fusion fitting are welded together.


Welding technology2

indicator 100

welding wire

WELDING TECHNOLOGY

Electro Fusion Saddle:

Principle: The welding wire is heated up due to the energy input of the welding machine. Pipe and electro fusion saddle are welded together.


Welding technology3

Welding equipment: 100

welding machine + generator

clamping device

pipe cutter

peeling tool and scraper knife

PE-cleaner

fluffless, absorbent paper

WELDING TECHNOLOGY

Electro Fusion:

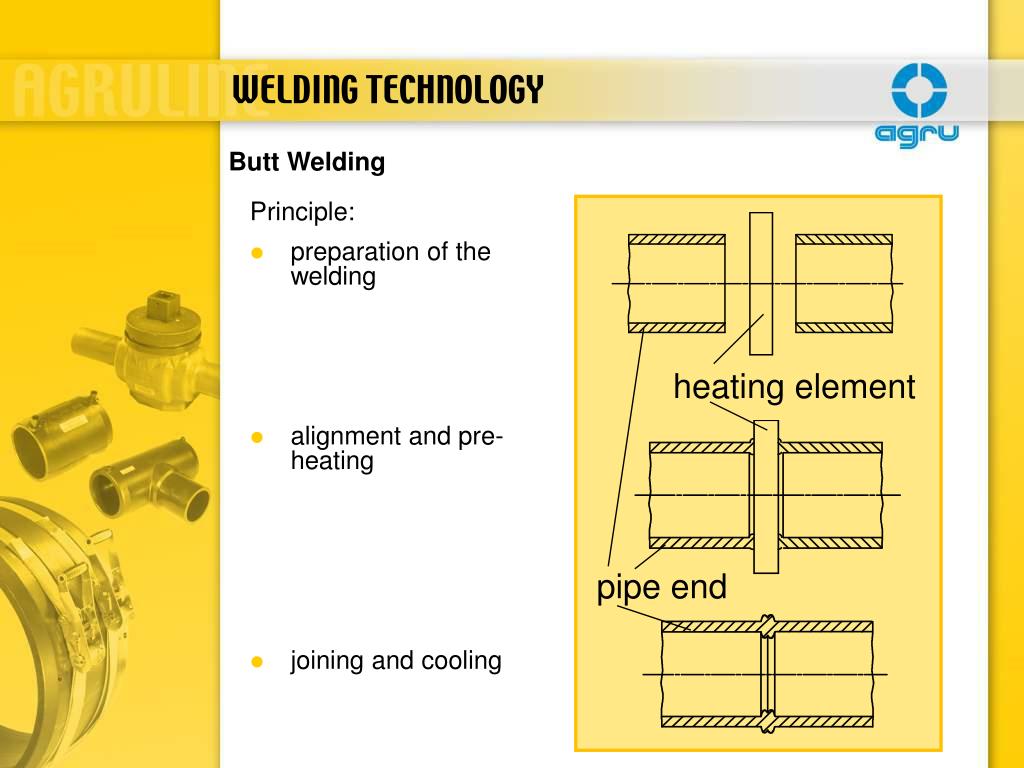

Welding technology4

heating element 100

pipe end

WELDING TECHNOLOGY

Butt Welding

Principle:

  • preparation of the welding

  • alignment and pre-heating

  • joining and cooling


Welding technology5

bolts 100

backing ring

pipe

gasket

stub flange

WELDING TECHNOLOGY

Flange Connection:

Principle: The stub flanges which are welded on the pipe ends are connected by means of backing rings and bolts. The tightness is provided by the gasket.


Welding technology6
WELDING TECHNOLOGY 100

Adaptors:

Application area:

  • adaptor PE/steel

  • connection to valves and apparatus


Agruline3

AGRULINE 100

ADVANTAGES OF AGRULINE SYSTEM


Advantages of agruline system
ADVANTAGES OF AGRULINE SYSTEM 100

  • high quality injection moulded fitting

  • complete range of electrofusion and butt welding fittings, special fittings and welding equipment

  • available systems in PE 80 and PE 100

  • use of high quality and pure raw materials

  • extensive product control and complete documentation of all performed tests

  • work certificates are available

  • production acc. international relevant standards

  • short delivery times because of high storage capacity are guaranted


Advantages of agruline system1
ADVANTAGES OF AGRULINE SYSTEM 100

Requirements on E-fittings

  • weldability with different PE materials

    • PE 80 / PE 100 / PE-Xa

  • construction acc. to international standards

  • maximum protection against damage and environmental influences

  • biggest application scope

    • gas and water supply

    • sewage and industrial application


Advantages of agruline system2
ADVANTAGES OF AGRULINE SYSTEM 100

Requirements on E-fittings

  • weldable under extreme conditions

    • Worst Case ( -10°C and +50°C)

  • optimized connector plug terminal

  • weldable with all universal fusion equipment

  • reproduceable quality of the welding seam

  • short welding times


Advantages of agruline system3

material PE 100 100

reinforced connector plugs

injection moulded welding indicator

optimized welding times

embedded resistance wire

(modular construction)

optimized

shrinking behaviour

optimized production design MOP 16bar/20°C high resistance against track force

injection moulded in dimensions E-couplers Ø20 - 400 E-fittings Ø20 - 225

full automatic production

ADVANTAGES OF AGRULINE SYSTEM

AGRULINE – E-Fitting


Advantages of agruline system4
ADVANTAGES OF AGRULINE SYSTEM 100

production technique

1 - injection moulded sleeve

2 - coiled resistance wire around the sleeve;and welded connector plug


Advantages of agruline system5

4,0 mm 100

ADVANTAGES OF AGRULINE SYSTEM

Resistance wire connection

  • optimum wire fixation by point welding

  • better resistance emission


Advantages of agruline system6
ADVANTAGES OF AGRULINE SYSTEM 100

production technique

3 - injection moulded fitting

4 - modular system the resistance wire is completely embedded in the fitting body

smooth surface in the welding zone


Advantages of agruline system7

cleaned inside surface 100

dirty inside surface

ADVANTAGES OF AGRULINE SYSTEM

system advantage of embedded resistance wire

  • smooth inside surface in the welding zone

  • easy cleaning of the welding zone

  • no residues of dirt

  • no residues of cleaning liquids


Advantages of agruline system8
ADVANTAGES OF AGRULINE SYSTEM 100

system advantage of embedded resistance wire

  • covered resistance wire around the whole socket length

  • no medium contact possible

  • no corrosion during the application

  • no contamination of the medium possible


Advantages of agruline system9

welding zone 100

cooling zone

cooling zone

moulded

insertion taper

ADVANTAGES OF AGRULINE SYSTEM

system advantage of embedded resistance wire

  • protected resistance wire

  • damage impossible

  • elongated cooling zone for a better pipe guidance and optimum pressure set up in the welding zone

take notice of the high ovality and internal pipe stresses at pipe coils


Advantages of agruline system10

defined wire distance to the socket inside 100

gap

ADVANTAGES OF AGRULINE SYSTEM

system advantage of embedded resistance wire

constant temperature of approx. 220°C in the whole welding zone

  • good heat emission

  • no thermic damage in the welding zone

  • constant controlled heat emission and the heat is drawn off sufficiently during the welding process


Advantages of agruline system11

homogeneous 100

adhesion in the

whole

welding zone

peel test according DVS 2207 – part 5

ADVANTAGES OF AGRULINE SYSTEM

system advantage of embedded resistance wire

  • no thermic damaged material in the welding zone

  • high welding seam force


Advantages of agruline system12

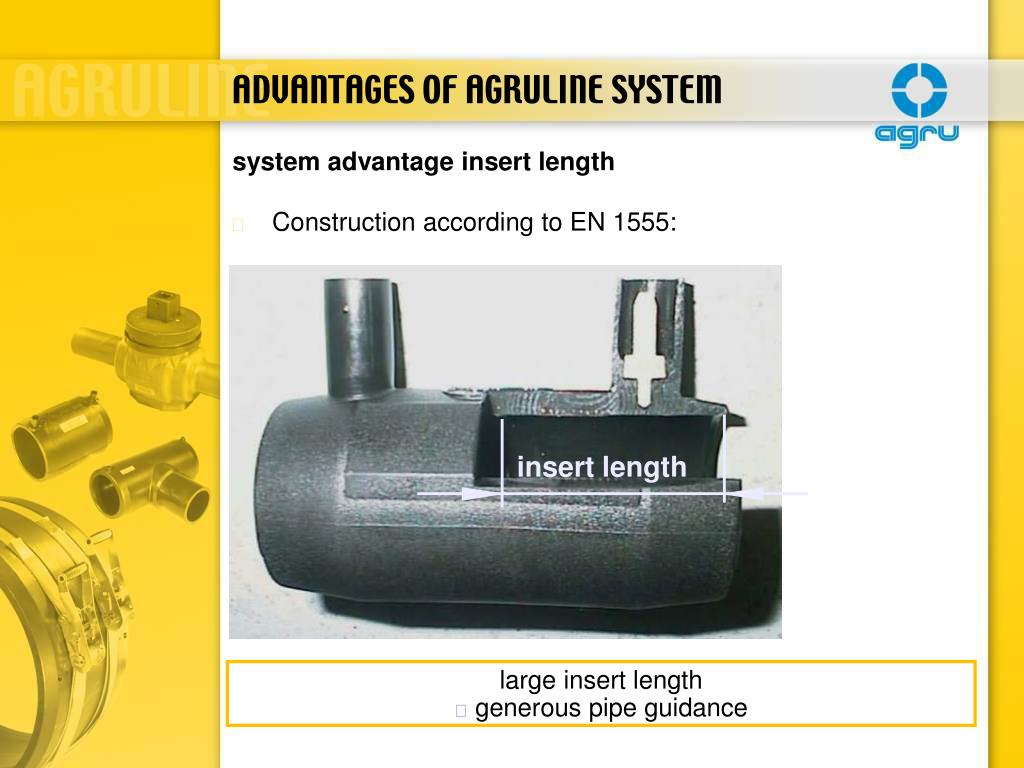

insert length 100

ADVANTAGES OF AGRULINE SYSTEM

system advantage insert length

  • Construction according to EN 1555:

  • large insert length

  • generous pipe guidance


Advantages of agruline system13

15° - angle marking 100

ADVANTAGES OF AGRULINE SYSTEM

system advantage angle marking > Ø90mm:

  • Tee, elbow 90° and elbow 45°


Advantages of agruline system14
ADVANTAGES OF AGRULINE SYSTEM 100

proofed quality (welding on the limit)

  • Worst-Case Test A (overheating) according to ISO 11413:

  • thin walled pipe (SDR 17)

  • welding at 42V (simulation of wire resistance- and welding box tolerances)

  • welding with minimum gap

  • Worst-Case Test B (adhesion) according to ISO 11413 :

  • thick walled pipe (SDR 7,4)

  • welding at 38V (simulation of wire resistance- and welding box tolerances)

  • welding with maximum gap

  • test A and B welded at -10°C und +50°C

  • all weldings are made with a maximum pipe ovality of 1,5%


Advantages of agruline system15

electrofusion 100

fitting

perfect

welding

adhesion fault

scraped pipe

unscraped pipe

ADVANTAGES OF AGRULINE SYSTEM

Preparing of the welding seam

  • influence of surface pollution or oxide film onto the welding quality

  • scraping of the pipe surface is general necessary ( DVS 2207-part 7 - 1995)


Advantages of agruline system16

manual peel test - DVS 2207-5 100

tensile load test ISO 13951

decohesion test ISO 13955

ADVANTAGES OF AGRULINE SYSTEM

welding seam quality

standard requirements are completely fulfilled


Advantages of agruline system17

long term tensile test 100

DVS 2203-4-BB1

internal pressure test

ADVANTAGES OF AGRULINE SYSTEM

welding seam quality

standard requirements are completely fulfilled


Advantages of agruline system18
ADVANTAGES OF AGRULINE SYSTEM 100

Long time tensile test (across the Weldingzone)

  • Test construction:

  • Specimen out of a welded electro fusion joint Ø160 mm with PE 100 pipe SDR 11

  • accomplishment by Ing. Dr. J. Hessel

  • execution acc. DVS 2203-4 paper 1

    • with 2% liquid Arkopal N-100

    • Tensile tension: 3N/mm²

    • Temperature: 80 °C


Advantages of agruline system19

loading 100

E-Fitting

Welding wire area

Pipe

Welding zone

loading

ADVANTAGES OF AGRULINE SYSTEM

Long time tensile test (across the Weldingzone)


Advantages of agruline system20

specimen

time

[h]

avarage

[h]

Breaking part

in the welding zone [%]

A1

5.410,4

100

4.130,1

A2

969,6

100

A3

4.983,4

100

A4

3.342,7

100

100

A5

5.545,0

A6

4.530,0

100

Quelle: Ingenieurtechnik Hessel

ADVANTAGES OF AGRULINE SYSTEM

Long time tensile test (across the Weldingzone)


Advantages of agruline system21
ADVANTAGES OF AGRULINE SYSTEM 100

application limits AGRU- electrofusion fittings

  • gas- and water supply, industrial and sewage applications

  • admissible working pressure up to 16 bar (GAS 10 bar)

  • for pipes and fittings out of PE 80/PE 100/PE-Xa

  • weldable pipe series SDR 17,6 / 17 / 11 / 7,4

  • weldability from –10°C up to +50°C

  • admissible MFR-range: 0.3 up to 1.7 g/10min


Advantages of agruline system22

exception: E-fittings OD 20 / 25 / 32 are not weldable with pipes of SDR-serie >17(>17,6)

pipes with smaller wall thicknesses would be damaged because of the welding pressure!

ADVANTAGES OF AGRULINE SYSTEM

application limits AGRU- electrofusion fittings


Advantages of agruline system23

E-Fitting pipes of SDR-serie

ADVANTAGES OF AGRULINE SYSTEM

Technical advantages

Traceability

ISO / WD 12176-4

  • coloured distinction of the codes

  • confusion is impossible


Advantages of agruline system24

elongated butt welding fitting pipes of SDR-serie

ADVANTAGES OF AGRULINE SYSTEM

Technical advantages

Traceability

ISO / WD 12176-4

  • up from DIM 110 at all elongated PE - fitting


Advantages of agruline system25
ADVANTAGES OF AGRULINE SYSTEM pipes of SDR-serie

conclusion

  • modular fitting system

    • wide product range

    • continuous pressure set up because of the shrinking behaviour and good heat emission

    • homogeneous welding connection

  • embedded resistance wire

    • smooth inside surface in the welding zone

    • no voids in the welding zone

    • no overheated material in the welding zone

    • no thermic damage of the material

  • optimized fitting design

    • high pressure resistance

    • high resistance against track force

    • good pipe guidance during the welding process


Agruline4

AGRULINE pipes of SDR-serie

SUPPLY PROGRAM


Supply program
SUPPLY PROGRAM pipes of SDR-serie

AGRULINE - Pipes

  • Pipes out of PE 80 and PE 100

    • Ø 20 – 1400mm

      SDR 33 / 26 / 17,6 / 17 / 11 / 9 / 7,4

      also special wallthickness are possible

    • orange, yellow, black or blue

    • coiled up to Ø 110 – SDR 17,6 / 17 / 11

    • straight pipes up to 16m


Supply program1
SUPPLY PROGRAM pipes of SDR-serie

AGRULINE “elongated” Fitting


Supply program2
SUPPLY PROGRAM pipes of SDR-serie

AGRULINE Butt welding Fitting


Supply program3
SUPPLY PROGRAM pipes of SDR-serie

Heating Element Socket fittings


Supply program4
SUPPLY PROGRAM pipes of SDR-serie

Electro Fusion Fittings


Supply program5
SUPPLY PROGRAM pipes of SDR-serie

Electro Fusion Fittings


Supply program6
SUPPLY PROGRAM pipes of SDR-serie

Electro Fusion Fittings Big Couplers

OD 450 – SDR 11

OD 500 – SDR 11

OD 450 – SDR 17

OD 500 – SDR 17

OD 560 – SDR 17

OD 630 – SDR 17

OD 710 – SDR 17


Supply program7
SUPPLY PROGRAM pipes of SDR-serie

Electro Fusion Fittings


Supply program8
SUPPLY PROGRAM pipes of SDR-serie

Electro Fusion Fittings


Supply program9
SUPPLY PROGRAM pipes of SDR-serie

Electro Fusion Saddles


Supply program10
SUPPLY PROGRAM pipes of SDR-serie

Concrete Connection Socket - SAM

  • Supply program out of PE 100


Supply program11
SUPPLY PROGRAM pipes of SDR-serie

Special Fitting

Backing ring, Blind Flange (PP/GFK with steel insert)


Supply program12
SUPPLY PROGRAM pipes of SDR-serie

Special Fitting

Ball Valve (PE 100): Æ 32 - 315mm

Ventilation Endcap (PE 80 / PE 100): Æ 63 - 225mm


Supply program13

rerounding pipes of SDR-serie fitting set (PP) with connection pins

rerounding of the squeezedpipe

insertion ofthe fitting

SUPPLY PROGRAM

Rerounding System:

  • application: for rerounding of squeezed PE-pipes


Supply program14
SUPPLY PROGRAM pipes of SDR-serie

Rerounding System:

  • advantages

    • no extra space is needed in the trench

    • fast process, no additional waiting period (e.g. E-socket)

    • no marking of pipe necessary (the rerounding fitting is durable fixed on the pipe)

    • no damage to the squeezed area (oval pipe could cause problems during the welding by means of E-sockets)

  • supply range: Æ 90, 110, 125, 160mm


Agruline5

AGRULINE pipes of SDR-serie

REFERENCES


References
REFERENCES pipes of SDR-serie

Seeproject Gmunden

  • On site extrusion of a PE 100 potable water pipeline at the lake „Traunsee“

    • PE 100 Eltex Tub 121 black

    • flange connection with steel casing

    • working pressure up to 20 bar

    • length 8,6 km

      (6,5 km in the lake in a depth up to 168m)

    • Dimension: OD 315 x 35 und OD 315 x 27 mm


References1
REFERENCES pipes of SDR-serie

Seeproject Gmunden

  • On site extrusion :

    • pipe length up to 2,5km

  • Installation

    • weigh down with concrete blocks

    • controlled lowering due to water filling

    • up to an installation depth of 168m


References2
REFERENCES pipes of SDR-serie

Pipe Relining Project MA 31:

  • PE 100 Eltex Tub 121 black

  • butt fusion and electro fusion

  • working pressure up to 10 bar

  • length of 600m by relining (pipe length 6m)

  • dimension: OD 630 x 37,4mm

  • each 1,5m a slide runner


References3
REFERENCES pipes of SDR-serie

Drinking water supply

  • PE 100 Eltex Tub 121 black

  • welding (Heating element butt- and electrofusion welding)

  • operating pressure up to 16 bar

  • length ca. 8 km

  • Dimension: OD 355 x 32,2 and OD 355 x 21,1mm


References4
REFERENCES pipes of SDR-serie

Sewage disposal

  • Location - Neusiedlersee

  • PE 100 - SDR 17,6 pressure piping system

  • Dimension: OD 160mm up to OD 500mm

  • max. operating pressure 5,5 bar / 20°C

  • Trench installaton (33,5 km)


References5
REFERENCES pipes of SDR-serie

Artificial snow system

  • Finkenberg Tirol – Sea level approx. 1500 up to 2200m

  • Pipes and Fittings out of PE 100 black

  • Electro fusion welding without clamping device

  • operating pressure up to 16 bar

  • Dimension: OD 90mm up to OD 160mm – SDR 11


References6
REFERENCES pipes of SDR-serie

Underground fire protection system

  • BMW Steyr and Leipzig

  • Pipes and Fittings out of PE 100 black

  • Heating element butt- and electro fusion welding

  • operating pressure 12 bar acc. FM - Approval

  • length approx. 1200 m

  • Dimension: OD 90mm up to OD 400mm – SDR 11


References7
REFERENCES pipes of SDR-serie

Drinking water supply

  • PE 100 Eltex Tub 121 black

  • welding (Heating element butt- and electro fusion welding)

  • operating pressure up to 16 bar

  • length approx. 4,7 km - steerable drilling systems

  • Dimension: OD 250 x 22,7 mm – SDR 11


References8
REFERENCES pipes of SDR-serie

Trenchless Installation (Bad Hall - Waldneukirchen)

  • Projekt data...

  • year of construction 1999

  • PE 80: OD 160 x 14,6 mm (PN 4)

  • length 9.029 m

  • installation: steerable drilling systems

  • minimum installation depth 1,0 m


Trenchless installation

welding of a pipe rope: pipes of SDR-serie

Trenchless Installation

REFERENCES

welding of the pipes

pipe rope leaded on rollers (appr.120m long)


Trenchless installation1

pilot drilling: pipes of SDR-serie

magazine of the 3m steel rods

the rods are

connected and

pressed into the

ground

Trenchless installation

REFERENCES


Trenchless installation2

pilot drilling: pipes of SDR-serie

guidance of the

steel rods

pipe pulled in from

the opposite side

Trenchless installation

REFERENCES


Trenchless installation3

pull-in of the pipe: pipes of SDR-serie

start of the

pull-in process

Trenchless Installation

REFERENCES


References9
REFERENCES pipes of SDR-serie

Water pipeline - Sachalin


References10
REFERENCES pipes of SDR-serie

Water pipeline - Sachalin

Requirements to the piping system

  • temperatures from –35°C up to 35°C

  • installation depth min. 2500 mm (frost line)

  • Working pressure max. 14 bar at Tmax = 35 °C and life span of more then 50 years

  • usable Drinking water

  • low weight

  • high flexibility and mechanical strength


References11
REFERENCES pipes of SDR-serie

Water pipeline - Sachalin

Piping system

  • pipes and fittings out of PE 100 black

  • Dimensions from OD 90 up to OD 450mm

  • Wall thickness SDR 9 according ISO4065/DIN 8074

  • Connection technique

    • Heating element butt welding

    • Electro fusion welding


References12
REFERENCES pipes of SDR-serie

Water pipeline - Sachalin

  • Prepare of the installation trench


References13
REFERENCES pipes of SDR-serie

Water pipeline - Sachalin

  • preperation of the trench


References14
REFERENCES pipes of SDR-serie

Water pipeline - Sachalin

  • preparation of sand bedding and installation of the pipeline


References15
REFERENCES pipes of SDR-serie

Water pipeline - Sachalin

  • installation of 2 pipelines parallel


References16
REFERENCES pipes of SDR-serie

Piping Systems for Power Plants

  • Pipes out of PE 100 black

    • Heating Element Butt Fusion

      • Isometry prefabricated by AGRU

    • Dimension: OD 710 x 64,5mm – SDR 11


Agruline6

AGRULINE pipes of SDR-serie

INSTALLATION


Installation
INSTALLATION pipes of SDR-serie

Installation Methods:

  • Installation in the trench

  • Ploughing

  • Trenchless installation

    • steerable horizontal drilling systems

    • shooting in of house connection

  • Pipe-relining


Installation1
INSTALLATION pipes of SDR-serie

Installation Advantages:

  • due to the flexibility of PE minor deviations can be taken up without the use of fittings

  • the flexibility of PE enables the pipe to follow ground settlements

  • later modifications and easy repair of the piping system possible

  • alternative installation possible (ploughing or shooting in of the pipe, ...)


Installation2
INSTALLATION pipes of SDR-serie

Installation in the trench

  • For all materials

  • Need a lot of space

  • Crossing of roads is expensive


Installation3
INSTALLATION pipes of SDR-serie

Ploughing

  • Joining of the pipes must happen above the drain

  • A tensile-strength joint is neccesary

  • Fast installation is possible

  • Pipes must be flexible

  • Applicable only in free areas

  • Possible materials:HDPE


Installation4
INSTALLATION pipes of SDR-serie

Milled slot

  • Joining of the pipes must happen above the drain

  • A tensile-strength joint is neccesary

  • Pipes must be flexible

  • Crossing of roads is not possible

  • Fast installation is possible

  • Applicable only in free areas

  • Possible materials: HDPE


Agruline7

AGRULINE pipes of SDR-serie

APPROVALS


Approvals
APPROVALS pipes of SDR-serie


Approvals1
APPROVALS pipes of SDR-serie

FM Approval:

  • FM Class Number 1613

    • Plastic pipes and fittings for underground fire protection service

  • PE 100 Fitting

    • elongated Fitting - SDR 11 OD 63 up to OD 315mm

    • short Fitting - SDR 11 OD 63 up to OD 400mm

    • Electro Fusion Fitting - SDR 11 OD 63 up to OD 400mm

  • Approved up to 12 bar

    • Test pressure = 48 bar

    • 4 time safety factor according Evaluationprocedure

  • References

    • BMW Leibzig

    • BMW Steyr


T pipes of SDR-serie +43 (0) 7258 790 - 0

F+43 (0) 7258 3863

[email protected]

AGRU Kunststofftechnik GmbH

Ing.-Pesendorfer-Str. 31

A-4540 Bad Hall

Austria / EU

www.agru.at

THANKS FOR YOUR ATTENTION

Subject to errors of typesetting, misprints and modifications. Illustration are generic and for reference only!


ad
