  1. SIA: Secure Information Aggregation in Sensor NetworksB. Przydatek, D. Song, and A. Perrig. In Proc. of ACM SenSys 2003 Natalia Stakhanova cs610

  2. Sensor networks • wireless network consisting of large number of small sensor devices Main objective: data collection • Sensors are severely constrained: • Low memory • Low power • Limited bandwidth • Transfer of raw information is expensive • (often individual readings are not needed) Solution: aggregate data and transfer the result only!

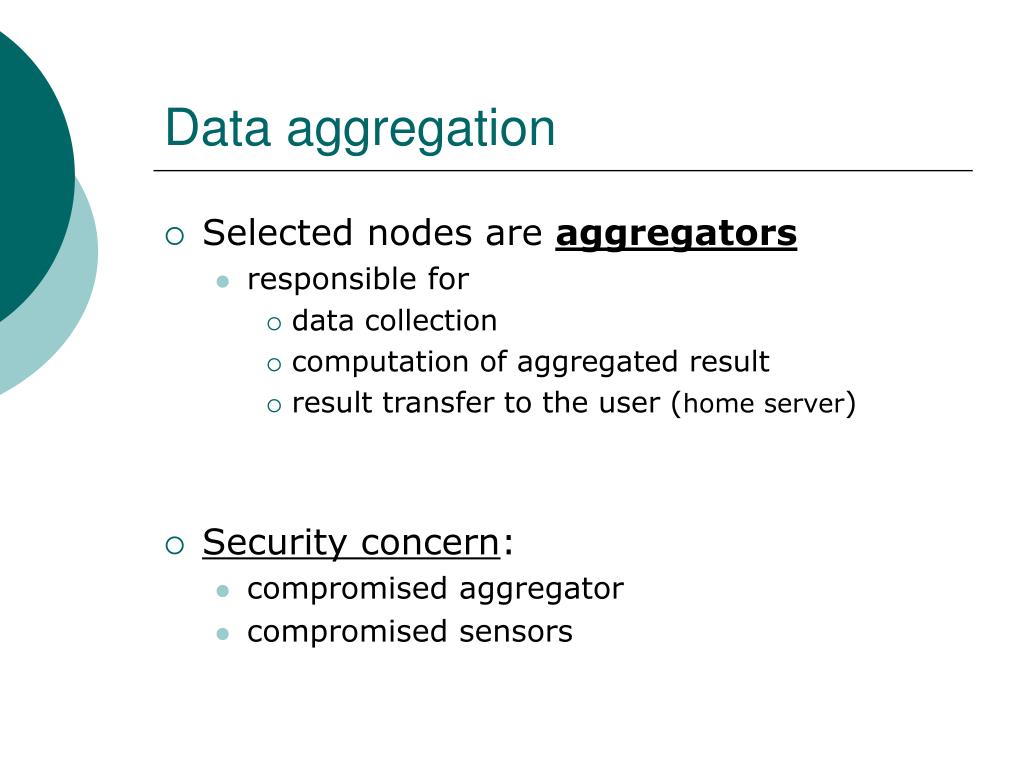

  3. Data aggregation • Selected nodes are aggregators • responsible for • data collection • computation of aggregated result • result transfer to the user (home server) • Security concern: • compromised aggregator • compromised sensors

  4. Proposed approach • Previous works assumed honest sensors • This work’s focus: stealthy attacks • If user accepts the aggregation result, then there isa high probability that the reported result is “close” to the true result value

  5. Considered model home server • single home server (user) • single aggregator • more powerful than sensor • has information about size and topology of the network • sensors • have unique ids • share a key with server and aggregator • Both home server & aggregator have master key and able to compute key for each sensor A= ? aggregator A= (a1, a2, a3) a3 a2 a1 sensors

  6. Aggregate-Commit-Prove approach • aggregate • aggregator collect the data from sensors • compute aggregated result • commit • aggregator commits to the data • guarantee that result is computed using sensors’ data • prove • aggregator send the aggregate result and commitment to home server • home server • checks if commitment is good representation of the sensor data • aggregation result is close to the committed data values

  7. Commit phase • Merkle hash tree – to commit to the data • a1a2 a3 ... an - sensors’ data placed at the leaves • each internal node is hash of its children • root value is a commitment

  8. Considered … • Most commonly used aggregation operations: • Compute median • Compute min, max • Counting distinct elements

  9. Computing median • Securely compute median of a1a2 a3 ... an • Aggregate phase: • take median of a random sample of sensor values • commits to a sorted sequence using a Merkle hash tree • Prove phase: • home server receives the commitment and computed median amed • home server performs 2 tests: • requests an/2 and compares it withamed • picks an element from a random position • Checks if elements picked from left half is < than median • Checks if elements picked from right half is > than median

  10. Computing min/max • Securely compute min of a1a2 a3 ... an • Assumption – sensors will not provide fake values • Computing min/max by sensors • MinRootedTree protocol • construct minimum spanning tree rooted at the minimum value • each round node broadcast (min, id) pair • fills the table by smallest received value • Final state is authenticated and sent to aggregator Reading: 5 S3 p – id of the current parent min – min value so far id – id of the node with min S1 S2 Reading: 3 Reading: 1

  11. Computing min/max • Aggregate phase: • aggregatorcommits to the list of the states • reports the root of the tree to the server • Prove phase: • home server randomly picks a node in the list • traverses the path from the node to the root • If unsuccessful - rejects

  12. Counting distinct elements • Securely determine number of distinct values given a1a2 a3 ... an • Basic protocol: • Pick random hash function h • Apply to all elements ai • Keep v=mini=1n h(ai) • Number of distinct elements can be estimated by 1/v • Protocol can be used for: • computing the size of the network • computing average value

  13. Conclusion • Hierarchical aggregation for very large networks • the proposed protocols need to be slightly modified • Consider forward secure authentication for past results querying • sensor’s key is recomputed each time interval using one-way function • past readings are secure in case sensor is compromised • This is the first work that allows existence of malicious sensors
