  1. Polygons, triangles and capes Aad Goddijn (FIsme) TSG 34 (FIsme) Freudenthal Institute for Science and Mathematics Education Utrecht University, The Netherlands, A.Goddijn@fi.uu.nl

  2. A design for a one day team task • Educational setting • Less known Mathematical content • Design process

  3. Simple polygon: No selfintersections! Pro- In - truding vertex ! diagonal Polygons, triangles and capes !

  4. Situation: Math – B day • Senior Highschool • A-lympiad, Math B-day • teams of 4 students, no teacher interference • One day; 9.00 – 16.00 hrs, 27/11/2007. • from initial problem exploration to final essay • Competition + Regular school task (why ????, PA) • Numbers: • 180 schools, each 6-10 teams of 4, about 5000 students (out of 10000) • 118 teams go for competition • 10 winning teams, get a price * *sponsored by TEXAS INSTRUMENTS*

  5. Design ‘constraints’ and ideals for the Math B-day assignment • No try-out possible • competition ….. • Teams of students • Debate, argumentation • division of labour • Safe start and adventurious open ending • Regular task + competition; full day • do not send them home in tears • Mathematics as a ‘research’ activity, rounded of by written essay • Guided Reinvention

  6. The assignment for november 23, 2007 • 15 pages A4 • How was it created?

  7. Design process timeline • Design team: • 4 Teachers, 1 research mathematician, 2 professional edu-math designers • One-day (24 hours) session of the design team • Wild idea, selecting, exploring, and more • Realisation by 2 team members • Finishing touches by everbody

  8. Wild idea • Polyeders of ’s only • Count number of p’s with 10 triangular faces! • Switching edges: Do you get them all by switching?

  9. From wild to focus • Debate : • Exciting! • Topology, we never do at school • Half-way problems difficult to find • Too far away from regular curriculum • Rejected, but: • keep polygons + ’s on board • Related sourcematerial was present in meeting

  10. Design team explores mathematics of polygons • Web-source Computational geometry (Ian Garton) • triangulations of polygons stay in center • (Art gallery theorem as a possible application) • Unknown problems for most members! • Design team explores new mathematicslike students should do

  11. Inspiring van Gogh-like headings at Ian Garton‘s website Ear = Cape

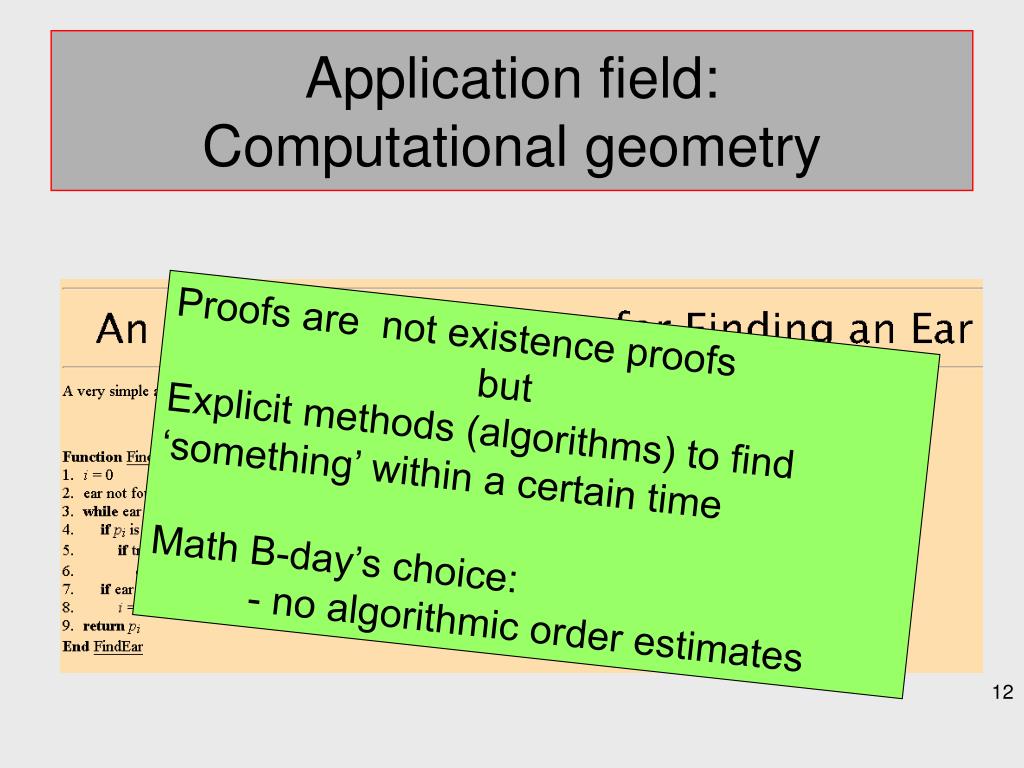

  12. Application field: Computational geometry Proofs are not existence proofs but Explicit methods (algorithms) to find ‘something’ within a certain time Math B-day’s choice: - no algorithmic order estimates

  13. End of the day: • Basic exploration of main problems of the subject ready • Rough outline of content • Results : • possible and impossible problems and solutions, • obstacles located • tried-out survival hints • additional (new) problems • 2 designers promise to write a first version

  14. Overview of the assignment • A: Introduction material • definitions, sum of inner angles of simple polygon • C: Basic part: the triangulation theorem • each simple polygon with n sides can be decomposed in n-2 triangles (… a triangulation) • D: Optional part : convex polygons • What is the number of different possible triangulations of a convex n-gon? • (F: Difficult part: The Art Gallery Theorem) • Each simple polygon with n vertices can be guarded by p cameras that are mounted in the vertices, where p is te smallest whole number for which p > n/3 - 1

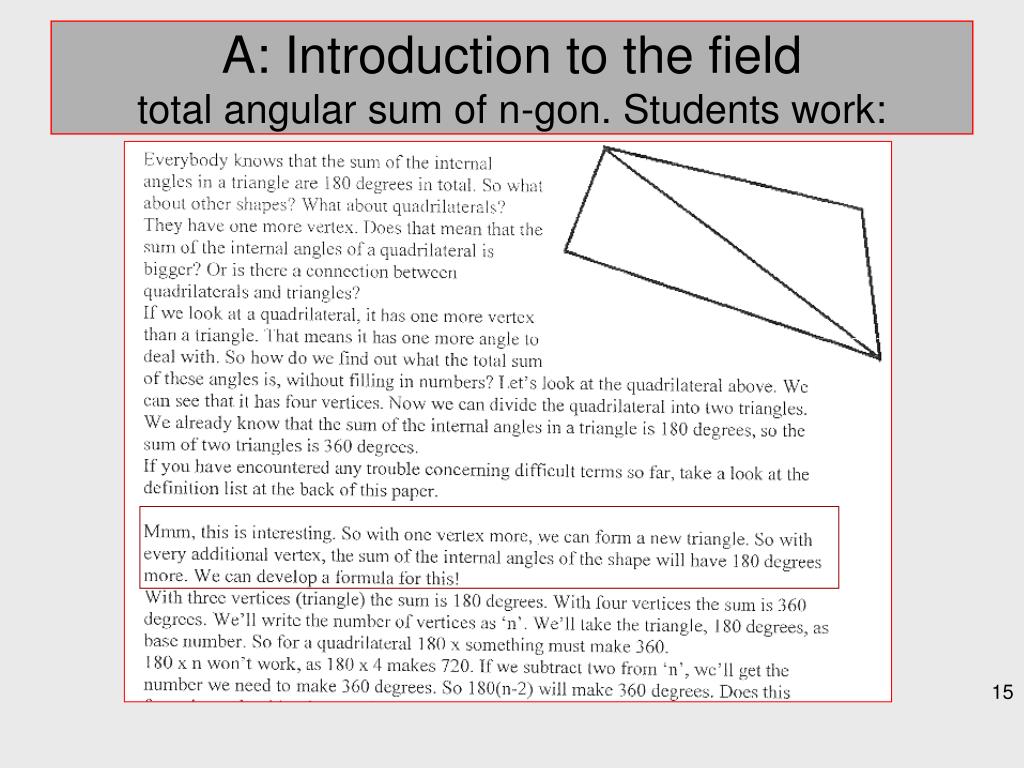

  15. A: Introduction to the fieldtotal angular sum of n-gon. Students work:

  16. Can’t they do shorter? • Probably! • But: To be handed in: Make a continuous report of your work that is easy to read and can be understood by your fellow students even those who have never heard of simple polygons.

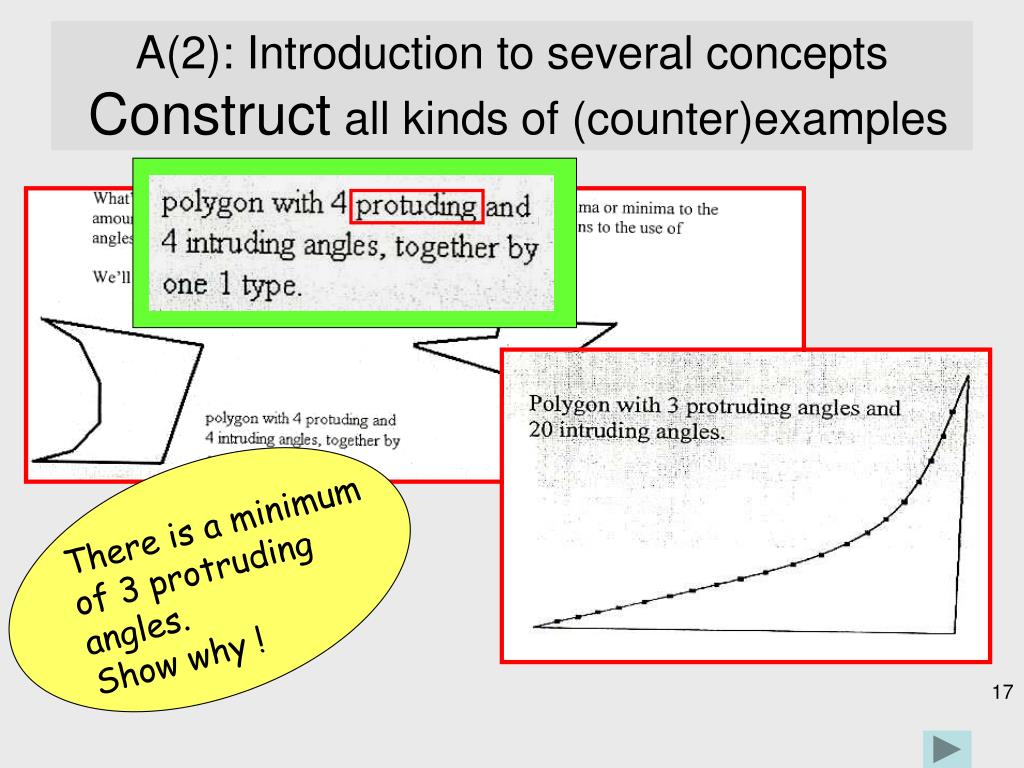

  17. There is a minimum of 3 protruding angles. Show why ! A(2): Introduction to several conceptsConstruct all kinds of (counter)examples

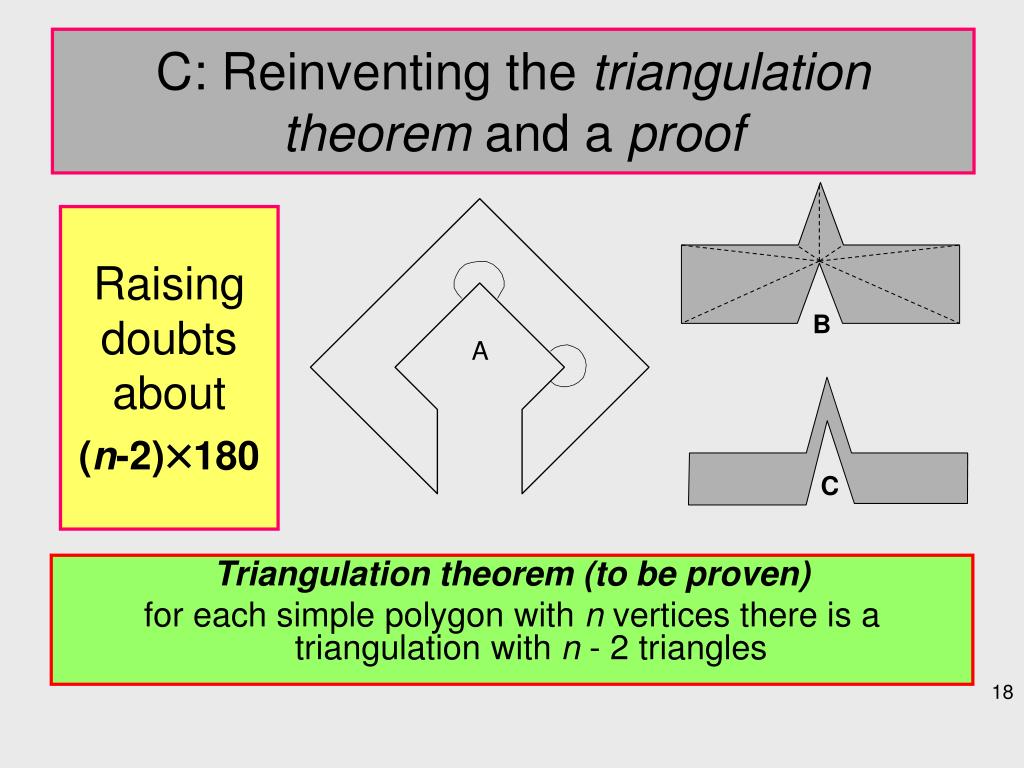

  18. C: Reinventing the triangulation theorem and a proof Triangulation theorem (to be proven) for each simple polygon with n vertices there is a triangulation with n - 2 triangles Raising doubts about (n-2)180 B A C

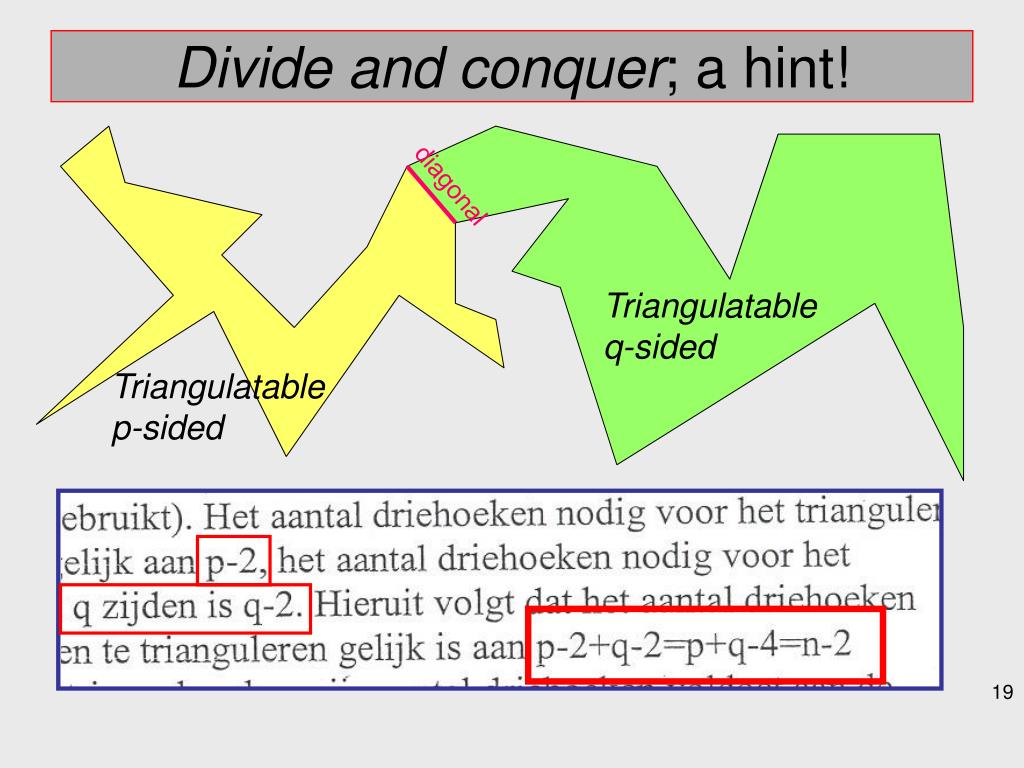

  19. Divideand conquer; a hint! diagonal Triangulatable q-sided Triangulatable p-sided

  20. Is there always a diagonal? • Partof thedesign team: proof is ok. • Prediction: Most students will not ask: • But probably they see the point of it and pick up a suggestion.

  21. (Students work) diagonals Diagonals exist always. Proof: Find a protruding vertex. A Cape or Not a cape Next question: is there always a protruding vertex ?

  22. Guided(?) reinvention, remarks about • Strong hint about main idea of proof • Main point first: divide and conquer • Students keep overview on the whole story • Proof unrolls in reverse order: • Div+conquer ?? Diagonal ?? Protruding vertex ?? Yes! • In contrast with (axiomatic) deduction: • Polygons -> protruding vertex -> diagonal exist -> divide and conquer -> induction -> theorem -> QED. • Local deduction (Freudenthal) • Explicit proofs rather late in Dutch curriculum, this can be first time • Students show many different levels of retelling the proof-story • Design team explored possible students behavior

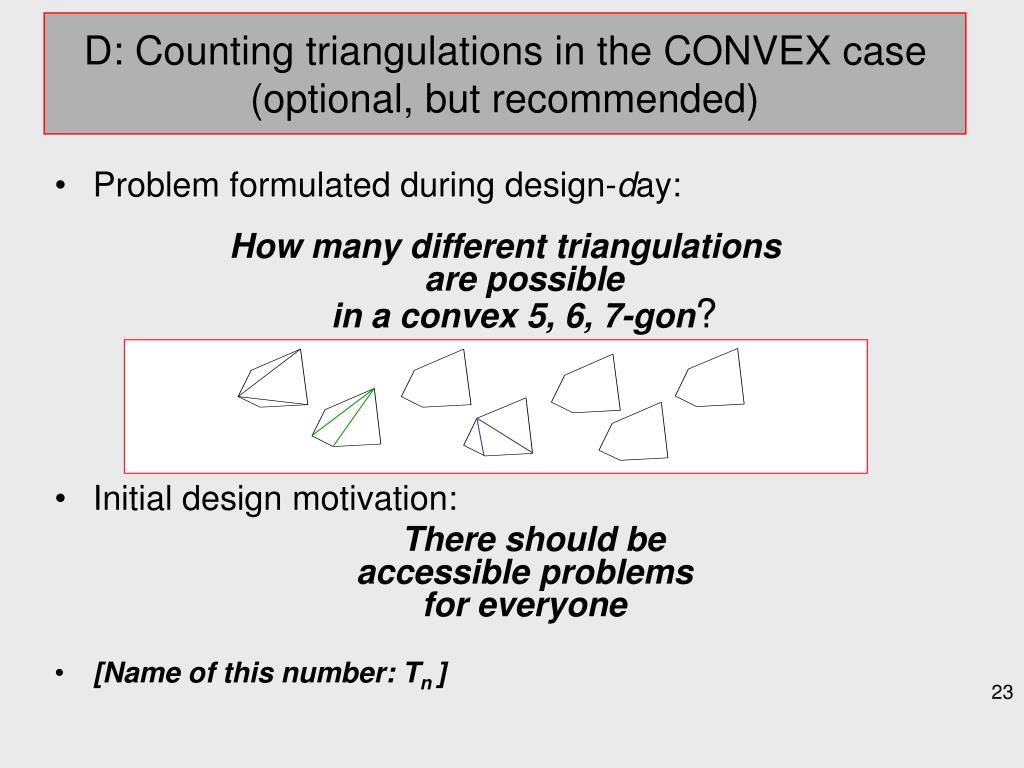

  23. D: Counting triangulations in the CONVEX case(optional, but recommended) • Problem formulated during design-day: How many different triangulations are possible in a convex 5, 6, 7-gon? • Initial design motivation: There should be accessible problems for everyone • [Name of this number: Tn ]

  24. Student work in progress; T6 = 14 ? Yes!

  25. Design team at mathwork again • T5 = 5, T6 = 14 • Find T7 from T6. • General: • find Tn from earlier Tm’s. • .. • (there is a convolution - recursion formula) • (numbers are the so-called Catalan-numbers)

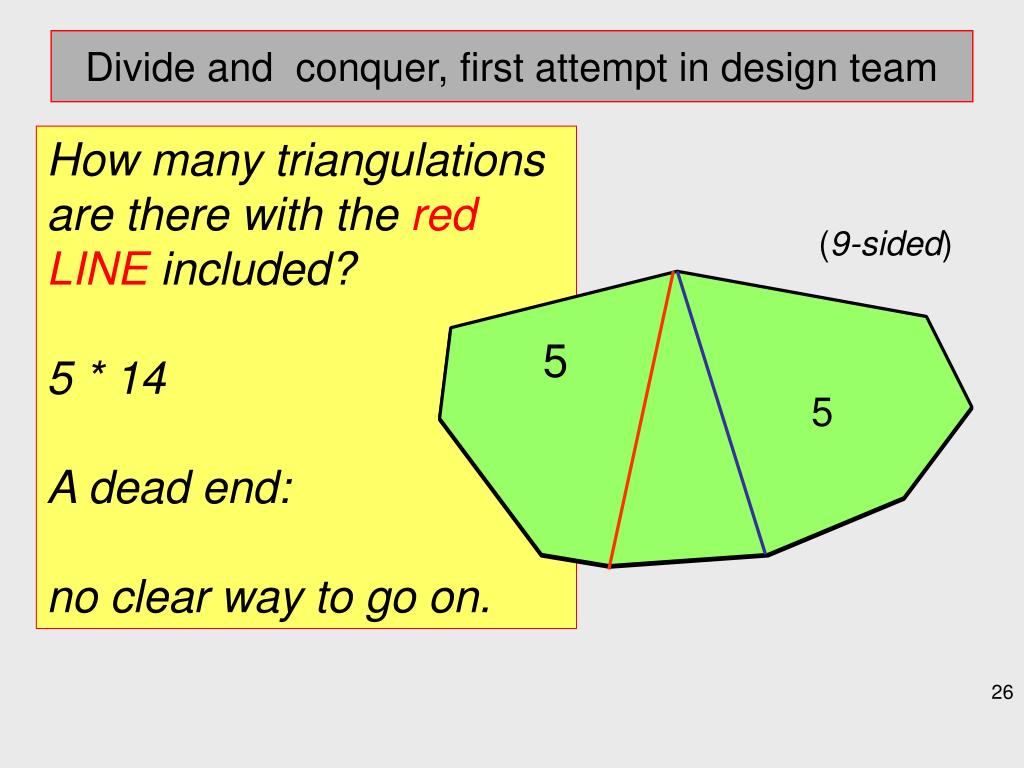

  26. 5 14 5 5 14 Divide and conquer, first attempt in design team How many triangulations are there with the red LINE included? 5 * 14 A dead end: no clear way to go on. (9-sided)

  27. This Halfway-question is a better hint! (10-sided) How many triangulations are there with the gray triangle included?

  28. Final splitting up comes in many different representations (1) ?

  29. 8-gon 9-gon And on many levels ( 2)

  30. Difficult spots in process Final formula found in many styles (3)

  31. Final formula found in many styles (4)

  32. Final conclusion • the hard core of this design process was the mathematical activity of the design team • which is a kind of reinventing of problems and solutions • The resulting guided reinvention in the task • Prevents some possible disasters • helped students exploring a route in the problem field • On many different levels … • And did not steer them totally from 0 to 100.
