CDMA (from Tanenbaum, Computer Networks)

CDMA (from Tanenbaum, Computer Networks). Assume the following CDMA chip sequences for +1 (0 has the complementary chip sequence): A: (-1 –1 –1 +1 +1 -1 +1 +1) B: (-1 –1 +1 –1 +1 +1 +1 –1) C: (-1 +1 –1 +1 +1 +1 –1 –1) D: (-1 +1 -1 -1 -1 -1 +1 –1). Complementary codes (for 0).

amalia
Download Presentation

CDMA (from Tanenbaum, Computer Networks)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

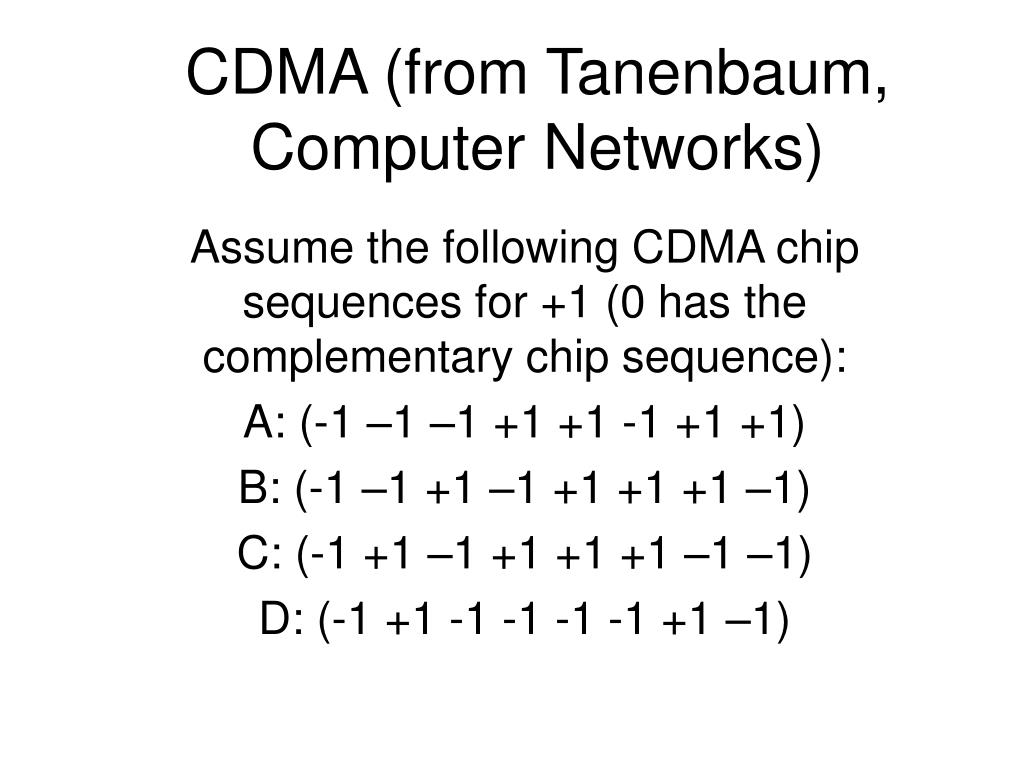

  1. CDMA (from Tanenbaum, Computer Networks) Assume the following CDMA chip sequences for +1 (0 has the complementary chip sequence): A: (-1 –1 –1 +1 +1 -1 +1 +1) B: (-1 –1 +1 –1 +1 +1 +1 –1) C: (-1 +1 –1 +1 +1 +1 –1 –1) D: (-1 +1 -1 -1 -1 -1 +1 –1)

  2. Complementary codes (for 0) • A: (+1 +1 +1 -1 -1 +1 -1 -1) • B: (+1 +1 -1 +1 -1 -1 -1 +1) • C: (+1 -1 +1 -1 -1 -1 +1 +1) • D: (+1 -1 +1 +1 +1 +1 -1 +1) • To show that these chipsets are orthogonal we assume that A, B, C, D send bits at some time and receiver can recover individual signals

  3. Example • A sends 0, B sends 1, C sends 1, D does not send • Signals sent • 1 1 1 -1 -1 1 -1 -1 • -1 -1 1 -1 1 1 1 -1 • 1 -1 1 -1 -1 -1 1 1 1 -1 3 -3 -1 +1 1 -1 received

  4. Example from CDMA 1 -1 3 -3 -1 +1 1 -1 • Multiple this termwise with each of the chipsets • At A ((1)(-1) + (-1)(-1) +(3)(-1)+(-3)(1)+ • (-1)(1) +(+1)(-1)+ (1)(1) + (-1)(1))/8 = • (-1+1-3-3-1-1+1-1)/8 = -8/8 = -1 (for 0) • At D (1)(-1) + (-1)(1)+(3)(-1)+ (-3)(-1) + • (-1)(-1) +(1)(-1) +(1) 1+ (-1)(-1) = 0 (did not send)
