Conic sections study guide

Conic Sections Study Guide

By David Chester


Types of conic sections

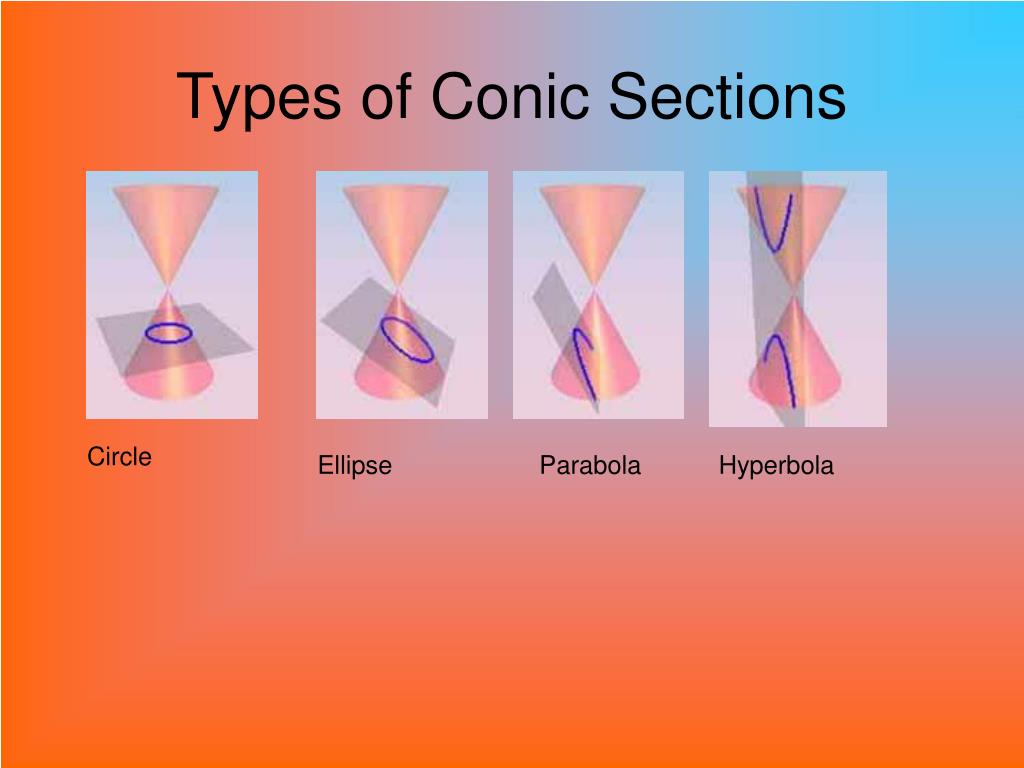

Types of Conic Sections

Circle

Ellipse

Parabola

Hyperbola


Solving conics

Solving Conics

  • Graphing a conic section requires recognizing the type of conic you are given

  • To identify the correct form look at key traits of the conic that distinguish it from others

  • Once you know what type of conic it is you can start graphing by applying the points and properties starting from the center/vertex


Directory

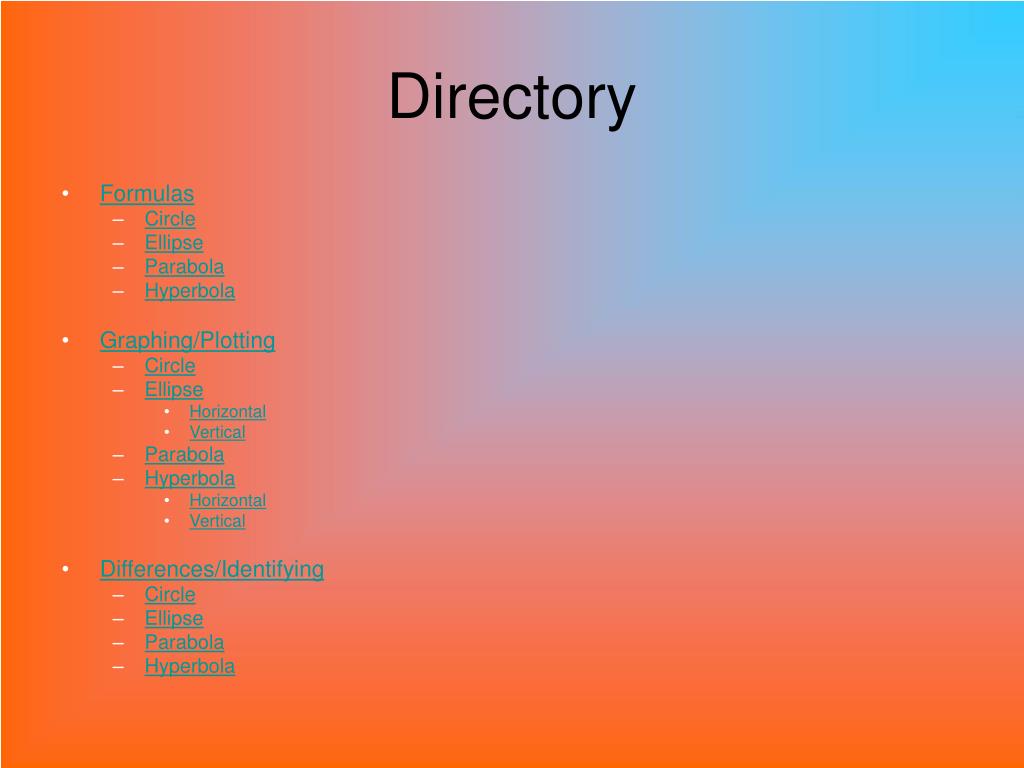

Directory

  • Formulas

    • Circle

    • Ellipse

    • Parabola

    • Hyperbola

  • Graphing/Plotting

    • Circle

    • Ellipse

      • Horizontal

      • Vertical

    • Parabola

    • Hyperbola

      • Horizontal

      • Vertical

  • Differences/Identifying

    • Circle

    • Ellipse

    • Parabola

    • Hyperbola


Formulas

Formulas

General Equation for conics:

Ax2 + Bxy + Cy2 + Dx + Ey + F = 0

  • Circle:

(x-h)2 + (y-k)2 = r2

If Center is (0,0):

x2 + y2 = r2

Back to Directory

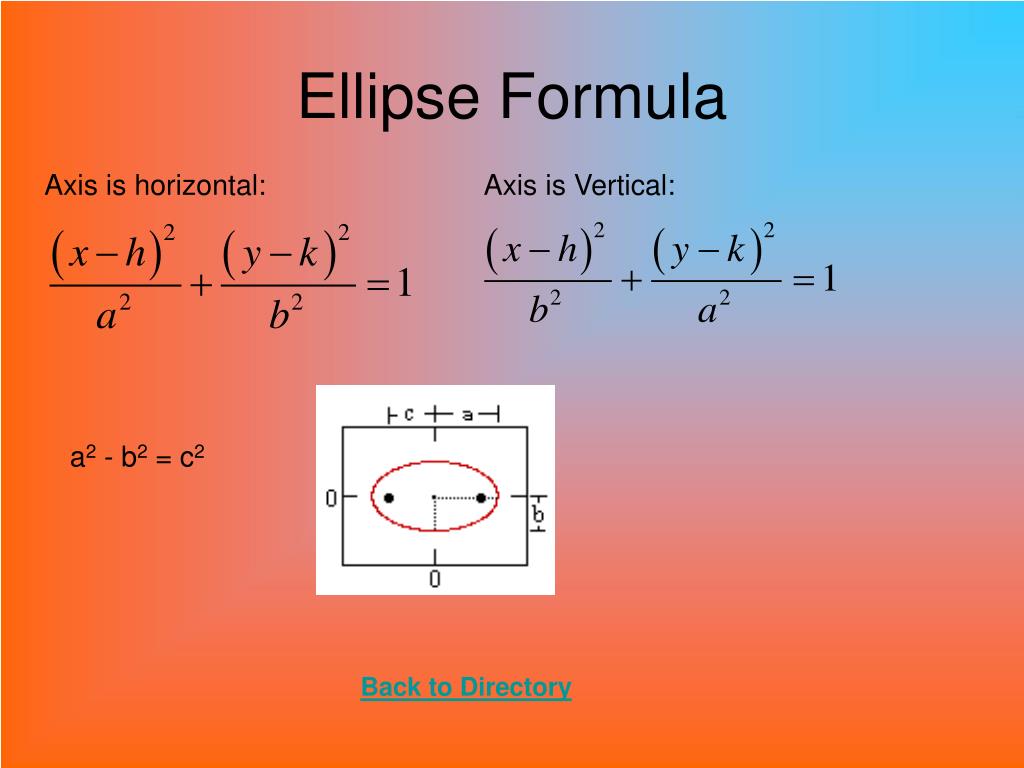

Ellipse formula

Ellipse Formula

Axis is horizontal: Axis is Vertical:

a2 - b2 = c2

Back to Directory

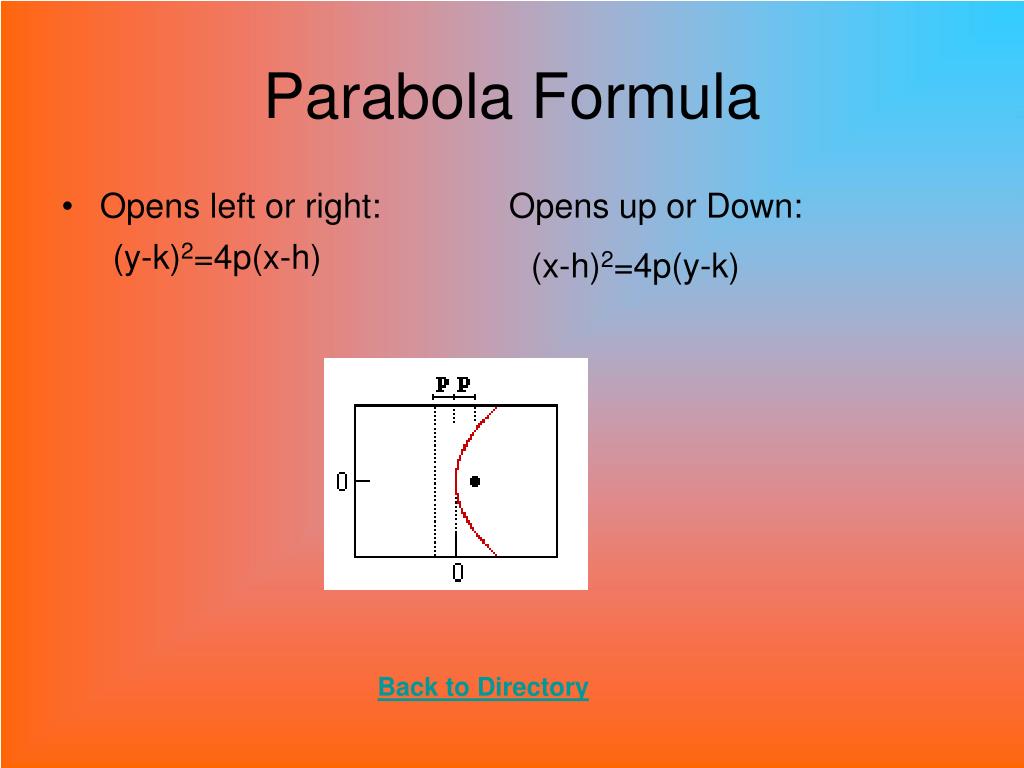

Parabola formula

Parabola Formula

  • Opens left or right: Opens up or Down:

(y-k)2=4p(x-h)

(x-h)2=4p(y-k)

Back to Directory


Hyperbola formula

Hyperbola Formula

  • x2 term is positive : y2 is positive:

a2 + b2 = c2

Back to Directory


Graphing and plotting circles

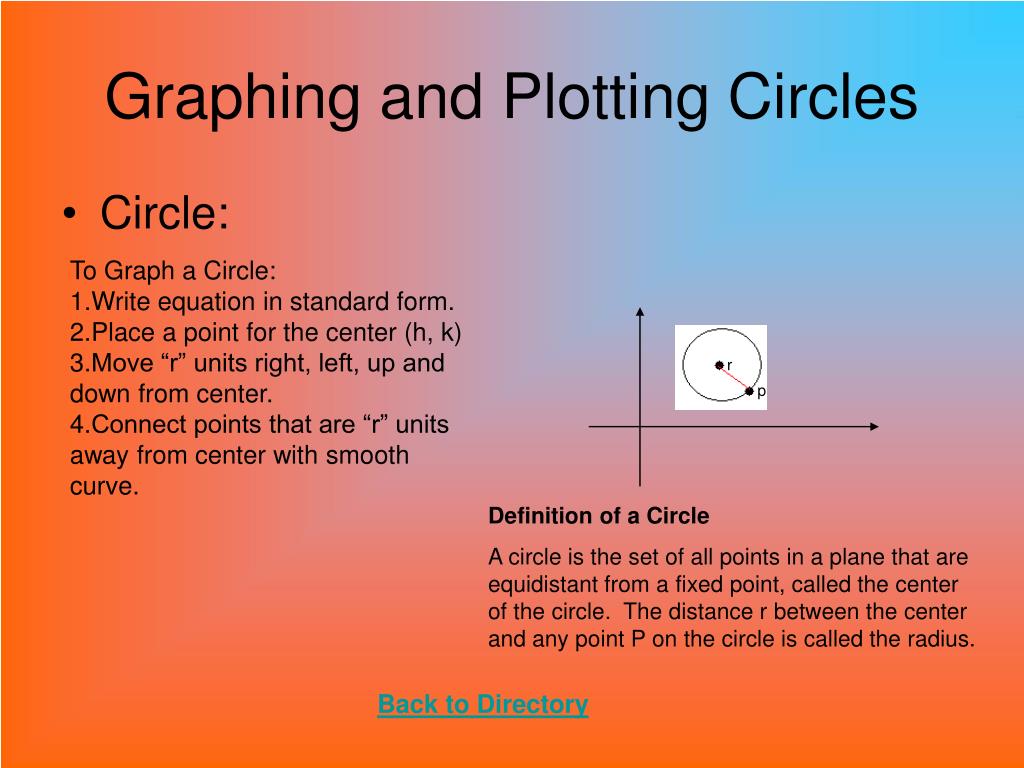

Graphing and Plotting Circles

  • Circle:

  • To Graph a Circle:

  • Write equation in standard form.

  • Place a point for the center (h, k)

  • Move “r” units right, left, up and down from center.

  • Connect points that are “r” units away from center with smooth curve.

r

p

Definition of a Circle

A circle is the set of all points in a plane that are equidistant from a fixed point, called the center of the circle. The distance r between the center and any point P on the circle is called the radius.

Back to Directory

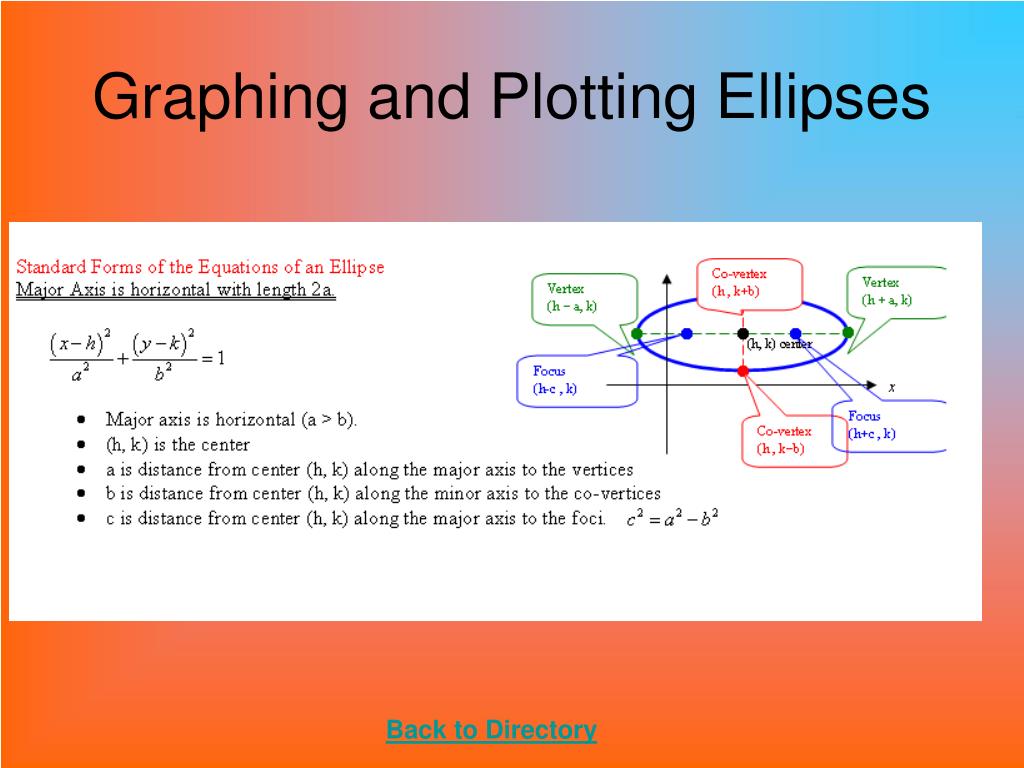

Graphing and plotting ellipses

Graphing and Plotting Ellipses

Back to Directory

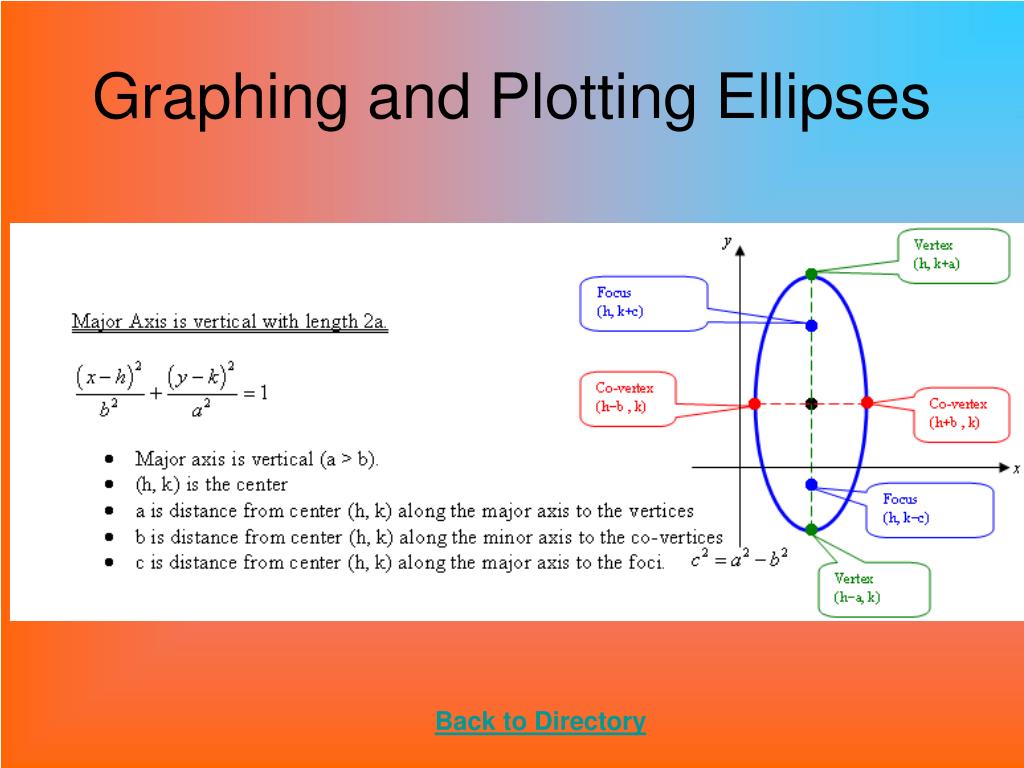

Graphing and plotting ellipses1

Graphing and Plotting Ellipses

Back to Directory


Conic sections study guide

Graphing and Plotting Parabolas

Back to Directory


Graphing and plotting hyperbolas

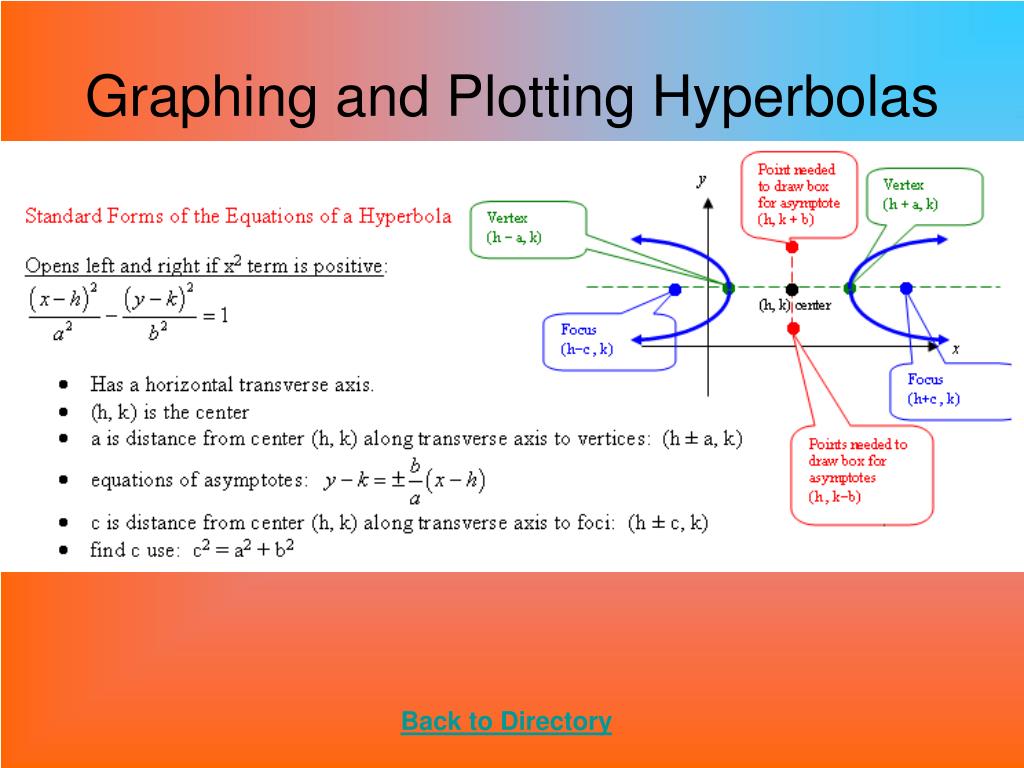

Graphing and Plotting Hyperbolas

Back to Directory


Graphing and plotting hyperbolas1

Graphing and Plotting Hyperbolas

Back to Directory


Differences identifying

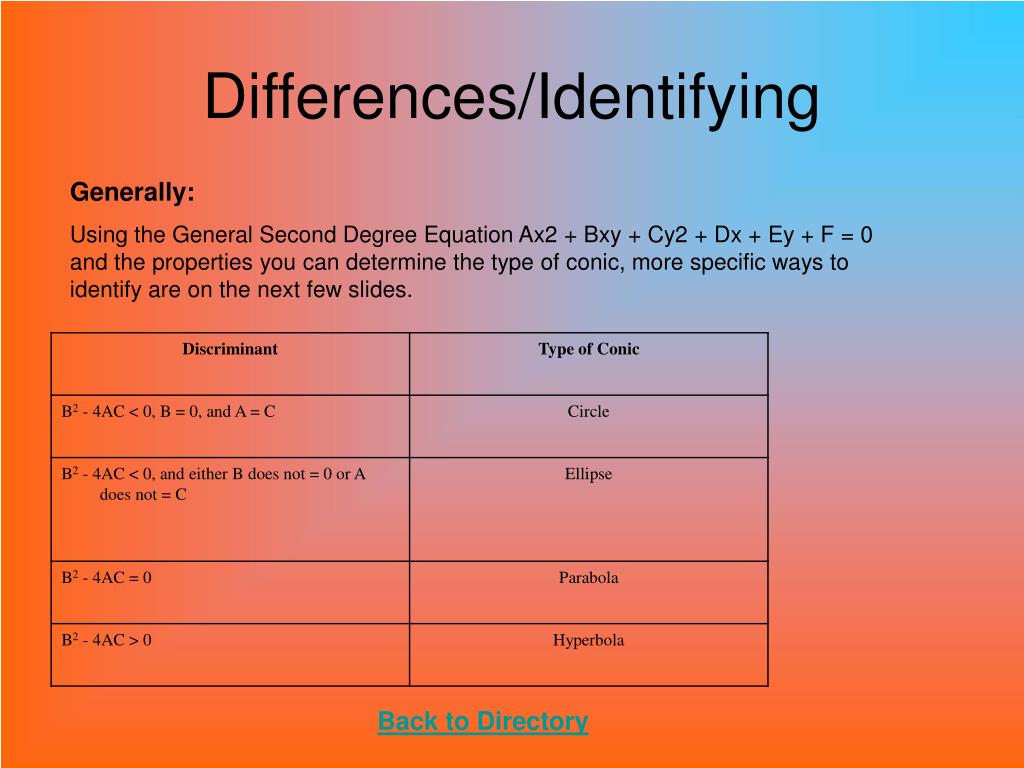

Differences/Identifying

Generally:

Using the General Second Degree Equation Ax2 + Bxy + Cy2 + Dx + Ey + F = 0 and the properties you can determine the type of conic, more specific ways to identify are on the next few slides.

Back to Directory


Circle traits

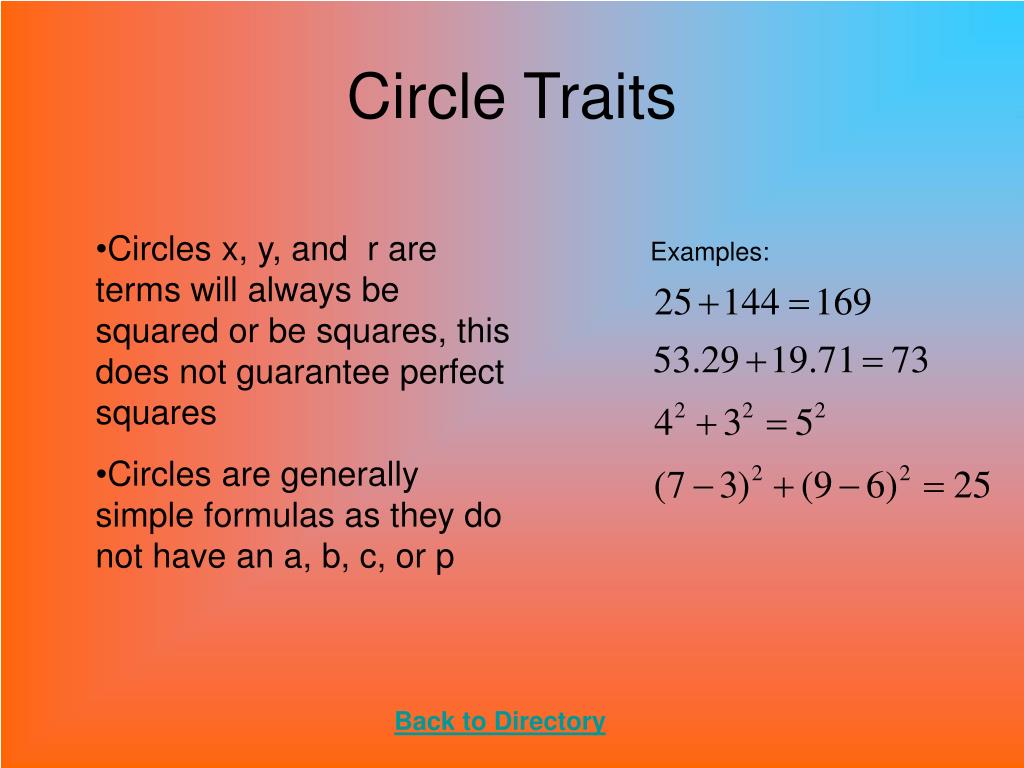

Circle Traits

  • Circles x, y, and r are terms will always be squared or be squares, this does not guarantee perfect squares

  • Circles are generally simple formulas as they do not have an a, b, c, or p

Examples:

Back to Directory


Ellipse traits

Ellipse Traits

  • A key point of an ellipse is that you add to equal 1

  • In an ellipse a and b term switch with horizontal versus vertical

  • a>b

  • Horizontal: a on the left side

  • Vertical: a on right side

  • a2 - b2 = c2

Examples:

Back to Directory


Parabola traits

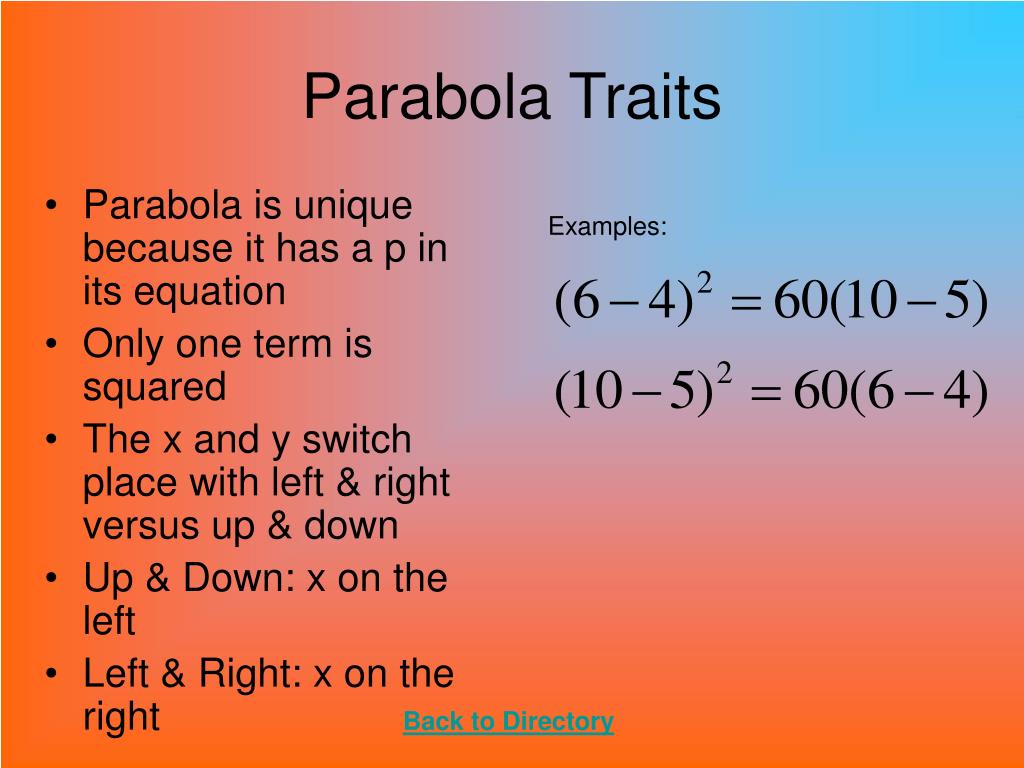

Parabola Traits

  • Parabola is unique because it has a p in its equation

  • Only one term is squared

  • The x and y switch place with left & right versus up & down

  • Up & Down: x on the left

  • Left & Right: x on the right

Examples:

Back to Directory


Hyperbola traits

Hyperbola Traits

  • A key point for a hyperbola is that you subtract in order to equal 1

  • In a hyperbola the x and y terms switch in a horizontal versus a vertical

  • Horizontal: x on the left side

  • Vertical: x on right side

  • a2 + b2 = c2

Examples:

Back to Directory


Bibliography

Bibliography

  • http://math2.org/math/algebra/conics.htm

  • http://mathforum.org/dr.math/faq/formulas/faq.analygeom_2.html#twoconicsections

  • http://www.clausentech.com/lchs/dclausen/algebra2/formulas/Ch9/Ch9_Conic_Sections_etc_Formulas.doc

  • Major Credit to: Kevin Hopp and Sue Atkinson (Slides 9-12 directly from them)
