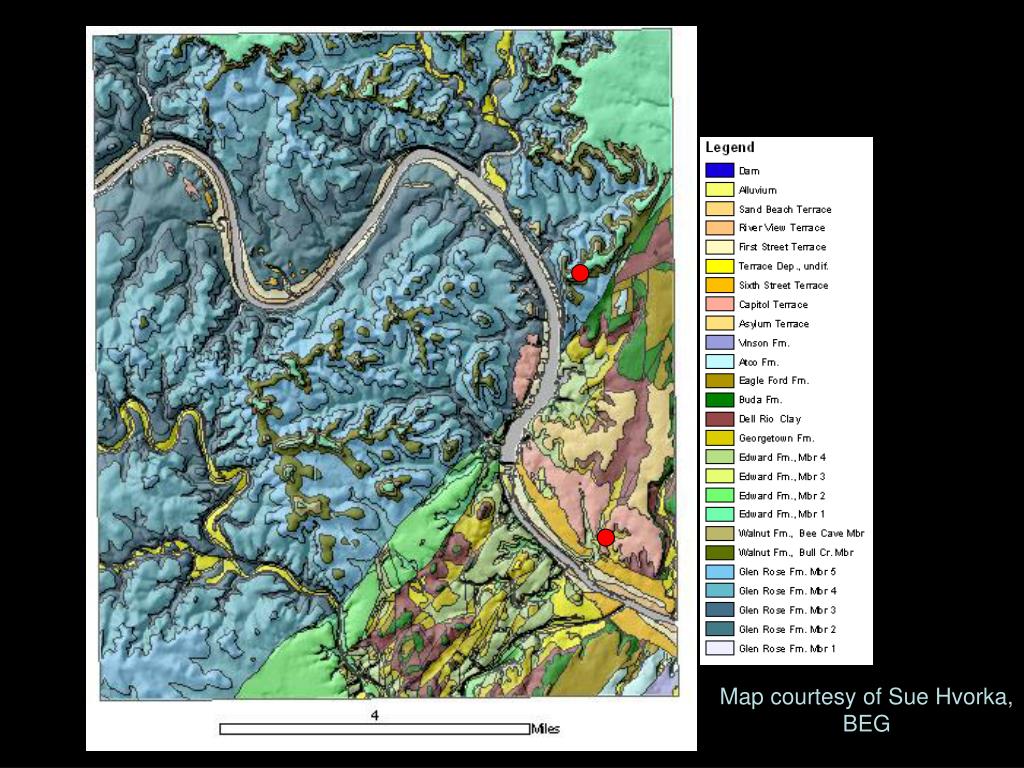

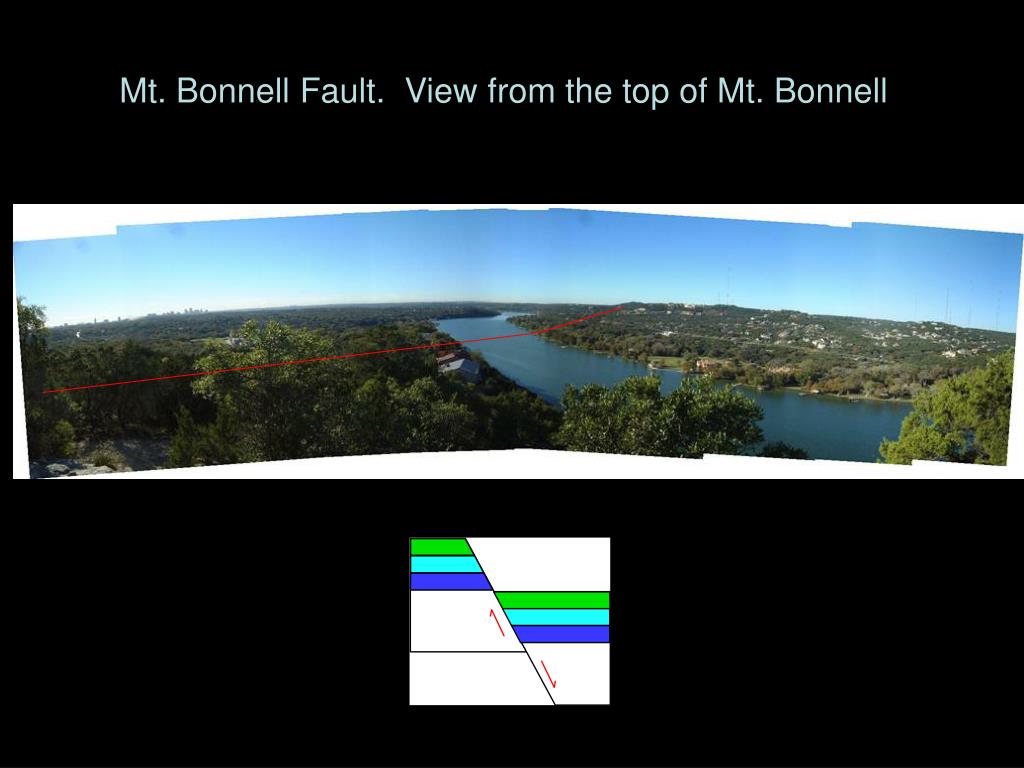

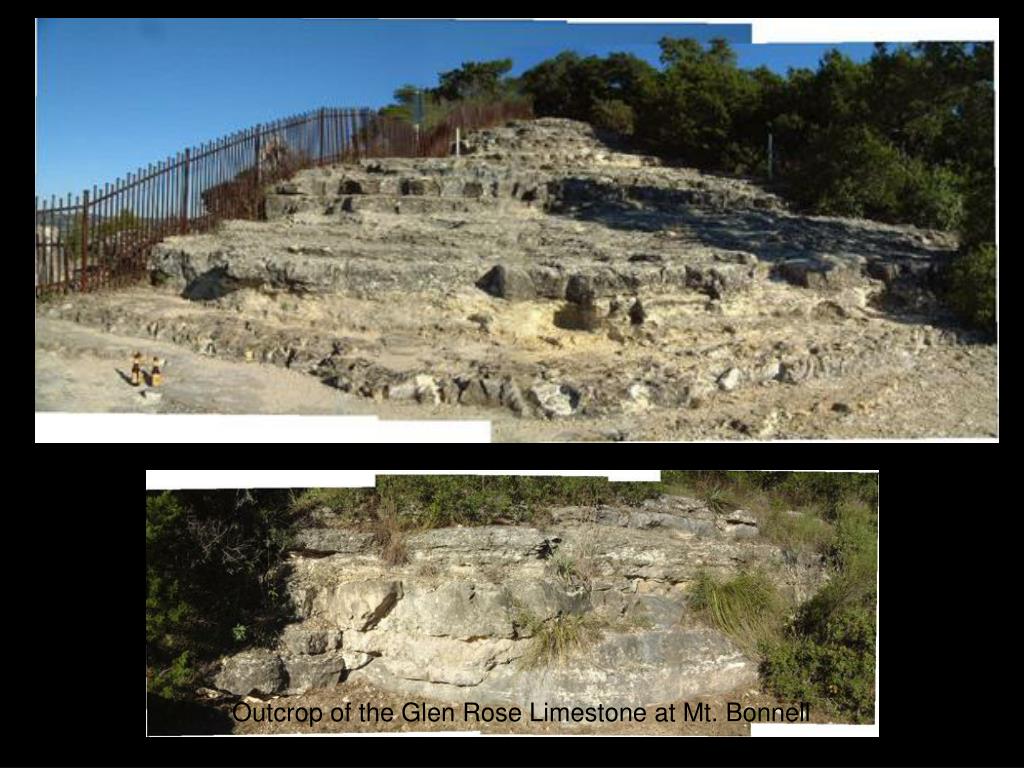

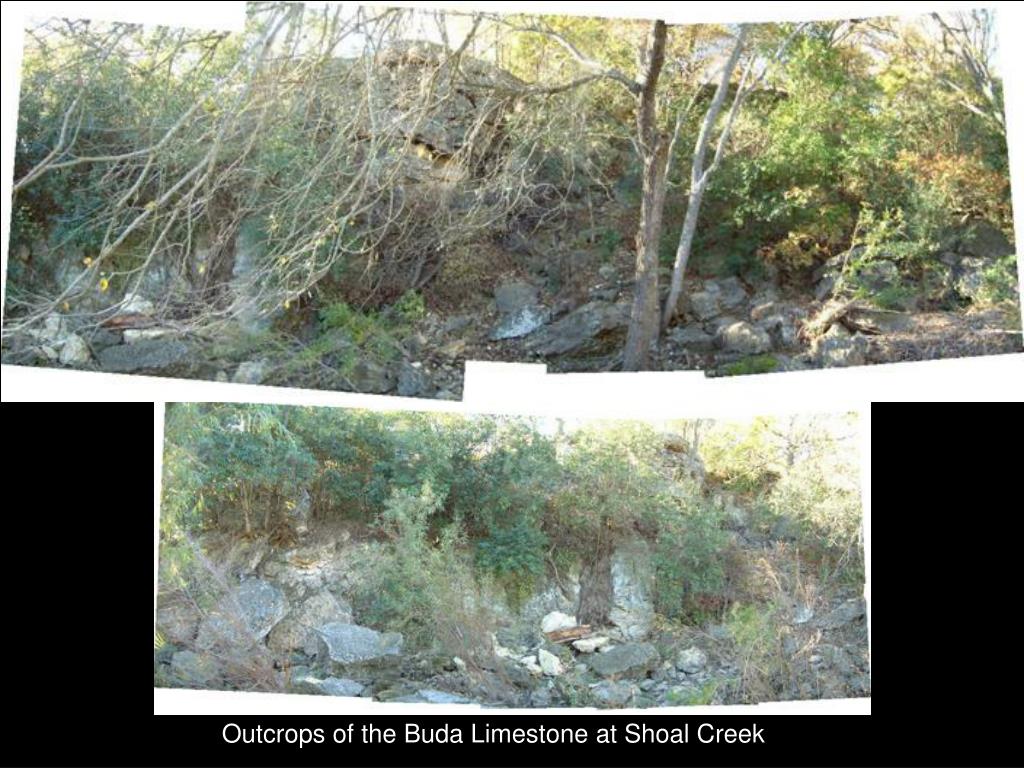

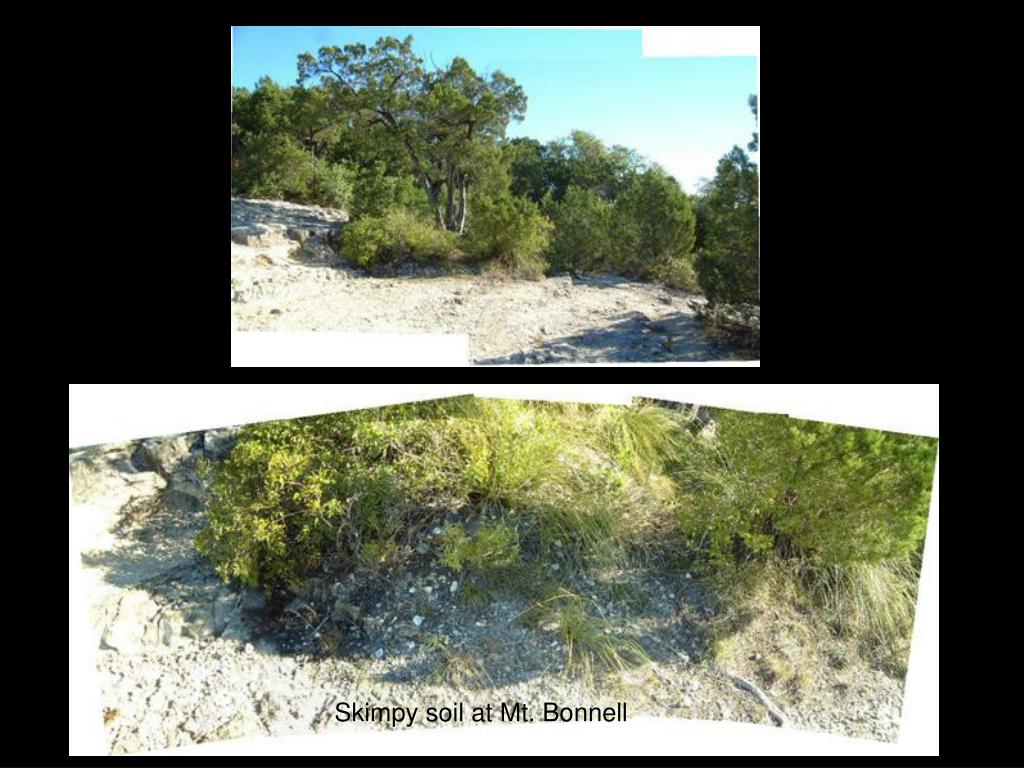

The Relationship Between Geology and Soil Development in Austin, Texas. Rob Forkner. Map courtesy of Sue Hvorka, BEG. Mt. Bonnell Fault. View from the top of Mt. Bonnell. Outcrop of the Glen Rose Limestone at Mt. Bonnell. Skimpy soil at Mt. Bonnell.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'The Relationship Between Geology and Soil Development in Austin, Texas' - ama


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

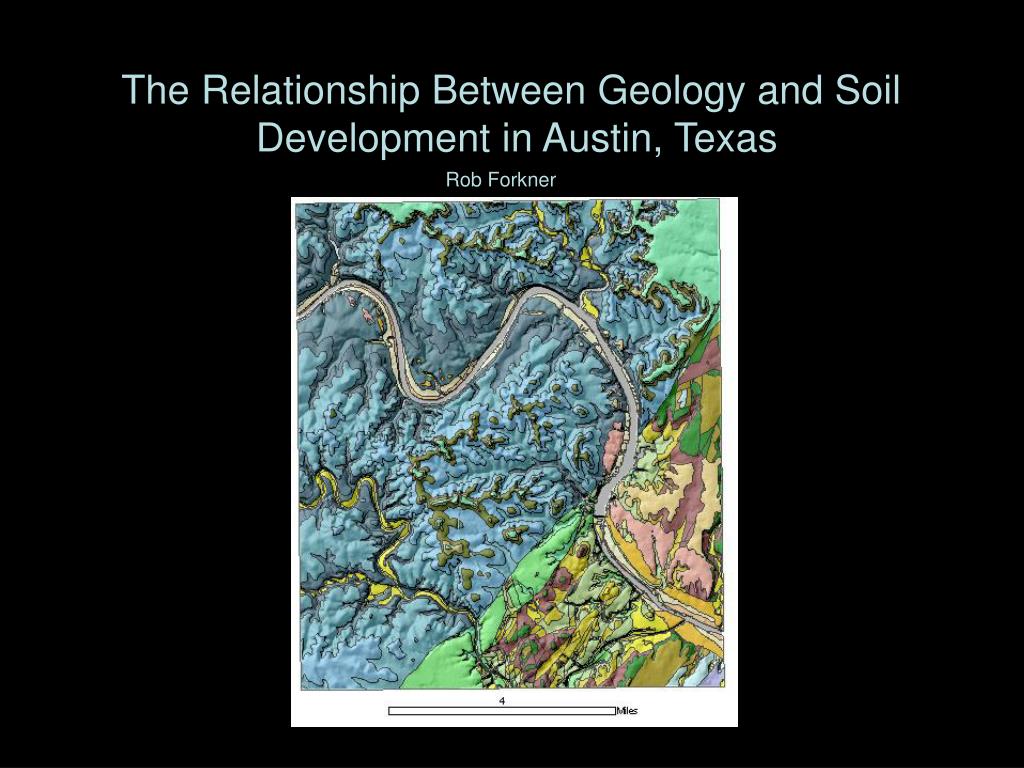

The Relationship Between Geology and Soil

Development in Austin, Texas

Rob Forkner

slide8

VS.

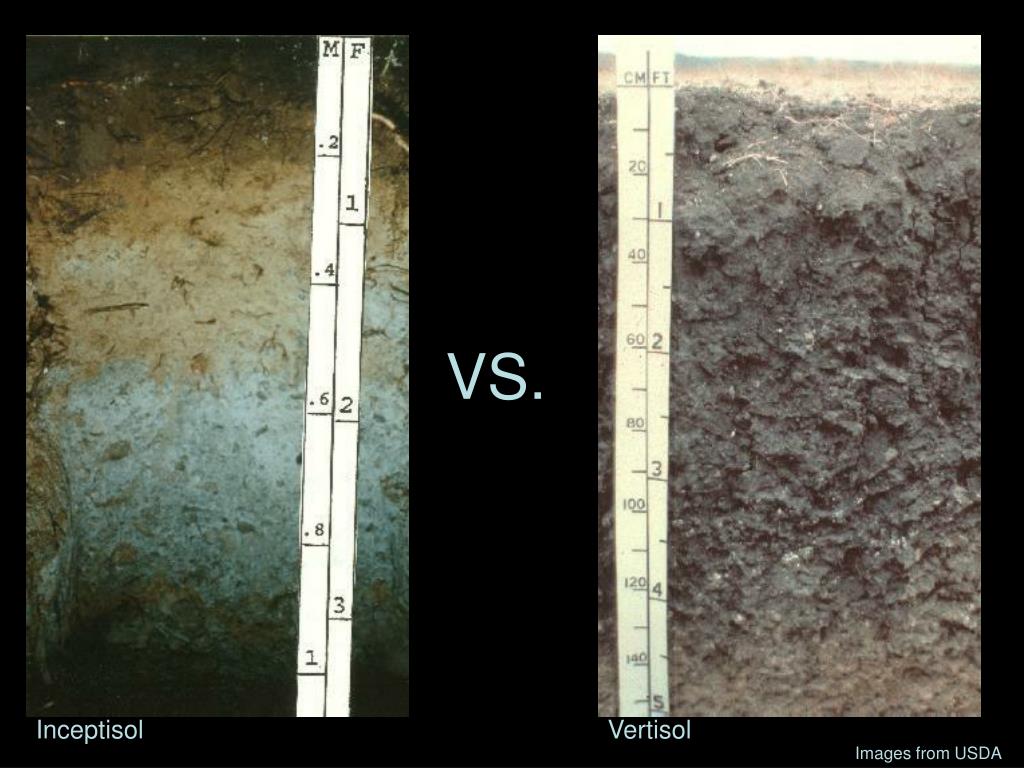

Inceptisol

Vertisol

Images from USDA

slide9

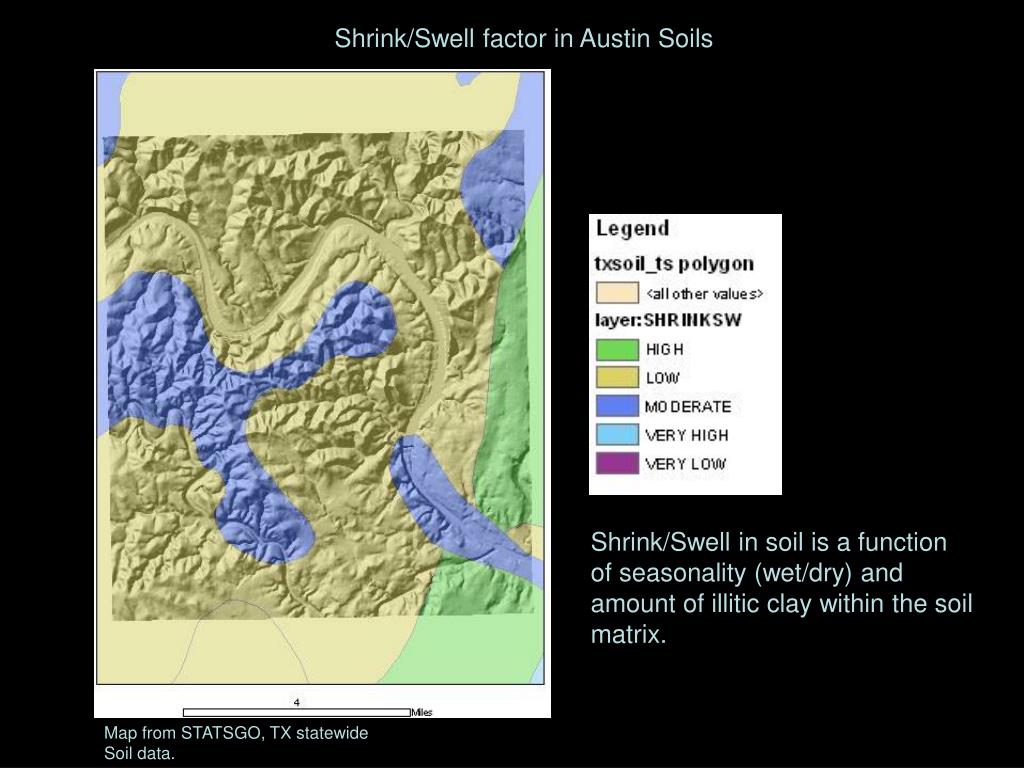

Shrink/Swell factor in Austin Soils

Shrink/Swell in soil is a function

of seasonality (wet/dry) and

amount of illitic clay within the soil

matrix.

Map from STATSGO, TX statewide

Soil data.

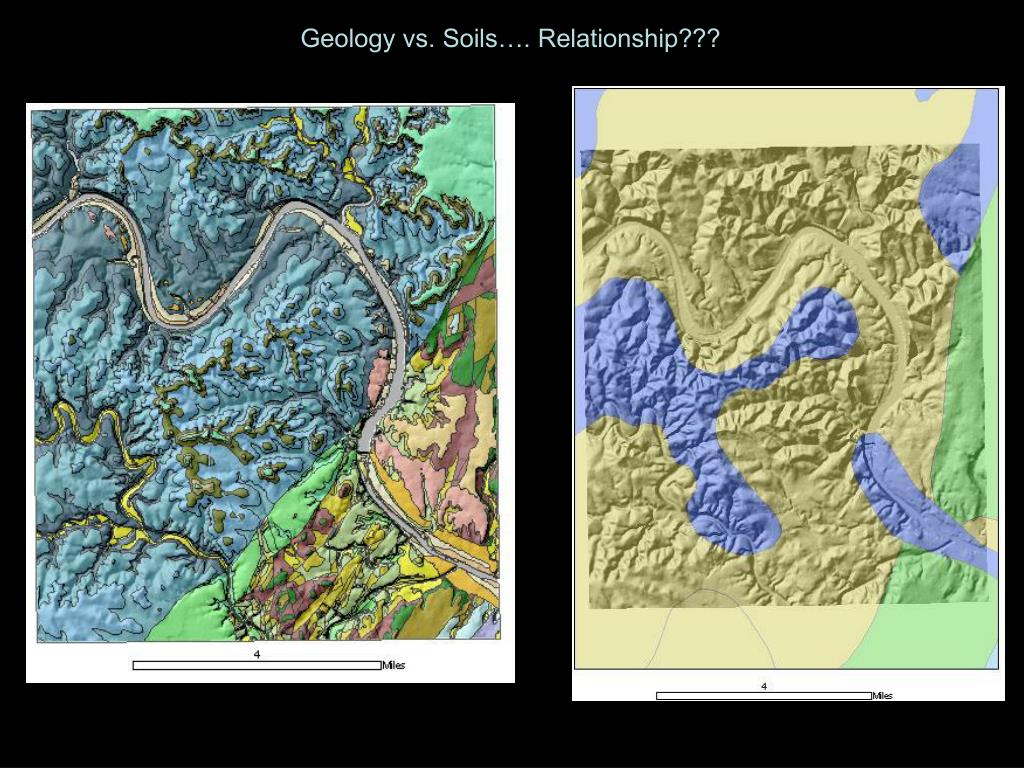

slide11

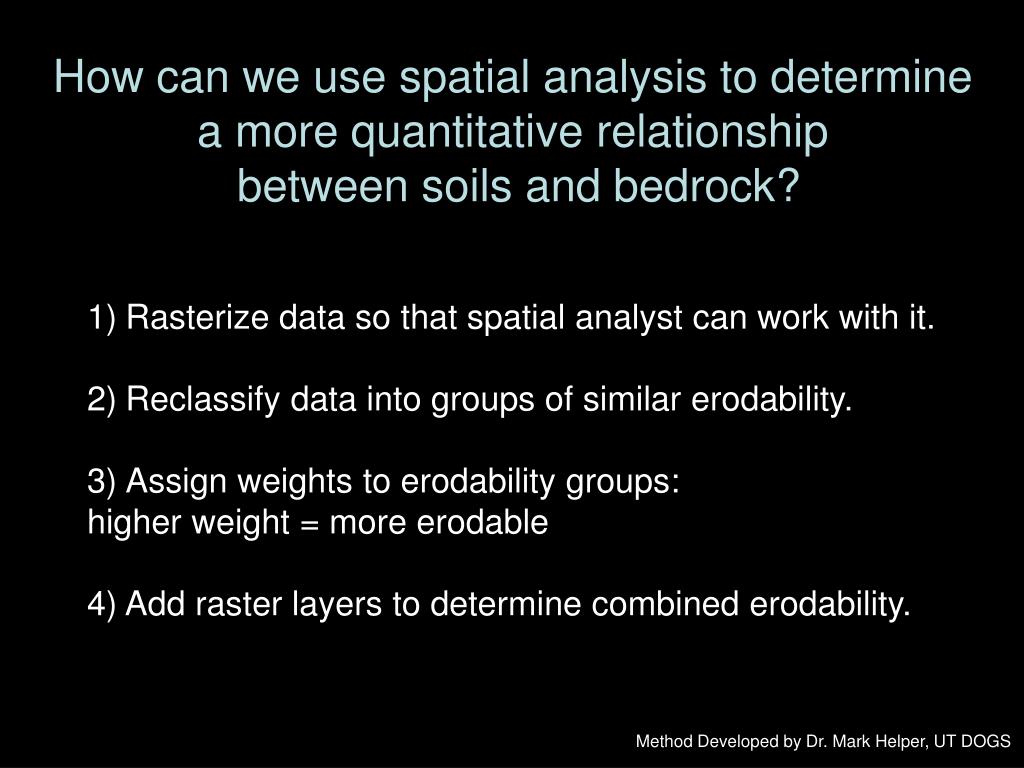

How can we use spatial analysis to determine

a more quantitative relationship

between soils and bedrock?

  • Rasterize data so that spatial analyst can work with it.
  • Reclassify data into groups of similar erodability.
  • Assign weights to erodability groups:
  • higher weight = more erodable
  • 4) Add raster layers to determine combined erodability.

Method Developed by Dr. Mark Helper, UT DOGS

slide12

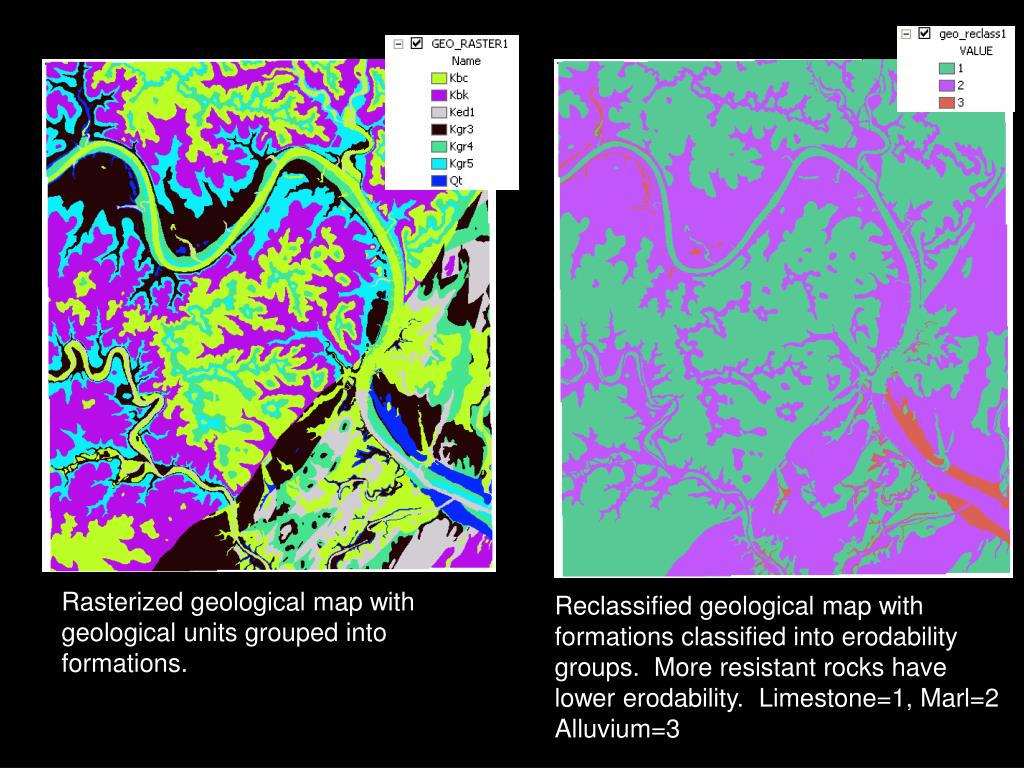

Rasterized geological map with geological units grouped into formations.

Reclassified geological map with

formations classified into erodability

groups. More resistant rocks have

lower erodability. Limestone=1, Marl=2

Alluvium=3

slide13

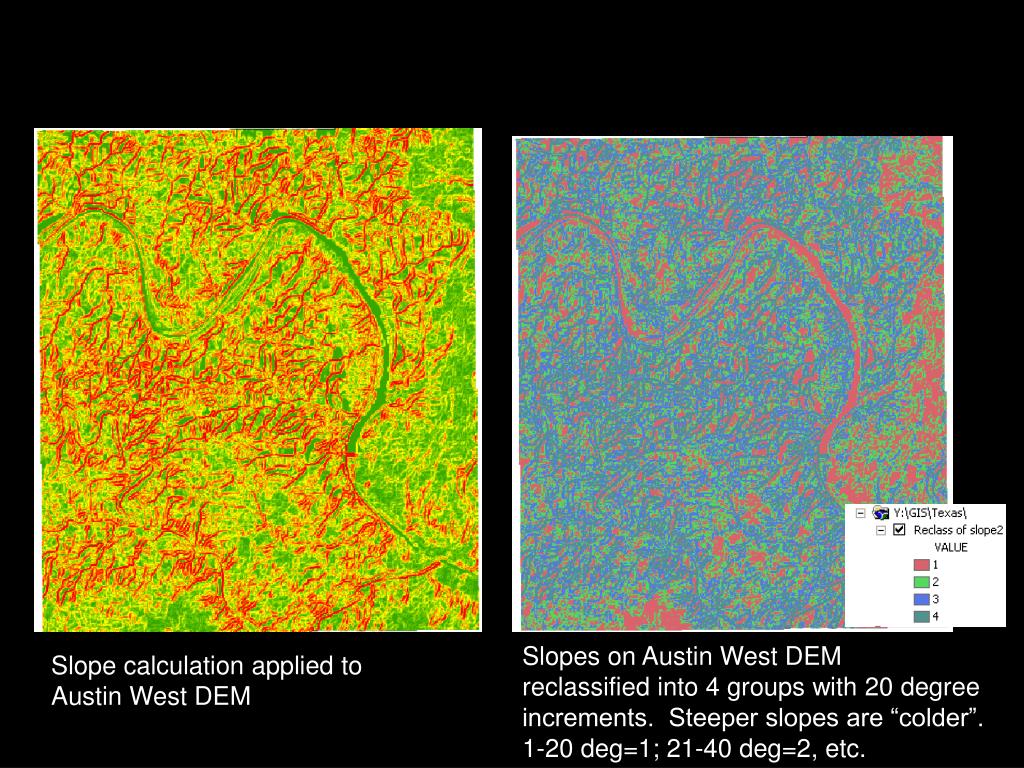

Slopes on Austin West DEM

reclassified into 4 groups with 20 degree increments. Steeper slopes are “colder”.

1-20 deg=1; 21-40 deg=2, etc.

Slope calculation applied to

Austin West DEM

slide14

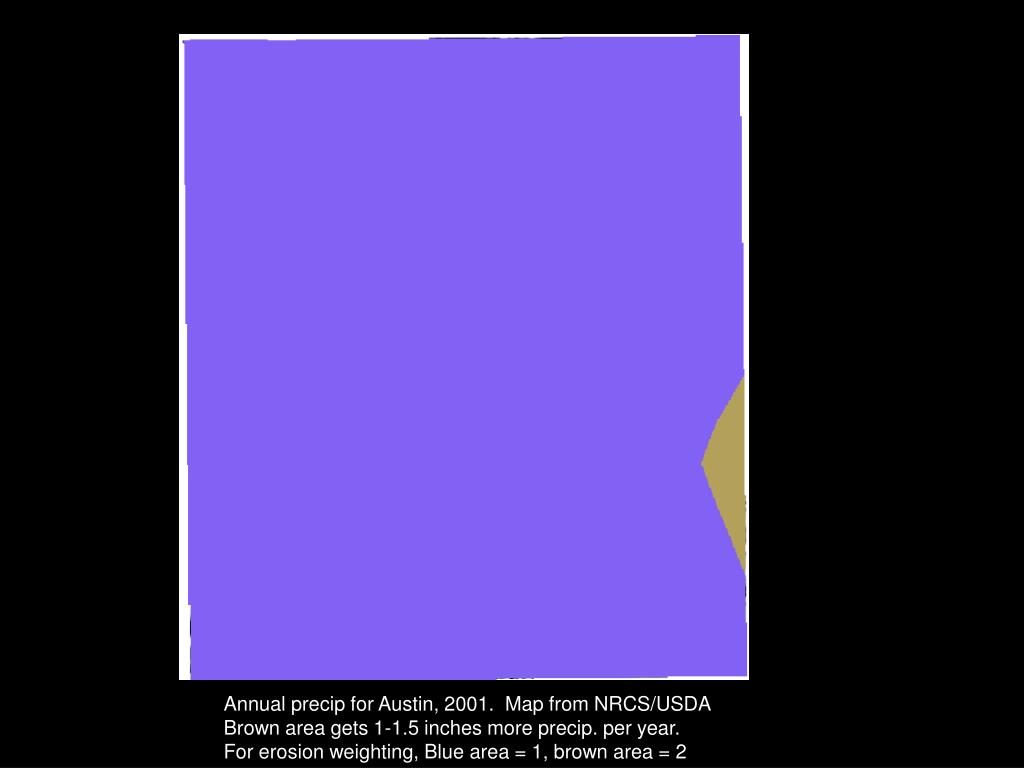

Annual precip for Austin, 2001. Map from NRCS/USDA

Brown area gets 1-1.5 inches more precip. per year.

For erosion weighting, Blue area = 1, brown area = 2

slide15

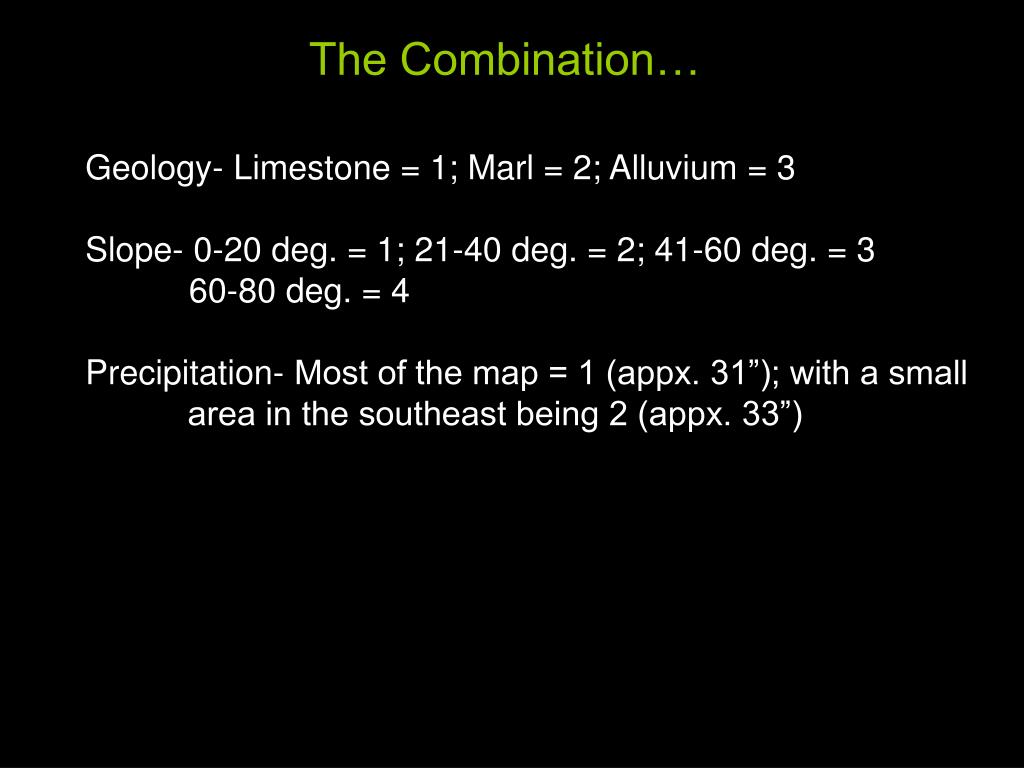

The Combination…

Geology- Limestone = 1; Marl = 2; Alluvium = 3

Slope- 0-20 deg. = 1; 21-40 deg. = 2; 41-60 deg. = 3

60-80 deg. = 4

Precipitation- Most of the map = 1 (appx. 31”); with a small

area in the southeast being 2 (appx. 33”)

slide16

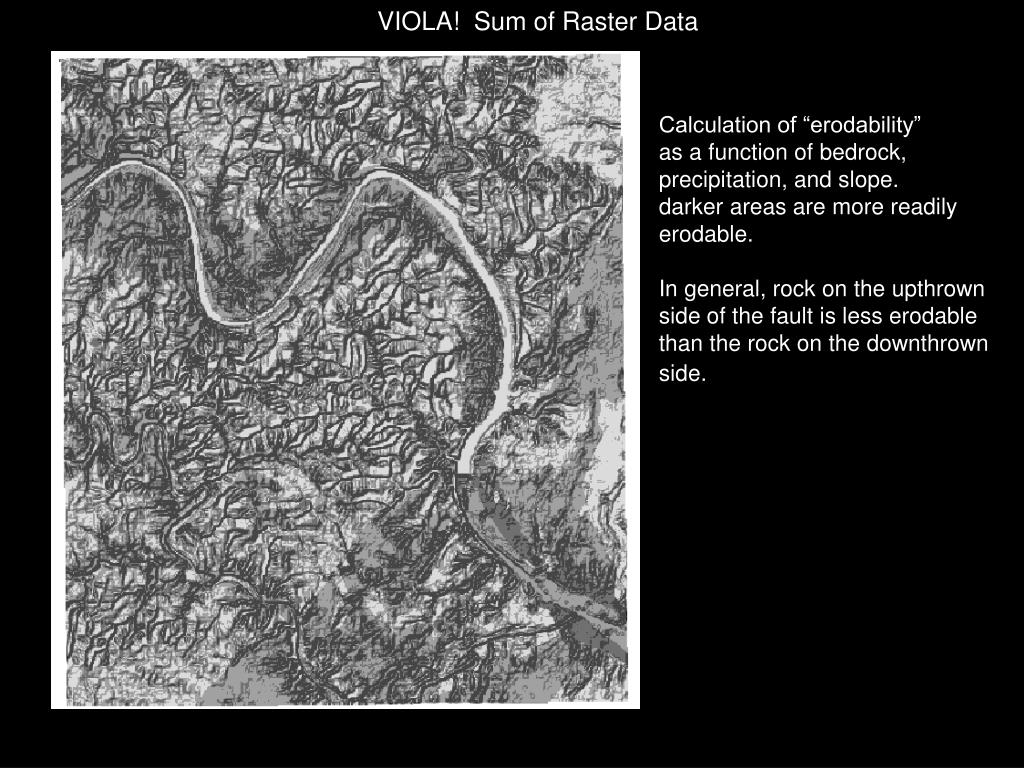

VIOLA! Sum of Raster Data

Calculation of “erodability”

as a function of bedrock,

precipitation, and slope.

darker areas are more readily

erodable.

In general, rock on the upthrown

side of the fault is less erodable

than the rock on the downthrown

side.

what s next

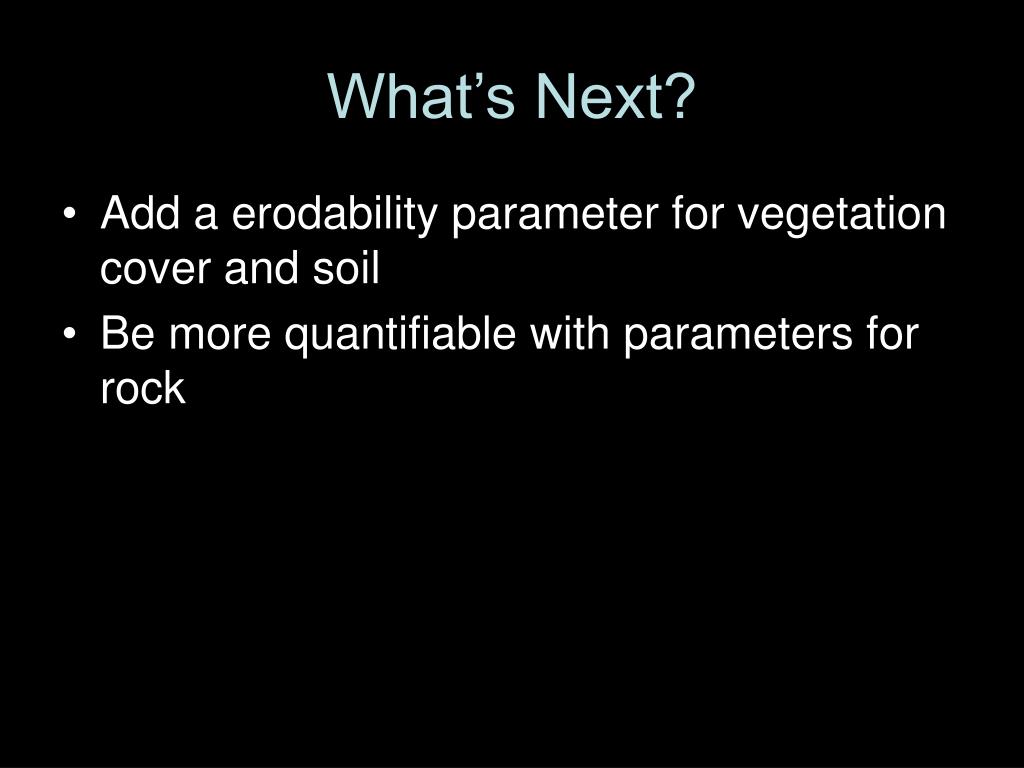

What’s Next?
  • Add a erodability parameter for vegetation cover and soil
  • Be more quantifiable with parameters for rock
ad
