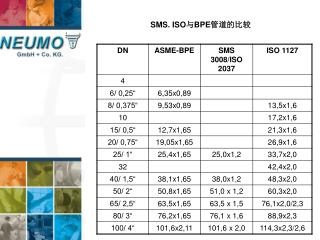

  1. SMS. ISO与BPE管道的比较

  2. ASME BPE 标准的绝对优势 • Controlled Sulfur content of 0.005-0.017%for repeatability in the Automatic Orbital Welding process (Table DT-3, ASME BPE)其硫含量的控制非常严格，必须在0.005-0.017% ，适合自动焊接，不会出现偏弧现象

  3. Automated orbital welding Butt Welding: heat-to-heat variation ELECTRODE ARC SHIFT

  4. Automated orbital welding Weld bead shifting (B) Symmetrical weld puddle shallower & smoother bead. (A) Symmetrical weld puddle with deep penetration.

  5. Degreasing Pickling 1 2 3 4 5 8 9 7 6 Drying Passivating 15 10 11 12 13 14 E.P. D.I. R W W Process Wash 诺盟管件15步清洗过程Set-Up for Cleaning Process 每个管件经过去油脂，去渣，酸洗，钝化，去离子水冲洗

  6. 诺盟BPE管件100%经过严格的检测，保证节约焊接时间，缩短工时诺盟BPE管件100%经过严格的检测，保证节约焊接时间，缩短工时 Technical Supplement for Bio-Pharm Fittings

  7. ASME BPE管道，管件优势 安装，验证及维修 • 易于工程管理 • 降低工程成本及维修成本 • 保证工程质量，管道管件公差一致 • 安装速度快 • 重复焊接机率降低 • 提升贵公司产品质量 • 节约验证时间及费用

  8. ASME-BPE与其他标准的比较
