New in pdm

New In PDM

Peter Pravda

March 2010

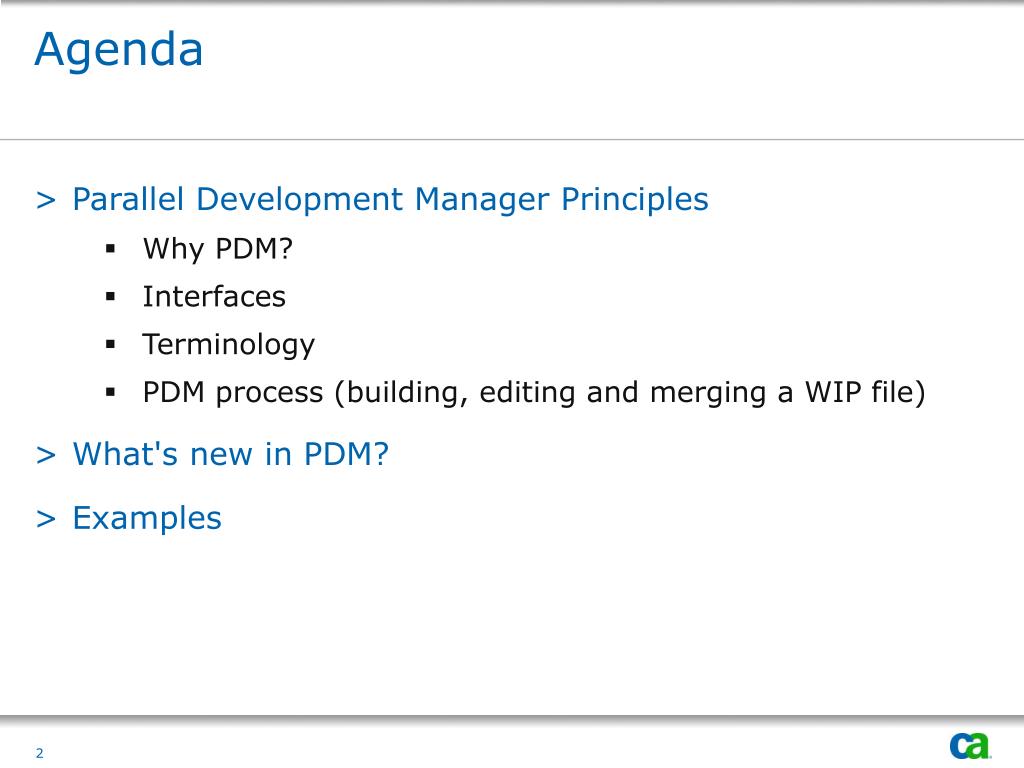

Agenda

Agenda

  • Parallel Development Manager Principles

    • Why PDM?

    • Interfaces

    • Terminology

    • PDM process (building, editing and merging a WIP file)

  • What's new in PDM?

  • Examples


Why pdm parallel development manager intro

QA

DEV

sub1

sub2

main

sub3

sub4

Why PDM?Parallel Development Manager Intro

  • Thousands of elements

  • Multiple programmers working on the same element

  • Parallel inventory mapping

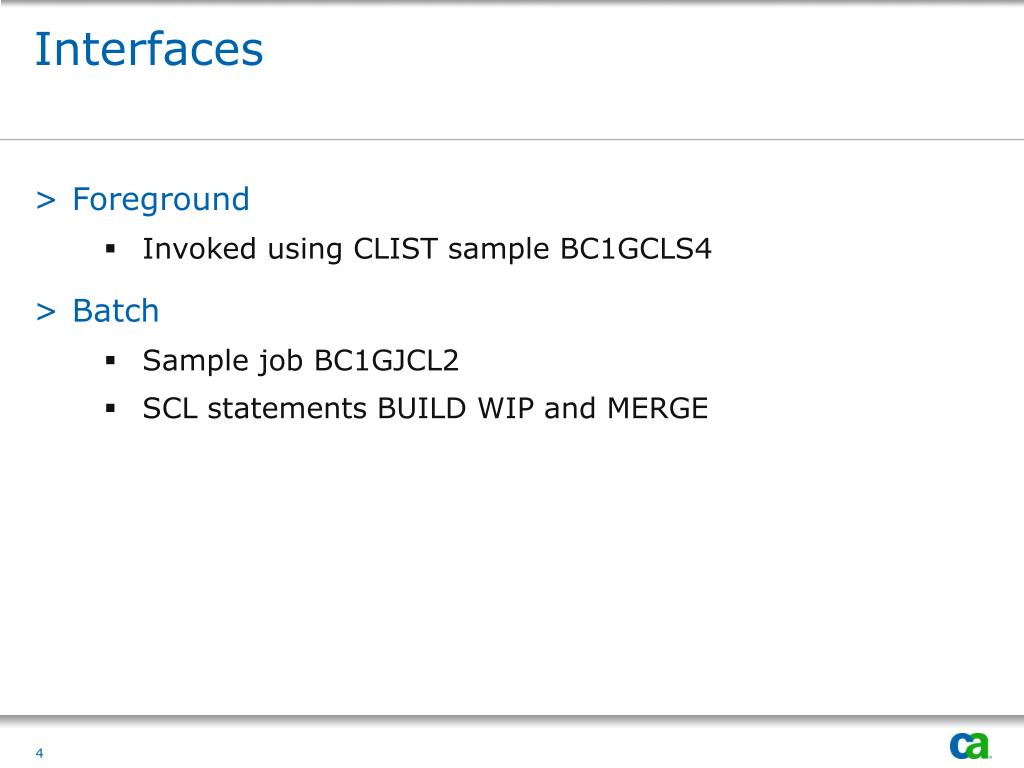

Interfaces

Interfaces

  • Foreground

    • Invoked using CLIST sample BC1GCLS4

  • Batch

    • Sample job BC1GJCL2

    • SCL statements BUILD WIP and MERGE

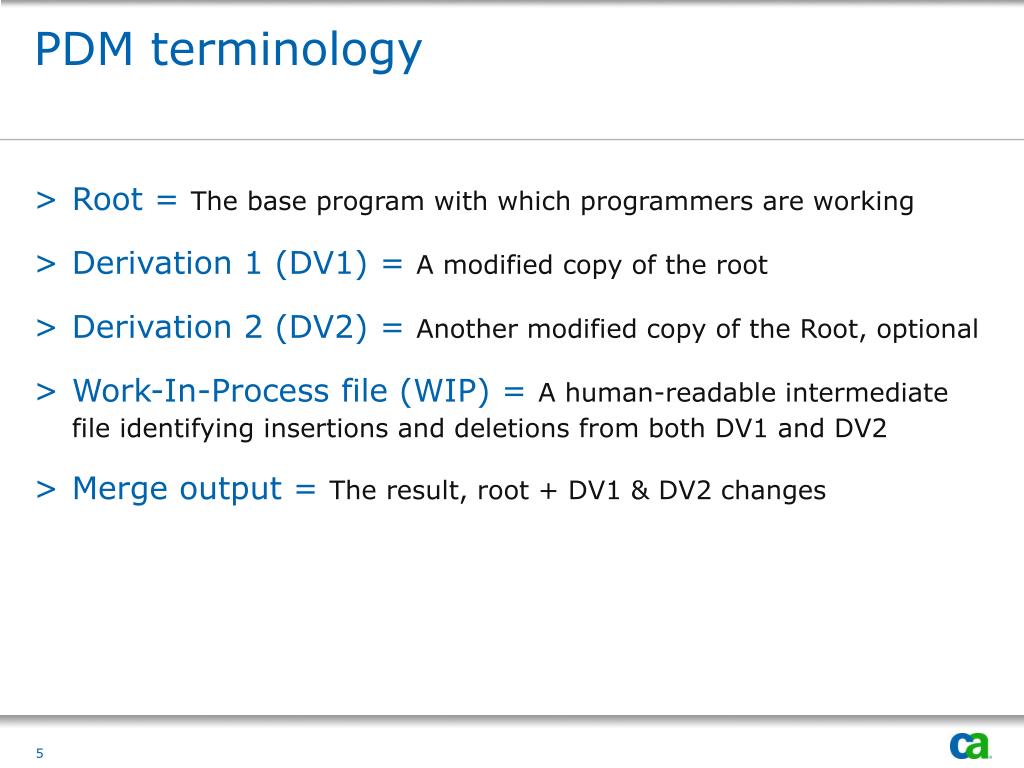

Pdm terminology

PDM terminology

  • Root = The base program with which programmers are working

  • Derivation 1 (DV1) = A modified copy of the root

  • Derivation 2 (DV2) = Another modified copy of the Root, optional

  • Work-In-Process file (WIP) = A human-readable intermediate file identifying insertions and deletions from both DV1 and DV2

  • Merge output = The result, root + DV1 & DV2 changes

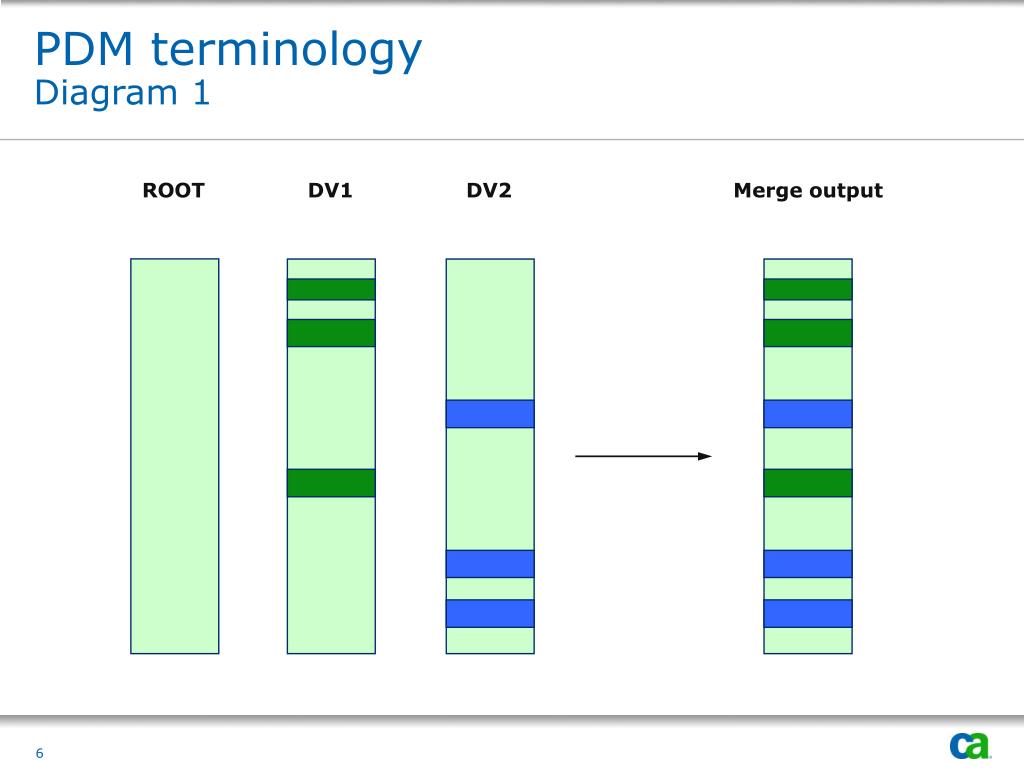

Pdm terminology diagram 1

DV1

DV2

Merge output

ROOT

PDM terminologyDiagram 1

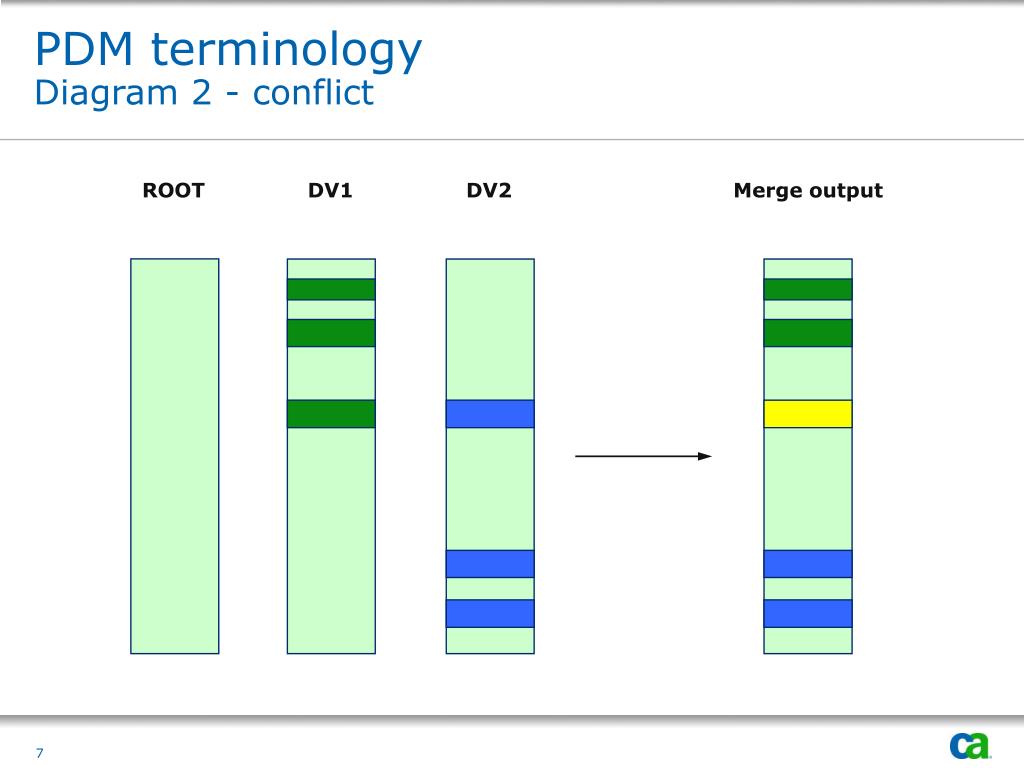

Pdm terminology diagram 2 conflict

DV1

DV2

Merge output

ROOT

PDM terminologyDiagram 2 - conflict

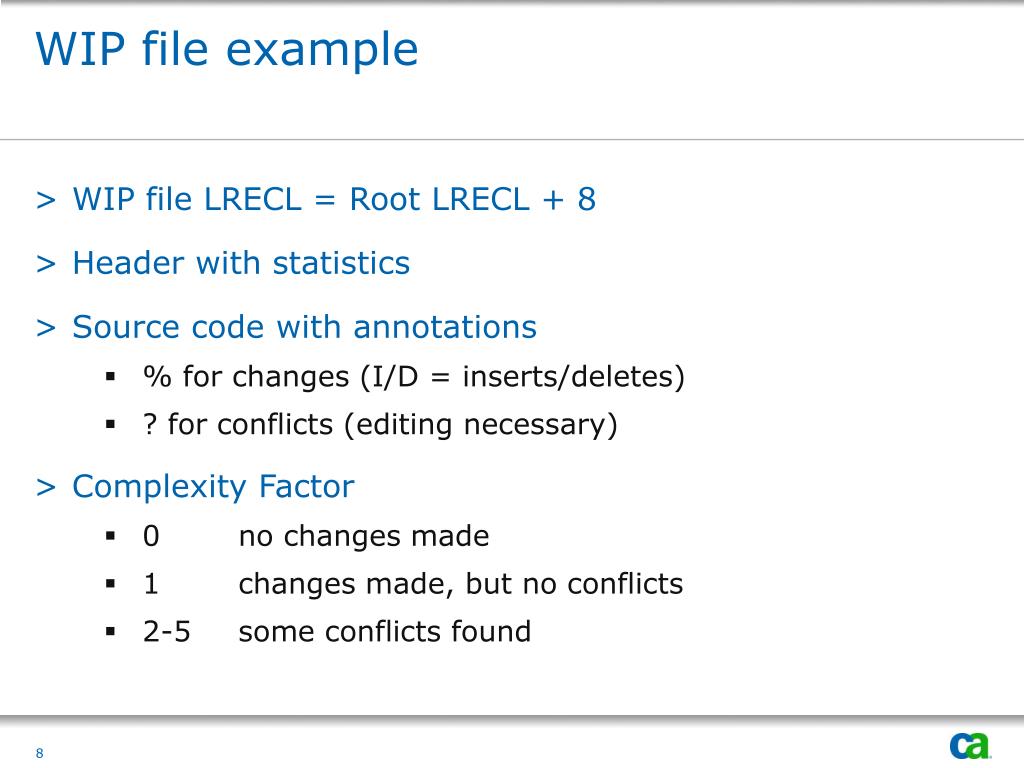

Wip file example

WIP file example

  • WIP file LRECL = Root LRECL + 8

  • Header with statistics

  • Source code with annotations

    • % for changes (I/D = inserts/deletes)

    • ? for conflicts (editing necessary)

  • Complexity Factor

    • 0no changes made

    • 1changes made, but no conflicts

    • 2-5some conflicts found

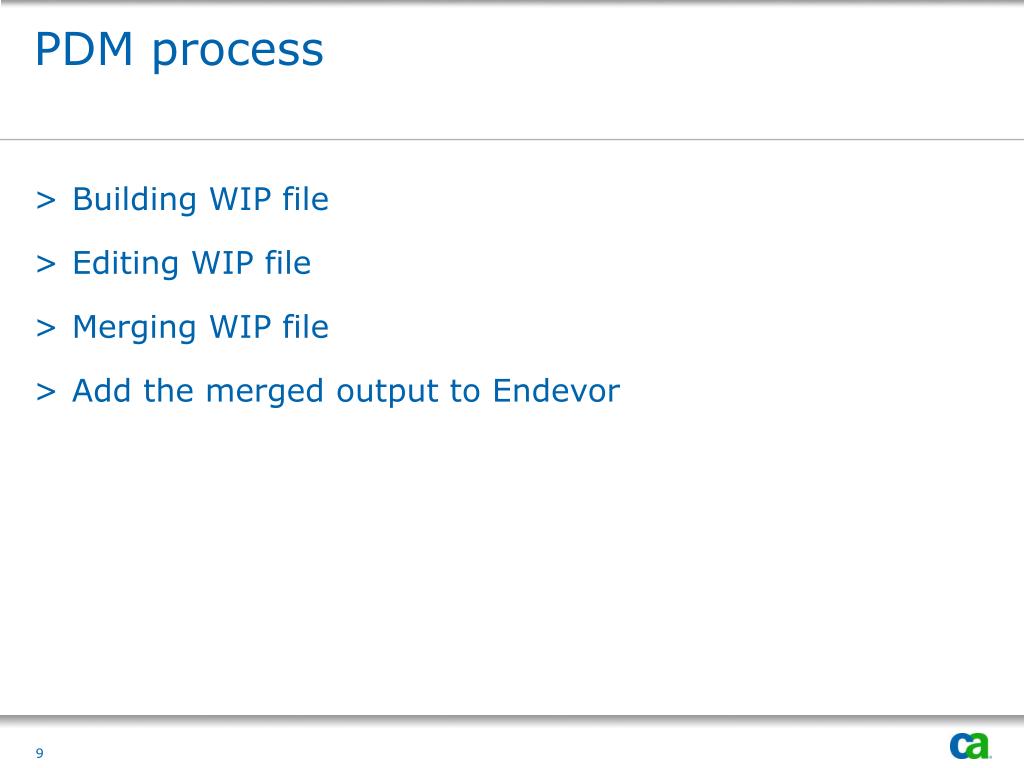

Pdm process

PDM process

  • Building WIP file

  • Editing WIP file

  • Merging WIP file

  • Add the merged output to Endevor

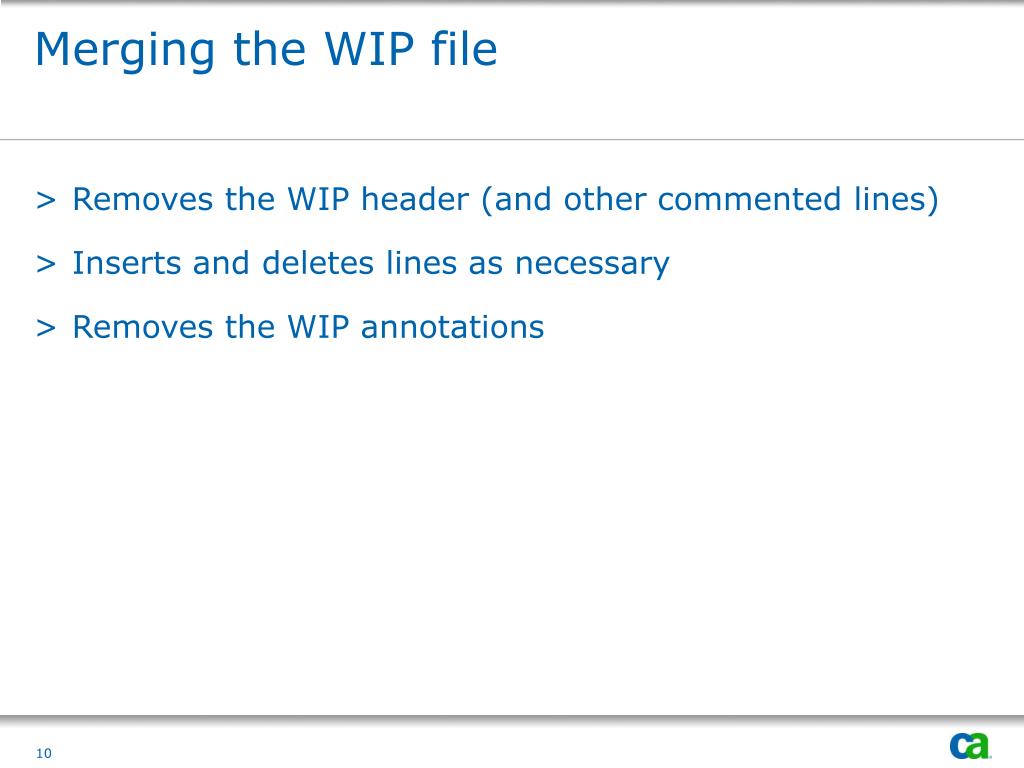

Merging the wip file

Merging the WIP file

  • Removes the WIP header (and other commented lines)

  • Inserts and deletes lines as necessary

  • Removes the WIP annotations


Pdm enhancement new in pdm

PDM EnhancementNew in PDM

  • Introduced in r12 SP3

  • PDM can now merge directly into Endevor

  • Creates two separate levels!

  • Preserves original CCID, comment, date/time and userID of both derivations

  • Updated SCL for batch PDM

  • PDM can be invoked directly from Quick-Edit

    • PD command from Quick-Edit Primary panel


Pdm enhancement sync checking

PDM EnhancementSync checking

  • The output element maps to ROOT

    • Two new change levels are created:

      • 1st new level with DV1 changes

      • 2nd new level with DV1+DV2 changes

  • The output element maps to DV1

    • One new change level is created:

      • A new level with DV1+DV2 changes

  • The output element not mapping to ROOT or DV1

    • Synchronization error

    • Can be overridden with option SYNC NDVR OUTPUT

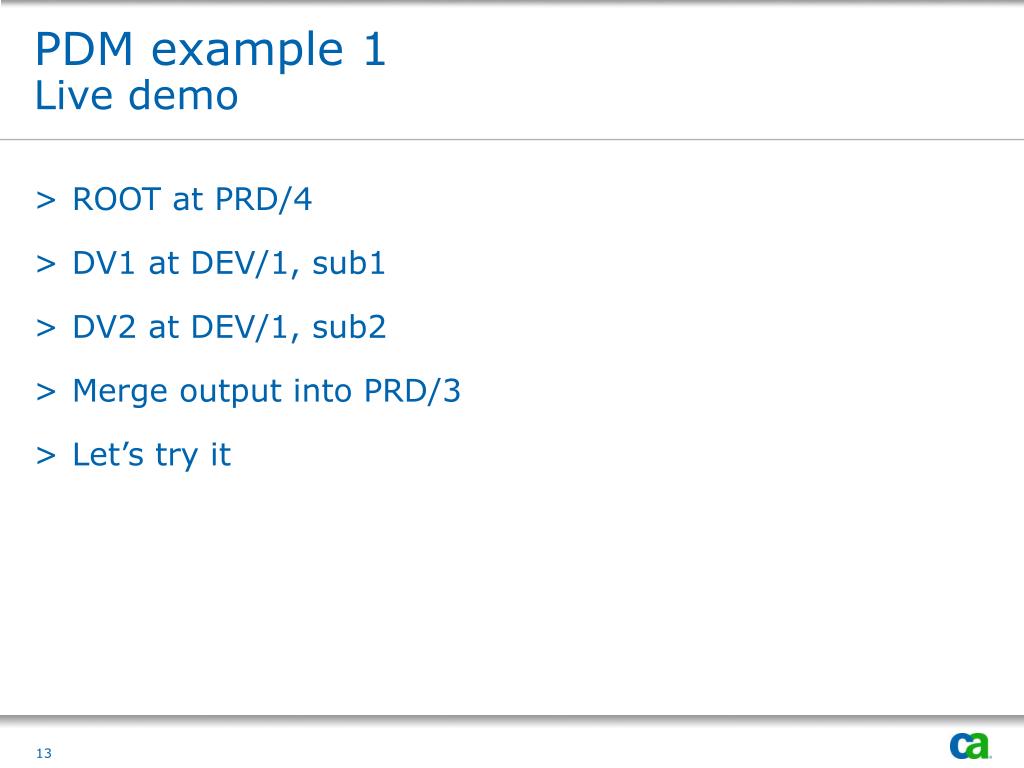

Pdm example 1 live demo

PDM example 1Live demo

  • ROOT at PRD/4

  • DV1 at DEV/1, sub1

  • DV2 at DEV/1, sub2

  • Merge output into PRD/3

  • Let’s try it


Pdm example 2 remove back level of an element

1.15

1.14

1.13

1.12

1.11

1.10

PDM example 2Remove back level of an element

  • An element at level 1.15 (base level 1.00 + 15 change levels)

  • You want to remove change level 1.11, leaving levels 1.12 through 1.15 in the program

    • This level contains 100 inserts, 40 deletes


Pdm example 2 remove back level of an element continued

PDM example 2Remove back level of an element (continued)

1.16

  • The result after merge and add to Endevor:

    • The new version of the element is 1.16

    • Level 1.16 contains 40 inserts, 100 deletes… the opposite of change level 1.11 (100 inserts, 40 deletes)

1.15

DV1

1.14

1.13

1.12

1.11

ROOT

1.10

DV2

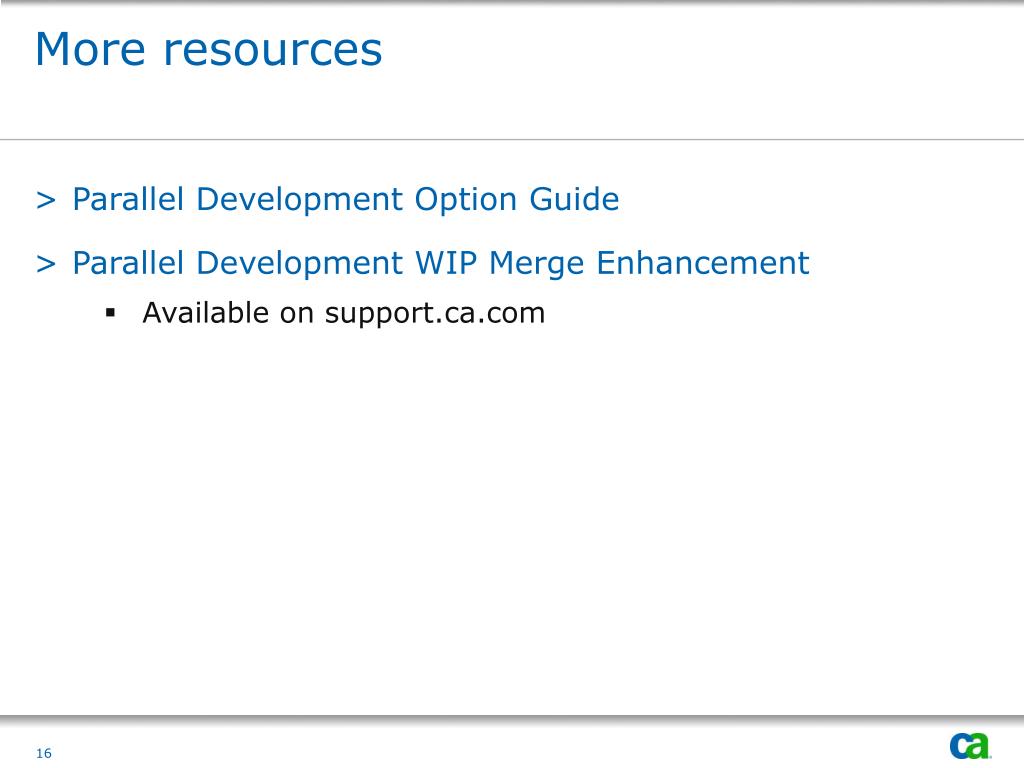

More resources

More resources

  • Parallel Development Option Guide

  • Parallel Development WIP Merge Enhancement

    • Available on support.ca.com


Questions

??? Questions ???
