  1. The Network Structure of Vakıfbank A Presentation By; Murat Irkkan Mert Kaptan

  2. 2 Seperate Lines from 2 Branches / City : 13 Ex: Amasya 2 Branches / City With only 1 Line : 4 Ex: Malatya 1 Branch / City : 36 Ex: Iğdır İstanbul Region Levent / İSTANBUL Pendik Şubesi Iğdır Şubesi Merzifon Şubesi IĞDIR 2610XM Malatya Amasya Şubesi Malatya Ödeme Bürosu İSTANBUL CISCO 7206VXR AMASYA CISCO 2610XM MALATYA CISCO 2610XM EBİS Ostim / ANKARA ANKARA CISCO 7206VXR CISCO 7507 Manavgat Şubesi Karşıyaka Şubesi İZMİR CISCO 7206VXR Total 70 Branch Total 10 Branch Antalya Meşrutiyet Şubesi Kızılay Şubesi ANTALYA CISCO 3745 Alanya Şubesi Ege Region Konak / İZMİR The lines connected to EBIS are channelized E1 From Turkish Telekom ULUS Center Network Cabling & Structure

  3. Cables 

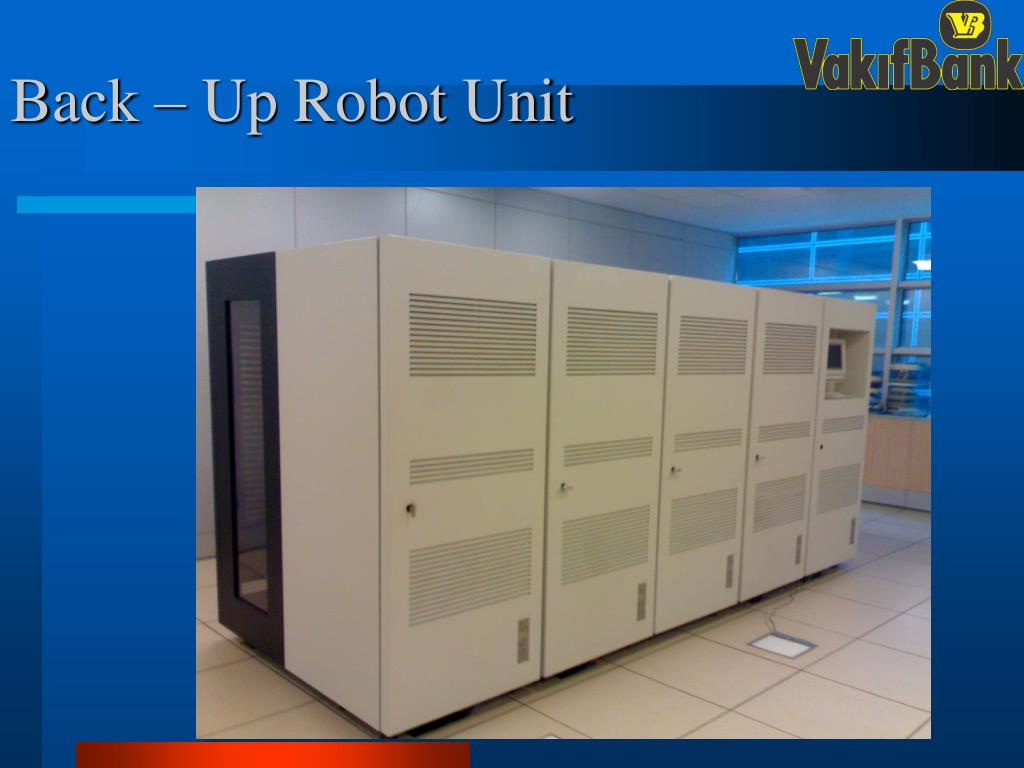

  4. Back – Up Robot Unit

  5. Back – Up Robot Unit

  6. Back – Up Robot Unit

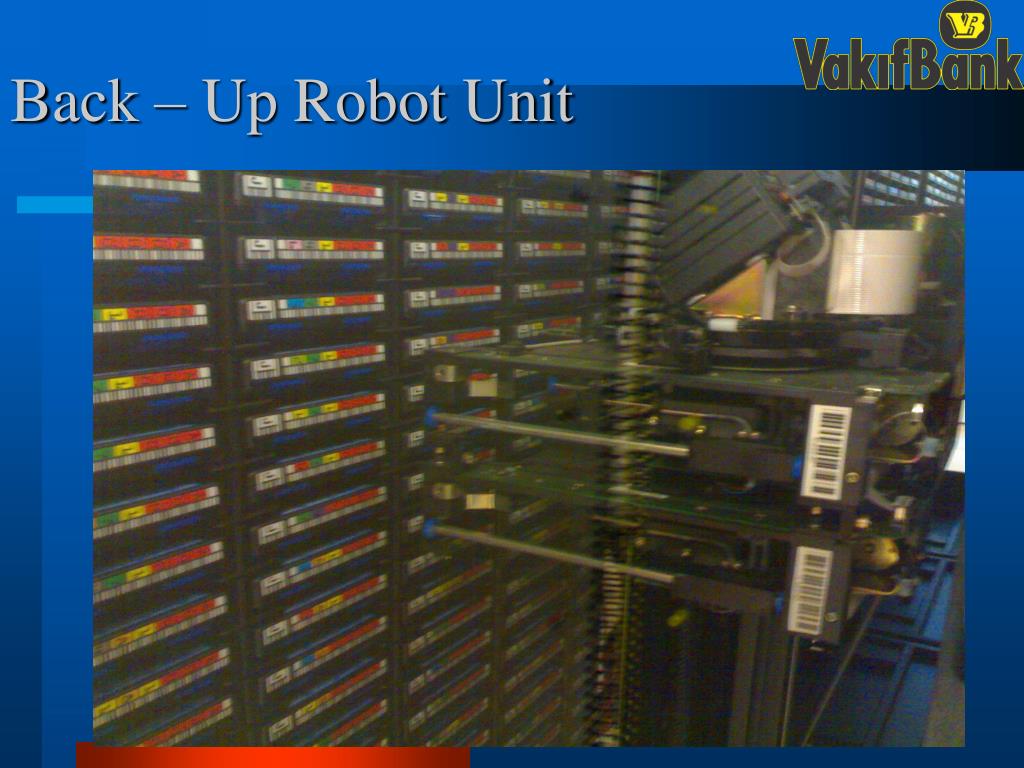

  7. Back – Up Robot Unit

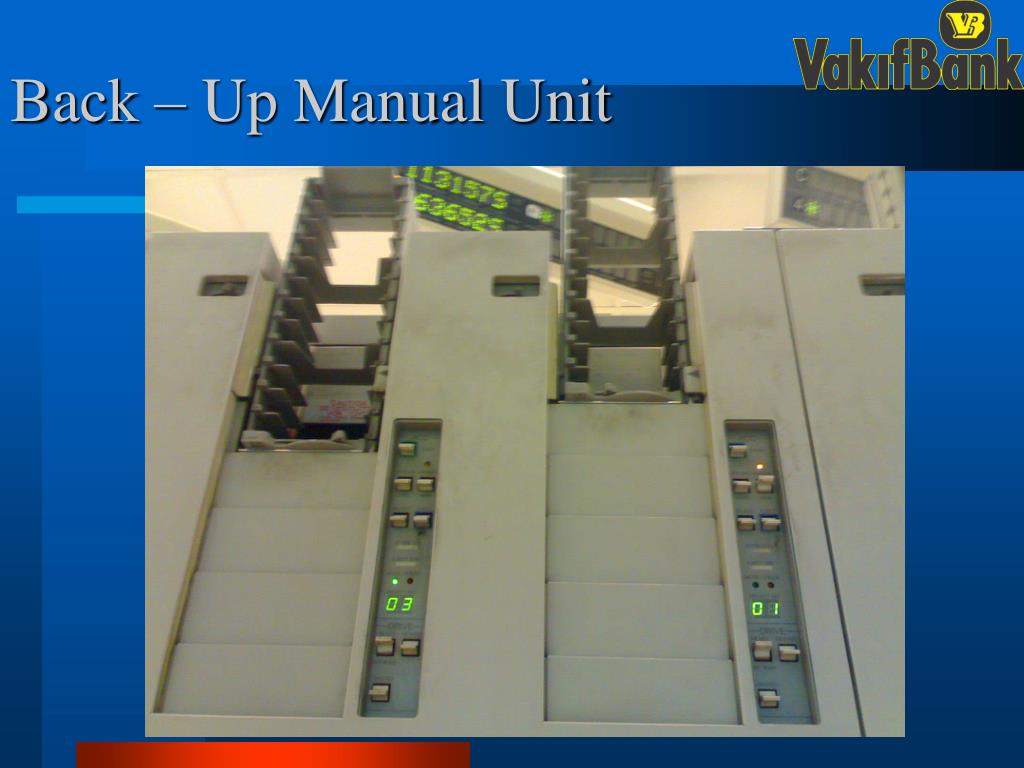

  8. Back – Up Manual Unit

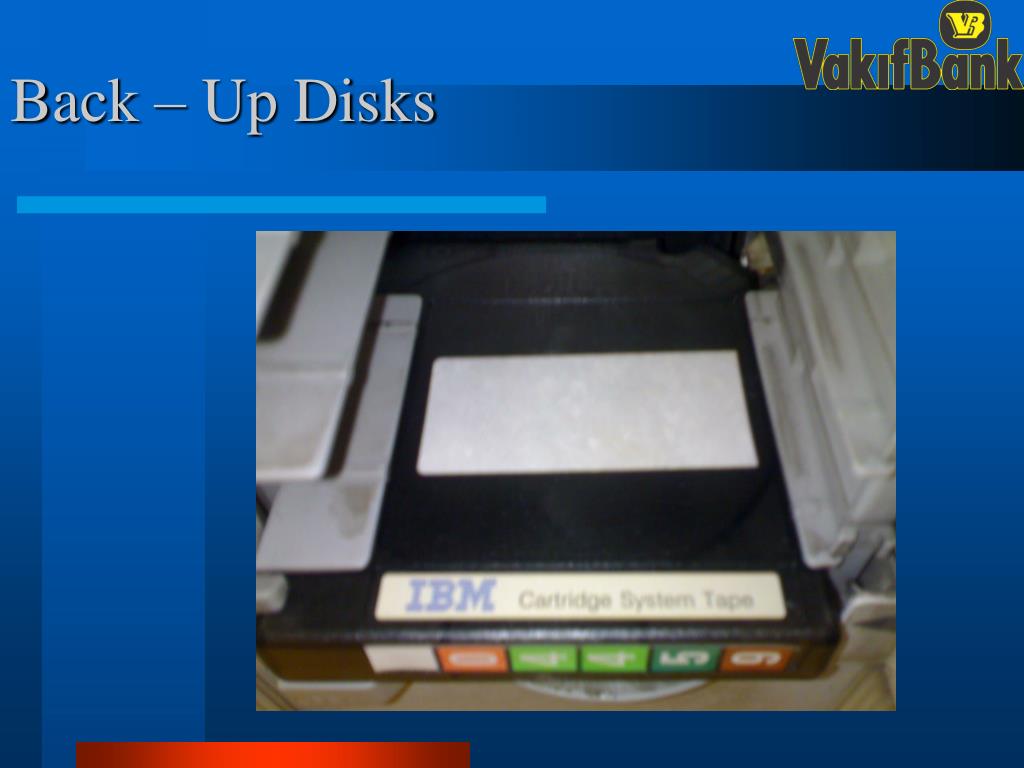

  9. Back – Up Disks

  10. Server Structure & Programs Other Servers D N S WAPLite WAP GW Static Web Server Post.Office Mail Server Intranet AntiVirus IDS eFinance Portal

  11. Back – Up Hardware Unit

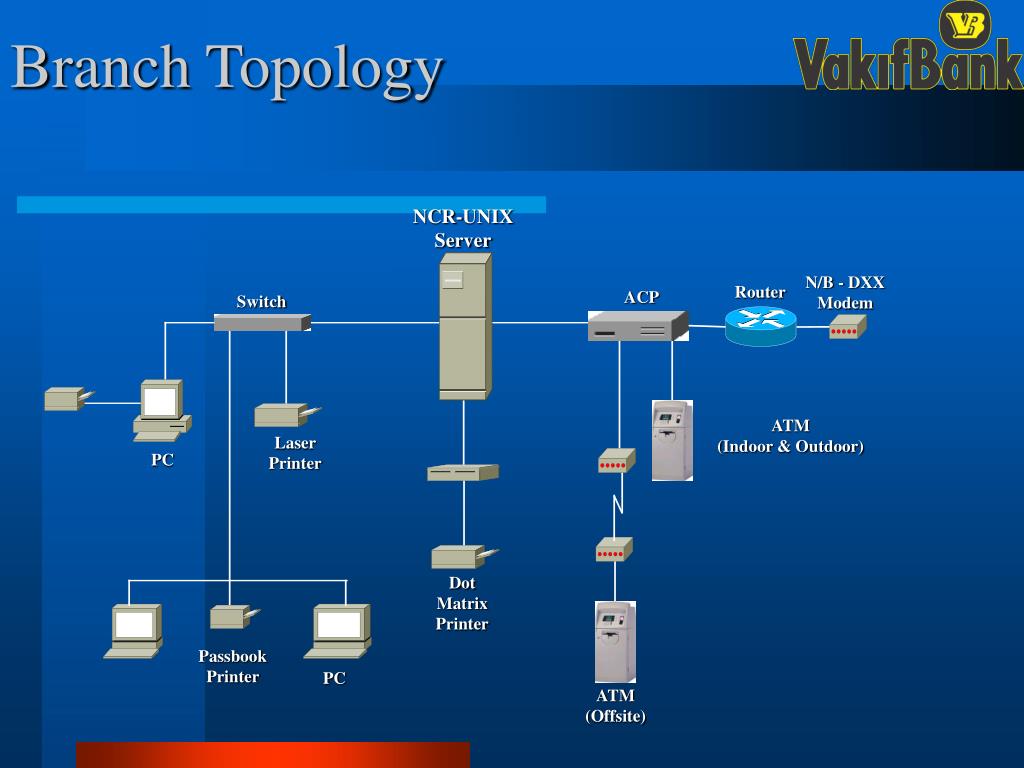

  12. Branch Topology NCR-UNIX Server N/B - DXX Modem Router ACP Switch ATM (Indoor & Outdoor) Laser Printer PC Dot Matrix Printer Passbook Printer PC ATM (Offsite)

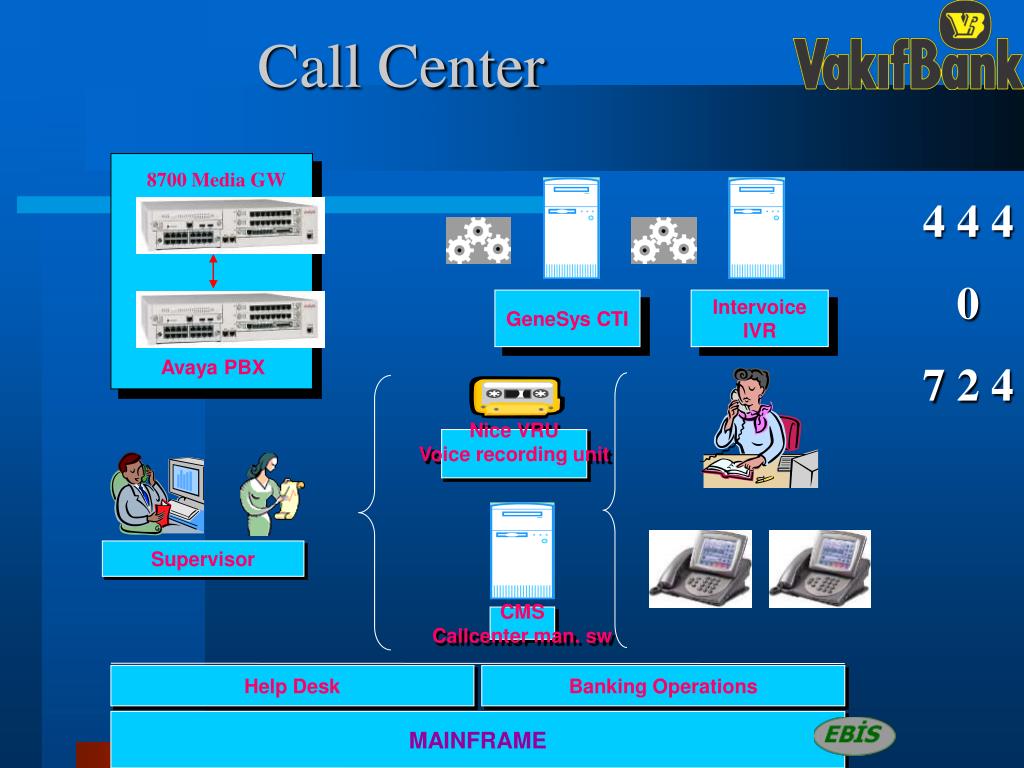

  13. Call Center 8700 Media GW Avaya PBX Supervisor 4 4 4 0 7 2 4 GeneSys CTI Intervoice IVR Nice VRU Voice recording unit CMS Callcenter man. sw Help Desk Banking Operations MAINFRAME

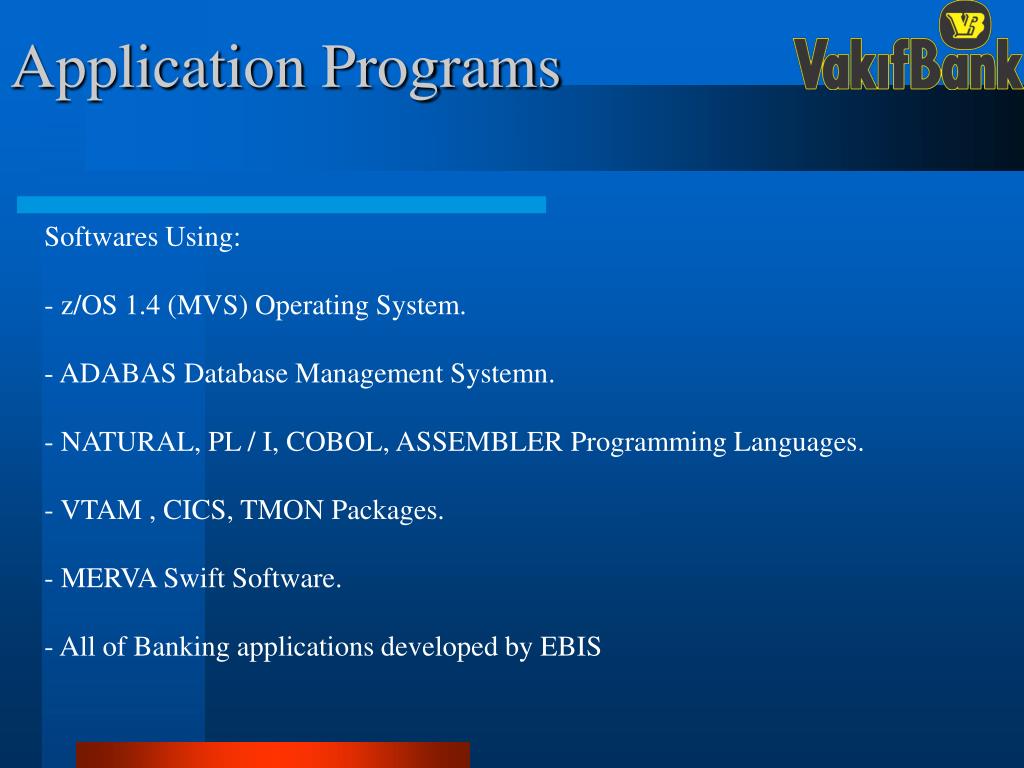

  14. Application Programs Softwares Using: - z/OS 1.4 (MVS) Operating System. - ADABAS Database Management Systemn. - NATURAL, PL / I, COBOL, ASSEMBLER Programming Languages. - VTAM , CICS, TMON Packages. - MERVA Swift Software. - All of Banking applications developed by EBIS

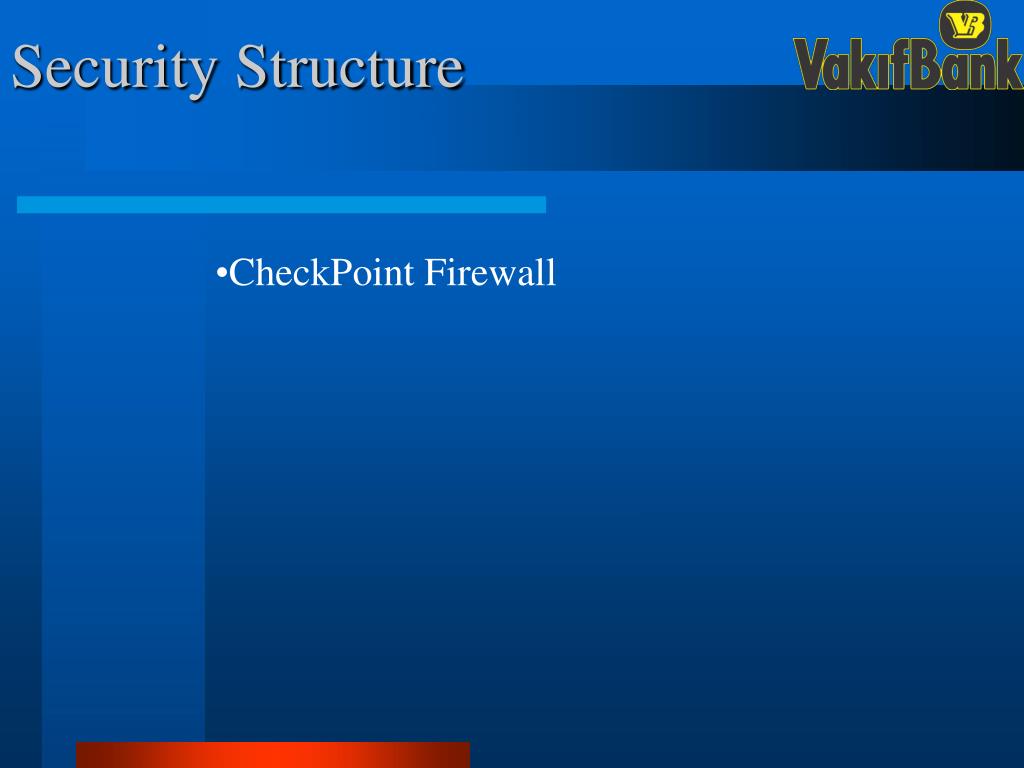

  15. Security Structure • CheckPoint Firewall

  16. Operating Systems • Main Frame: • IBM z/OS 1.4 • Network Monitors: • X.25 • Servers: • Red-Hat Unix O/S • Clients: • Ms – Windows • Linux Client

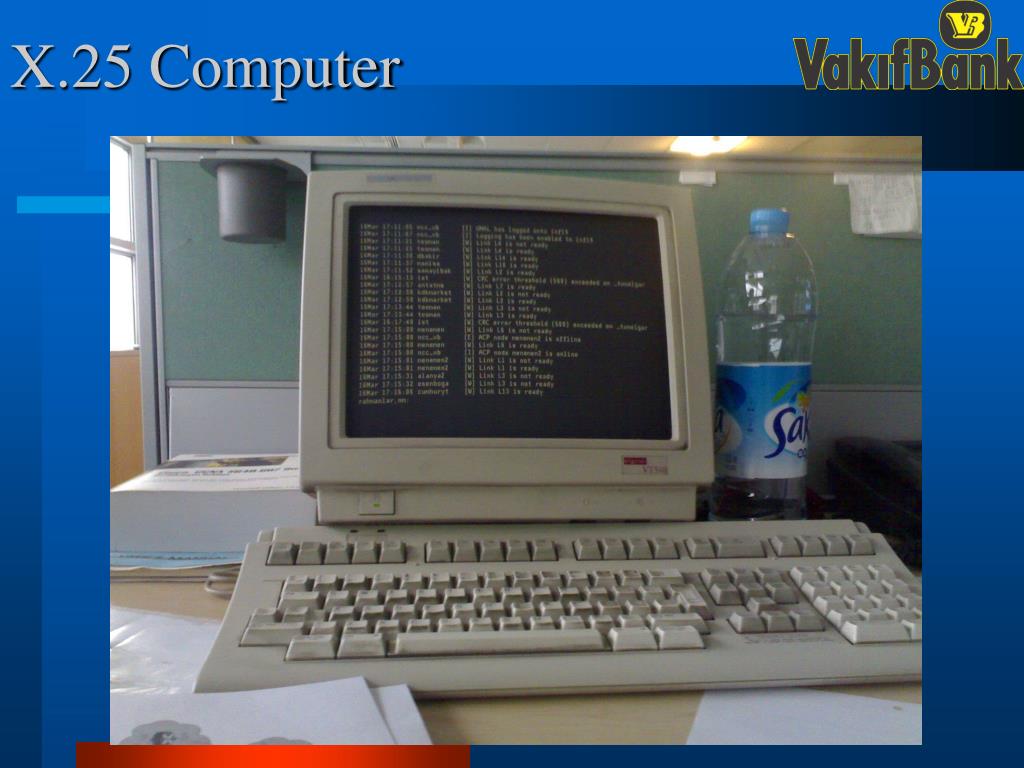

  17. X.25 Computer

  18. Future Plans & Developments Front - End Branch Application Suite Using J2EE & Web Based Approach More Secure & More Quick

  19. Advantages Of Development • Efficient Program Development • Scalable Architecture • Ease Of Use • User Friendly Application

  20. End Of Our Presentation Thank You For Listening
