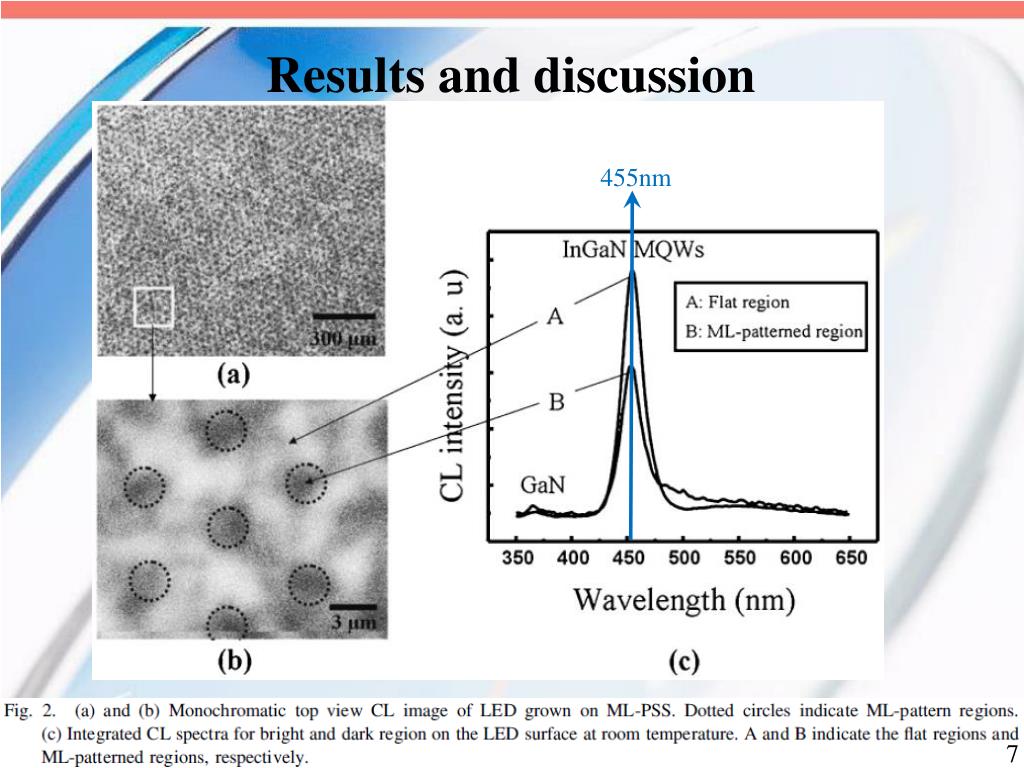

  1. Results and discussion 455nm 7

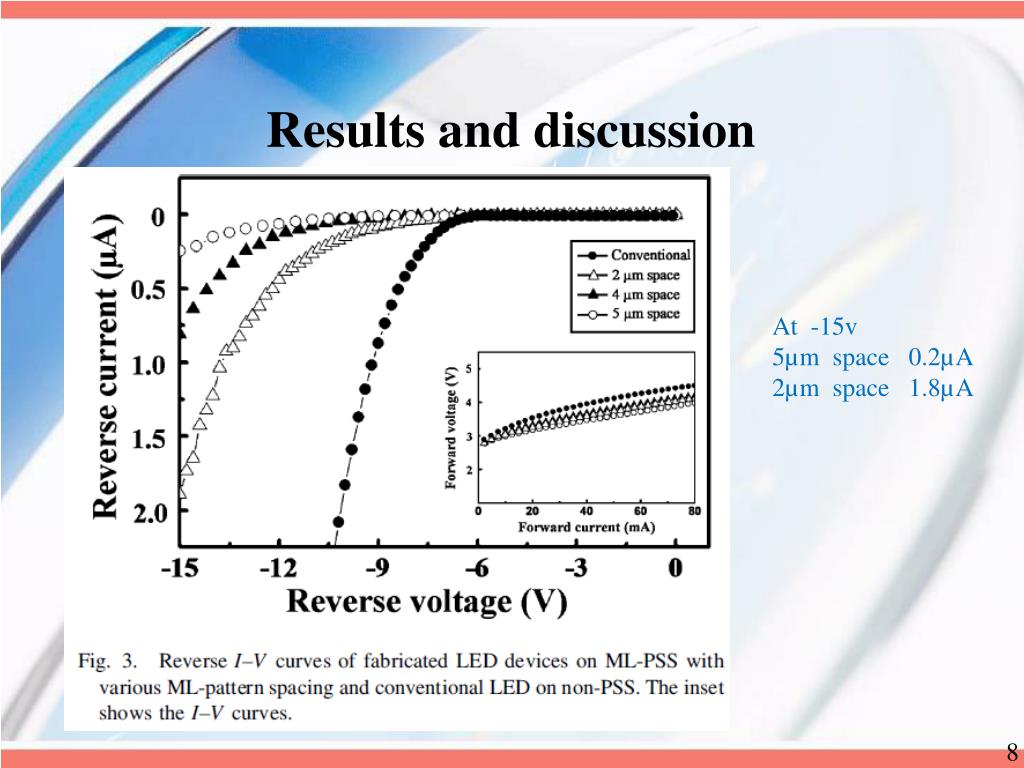

  2. Results and discussion At-15v 5µmspace0.2µA 2µmspace1.8µA 8

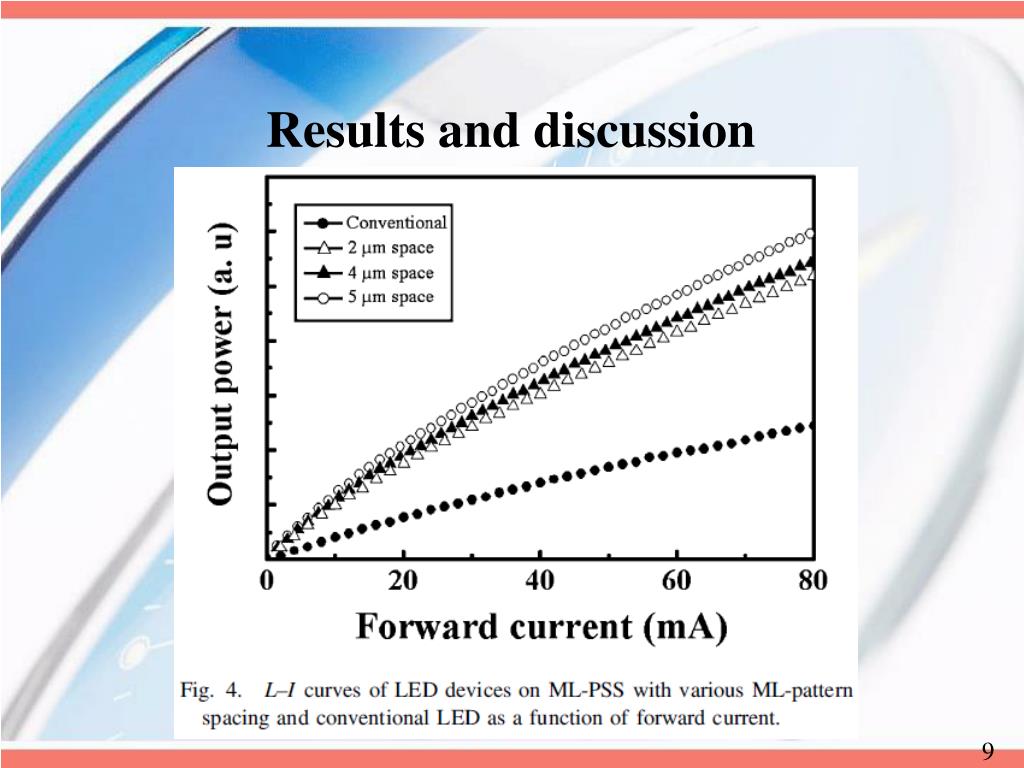

  3. Results and discussion 9

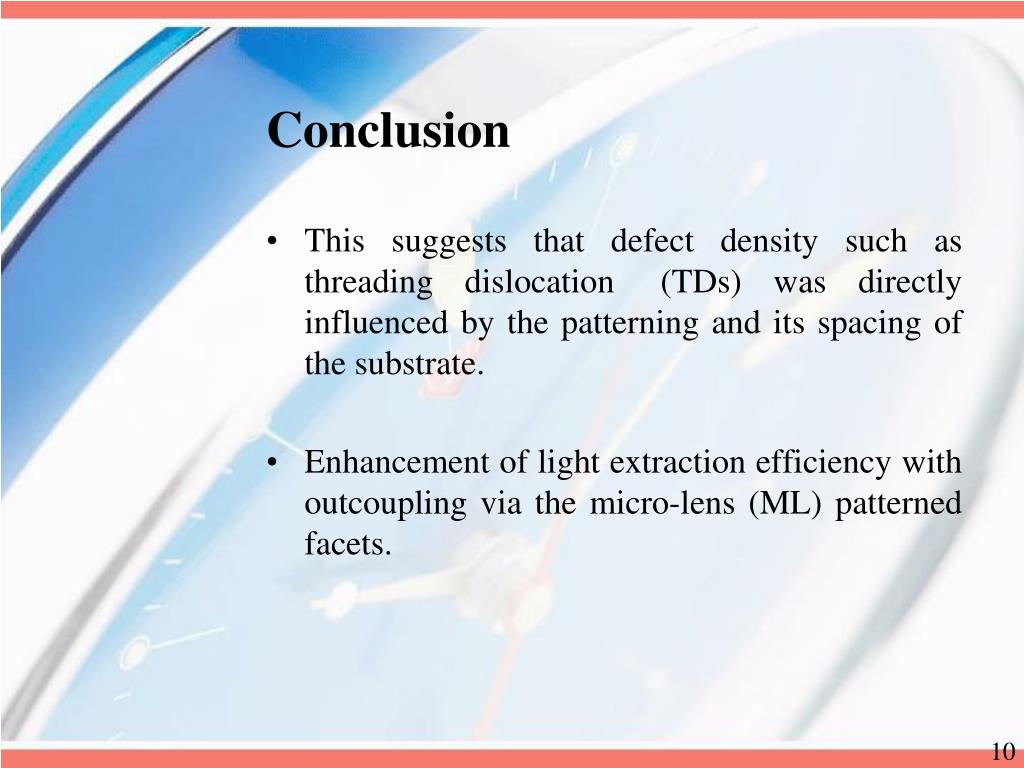

  4. Conclusion • This suggests that defect density such as threading dislocation(TDs) was directly influenced by the patterning and its spacing of the substrate. • Enhancement of light extraction efficiency withoutcoupling via the micro-lens(ML) patterned facets. 10

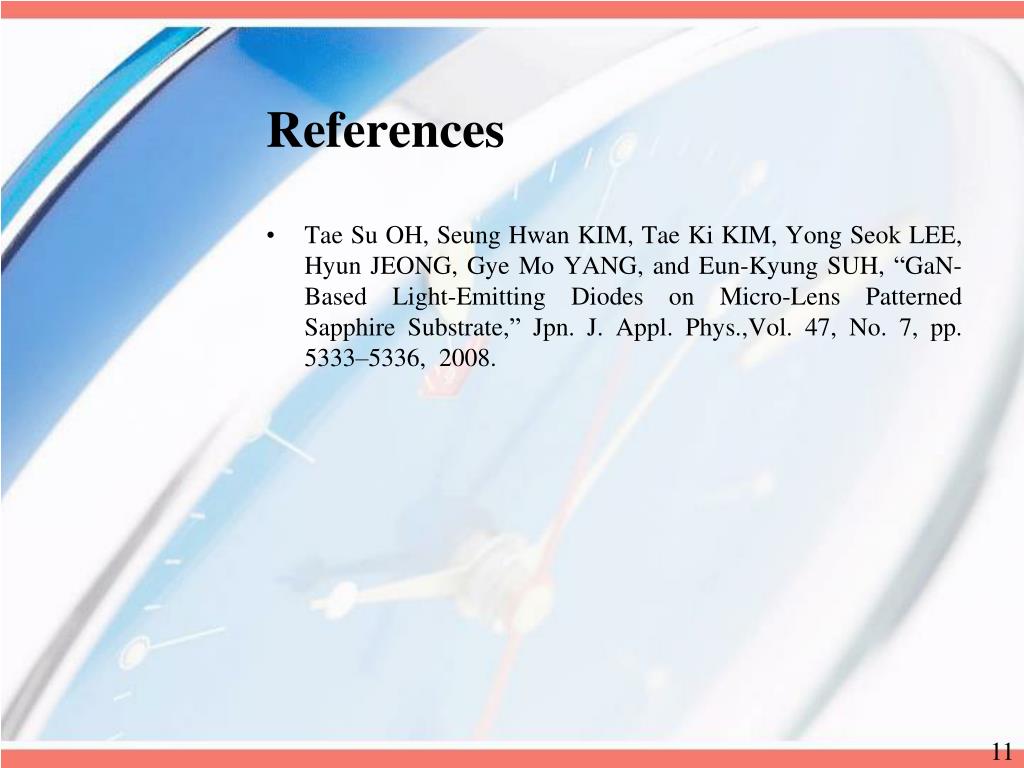

  5. References • Tae Su OH, Seung Hwan KIM, Tae Ki KIM, Yong Seok LEE, Hyun JEONG, Gye Mo YANG, and Eun-Kyung SUH, “GaN-Based Light-Emitting Diodes on Micro-Lens Patterned Sapphire Substrate,” Jpn. J. Appl. Phys.,Vol. 47, No. 7, pp. 5333–5336, 2008. 11

  6. Thanks for your attention ! 12
