Electric field charge flow

ELECTRIC FIELD

&

CHARGE FLOW

PHYSICS FORM 5


Objective

OBJECTIVE:

  • At the end of the lesson, students should be able to:

  • Identify the electric field and charge

  • flow.

  • Identify the electric current.

  • Identify the type of ammeters.

  • Know how to sketch the electric field

  • lines.

  • Identity the effect of electric field

  • acting on a charged body.


Physics form 5

Electric field

Quizzes

Charge flow

M

E

N

U

Summary

Reference


Physics form 5

LETS WATCH A VIDEO…


Physics form 5

L

IGHTNING


Physics form 5

ELECTRIC FIELD

Q1: What causes like charges to repel and unlike

charges to attract?

Answer:

This is because a charged object exerts an electrostatic force (that is attractive force or repulsive force) on nearby objects.


Physics form 5

ELECTRIC FIELD

  • The charge object sets up an electric field in the space around it.

  • When a charge is moving in an electric field, an electric current is said to flow.


Electric field lines

ELECTRIC FIELD LINES

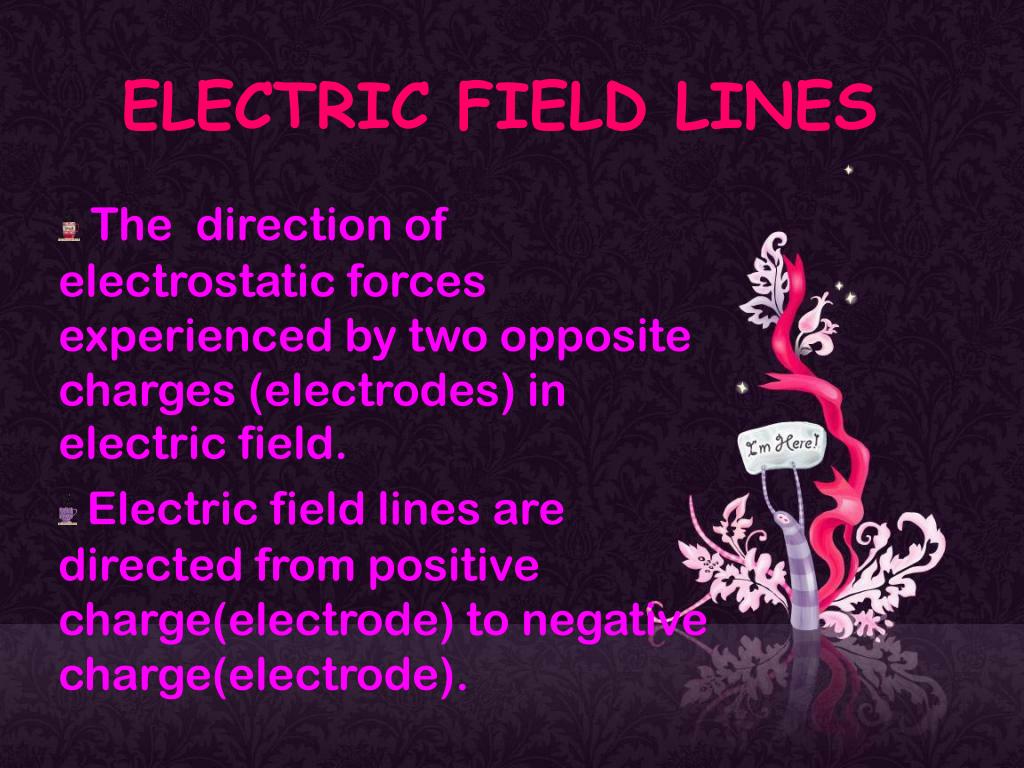

The direction of electrostatic forces experienced by two opposite charges (electrodes) in electric field.

Electric field lines are directed from positive charge(electrode) to negative charge(electrode).


Physics form 5

This figures show the direction of the electrostatic forces…..


Physics form 5

  • The closer the electric fields lines, the stronger electrostatic forces.

  • The electric field lines neither branch off nor intersect one another.


Effect of electric field acting on a charged body

Effect of Electric Field Acting On A Charged Body


Van de graaff

Van de Graaff

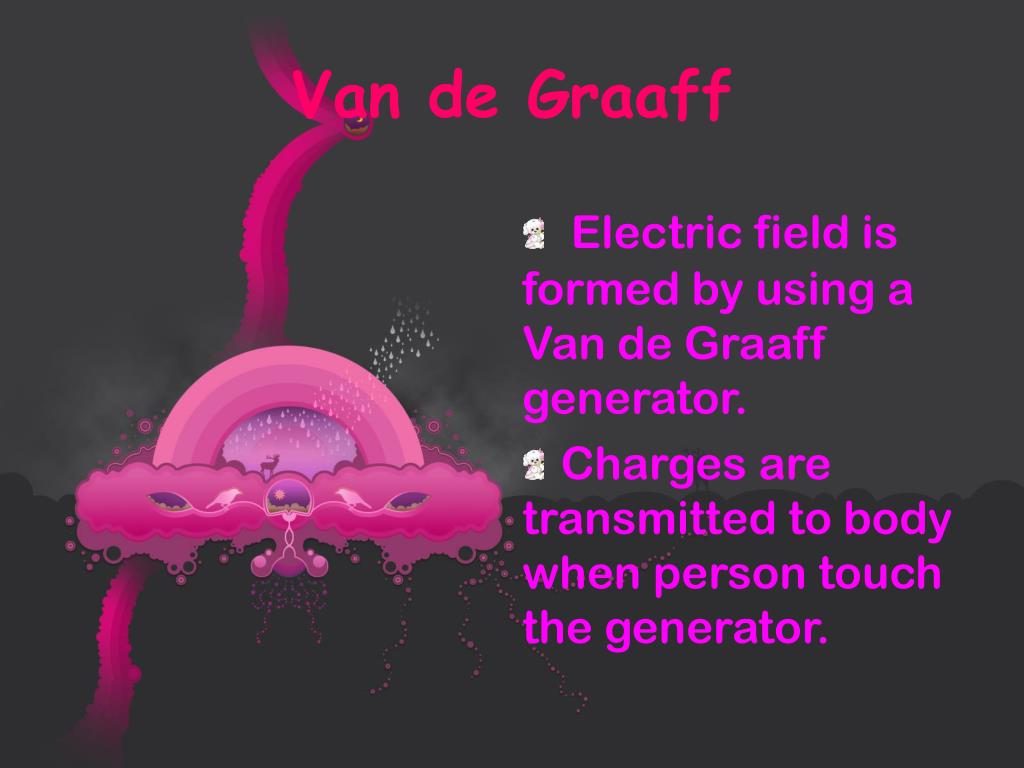

  • Electric field is formed by using a Van de Graaff generator.

  • Charges are transmitted to body when person touch the generator.


Physics form 5

  • Human body forms an electric field around it.

  • The hairs stand on the ends because they carry like charges and repel each other.


Charge flow

CHARGE FLOW

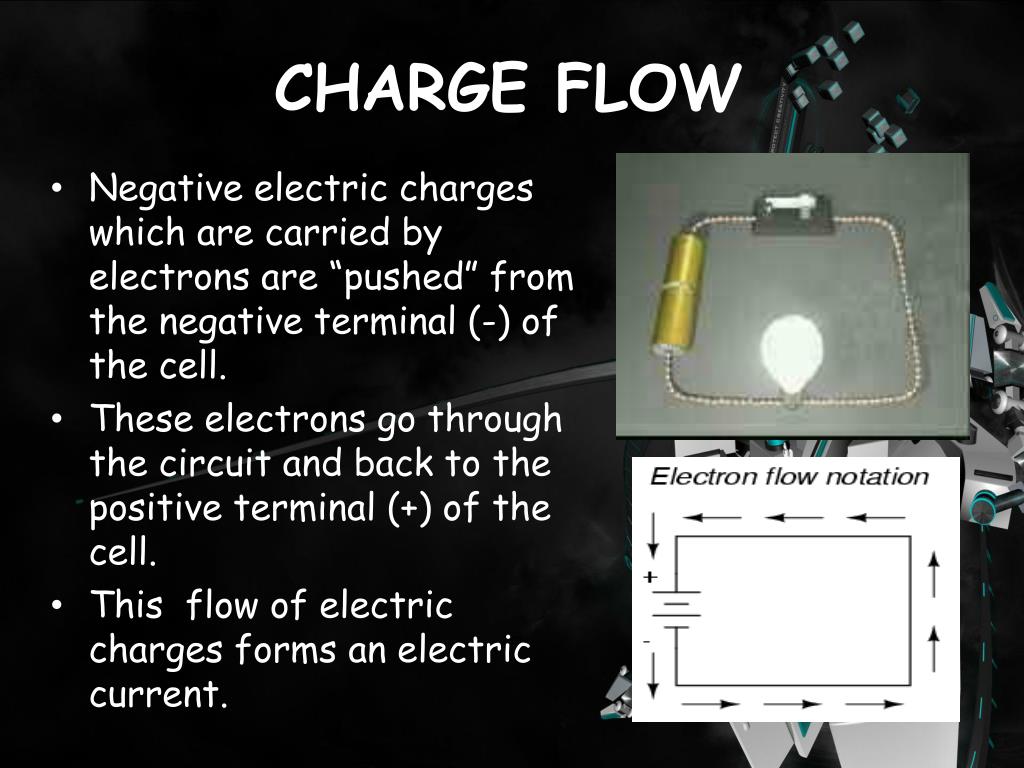

  • Negative electric charges which are carried by electrons are “pushed” from the negative terminal (-) of the cell.

  • These electrons go through the circuit and back to the positive terminal (+) of the cell.

  • This flow of electric charges forms an electric current.


Electric current

ELECTRIC CURRENT

  • Is defined as the rate of charge flow, that is


Physics form 5

  • Where Q is the quantity of charge flow and t is the time taken

  • The unit of electric current is ampere (A)

  • The unit of the quantity of charge flow is coulomb (C).

  • Hence, 1A = 1Cs¯¹


Physics form 5

TYPE OF AMMETERS

  • Electric current is measured by using an ammeter, a milliammeter or a microammeter.

1. Ammeter


Physics form 5

2. Miliammeter

3. Microammeter


Physics form 5

QUIZZES


Physics form 5

QUESTION 1

Electron flows from __________________ charges to __________________ charges.


Physics form 5

Answer…..

Electron flows from

__________________ charges to

__________________ charges.

NEGATIVE

POSITIVE


Physics form 5

QUESTION 2

Match the unit for each ammeter…

ammeter

microampere

milliammeter

ampere

microammeter

milliampere


Physics form 5

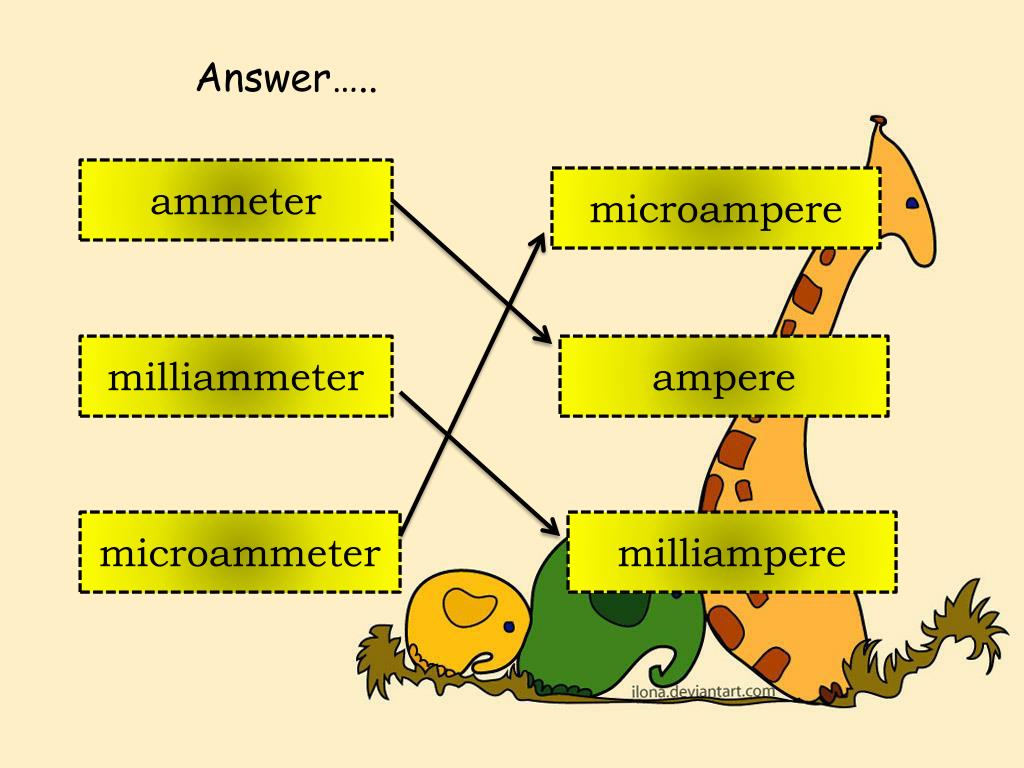

Answer…..

ammeter

microampere

milliammeter

ampere

microammeter

milliampere


Physics form 5

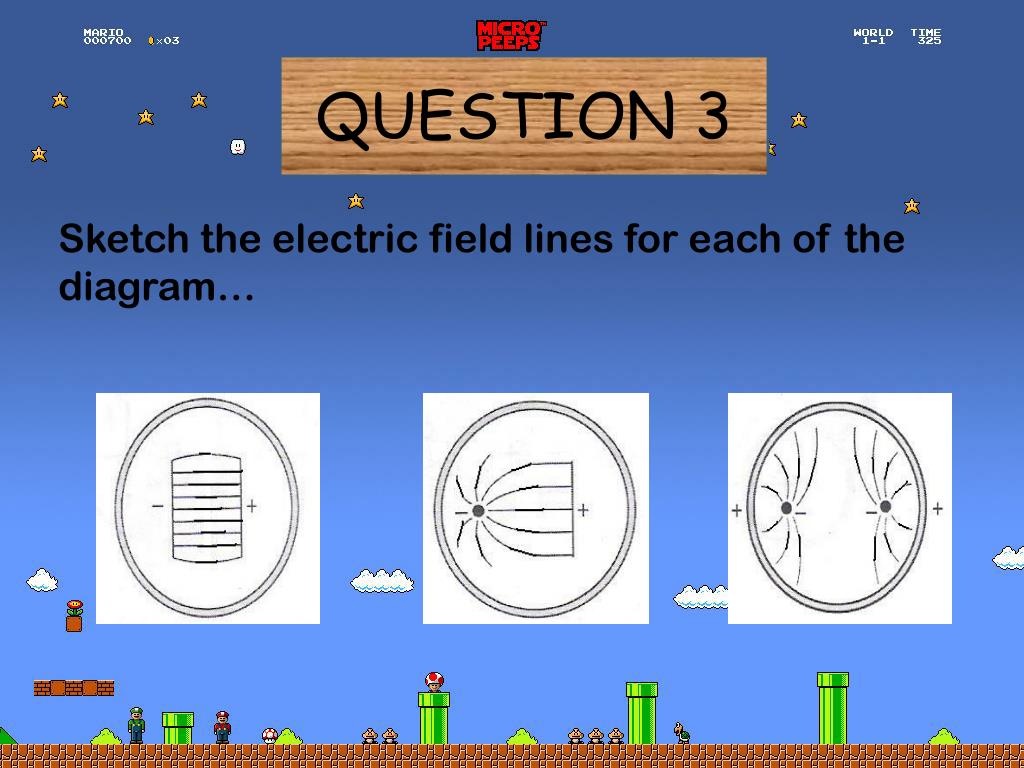

QUESTION 3

Sketch the electric field lines for each of the diagram…


Physics form 5

Answer…..


Physics form 5

QUESTION 4

Electric field lines are directed from the __________________ electrode to the __________________ electrode.


Physics form 5

Answer…..

Electric field lines are directed from the

__________________ electrode

to the __________________

electrode.

POSITIVE

NEGATIVE


Physics form 5

ELECTRICITY

ELECTRIC FIELD

CHARGE FLOW

ELECTRIC FIELD LINES

EFFECT OF ELECTRIC FIELD

ELECTRIC CURRENT

TYPES OF AMMETER

I = Q/ t

AMMETER

MILLIAMMETER

VAN DE GRAAFF

`

MICROAMMETER


Physics form 5
