  1. Advanced Site Monitoring and Characterization of Site Dynamic Properties Mourad Zeghal, TarekAbdoun and Vicente Mercado Department of Civil and Envir. Eng., Rensselaer Polytechnic Institute, Troy, NY Anirban De Manhattan College Quake Summit 2010, October 8 - 9, 2010.

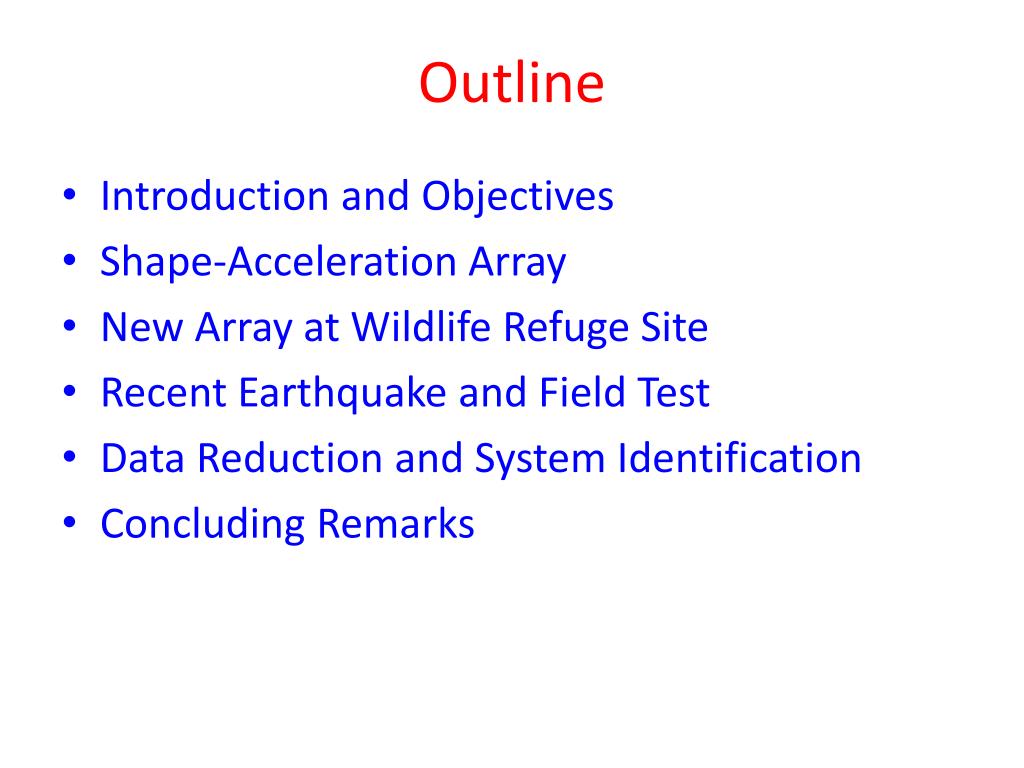

  2. Outline • Introduction and Objectives • Shape-Acceleration Array • New Array at Wildlife Refuge Site • Recent Earthquake and Field Test • Data Reduction and System Identification • Concluding Remarks

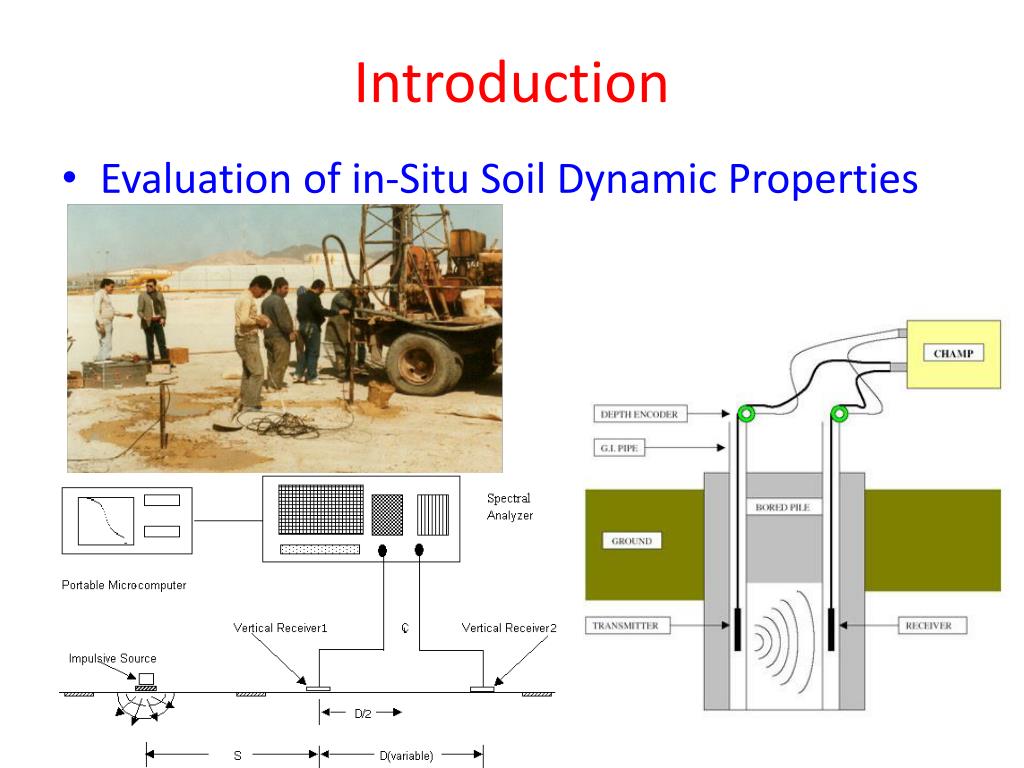

  3. Introduction • Evaluation of in-Situ Soil Dynamic Properties

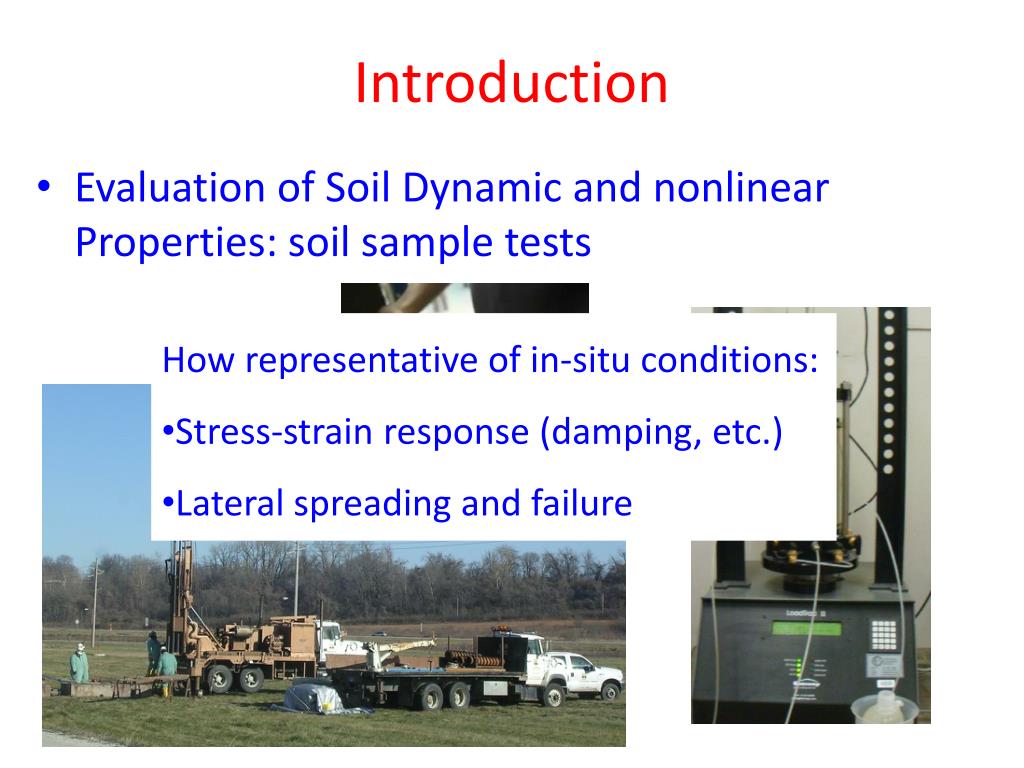

  4. Introduction • Evaluation of Soil Dynamic and nonlinear Properties: soil sample tests • How representative of in-situ conditions: • Stress-strain response (damping, etc.) • Lateral spreading and failure

  5. Objectives • Install permanently a network of Shape-Acceleration Arrays (SAAs) with an optimal configuration at the NEES Wildlife refuge site • Monitor the site response (acceleration, permanent displacement and pore pressure) • Future earthquakes (lateral spreading expected) • Field test(s) using T-Rex • Develop efficient data reduction and system identification tools to evaluate the in situ 3D dynamic and nonlinear properties of the site

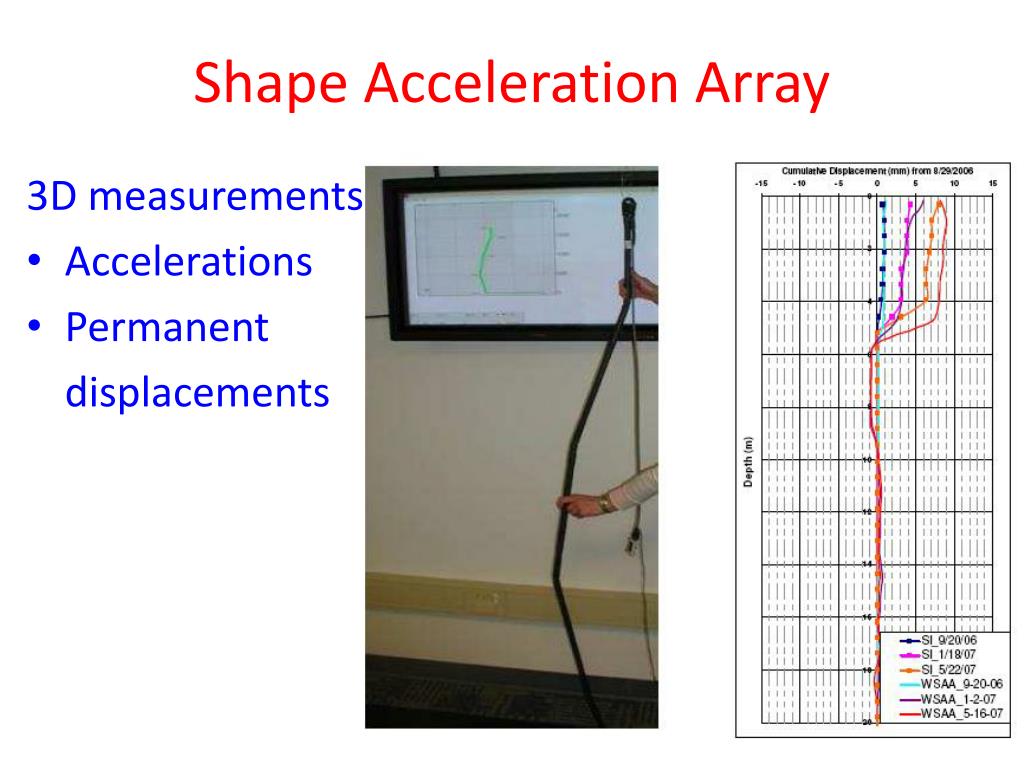

  6. Shape Acceleration Array 3D measurements • Accelerations • Permanent displacements

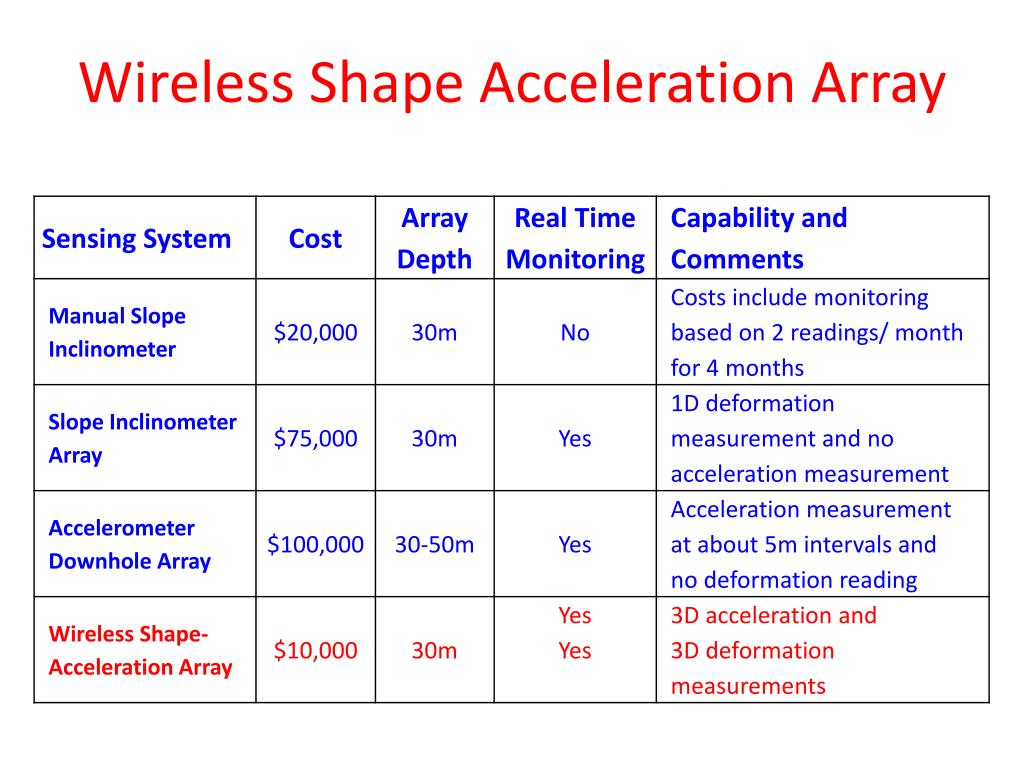

  7. Wireless Shape Acceleration Array

  8. NEES Wildlife Refuge Site • Imperial Valley of Southern California • Experienced multiple earthquakes and liquefaction and lateral spreading events in the past

  9. NEES Wildlife Refuge Site • Granular layer anticipated to liquefy during medium-size earthquakes • Significant lateral spreading expected

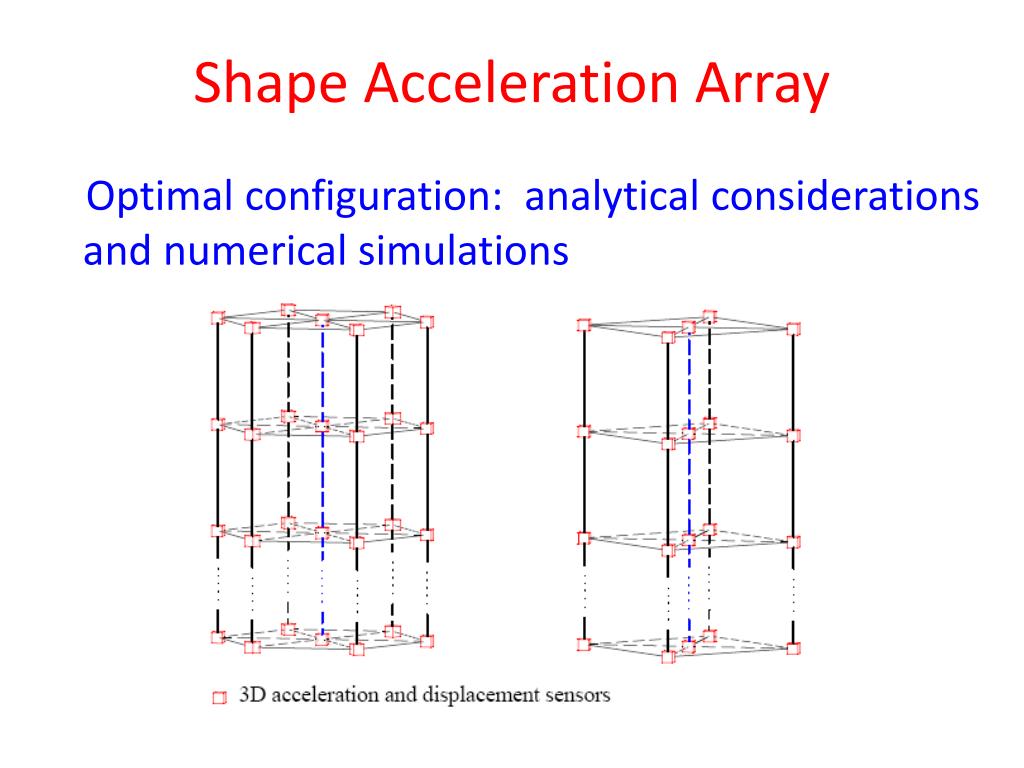

  10. Shape Acceleration Array Optimal configuration: analytical considerations and numerical simulations

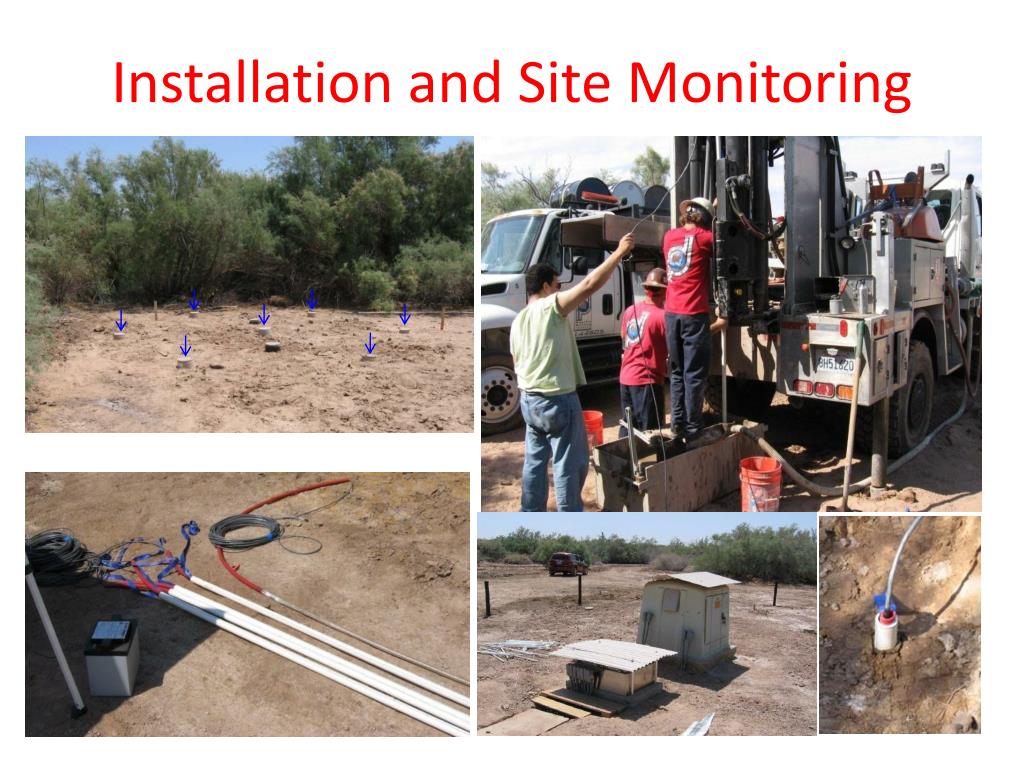

  11. Installation and Site Monitoring

  12. Baja California Earthquake: April 4, 2010

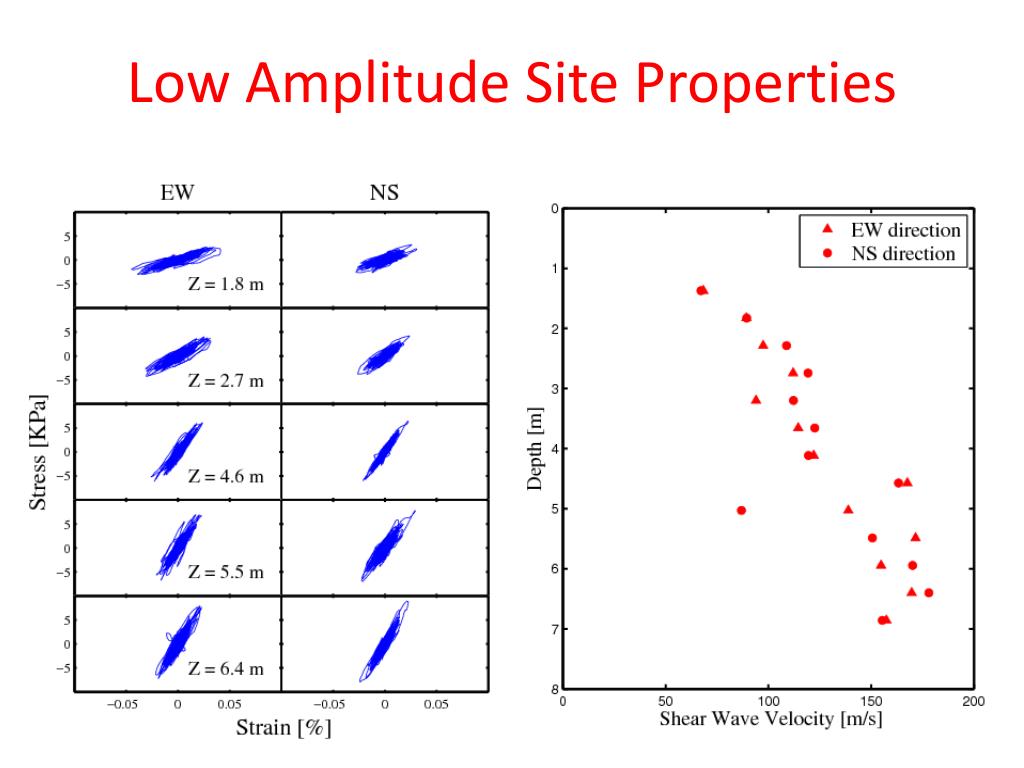

  13. Low Amplitude Site Properties

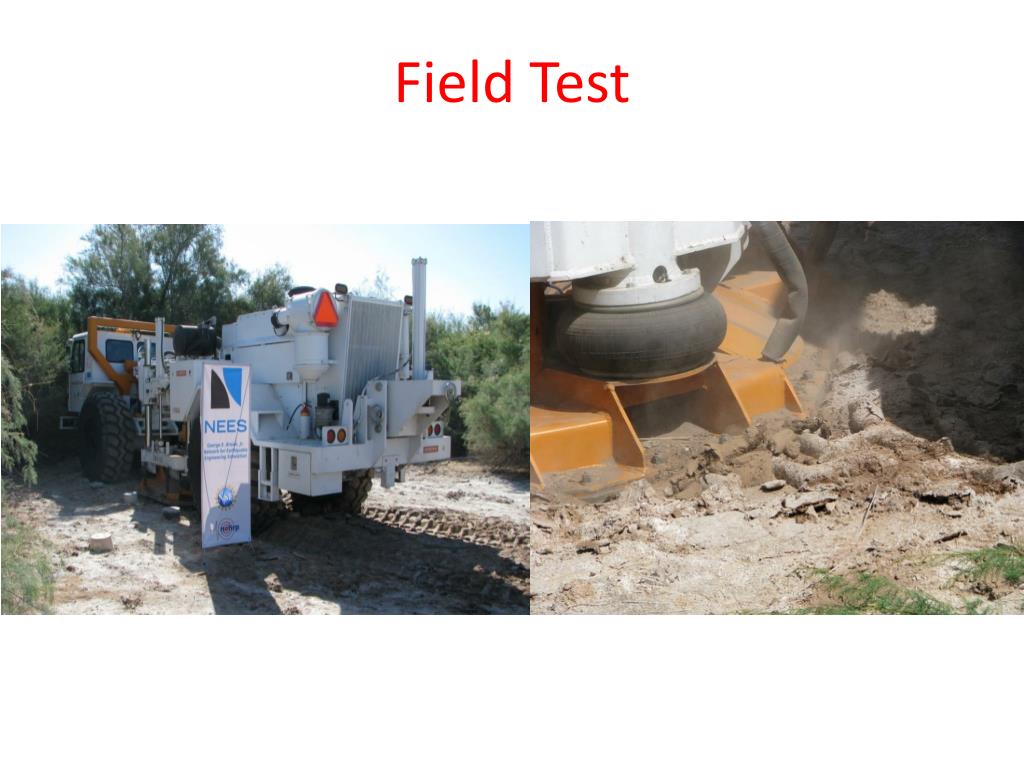

  14. Field Test

  15. Field Test Data

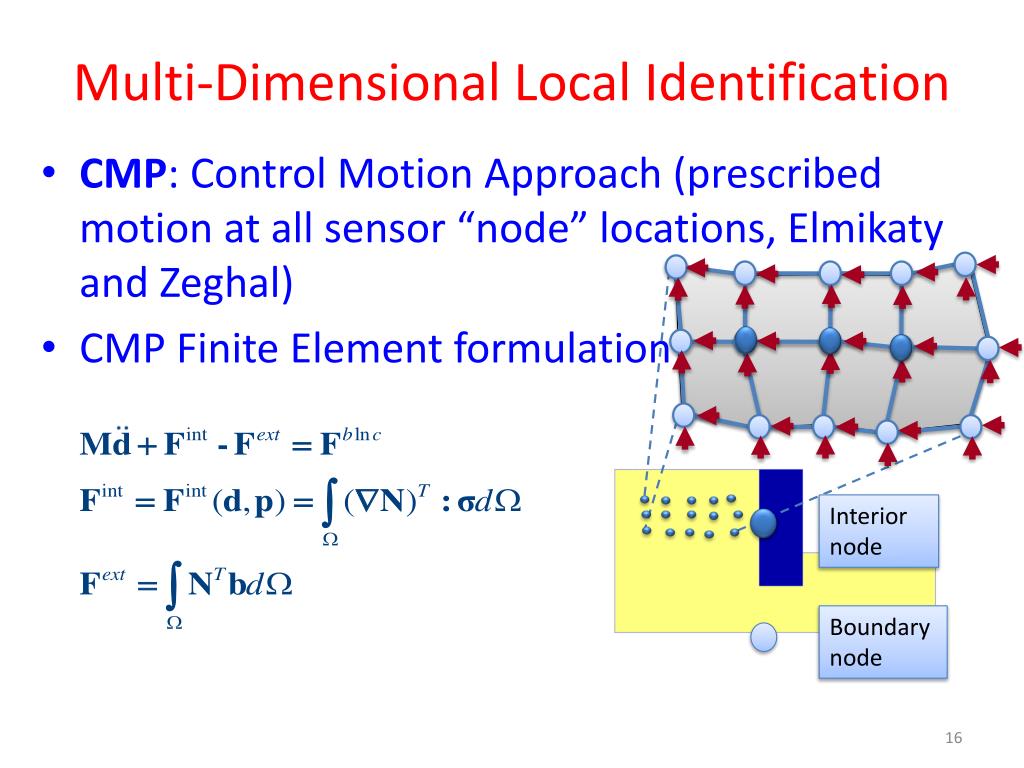

  16. Multi-Dimensional Local Identification • CMP: Control Motion Approach (prescribed motion at all sensor “node” locations, Elmikaty and Zeghal) • CMP Finite Element formulation Interior node Boundary node

  17. Computational Example

  18. Constitutive Model (Saturated Clay) Prevost, 1987 • Von-Mises yield criteria, multi-yield surfaces • Associated flow rule • Kinematic Hardening rule • Shear Modulus Degradation and Reduction • Visco-Elasto-Plastic Stress-Strain relation • Identification Parameters

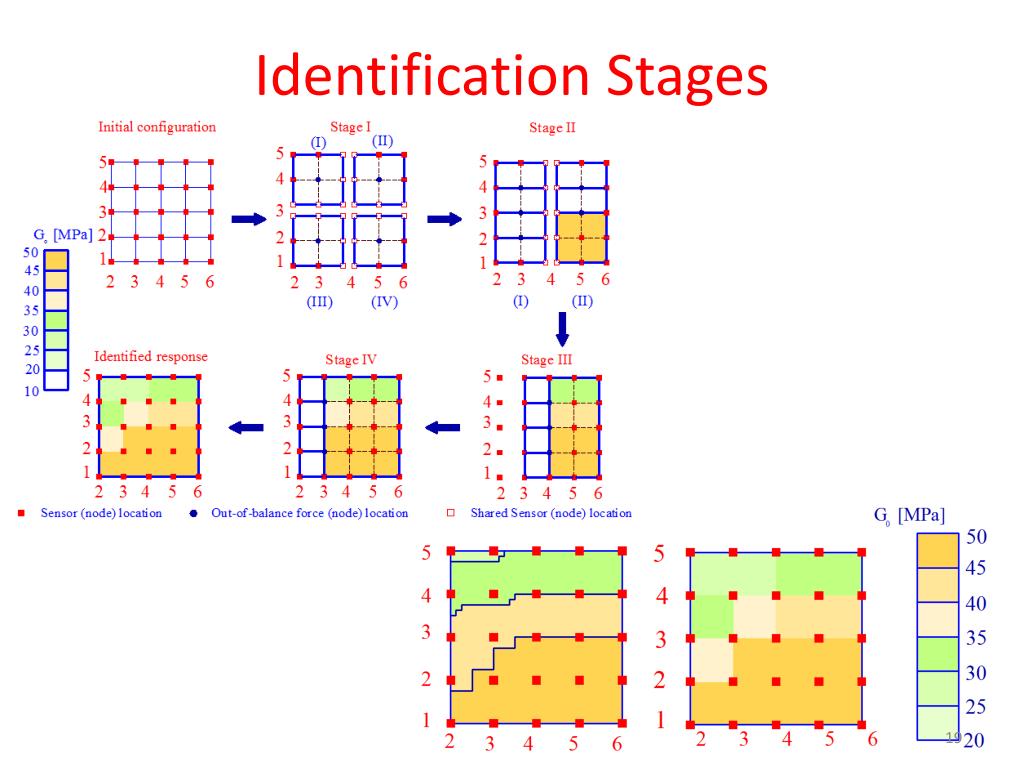

  19. Identification Stages

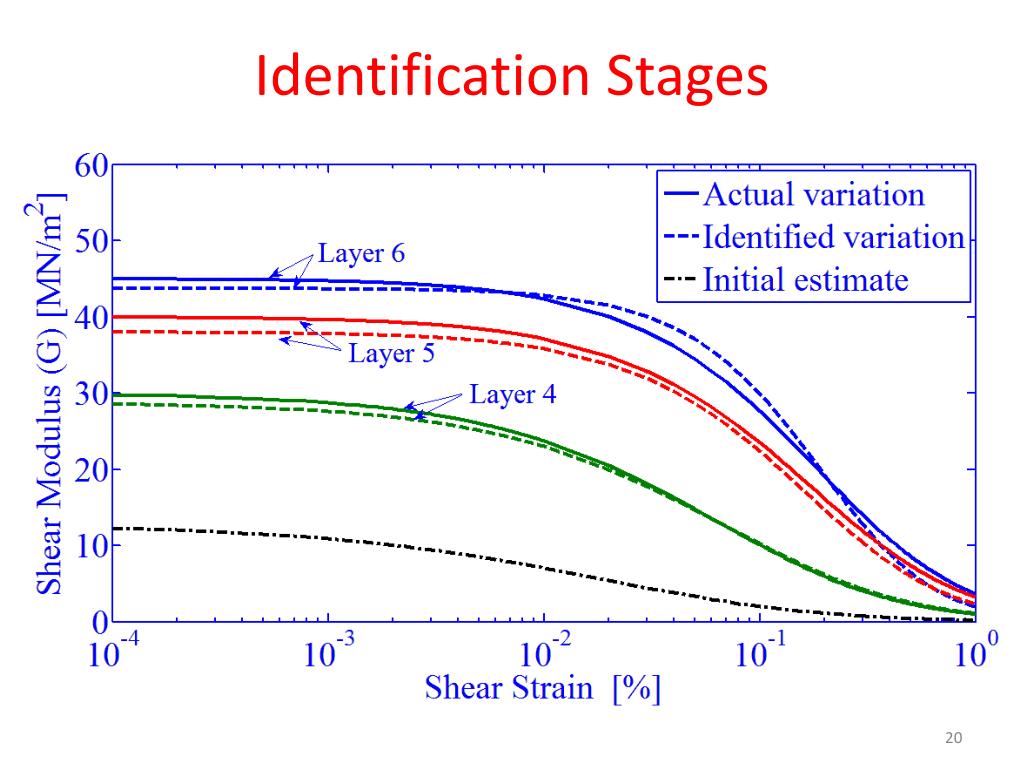

  20. Identification Stages

  21. Concluding Remarks Work in progress to develop a capability to: • measure cyclic and permanent displacements of field sites • Efficiently characterize and estimate (low and large strain) three-dimensional in situ dynamic properties Objective: Enable better understanding of liquefaction, lateral spreading and failure of sites

  22. Acknowledgements • This research is supported by the National Science Foundation (NEESR CMS-0830325) • NEES@UCSB • NEES@UTexas
