  1. Verification and transformation of BPEL processes

  2. Agenda • BPEL • Transformation • QUT Ouyang c.s. • HU Stahl c.s. • VV Bisgaard Lassen c.s. • Verification • Soundness • Operationalguideline • Conclusions

  3. BPEL – Basicactivities • invoke • reply • receive • empty • assign • wait • throw • compensate • terminate

  4. BPEL – Structuredactivities • sequence • switch • pick • while • flow • links • transition condition • join condition • dead path elimination

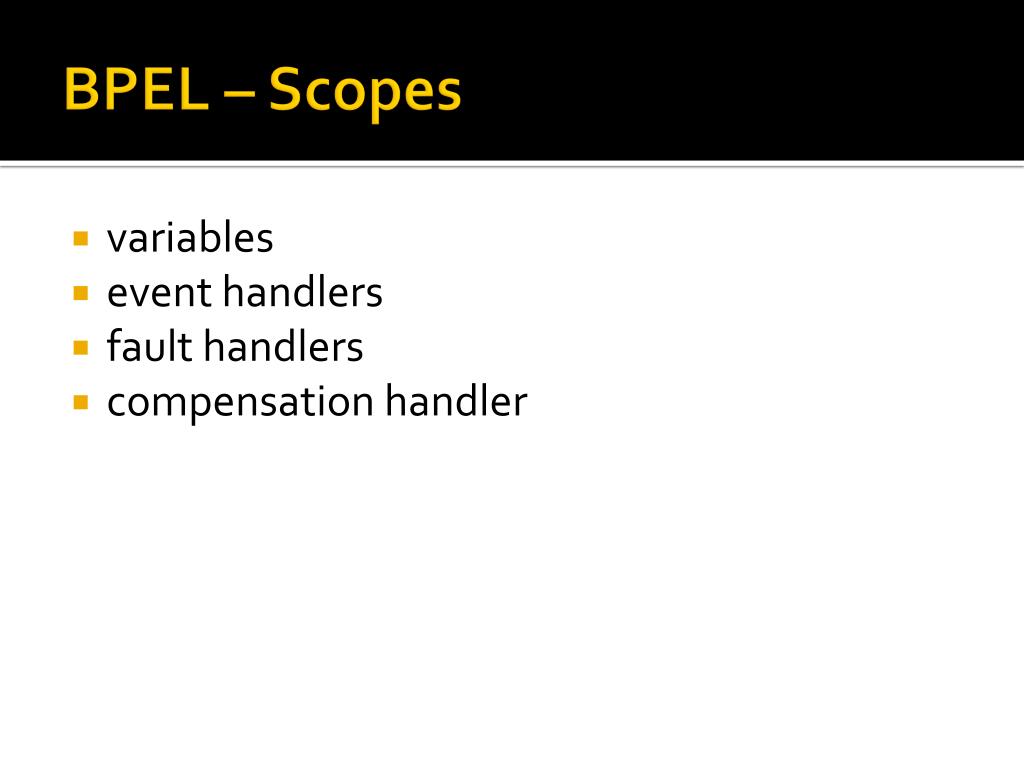

  5. BPEL – Scopes • variables • event handlers • fault handlers • compensation handler

  6. BPEL – Exampleprocess

  7. BPEL – Specification I • If, during the performance of structured activity S, the semantics of S dictate that activity X nested within S will not be performed as part of the behavior of S, then the status of all outgoing links from X is set to negative.

  8. BPEL – Specification II • If during the execution of a business process instance, two or more receive activities for the same partner link, portType, operation and correlation set(s) are in fact simultaneously enabled, then the standard fault bpws:conflictingReceive MUST be thrown by a compliant implementation.

  9. QUT – Basicactivity • Positive path • Negative path • Synchronous faults(not shown)

  10. HU – Basicactivity (Receive) • Positive path • Communication place • Asynchronous faults

  11. QUT – Links • Join condition • Negative path(not shown)

  12. HU – Links • Outgoing links

  13. QUT – Switch • Negative paths

  14. HU – Switch • Outgoing links

  15. Demo – ProM Transformation Verification Soundness State spaces Conflicting receives? • QUT • HU

  16. VV • Patterns • Library • Extensions

  17. VV – Example I

  18. VV – Example II

  19. VV – Example III

  20. VV – Example IV

  21. VV – Example V

  22. VV – Example VI

  23. VV – Case study I

  24. VV – Case study II

  25. Demo – ProM Transformation • VV

  26. BPEL – Conclusions • Semantics? • Complexity • Event handlers • Fault handlers • Compensation handlers • Pragmatic approach • BPEL 2.0? • Tons of issues
