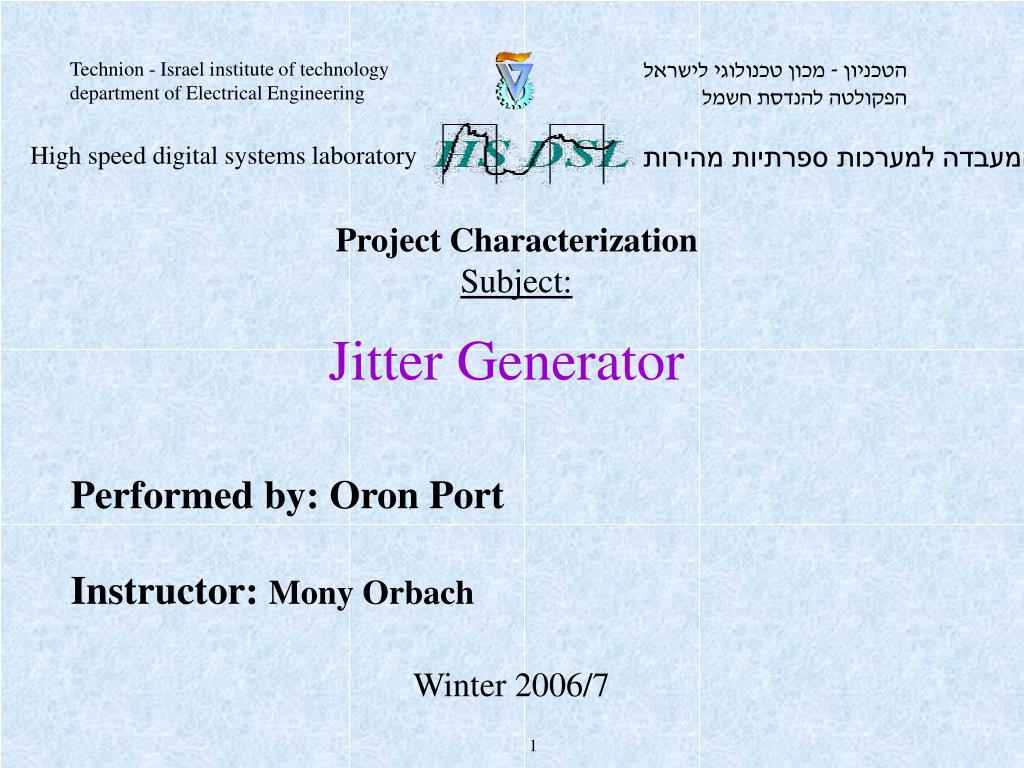

  1. Technion - Israel institute of technology department of Electrical Engineering הטכניון - מכון טכנולוגי לישראלהפקולטה להנדסת חשמל High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Project Characterization Subject: Jitter Generator Performed by: Oron Port Instructor: Mony Orbach Winter 2006/7 1

  2. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Project Definition • Extension of the project “Jitter experiment”, performed by Gregory Zabolotov during Spring 2005 semester. • Developing GUI-based software for an easy user control of the deterministic jitter applied on a fed clock. 2

  3. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות What is Jitter? Jitter is the short term variation of the significant instants of a digital signal from their ideal positions in time. 5

  4. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Existing Hardware Extension slot PDC Jitter Generator (JG) PCB Vertex II Pro board Hardware developed for the Vertex II Pro board extension slot. Using a Programmable Delay Chip (PDC), it is possible to define a delay between 2.2nsec and 12.2nsec (in 10psec increments) for a given clock signal. Changing the delay continuously and periodically creates a deterministic periodic jitter effect. The JG board is connected to the SOPC data bus. 3

  5. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Project Implementation Vertex II Pro board Jitter Gen. SOPC RS-232 Data Bus E x t e n s i o n s l o t Interface #1: MMI – Man-Machine-Interface GUI – Graphical-User-Interface 5

  6. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Project Implementation Vertex II Pro board Jitter Gen. SOPC RS-232 E x t e n s i o n s l o t Data Bus Interface #2: RS-232 communication (Ethernet is optional)  * Transferring a jitter period’s data selected in interface #1 to the SOPC’s memory, and other commands according to what was selected. 5

  7. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Project Implementation Vertex II Pro board Jitter Gen. SOPC RS-232 E x t e n s i o n s l o t Data Bus Interface #3: SOPC Data bus  Updating the PDC on the JG board with the current delay time, according the tables filled in the SOPC’s memory during interface #2. 5

  8. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Specification • Hardware • Clock is provided differentially to the JG board using two SMA connectors. Jittered output from the JG board is the same. • Software • Will be developed in Visual C++ .NET GUI. • Will have the capability to choose either built-in jitter period (already defined in the SOPC) or dynamically upload a jitter period to the SOPC’s memory (10 typed of signals). 4

  9. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Time Table 6
