Chapter 5

Chapter 5 迴圈


5 1 do

迴圈每次的增量,若增量為1,則可省略

變數I的終止數值N

I=1→2→3→…→N迴圈共跑N次

設定變數I的初值1

指定一個行代碼,兩行代碼間的程式會變成一個迴圈

5-1 Do

程式說明

do 10, I = 1, N, 1

10 continue

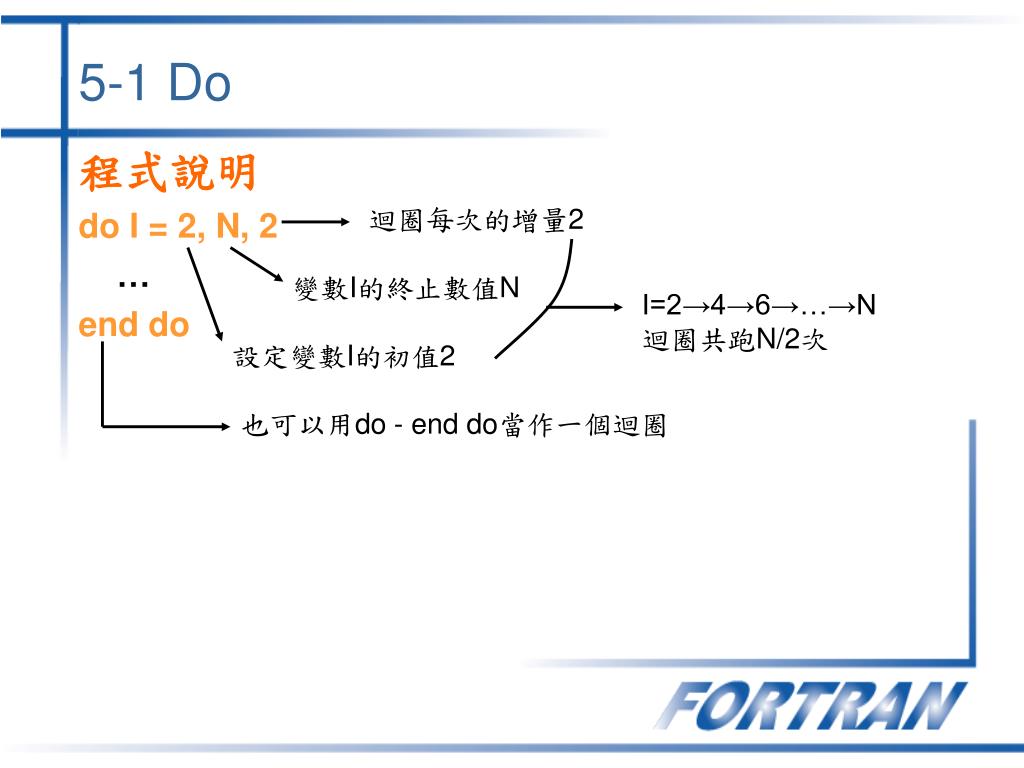

5 1 do1

迴圈每次的增量2

變數I的終止數值N

I=2→4→6→…→N迴圈共跑N/2次

設定變數I的初值2

也可以用do - end do當作一個迴圈

5-1 Do

程式說明

do I = 2, N, 2

end do


5 1 do2

< Ex. 完整程式>

program ex0501

implicit none

integer :: I

integer, parameter :: N=10

do 10 I = 1, N, 1

write(*,*) 'Do - Loop Demo'

10 continue

stop

end program ex0501

< Ex. 執行結果>

Do - Loop DemoDo - Loop DemoDo - Loop DemoDo - Loop DemoDo - Loop DemoDo - Loop DemoDo - Loop DemoDo - Loop DemoDo - Loop DemoDo - Loop Demo

5-1 Do

Do使用時機

連續重複執行某一段程式碼


5 2 do while

當判別式為真時,執行迴圈當判別式為假時,跳出迴圈

do while - end do之間為一個迴圈

5-2 Do while

程式說明

do while (logical_expr)

end do

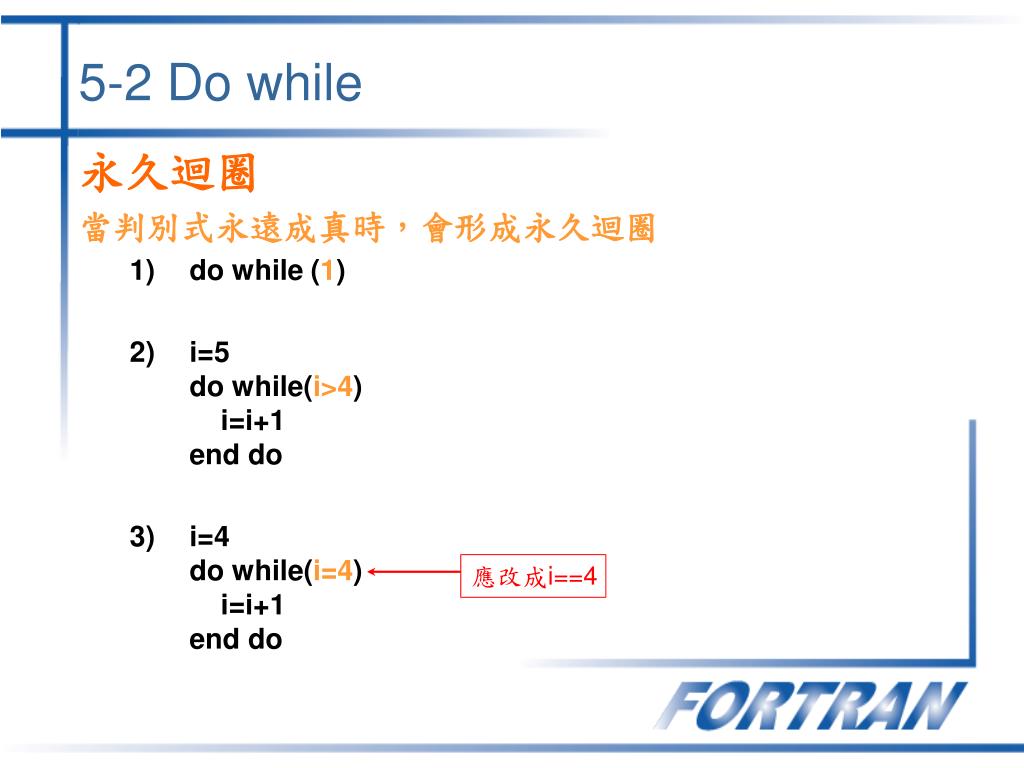

5 2 do while1

應改成i==4

5-2 Do while

永久迴圈

當判別式永遠成真時,會形成永久迴圈

  • do while (1)

  • i=5do while(i>4) i=i+1end do

  • i=4do while(i=4) i=i+1end do

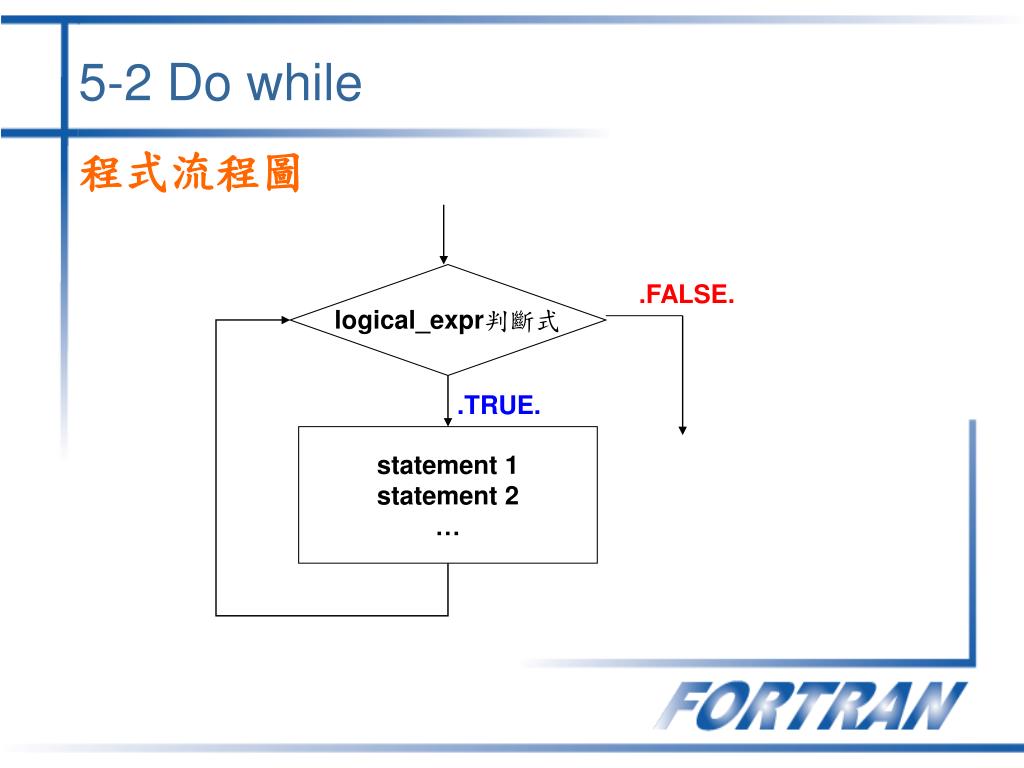

5 2 do while2

.FALSE.

logical_expr判斷式

.TRUE.

statement 1statement 2…

5-2 Do while

程式流程圖


5 2 do while3

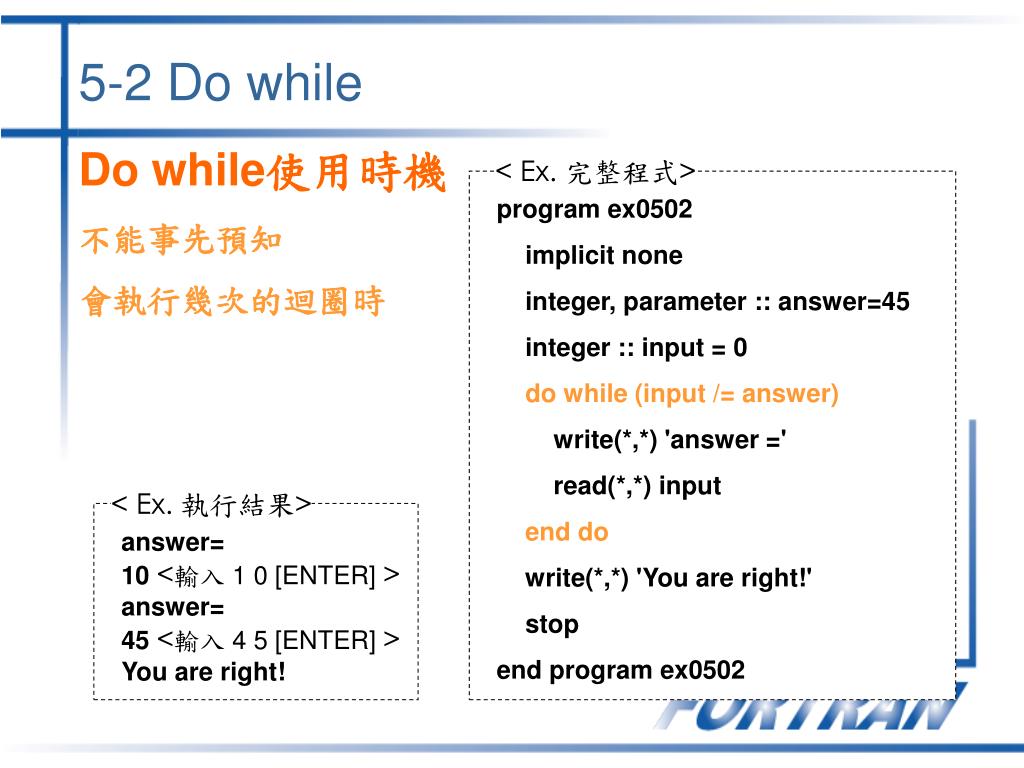

< Ex. 完整程式>

program ex0502

implicit none

integer, parameter :: answer=45

integer :: input = 0

do while(input /= answer)

write(*,*) 'answer ='

read(*,*) input

end do

write(*,*) 'You are right!'

stop

end program ex0502

< Ex. 執行結果>

answer=10 <輸入 1 0 [ENTER] > answer=45 <輸入 4 5 [ENTER] > You are right!

5-2 Do while

Do while使用時機

不能事先預知

會執行幾次的迴圈時


5 3 cycle

< Ex. 完整程式>

program ex0503

implicit none

integer :: i

integer, parameter :: n=10

do i = 1, n

if (i == 4) cycle

write(*, '(I3)') i

end do

stop

end program ex0503

當i=4時,不會被印出來而繼續執行迴圈

1235678910

< Ex. 執行結果>

5-3 Cycle

Cycle使用時機

略過迴圈中之後的敘述,直接

跳回迴圈的開頭來執行迴圈


5 4 exit

< Ex. 完整程式>

program ex0504

implicit none

integer, parameter :: answer=45

integer :: input

do while (.true.)

write(*,*) "answer ="

read(*,*) input

if (input == answer) exit

end do

write(*,*) "You are right!"

stop

end program ex0504

永久迴圈

< Ex. 執行結果>

answer=10 <輸入 1 0 [ENTER] > answer=45 <輸入 4 5 [ENTER] > You are right!

等式input=answer成立則跳離此迴圈

5-4 Exit

Exit使用時機

直接跳出一個在運作中的迴圈

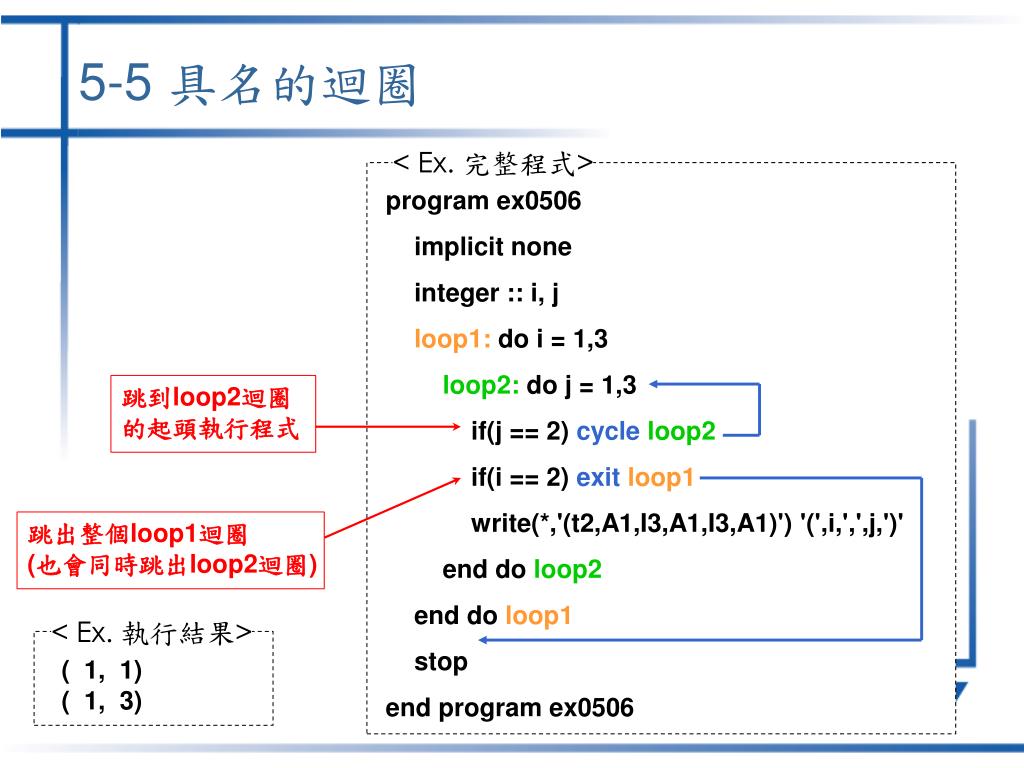

Chapter 5

< Ex. 完整程式>

program ex0506

implicit none

integer :: i, j

loop1: do i = 1,3

loop2: do j = 1,3

if(j == 2) cycleloop2

if(i == 2) exit loop1

write(*,'(t2,A1,I3,A1,I3,A1)') '(',i,',',j,')'

end do loop2

end do loop1

stop

end program ex0506

跳到loop2迴圈的起頭執行程式

跳出整個loop1迴圈(也會同時跳出loop2迴圈)

< Ex. 執行結果>

( 1, 1)( 1, 3)

5-5 具名的迴圈
