Case study 1 way anova

Case Study1-Way ANOVA

Yields of Entozoic Amoebae Under 5 Methods of Innoculation

Griffin&McCarten(1949). The Journal of Parasitology. Vol.35,#2,pp.193-198


Description

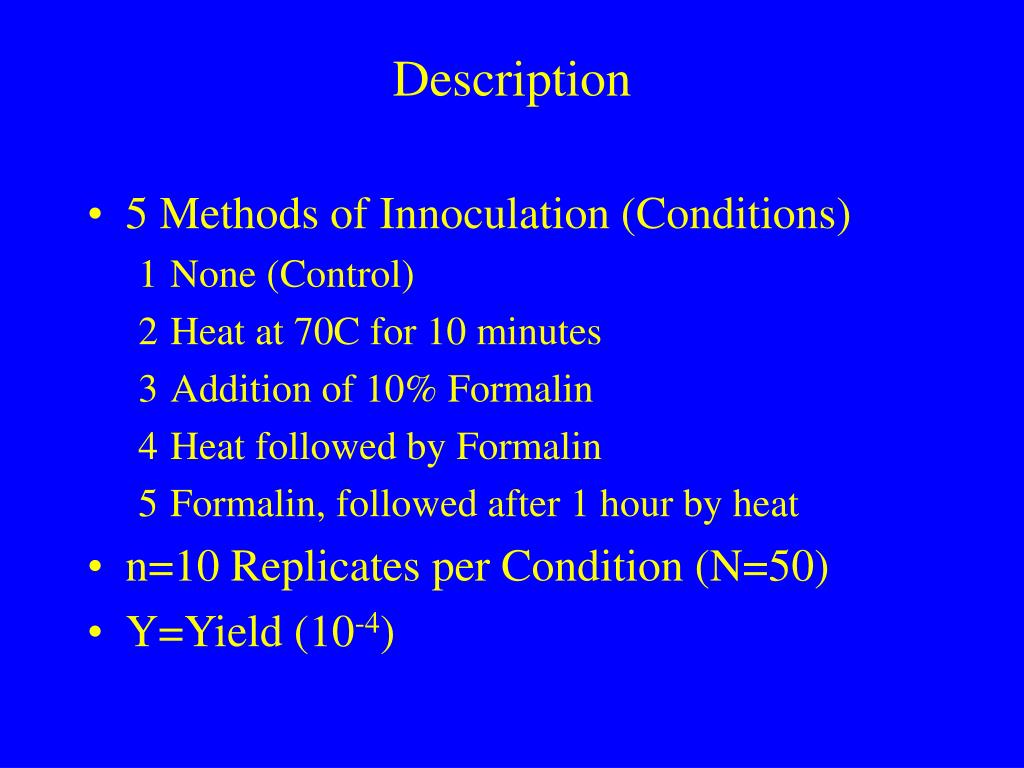

Description

  • 5 Methods of Innoculation (Conditions)

    • None (Control)

    • Heat at 70C for 10 minutes

    • Addition of 10% Formalin

    • Heat followed by Formalin

    • Formalin, followed after 1 hour by heat

  • n=10 Replicates per Condition (N=50)

  • Y=Yield (10-4)


Case study 1 way anova

Data


Group means sd s and sums of squares

Group Means/SD’s and Sums of Squares


Analysis of variance and f test

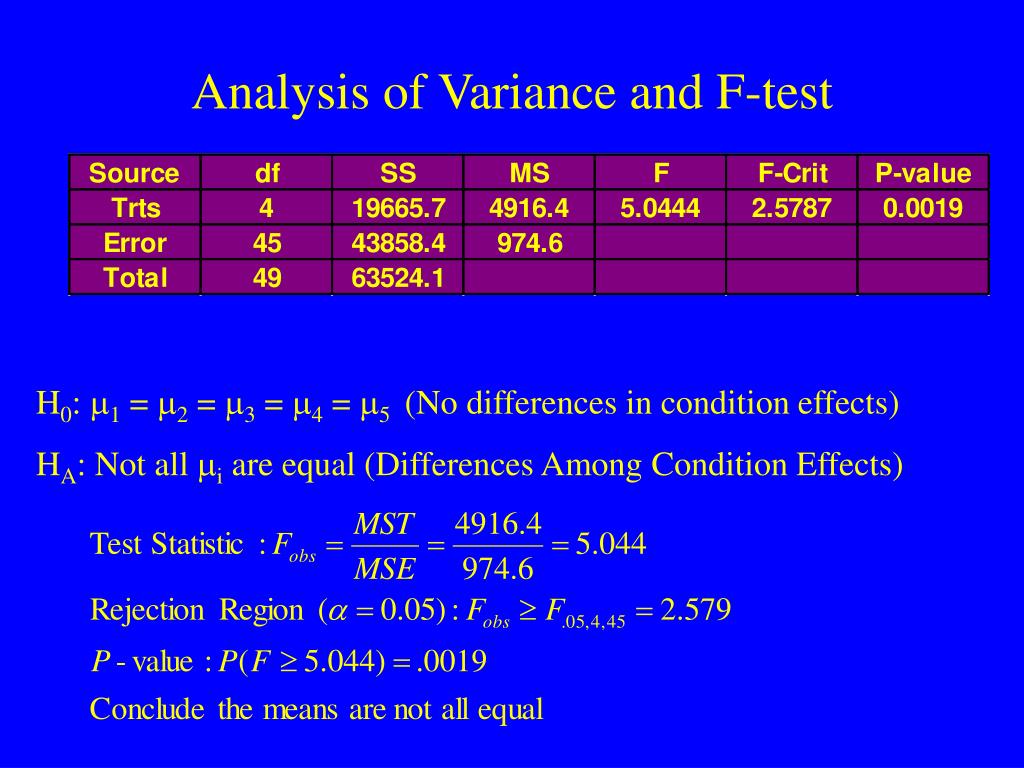

Analysis of Variance and F-test

H0: m1 = m2 = m3 = m4 = m5(No differences in condition effects)

HA: Not all mi are equal (Differences Among Condition Effects)


Diagnostics tests of equal variances

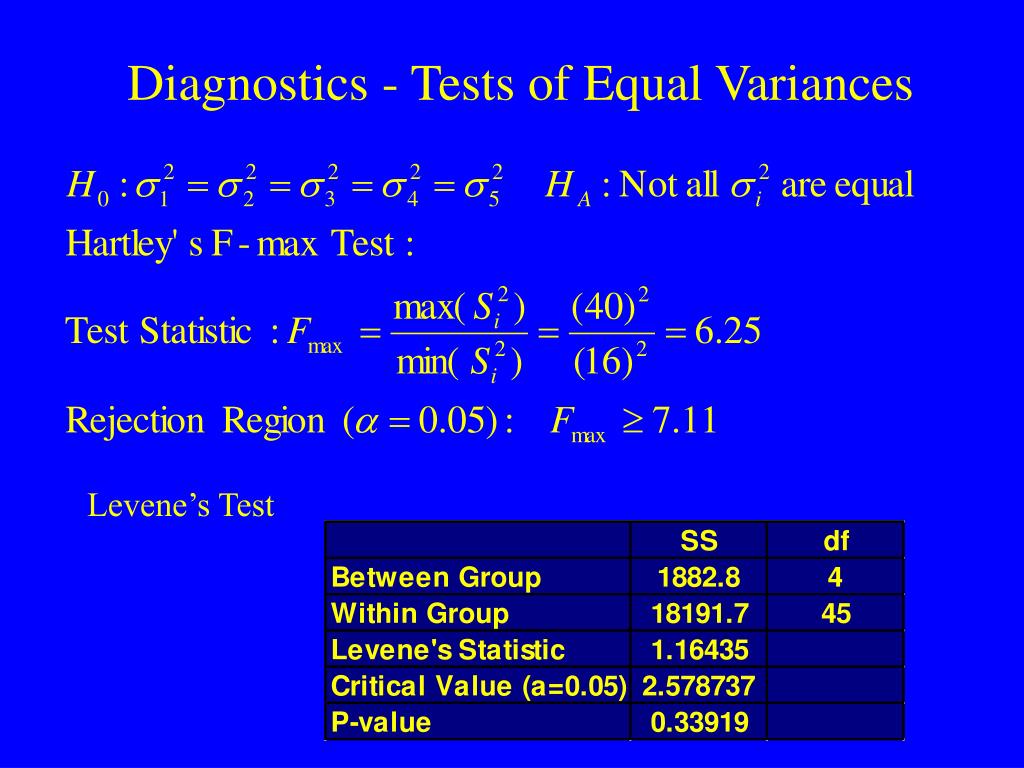

Diagnostics - Tests of Equal Variances

Levene’s Test


Diagnostics normality assumption

Diagnostics - Normality Assumption

Histogram:

Approximately bell-shaped

Normal Probability Plot:

Approximates a straight line


Kruskal wallis test

Kruskal-Wallis Test


Post hoc comparisons i

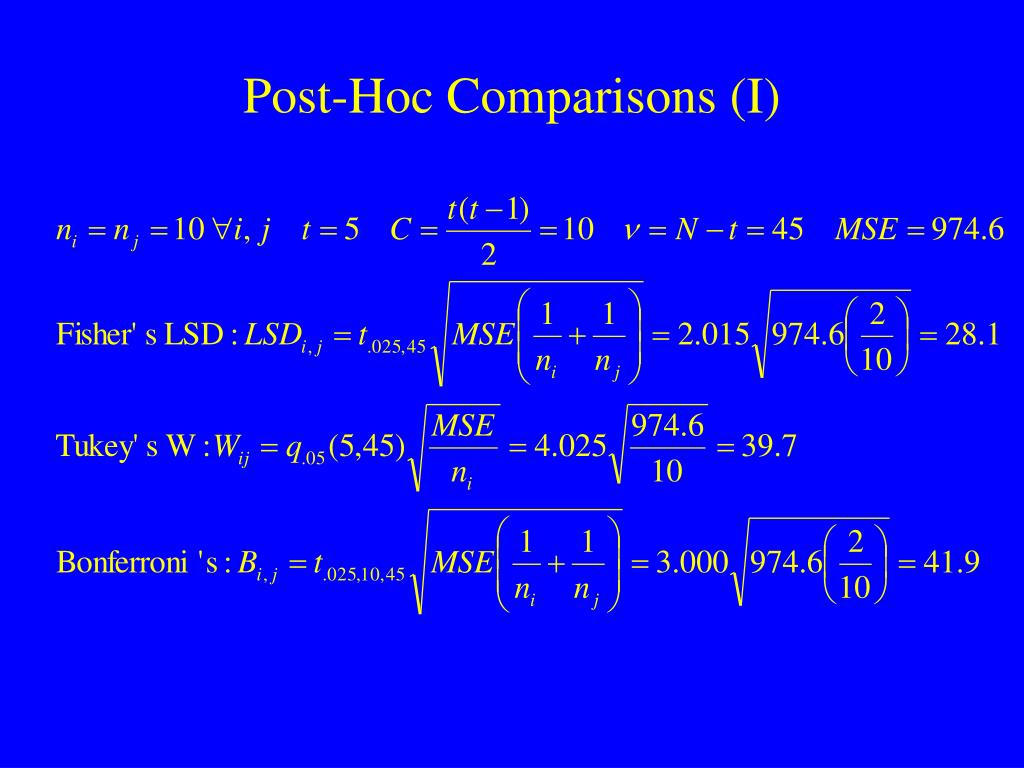

Post-Hoc Comparisons (I)


Post hoc comparisons ii

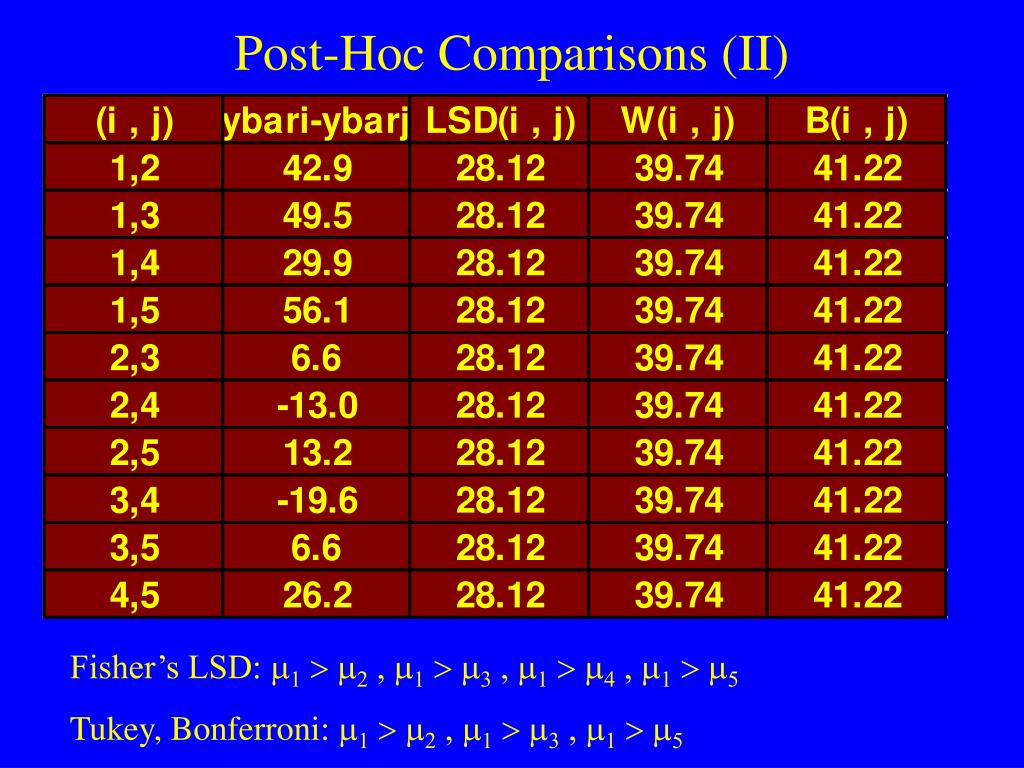

Post-Hoc Comparisons (II)

Fisher’s LSD: m1 > m2 , m1 > m3 , m1 > m4 , m1 > m5

Tukey, Bonferroni: m1 > m2 , m1 > m3 , m1 > m5
