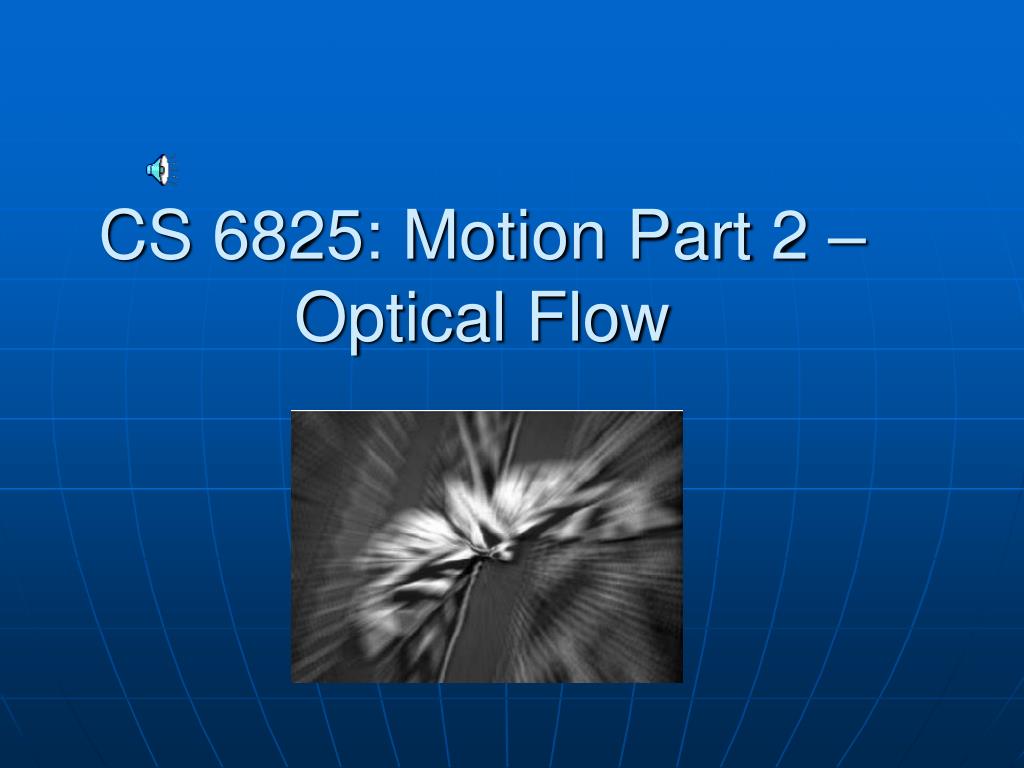

recall optical flow
Recall: Optical Flow
  • is an approximation of the 2D motion field.
  • Motion in the world usually occurs in 3D, but, we have a 2D image sensor. So, we see the results as movement across the 2D image plane.
  • Hence we are seeing the projection of the 3D moving points onto the image plane.
motion field and optical flow field
Motion Field and Optical Flow Field
  • Motion field: projection of 3D motion vectors on image plane
  • Optical flow field: apparent motion of brightness patterns
  • We equate motion field with optical flow field
brightness constancy equation

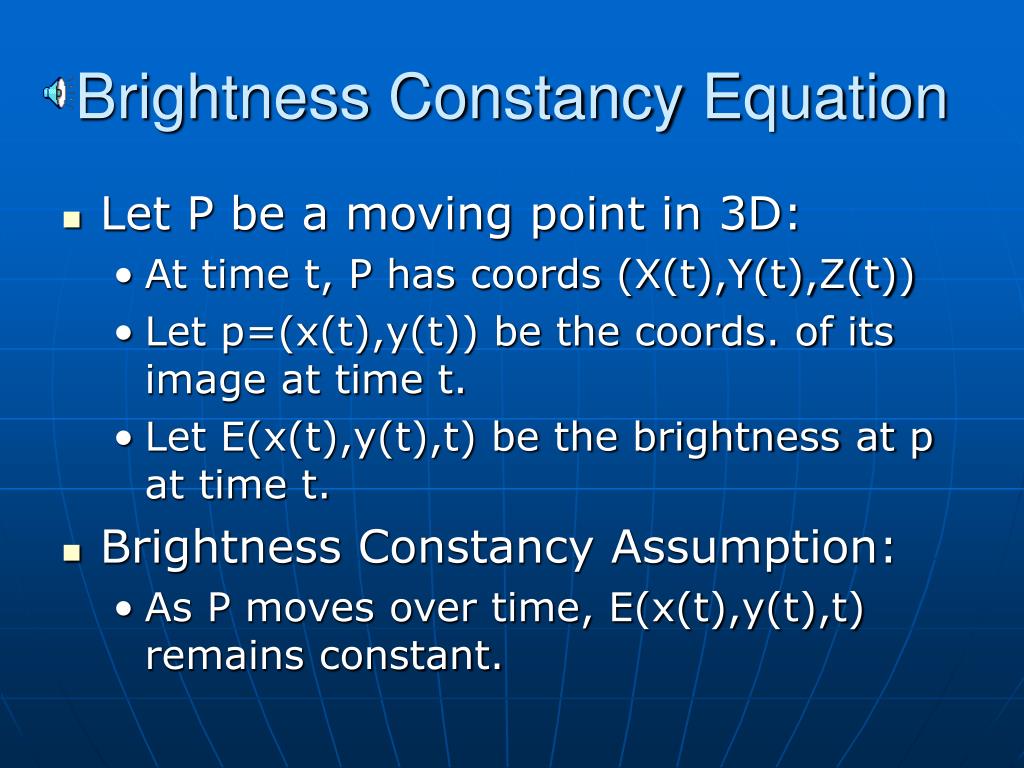

Brightness Constancy Equation
  • Let P be a moving point in 3D:
    • At time t, P has coords (X(t),Y(t),Z(t))
    • Let p=(x(t),y(t)) be the coords. of its image at time t.
    • Let E(x(t),y(t),t) be the brightness at p at time t.
  • Brightness Constancy Assumption:
    • As P moves over time, E(x(t),y(t),t) remains constant.
brightness constancy equation1
Brightness Constancy Equation

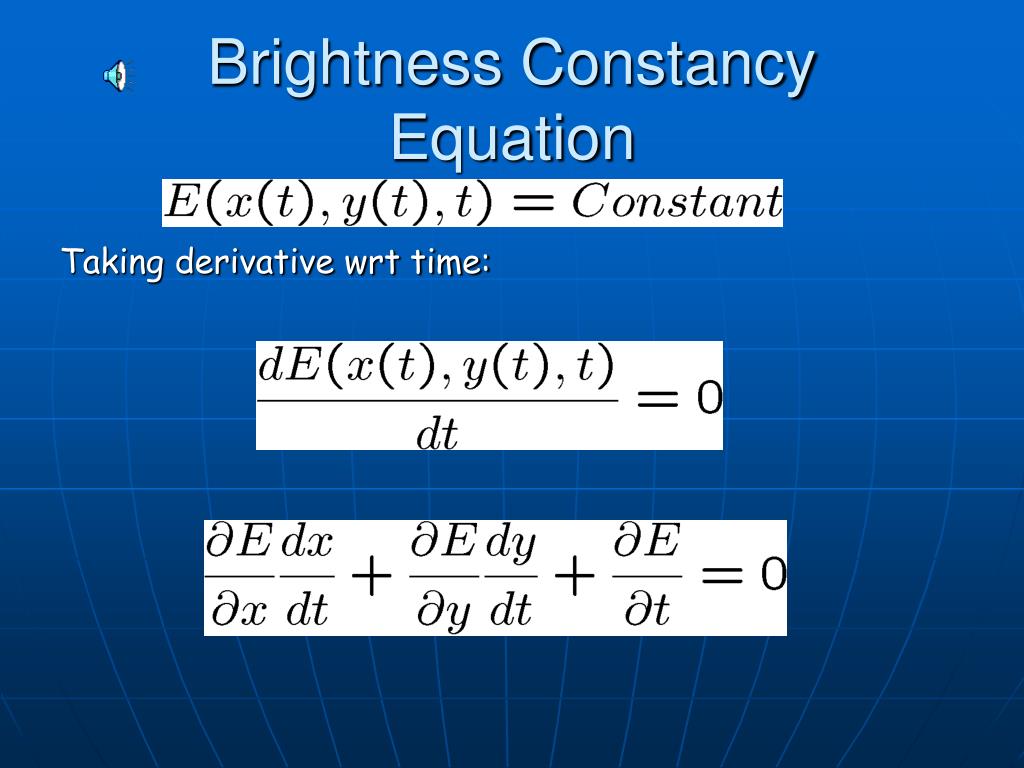

Taking derivative wrt time:

brightness constancy equation2
Brightness Constancy Equation

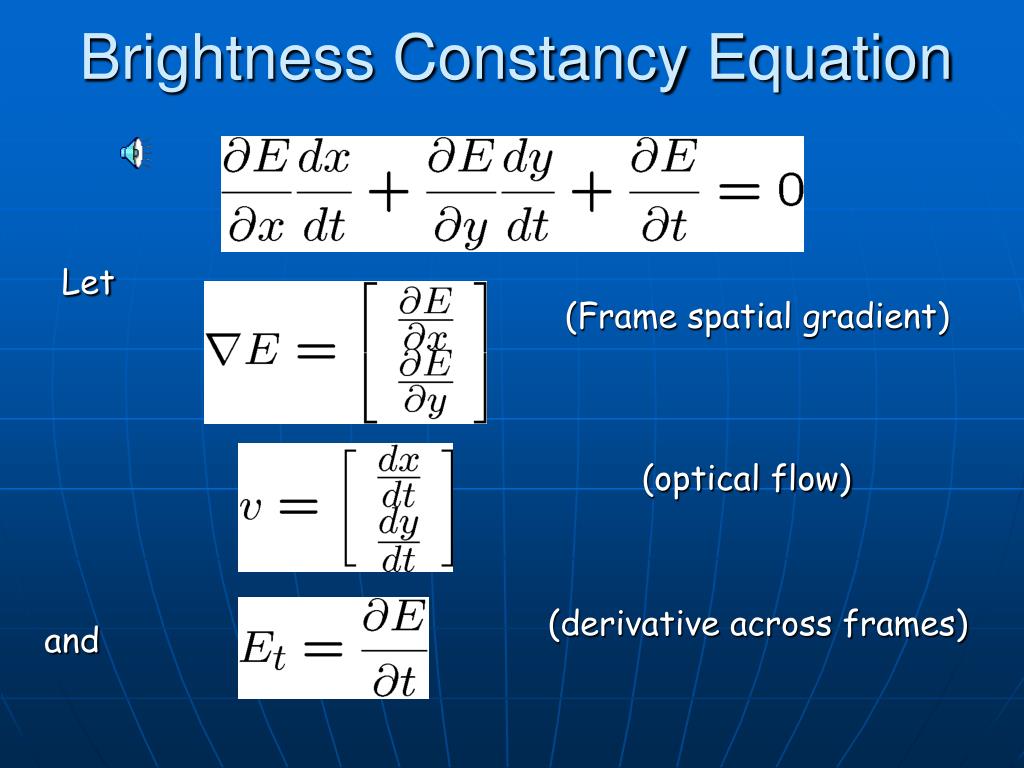

Let

(Frame spatial gradient)

(optical flow)

(derivative across frames)

and

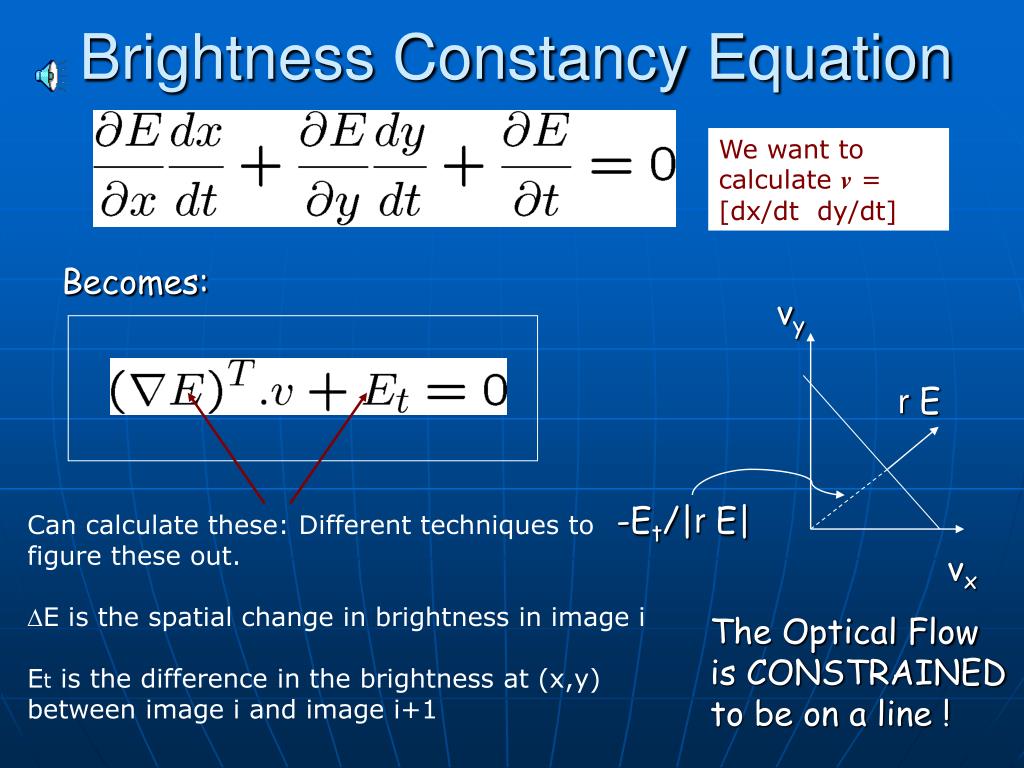

brightness constancy equation3
Brightness Constancy Equation

We want to calculate v= [dx/dt dy/dt]

Becomes:

vy

r E

-Et/|r E|

Can calculate these: Different techniques to figure these out.

DE is the spatial change in brightness in image i

Et is the difference in the brightness at (x,y) between image i and image i+1

vx

The Optical Flow is CONSTRAINED to be on a line !

ad
