Presentation Transcript

  1. SiLC (Silicon tracking for the International Linear Collider) http://silc.in2p3.fr H.J.Kim (KyungPook National U.) on behalf of the SILC R&D Collaboration (major transpariencies from Aurore Savoy-Navarro)

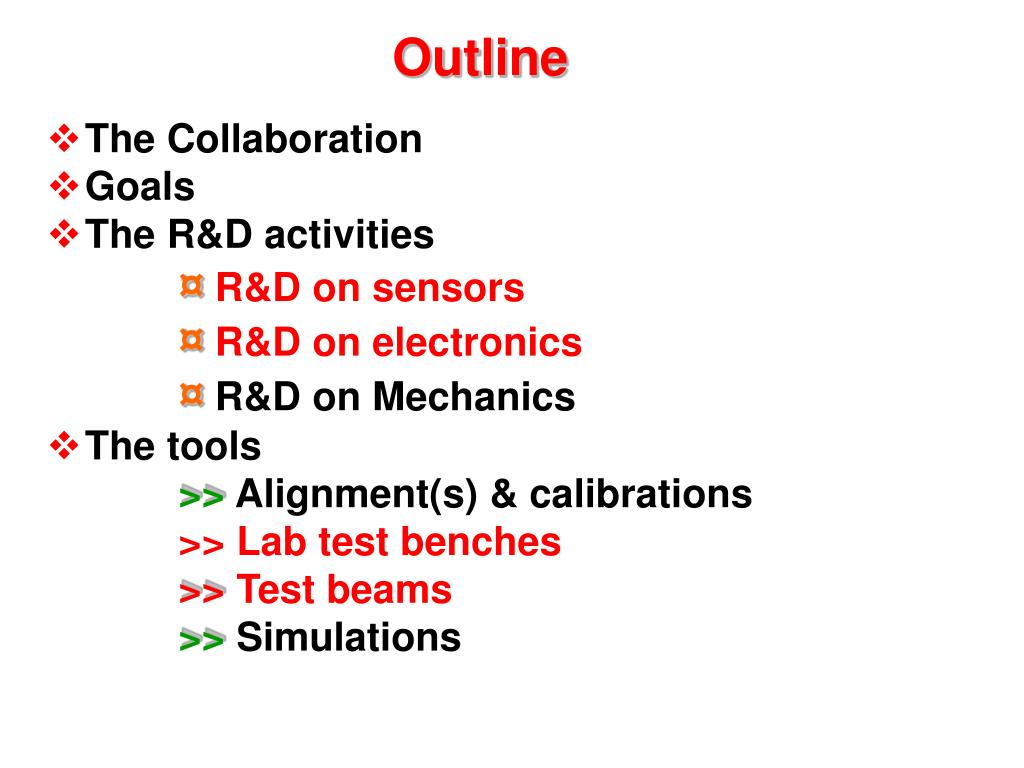

  2. Outline • The Collaboration • Goals • The R&D activities ¤R&D on sensors ¤R&D on electronics ¤ R&D on Mechanics • The tools >> Alignment(s) & calibrations >> Lab test benches >> Test beams >> Simulations

  3. The SILC R&D Collaboration U.S.A Michigan U. SCIPP-UCSC Europe IMB-CSIC, Barcelone (SP) Geneva U, Geneve (CH) Helsinki U. (Fi) IEKP, Karlsuhe U. (D) Moscow St. U. , Moscou(Ru) Obninsk St. U., Obninsk (Ru) LPNHE, Paris (Fr) INFN-Pisa, Pisa (It) Charles U. , Prague (CZ) Roma 1, La Sapienza (It) IFCA, Santander(Sp) Torino U., Torino (It) IHEP, Academy Sci., Vienna (Au) Asia Kyungpook U. Taegu, Ko Korea U. Seoul, Ko Seoul Nat. U., Seoul, Ko Tokyo U. (Japan) HAMAMATSU (Japan) • Close connections: • FNAL (DOE prop 05) • UCSC, FNAL, LPNHE • SLAC (DOE prop 03: • funded): UCSC, SLAC • Michigan U, LPNHE • and meetings 85 participants Launched January 2002, Proposal to the PRC May 2003, Status Report May 2005 Several contracts of collaborations between Institutes, ex: HPRN-CT-2002-00292, CICYT-IN2P3, IN2P3-Hamamatsu, DOE proposals, EUDET

  4. R&D Goals SiLC is a generic R&D collaboration to develop the next generation of large area Silicon Detectors for the ILC; It applies to all the detector concepts and indeed gathers teams from all 3 detector concepts: • Very high precision on momentum and spatial measurements • Full coverage • Low material budget • Robustness • Easy to build and to work with • Low cost GLD LDC SiD LDC • In all 3 detector concepts Si tracking plays an essential role • SILC R&D offers a unique framework to compare tracking performances • between the various detector concepts. • Main difference between the detector concepts = tracking system

  5. R&D on Sensors • Silicon strips are the baseline with: • Larger size wafers • Thinner/Thinning • Smaller pitch • High yield • Eventually different shapes • Possibility to use new technos in some regions:From ‘standard’ pixels of 50µ x 300µ to newPixel technos: FPCCD, DEPFET, MAPS/FAPS, SOI …

  6. First Prototype on Si strips of different length 28cm x N=1,4 Built by Geneva U., ETH Zurich & Paris with AMS technique recto/verso VA64_hdr Tsh=3.7µs Courtesy G.Ambrosi (Perrugia) ‘’Serpentine technique’’

  7. Signal over noise as a function of strip length sensor to be measured Signal spectrum is summed over a cluster after pedestal and common mode subtraction. The radioactive source is a Sr90-Y90 beta source. The S/N measurements were achieved on variable length strips with the prototype at Paris test bench Results see next slide

  8. New Collaboration Paris-Prague Results on S/N L=28cm, S/N(MPV)=20 or S/N(Mean)=30 Noise vs capa L=56cm, S/N(MPV)=12 or S/N(Mean)=18 Cluster size~2 Next steps: Change detector & FE prototypes go to test beam

  9. Some other S/N measurements and/or computations Curve computed with the known parameters of VA_64hdr Nomad experiment: results from beam tests on S/N with same sensors and VA1 FE chips These results and the ones we have obtained are confirming that 30 cm long strips have S/N greater than 20, and 60 cm long strips have S/N greater than 10. Nota bene: These results are of course dependent of the detector prototype and the associated F.E.E.

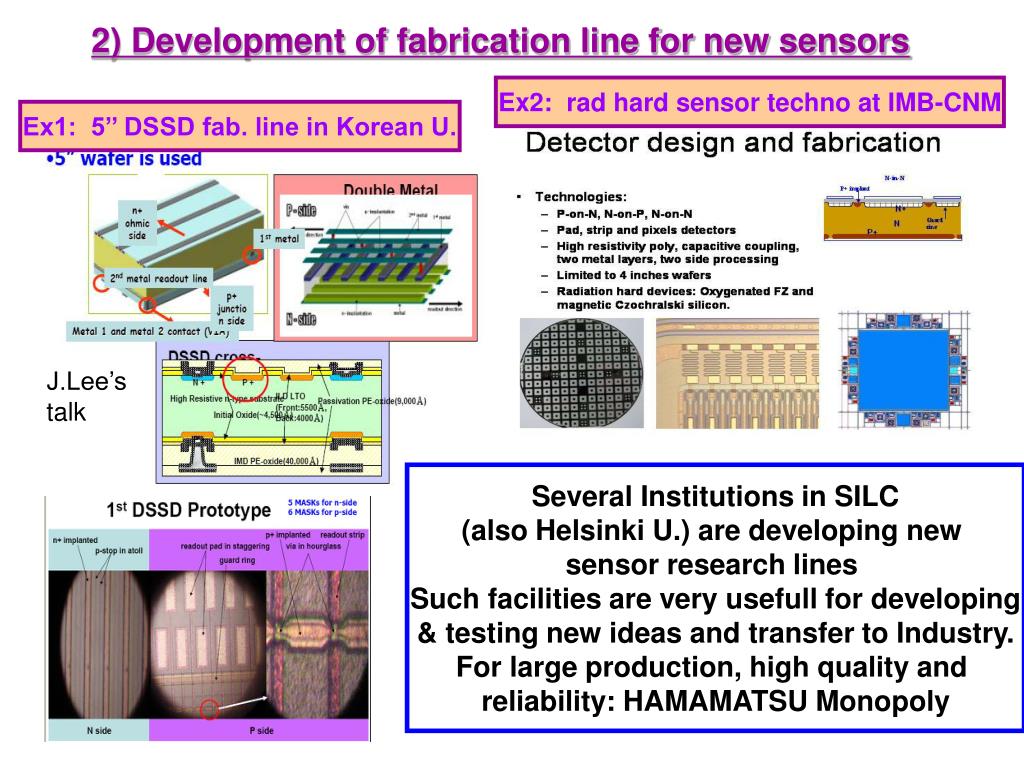

  10. 2) Development of fabrication line for new sensors Ex2: rad hard sensor techno at IMB-CNM Ex1: 5’’ DSSD fab. line in Korean U. J.Lee’s talk Several Institutions in SILC (also Helsinki U.) are developing new sensor research lines Such facilities are very usefull for developing & testing new ideas and transfer to Industry. For large production, high quality and reliability: HAMAMATSU Monopoly

  11. 3) Process Quality Control and sensor characterization (Vienna, Karlsruhe, Korea, Helsinki, Pisa ….) Semi-automatic sensor probe station for quality Control: system overview Process control scheme: Test structure Essential for • Developing new sensors • Test of production Test of 10 Hamamatsu det. S8743 (GLAST) 8.9500+/-20 x idem µm Strip pitch: 228µm Nb of strips: 384 (done @Vienna PQC set up ) Self-made chuck and probe card support

  12. Longer term prospects on the R&D on sensors • To develop Si strip wafers single sided of at least 8’’, with readout pitch of 50µm, as thin as possible, and with high yield (>50%) • To develop ‘’thinning’’ technique in order to get at least 2:1 reduction in thickness (already underway) • To develop double sided wafers of at least 6’’, and with high yield (>50%) • Keep in mind some of the µvertex technologies for certain parts of the Si tracking system. • New way(s) to connect electronic on detector with strips (connectics) Objectives: To develop R&D sensors fab line in Research Laboratories in order to develop ideas as listed above, and later on, to transfer technology to Industrial firm(s). Presently, HAMAMATSU is THE firm able to produce large amounts of detectors in the most reliable way; Will this continue in the future?

  13. R&D on Electronics The Si tracking system: a few 100m2, a few 106 strips Events tagged every bunch (300ns) during the overall train (1 ms) Data taking/pre-processing ~ 200 ms Occupancy: < a few % Goals: Low noise preamplifiers Shaping time (from 0.5 to 5 µs, depending the strip length) Analogue sampling Highly shared ADC Digitization @ sparsification Very low power dissipation Power cycling Compact and transparent NEW!! First LPNHE prototype fulfills most of these goals

  14. Two designs • SCIPP-UCSC: • Double-comparator discrimination system • Improve spatial resolution (25%) Next foundry: May 9. LPNHE-Paris: Analogue sampling+A/D, including sparsification on sums of 3 adjacent strips. Deep sub micron CMOS techno. First chip successfully submitted and now under test Next version: in progress

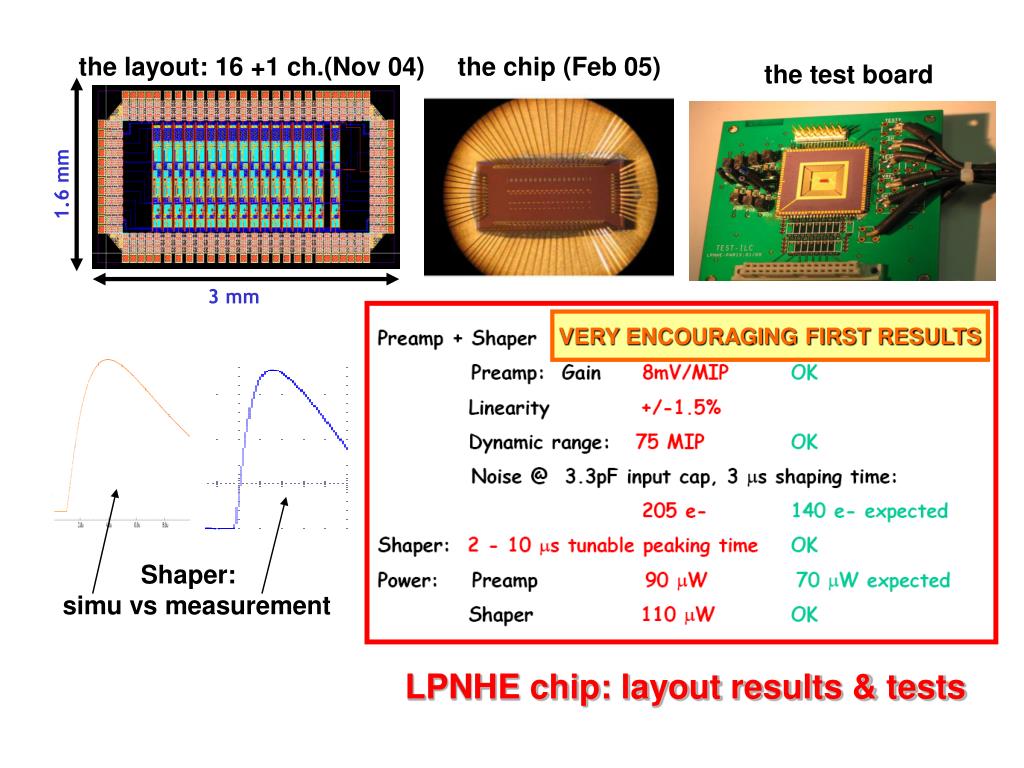

  15. LPNHE chip: layout results & tests the layout: 16 +1 ch.(Nov 04) the chip (Feb 05) the test board 1.6 mm 3 mm VERY ENCOURAGING FIRST RESULTS Shaper: simu vs measurement

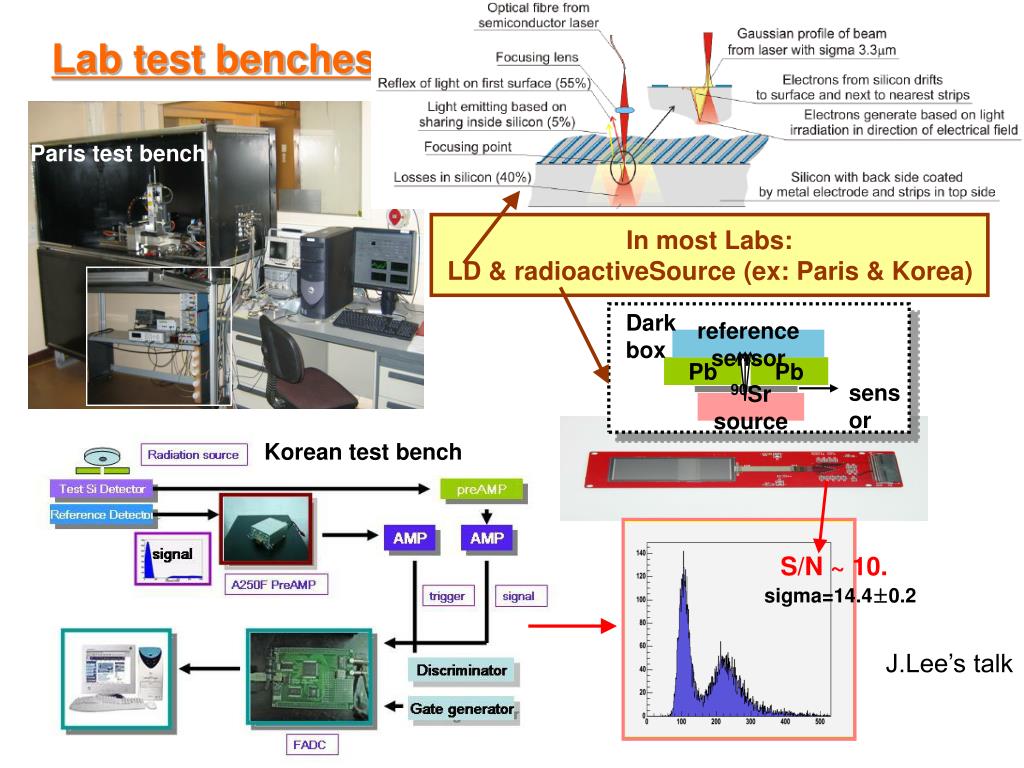

  16. Dark box reference sensor Pb Pb sensor 90Sr source Lab test benches Paris test bench In most Labs: LD & radioactiveSource (ex: Paris & Korea) Korean test bench S/N ~ 10. sigma=14.4±0.2 J.Lee’s talk

  17. Test beams: Goals • To qualify in conditions closest to the real life: prototypes of detectors (including New Si technologies) and of the associated FE and readout electronics. • Detection efficiency vs operational parameters • Spatial resolution, cluster size • Signal/Bruit • Effect of magnetic field (Lorenz angle determination) • Angular scans, bias scans • Integration with other sub-detectors • Alignment • Cooling (including power cycling) • In the specific & new ILC conditions.

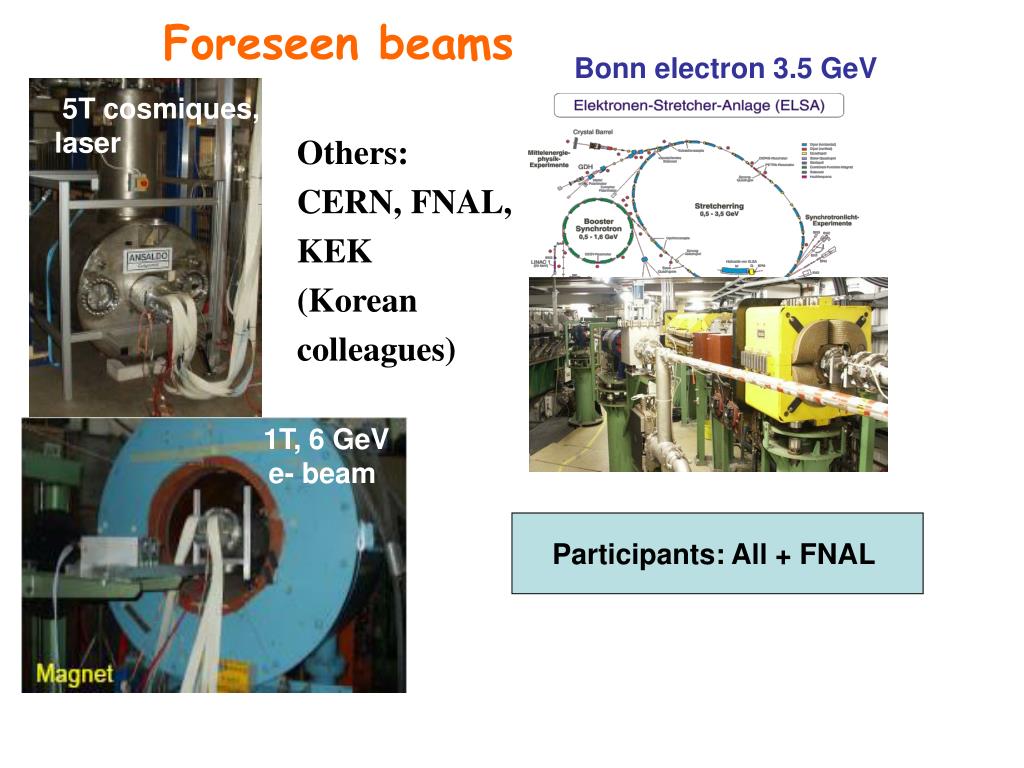

  18. Foreseen beams Bonn electron 3.5 GeV 5T cosmiques, laser Others: CERN, FNAL, KEK (Korean colleagues) 1T, 6 GeV e- beam Participants: All + FNAL

  19. Szintillator Szintillator 3 x 3 mm² BAT 1 2 3 4 ATLAS Diamond Using the test beam setup in Bonn Si tracker Prototype beam trigger busy coincidence T rigger L ogic U nit Collaboration with DEPFET (under preparation)

  20. Detector Prototypes: Forward Prototype: under CAD study Support mobile • Design (just started) • Fabrication • Assembling & Mounting Module with 3 sensors Module with 2 sensors Second layer partly covering the first one. Total of 60 trapezoidal sensors, About 10 K readout channels Ready by end 2006/beg. 2007 Other prototypes: Ladders of different sizes and sensors

  21. Schedule & Financing Bonn now 09 07 08 06 Preparations tests Proto1 Beam tests: elementary modules construction proto Forward Chips 128 ch. Construction barrel pototype Tests (cont’d) also combined with Other sub detectors New foundry (>=512 ch + techno) • EUDET (I3 EU project) foresees for Si-tracking in JRA2, the financing of: • Part of the chips (2 submissions) & large number of channels • Protos large dimension: a part of the Si central & Si forward trackers • Protos alignment • Protos cooling An R&D activity on a new scale is starting within SiLC when going to test beams.

  22. SiLC R&D proposal was presented to the PRC on May 2003 • Goal: to develop the next generation of large area Si trackers suited for • performing very high precision measurements • in spatial position and momentum at the ILC, • All R&D aspects, on sensors, electronics and mechanics are addressed. • All needed tools: simulations, Lab test benches, test beams, • alignment and calibration are being developed • Highlights/important progress these last 2 years: • Work on sensors: characterization of strips of variable length, • development of fab lines • FE electronics in deep submicron CMOS techno • Developing Lab test bench for highly precise measurements • CAD of all the tracking components, for both LDC (Si Envelope) & SiD • Thermo mechanical studies • NOW: • Preparing for test beams and getting even closer to the real life conditions. • The collaboration is getting speed and established close contacts with all • 3 detector concepts • Keeping synergy with LHC (SuperLHC).

  23. Second Parigi prototype is underway Next step: going to 128 channels with analogue sampling included; second chip prototype currently under design, foreseen submission Fall 05. Will equip the test beam prototypes

  24. Longer term prospects for the FE readout chip and processing of the Si-tracking information • Higher multiplexing factor for A/D, at least 512:1, possibly 1024:1 • Go to deeper DSM techno (90 nm) • Try SiGe techno for analogue part of the FE chip • Work out packaging, output of signal and cabling issues: following last developments on those topics • Develop upper stages of the readout and of the data processing for the Si-trackers: >> Clusterization to improve the position resolution >> track reconstruction (track segments) • and their inclusion in the overall data flow architecture. • Study the time information provided by those detectors (shorter shaping time possibility) • Stay in close contact with/participate to the new developments for the SLHC tracking. • Tests prototypes on Lab test bench but also on more real life set ups= use them for the readout of prototype detectors in test beams.

  25. A systematic work is underway on an electronic test bench to fully characterize the 40 first prototyped chips: amplifier gain, linearity, dynamic range, noise, power dissipation; The power cycling will also be experienced. All the results are compared with simulations performed before sending for foundry as well as post simulations. As an example here below the results on the noise By courtesy of Jean Francois Genat
