Status of beamline design

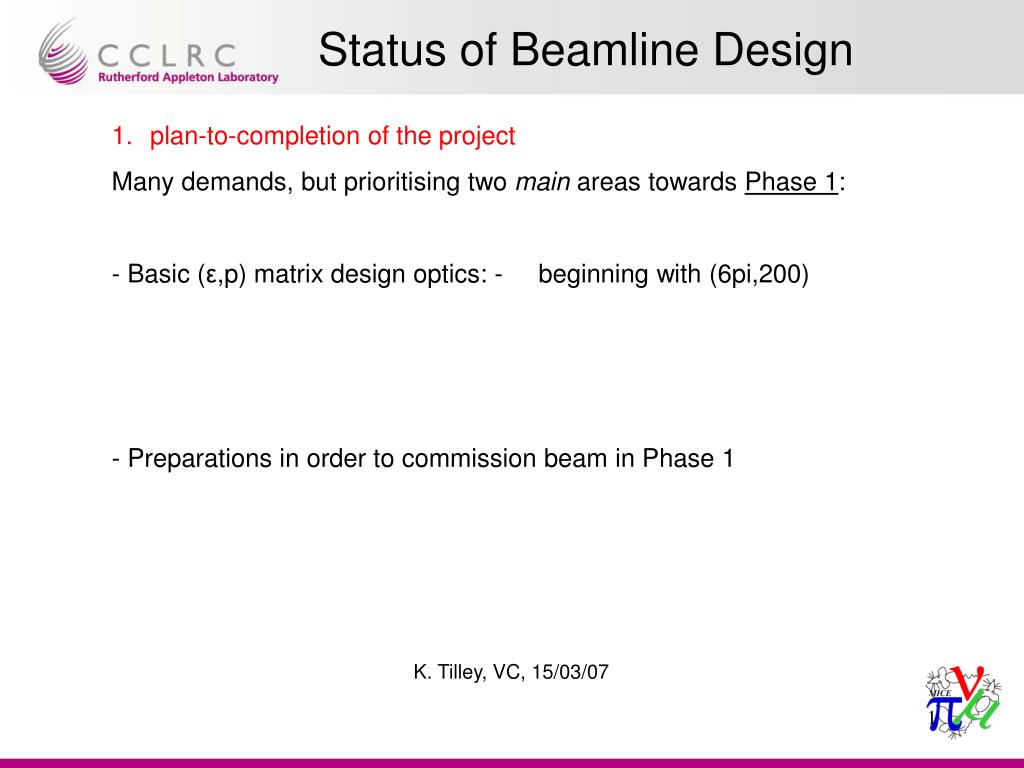

  • plan-to-completion of the project

  • Many demands, but prioritising two main areas towards Phase 1:

  • - Basic (ε,p) matrix design optics: - beginning with (6pi,200)

  • - Preparations in order to commission beam in Phase 1

Status of Beamline Design

K. Tilley, VC, 15/03/07


Status of beamline design1

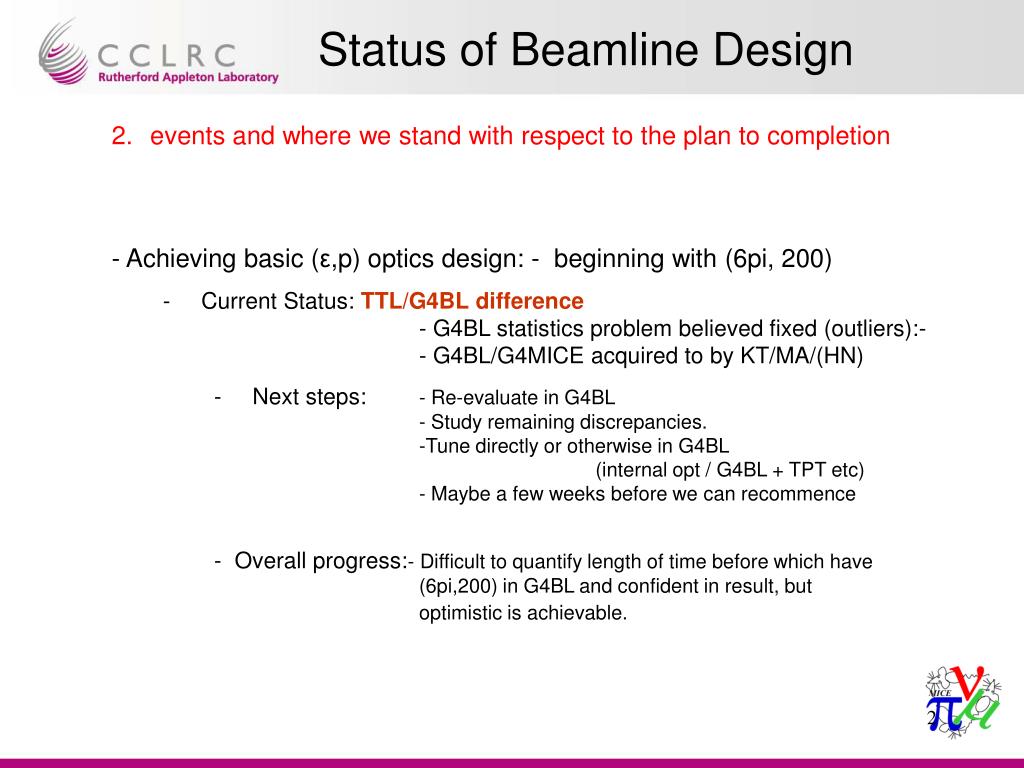

  • events and where we stand with respect to the plan to completion

  • - Achieving basic (ε,p) optics design: - beginning with (6pi, 200)

    • Current Status: TTL/G4BL difference - G4BL statistics problem believed fixed (outliers):- - G4BL/G4MICE acquired to by KT/MA/(HN)

      • Next steps: - Re-evaluate in G4BL - Study remaining discrepancies. -Tune directly or otherwise in G4BL (internal opt / G4BL + TPT etc) - Maybe a few weeks before we can recommence

    • - Overall progress:- Difficult to quantify length of time before which have (6pi,200) in G4BL and confident in result, but optimistic is achievable.

Status of Beamline Design


Status of beamline design2

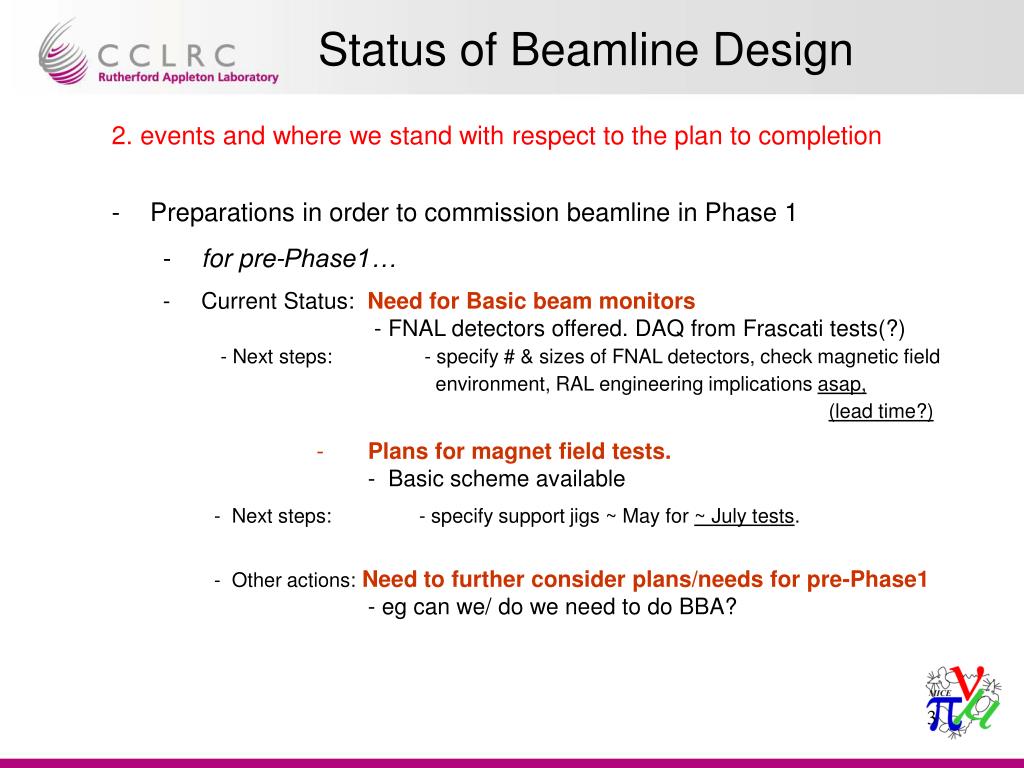

  • 2. events and where we stand with respect to the plan to completion

  • Preparations in order to commission beamline in Phase 1

    • for pre-Phase1…

    • Current Status: Need for Basic beam monitors - FNAL detectors offered. DAQ from Frascati tests(?) - Next steps: - specify # & sizes of FNAL detectors, check magnetic field environment, RAL engineering implications asap,(lead time?)

      • Plans for magnet field tests.- Basic scheme available

  • - Next steps: - specify support jigs ~ May for ~ July tests.

  • - Other actions:Need to further consider plans/needs for pre-Phase1 - eg can we/ do we need to do BBA?

Status of Beamline Design


Status of beamline design3

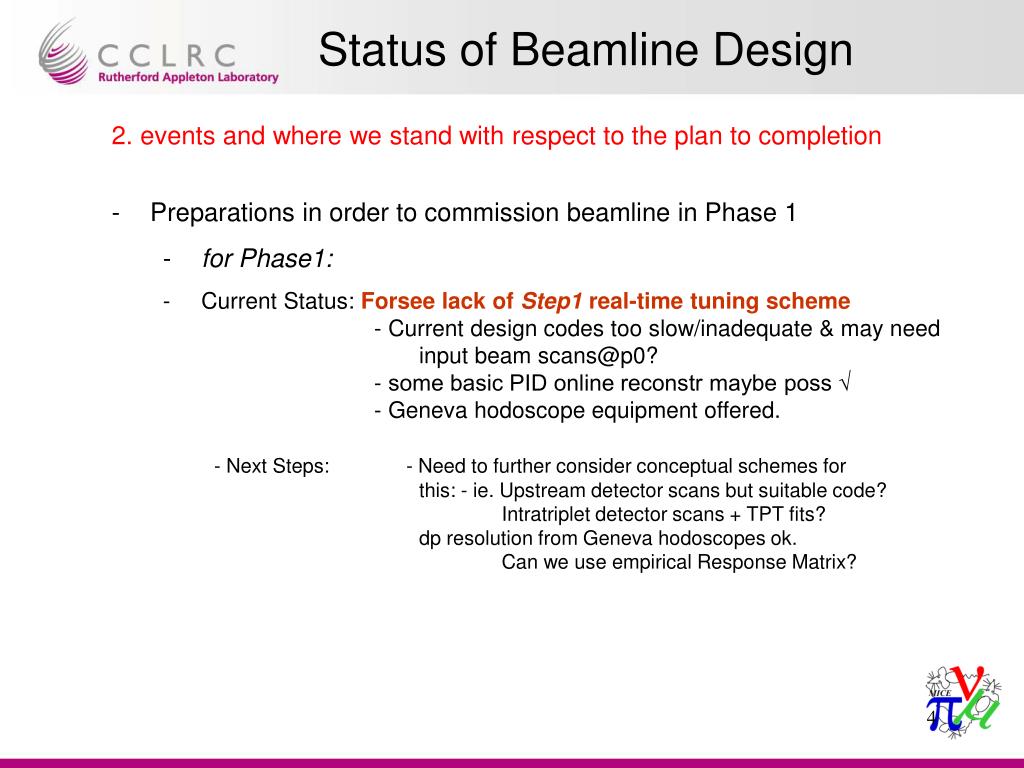

  • 2. events and where we stand with respect to the plan to completion

  • Preparations in order to commission beamline in Phase 1

    • for Phase1:

    • Current Status: Forsee lack of Step1 real-time tuning scheme - Current design codes too slow/inadequate & may need input beam [email protected]? - some basic PID online reconstr maybe poss √ - Geneva hodoscope equipment offered.- Next Steps: - Need to further consider conceptual schemes for this: - ie. Upstream detector scans but suitable code? Intratriplet detector scans + TPT fits? dp resolution from Geneva hodoscopes ok. Can we use empirical Response Matrix?
