Rack wizard

Rack Wizard

LECC 2003

Frank Glege


Content

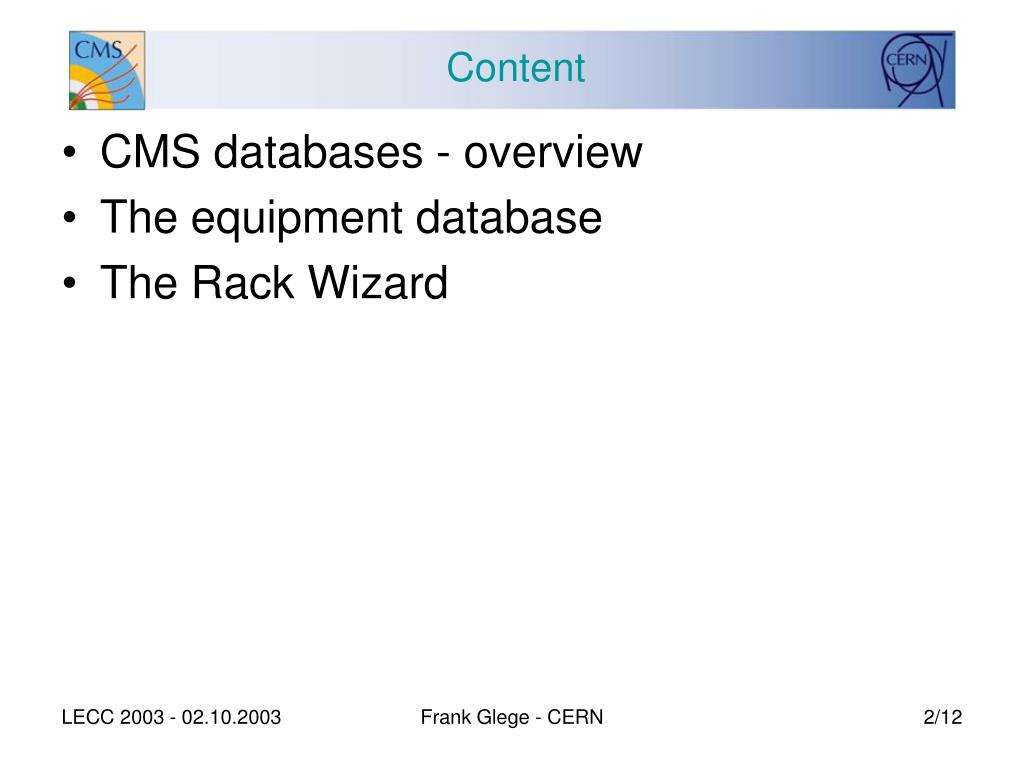

Content

  • CMS databases - overview

  • The equipment database

  • The Rack Wizard

Frank Glege - CERN


Introduction

http

Introduction

  • Once the electronics will be finished it will have to be installed.

  • Electronics installation of the size of a LHC experiment needs careful planning of the infrastructure.

  • After installation electronics components have to be tracked.

  • An efficient, easy to use tool is needed…

Frank Glege - CERN


Database types

Database types

  • We will have 4 kinds of databases in CMS:

    • Construction databases

      • Holds all information about the sub detector construction up to the start of integration

    • Equipment management database

      • Holds all information to physically set up the detector and is used for asset tracking

    • Configuration database

      • Holds all information required to bring the detector in any running mode

    • Conditions database

      • Holds all information needed for event reconstruction

Frank Glege - CERN


Emdb goals

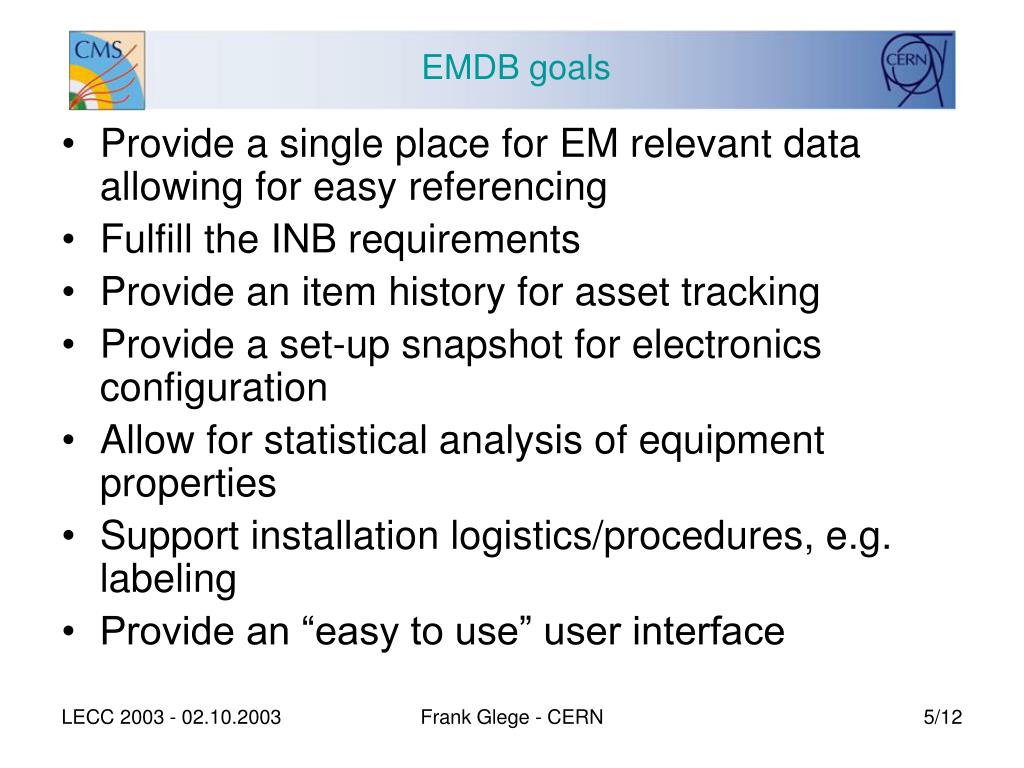

EMDB goals

  • Provide a single place for EM relevant data allowing for easy referencing

  • Fulfill the INB requirements

  • Provide an item history for asset tracking

  • Provide a set-up snapshot for electronics configuration

  • Allow for statistical analysis of equipment properties

  • Support installation logistics/procedures, e.g. labeling

  • Provide an “easy to use” user interface

Frank Glege - CERN


Equipment management db

Equipment management DB

Conditions DB

  • Parts

  • (Detectors, Racks, electronic boards, cables, etc., including spares)

  • Location history for asset tracking / INB

  • Specific parameters

  • Locations

  • Geometrical position

  • Shape

  • Parent/children

Configurations

DB

Bar code

reader

Logbook

User authentication

DB data

handler

(procedures)

http

XML

Rack Wizard

Label printer

Graphical user interface

Web front end

Frank Glege - CERN


Emdb content

EMDB content

~13000

Frank Glege - CERN


Emdb interconnectivity

EMDB interconnectivity

  • The EMDB information is tightly coupled to each other and to other detector parameters

    • Item location might define the electronics configuration parameters

    • Cables connect detector items and electronics boards

  • Putting all EM related data in one DB eases linking between components

  • The EMDB contains information needed by different services (electrical distribution, cooling, detector integration, etc..)

    • A prototype of a AUTO CAD connection is existing: A dynamically created AUTO CAD file, downloaded via the web, visualizes all cable paths

Frank Glege - CERN


User interface

User interface

  • The Rack Wizard is used as GUI:

    • JAVA application

    • User authentication

    • Synoptic representation of items

    • Drag and drop mechanism

    • Copy/paste for racks and content

    • Enforces design rules

    • Provides statistical information

    • Eases configuration (estim. 1h per detector)

  • Independent MTF view of EMDB foreseen

  • Evaluated by ATLAS and LHCb

Frank Glege - CERN


Rack wizard1

Rack Wizard

  • Separated in loader and main application

    • The loader is generic

    • Uses reflection to load main application

    • Assembles main application from classes in distributed locations => personalization

  • Main application provides infrastructure for individual item handlers

    • Item independent tree structure including navigation mechanism

    • Panel for item specific visualization

    • Database access mechanism

    • Label handling

Frank Glege - CERN


Labels

Labels

  • CMS CSC cable label

  • CMS CSC detector label

ME-3/2/36

Frank Glege - CERN


Item handlers

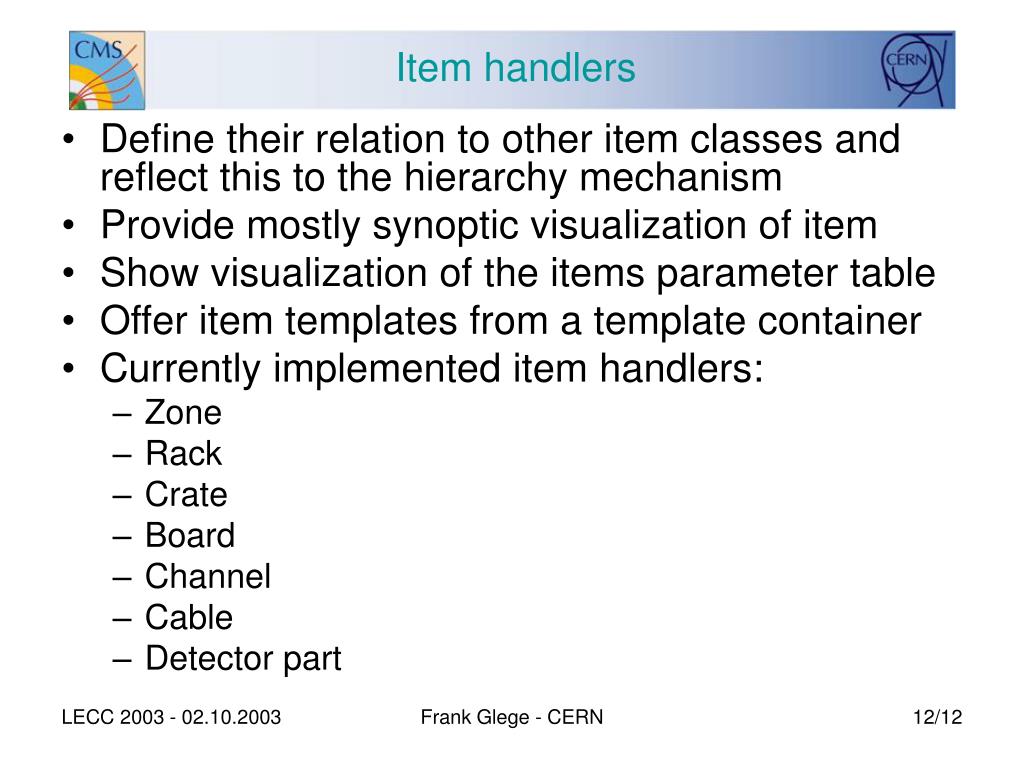

Item handlers

  • Define their relation to other item classes and reflect this to the hierarchy mechanism

  • Provide mostly synoptic visualization of item

  • Show visualization of the items parameter table

  • Offer item templates from a template container

  • Currently implemented item handlers:

    • Zone

    • Rack

    • Crate

    • Board

    • Channel

    • Cable

    • Detector part

Frank Glege - CERN
