Search for W′➟WZ in 10 TeV pp Collisions

Search for W′➟WZ in 10 TeV pp Collisions. Backgrounds. 200 pb -1. Proposed Cuts (from WZ note). Muon ID Isolation: 5 GeV threshold in calo, 2 GeV in tracker Impact parameter significance: b/σ b < 3 Electron ID SimpleLoose for Z, SimpleTight for W Z Reconstruction

alisa
Download Presentation

Search for W′➟WZ in 10 TeV pp Collisions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Search for W′➟WZin 10 TeV pp Collisions

  2. Backgrounds 200 pb-1

  3. Proposed Cuts (from WZ note) • Muon ID • Isolation: 5 GeV threshold in calo, 2 GeV in tracker • Impact parameter significance: b/σb < 3 • Electron ID • SimpleLoose for Z, SimpleTight for W • Z Reconstruction • Both leptons: pT > 15 GeV • 81 GeV < MZ < 101 GeV • Veto on second Z candidate • W Reconstruction • ΔR(eZ,µW) or ΔR(eW,µZ) > 0.1 • MT cut > 50 GeV

  4. Proposed Change toL2 Muon Calorimeter Isolation

  5. HLT_IsoMu9 Path Prescaled L1 Candidates pT > 5 GeV? Thresholds vary according to |η| L1Filtered Calo Isolation Conesize = 0.24 2.0 < Thresh < 4.0 Refit with regional info (CSCs or DTs) L2PreFiltered Tracker Isolation Conesize = 0.24 0.8 < Thresh < 1.2 pT > 9 GeV (uses 90% CL) L2IsoFiltered Refit with tracker info L3PreFiltered d0 < 2.0 pt > 11.0 L3IsoFiltered

  6. Existing Isolation Cut Region • Calorimeter towers excluded in a veto cone of Δr < 0.1 centered on the parameters propagated to the calorimeter • Calorimeter towers summed in a cone of Δr < 0.24 centered on the parameters at vertex • A threshold is applied based on the candidate’s eta value Isolated Candidates

  7. Proposed Isolation • Abandon the eta-dependent threshold in favor of a pT-dependent cut that relaxes with higher pT • We choose a functional form quadratic in pT: • The plots show the full pT range, but the L2 pT cut of 7 GeV is enforced in efficiency calculations • No isolation is imposed for L2 candidates with pT > 15 GeV, where a non-isolated trigger would take over

  8. Approach • Look at the interaction of isolated and non-isolated triggers • HLT_IsoMu9 has an L2 pt cut of 7 GeV • HLT_Mu15 has an L2 pt cut of 12 GeV • Want to maximize rejection and efficiencies in the pt range before the non-isolated trigger takes over

  9. Samples Used • Summer08_IDEAL_V9_v1 • Plots are normalized by cross-section to correspond to the integrated luminosity of the Z sample (~1 fb-1) • We consider only L2 objects matched to a generated muon which is a daughter of desired event

  10. Iso by Towers Cut Region Rate passed to L3 reduced by 30% L2 pT Cut Current Iso Threshold (approx.)

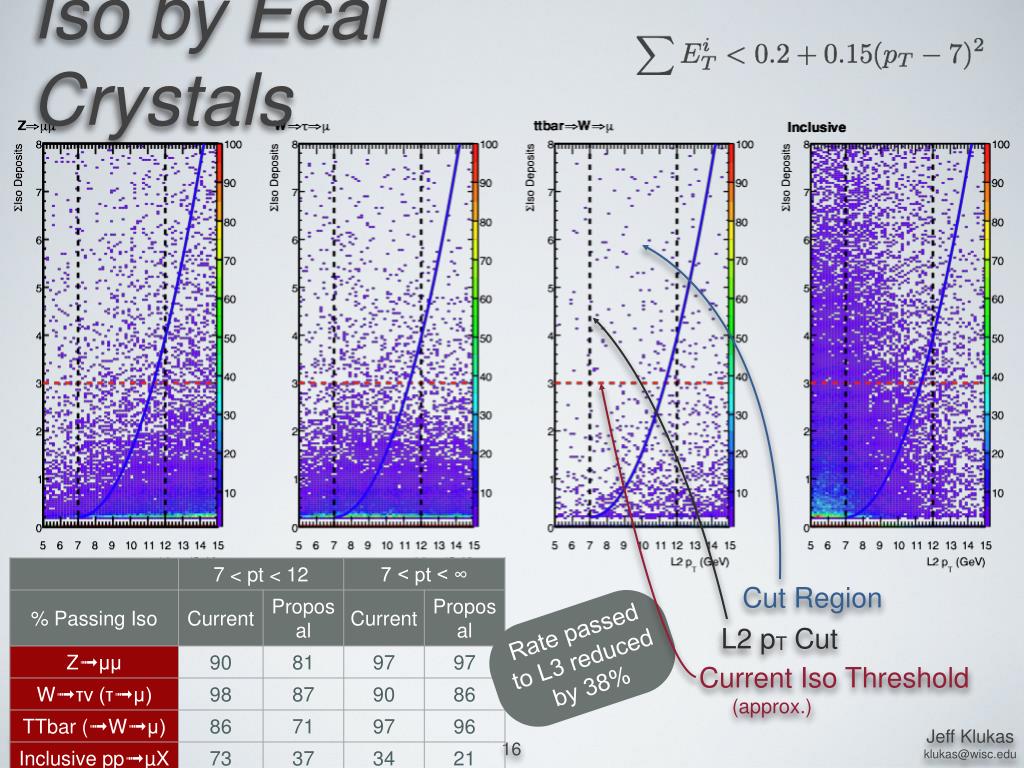

  11. Iso by Ecal Crystals Cut Region Rate passed to L3 reduced by 38% L2 pT Cut Current Iso Threshold (approx.)

  12. Efficiency of the Isolation Cut • The following slides show the efficiency of the tower-based isolation cut with pt-dependent threshold • The structure of the calorimeter leads to eta-dependent structure in the isolation deposits, so we want to relax our criteria in regions where calorimeter response is greatest

  13. Efficiency of Isolation Cut vs. pT • The pt-based cut allows a smooth rise in efficiency with pt

  14. Eta Distribution • The existing isolation uses a complex eta-dependent threshold to ensure a flat efficiency in eta • We would like to adjust the thresholds from the pt-dependent but to allow a flatter eta distribution as well

  15. Efficiency of Isolation Cut vs. eta • Eta-Dependent • pt-Dependent

  16. Threshold Scaling by eta • If we scale the pt-based thresholds up in proportion to the eta-based thresholds, we can restore a nearly flat distribution
