Presentation Transcript
Cls machine status displays l.jpg

CLS Machine Status Displays

By Hao Zhang

System Analyst - Controls

Canadian Light Source Inc.     web:   www.lightsource.ca

101 Perimeter Road                   Email: [email protected]

The University of Saskatchewan       Room:  1009

Saskatoon SK S7N 0X4 Phone: (306)657-3731

Canada

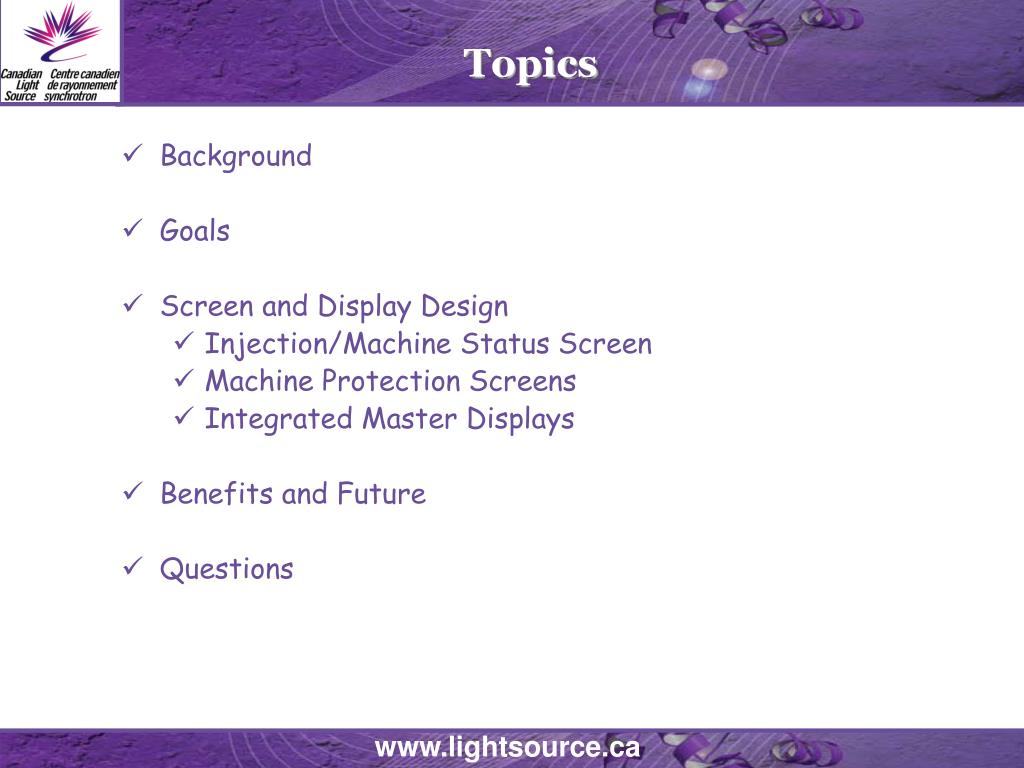

Topics l.jpg
Topics

  • Background

  • Goals

  • Screen and Display Design

    • Injection/Machine Status Screen

    • Machine Protection Screens

    • Integrated Master Displays

  • Benefits and Future

  • Questions

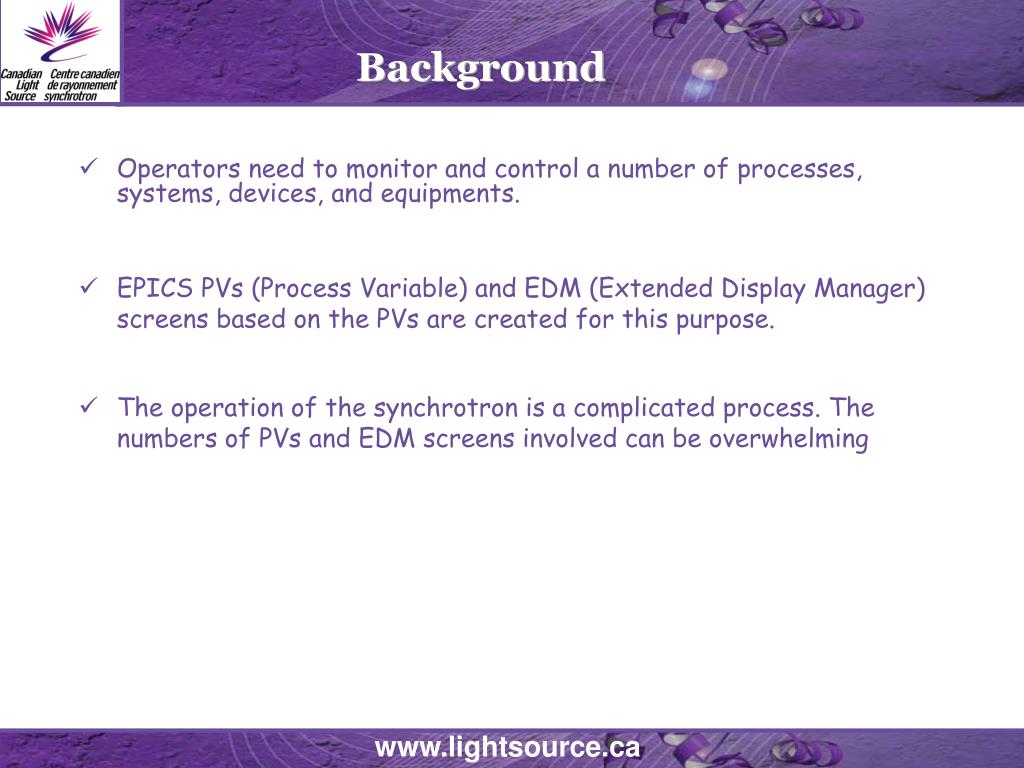

Background l.jpg
Background

  • Operators need to monitor and control a number of processes, systems, devices, and equipments.

  • EPICS PVs (Process Variable) and EDM (Extended Display Manager) screens based on the PVs are created for this purpose.

  • The operation of the synchrotron is a complicated process. The numbers of PVs and EDM screens involved can be overwhelming


Goals l.jpg
Goals

  • A quick and easy way to give the operator a snapshot of the machine status at one glance

  • A quick and easy way to pin point each individual PV when necessary

  • A quick and easy way to locate the problematic component when a machine trip happens

  • A centralized location to put all involved PVs and screens together

  • A quick and easy way to navigate through different EDM screens


Screen and display design l.jpg
Screen and Display Design

  • Injection / Machine Status Screen

  • Machine Protection Screens

  • Integrated Master Displays


Injection machine status screen l.jpg
Injection/Machine Status Screen

  • Row : sub-systems

  • Column: key components

Grid status indicator matrix: How PVs are organized?


Injection machine status screen7 l.jpg
Injection/Machine Status Screen

Indicator color definition: How status is represented?


Injection machine status screen8 l.jpg
Injection/Machine Status Screen

Navigation through the Injection/Machine Status Screen:

  • Indicator matrix - a snap shot of the big picture

  • Related displays - links to other EDM screens

  • Sub-screens - display components info in a sub-system


Injection machine status screen9 l.jpg
Injection/Machine Status Screen

Group Status: combine all component status together

  • A group status PV is created to indicate the collective status of a group of components in a sub-system.

  • The group status PV monitors all individual PVs in this group and calculates the combined status. Different algorithms are used for different types of PVs.

    Eg. finds out the highest alarm level in the group and pass it to the group PV.


Injection machine status screen10 l.jpg
Injection/Machine Status Screen

Example: pass highest alarm to the group PV


Machine protection screens l.jpg
Machine Protection Screens

Overview of CLS Machine Protection Systems (MPS)

Tasks:

  • monitors vacuum status using ion pumps, cold cathode gauges, multi gauges, etc.

  • monitors device cooling status using flow switches, flow transmitters, thermo couples, RTDs, etc.

  • shuts down vacuum valves/photon shutters, disables Gun/ RF, for VACUUM PROTECTION/DEVICE PROTECTION when necessary

  • interface with other systems such as the personnel safety system, modulator controls, and other machine protection systems

    Components of a typical MPS:

  • a PLC system

  • a hardware interlock system/a redundant PLC system


Machine protection screens12 l.jpg
Machine Protection Screens

Machine Protection Screens:

  • display device status

  • provide operator controls

  • helps diagnose problem


Machine protection screens13 l.jpg
Machine Protection Screens

Example: LINAC Machine Protection Screen


Machine protection screens14 l.jpg

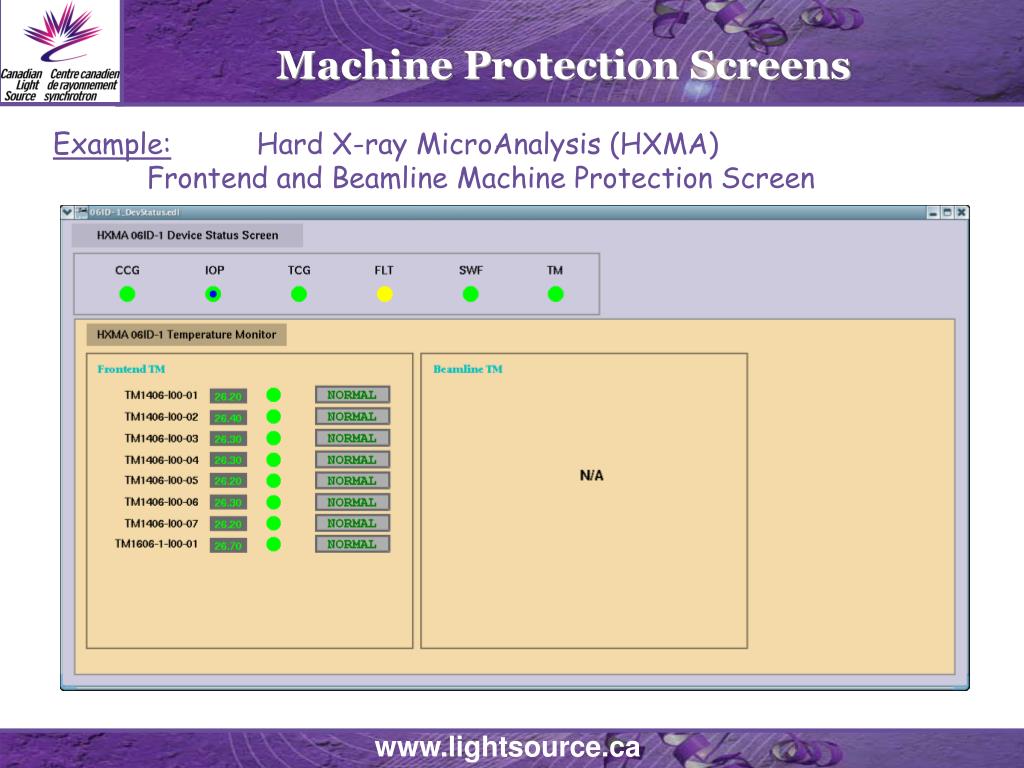

Machine Protection Screens

Example: Hard X-ray MicroAnalysis (HXMA)

Frontend and Beamline Machine Protection Screen


Machine protection screens15 l.jpg
Machine Protection Screens

Similarities to the Injection Status Screen:

  • Devices are organized into groups

  • Group status is represented by the color of its indicator

  • For some indicators, sub-screens can be brought up and displayed in an embedded window.

  • Related displays are provided when necessary to access more detailed information


Machine protection screen l.jpg
Machine Protection Screen

Bypass: Who got bypassed?

regular indicator

bypass indicator


Machine protection screen17 l.jpg

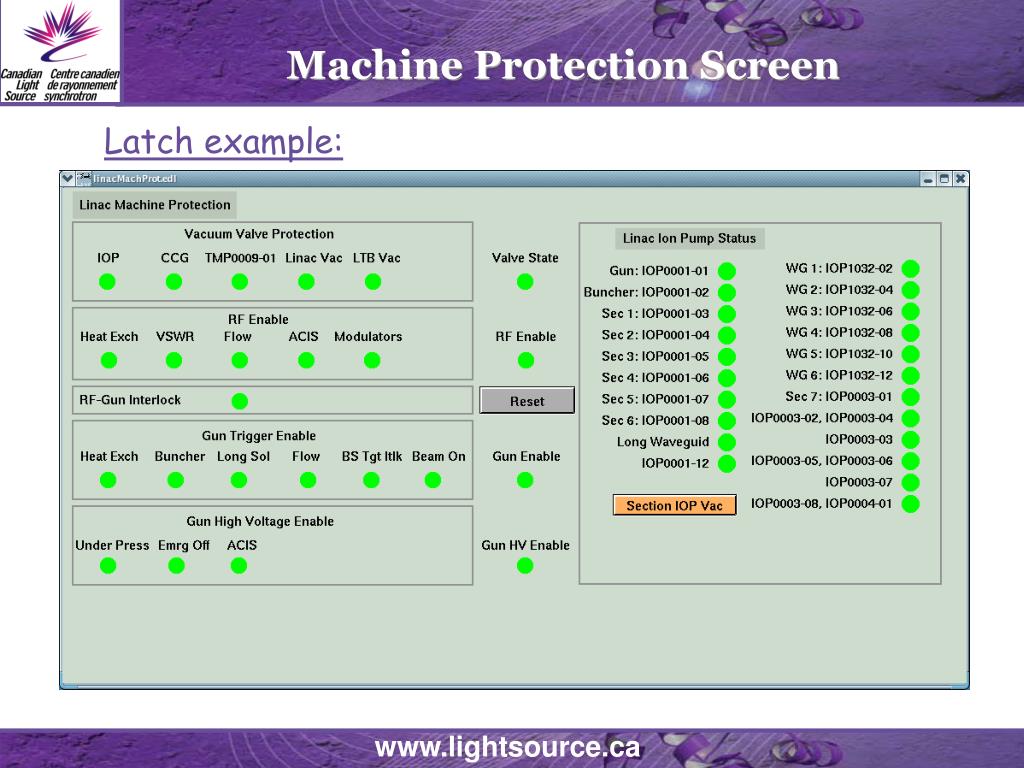

Machine Protection Screen

Latch indicator: Who tripped the machine?

  • the component tripped the machine will be latched

regular indicator

  • latch indicators appear around the component indicator and its group indicator, and so on

  • latch indicators keeps showing until the latch is cleared even if the component status is GOOD

latch indicator

  • No new latch indicators will appear as long as the current latch is not cleared



Integrated master displays l.jpg

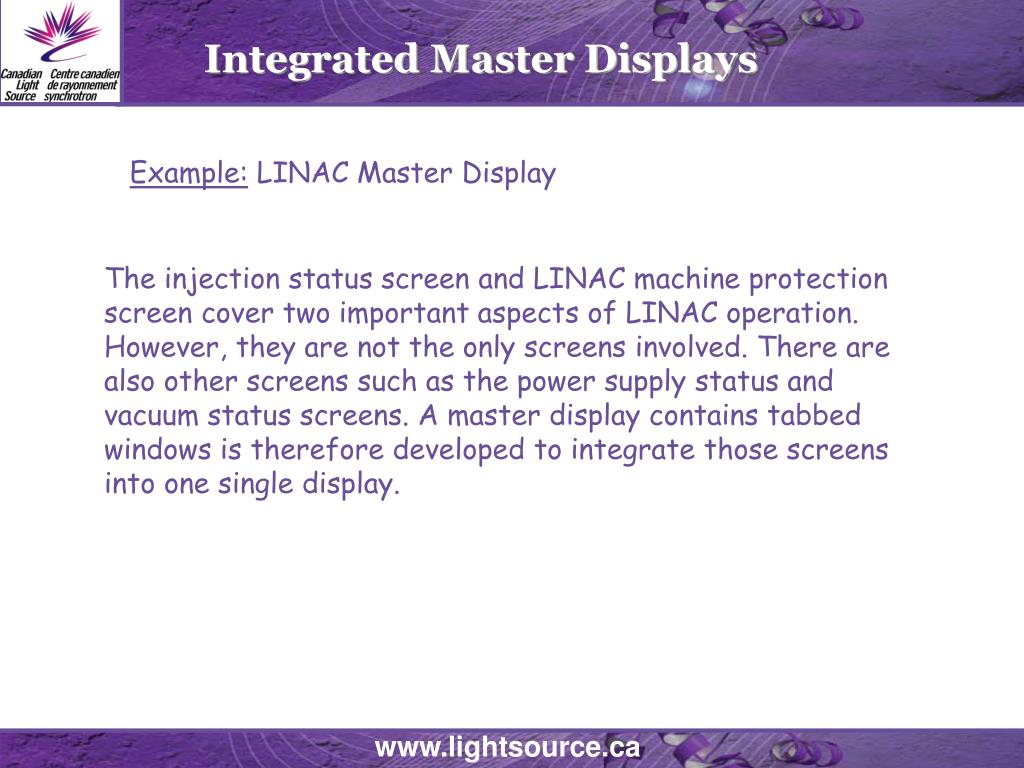

Integrated Master Displays

Example: LINAC Master Display

The injection status screen and LINAC machine protection screen cover two important aspects of LINAC operation. However, they are not the only screens involved. There are also other screens such as the power supply status and vacuum status screens. A master display contains tabbed windows is therefore developed to integrate those screens into one single display.


Integrated master displays20 l.jpg
Integrated Master Displays

Example: LINAC Master Display


Integrated master displays21 l.jpg
Integrated Master Displays

Example: Beamline Master Display


Benefits l.jpg
Benefits

  • Simple , self-explanatory, and user friendly

  • Better organization of PVs and control screens

  • A handy tool to help identify problems

  • Shortened the average time taken to return the storage ring to service after a trip


Future l.jpg
Future

  • More indicators are to be added into the grid status indicator matrix as new devices are installed into the system

  • More screens are to be integrated into the master displays as the system evolves

  • Considering extend the indicator color key definition so that more status can be identified.
