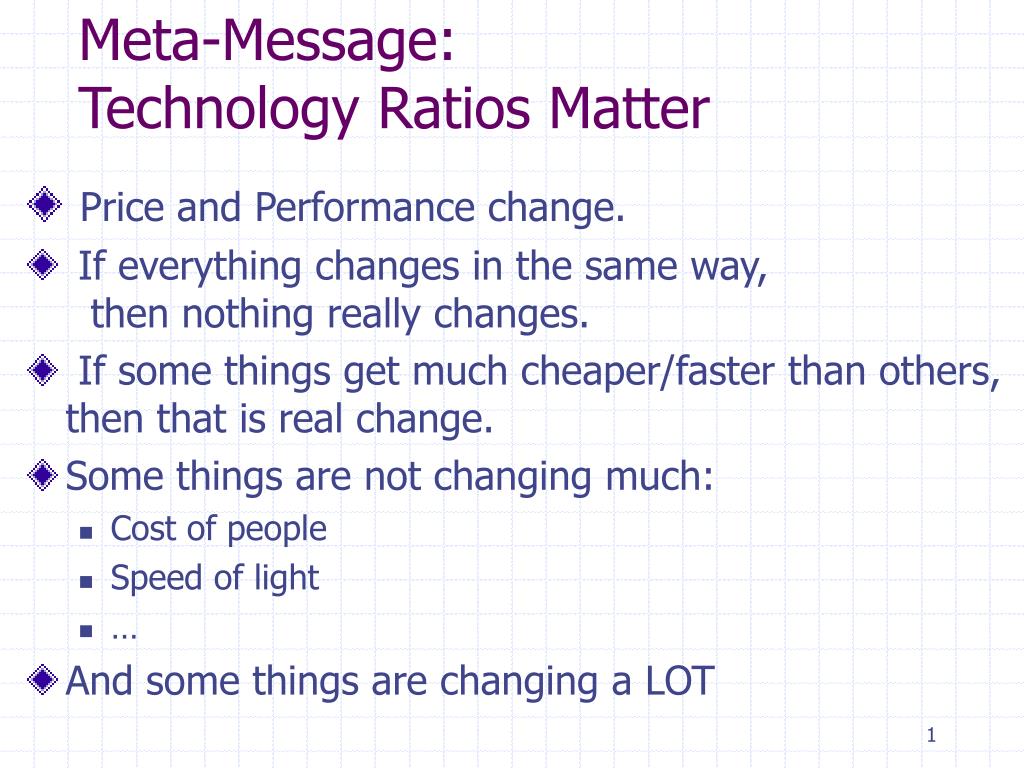

  1. Meta-Message: Technology Ratios Matter • Price and Performance change. • If everything changes in the same way, then nothing really changes. • If some things get much cheaper/faster than others, then that is real change. • Some things are not changing much: • Cost of people • Speed of light • … • And some things are changing a LOT

  2. Trends: Moore’s Law • Performance/Price doubles every 18 months • 100x per decade • Progress in next 18 months = ALL previous progress • New storage = sum of all old storage (ever) • New processing = sum of all old processing. • E. coli double ever 20 minutes! 15 years ago

  3. Trends: ops/s/$ Had Three Growth Phases 1890-1945 Mechanical Relay 7-year doubling 1945-1985 Tube, transistor,.. 2.3 year doubling 1985-2000 Microprocessor 1.0 year doubling

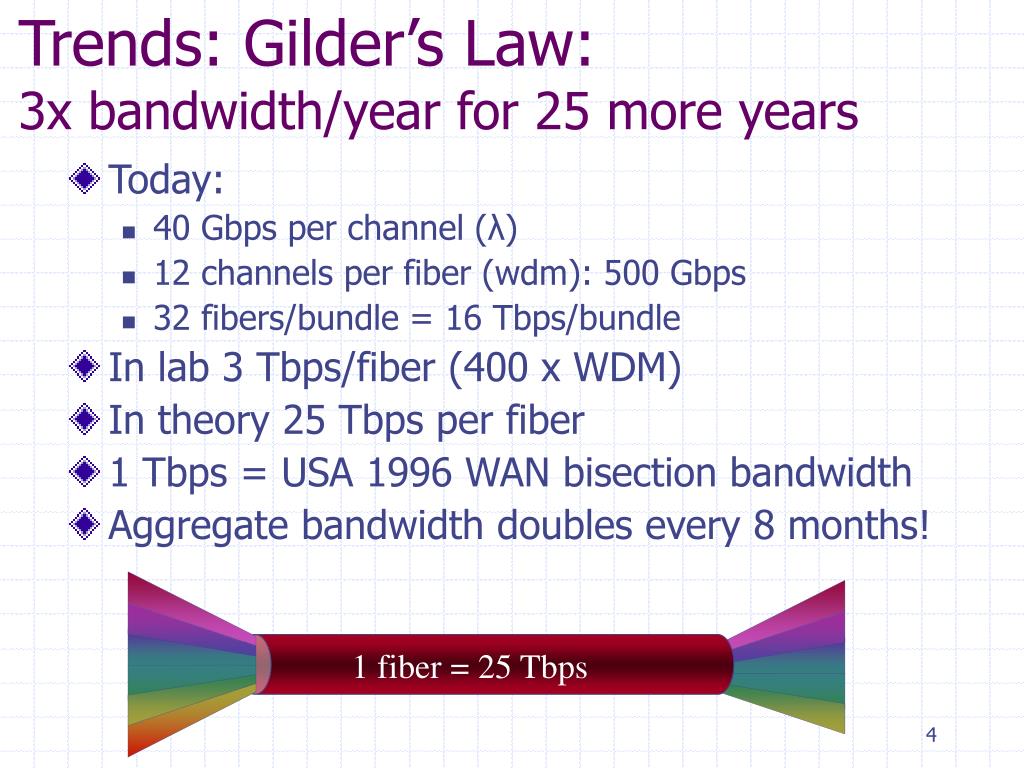

  4. Trends: Gilder’s Law: 3x bandwidth/year for 25 more years • Today: • 40 Gbps per channel (λ) • 12 channels per fiber (wdm): 500 Gbps • 32 fibers/bundle = 16 Tbps/bundle • In lab 3 Tbps/fiber (400 x WDM) • In theory 25 Tbps per fiber • 1 Tbps = USA 1996 WAN bisection bandwidth • Aggregate bandwidth doubles every 8 months! 1 fiber = 25 Tbps

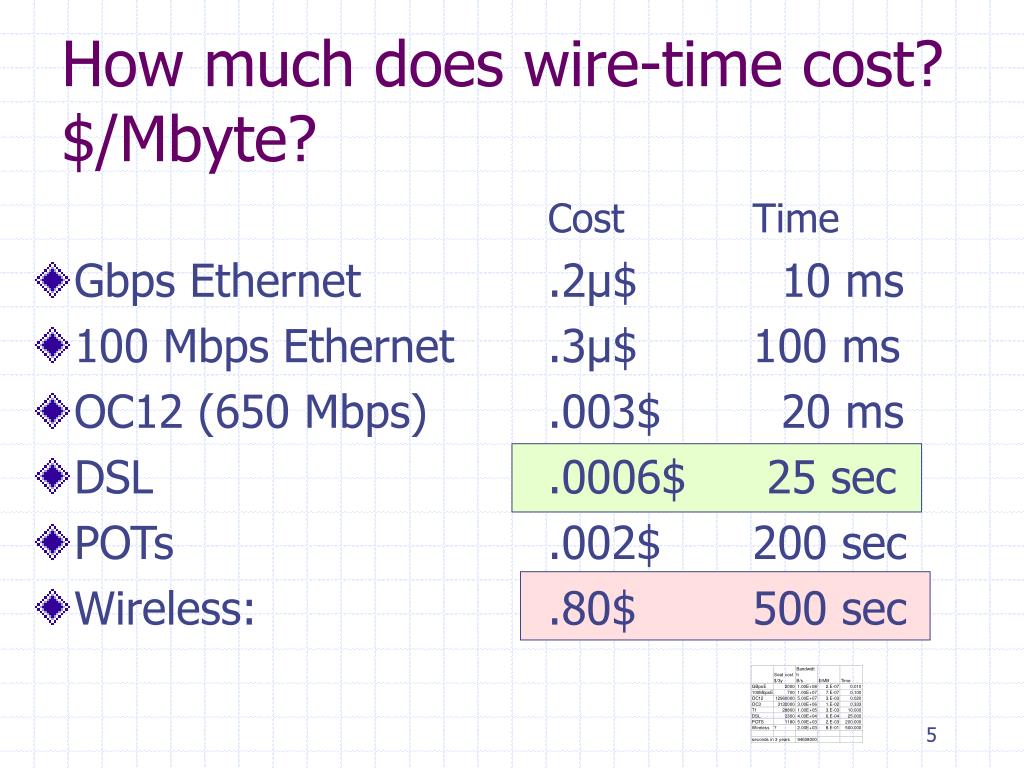

  5. How much does wire-time cost?$/Mbyte? Cost Time • Gbps Ethernet .2µ$ 10 ms • 100 Mbps Ethernet .3µ$ 100 ms • OC12 (650 Mbps) .003$ 20 ms • DSL .0006$ 25 sec • POTs .002$ 200 sec • Wireless: .80$ 500 sec

  6. Data delivery costs 1$/GB toady • Rent for “big” customers: 300$/megabit per second per month • Improved 3x in last 6 years (!). • That translates to 1$/GB you send. • You can mail a 160 GB disk for 20$. • That’s 16x cheaper • If overnight it’s 3 MBps. 3x160 GB ~ ½ TB

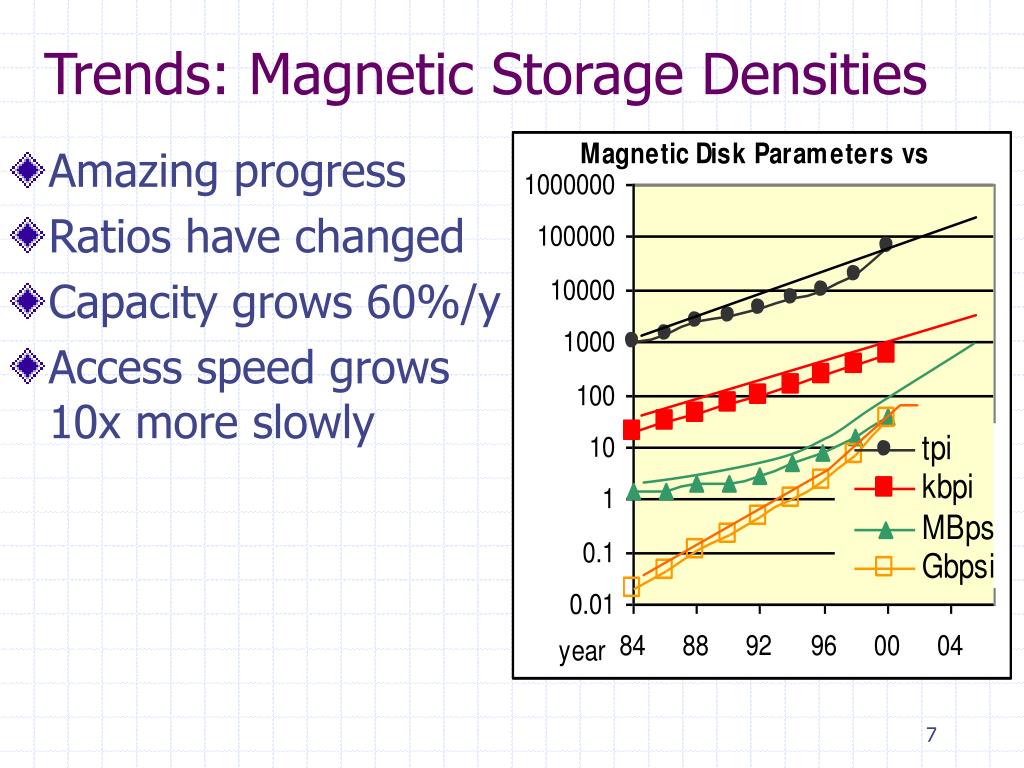

  7. Trends: Magnetic Storage Densities • Amazing progress • Ratios have changed • Capacity grows 60%/y • Access speed grows 10x more slowly

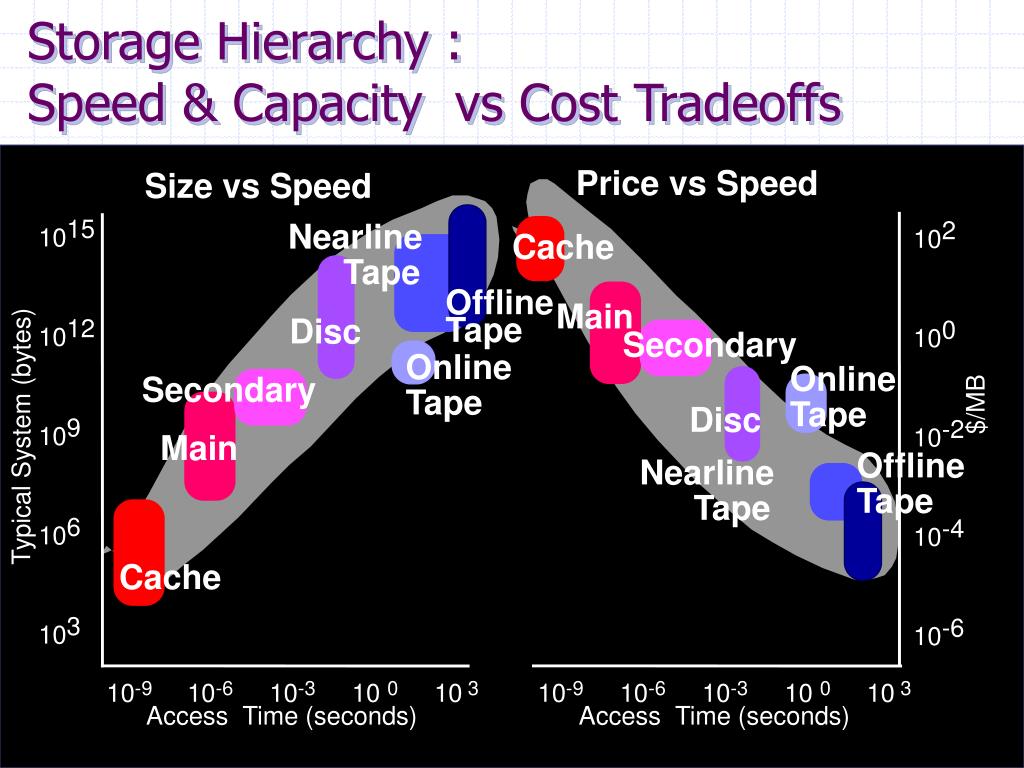

  8. 15 2 10 10 12 0 10 10 9 -2 10 10 6 -4 10 10 3 -6 10 10 Storage Hierarchy : Speed & Capacity vs Cost Tradeoffs Price vs Speed Size vs Speed Nearline Cache Tape Offline Main Tape Disc Secondary Online Online Secondary $/MB Tape Tape Disc Typical System (bytes) Main Offline Nearline Tape Tape Cache -9 -6 -3 0 3 -9 -6 -3 0 3 10 10 10 10 10 10 10 10 10 10 Access Time (seconds) Access Time (seconds)

  9. 10x better access time 10x more bandwidth 100x more capacity Data 25x cooler (1Kaps/20MB vs 1Kaps/500MB) 4,000x lower media price 20x to 100x lower disk price Scan takes 10x longer (3 min vs 45 min) DRAM/disk media price ratio changed 1970-1990 100:1 1990-1995 10:1 1995-1997 50:1 today ~ 6$/GB disk 100:1 600$/GB dram Storage Ratios Changed

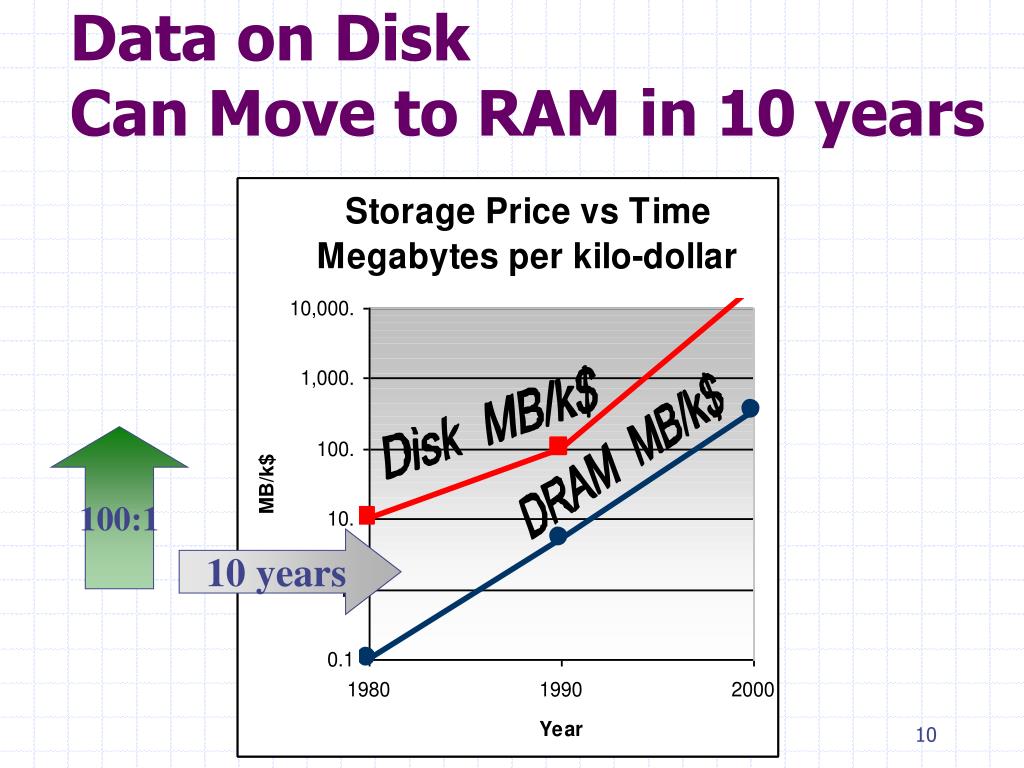

  10. Data on Disk Can Move to RAM in 10 years 100:1 10 years

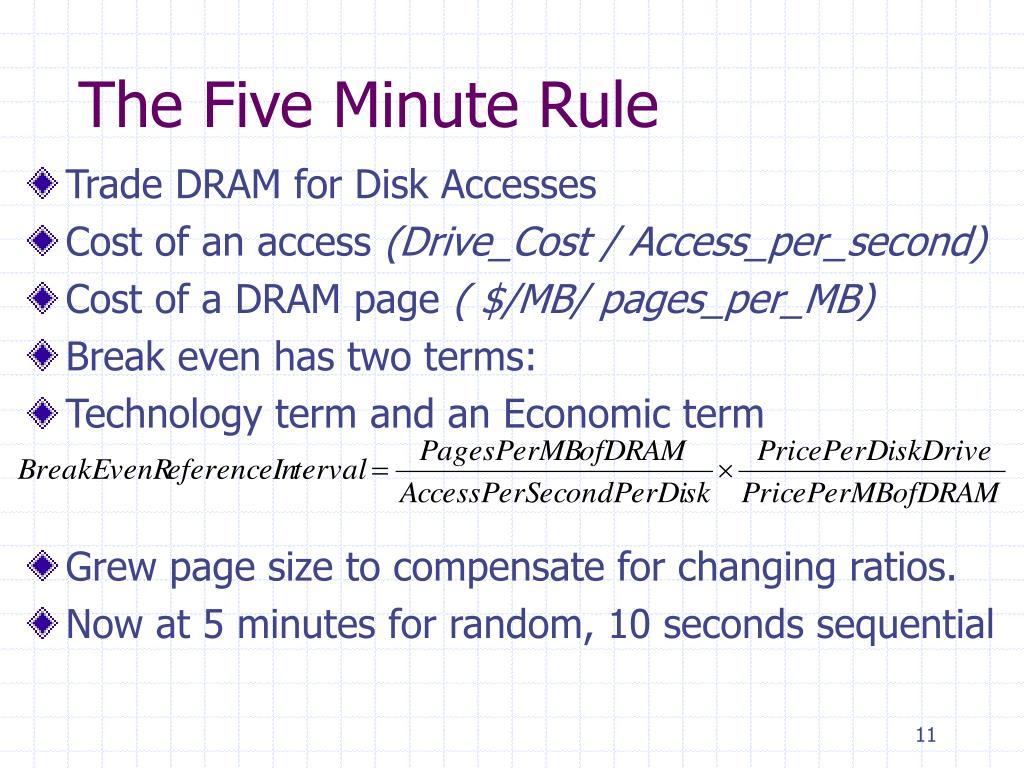

  11. The Five Minute Rule • Trade DRAM for Disk Accesses • Cost of an access (Drive_Cost / Access_per_second) • Cost of a DRAM page ( $/MB/ pages_per_MB) • Break even has two terms: • Technology term and an Economic term • Grew page size to compensate for changing ratios. • Now at 5 minutes for random, 10 seconds sequential

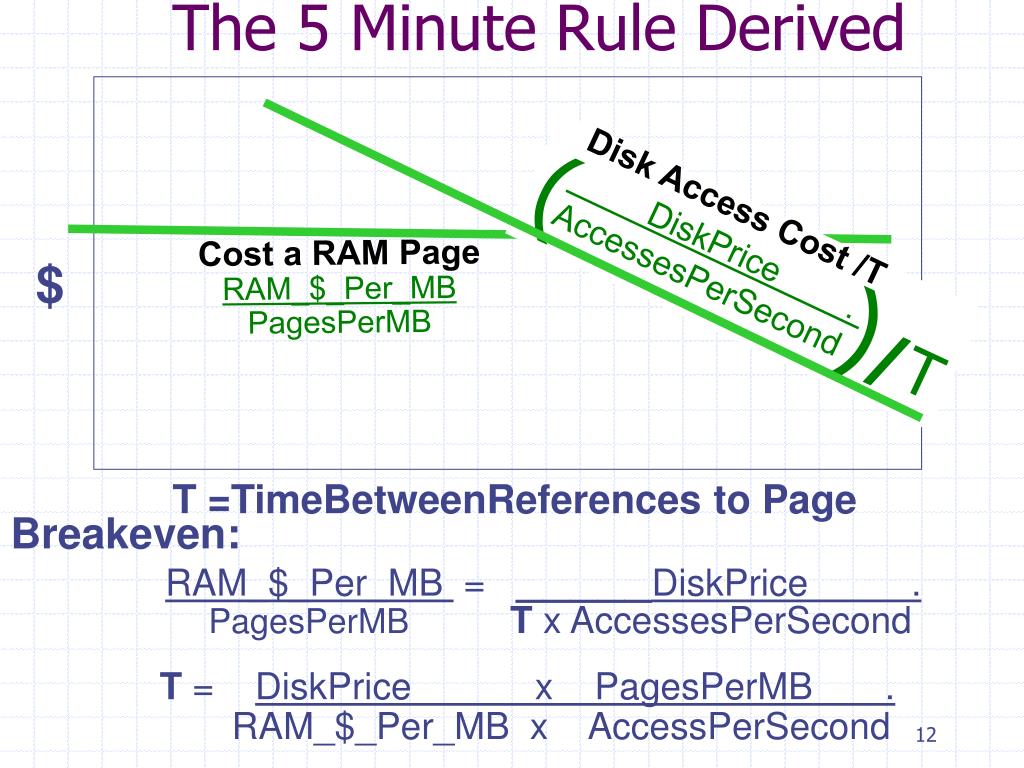

  12. The 5 Minute Rule Derived Breakeven: RAM_$_Per_MB = _____DiskPrice . PagesPerMB T x AccessesPerSecond Disk Access Cost /T DiskPrice . AccessesPerSecond ( )/T Cost a RAM Page RAM_$_Per_MB PagesPerMB $ T =TimeBetweenReferences to Page T = DiskPrice x PagesPerMB . RAM_$_Per_MB x AccessPerSecond

  13. Plugging in the Numbers • Trend is longer times because disk$ not changing much, RAM$ declining 100x/decade 5 Minutes & 10 second rule

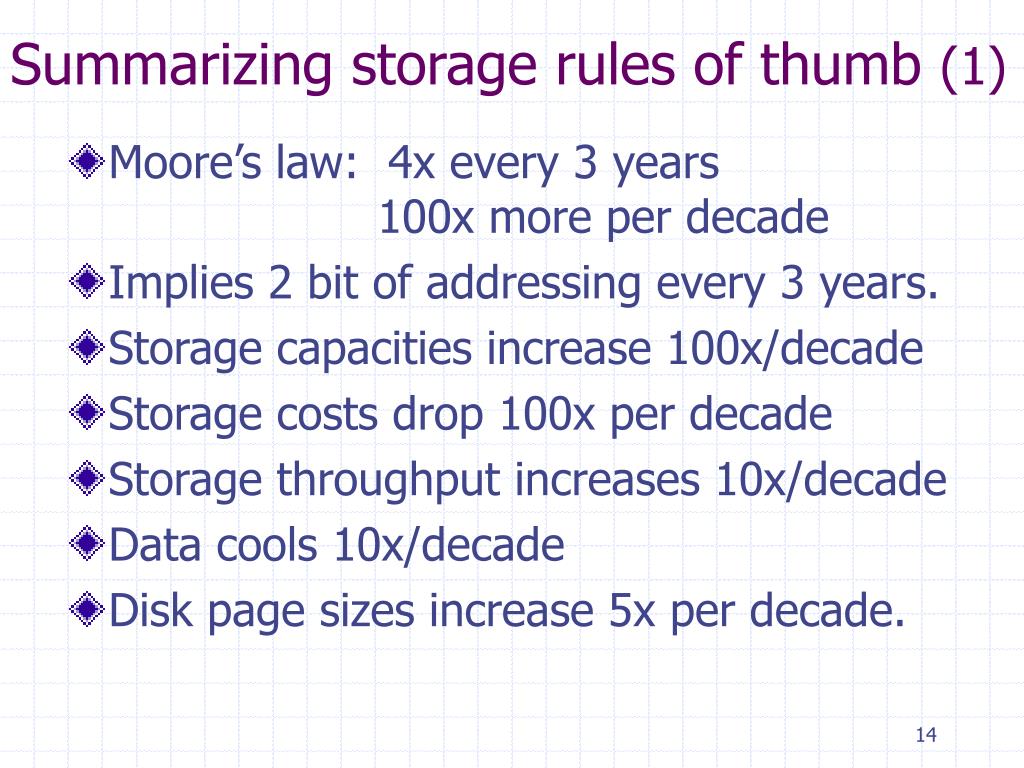

  14. Summarizing storage rules of thumb (1) • Moore’s law: 4x every 3 years 100x more per decade • Implies 2 bit of addressing every 3 years. • Storage capacities increase 100x/decade • Storage costs drop 100x per decade • Storage throughput increases 10x/decade • Data cools 10x/decade • Disk page sizes increase 5x per decade.

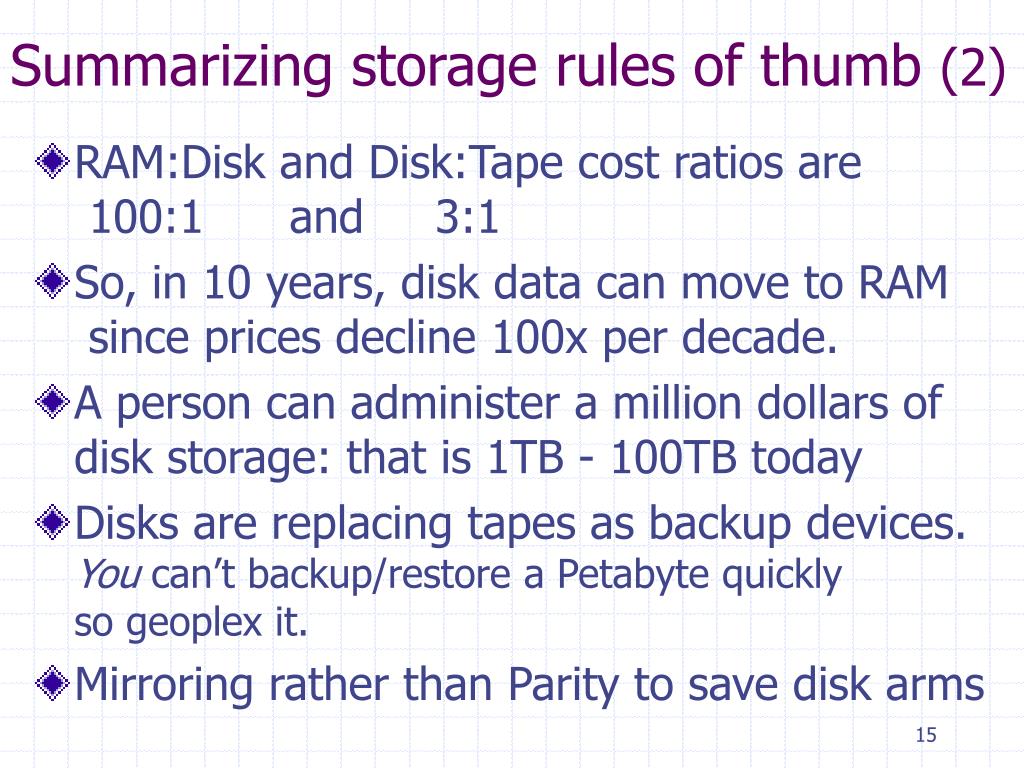

  15. Summarizing storage rules of thumb (2) • RAM:Disk and Disk:Tape cost ratios are 100:1 and 3:1 • So, in 10 years, disk data can move to RAM since prices decline 100x per decade. • A person can administer a million dollars of disk storage: that is 1TB - 100TB today • Disks are replacing tapes as backup devices.You can’t backup/restore a Petabyte quicklyso geoplex it. • Mirroring rather than Parity to save disk arms

  16. Meta-Message: Technology Ratios Matter • Price and Performance change. • If everything changes in the same way, then nothing really changes. • If some things get much cheaper/faster than others, then that is real change. • Some things are not changing much: • Cost of people • Speed of light • … • And some things are changing a LOT
