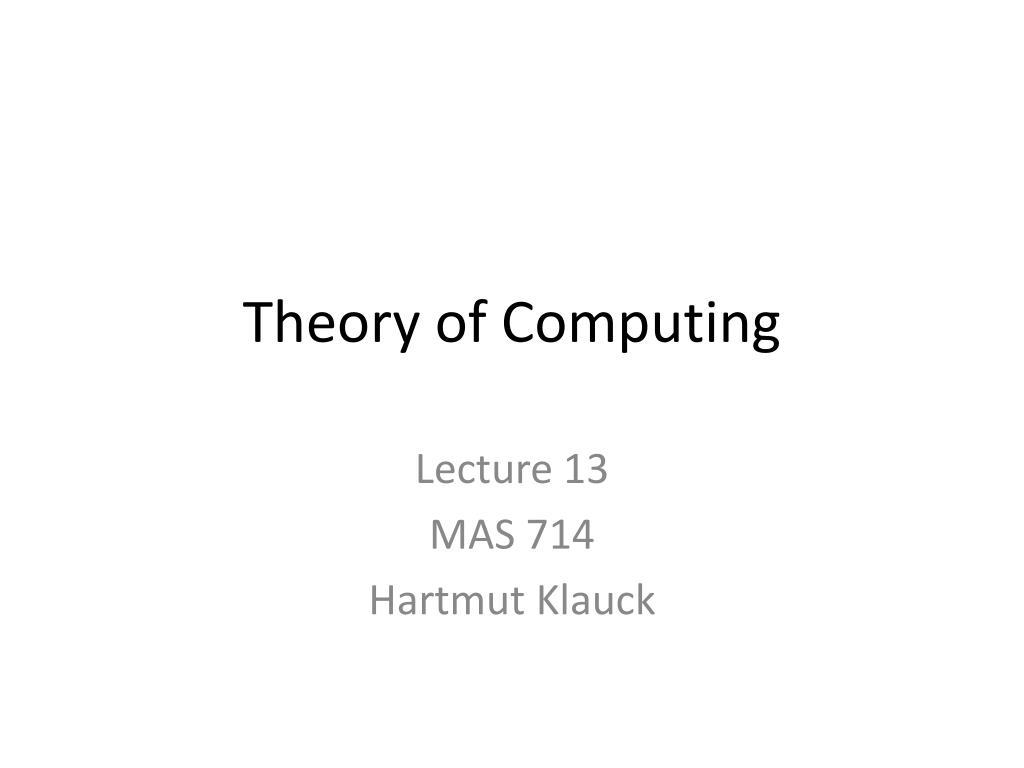

  1. Theory of Computing Lecture 13 MAS 714 Hartmut Klauck

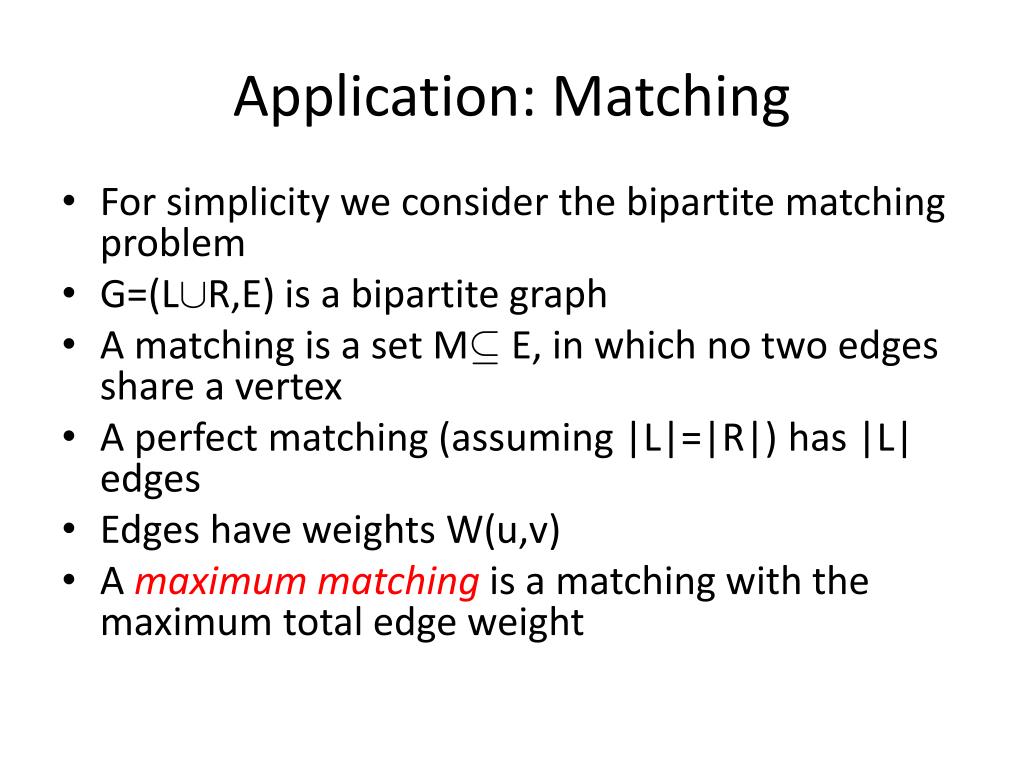

  2. Application: Matching • For simplicity we consider the bipartite matching problem • G=(L[R,E) is a bipartite graph • A matching is a set Mµ E, in which no two edges share a vertex • A perfect matching (assuming |L|=|R|) has |L| edges • Edges have weights W(u,v) • A maximum matching is a matching with the maximum total edge weight

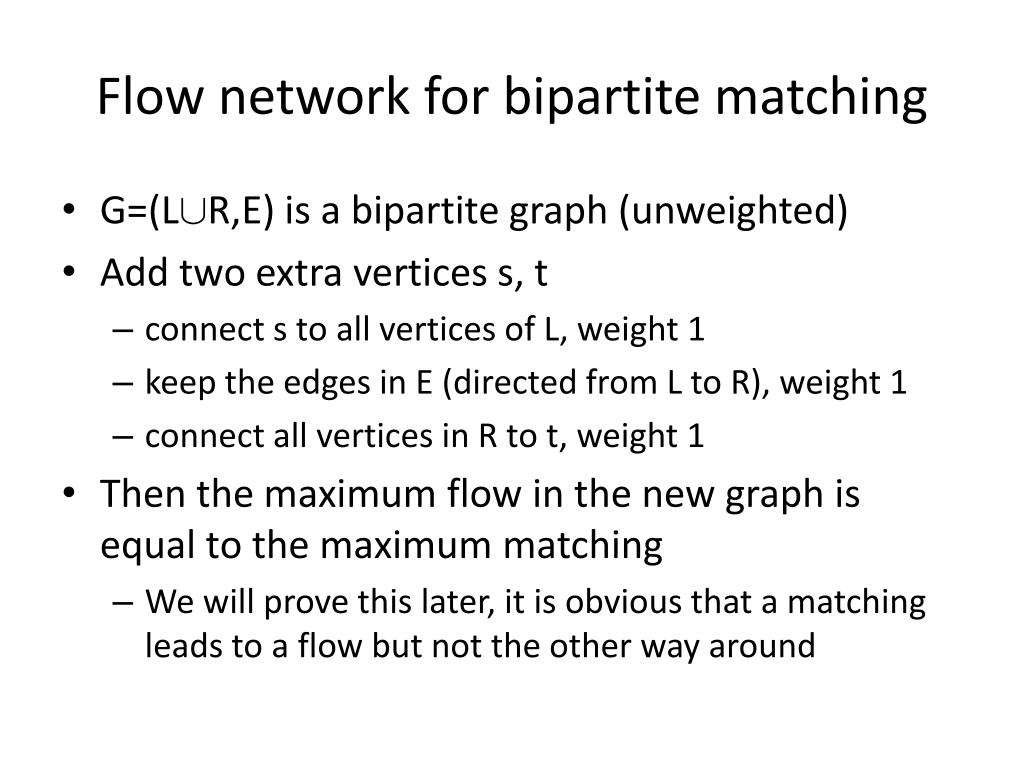

  3. Flow networkforbipartitematching • G=(L[R,E) is a bipartite graph (unweighted) • Add two extra vertices s, t • connect s to all vertices of L, weight 1 • keep the edges in E (directed from L to R), weight 1 • connect all vertices in R to t, weight1 • Then the maximum flow in the new graph is equal to the maximum matching • We will prove this later, it is obvious that a matching leads to a flow but not the other way around

  4. Computing Max Matchings • Reduce the problem to Max Flow

  5. Finding large matchings • The Max Flow Min Cut theorem implies that the maximum flow in the graph is equal to the maximum matching: • A maximum matching of size s implies a flow of size s • The max flow is equal to the min s,t-cut • Find a cut that is smaller than the maximum matching

  6. The Cut • Define • U: matched vertex pairs connected to unmatched vertices in R (or to no unmatched vertices) • V: matched vertex pairs connected to unmatched vertices in L • U and V are disjoint, otherwise the matching is not maximum

  7. The Cut

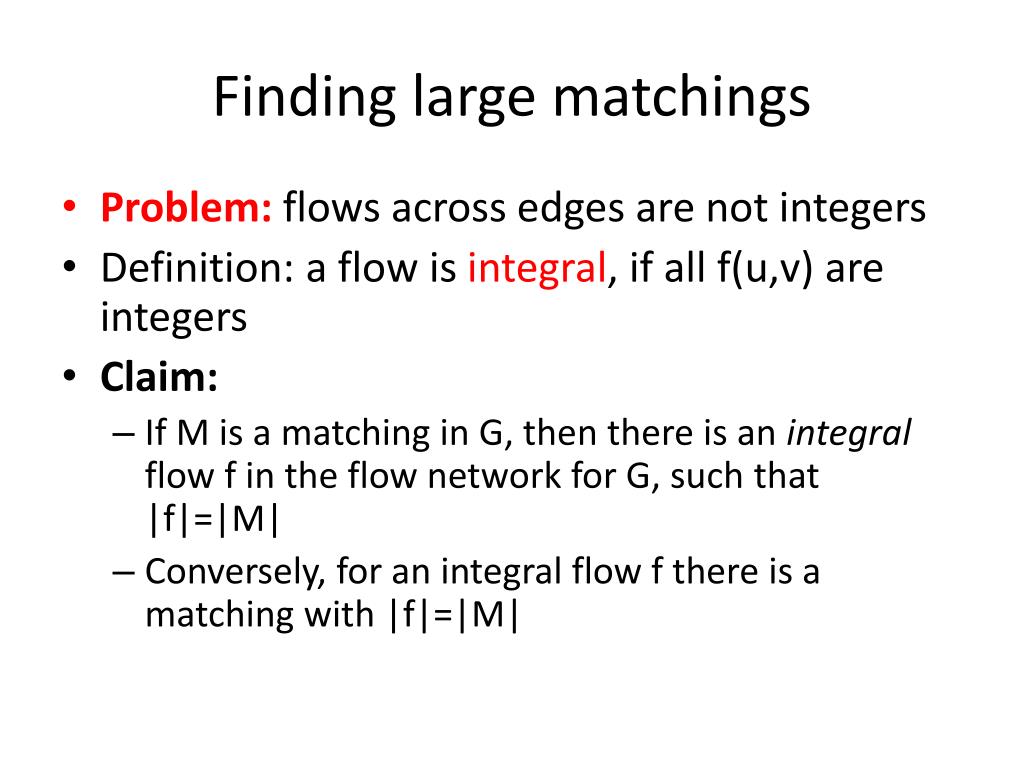

  8. Finding large matchings • Problem: flows across edges are not integers • Definition: a flow is integral, if all f(u,v) are integers • Claim: • If M is a matching in G, then there is an integral flow f in the flow network for G, such that |f|=|M| • Conversely, for an integral flow f there is a matching with |f|=|M|

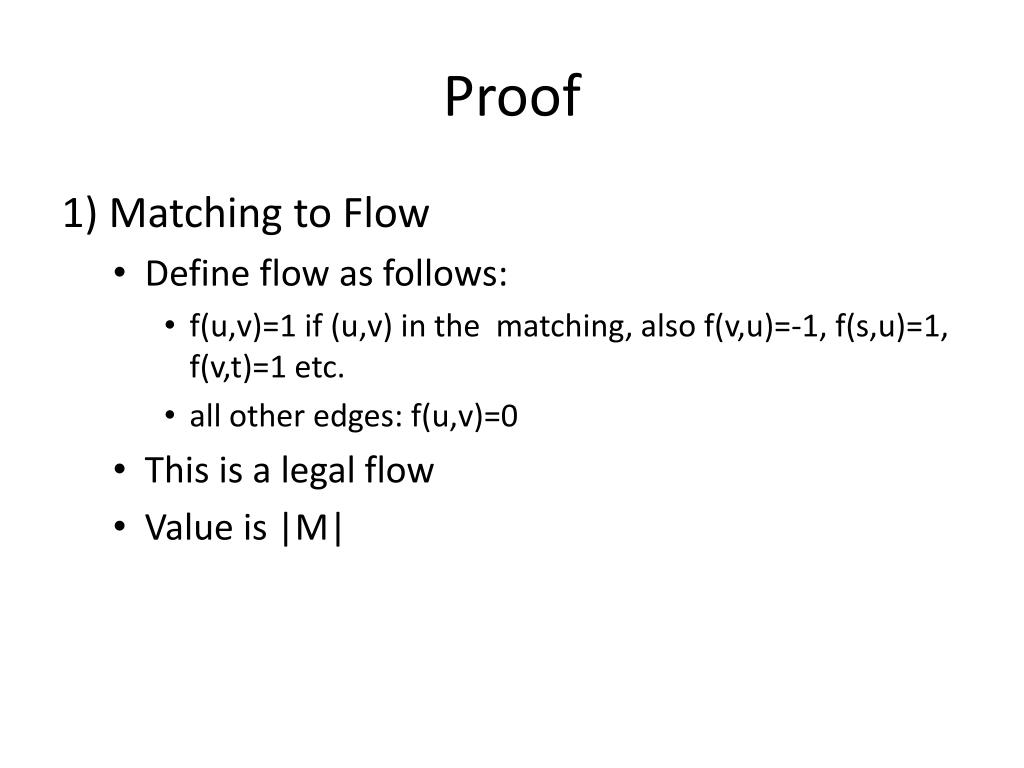

  9. Proof 1) Matching to Flow • Define flow as follows: • f(u,v)=1 if (u,v) in the matching, also f(v,u)=-1, f(s,u)=1, f(v,t)=1 etc. • all other edges: f(u,v)=0 • This is a legal flow • Value is |M|

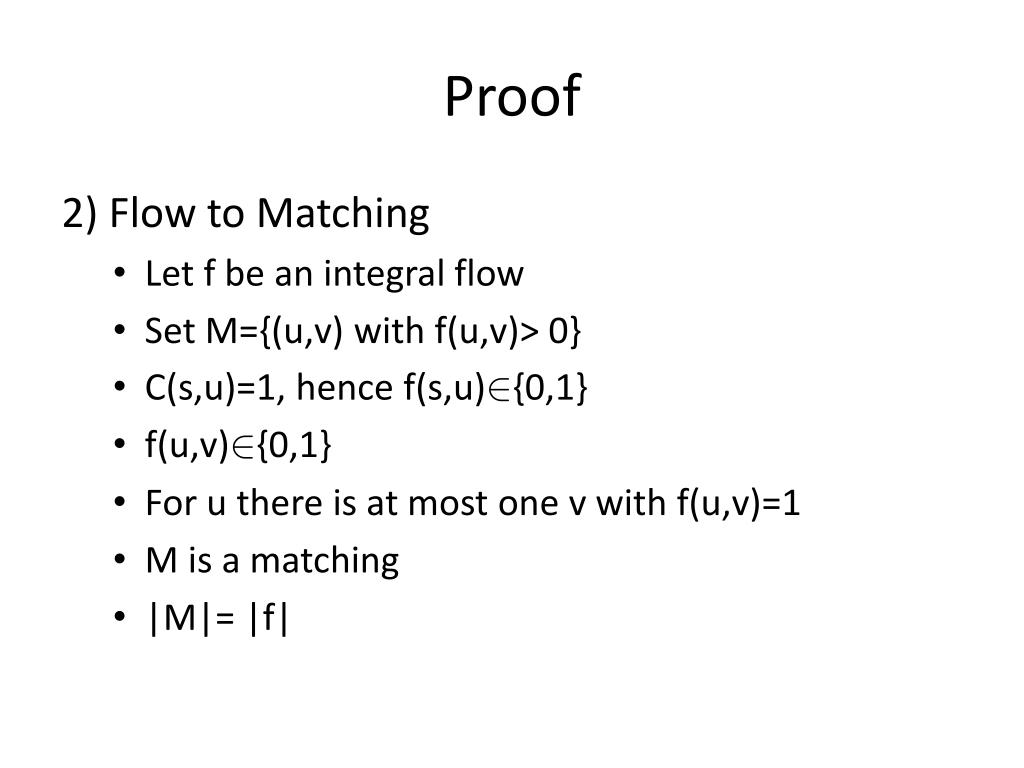

  10. Proof 2) Flow to Matching • Let f be an integral flow • Set M={(u,v) with f(u,v)> 0} • C(s,u)=1, hence f(s,u)2{0,1} • f(u,v)2{0,1} • For u there is at most one v with f(u,v)=1 • M is a matching • |M|= |f|

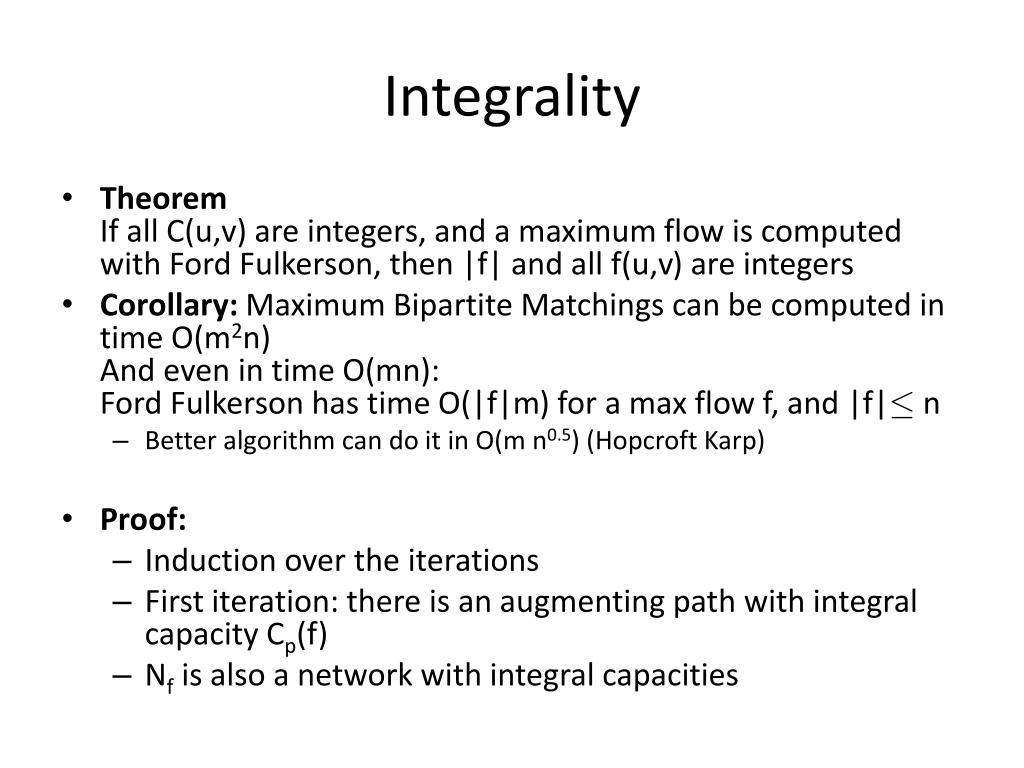

  11. Integrality • TheoremIf all C(u,v) are integers, and a maximum flow is computed with Ford Fulkerson, then |f| and all f(u,v) are integers • Corollary: Maximum Bipartite Matchings can be computed in time O(m2n) And even in time O(mn):Ford Fulkerson has time O(|f|m) for a max flow f, and |f|· n • Better algorithm can do it in O(m n0.5) (Hopcroft Karp) • Proof: • Induction over the iterations • First iteration: there is an augmenting path with integral capacity Cp(f) • Nf is also a network with integral capacities

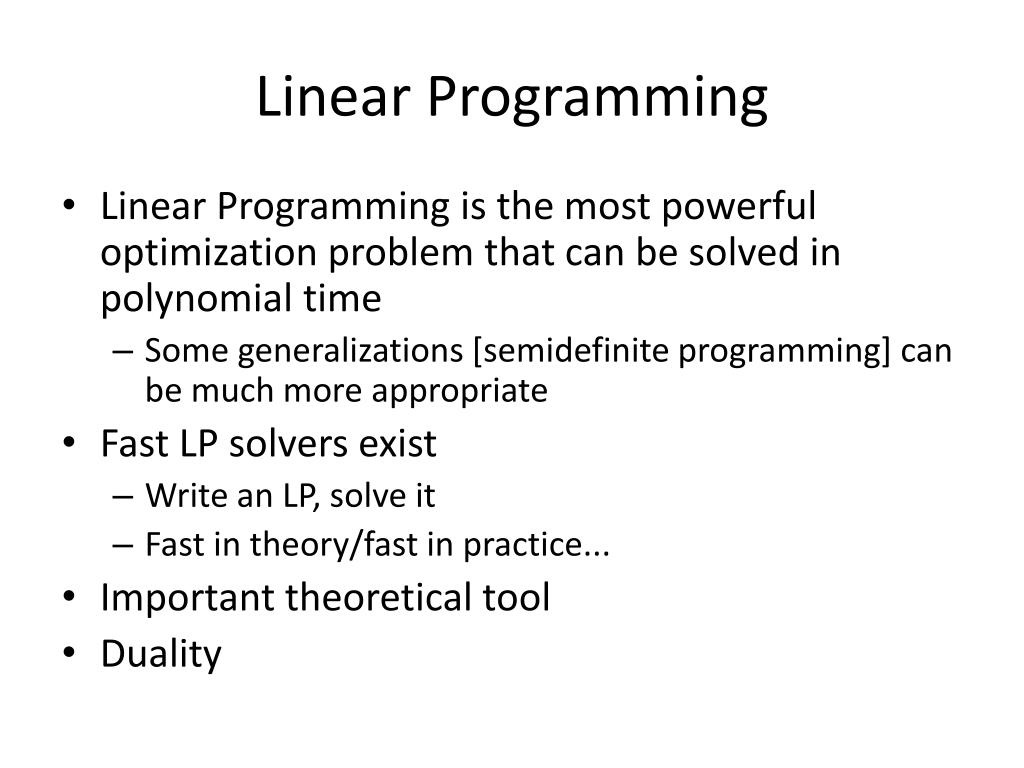

  12. Linear Programming • Linear Programming is the most powerful optimization problem that can be solved in polynomial time • Some generalizations [semidefinite programming] can be much more appropriate • Fast LP solvers exist • Write an LP, solve it • Fast in theory/fast in practice... • Important theoretical tool • Duality

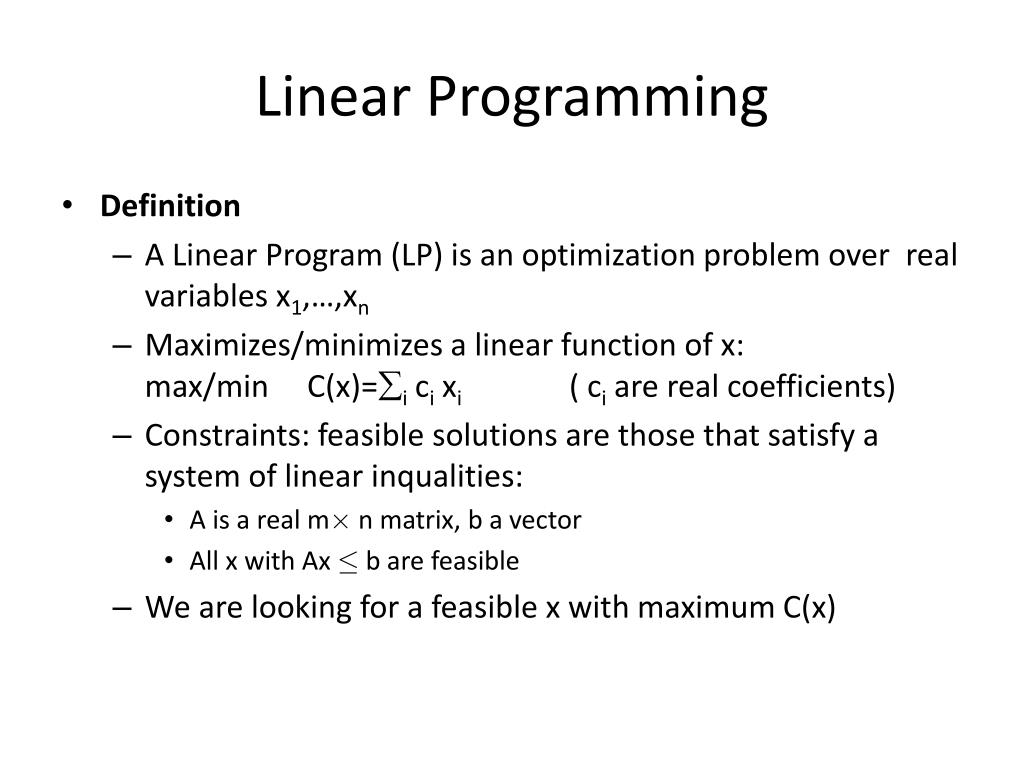

  13. Linear Programming • Definition • A Linear Program (LP) is an optimization problem over real variables x1,…,xn • Maximizes/minimizes a linear function of x:max/min C(x)=i cixi ( ci are real coefficients) • Constraints: feasible solutions are those that satisfy a system of linear inqualities: • A is a real m£ n matrix, b a vector • All x with Ax ·b are feasible • We are looking for a feasible x with maximum C(x)

  14. Geometry • The set of x that satisfy a linear inequality is a half-space • The set of feasible solutions to an LP is an intersection of halfspaces • This is a convex polytope • To solve an LP it is sufficient to be able to find a feasible solution • I.e. find a point inside a convex polytope

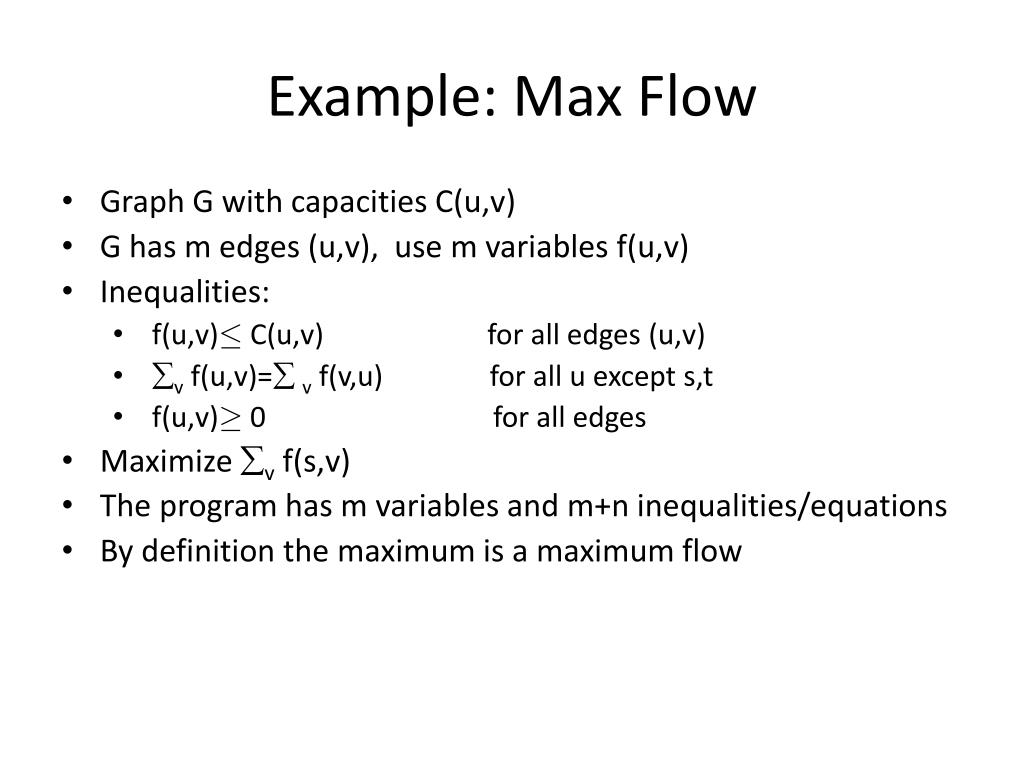

  15. Example: Max Flow • Graph G with capacities C(u,v) • G has m edges (u,v), use m variables f(u,v) • Inequalities: • f(u,v)· C(u,v) for all edges (u,v) • v f(u,v)=v f(v,u) for all u except s,t • f(u,v)¸ 0 for all edges • Maximize v f(s,v) • The program has m variables and m+n inequalities/equations • By definition the maximum is a maximum flow

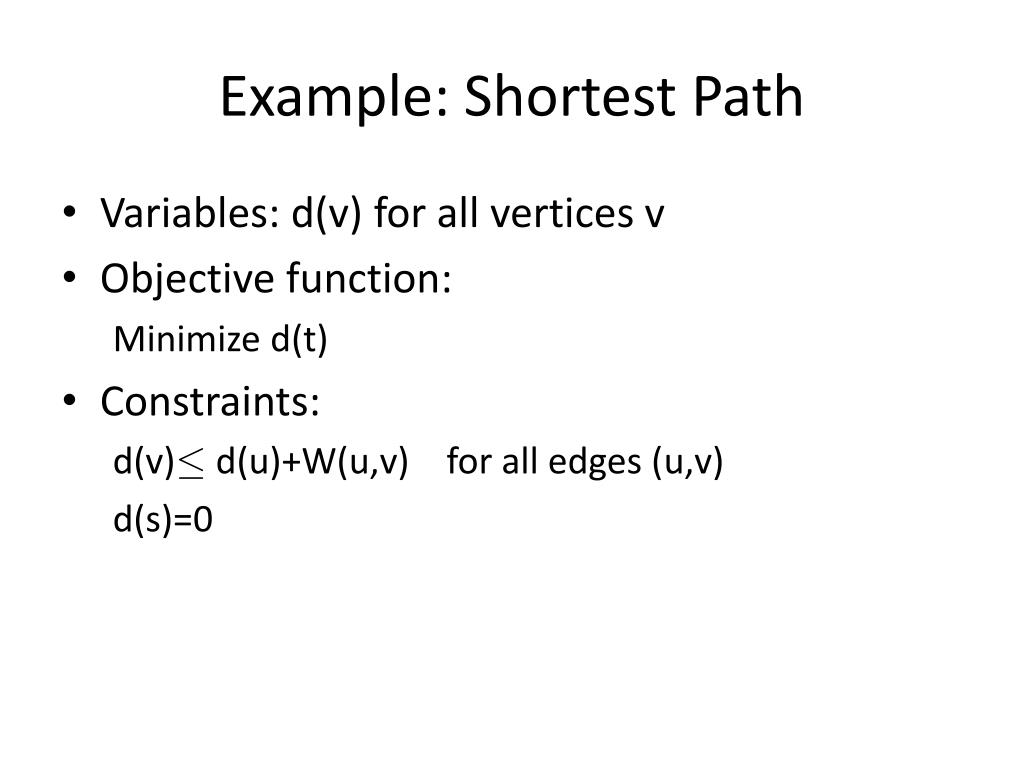

  16. Example: Shortest Path • Variables: d(v) for all vertices v • Objective function: Minimize d(t) • Constraints: d(v)· d(u)+W(u,v) for all edges (u,v) d(s)=0

  17. Standard form • Constraints using ¸, ·and = are possible • Easy to reduce to the standard form: • max cTx • Constraints: • Ax· b • x¸0
