D. Inclined Plane

h. l. D. Inclined Plane. Inclined Plane sloping surface used to raise objects. E. Screw. Screw inclined plane wrapped in a spiral around a cylinder. F. Wedge. Wedge a moving inclined plane with 1 or 2 sloping sides. F. Wedge. Zipper 2 lower wedges push teeth together

alika-hays
Download Presentation

D. Inclined Plane

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. h l D. Inclined Plane • Inclined Plane • sloping surface used to raise objects

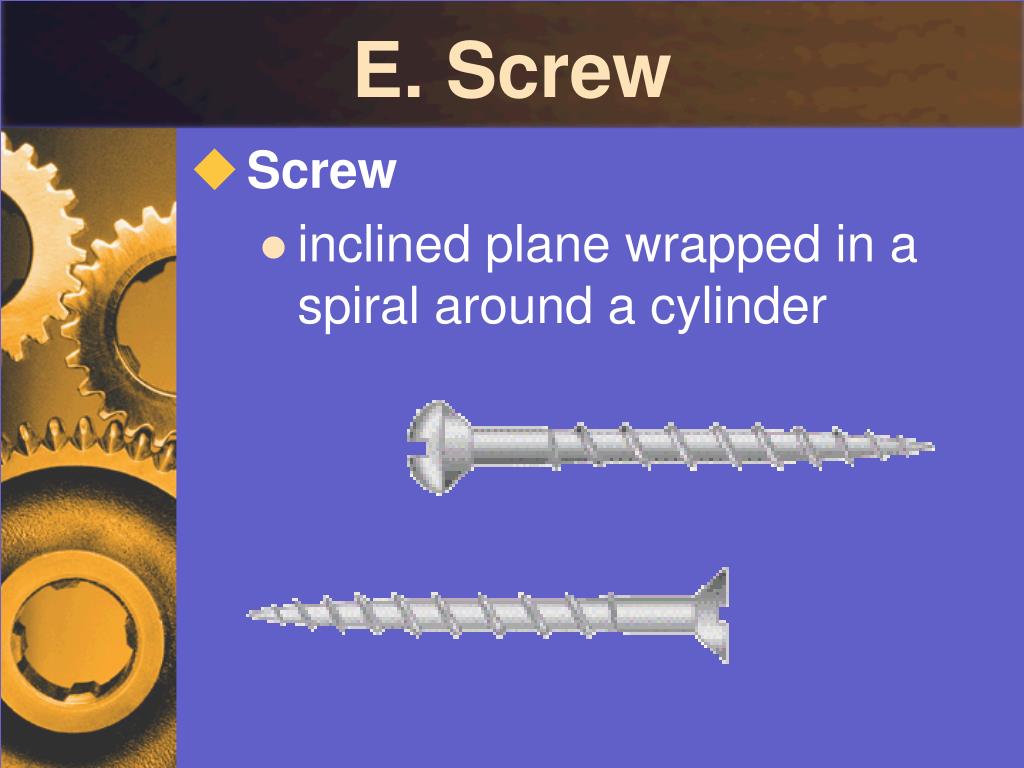

  2. E. Screw • Screw • inclined plane wrapped in a spiral around a cylinder

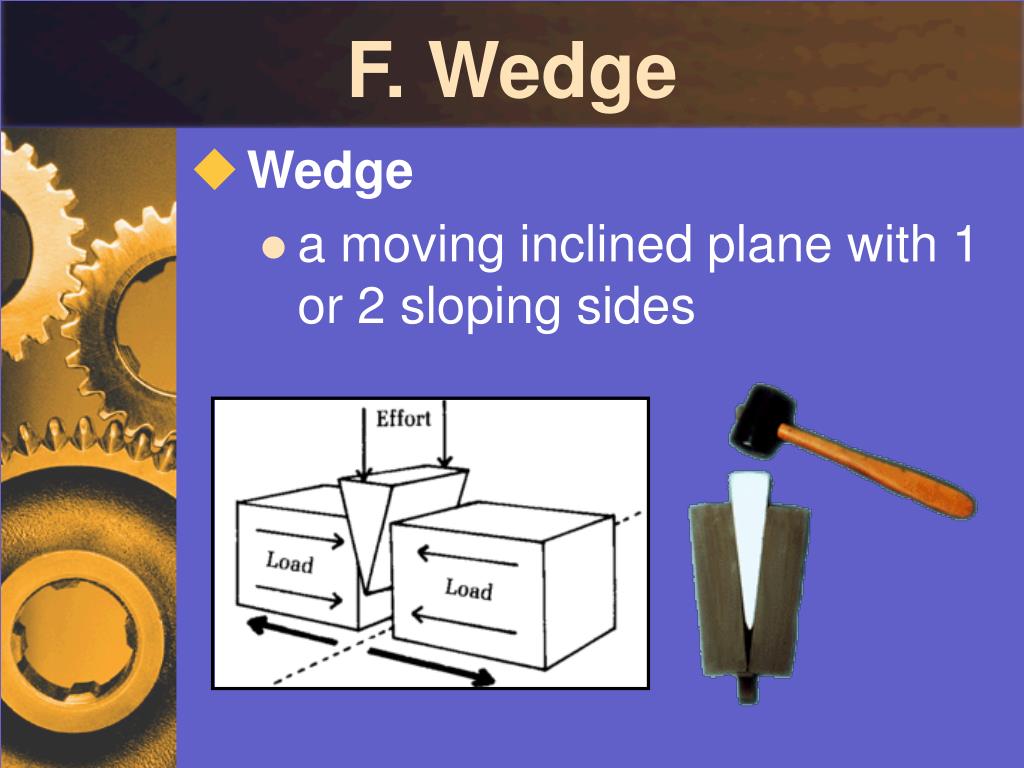

  3. F. Wedge • Wedge • a moving inclined plane with 1 or 2 sloping sides

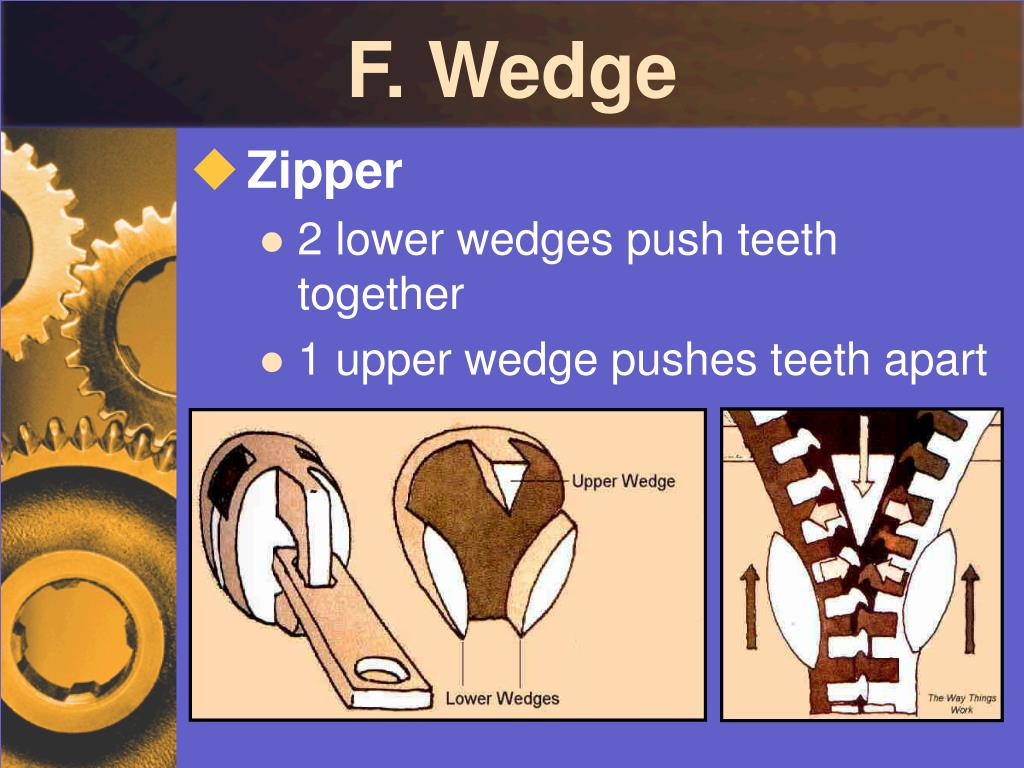

  4. F. Wedge • Zipper • 2 lower wedges push teeth together • 1 upper wedge pushes teeth apart

  5. Fr l Fe h MA IMA Problems • How much force must be exerted to push a 450 N box up a ramp that is 3 m long and 1.2 m high? GIVEN: Fe = ? Fr = 450 N l = 3 m h = 1.2 m WORK: IMA = l ÷ h IMA = (3 m)÷(1.2 m) IMA = 2.5 Fe = Fr ÷ MA Fe = (450 N)÷(2.5) Fe = 180 N
