PHYSICS 2170: FOUNDATIONS OF MODERN PHYSICS

lecture 1. PHYSICS 2170: FOUNDATIONS OF MODERN PHYSICS. Instructor: Professor Leo Radzihovsky Office: Duane Physics F623 (Gamow Tower) Phone: 303-492-5436 Email: radzihov@colorado.edu (best way to reach me) Office Hours: Monday, Friday 2 - 3 pm (or by appointment).

alicia
Download Presentation

PHYSICS 2170: FOUNDATIONS OF MODERN PHYSICS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. lecture 1 PHYSICS 2170: FOUNDATIONS OF MODERN PHYSICS • Instructor: Professor Leo Radzihovsky • Office: Duane Physics F623 (Gamow Tower) • Phone: 303-492-5436 • Email: radzihov@colorado.edu (best way to reach me) • Office Hours: Monday, Friday 2 - 3 pm (or by appointment) http://www.colorado.edu/physics/phys2170/

  2. “Last Time” recall “Lecture 0”: • Phys 1110 (Newton’s mechanics) and Phys 1120 (E&M) • do you have your Taylor Zafiratos Dubson (TZD) • text? …also “It’s About Time” • do you have the right clicker and know how to use it? • must be registered on CUconnect (once) • must be set to frequency CB (once)

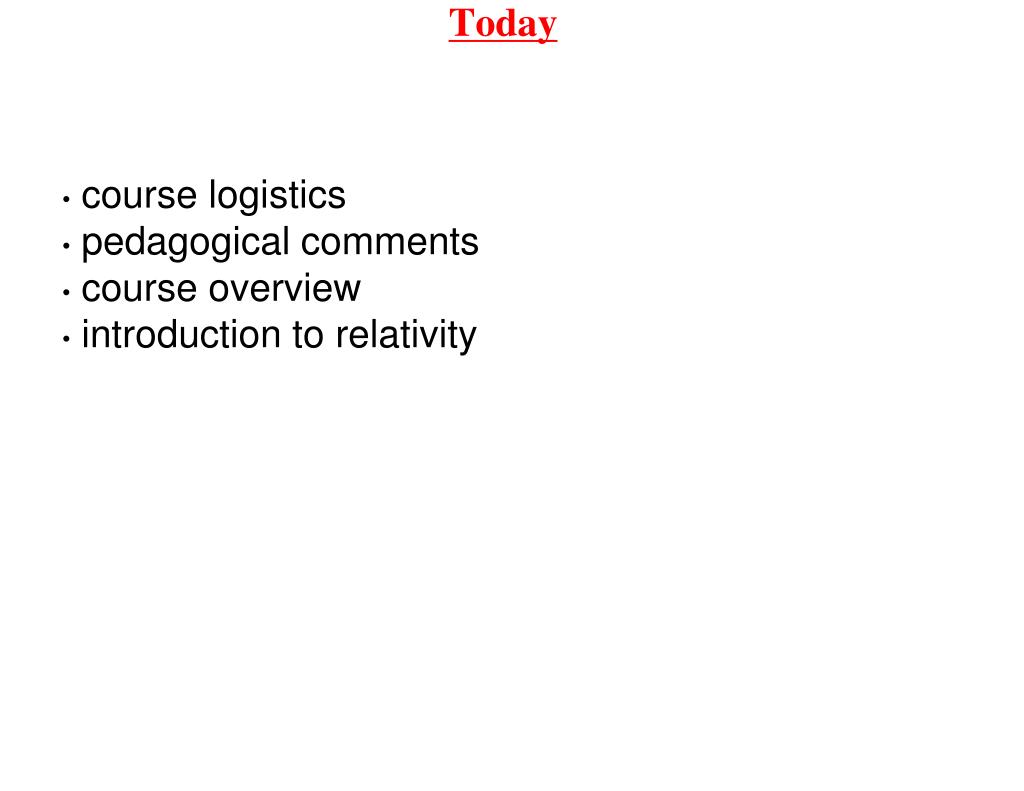

  3. Today • course logistics • pedagogical comments • course overview • introduction to relativity

  4. Announcements • homework 1 is posted on the class website • due Wed, Jan 19 in class • solutions will be posted on the website or CULearn • reading for this week is: • Ch 1 in TZD • course syllabus details • remember to bring your clicker to every class • register it (once) • set it to frequency CB (once)

  5. Administrative details All course information can be found on the class website, that must be checked regularly (daily) http://www.colorado.edu/physics/phys2170

  6. Class rules • no use of laptops, cell phones, no texting, • no newspapers • you are responsible for all the material • assigned in the book even if it is not • covered in class • Lots of physics discussion (with nearby • “study group” of students) during clicker • questions is required before voting • it facilitates your learning and gives me valuable • feedback on your understanding

  7. Collective work vs. independent work • What is authorized: • working with others to make sense of questions • collectively sorting out the answer (explaining reasoning) • writing up your own solution in your own words • What is NOT authorized: • telling students answers • representing someone else’s work as your own The CU Honor Code

  8. Pedagogical comments Physics is difficult, but succeeding in this class is not; follow these suggestion and you willdo well: • Learning only comes as a result of your effort • Stay on top of it; that’s easier than playing catch-up • Attend class regularly, participate, ask questions • Read text and review notes before class; it will save you time • Do homework early (not last minute) • Working in study groups is OK, but be “careful” • (make sure you can do it on your own) • Think hard about concepts and solve many problems • …no pain, no gain • Come see me right away if you are having difficulties

  9. More on clickers • To set frequency, hold down on/off button until power • light starts flashing. Then enter CB and vote; light • should flash green and power light should be solid blue • Can only set frequency after the first question on the • class has started • If you turn off your clicker, repeat above procedure • You can vote as often as you like during the allowed • time, with only last vote counted • Only use your own clicker • Answering for someone else using their clicker is a • violation of the CU honor

  10. Top 5 reasons to take this course clicker question set frequency to CB • a. It is required for Physics majors • b. Much of the modern technology depends on covered material • c. To impress your friends with a casual “You mean you don’t know • how time dilation and energy quantization is important for • the Global Positioning Satelite (GPS) system?” • d. To better appreciation nerdy comments in the Big Bang • Theory and Star Trek TV series • e. This is just really cool stuff! What’s your reason for taking this course?

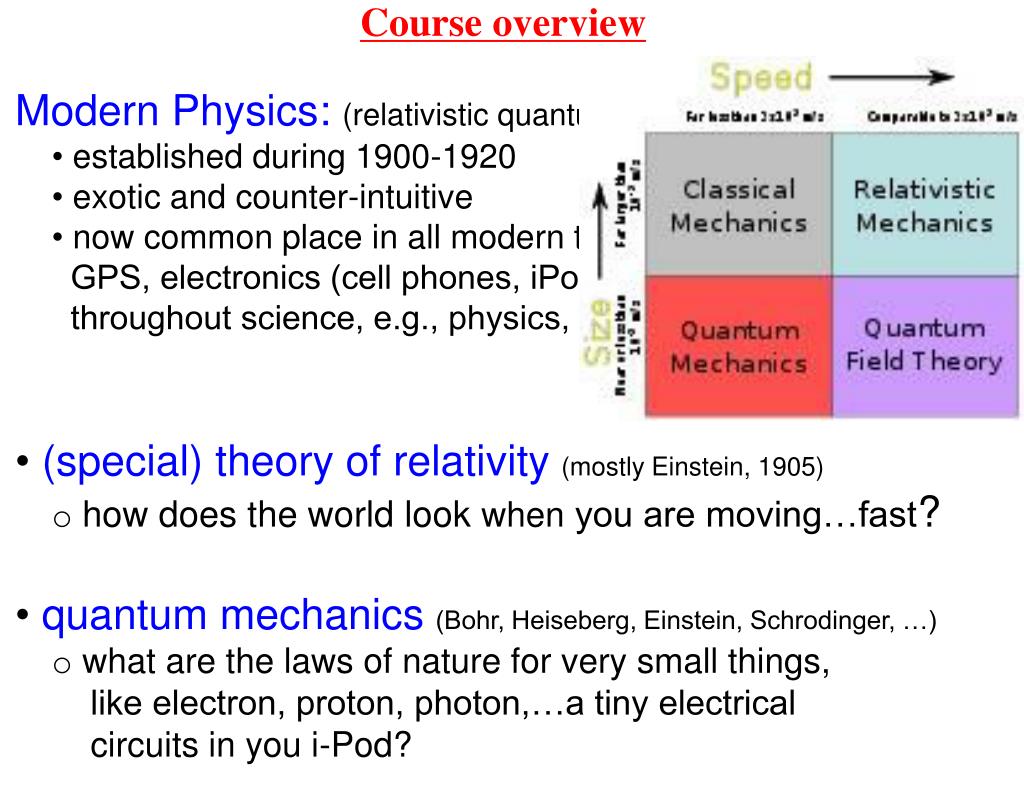

  11. Course overview • Modern Physics: (relativistic quantum field theory) • established during 1900-1920 • exotic and counter-intuitive • now common place in all modern technology, e.g., • GPS, electronics (cell phones, iPods, laptops…), and • throughout science, e.g., physics, chemistry, astronomy,… • (special) theory of relativity (mostly Einstein, 1905) • how does the world look when you are moving…fast? • quantum mechanics (Bohr, Heiseberg, Einstein, Schrodinger, …) • what are the laws of nature for very small things, • like electron, proton, photon,…a tiny electrical • circuits in you i-Pod?

  12. Big picture Basic properties of space-time Basic properties of light Basic properties of matter: atoms to solids How light and matter interact

  13. (Special) Theory of Relativity (mostly Einstein, 1905) How does the world look when you are moving…fast, …real fast ?

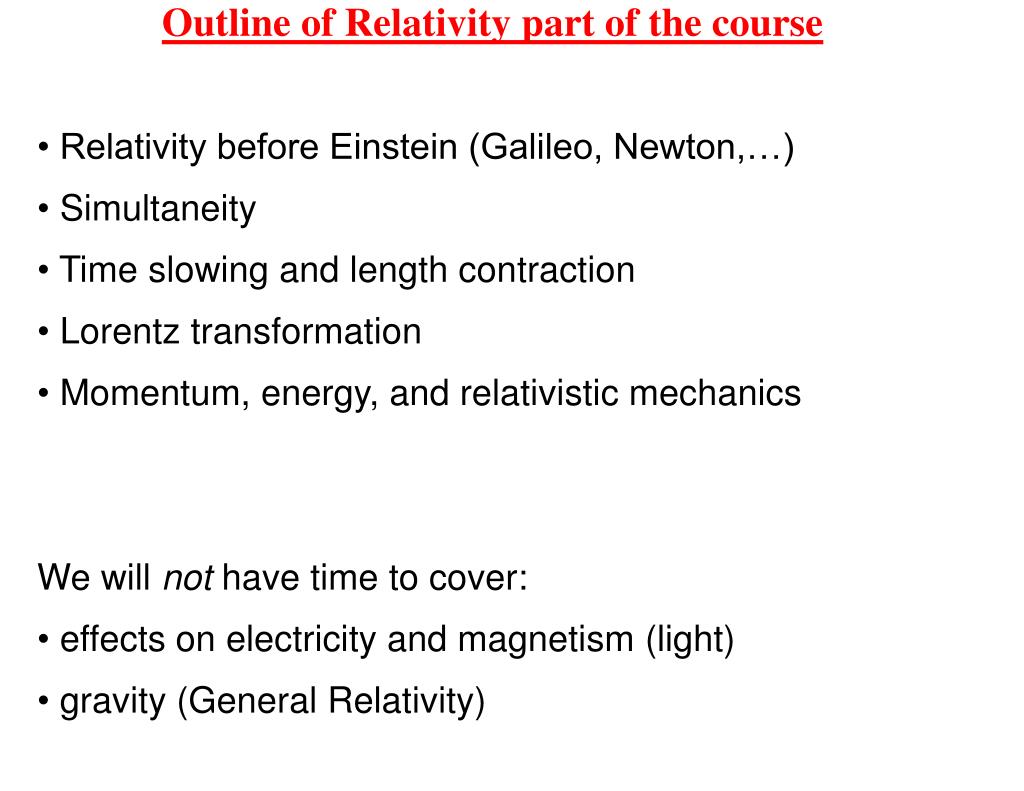

  14. Outline of Relativity part of the course • Relativity before Einstein (Galileo, Newton,…) • Simultaneity • Time slowing and length contraction • Lorentz transformation • Momentum, energy, and relativistic mechanics • We will not have time to cover: • effects on electricity and magnetism (light) • gravity (General Relativity)

  15. lecture 2 Relativity in nature Announcements: • lecture 1 is posted on the class website • homework 1 is posted on CULearn • due Wed, Jan 19 in class • solutions will be posted on CULearn • reading for this week is: • Ch 1 in TZD • course syllabus details • remember to bring your clicker to every class • register it (once) • set it to frequency CB (once)

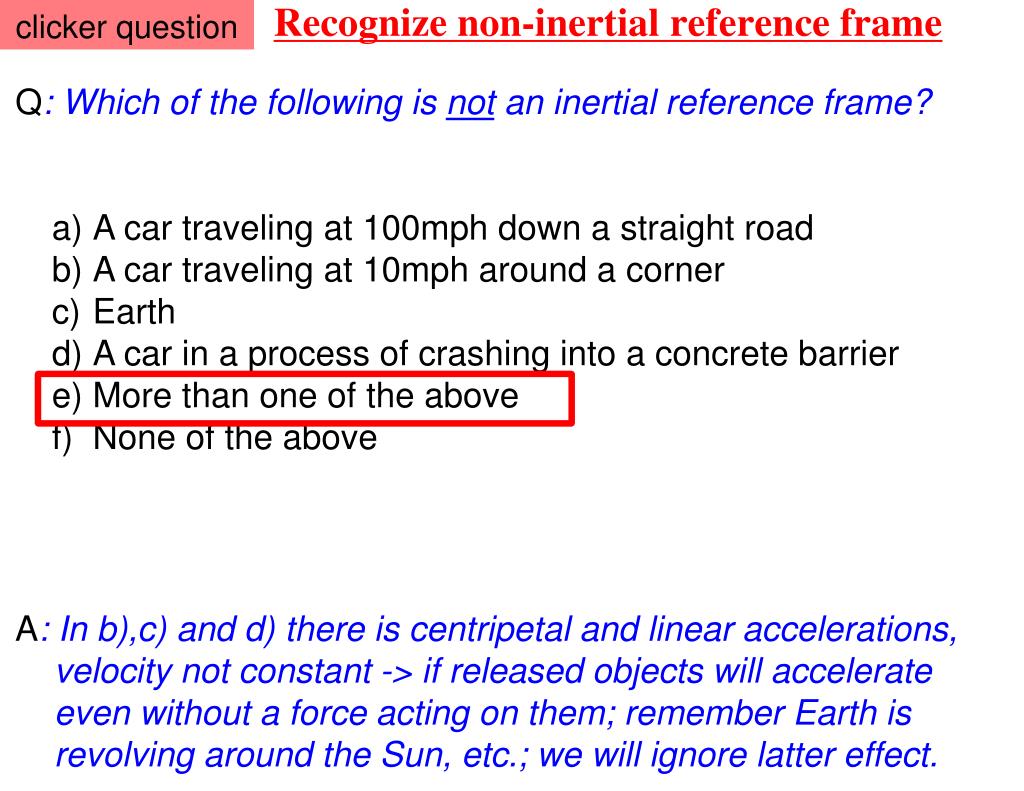

  16. clicker question Recognize non-inertial reference frame • Q: Which of the following is not an inertial reference frame? • A car traveling at 100mph down a straight road • A car traveling at 10mph around a corner • Earth • A car in a process of crashing into a concrete barrier • More than one of the above • None of the above A: In b),c) and d) there is centripetal and linear accelerations, velocity not constant -> if released objects will accelerate even without a force acting on them; remember Earth is revolving around the Sun, etc.; we will ignore latter effect.

  17. Last Time recall lecture 1: • course logistics: http://www.colorado.edu/physics/phys2170 • modern physics overview: • Einstein’s theory of relativity: • description of fast (and slow) moving phenomena

  18. Today • relativity in nature • inertial reference frame • Galilean relativity • space-time event

  19. Looking at nature from different points of view y’ y R • changing coordinate systems: • rotate around origin • translate the origin • moving reference frames: x x’ x’= x-x0 R y y y' y' x’= x-vt R x x x’ x’

  20. Inertial reference frame v • inertial reference frame -> frame: • reference frame moving with constant velocity (not accelerating) • cannot tell there is motion without looking out the window • scope of Einstein’s special (as opposed general) theory of relativity • constant with respect to what? • philosophy: very subtle…with respect to distance stars (?) • pragmatic: frames in which juggling, playing pool, etc…requires • no adjustments, Newton’s laws satisfied,… y y' R x x’

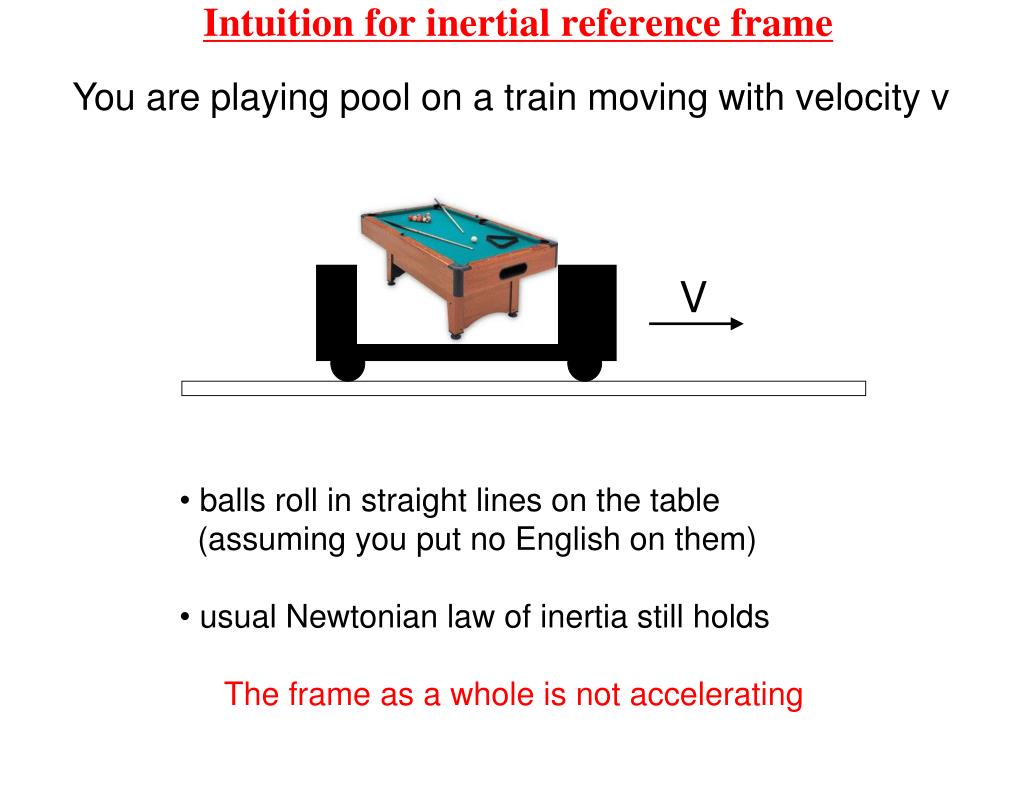

  21. Intuition for inertial reference frame You are playing pool on a train moving with velocity v V • balls roll in straight lines on the table • (assuming you put no English on them) • usual Newtonian law of inertia still holds • The frame as a whole is not accelerating

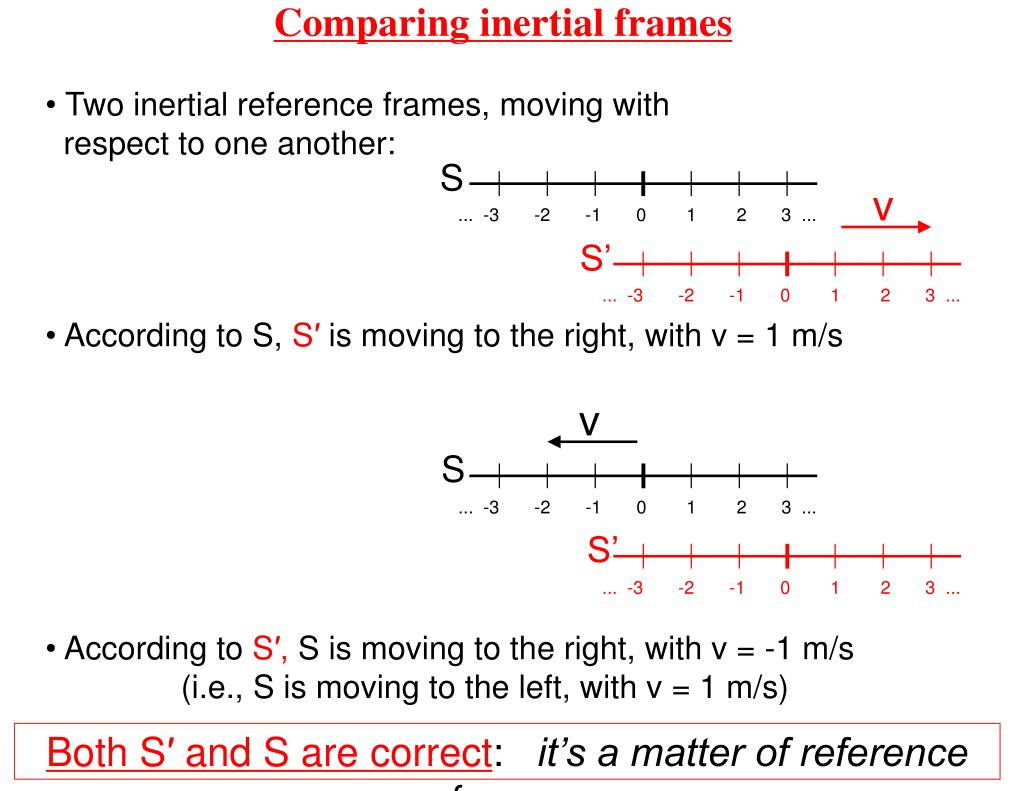

  22. ... -3 -2 -1 0 1 2 3 ... ... -3 -2 -1 0 1 2 3 ... ... -3 -2 -1 0 1 2 3 ... ... -3 -2 -1 0 1 2 3 ... Comparing inertial frames • Two inertial reference frames, moving with • respect to one another: S S’ v • According to S, S′ is moving to the right, with v = 1 m/s S v • According to S′, S is moving to the right, with v = -1 m/s • (i.e., S is moving to the left, with v = 1 m/s) S’ Both S′ and S are correct: it’s a matter of reference frames

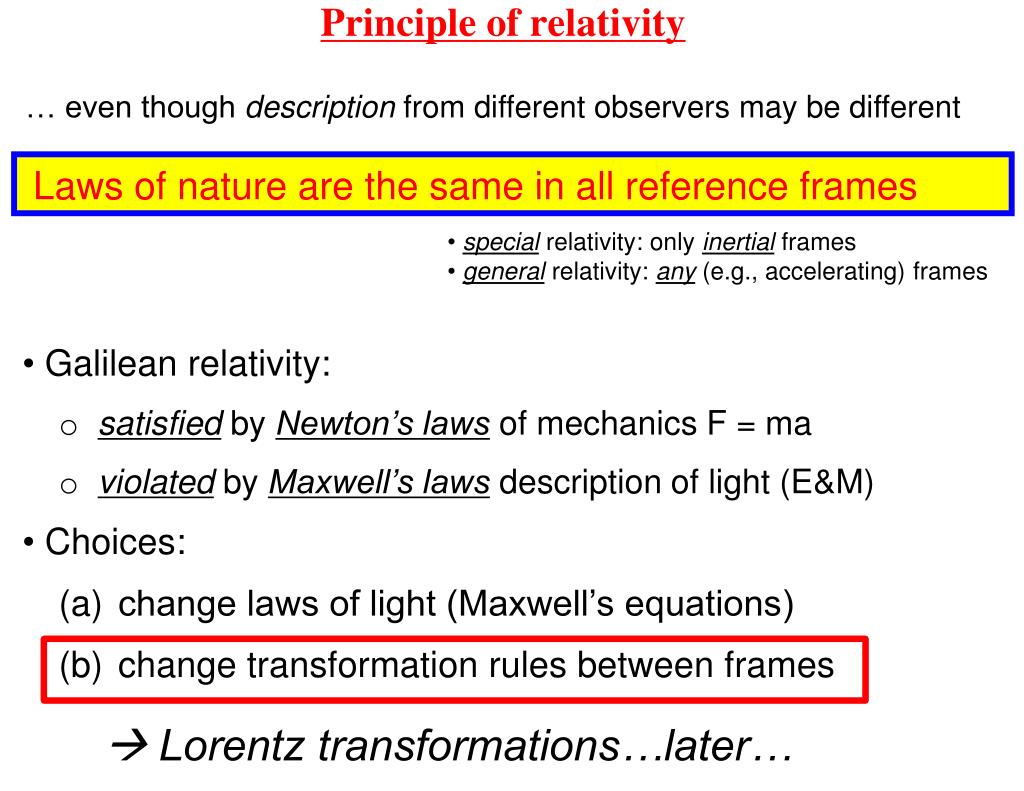

  23. Principle of relativity … even though description from different observers may be different Laws of nature are the same in all reference frames • special relativity: only inertial frames • general relativity: any (e.g., accelerating)frames • Galilean relativity: • satisfiedby Newton’s lawsof mechanics F = ma • violated by Maxwell’s laws description of light (E&M) • Choices: • change laws of light (Maxwell’s equations) • change transformation rules between frames  Lorentz transformations…later…

  24. clicker question Key ideas Q: Which of the following is a key idea from last lecture? • a) Relativity in nature: • physical phenomena are coordinate- and frame-invariant • b) Inertial reference frames: • non-accelerating … constant velocity (including zero) • c) Galilean relativity: • Newton’s laws (mechanics, Phys 1110) are invariant • Maxwell’s laws (E&M, light, Phys 1120) are not invariant • d) All of the above A: (d) all of the above.

  25. …before Einstein Galilean (“old”) relativity y y' v Galileo Galilei (1564—1642) If an object has velocity u in frame S, and its position, x(t), changes with time, t. And if frame S′ is moving with velocity v relative to frame S, then: x x’ positions and time: velocity (add): x’= x-vt y’= y z’ = z t’ = t r’= r-vt t’ = t eg: think about a car with velocity u relative to the ground and velocity u’= u - v relative to another car moving with v

  26. Newton’s law dynamics Galileo Galilei (1564—1642) y y' If an object has velocity u in frame S, and its position, x(t), changes with time, t. And if frame S′ is moving with velocity v relative to frame S, then: v positions: velocity add: x x’ acceleration unchanged: Newton’s law (F=ma) is therefore unchanged, i.e., Galilean invariant (all that you learned in Physics 1110 holds in S and S’)

  27. clicker question ... -3 -2 -1 0 1 2 3 ... ... -3 -2 -1 0 1 2 3 ... Galilean transformation coordinates t=0 x v=2m/s x’ • What is the coordinate of the green ball in two frames • after one second, i.e., at time t = 1? • 2 m in S and 2 m in S’ • 2 m in S and -1 m in S’ • 2 m in S and -3 m in S’ • 4 m in S and 4 m in S’ Two different observers measure two different coordinates for the same location of the ball And they are both correct!

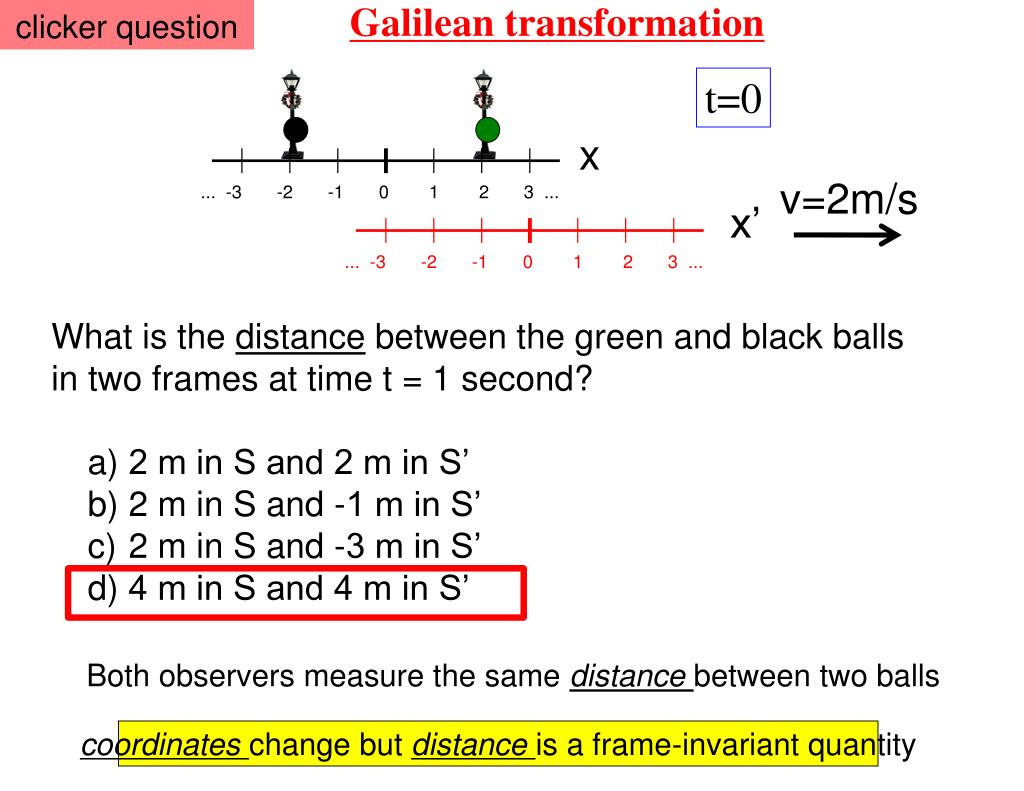

  28. clicker question ... -3 -2 -1 0 1 2 3 ... ... -3 -2 -1 0 1 2 3 ... Galilean transformation t=0 x v=2m/s x’ • What is the distance between the green and black balls • in two frames at time t = 1 second? • 2 m in S and 2 m in S’ • 2 m in S and -1 m in S’ • 2 m in S and -3 m in S’ • 4 m in S and 4 m in S’ Both observers measure the same distance between two balls coordinates change but distance is a frame-invariant quantity

  29. x’= x-vt y’= y z’ = z t’ = t Galilean invariants y y' v distance (length of a vector) is an invariant i.e., independent of Galilean reference frame (many other quantities: mass, force,…) x x’ d’= x’2 - x’1 = (x2 - vt1) - (x1-vt2) = d x’1= x1-vt1 t’ 1= t1 why? x’2= x2-vt2 t’ 2= t2

  30. Invariance under Galilean transformation Galileo Galilei (1564—1642) y' y v Newton’s law (F=ma, mechanics) is therefore unchanged, i.e., Galilean invariant (all that you learned in Physics 1110 holds in S and S’) x x’ What about the physics of Electromagnetism? Does Electromagnetism depend on which inertial frame you are in ? YES according to Galileo!  “trouble” Einstein’s relativity

  31. lecture 3 EM and postulates of relativity Announcements: • lecture 2 is posted on the class website • homework 1 is posted on CULearn • due Wed, Jan 19 in class • solutions will be posted on CULearn • reading for this week is: • Ch 1 in TZD • course syllabus details • remember to bring your clicker to every class • register it (once), otherwise cannot get credit • set it to frequency CB (once)

  32. Last Time recall lecture 2: • Relativity in nature: • physical phenomena are coordinate- and frame-invariant • Inertial reference frames: • non-accelerating … constant velocity (including zero) • Galilean relativity: • Newton’s laws (mechanics, Phys 1110) are invariant • Maxwell’s laws (E&M, light, Phys 1120) are not invariant

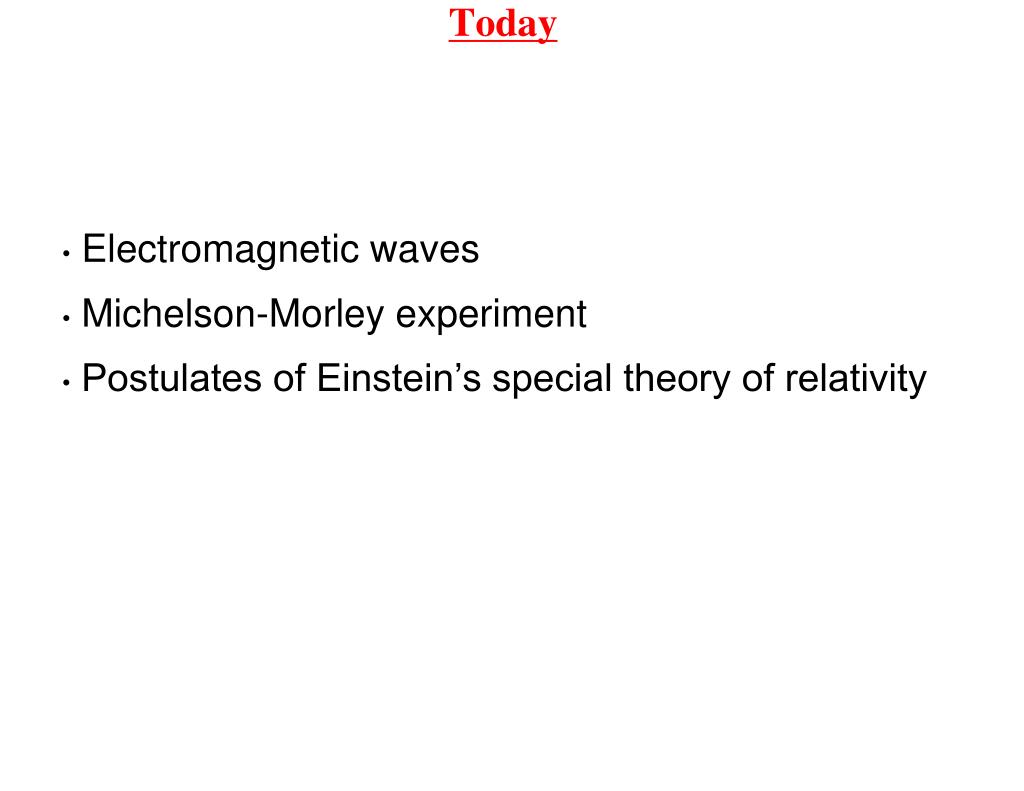

  33. Today • Electromagnetic waves • Michelson-Morley experiment • Postulates of Einstein’s special theory of relativity

  34. Maxwell equations are not Galilean invariant • Galilean relativity: • satisfiedby Newton’s lawsof mechanics F = ma • violated by Maxwell’s laws description of light (E&M) James Clerk Maxwell 1831-1879 Maxwell’s equations: E&M waves: oscillating E and B fields Galileo says: c is speed of light in frame S c’ = c – v is speed of light in frame S’ … but c is with respect to what???

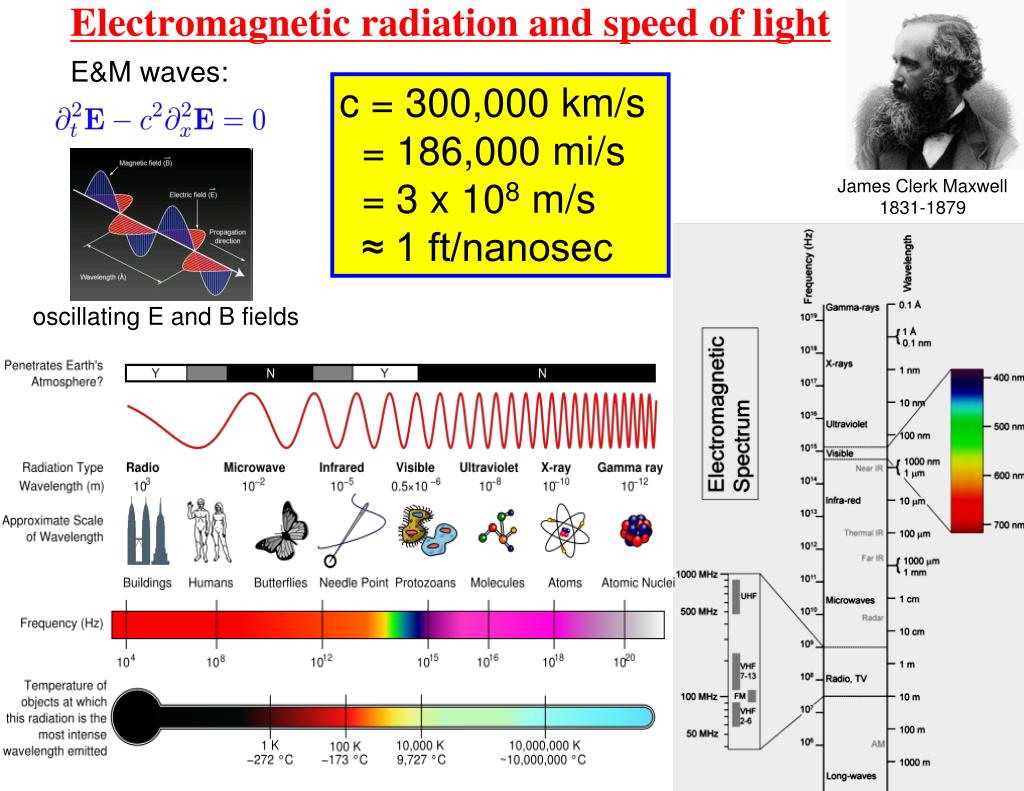

  35. Electromagnetic radiation and speed of light c = 300,000 km/s = 186,000 mi/s = 3 x 108 m/s ≈ 1 ft/nanosec James Clerk Maxwell 1831-1879 E&M waves: oscillating E and B fields

  36. EM-waves in what? • Sound wave propagates through air, with velocity (330 m/sec) relative to air • Water waves propagates through water, with velocity relative to water • “The wave” propagates through a crowd in a stadium, with velocity relative to the crowd • Electromagnetic wavepropagates through what??? What is “moving”/oscillating? Ether…so it was (incorrectly) thought in 19th century before Einstein

  37. clicker question Motion through ether • Q: Suppose earth is moving through ether with speed v in a direction • opposite to light, that moves with speed c relative to Ether. • According to Galilean relativity what is speed of light relative to earth? • a) c, b) c+v, c) c-v, d) none of the above v c * Assume the earth is not accelerating ether

  38. Measure earth’s motion through ether Earth goes around the sun at 30 km/s  must be going through ether v • light along earth’s motion: c-v c+v • light against earth’s motion: L L

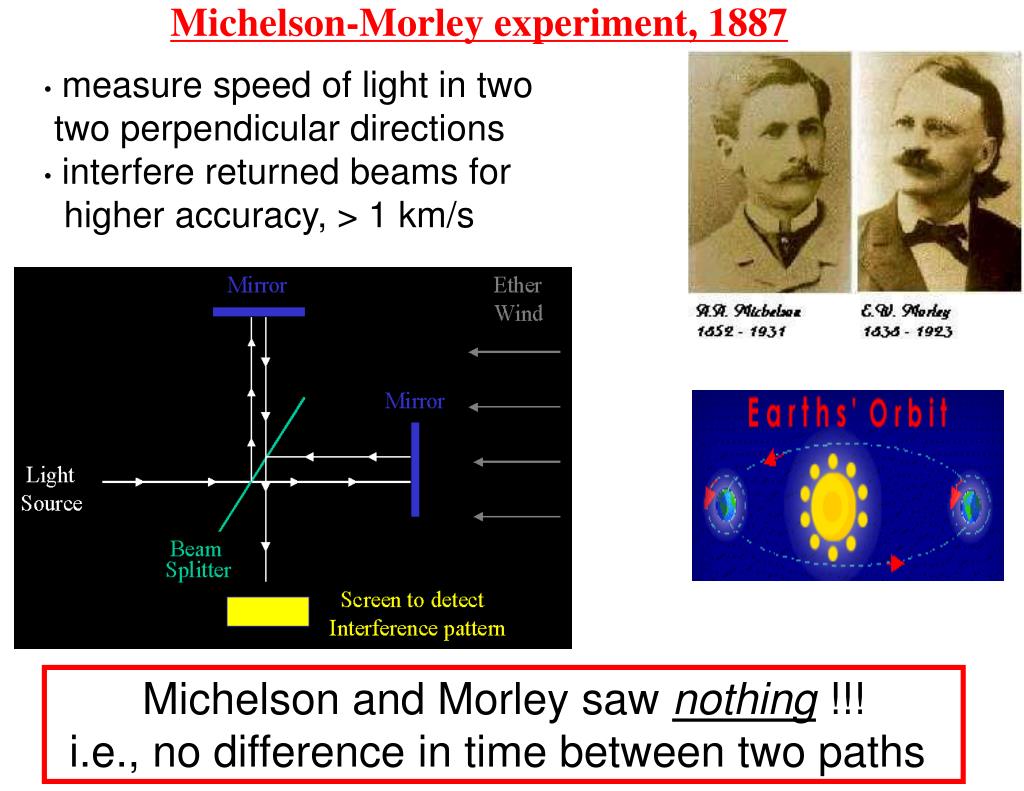

  39. Michelson-Morley experiment, 1887 • measure speed of light in two • two perpendicular directions • interfere returned beams for • higher accuracy, > 1 km/s Michelson and Morley saw nothing !!! i.e., no difference in time between two paths

  40. View of experiment from Ether • We are moving with v relative to Ether, so from Ether we look like we are moving in the opposite direction, i.e., with -v Michelson and Morley saw nothing !!! i.e., no difference in time between two paths

  41. There is no ether Electromagnetic waves are special: A time-changing electric field induces a magnetic field, and vice-versa without any “ether”.

  42. Postulates of special relativity Postulates: 1.) All laws of nature are same in all frames 2.) Speed of light, c is same in all all inertial frames Albert Einstein, 1879-1955

  43. lecture 4 Simultaneity and relativity of time and length Announcements: • lecture 3 is posted • homework 2 (due Wed, Jan 26 in class) is posted • homework 1 solutions are posted • reading for this week is: • finish Ch 1, start Ch 2 in TZD

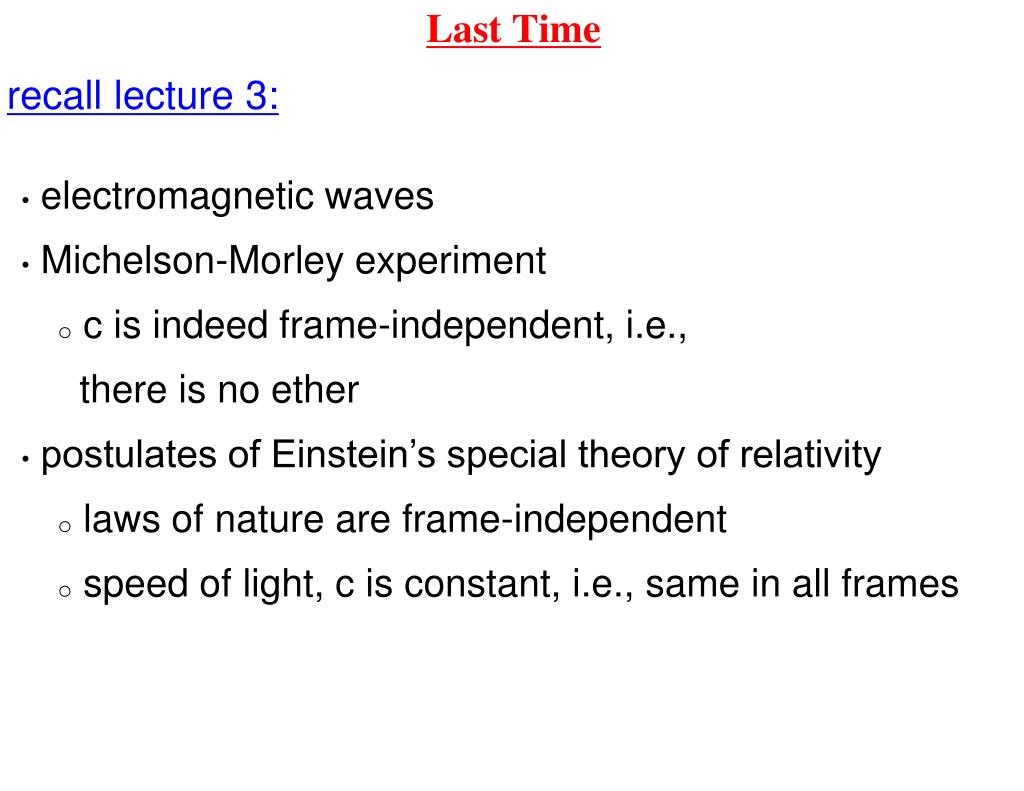

  44. Last Time recall lecture 3: • electromagnetic waves • Michelson-Morley experiment • c is indeed frame-independent, i.e., • there is no ether • postulates of Einstein’s special theory of relativity • laws of nature are frame-independent • speed of light, c is constant, i.e., same in all frames

  45. Today Time to talk about time: • space-time event • synchronization of clocks • simultaneity is frame dependent • relativity of time

  46. clicker question Speed of light in a moving frame • Q: Suppose earth is moving through space with speed v in a direction • opposite to light, that moves with speed c=3x108m/s with respect to • far away stars. • According to Einstein’s relativitywhat is speed of light as viewed from • the earth? • c, b) c+v, c) c-v, d) none of the above • A: There is no ether and light moves with the same speed, c in all • inertial reference frames v c * Assume the earth is not accelerating

  47. Space-time event location and time of events • “old” (non-relativistic) thinking: • 3D spatial coordinate (x,y,z) at time t • new (relativistic) thinking: • 4D space-time (x,y,z,t) labeling space-time events • same event has different coordinates in different • frames: • (x,y,z,t) v (x’,y’,z’,t’) • space-like and time-like events t t’ (3,2) x’ x

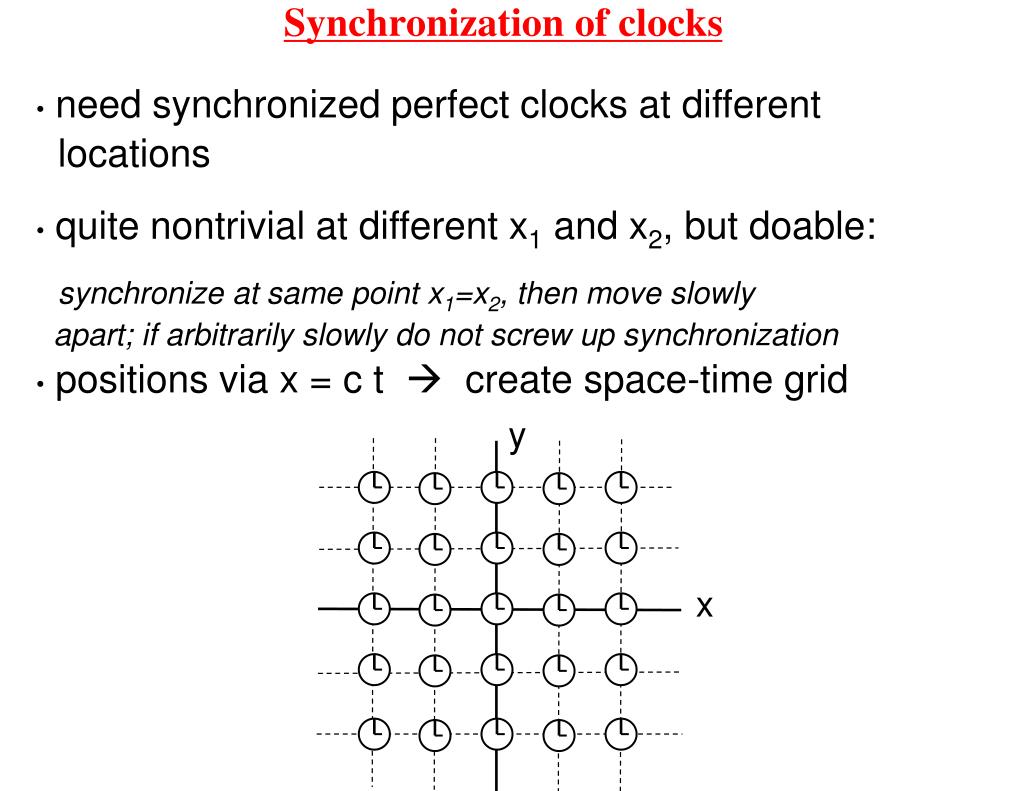

  48. Synchronization of clocks • need synchronized perfect clocks at different • locations • quite nontrivial at different x1 and x2, but doable: • synchronize at same point x1=x2, then move slowly • apart; if arbitrarily slowly do not screw up synchronization • positions via x = ctcreate space-time grid y x

  49. Summary of time dilation and length contraction

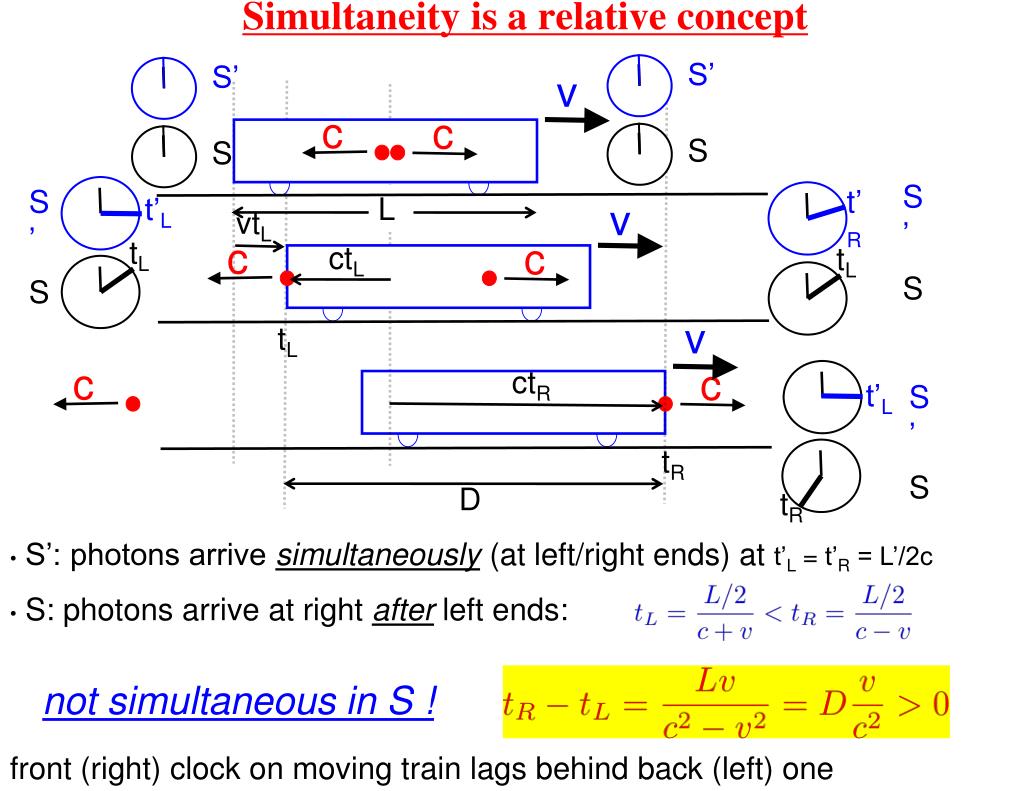

  50. Simultaneity is a relative concept S’ S’ c c S S S’ S’ L v vtL c v c tL tL ctL v t’R t’L S S tL c c ctR S’ t’L tR tR S D • S’: photons arrive simultaneously (at left/right ends) at t’L = t’R = L’/2c • S: photons arrive at right after left ends: • not simultaneous in S ! • front (right) clock on moving train lags behind back (left) one
