A kinematic cost

A kinematic cost

Reza Shadmehr


A kinematic cost

Subject’s performance

Minimum jerk motion

  • Point to point movements generally exhibit similar characteristics:

  • hand trajectory is along a straight line

  • hand speed follows a smooth, bell shaped time course

  • hand speed is typically symmetric about the midpoint of the movement.

Flash and Hogan, J Neurosci 1985


A kinematic cost

Straight hand paths often translate into curved trajectories for the joints of the arm. This computation is performed using inverse kinematics transformation.

Average hand path for normal subjects with eyes open.

Subjects rested their hand on a board at chest level and were shown a small cylinder to reach to at a target location.

Sergio & Scott, Exp Brain Res 1998


A kinematic cost

Movements tend to be straight, even in congenitally blind individuals

In the blindfold condition, the experimenter takes the hand of the subject to the start and target positions and asks them to make a few practice movements between the two points.

Same procedure is used for the blind individuals.

Blind individuals tend to show even straighter movements that those with vision.

Sergio & Scott, Exp Brain Res 1998


A kinematic cost

We adapt our movements so that they appear straight to us

Subject sits in front of a digitizing tablet and holds a mouse. He is viewing an image that corresponds to the position of his finger. He is given a target to move to. During the movement, the computer either displays his actual hand position, or an altered version of it. If he is shown his actual hand position, the hand moves in a fairly straight line.

Here, the perturbation is a hemi-sinusoid in the negative x-direction. The perturbation makes it so that a straight hand path will become slightly curved to the left. The alteration is so small that the subjects are not consciously aware of it. Despite this, subjects change their hand motion (after practice) so that it appears to them that the hand is moving in a nearly straight path.

no perturbation

Post-perturbation

after practice

Wolpert et al., Exp Brain Res 1995


A kinematic cost

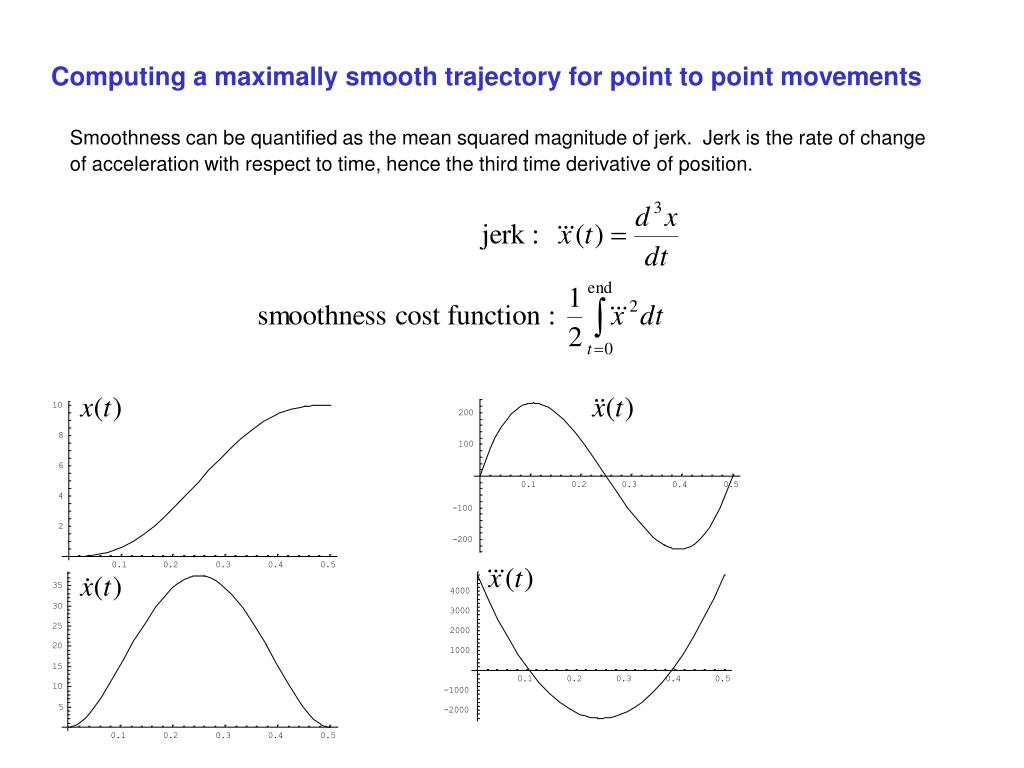

Computing a maximally smooth trajectory for point to point movements

Smoothness can be quantified as the mean squared magnitude of jerk. Jerk is the rate of change of acceleration with respect to time, hence the third time derivative of position.


A kinematic cost

Objective: find the function x(t) that minimizes the cost

Approach: calculus of variations


A kinematic cost

Minimizing the cost function: calculus of variation


A kinematic cost

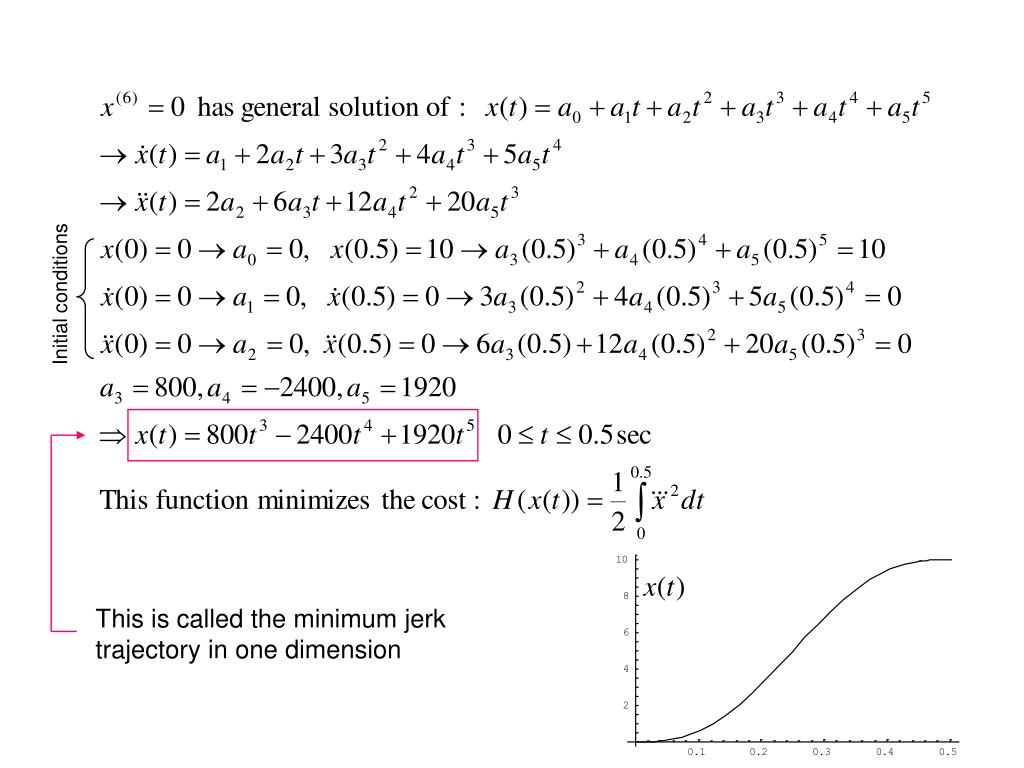

Initial conditions

This is called the minimum jerk trajectory in one dimension


A kinematic cost

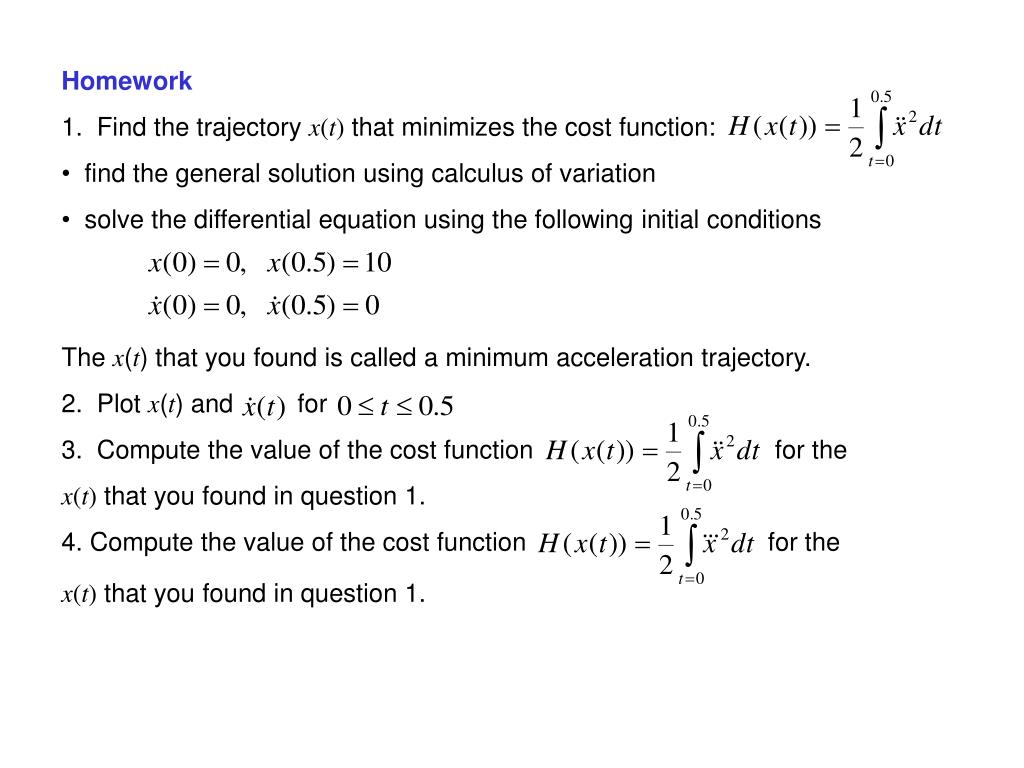

  • Homework

  • 1. Find the trajectory x(t) that minimizes the cost function:

  • find the general solution using calculus of variation

  • solve the differential equation using the following initial conditions

  • The x(t) that you found is called a minimum acceleration trajectory.

  • 2. Plot x(t) and for

  • 3. Compute the value of the cost function for the

  • x(t) that you found in question 1.

  • 4. Compute the value of the cost function for the

  • x(t) that you found in question 1.


A kinematic cost

General Form of the Minimum Jerk Trajectory

The limb is at position x=xi. We wish to move to x=xf in t=a seconds.


A kinematic cost

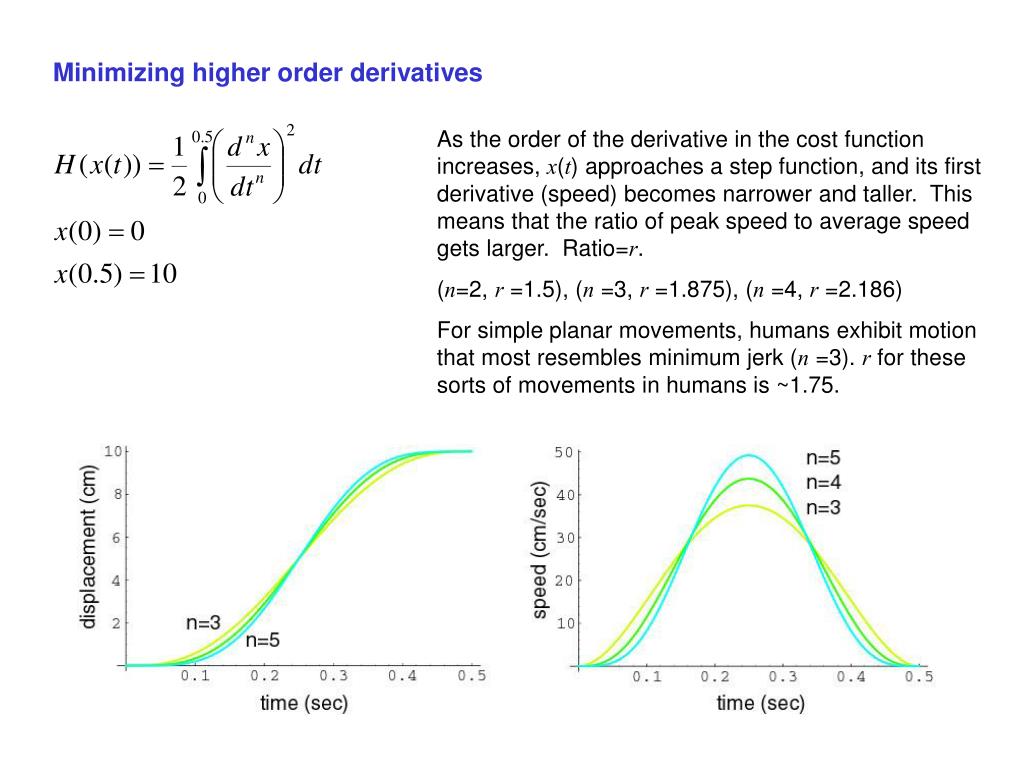

Minimizing higher order derivatives

As the order of the derivative in the cost function increases, x(t) approaches a step function, and its first derivative (speed) becomes narrower and taller. This means that the ratio of peak speed to average speed gets larger. Ratio=r.

(n=2, r =1.5), (n =3, r =1.875), (n =4, r =2.186)

For simple planar movements, humans exhibit motion that most resembles minimum jerk (n =3). r for these sorts of movements in humans is ~1.75.


A kinematic cost

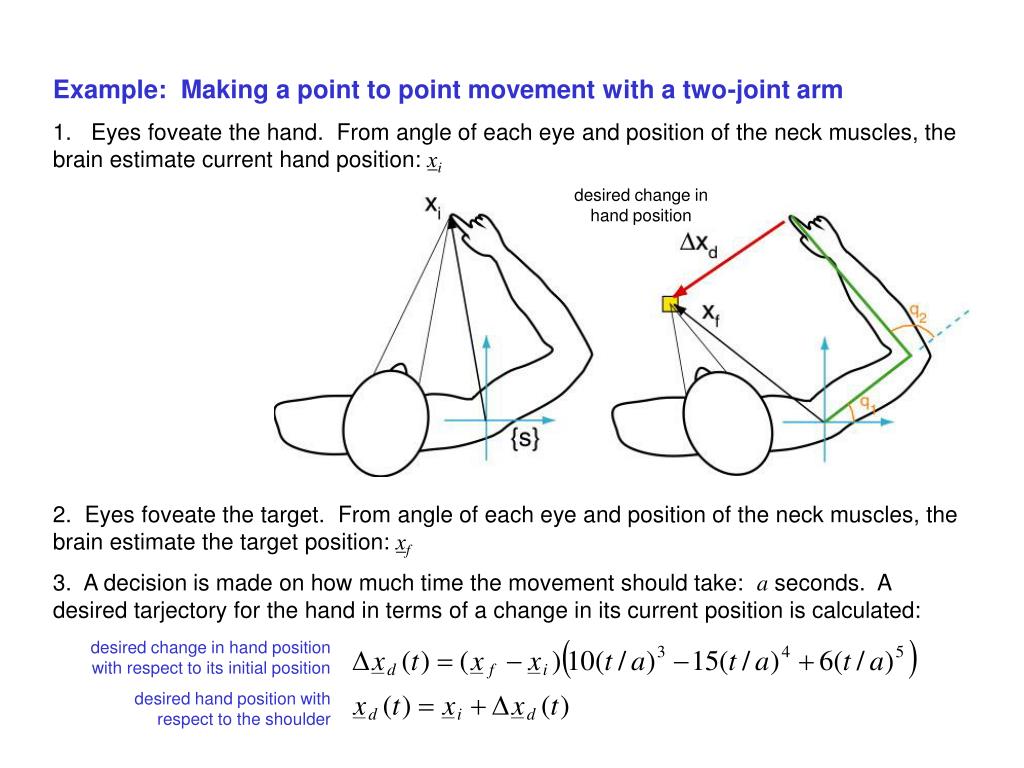

Example: Making a point to point movement with a two-joint arm

1. Eyes foveate the hand. From angle of each eye and position of the neck muscles, the brain estimate current hand position: xi

desired change in hand position

2. Eyes foveate the target. From angle of each eye and position of the neck muscles, the brain estimate the target position: xf

3. A decision is made on how much time the movement should take: a seconds. A desired tarjectory for the hand in terms of a change in its current position is calculated:

desired change in hand position

with respect to its initial position

desired hand position with respect to the shoulder


A kinematic cost

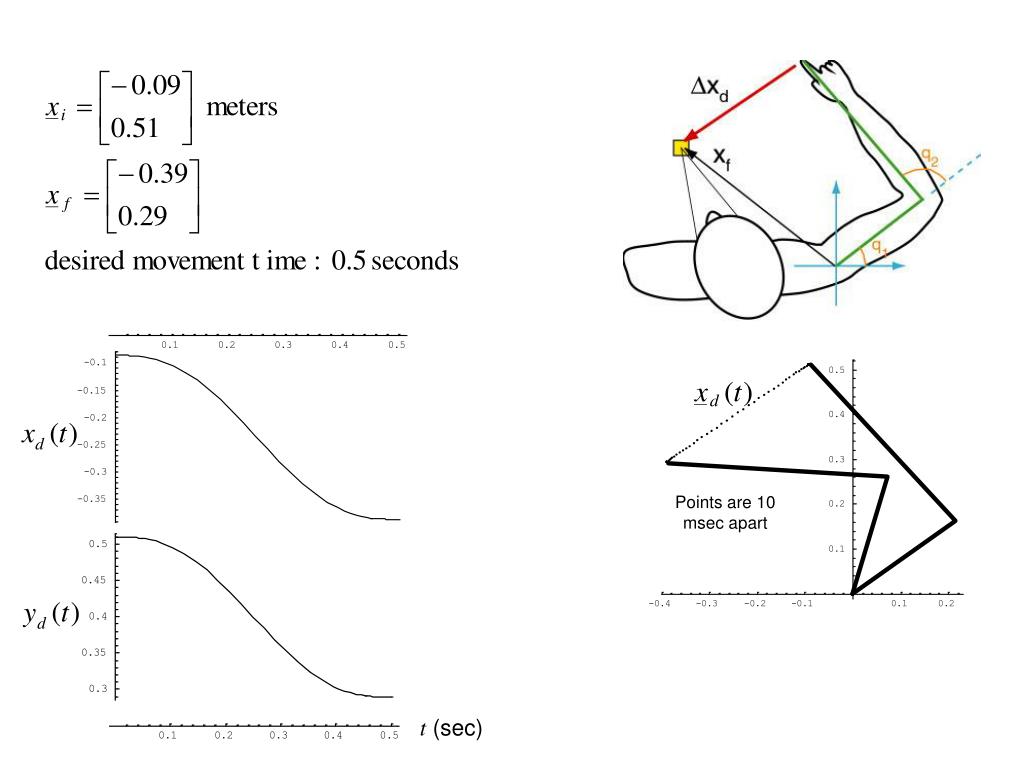

Points are 10 msec apart

t (sec)


A kinematic cost

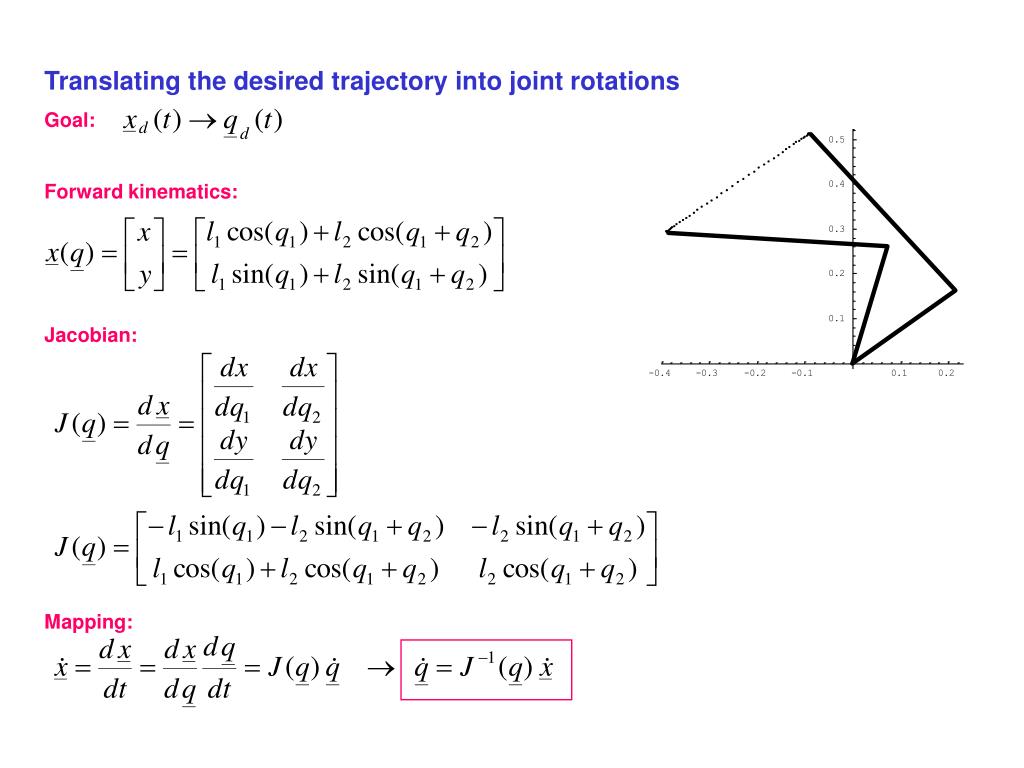

Translating the desired trajectory into joint rotations

Goal:

Forward kinematics:

Jacobian:

Mapping:


A kinematic cost

m/s

m

Translating the desired trajectory into joint rotations

With the inverse Jacobian, we can map desired hand velocities into joint velocities. Velocities are change in position, so if we know the initial hand position, we can use this map to calculate what rotations the joints need to do to bring the hand to the desired target.

rad/s


A kinematic cost

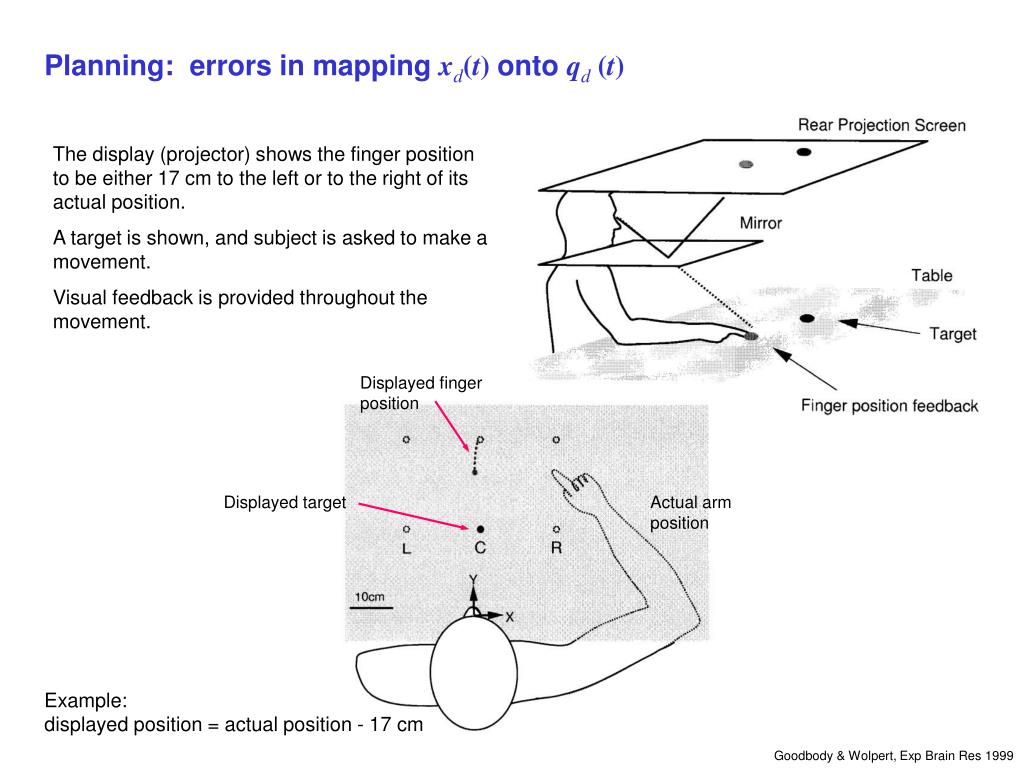

Planning: errors in mapping xd(t) onto qd(t)

The display (projector) shows the finger position to be either 17 cm to the left or to the right of its actual position.

A target is shown, and subject is asked to make a movement.

Visual feedback is provided throughout the movement.

Displayed finger

position

Displayed target

Actual arm

position

Example:

displayed position = actual position - 17 cm

Goodbody & Wolpert, Exp Brain Res 1999


A kinematic cost

Dx

Dxd

Dq

Dqd

perceived angular

position of the arm

If there were no visual feedback during the movement, one would expect that the hand would move to the right of the target.

target

perceived hand

position

actual hand

position


A kinematic cost

gain

If visual feedback was available during the movement, we would see that our hand is not moving to the target, and so we would incorporate this error into the desired trajectory as the error became available. This is an example of feedback control. In the following simulation, we have assumed that errors in position are added to the desired hand trajectory (with a moderate gain).

motor

commands

arm

dynamics

+

perceived error

in arm position

perceived

position of the arm

visual

distortion

+

_

actual arm

position

perceived arm

position


A kinematic cost

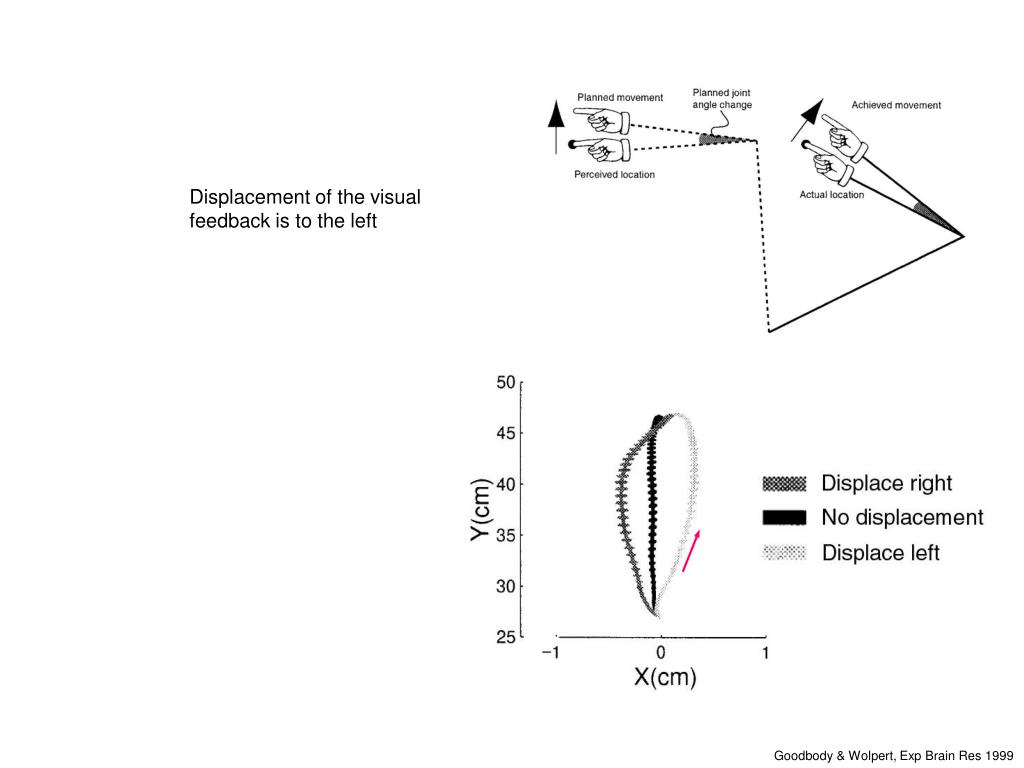

Displacement of the visual feedback is to the left

Goodbody & Wolpert, Exp Brain Res 1999
