  1. Energy Basics Mr. Clark Bethpage HS AP Environmental Science

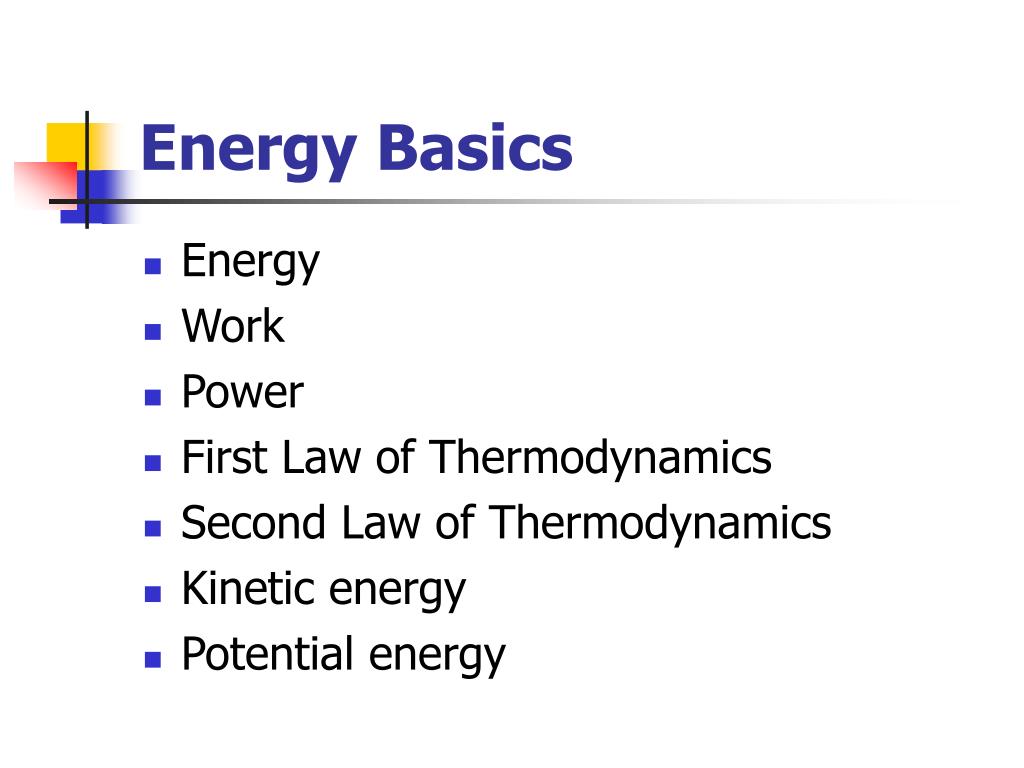

  2. Energy Basics • Energy • Work • Power • First Law of Thermodynamics • Second Law of Thermodynamics • Kinetic energy • Potential energy

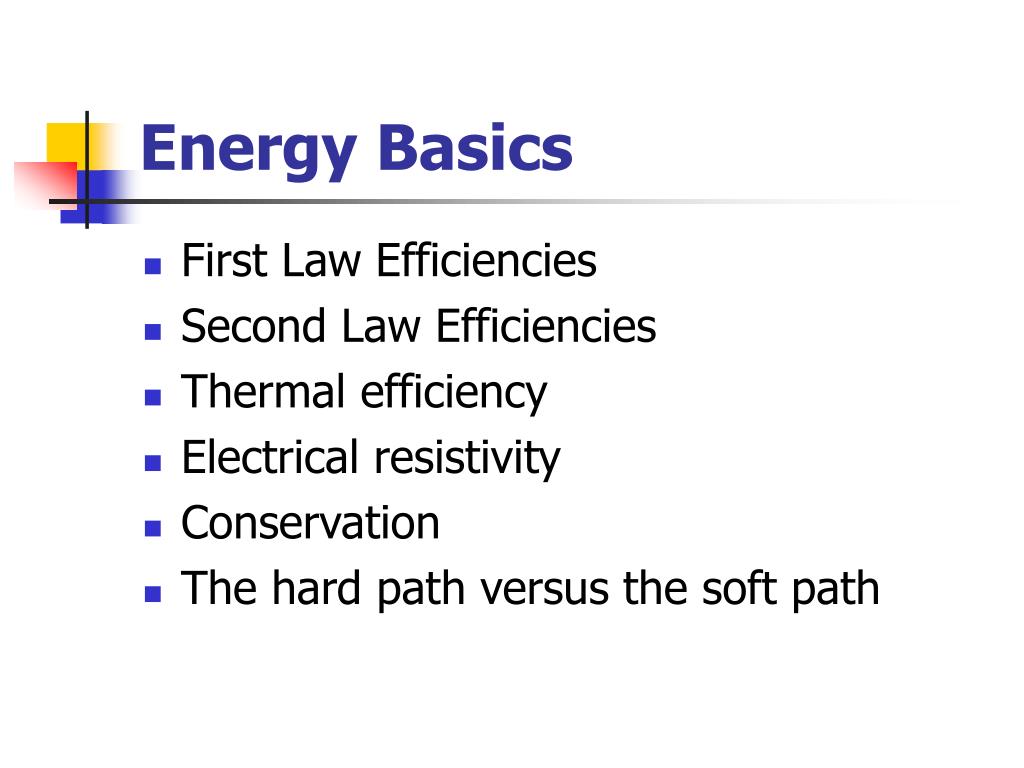

  3. Energy Basics • First Law Efficiencies • Second Law Efficiencies • Thermal efficiency • Electrical resistivity • Conservation • The hard path versus the soft path

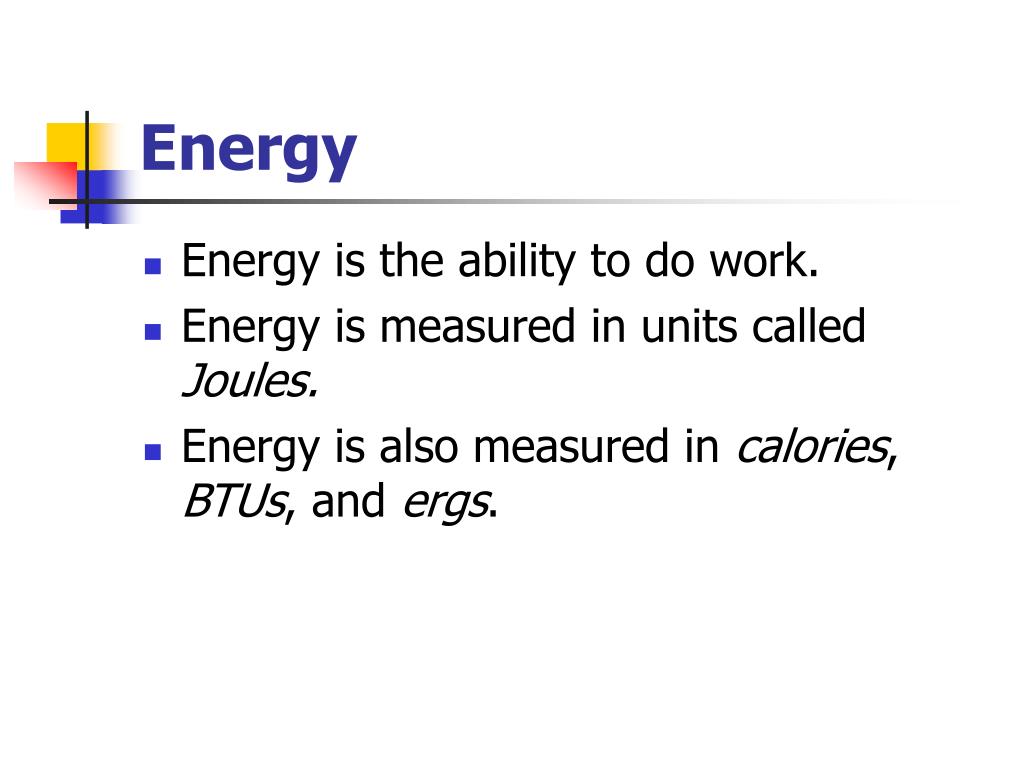

  4. Energy • Energy is the ability to do work. • Energy is measured in units called Joules. • Energy is also measured in calories, BTUs, and ergs.

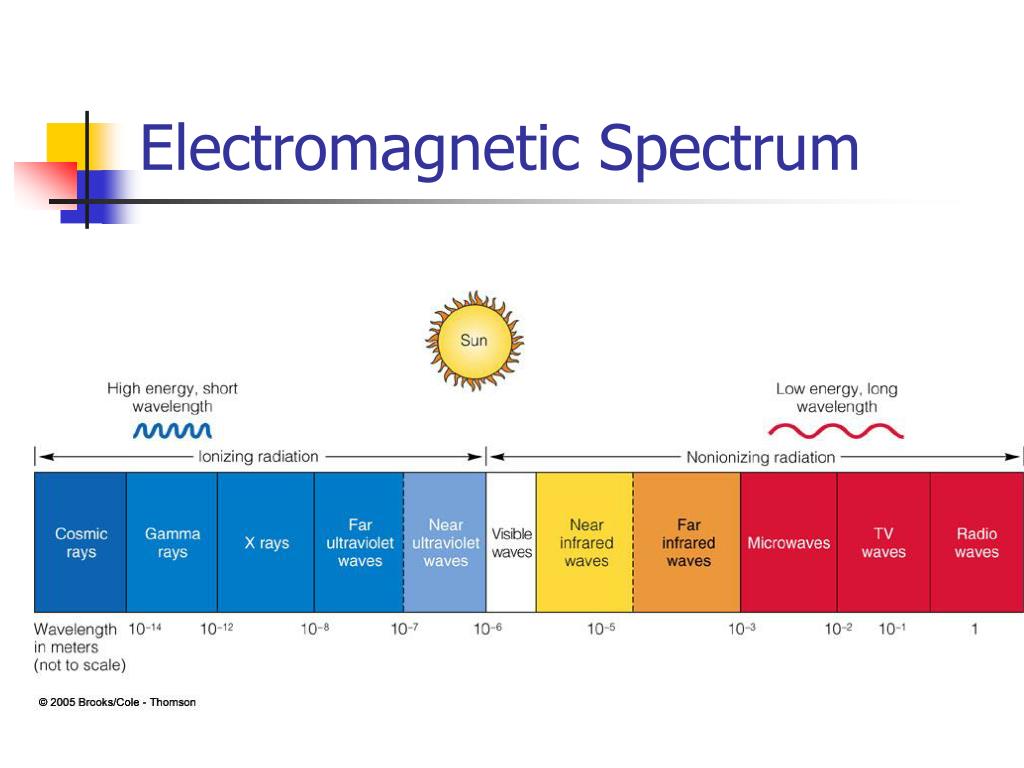

  5. Electromagnetic Spectrum

  6. Convection Conduction Radiation Heat from a stove burner causes atoms or molecules in the pan’s bottom to vibrate faster. The vibrating atoms or molecules then collide with nearby atoms or molecules, causing them to vibrate faster. Eventually, molecules or atoms in the pan’s handle are vibrating so fast it becomes too hot to touch. Heating water in the bottom of a pan causes some of the water to vaporize into bubbles. Because they are lighter than the surrounding water, they rise. Water then sinks from the top to replace the rising bubbles.This up and down movement (convection) eventually heats all of the water. As the water boils, heat from the hot stove burner and pan radiate into the surrounding air, even though air conducts very little heat. Transfer of Energy

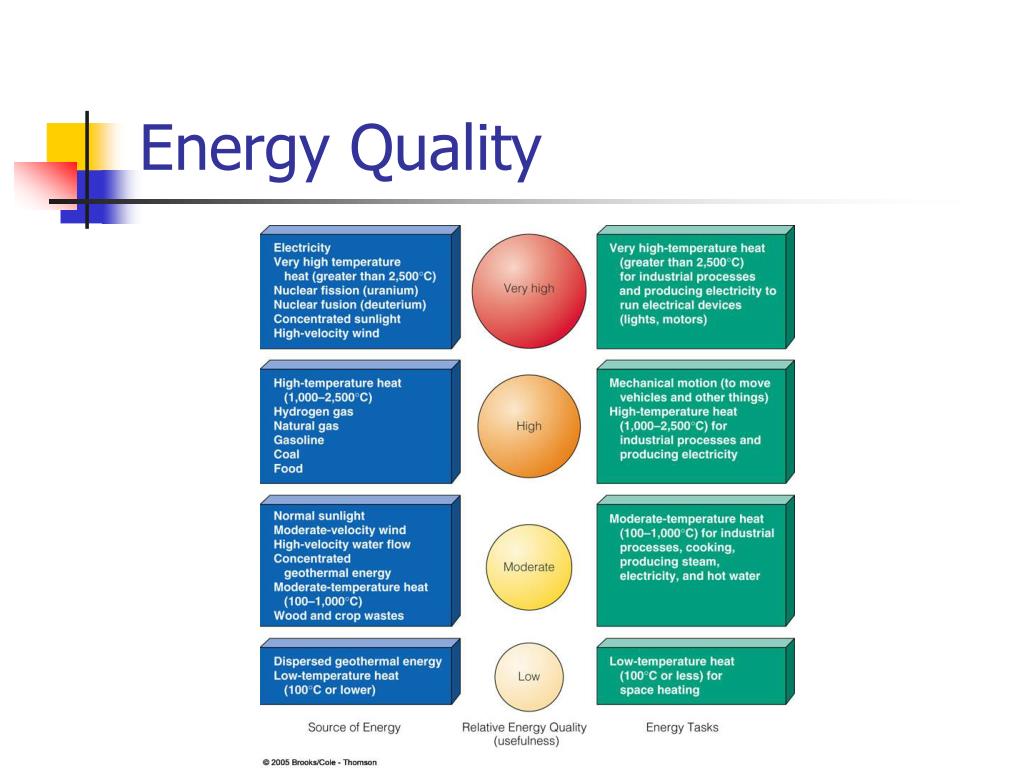

  7. Energy Quality

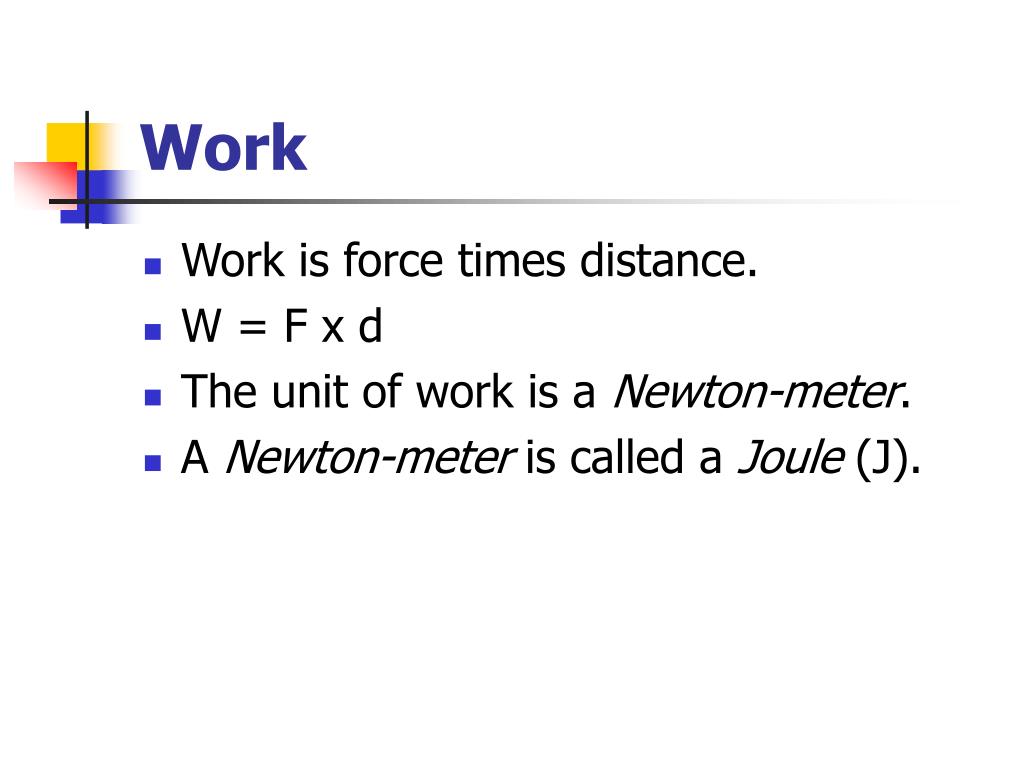

  8. Work • Work is force times distance. • W = F x d • The unit of work is a Newton-meter. • A Newton-meter is called a Joule (J).

  9. Power • Power is the rate that energy is used. • Power is equal to work / time. • P = W/t • One joule / second is a watt. • Electrical Power can also be calculated by another formula. • Electrical Power = voltage x current. • P = V x I watts = volts x amps

  10. First Law of Thermodynamics • Energy is neither created nor destroyed but is always conserved and transformed from one kind to another. • Energy only changes form. • You cannot get something from nothing. • Energy in = energy out

  11. Second Law of Thermodynamics • Energy always goes from a more usable form (high quality) to a less usable form. (low quality) • All systems move to maximum entropy.

  12. Kinetic Energy • Kinetic energy is the energy of motion. • KE = ½ mv2 where m is mass and v is velocity.

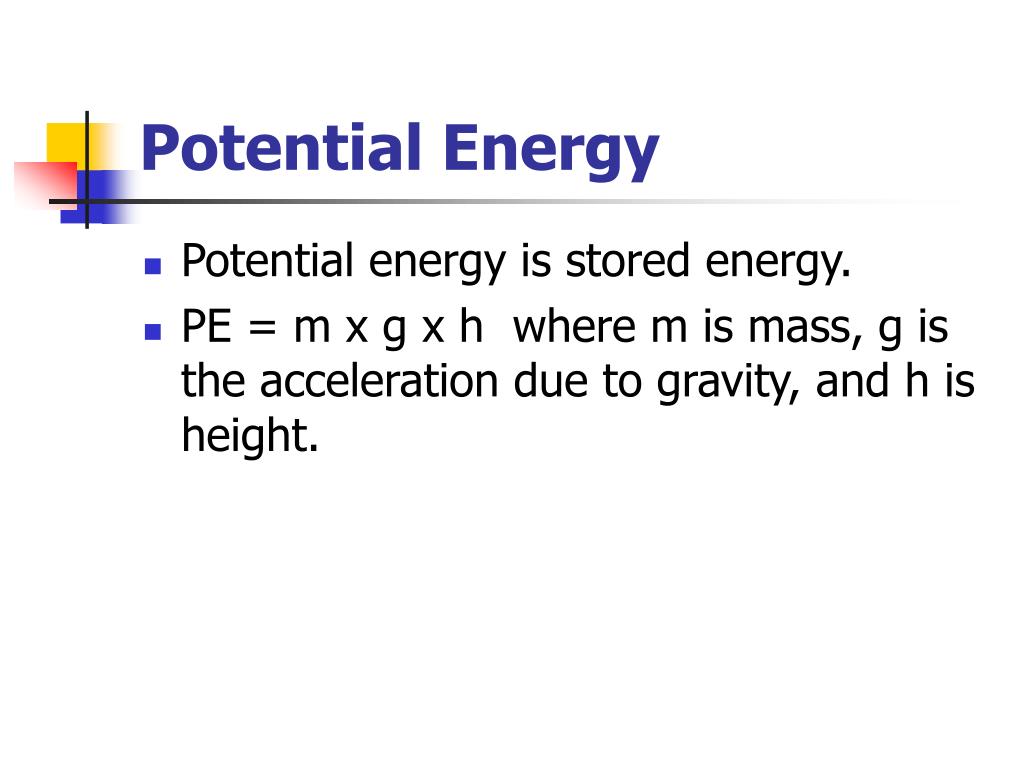

  13. Potential Energy • Potential energy is stored energy. • PE = m x g x h where m is mass, g is the acceleration due to gravity, and h is height.

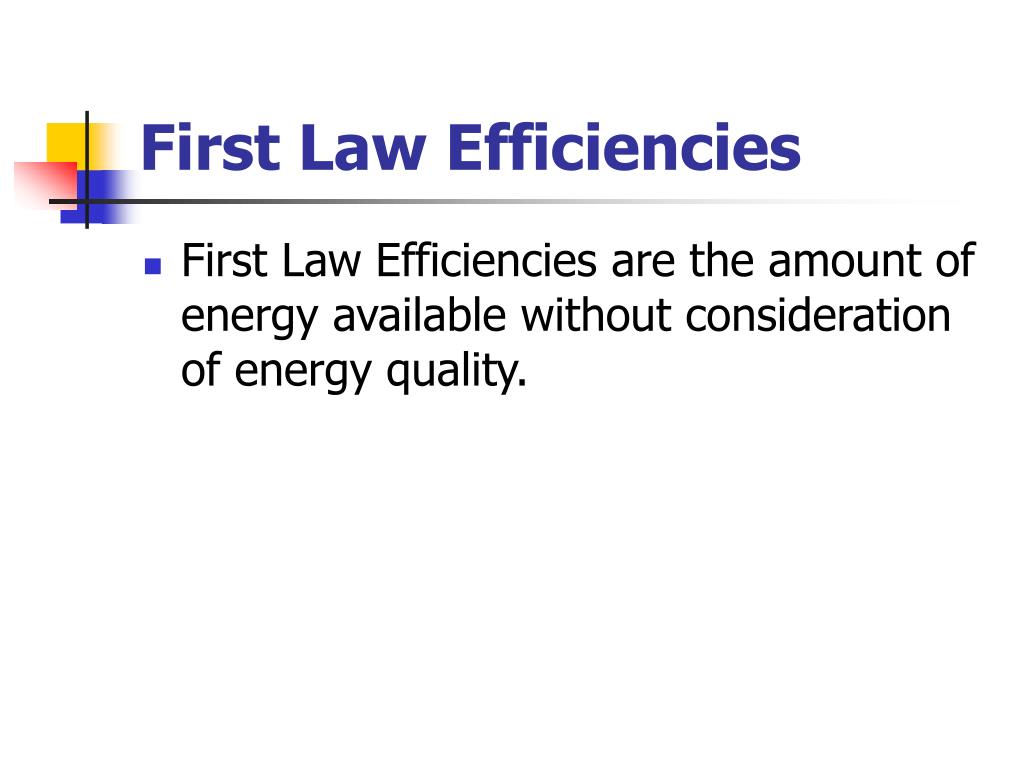

  14. First Law Efficiencies • First Law Efficiencies are the amount of energy available without consideration of energy quality.

  15. Second Law Efficiencies • Second Law Efficiencies are the amount of energy available with consideration of energy quality.

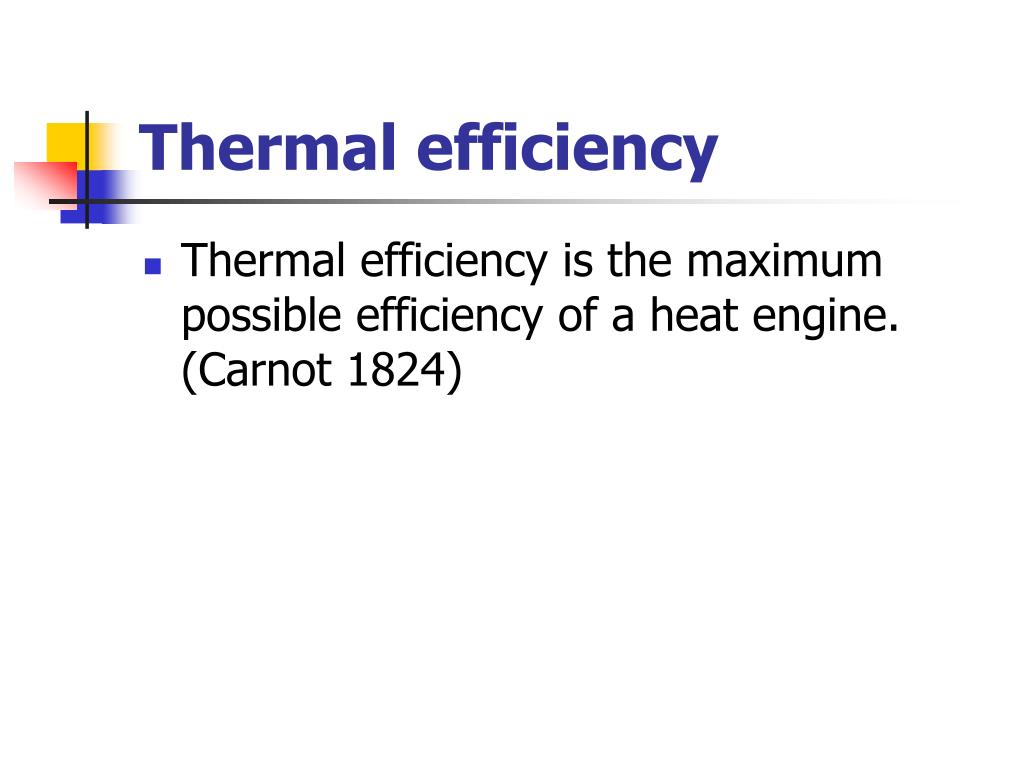

  16. Thermal efficiency • Thermal efficiency is the maximum possible efficiency of a heat engine. (Carnot 1824)

  17. Electrical resistivity • Electrical resistivity is what causes electrical energy to be converted to heat energy. • It is like electrical friction.

  18. Conservation • Conservation is saving energy whenever possible.

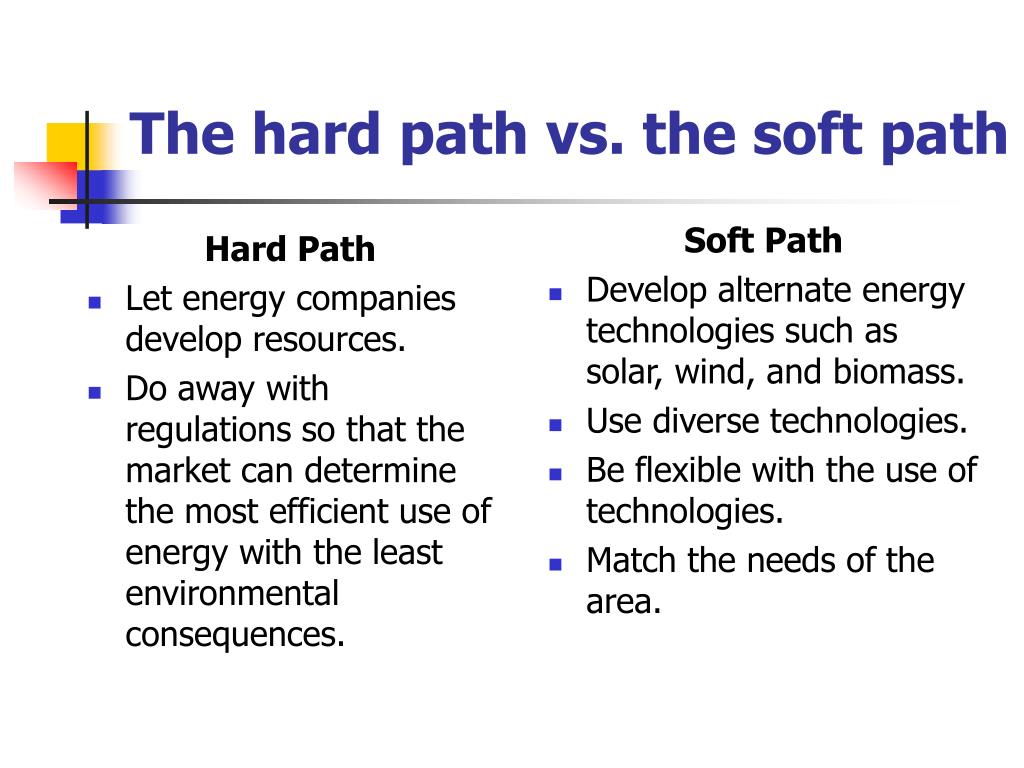

  19. Hard Path Let energy companies develop resources. Do away with regulations so that the market can determine the most efficient use of energy with the least environmental consequences. Soft Path Develop alternate energy technologies such as solar, wind, and biomass. Use diverse technologies. Be flexible with the use of technologies. Match the needs of the area. The hard path vs. the soft path
