Presentation Transcript


Appsd

http://apps.usd.edu/escistudy/geoltime.pl

This is from

Tim Heaton’s

Webpage.

Go to the above

URL to test

your knowledge

of the Geologic

Time Scale.

Quiz on Thursday.


Appsd

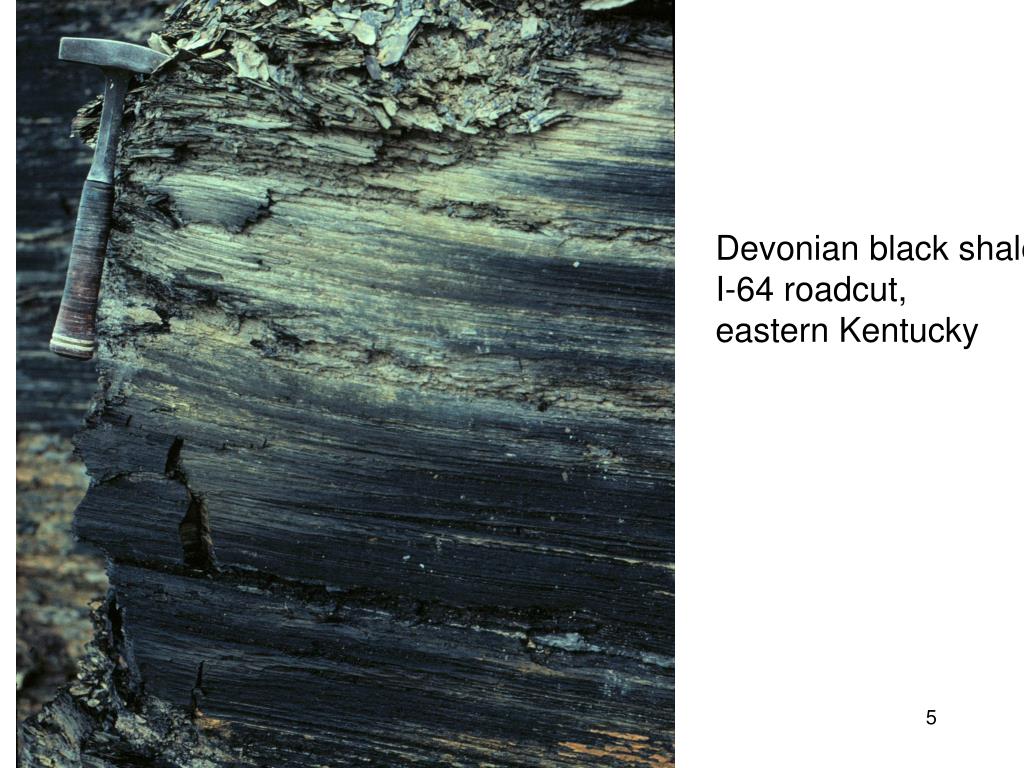

Devonian black shale

I-64 roadcut,

eastern Kentucky

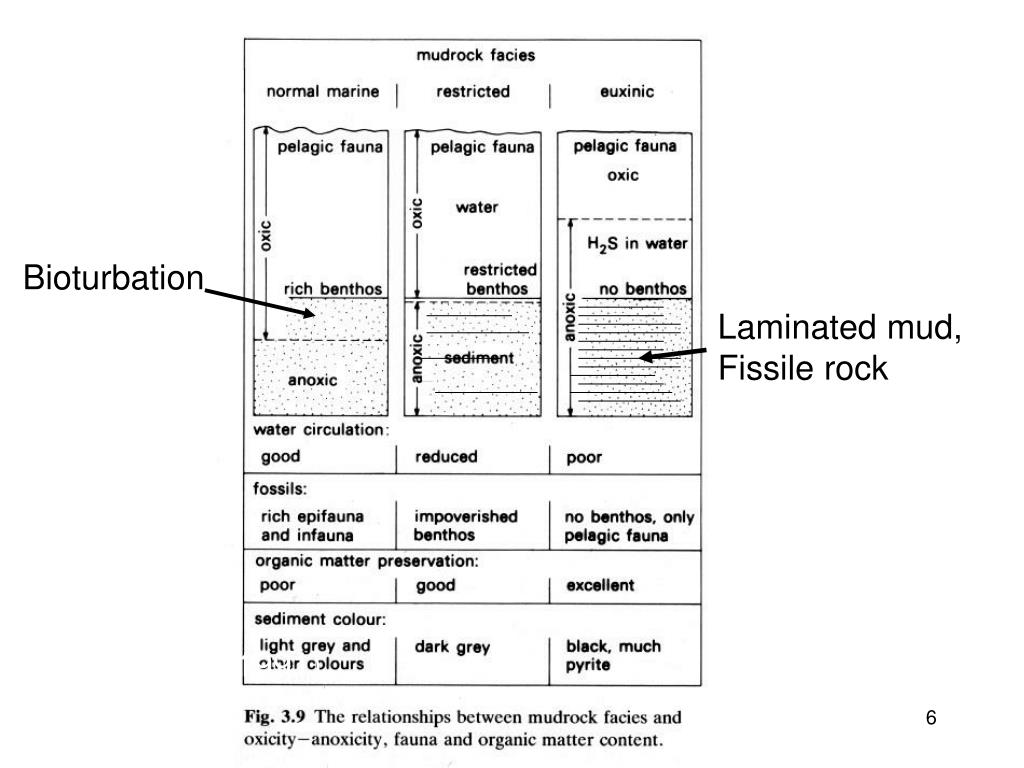

Appsd

Bioturbation

Laminated mud,

Fissile rock

from Tucker (1991)

p. 104


Appsd

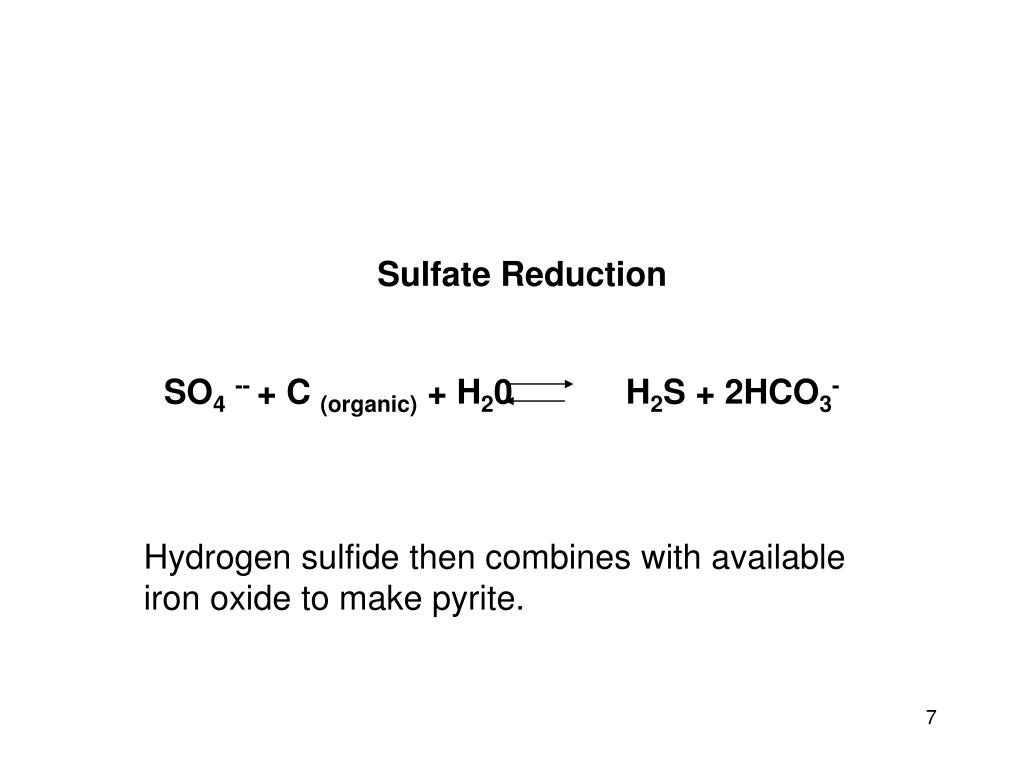

Sulfate Reduction

SO4-- + C (organic) + H20H2S + 2HCO3-

Hydrogen sulfide then combines with available

iron oxide to make pyrite.


Appsd

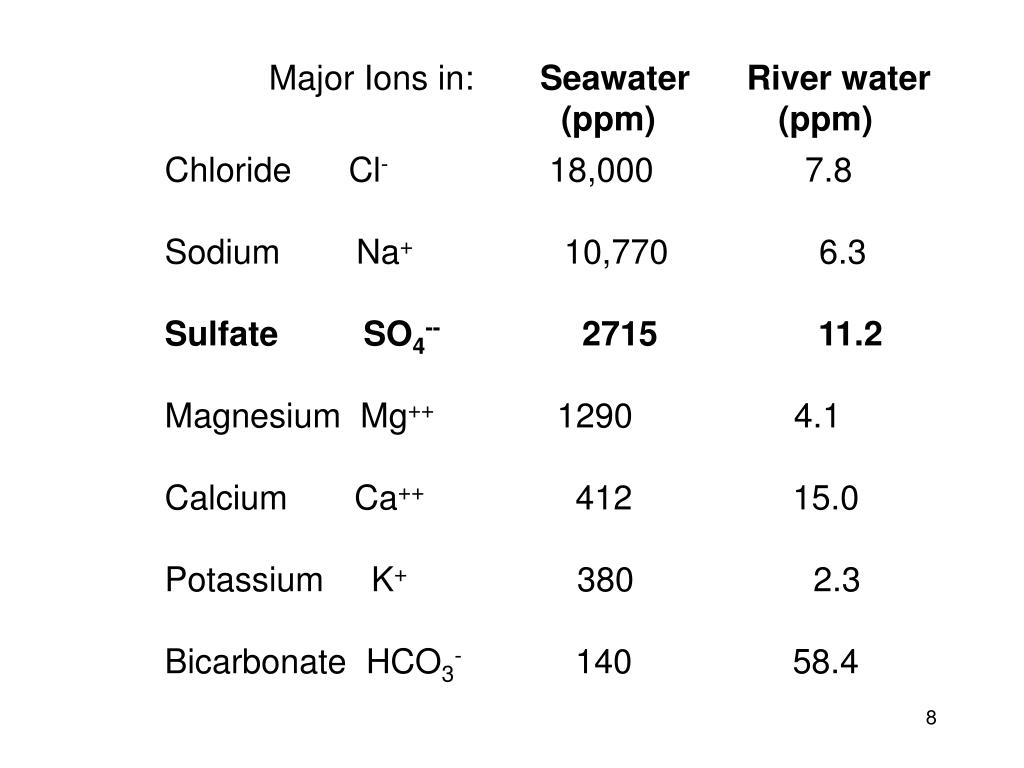

Major Ions in: SeawaterRiver water

(ppm) (ppm)

Chloride Cl- 18,000 7.8

Sodium Na+ 10,770 6.3

Sulfate SO4-- 2715 11.2

Magnesium Mg++ 1290 4.1

Calcium Ca++ 412 15.0

Potassium K+ 380 2.3

Bicarbonate HCO3- 140 58.4


Appsd

Pyrite is abundant in marine mudstones, but, because the sulfate concentration in most streams and groundwater is low, it is absent from most non-marine

mudstones.


Appsd

Idealized

Midcontinent

Cyclothem

(Pennsylvanian Age)


Appsd

This is where petroleum

originates:organic matter

in black shale (photosynthesis

by marine algae). This organic

material is commonly called

kerogen.

After burial and heating, the

hydrocarbons migrate upward,

and are (possibly) trapped

before they reach the surface.


Appsd

Battlement Mesa, Colorado-- where Exxon had a go at

production from oil shale in the middle 1970’s, but

went bust in the early 1980’s.

Oilshale--mudrock rich in kerogen (a potential source rock

for petroleum) that has not been buried deeply enough to

generate oil.

Optimum temperatures for formation of hydrocarbons from kerogen--

about 20º-90º C (burial to between about 600 and 6000 meters)


Appsd

Traps-- places where upward-migrating hydrocarbons accumulate

to make an oil reservoir. (oil and gas are buoyant-- less dense than water)

Tar sand-- oil reservoir has been exposed at the surface or degraded

by bacteria; volatiles have been lost, only heavy molecules remain

(tar, asphalt; Athabaska Tar Sands near Ft. McMurray, no. Alberta)


Appsd

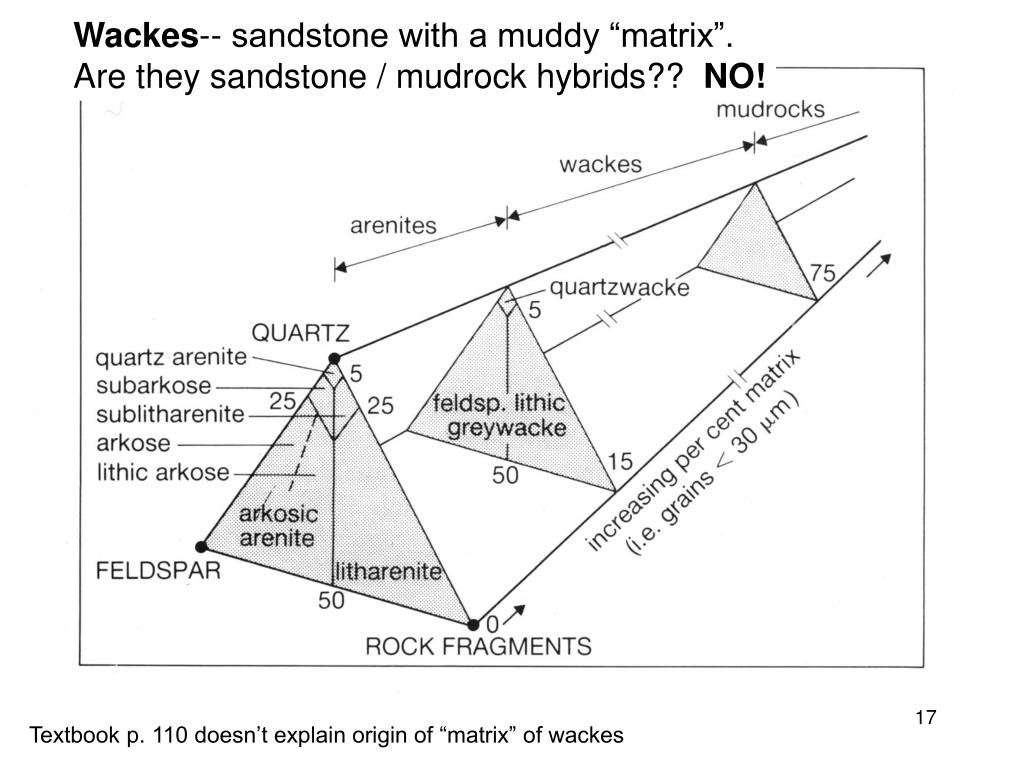

Wackes-- sandstone with a muddy “matrix”.

Are they sandstone / mudrock hybrids?? NO!

Textbook p. 110 doesn’t explain origin of “matrix” of wackes


Appsd

Costa Rica

from P.E. Potter


Appsd

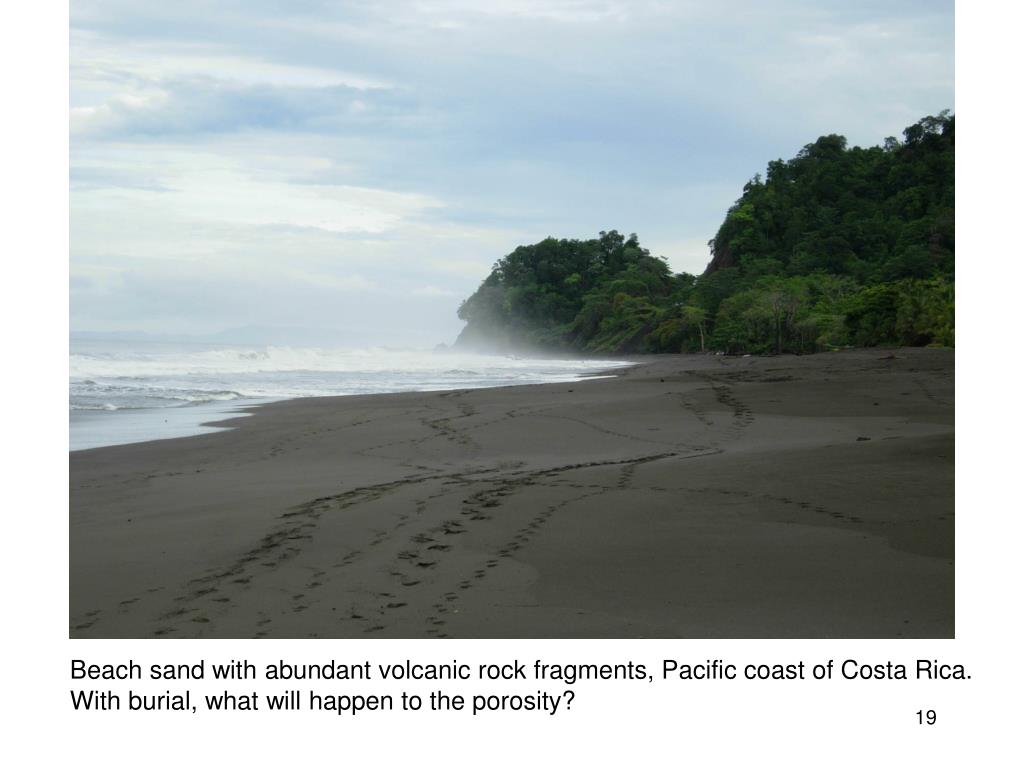

Beach sand with abundant volcanic rock fragments, Pacific coast of Costa Rica.

With burial, what will happen to the porosity?


Appsd

Origin of Wackes-- grain crushing during compaction!


Appsd

Trace fossils are structures produced

in sediments and rocks by the life

processes of organisms.

23


Appsd

From: R.H. Dott, J.Sed.Petrology, v. 53, p.21

Bioturbation = sediment mixing by organisms to the

extent that individual traces are difficult to see.

Most trace fossils have high preservation potential.

24


Appsd

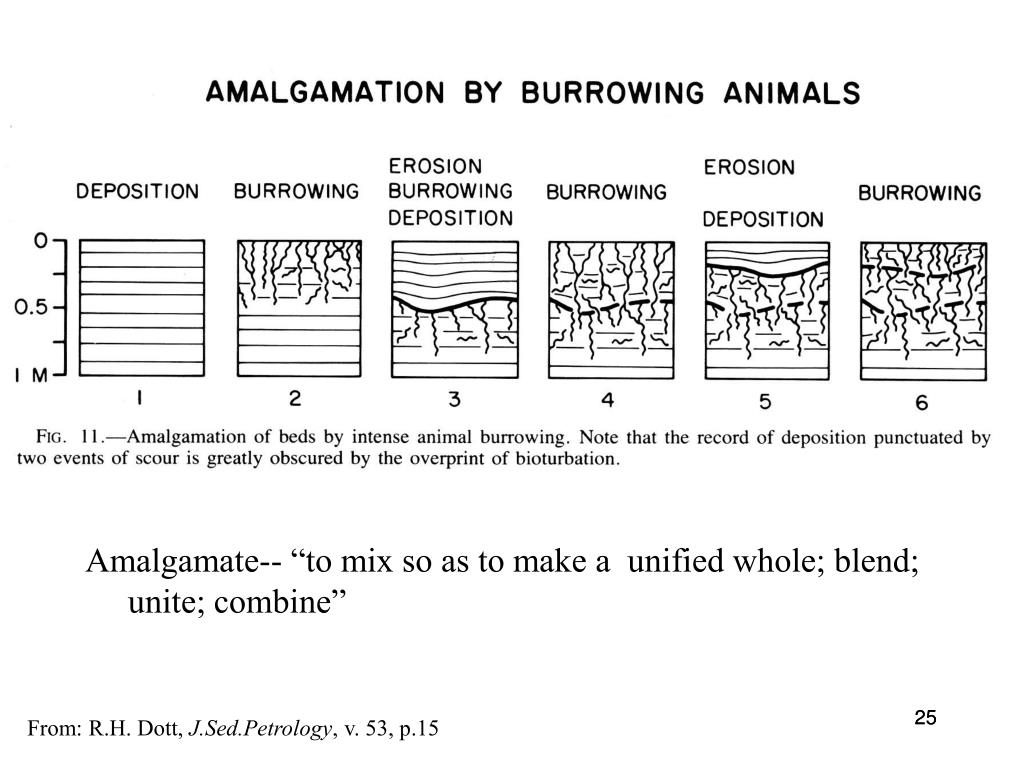

Amalgamate-- “to mix so as to make a unified whole; blend;

unite; combine”

25

From: R.H. Dott, J.Sed.Petrology, v. 53, p.15
